USER MANUAL PurEase FP3233SI BRAUN

BRAUN-branded kitchen appliance with clear glass casing and control panel (no visible text or symbols on main body)

TYPE: FP301BI

Register your product

www.braunhousehold.com

English 2 - 7

Nederlands 8 - 14

Français	15	-
Deutsch	22	-
Italiano	29	-
Português	36	-
Español	43	-
Dansk	50	-	5
Svenska	56	-
Norsk	62	-	6
Suomi	68	-	7
Türkçe	74	-	7
Česky	80	-	8
Magyar	86	-
Polski	92	-	9
Ελληνικά	99	-
Slovenčina	106	-	112
Українська	113	-	119
Română	120	-	126
عربي	127 - 134

Exploded view diagram of a brand-branded food blender with numbered parts and component labels

hard attachments 14 15 16 17 18 19 20 21

English

Safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• If the plug or cord is damaged it must, for safety reasons, be replaced by Braun or an authorised Braun repairer in order to avoid a hazard.
• DO NOT touch the sharp blades. The blender/mill assembly, knife blade and discs are very sharp, handle with care. Always hold by the finger grip at the top, away from the cutting edge, both when handling and cleaning.
  • DO NOT process hot ingredients.
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to sudden steaming.
• SCALD RISK: Hot ingredients must be allowed to cool to room temperature before placing in the bowl, goblet, mill or before blending.
• Never leave the appliance unattended when it is operating.
• Do not exceed the maximum capacities stated in the recommended usage chart.
• Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.

Function/Attachment Maxi mum Operation Time		Rest Period Between Operations
Blender 60 secs		Unplug the appliance and allow to cool down for 15 minutes
Heavy mixtures in the bowl (e.g. Dough)	60 secs
Mini chopper/mill 30 secs

- Do not lift or carry the processor by the handle - or the handle may break resulting in injury.

- Always remove the knife blade before pouring contents from the bowl.

- Keep hands and utensils out of the processor bowl and blender goblet whilst connected to the power supply.

- Always switch off the appliance and disconnect from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Never use your fingers to push food down the feed tube. Always use the pusher supplied.

- Never fit the blade assembly to the power unit without the goblet or mill jar fitted.

- Before removing the lid from the bowl, blender or mill from the power unit:

○ switch off;
- wait until the attachment/blades have completely stopped;
be careful not to unscrew the blender goblet or mill jar from the blade assembly.

- Do not use the lid to operate the processor, always use the 'OFF' button.

• This appliance will be damaged and may cause injury if the interlock mechanism is subjected to excessive force.
• Always unplug your food processor when not in use.
• Never use an unauthorised attachment.
• Never use a damaged appliance. Get it checked or repaired: see ‘service and customer care’.
• Never let the power unit, cord or plug get wet.
• Do not let excess cord hang over the edge of a table or worktop or touch hot surfaces.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Only use the appliance for its intended domestic use. Braun will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.
• Misuse of your processor, blender or mill can result in injury.
• The maximum rating is based on the attachment that draws the greatest load. Other attachments may draw less power.

Blender

• Only operate the blender with the lid in place.
• Only use the goblet with the blade assembly supplied.
• Never run the blender empty.
• Smoothie recipes - never blend frozen ingredients that have formed a solid mass during freezing, break it up before adding to the goblet.

Mini chopper/mill

• Never unscrew the jar while the mill is fitted to your appliance.
• Never remove the mill until the blades have completely stopped.
• The appliance will not work if the mill is incorrectly fitted.

Slicing/Grating Discs

- Never remove the lid until the cutting disc has completely stopped.

Before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of your appliance.
• This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Before using for the first time

1 Remove the plastic blade covers from the knife blade. Take care the blades are very sharp. These covers should be discarded as they are to protect the blade during manufacture and transit only.

2 Wash the parts see 'care and cleaning'.

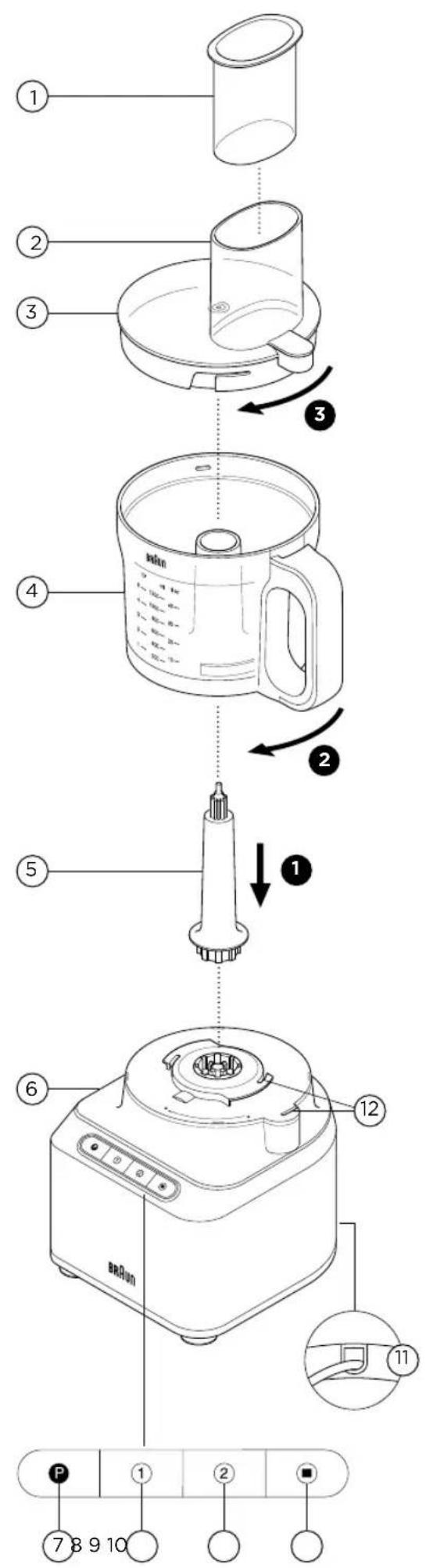

Key

Processor

① Pusher
② Feed tube
③ Lid
④ Bowl
⑤ Detachable drive shaft
⑥ Power unit
⑦ Pulse button
⑧ Speed 1 button
⑨ Speed 2 button
⑩ OFF button
⑪ Cord storage (at back)
⑫ Safety interlocks

⑬ Plastic Blender

a Blade assembly
b Sealing ring
C Goblet
d Filler cap
e Lid

A Standard Attachments

⑭ Knife blade
⑮ Dough tool
⑯ Emulsifying tool
⑰ 4mm slicing/grating disc
⑱ 2mm slicing/grating disc
⑲ Extra fine grating disc
⑳ Mini chopper/mill
②1 Citrus juicer

To Use Your Food Processor

Illustrations ① - ③

1 Fit the detachable drive shaft onto the power unit.
2 Then fit the bowl to the power unit and turn clockwise until it locks into position.
3 Fit an attachment over the bowl drive shaft.
● Always fit the bowl and attachment onto the processor before adding ingredients.
4 Fit the lid - ensuring the top of the drive shaft/tool locates into the centre of the lid.
5 Plug in, switch on and select a speed. (Refer to the recommended usage chart).

• The processor will not operate if the bowl or lid are not fitted correctly into the interlock. Check that the feed tube and bowl handle are situated to the right hand side.
• Use the pulse (P) for short bursts. The pulse will operate for as long as the button is held in position.
  6 Reverse the above procedure to remove the lid, attachments and bowl.

Important

• Your processor is not suitable for crushing or grinding coffee beans, or converting granulated sugar to caster sugar.
• When adding almond essence or flavouring to mixtures avoid contact with the plastic as this may result in permanent marking.

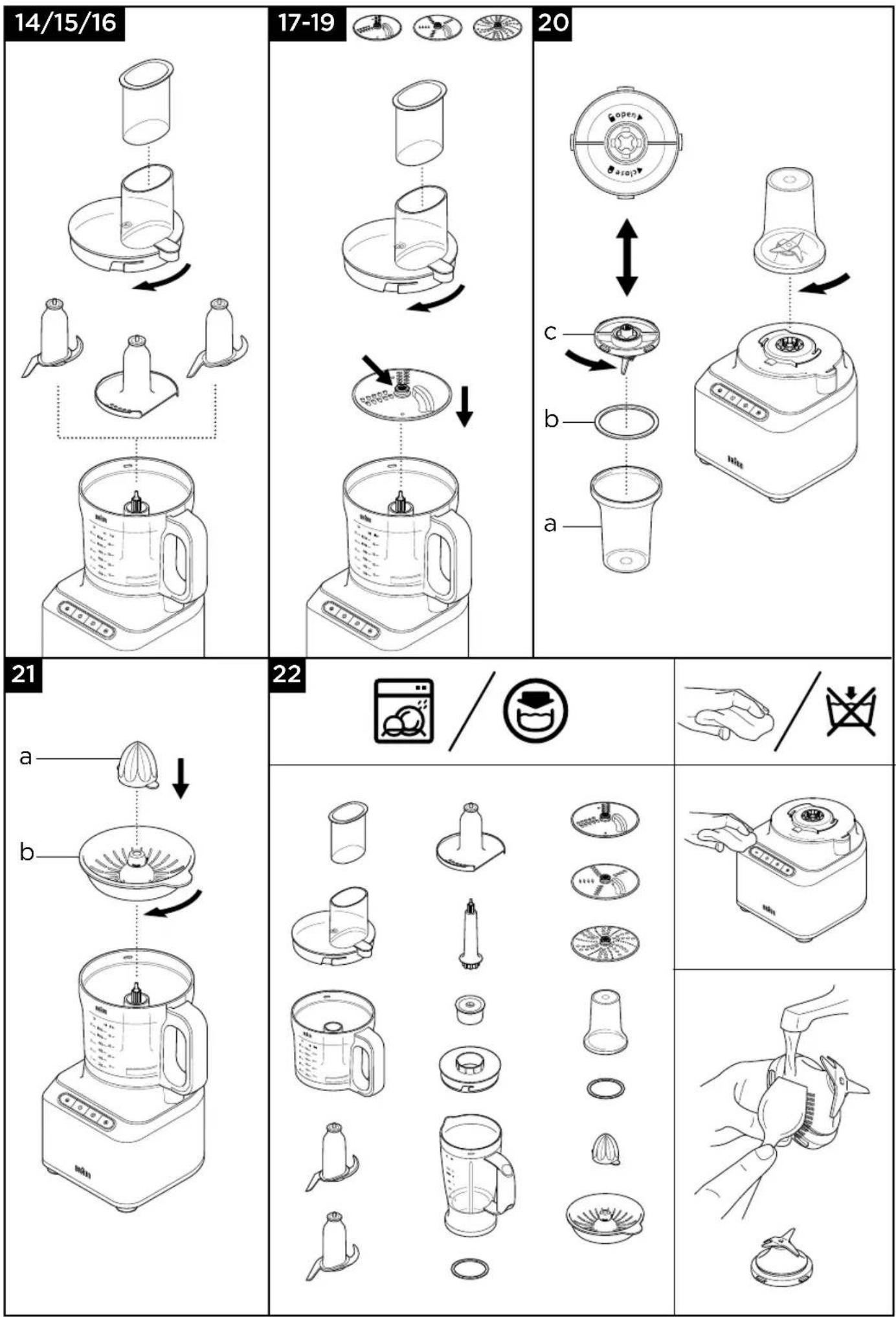

Using The Attachments

Refer to recommended usage chart for each attachment.

13 Plastic Blender

To Use Your Blender

Illustrations ④ - ⑥

1 Fit the sealing ring into the blade assembly - ensuring the seal is located correctly in the grooved area.

- Leaking will occur if the seal is damaged or incorrectly fitted.

2 Hold the underside of the blade assembly and insert the blades into the goblet - turn anti-clockwise until it is secure. Refer to the graphics on the underside of the blade assembly as follows:

• Unlocked position
• Locked position

3 Put your ingredients into the goblet.
4 Fit the lid onto the goblet and turn clockwise until it clicks. Fit the filler cap.
5 Fit the blender to the power unit and turn clockwise to lock in position.

Hints and Tips

• When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.
• Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid.
• The processing of spices is not recommended as they may damage the plastic parts.
• To blend dry ingredients - cut into pieces, remove the filler cap, then with the appliance running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly.

14 Knife Blade

Follow the instructions under 'to use your food processor'.

Hints and Tips

• For coarser textures use the pulse control.
• Cut food such as meat, bread, vegetables into cubes approximately 2cm.
• Biscuits should be broken into pieces and added down the feed tube whilst the appliance is running.
  • Take care not to over-process.
• When making pastry use fat straight from the fridge cut into 2cm cubes.

15 Dough Tool

Follow the instructions under 'to use your food processor'.

Use for yeasted dough mixes.

Hints and Tips

• Do not process for longer than 60 seconds.
• Place the dry ingredients in the bowl and add the liquid down the feed tube whilst the appliance is running. Process until a smooth elastic ball of dough is formed.
• Re-knead by hand only. Re-kneading in the bowl is not recommended as it may cause the processor to become unstable.

16 Emulsifying Tool

Follow the instructions under 'to use your food processor'.

Use for light mixtures only e.g. cream, mayonnaise.

Hints and Tips

- Ensure the bowl and tool are clean and free from grease before use.

17 - 19 Discs

To Use The Cutting Discs

1 Fit the drive shaft and bowl onto the power unit.
2 Holding by the centre grip, place the disc onto the drive shaft with the appropriate side uppermost.
3 Fit the lid.
4 Put the food in the feed tube.
5 Switch on and push down evenly with the pusher - never put your fingers in the feed tube.

Hints and Tips

• Use fresh ingredients
• Do not cut food too small. Fill the width of the feed tube fairly full. This prevents the food from slipping sideways during processing.
• When slicing or grating: food placed upright comes out shorter than food placed horizontally.
• There will always be a small amount of waste on the disc or in the bowl after processing.

20 Mini chopper/mill

a Jar
b Sealing ring
C Blade assembly

1 Put the ingredients into the jar.
2 Fit the sealing ring into the blade assembly.
3 Turn the blade assembly upside down. Lower it into the jar, blades down.
4 Screw the blade assembly onto the jar until finger tight. Refer to the graphics on the underside of the blade assembly as follows:

• Unlocked position
• Locked position

5 Place the mill onto the power unit and turn clockwise to lock in position.

6 Select Maximum speed or use the pulse (P).

Hints and Tips

• Baby food/purée - allow cooked food to cool down to room temperature before processing in the mill.
• For best results the main bowl is recommended when chopping herbs.

21 Citrus Juicer

a Cone
b Sieve

To use the citrus juicer

1 Fit the drive shaft and bowl onto the power unit.
2 Fit the sieve into the bowl - ensuring the sieve handle is locked into position directly over the bowl handle.
3 Place the cone over the drive shaft turning until it drops all the way down.
4 Cut the fruit in half. Then switch on and press the fruit onto the cone.

Hints and Tips

• For best results store and juice the fruit at room temperature and hand roll on a worktop before juicing.
• To help with juice extraction move the fruit from side to side when juicing.
• When juicing large quantities, empty the sieve regularly to prevent the build up of pulp and seeds.

Care and Cleaning

● Always switch off and unplug before cleaning.
- Handle the blender/mill blade assembly, knife blade and discs with care - they are extremely sharp.

- Some foods may discolour the plastic. This is perfectly normal and will not harm the plastic or affect the flavour of your food. Rub with a cloth dipped in vegetable oil to remove the discolouration.

Power Unit

• Wipe with a damp cloth, then dry. Ensure that the interlock area is clear of food debris.
• Do not immerse the power unit in water.
• Store excess cord in the storage area at the back of the power unit ⑪.

Service and Customer Care

• If you experience any problems with the operation of your appliance, before requesting assistance refer to the 'Troubleshooting Guide' section in the manual or visit www.braunhousehold.com.
• Warranty & Service - for detailed information see separate warranty and service leaflet or visit www.braunhousehold.com.
• Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Recommended Usage ChartDo not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.Processing information supplied is for guidance only and will vary depending on the exact recipe and ingredients being processed.Do not process hot ingredients
Tool/Attachment	Function		(Secs)
	All in one cake mixes 2 10 1.2kg total			weight
	Pastry - rubbing fat into flourAdding water to combine pastry ingredients	21-2	1010-20	300g flour weight
	Chopping fish and lean meatPâtés and terrines	2 10-30	400g max lean	beef
	Chopping vegetables Pulse 5-10 100-250g
	Chopping nuts 2 30-60			100g-200g
	Herbs 2 20-30 30-50g
	Pureeing soft fruit, cooked fruit and vegetables	2 10-30 500g
	Whipping cream (Processing times may vary,depending on fat content of cream)	2 15-20	250ml
	Mayonnaise	2 60-80	4 egg yolks
	Yeasted mixes	2 60 340g	flour	weight550g total weight
	Grating and slicing firm food items - cheese,carrots, potatoes and foods of a similar texture	2	-	Do not fill above the maximum 1.2L marked on the bowl
	Slicing softer food items - cucumbers andtomatoes	1	-
	Grates Parmesan cheese	2	-
	Use to squeeze the juice from citrus fruits e.g.oranges, lemons, limes and grapefruits.	1	-	-
	Cold liquids and drinks(Add ice/frozen ingredients to goblet last)	2 30 – 60		1.2 litre
	Milkshake/Cold milk based mixtures 2 15 – 30	litre
	Ice crushing Pulse 30 – 40 6 ice cubes			(125g)
	Batter mix(Add liquid ingredients first)	1↓2	10↓50	1 litre
	Nuts 2 10 – 30 50g
	Coffee beans 2 30 50g
	Uncooked meat (beef steak) cut into 2cm cubes	Pulse 5	50g

Troubleshooting Guide
Problem Cause Solution
The processor will not operate. No	Power.Bowl not fitted to power unit correctly.Bowl lid not locked on correctly.	Check processor is plugged in.Check that the feed tube and bowl handle are situated to the right hand side.Check that the lid interlock is located correctly into the handle area.The processor will not work if the bowl and lid are fitted incorrectly.
	Detachable drive shaft 5 not fitted to power unit.	Fit the detachable drive shaft 5 onto the power unit before fitting the bowl. The bowl tools and attachments will not operate unless the drive shaft is fitted.
Blender or mill will not operate	Blender or mill not locked on correctly.Blender or mill not assembled correctly.	Blender or mill will not operate if fitted incorrectly to the interlock.Check blade assembly is fully tightened into the goblet/jar
Processor stops during processing	Processor overloaded/maximum capacities exceeded.Lid unlocked.	Check maximum capacities stated in the recommended usage chart.Check lid is locked correctly.
Blender, or mini chopper/mill leaking from blade assembly base.	Seal missingSeal incorrectly fittedSeal damaged.	Check seal is fitted correctly and not damaged. To obtain a replacement seal see ‘service and customer care’.
Poor performance of tools/attachments	Refer to hints in relevant ‘using the attachment’ section. Check attachments are assembled correctly.

Nederlands

Hachoir/moulin compact

20 Hachoir/moulin compact

⑤ Aftagelig drivaksel

⑥ Motorenhed

⑦ Pulsknap

⑤ Avtagbar drivaksel

⑥ Strømenhet

⑦ Pulseringsknapp

⑧ Hastighet 1-knapp

⑨ Hastighet 2-knapp

⑩ AV-knapp

A Nasadki standardowe
