USER MANUAL COMBIMAX 600 BRAUN

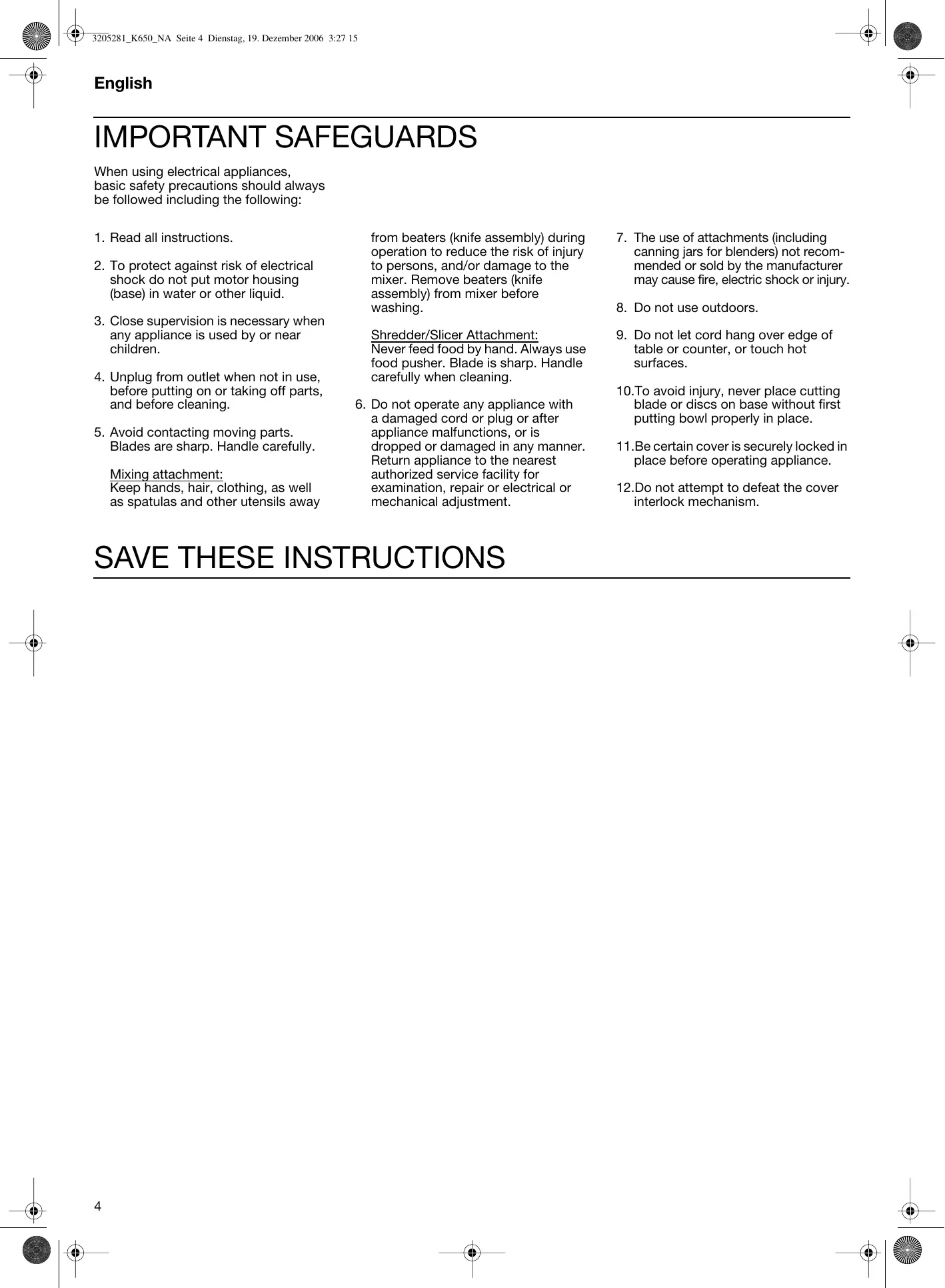

1. Read all instructions.

2. To protect against risk of electrical

shock do not put motor housing (base) in water or other liquid.

8. Close supervision is necessary when

any appliance is used by or near children.

4. Unplug from outlet when not in use,

before putting on or taking off parts, and before cleaning.

5. Avoid contacting moving parts.

Blades are sharp. Handle carefully. Mixing attachi it: Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters (knife assembly) during operation to reduce the risk of injury to persons, and/or damage to the mixer. Remove beaters (knife assembly) from mixer before washing. Shredder/Slicer Attachment: Never feed food by hand. Always use food pusher. Blade is sharp. Handle carefully when cleaning. . Do not operate any appliance with a damaged cord or plug or after appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

SAVE THESE INSTRUCTIONS

7. The use of attachments (including

canning jars for blenders) not recom- mended or sold by the manufacturer may cause fire, electric shock or injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of

table or counter, or touch hot surfaces. 10.To avoid injury, never place cutting blade or discs on base without first putting bowl properly in place. 11.Be certain cover is securely locked in place before operating appliance. 12.Do not attempt to defeat the cover interlock mechanism.

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance. Important + The blade © is very sharp! Take hold of the blade by the knob only. After use, always first remove the blade from the food processor bowl @ before removing the processed food. + Make sure that your voltage corresponds to the voltage printed on the bottom of the appliance. Connect to alternating current (AC) only. + _Keep the appliance out of the reach of children. + This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. lf the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature. + _ This appliance was constructed for household use only to process the listed quantities. + Do not use any parts in the micro- wave oven. + _ Do not allow the appliance to operate unsupervised. + _ Braun appliances meet applicable safety standards. Repairs on electric appliances must only be done by authorized service personnel. Faulty, unqualified repair work may cause accidents or injury to the user. + _ Switch the appliance off and disconnect it from the outlet before storing it. Specifications + _Voltage/wattage: See typeplate on the bottom of the appliance. + _ Operating time and maximum capacity: See processing instructions.

®7 3205281_K650_NA Seite $ Dienstag, 19. Dezember 2006 3:27 15 Description The Braun CombiMax meets the highest demands for kneading, mixing, blending, chopping, slicing, shredding and grating, simply and quickly. @ Motor base @ Cord storage @ Motor switch (On = I, off = off/0) @ Pulse mode «e pulse» ® Variable speed regulator (2-14) @ Food processor bowl (2 L /2 qt capacity) @ Food processor bowl lid © Food pusher @ Attachments for food processor bowl © (Important: Not all attachments will be included in the standard equipment of all models.) © Blade with protective cover © Blade holder @ Fine slicing blade - a @ Coarse slicing blade - b @ Fine shredding blade - c @ Coarse shredding blade - d ® Grating blade - e @ French-fry disc @® Kneading hook Whipping attachment Note: Before using the food processor for the first time, clean all parts as described under «Cleaning». Overload protection In order to avoid damages caused by overload, this appliance is equipped with an automatic security switch which shuts off the current supply ifnecessary. In such case, turn the motor switch @ back to «off/0» and wait approximately 15 minutes to allow the motor to cool off before switching the appliance on again. Pulse mode «e pulse» @ The pulse mode is useful for the follow- ing applications: + Chopping delicate and soft food, €.g., eggs, onions or parsley. + Carefully folding flour into dough or batter to maintain the creaminess. + Adding whipped eggs or cream to solid food. The pulse mode «+ pulse» is activated by pressing the blue knob @ on the motor switch with switch setting at «off/O». Before activating the pulse mode, set the desired speed with the speed regu- lator ©. When releasing the blue pulse knob ®, the appliance is switched off.

Recommended speed ranges for individual attachments Set the speed range by means of the variable speed regulator ®. It is recom- mended to first select the speed and then switch on the appliance in order to work with the desired speed from the start. Attachments Speed range Kneading hook 6 Blade 6-14 Whipping attachment: — egg whites — cream 3 Slicing, grating and shredding blades 2-8 French-fry disc 2-3 (please also refer to food icons on the base for guidance) Double safety feature: The appliance can only be switched on when the food processor bowl with lid is properly engaged. If the lid is unlocked during operation, the motor switches off automatically. If this occurs and the motor switch @is still on «l», turn it back to «off/0» to avoid switching on the motor accidentally. Attaching the food processor bowl © and the lid ®

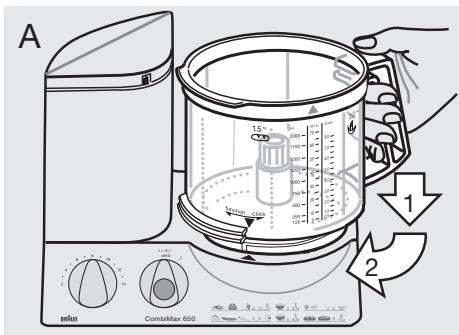

1. With the motor switched off, place

the food processor bowl onto the drive position of the base © matching the arrow on the bowl with the arrow on the base (A). Then turn the bowl in the «function» direction as far as it will go.

2. Put the attachment needed (see

instructions for each of the attachments) onto the drive shaft of the bowl and push it down as far as it will go until it clicks into place.

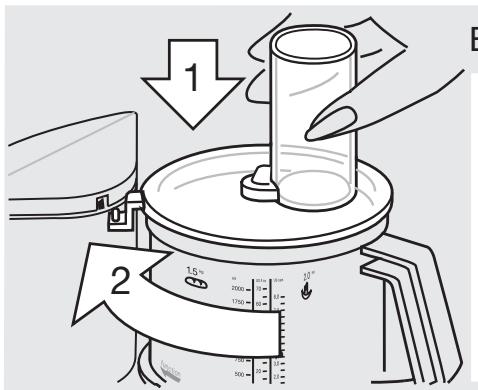

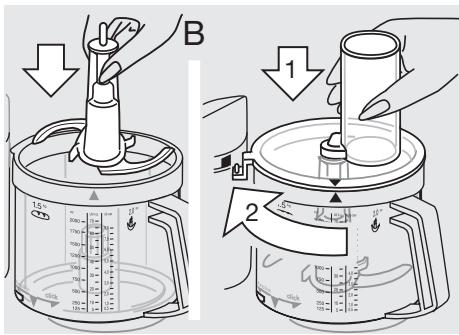

the arrow on the lid with the arrow on the bowl. Then turn the lid clockwise guiding its extended rim into the safety lock open- ing of the base © until you hear it click into place (B). Removing the food processor bowl © and the lid Switch off the appliance. Turn the lid counterclockwise and lift it off. Then turn the food processor bowl in the «click» direction allthe way until it stops, then lift off the bowl. Note: If you continue turning the food processor bowi in the «click» direction as far as it will go, beyond the stop posi- tion, you can lock the food processor bowl on the motor base. In this position, however, you cannot switch on the motor. When removing the blade from the bowl, hold it by the knob and pull it off. Caution: The blade is very sharp. The blade © comes with a protective cover. When not in use, store the blade in the protective cover. Cleaning First, always switch off the motor and unplug the appliance. Clean the base D with a damp cloth only. All parts can be cleaned in the dish- washer. If necessary, clean all parts thoroughly with a spatula before rinsing them. Color-intensive food (e.g. carrots) may leave stains on the plastic parts; wipe them off with vegetable oil before cleaning with soap and water. Do not use sharp objects for cleaning purposes. Clean the blades very carefully - they are very sharp.

For kneading you can use the kneading hook @ or the blade ©. For best results, we recommend using the kneading hook which is specially designed for making dough, pasta and pastries. Heavy doughs (bread, cookie dough, pasta, pastries) Maximum 500 g/16 oz. flour plus other ingredients, speed 6, 1 1/2 minutes Pour the flour into the food processor bowl, then add the other ingredients except any liquids. Put on the lid ® and lock in place. Then choose speed 6 and switch the appliance on. Add liquids by pouring them through the opening in the lid while the motor is running. When kneading with the blade ©, do not add ingredients like raisins, candied peel, almonds, etc. which are not supposed to be cut. These have to be added maually after taking the kneaded dough out of the food processor bowl. Pasta dough Maximum 500 g/16 oz. flour plus other ingredients, speed 6, 1 1/2 minutes Pour the flour into the food processor bowl, then add the other ingredients except any liquids. Pour the required amount of liquid through the opening in the lid while the motor is running. Do not add any liquid after the dough has formed into a ball as the liquid will not be absorbed properly. Pastries Maximum 500 g/16 oz. flour plus other ingredients, speed 6, approximately 1 minute Pour flour into the food processor bowl, then add the other ingredients. For best results, the butter used must not be too hard or too soft. Put on the lid ® and lock in place. Choose speed 6 and switch on the appliance. Stop kneading the dough right after it has formed into a ball. Processing any longer will result in the pastry dough becoming too soft.

For light doughs/batters (cake mix, sponge cake) use the blade © The kneading hook ® is not suitable for mixing cake mixes or sponge cakes. Maximum 500 g/16 oz. flour plus other ingredients Cake mix (2 methods) Speed / time a) Cream butter with Sugar and eggs 6/1min pour in milk and 6/15 secs carefully fold in 14/10-15 x flour with pulse + pulse mode b) Pour all ingredients except liquids into the food processor bowl 14/1 min Add required liquids through the opening of the lid while the motor is running. Finally add ingredients such as raisins manually. Sponge cake Speed time Cream eggs and water (if required) 14/2 mins add sugar 14/4 mins fold in flour with pulse mode 8/5xe pulse add cocoa powder 8/3xe pulse

Use the blade © for blending soups, Shakes, etc. Maximum capacity 2 L /2 quarts Speed 8 (otherwise the bowl may overflow) For milkshakes, put coarsely chopped fruit into the food processor bowl. Put on the lid @ and lock in place. With speed 14, blend fruit first, then add liquid at speed 8 and finish blending. When blending milk, please note that it will froth. Use smaller quantities.

Chopping with the blade © Processing examples The processing times are approximate and depend on the quality, the amount of food to be processed and the required degree of fineness. Coarse slicing blade - b © Speed 2-3 Product Max. amount Preparation Speed Mode Time/pulses Processing examples: cucumbers, raw Hard bread, 4 quartered 14 [ 45 secs potatoes, onions, bananas, tomatoes, rolls mushrooms, celery. Ice cubes 28 whole 14 l 1 minute (snow) Apples 700 g/11b100z quartered 8 e pulse/l 15 secs Fine shredding blade - c @ Speed 4-6 Chocolate, 400 g/0.9 1b broken 14 l F9 30 J5 secs Processing examples: cheese (soft to medium), cucumbers, carrots, raw Eggs 8 whole 6 «pulse 8x potatoes, apples. Cheese 400 g/0.91b 1-inch cubes 14 l 20 secs (soft) Coarse shredding blade - d @ Cheese 700g/11b100z 1-inchcubes 14 l 60-70 secs Speed 4-6 (hard) Processing examples: cheese (soft to Meat 700 g/11b100z in cubes 14 + pulse/l 40 secs medium), Sucumbere, carrots, raw atoes, apples, c: . Carrots 700 g/11lb10oz in pieces 14 [ 10 secs potatoes, apples, cabbage Onions 700 g/11b100z quartered 14 + pulse 10-13x

5. Slicing, shredding, grating

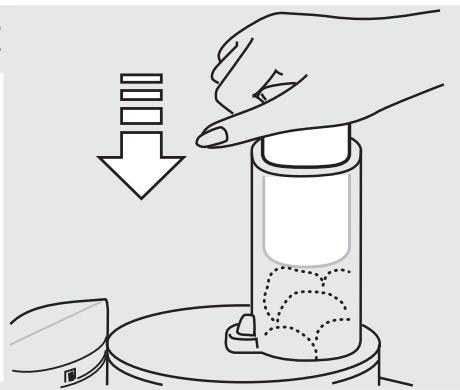

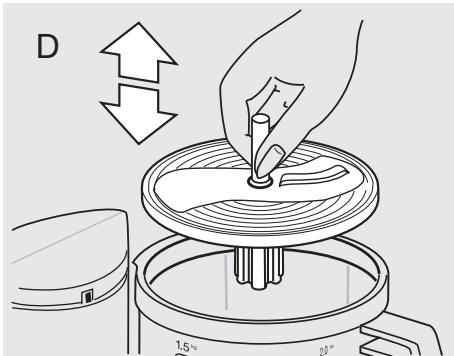

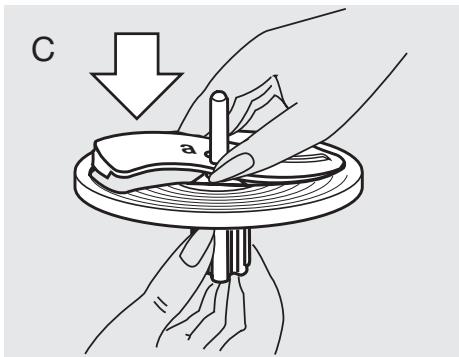

+ Place the blade you want to use into the blade holder © as shown in (C) and snap into position. In order to remove the blade, push up the blade end that protrudes at the bottom of the blade carrier. + Put the assembled slicer/shredder onto the drive shaft of the food processor bowl (D). + Putonthelid® and lockin place. Set the speed and put the food to be pro- cessed into the opening of the lid while the motor is switched off. Refilling should be done with the motor switched off. + Never reach into the opening of the lid when the motor is running. Always use the food pusher ® (E). N.B.: When processing juicy or soft food, you will obtain better results at a lower speed. Hard food should be processed at a higher speed. Do not overload the food processor bowl.

Grating blade - e © Speed 8-14 Processing examples: raw potatoes (e.g. for potato pancakes), horseradish, parmesan cheese (hard). French-fry disc © Place the French-fry disc onto the drive shaft, put on the lid @ and lock in place. For best results, place 3-4 potatoes (depending on size) in the opening of the lid ® while the motor is switched off. Set speed to 2-3 and switch on the appliance. Before putting in more food, switch the motor off. Use the pusher @ to apply slight pressure when pushing the potatoes into the opening.

6. Whipping with the

Whipping attachment ® Speed/time Whipping sponge cakes Maximum 280-300 g / 10 oz flour plus ingredients Cream eggs and water (if required) 5/2 mins add sugar 5/2 mins fold in flour 2/30 secs Whipping egg whites Minimum: 2 egg whites 4-5 / 4 mins Maximum: 6 egg whites 4-5 / 6 mins Whipping cream Minimum: 0.15-0.2 1 / 5-6 oz 3/1-2 mins Maximum: 0.4 1 / 12-13 oz 3/8.5-4 mins Before whipping cream, keep the cream cool for several hours (at 4 °C / 39 °F approximately).

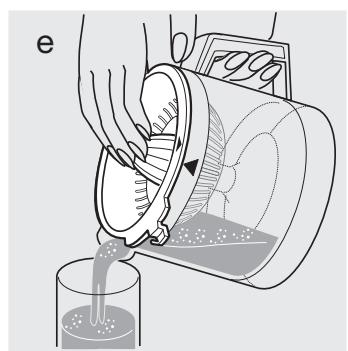

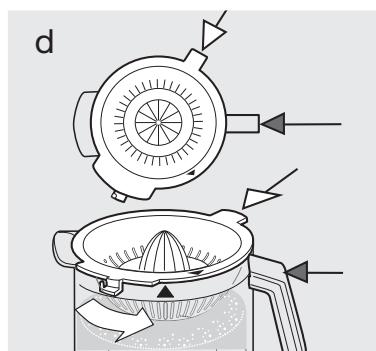

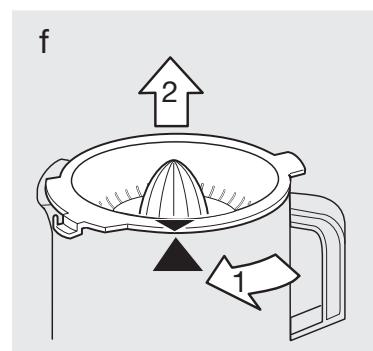

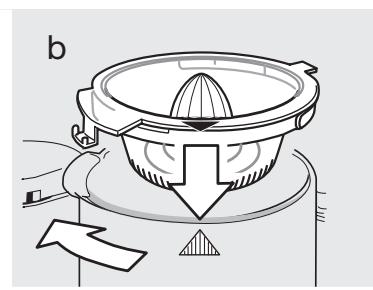

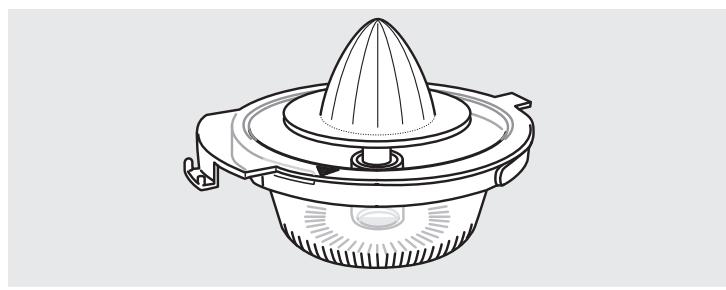

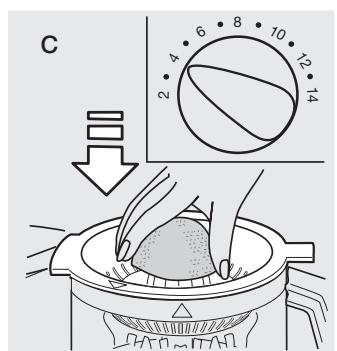

97 3205281_K650_NA Seite 8 Dienstag, 19. Dezember 2006 3:27 15 Braun Citrus press PJ 600 Type 3200 Speed: 2-4 & e Subject to change without notice. For USA only How to obtain service in the USA Should your Braun product require service, please call 1-800-BRAUN 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you. To obtain service: A. Take the product in to the authorized Braun Service Center of your choice or, B. Ship the product to the authorized Braun Service Center of your choice. Packthe product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts and accessories: Contact an authorized Braun Service Center. Please call 1-800-BRAUN 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you. To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (800-272-8611). Limited Warranty Braun warrants this Braun appliance to be free of defects in material and workmanship for a period of one year from the date of original purchase at retail. Hthe appliance exhibits such a defect, Braun will, at its option, repair or replace it without cost for parts and labor. The product must be carried in or shipped, prepaid and insured (recommended), to an authorized Braun Service Center. Proof of date of original purchase is required. The cost to ship the product to an authorized Service Center is the responsibility of the consumer, the cost to return the product to the consumer is the responsibility of Braun. This warranty does not cover finishes, normal wear, nor does it cover damage resulting from accident, misuse, dirt, water, tampering, unreasonable use, service performed or attempted by unauthorized service centers, failure to provide reasonable and necessary maintenance, including recharging, or units that have been modified or used for commercial purposes.

ALL IMPLIED WARRANTIES, INCLUDING ANY

FITNESS FOR ANY PARTICULAR PURPOSE, ARE

WILL BRAUN BE RESPONSIBLE FOR

CONSEQUENTIAL DAMAGES RESULTING FROM

THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other legal rights which vary from state to state. For Canada only How to obtain service in Canada Should your Braun product require service, please call 1-800-387-6657 to be referred to the authorized Braun Service Center closest to you.

To obtain service: A. Carry the product in to the authorized Braun Service Center of your choice or, B. Ship the product to the authorized Braun © Service Center of your choice. Packthe product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts & accessories: Contact an authorized Braun Service Center. Please call 1-800-387-6657 to be referred to the authorized Braun Service Center closest to you. To speak to a Braun Consumer Service Representative: Please call 1-800-387-6657. Limited 1-Year Warranty In the event a Braun appliance fails to function within the specified warranty period because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada will, at its option either repair or replace the unit without additional charge to the consumer. This warranty does not cover any product which has been damaged by dropping, tampering, servicing performed or attempted by unauthorized service agencies, misuse or abuse. This warranty excludes units which have been modified or used for commercial purposes. To the extent allowed by law, Braun Canada shall not be responsible for loss of the product, loss of time, inconvenience, commercial loss, special or consequential damages. The provisions of this warranty are in addition to and not a modification of or subtraction from the statutory warranties and other rights and remedies contained in applicable provincial legislation.
