Product type	Food processor (multifunction immersion blender)
Brand	Braun
Model	MultiQuick 3 MQ3126
Motor block material	Plastic
Blending foot material	Stainless steel
Speed control	Variable + Turbo button
Included accessories	Blending foot, whisk, masher, 350 ml chopper (hc), 500 ml chopper (ca), 1250 ml chopper (bc) with ice crusher
Blending function	Yes (sauces, soups, smoothies, baby food)
Whisk function	Yes (cream, egg whites, cakes)
Masher function	Yes (cooked vegetables and fruits)
Chopper function	Yes (meat, cheese, onions, herbs, etc.) – 3 bowls
Ice crusher function	Yes (with bc chopper and special accessory)
Power supply	Mains (voltage varies by country, see rating plate)
Usage	Household only
Motor block maintenance	Clean with a damp cloth, do not immerse
Dishwasher-safe parts	Blending foot, whisk, masher (except drives), chopper bowls and blades, rubber bases
Parts not dishwasher-safe	Motor block, drives, chopper lids (rinse under running water only)
Safety – blades	Very sharp, handle with care
Safety – use	Disconnect before assembly, disassembly or cleaning; do not leave unattended
Repairability	Damaged cord must be replaced by a professional; Braun authorized service center

Frequently Asked Questions - MultiQuick 3 MQ3126 BRAUN

How to assemble the blending foot?

Align the blending foot (6) with the motor block (4) and push until you hear a click. To remove, press the EasyClick release buttons (5).

Can you blend hot foods?

Yes, but remove the pot from the heat and let it cool slightly to avoid burns. Do not blend while boiling.

How to clean the motor block?

Never immerse the motor block. Clean only with a damp cloth. Other parts (except drives and lids) are dishwasher safe.

What accessories are included with the MultiQuick 3 MQ3126?

Included: a blending foot, a whisk, a masher, and three choppers (350 ml, 500 ml, 1250 ml with ice crusher).

How to use the whisk?

Attach the whisk (8b) to the drive (8a), then attach to the motor block. Use for cream, egg whites, etc. Start at low speed in a deep container.

How to use the masher?

Assemble the drive (9a) to the foot (9b), then attach the paddle (9c). Use at speed 11 to mash cooked vegetables. Never use in a pot on the stove.

How to chop meat?

Cut the meat into small pieces, remove bones and sinew. Place the blade in the chopper bowl, add the meat, close the lid and chop at high speed. Use the bowl appropriate for the quantity.

Can I crush ice with this appliance?

Yes, only with the 'bc' chopper (1250 ml) and its special ice crusher (12c). Place up to 7 ice cubes in the bowl and chop at maximum speed.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, an authorized technician, or a qualified person to avoid any danger.

Is the appliance suitable for preparing baby food?

Yes, the blending foot is ideal for blending cooked foods into smooth puree. Use turbo speed for a perfect result.

USER MANUAL MultiQuick 3 MQ3126 BRAUN

White BLEB brand brush with a black handle and white body, no visible text or symbols on the device itself.

Type 4193

Register your product www.braunhousehold.com/register

Hand blender

Deutsch	6
English	10
Français	14
Español	18
Português	22
Italiano	26
Nederlands	30
Dansk	34
Norsk	38
Svenska	42
Suomi	46
Polski	50
Český	54
Slovenský	58
Magyar	62
Hrvatski	66
Slovenski	70
Türkçe	74
Română (RO/MD) 78
Ελληνικά	82
Κασακωα	86
Русский	91
Українська	96
عری	102

De'Longhi Braun Household GmbH

max.	300g	200g	30g	350g	300g	200g	200g		X	X
sec.	15-30	30 30	20		25	10x1	5	15
				7-11	7-11	1-3	1-11	1-11
	turbo	turbo	turbo	+5 sec turbo	+5 sec turbo

max.	400g	200g	30g	400 g	350g	250g	30	250g	X	150 g+700 ml
sec.	30 20-30		15 15	15		15x1	10	15		60+15
				7-11	7-11	1-3	3-11	1-5
	turbo	turbo	turbo	+5 sec turbo	+5 sec turbo					turbo

max.	400g	200g	30g	400 g	350g	250g	30	250g	X	150 g+700 ml
sec.	30 20-30		15 15	15		15x1	10	15		60+15
				7-11	7-11	1-3	3-11	1-5
	turbo	turbo	turbo	+5 sec turbo	+5 sec turbo					turbo

D

Diagram showing various kitchen appliances and cleaning tools with Chinese labels, including a blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender, blender.

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Before use

Please read instructions carefully and completely before using the appliance.

Caution

• The blades are very sharp! To avoid injuries, please handle blades with utmost care.
- Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- Children shall not play with the appliance.
- This appliance shall not be used by children.
• Children shall be kept away from the appliance and its mains cord.
- Cleaning and user maintenance shall not be made by children without supervision.
• Always unplug and switch off the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance.

• This appliance is designed for household use only and for processing normal household quantities.
• Do not use any part in the microwave.
• Please clean all parts before first use or as required, following the instructions in the Care and Cleaning section.

Parts and Accessories

1 Variable speed regulator
2 Variable speed button (on/off)
3 Turbo button
4 Motor part
5 EasyClick Release buttons
6 Blender shaft
7 Beaker
8 Whisk accessory

a Gearbox

b Whisk

9 Puree accessory

a Gearbox

b Puree shaft

c Paddle

10 350 ml chopper accessory «hc»

a Lid
b Chopping blade
c Chopper bowl

d Anti-slip rubber ring

11 500 ml chopper accessory «ca»

a Lid (with gear)

b Chopping blade
c Chopper bowl

d Anti-slip rubber ring

12 1250 ml chopper accessory «bc»

a Lid (with gear)

b Chopping blade
c Ice blade
d Chopper bowl

e Anti-slip rubber ring

Unpacking

Take the unit out of the carton. Remove all pieces of the packing. Remove any possibly extant labels on the unit (do not remove the rating plate).

How to Use the Appliance

Setting the speed

When activating the variable speed button (2), the processing speed corresponds to the setting of the variable speed regulator (1). The higher the setting, the faster the chopping results. You can adjust the speed conveniently during operation by turning the speed regulator.

Maximum processing speed can be achieved by pressing the Turbo button (3). You may also use the Turbo button for instant powerful pulses without having to manipulate the speed regulator.

Blending Shaft (A)

The hand blender is perfectly suited for preparing dips, sauces, salad dressings, soups, baby food, as well as drinks, smoothies and milkshakes. For best results, use the Turbo speed.

Assembly and Operation

• Attach the blending shaft (6) to the motor part until it clicks.
• Place the blending shaft into the mixture to be blended. Then switch the appliance on.
• Blend ingredients to the desired consistency using a gentle up-and-down motion.
  • After use, unplug the hand blender and press the release buttons (5) to detach the blending shaft.

Caution

• If using the appliance to purée hot food in a saucepan or pot, remove the saucepan or pot from the heat source and ensure the liquid is not boiling. Allow hot food to cool slightly to avoid risk of scalding.
• Do not let the hand blender sit in a hot pan on the cooktop when not in use.

Recipe Example: Mayonnaise

250 g oil (e.g. sunflower oil)

1 egg and 1 extra egg yolk 1–2 tbsp. vinegar

Salt and pepper to taste

• Place all ingredients (at room temperature) into the beaker in the order as above.
• Place the hand blender at the bottom of the beaker. Blend at Turbo speed until the oil starts emulsifying.
• With the hand blender still running, slowly raise the shaft to the top of the mixture and back down to incorporate the rest of the oil. NOTE: Processing time: approx. 1 minute for salads and up to 2 minutes for a thicker mayonnaise (e.g. for dip).

Whisk Accessory (A)

Use the whisk only for whipping cream, beating egg whites, making sponge cakes and ready-mix desserts.

Assembly and Operation

• Attach the whisk (8b) to the gearbox (8a).
• Align the motor part with the assembled whisk attachment and push the pieces together until they click.
• After use, unplug and press the release buttons to detach the motor part. Then pull the whisk out of the gearbox.

Tips for Best Results

• Move the whisk clockwise while holding it at a slight incline.
  • To prevent splattering, start slowly and use the whisk attachment in deep containers or pans.
• Place the whisk in a bowl and only then switch the appliance on.
• Always ensure the whisk and mixing bowl are completely clean and free of fat before whisking egg whites. Only whip up to 4 egg whites.

Recipe Example: Whipped Cream

400 ml chilled cream (min. 30% fat content, 4 - 8 °C)

• Start with low speed and increase the speed while whipping.
  • Always use fresh chilled cream to achieve greater and more stable volume when whisking.

Puree Accessory (B)

The puree accessory can be used to mash cooked vegetables and fruits such as potatoes, sweet potatoes, tomatoes, plums and apples.

Before Use

• Do not mash hard or uncooked food, as this may damage the unit.
• Peel and remove any stones or hard parts; cook and drain then mash the food.

Assembly and Operation

• Fit the gearbox (9a) to the shaft (9b) by turning in a clockwise direction until it locks into place.
• Turn the puree accessory upside down and fit the paddle (9c) over the central hub and turn counter-clockwise to locate. (If the gearbox is not fitted properly, then the paddle will not secure in place).
• Align the assembled puree accessory with the motor part and click the two parts together. Plug in.
• Dip the puree accessory into the ingredients and switch on the appliance at speed 11.
• Using a gentle up and down motion, move the puree accessory through the ingredients until the desired texture is achieved.
• Release the variable speed button and ensure the puree accessory has completely stopped turning before removing it from the food.
  • After use, unplug the appliance. Remove the paddle (9c) by turning clockwise.
• Press the release buttons to detach the puree accessory from the motor part. Separate the gearbox from the shaft by turning counterclockwise.

Caution

• Never use the puree accessory in a saucepan over direct heat.

• Always remove the saucepan from the heat and allow to cool slightly.

• Sit the saucepan or bowl on a stable, flat surface, and support it with your free hand.

• Do not tap the puree accessory on the side of the cooking vessel during or after use. Use a spatula to scrape excess food away.
• For best results when mashing never fill a saucepan or bowl more than half full with food.
• Do not process more than one batch without interruption.
• Let the appliance cool down for 4 minutes before you continue processing.

Recipe Example: Mashed Potatoes

1 kg cooked potatoes

200 ml warm milk

• Place the potatoes in a bowl and mash for 30 seconds with speed 11.
• Add the milk. Resume mashing for another 30 seconds.

Chopper Accessory (C)

The choppers (10/11/12) are perfectly suited for chopping meat, hard cheese, onions, herbs, garlic, vegetables, bread, crackers and nuts.

Use the «hc» chopper (10) for fine results.

Use the «ca» (11) and «bc» chopper (12) for larger quantities and for hard foods.

Furthermore, the «bc» chopper offers a variety of other applications like shakes, drinks, purées, batter or crushed ice.

Refer to the Processing Guide C for maximum quantities, recommended times and speeds.

Maximum operation time for the «hc» chopper: 2 minutes for large amounts of wet ingredients, 30 seconds for dry or hard ingredients or amounts < 100 g. Immediately stop processing when motor speed decreases and/or strong vibrations occur.

Before Use

• Pre-cut foods into small pieces for easier chopping.
• Remove any bones, tendons and gristle from meat to help prevent damage to the blades.
• Make sure the anti-slip rubber ring (10d/11d/12e) is attached to the bottom of the chopper bowl.

Assembly and Operation

• Carefully remove the plastic cover from the blade.
• The blades (10b/11b/12b/12c) are very sharp! Always hold them by the upper plastic part and handle them carefully.
• Place the blade on the center pin of the chopper bowl (10c/11c/12d). Press it down and give it a turn so that it locks into place.

• Fill the chopper with food and put on the lid (10a/11a/12a).

• For ice crushing, fill up to 7 ice cubes into the chopper bowl (12d) and use the special ice blade (12c).

• Align the chopper with the motor part (4) and click together.
• To operate the chopper, switch on the appliance. During processing, hold the motor part with one hand and the chopper bowl with the other.
  • Always chop harder foods (e.g. parmesan cheese) at full speed.
• When chopping is complete, unplug and press the release buttons (5) to detach the motor part.
• Lift the lid up. Carefully take out the blade before pouring out the contents of the bowl. To remove the blade, slightly turn it then pull it off.

Caution

• Do not use the chopper accessories (10/11/12) to process extremely hard foods, such as unshelled nuts, coffee beans, grains, or hard spices e.g. nutmeg. Processing these foods could damage the blades.
• Only the «bc» chopper accessory with the special ice blade is allowed to crush ice cubes.
• Never place the chopper bowl in the microwave oven.

«hc» Recipe example: Honey-Prunes (as a pancake stuffing or spread):

50 g prunes

70 g creamy honey

10 ml water (vanilla-flavoured)

• Fill the «hc» chopper bowl with prunes and creamy honey.
  • Chop 4 seconds at maximum speed
• Add 10 ml water (vanilla-flavoured).
• Resume chopping for another 1,5 seconds.

Use the chopper accessory «hc» (optional accessory available at your Braun Service Center; however not in every country).

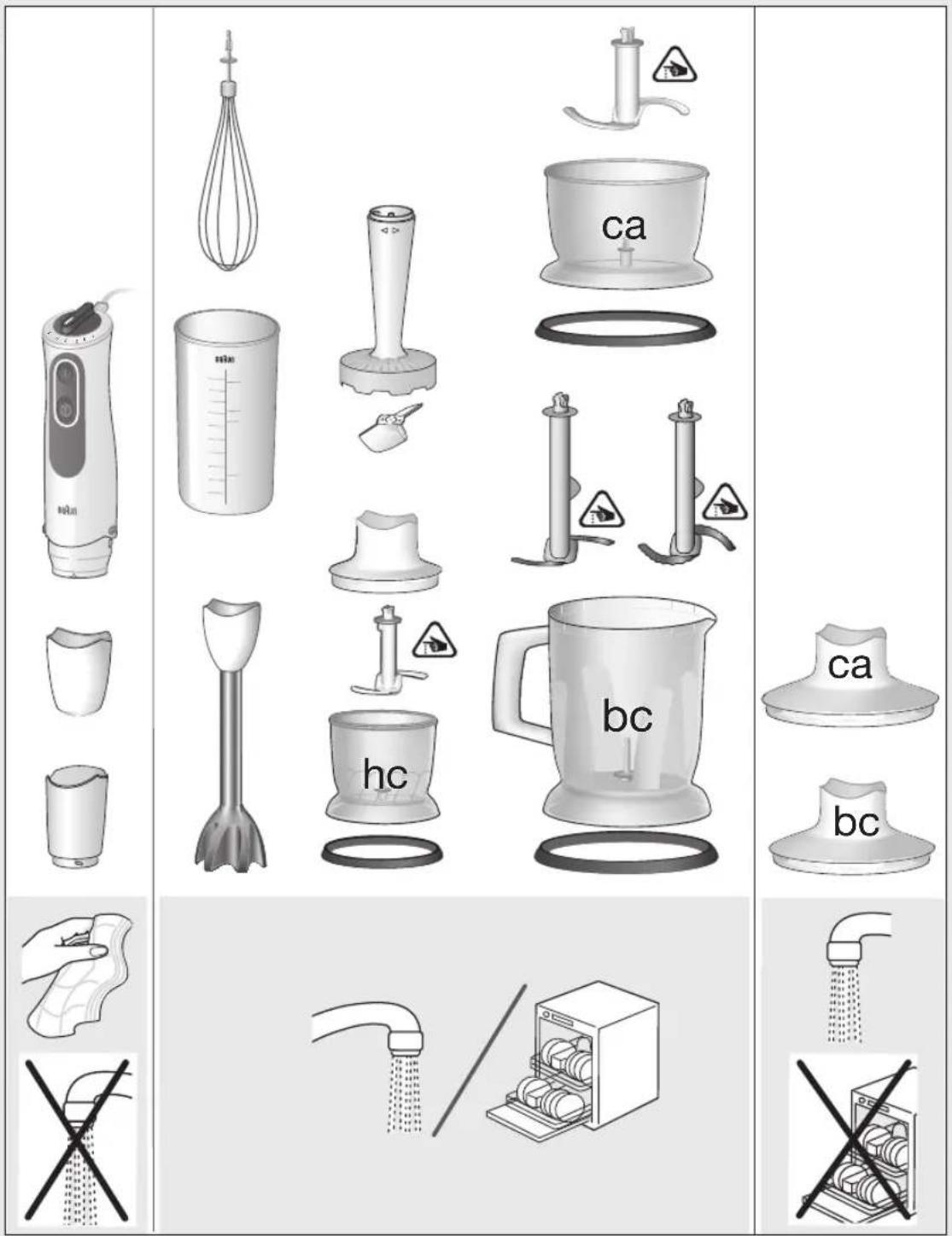

Care and Cleaning (D)

• Always clean the hand blender thoroughly after use.
- Unplug hand blender before cleaning.
- Do not immerse the motor part (4) or gearbox (8a, 9a) in water or any other liquid. Clean with a damp cloth only.
- The lid (11a/12a) can be rinsed under running water. Do not immerse in water, nor place in a dishwasher.
- All other parts can be cleaned in a dishwasher. Do not use abrasive cleaners that could scratch the surface.
- You may remove the anti-slip rubber ring from the bottom of the bowl for an extra thorough clean.
- When processing foods with high pigment content (e.g. carrots), the accessories may

become discolored. Wipe these parts with vegetable oil before cleaning them.

Both the design specifications and these user instructions are subject to change without notice.

Do not dispose of the product in household waste at the end of its useful life.

Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.

- The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

Thank You for choosing Braun. We are confident that you will get excellent service from this product.

TO IMPROVE YOUR EXPERIENCE

Register now at www.braunhousehold.co.uk By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips.

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling: 02392 392333

For service in the Republic of Ireland please call: 012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect.
- The product is used and maintained in accordance with the User Instructions.
- The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.
- No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
- Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.

Français

Use the chopper accessory «hc» (optional accessory available at your Braun Service Center; however not in every country)

d Slipvrije rubberring

11 500 ml hakmolen «ca»

d Slipvrije rubberring

12 1250 ml hakmolen «bc»

e Slipvrije rubberring

d Anti-slip gummiring

11 500 ml hakketilbehør «ca»

a Låg (med gear)

b Hakkeknive c Hakkeskål

d Anti-slip gummiring

e Anti-slip gummiring

Udpakning
