USER MANUAL K650 K600 BRAUN

For household use only

Thank you for purchasing a Braun product.

We hope you are completely satisfied with your new Braun Multiquick.

If you have any questions, please call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

Braun GmbH

Frankfurter StraBe 145

61476 Kronberg/Germany

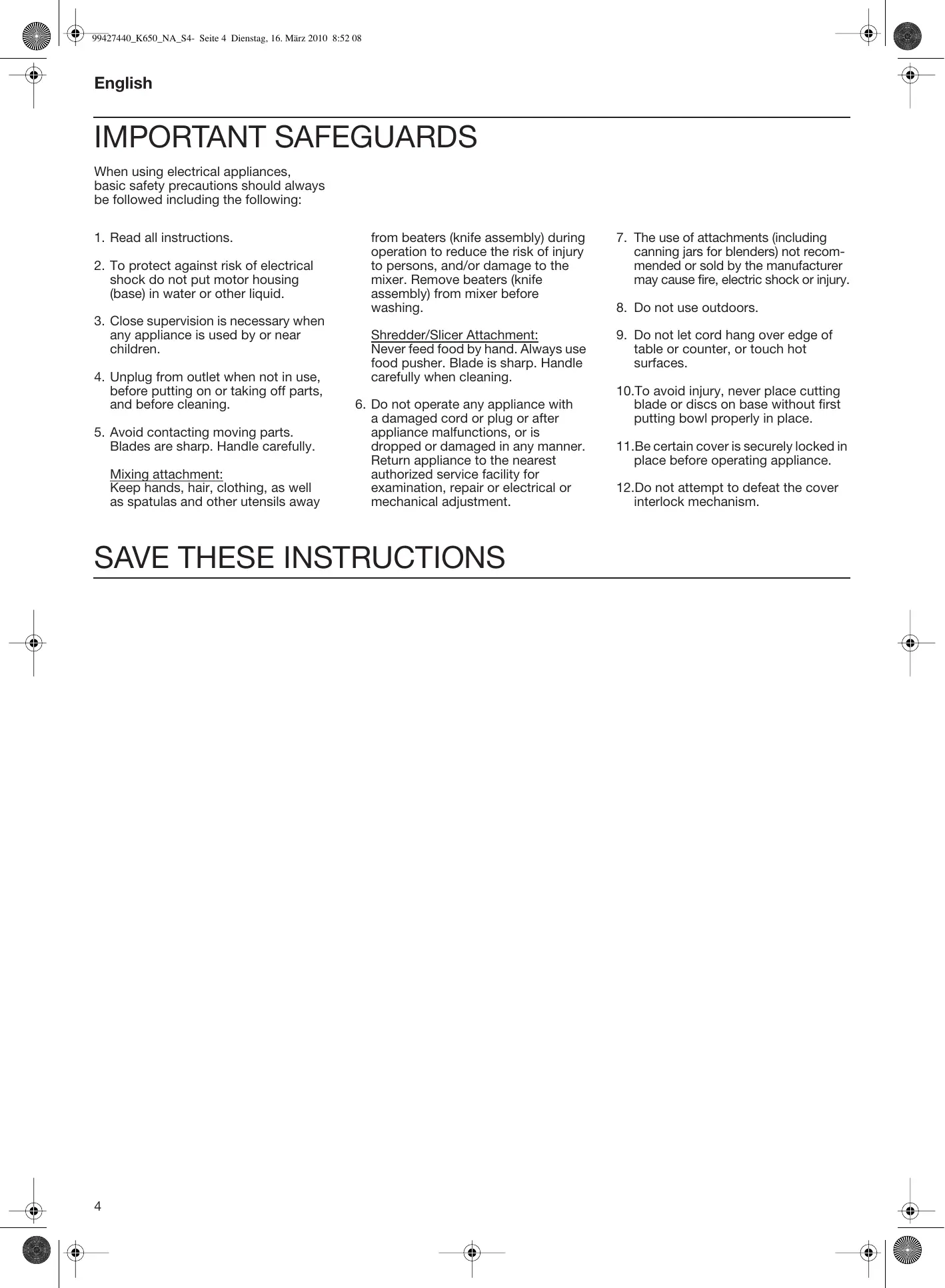

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. To protect against risk of electrical shock do not put motor housing (base) in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contacting moving parts. Blades are sharp. Handle carefully.

Mixing attachment:
Keep hands, hair, clothing, as well as spatulas and other utensils away

from beaters (knife assembly) during operation to reduce the risk of injury to persons, and/or damage to the mixer. Remove beaters (knife assembly) from mixer before washing.

Shredder/Slicer Attachment: Never feed food by hand. Always use food pusher. Blade is sharp. Handle carefully when cleaning.

1. Do not operate any appliance with a damaged cord or plug or after appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

2. The use of attachments (including canning jars for blenders) not recommended or sold by the manufacturer may cause fire, electric shock or injury.

3. Do not use outdoors.
4. Do not let cord hang over edge of table or counter, or touch hot surfaces.
5. To avoid injury, never place cutting blade or discs on base without first putting bowl properly in place.
6. Be certain cover is securely locked in place before operating appliance.
   12.Do not attempt to defeat the cover interlock mechanism.

SAVE THESE INSTRUCTIONS

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Important

• The blade ⑨ is very sharp! Take hold of the blade by the knob only. After use, always first remove the blade from the food processor bowl ⑥ before removing the processed food.
• Make sure that your voltage corresponds to the voltage printed on the bottom of the appliance. Connect to alternating current (AC) only.
• Keep the appliance out of the reach of children.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• This appliance was constructed for household use only to process the listed quantities.
• Do not use any parts in the microwave oven.
• Do not allow the appliance to operate unsupervised.
• Braun appliances meet applicable safety standards. Repairs on electric appliances must only be done by authorized service personnel. Faulty, unqualified repair work may cause accidents or injury to the user.
• Switch the appliance off and disconnect it from the outlet before storing it.

Specifications

• Voltage/wattage: See typeplate on the bottom of the appliance.
• Operating time and maximum capacity: See processing instructions.

Description

The Braun Multiquick 3 meets the highest demands for kneading, mixing, blending, chopping, slicing, shredding and grating, simply and quickly.

① Motor base
② Cord storage
③ Motor switch (On = I, off = off/0)
④ Pulse mode «P»
⑤ Variable speed regulator (1-15)
⑥ Food processor bowl (2 L / 2 qt capacity)
⑦ Food processor bowl lid ⑥
⑧ Food pusher ⑦

Attachments for food processor bowl ⑥

(Important: Not all attachments will be included in the standard equipment of all models.)

⑨ Blade with protective cover
⑩ Blade holder
⑪ Fine slicing blade - a
Coarse slicing blade - b
⑧ Fine shredding blade - c
14 Coarse shredding blade - d
15 Grating blade - e
⑥ French-fry disc
⑦ Kneading hook
Whipping attachment

Note: Before using the food processor for the first time, clean all parts as described under «Cleaning».

Overload protection

In order to avoid damages caused by overload, this appliance is equipped with an automatic security switch which shuts off the current supply if necessary. In such case, turn the motor switch ③ back to «off/0» and wait approximately 15 minutes to allow the motor to cool off before switching the appliance on again.

Pulse mode «P» ④

The pulse mode is useful for the following applications:

• Chopping delicate and soft food, e.g., eggs, onions or parsley.
• Carefully folding flour into dough or batter to maintain the creaminess.
• Adding whipped eggs or cream to solid food.

The pulse mode «P» is activated by pressing the blue knob ④ on the motor switch with switch setting at «off/0».

Before activating the pulse mode, set the desired speed with the speed regulator ⑤. When releasing the blue pulse knob ④, the appliance is switched off.

Recommended speed ranges for individual attachments

Set the speed range by means of the variable speed regulator ⑤. It is recommended to first select the speed and then switch on the appliance in order to work with the desired speed from the start.

Attachments	Speed range
Kneading hook	7
Blade	6-15
Whipping attachment:
- egg whites	4-5
- cream	2
Slicing, grating and shredding blades	1-8
French-fry disc	1-3
(please refer to food icons to be stickered on the motor base for guidance)

Double safety feature:

The appliance can only be switched on when the food processor bowl with lid is properly engaged. If the lid is unlocked during operation, the motor switches off automatically. If this occurs and the motor switch ③ is still on «I», turn it back to «off/0» to avoid switching on the motor accidentally.

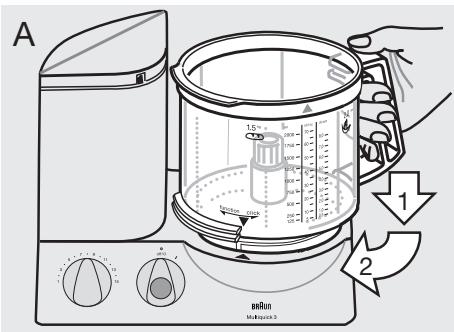

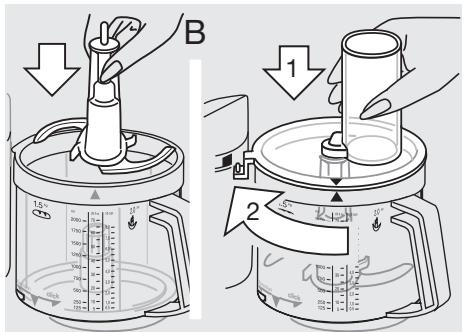

Attaching the food processor bowl ⑥ and the lid ⑦

1. With the motor switched off, place the food processor bowl onto the drive position of the base ① matching the arrow on the bowl with the arrow on the base (A). Then turn the bowl in the «function» direction as far as it will go.

1. Put the attachment needed (see instructions for each of the attachments) onto the drive shaft of the bowl and push it down as far as it will go until it clicks into place.

2. Put the lid ⑦ onto the bowl matching the arrow on the lid with the arrow on the bowl.

Then turn the lid clockwise guiding its extended rim into the safety lock opening of the base ① until you hear it click into place (B).

Removing the food processor bowl ⑥ and the lid ⑦

Switch off the appliance. Turn the lid counterclockwise and lift it off. Then turn the food processor bowl in the «click» direction all the way until it stops, then lift off the bowl.

Note: If you continue turning the food processor bowl in the «click» direction as far as it will go, beyond the stop position, you can lock the food processor bowl on the motor base. In this position, however, you cannot switch on the motor.

When removing the blade from the bowl, hold it by the knob and pull it off.

Caution: The blade is very sharp.

The blade ⑨ comes with a protective cover. When not in use, store the blade in the protective cover.

Cleaning

First, always switch off the motor and unplug the appliance. Clean the base ① with a damp cloth only.

All parts can be cleaned in the dishwasher. If necessary, clean all parts thoroughly with a spatula before rinsing them.

Color-intensive food (e.g. carrots) may leave stains on the plastic parts; wipe them off with vegetable oil before cleaning with soap and water.

Do not use sharp objects for cleaning purposes.

Clean the blades very carefully - they are very sharp.

1. Kneading

For kneading you can use the kneading hook ⑦ or the blade ⑨ . For best results, we recommend using the kneading hook which is specially designed for making dough, pasta and pastries.

Heavy doughs (bread, cookie dough, pasta, pastries)

Maximum 500 g/16 oz. flour plus other ingredients, speed 7, 1 1/2 minutes

Pour the flour into the food processor bowl, then add the other ingredients except any liquids.

Put on the lid ⑦ and lock in place. Then choose speed 7 and switch the appliance on.

Add liquids by pouring them through the opening in the lid while the motor is running.

When kneading with the blade ⑨ , do not add ingredients like raisins, candied peel, almonds, etc. which are not supposed to be cut. These have to be added maually after taking the kneaded dough out of the food processor bowl.

Pasta dough

Maximum 500 g/16 oz. flour plus other ingredients, speed 7, 1 1/2 minutes

Pour the flour into the food processor bowl, then add the other ingredients except any liquids.

Pour the required amount of liquid through the opening in the lid while the motor is running.

Do not add any liquid after the dough has formed into a ball as the liquid will not be absorbed properly.

Pastries

Maximum 500 g/16 oz. flour plus other ingredients, speed 7, approximately 1 minute

Pour flour into the food processor bowl, then add the other ingredients. For best results, the butter used must not be too hard or too soft.

Put on the lid ⑦ and lock in place. Choose speed 7 and switch on the appliance.

Stop kneading the dough right after it has formed into a ball. Processing any longer will result in the pastry dough becoming too soft.

2. Mixing

For light doughs/batters (cake mix, sponge cake) use the blade ⑨

The kneading hook ⑦ is not suitable for mixing cake mixes or sponge cakes.

Maximum 500 g/16 oz. flour plus other ingredients

Cake mix

(2 methods)	Speed / time
a) Cream butter with sugar and eggs pour in milk and carefully fold in flour with pulse mode	6 / 1 min 6/15 secs 15/10-15 x P
b) Pour all ingredients except liquids into the food processor bowl	15 / 1 min

Add required liquids through the opening of the lid while the motor is running. Finally add ingredients such as raisins manually.

Sponge cake	Speed time
Cream eggs and water (if required)	15 / 2 mins
add sugar	15 / 4 mins
fold in flour with pulse mode	8 / 5 x P
add cocoa powder	8 / 3 x P

3. Blending

Use the blade ⑨ for blending soups, shakes, etc.

Maximum capacity 2 L / 2 quarts Speed 8

(otherwise the bowl may overflow)

For milkshakes, put coarsely chopped fruit into the food processor bowl. Put on the lid ⑦ and lock in place. With speed 15, blend fruit first, then add liquid at speed 8 and finish blending.

When blending milk, please note that it will froth. Use smaller quantities.

4. Chopping

Chopping with the blade ⑨

Processing examples

The processing times are approximate and depend on the quality, the amount of food to be processed and the required degree of fineness.

Product	Max. amount	Preparation	Speed	Mode	Time/pulses
Hard bread, 4 rolls		quartered	15	I	45 secs
Ice cubes	28	whole	15	I	1 minute (snow)
Apples	700 g / 1 lb 10 oz	quartered	8	I	15 secs
Chocolate, cooled	400 g / 0.9 lb	broken	15	I	coarse 15 secs fine 30 secs
Eggs	8	whole	6	P	8 x
Cheese (soft)	400 g / 0.9 lb	1-inch cubes	15	I	20 secs
Cheese (hard)	700 g / 1 lb 10 oz	1-inch cubes	15	I	60-70 secs
Meat	700 g / 1 lb 10 oz	in cubes	15	I	40 secs
Carrots	700 g / 1 lb 10 oz	in pieces	15	I	10 secs
Onions	700 g / 1 lb 10 oz	quartered	15	P	10 - 13 x

5. Slicing, shredding, grating

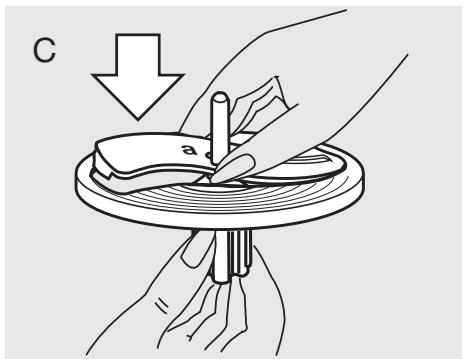

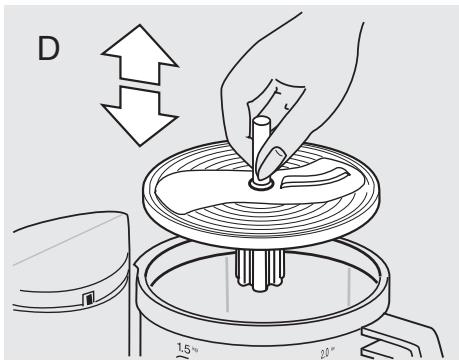

• Place the blade you want to use into the blade holder ⑩ as shown in (C) and snap into position. In order to remove the blade, push up the blade end that protrudes at the bottom of the blade carrier.

• Put the assembled slicer/shredder onto the drive shaft of the food processor bowl (D).

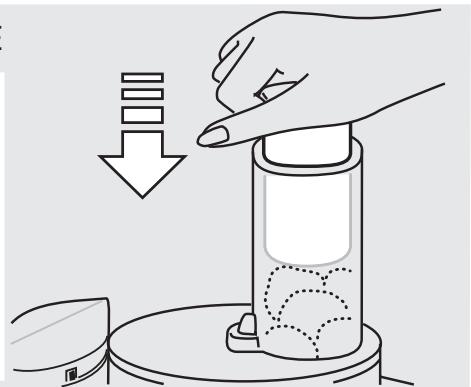

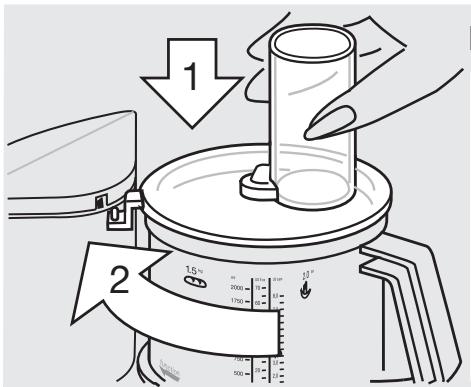

• Put on the lid ⑦ and lock in place. Set the speed and put the food to be processed into the opening of the lid

while the motor is switched off. Refilling should be done with the motor switched off.

• Never reach into the opening of the lid when the motor is running. Always use the food pusher (E).

N.B.: When processing juicy or soft food, you will obtain better results at a lower speed. Hard food should be processed at a higher speed. Do not overload the food processor bowl.

E

Fine slicing blade - a ⑪

Speed 1-2

Processing examples: cucumbers, cabbage, raw potatoes, carrots, onions, radishes.

Coarse slicing blade - b 12

Speed 1-2

Processing examples: cucumbers, raw potatoes, onions, bananas, tomatoes, mushrooms, celery.

Fine shredding blade - c ⑬

Speed 3-6

Processing examples: cheese (soft to medium), cucumbers, carrots, raw potatoes, apples.

Coarse shredding blade - d ⑭

Speed 3-6

Processing examples: cheese (soft to medium), cucumbers, carrots, raw potatoes, apples, cabbage.

Grating blade - e ⑤

Speed 8-15

Processing examples: raw potatoes (e.g. for potato pancakes), horseradish, parmesan cheese (hard).

French-fry disc 16

Place the French-fry disc onto the drive shaft, put on the lid ⑦ and lock in place. For best results, place 3-4 potatoes (depending on size) in the opening of the lid ⑦ while the motor is switched off.

Set speed to 1-2 and switch on the appliance. Before putting in more food, switch the motor off. Use the pusher ⑧ to apply slight pressure when pushing the potatoes into the opening.

6. Whipping with the

whipping attachment ⑧

Speed/time

Whipping sponge cakes

Maximum 280-300 g / 10 oz flour plus ingredients

Cream eggs and

water (if required) 5/2 mins

add sugar 5/2mins

fold in flour 1/30secs

Whipping egg whites

Minimum: 2 egg whites 4-5/4 mins

Maximum: 6 egg whites 4-5 / 6 mins

Whipping cream

Minimum: 0.15-0.2 l / 5-6 oz

2/1-2 mins

Maximum: 0.4 l / 12-13 oz

2/3.5-4 mins

Before whipping cream, keep the cream cool for several hours (at 4^ / 39^ approximately).

Subject to change without notice.

For USA only

How to obtain service in the USA

Should your Braun product require service, please call 1-800-BRAUN 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you.

To obtain service:

A. Take the product in to the authorized Braun Service Center of your choice or,
B. Ship the product to the authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact an authorized Braun Service Center.

Please call 1-800-BRAUN 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (800-272-8611).

Limited Warranty

Braun warrants this Braun appliance to be free of defects in material and workmanship for a period of one year from the date of original purchase at retail.

If the appliance exhibits such a defect, Braun will, at its option, repair or replace it without cost for parts and labor. The product must be carried in or shipped, prepaid and insured (recommended), to an authorized Braun Service Center. Proof of date of original purchase is required.

The cost to ship the product to an authorized Service Center is the responsibility of the consumer, the cost to return the product to the consumer is the responsibility of Braun.

This warranty does not cover finishes, normal wear, nor does it cover damage resulting from accident, misuse, dirt, water, tampering, unreasonable use, service performed or attempted by unauthorized service centers, failure to provide reasonable and necessary maintenance, including recharging, or units that have been modified or used for commercial purposes.

ALL IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may have other legal rights which vary from state to state.

For Canada only

How to obtain service in Canada

Should your Braun product require service, please call 1-800-387-6657 to be referred to the authorized Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the authorized Braun Service Center of your choice or,
B. Ship the product to the authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact an authorized Braun Service Center.

Please call 1-800-387-6657 to be referred to the authorized Braun Service Center closest to you.

To speak to a Braun Consumer Service Representative:

Please call 1-800-387-6657.

Limited 1-Year Warranty

In the event a Braun appliance fails to function within the specified warranty period because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada will, at its option either repair or replace the unit without additional charge to the consumer. This warranty does not cover any product which has been damaged by dropping, tampering, servicing performed or attempted by unauthorized service agencies, misuse or abuse. This warranty excludes units which have been modified or used for commercial purposes.

To the extent allowed by law, Braun Canada shall not be responsible for loss of the product, loss of time, inconvenience, commercial loss, special or consequential damages.

The provisions of this warranty are in addition to and not a modification of or subtraction from the statutory warranties and other rights and remedies contained in applicable provincial legislation.

IMPORTANT MÉSURES DE SECURITÉ

Procter & Gamble International Operations, SA

Loma Florida #32,

Col. Lomas de Vista Hermosa,

Del. Cuajimalpa,

05100 Mexico, D.F.
