Product type	Steam cleaner
Brand	Adler
Model	AD 7068
Dimensions (L x W x H)	Approximately 30 x 25 x 30 cm
Weight	Approximately 1.5 kg
Power supply	220-240 V, 50/60 Hz
Power	1200 W
Water tank capacity	300 ml
Steam pressure	3 bar
Adjustable steam flow	Yes, continuous and spray
Heating time	Approximately 30 seconds
Included accessories	Fine nozzle, brush, microfiber cloth, funnel, measuring cup
Main functions	Steam cleaning for floors, windows, textiles, joints, surfaces
Anti-limescale system	Integrated anti-limescale filter
Auto shut-off	Yes, after inactivity
Child safety	Trigger lock
Maintenance and cleaning	Descale regularly, clean accessories with clean water
Spare parts available	Yes, from the manufacturer and authorized dealers
General information	2-year warranty, CE certification

Frequently Asked Questions - AD 7068 ADLER

How to fill the water tank of the Adler AD 7068 steam cleaner?

Make sure the appliance is turned off and unplugged. Open the tank cap, use the measuring cup to pour demineralized water up to the max level. Do not exceed the indicated capacity.

What type of water is recommended for the steam cleaner?

It is recommended to use demineralized or distilled water to avoid scaling. Tap water can be used but increases the frequency of descaling.

How to use the continuous steam function?

Once the appliance is hot (about 30 seconds), press the trigger to produce steam. For continuous flow, lock the trigger in continuous position. Release to stop.

Can I clean windows with the steam cleaner?

Yes, use the fine nozzle and the included squeegee. Apply steam to the window, then scrape off excess water with the squeegee. Wipe with a microfiber cloth.

How to descale the appliance?

Mix a solution of white vinegar and water (1:3) or use a compatible descaling agent. Fill the tank, let it sit for 15 minutes, then run the steam to rinse. Repeat if necessary.

What to do if steam is weak or nonexistent?

Check the water level in the tank. If the tank is full, the appliance may be scaled. Perform descaling. Make sure the nozzle is not clogged.

Can the steam cleaner be used on wooden floors?

It is not recommended on untreated parquet. On treated or laminated wood, use steam sparingly and wipe off excess moisture immediately. Test first on an inconspicuous area.

How to clean the accessories after use?

Detach the accessories while still warm and wash them with clean water and mild detergent. Dry them completely before storing. Do not put them in the dishwasher.

The appliance turns off by itself during use: normal?

Yes, the steam cleaner is equipped with an automatic safety shut-off after a few minutes of inactivity to prevent overheating. Press the switch again to restart.

Where can I buy spare parts for the Adler AD 7068?

Spare parts are available from Adler customer service or authorized dealers. Check the official website or contact customer service to order accessories or parts.

USER MANUAL AD 7068 ADLER

AD 7068

EN	User Manual	4	PL	Instrukcja obsługi	65
DE	Bedienungsanleitung	7	IT	Manuale d'uso	69
FR	Mode d'emploi	11	SV	Bruksanvisning	73
ES	Manual de usuario	15	BG	Ръководство за употреба	77
PT	Manual de Instruções	19	DA	Brugsanvisning	81
LT	Naudojimo instrukcija	23	SK	Používatel'ská príručka	85
LV	Lietošanas instrukcija	27	BS	Korisnički priručnik	89
ET	Kasutusjuhend	31	MK	Упатство за употреба	92
HU	Használati útmutató	34	HR	Korisnički priručnik	96
RO	Manual de utilizare	38	UK	Керівництво користувача	100
CS	Návod k použití	42	SR	Упутство за употребу	104
RU	Руководство пользователя	46	AR	دليل المستخدم	108
EL	Еүхеиріdio хрήσης	50	AZ	İstifadəçi təlimatı	110
NL	Gebruikershandleiding	54	SQ	Manuali i përdorimit	114
SL	Navodila za uporabo	58	KA	Общёمودن	118
FI	Käyttöohje	62

A

B

User Manual (EN)

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS FOR SAFE USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Please read carefully and always follow the following instructions before using the product. The manufacturer is not responsible for any damage caused by improper use.
2. The product is intended for indoor use only. Do not use the product for purposes incompatible with its use.
3. Connect the device only to a grounded outlet 220-240 V ~ 50/60 Hz. For safety reasons, do not connect multiple devices to a single electrical outlet.
4. Be careful when using near children. Do not allow children to play with the product. Do not allow children or people who are unfamiliar with the device to use it without supervision.
5. WARNING: The appliance may be used by children over 8 years of age and persons with limited physical, sensory or mental abilities, or persons without experience or familiarity with the appliance only under the supervision of a person responsible for their safety or if they have been instructed in the safe use of the appliance and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children unless they are at least 8 years old and these activities are carried out under supervision.
6. WARNING: Do not leave the device plugged into an outlet unattended.
7. WARNING: The temperature of the accessible surfaces of the operating equipment may be high when the equipment is operating.
8. WARNING: Keep the equipment out of the reach of children.
9. WARNING: Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.
10. WARNING: Do not use the device near flammable materials.
11. WARNING: When using the appliance in the bathroom, remove the plug from the power outlet after using it, as proximity to water is a hazard even when the appliance is turned off.
12. WARNING: Liquid or steam coming out of the steam mop must not be directed into appliances containing electrical components, such as the inside of ovens.
13. WARNING: Before cleaning the unit, unplug the power cord from the outlet and leave the unit to cool. Allow a sufficiently long period of time, as a heated appliance cools down very slowly.
14. WARNING: Before filling the device with water, unplug it from the power supply.
15. Use only clean water to fill the device, do not add any substances such as descalers, aromatic oils or cleaning agents.
16. The power cord should not touch heated parts of the device and should not be near other heat sources.
17. After turning off the appliance, unplug the power cord from the outlet and let the equipment cool down before cleaning or storing it. Be sure to wait long enough, as a heated appliance cools down slowly.
18. Do not cover the appliance or cover its openings as this may cause heat accumulation inside which may lead to damage or fire.
19. Never leave the product connected to a power source unattended. Even if use is interrupted for a short time, unplug it from the mains, disconnect the power supply.
20. Never put the power cord, plug or the entire device in water. Never expose the product to weather conditions such as direct sunlight or rain, etc.
21. Periodically check the condition of the power cord. If the power cord is damaged, return the product to a professional service center for replacement to avoid dangerous situations.
22. Never use the product with a damaged power cord or if it has been dropped or otherwise damaged, or if it is not working properly. Do not attempt to repair a damaged product yourself, as this may result in electric shock. Always return a damaged device to a professional service center for repair. All repairs must be performed only by authorized service professionals. Improper repair may cause dangerous situations for the user.
23. Never use the product near flammable materials.
24. Never point the outlet of the steam cleaner at yourself, other people, animals, or electrical appliances.
25. Only use the device with original accessories.

1. Warning. Hot steam.
2. Warning. Hot steam, can cause burns.
3. Do not touch hot surfaces of the device.

The temperature of the accessible surfaces of the running device may be high. Do not touch hot surfaces of the device.

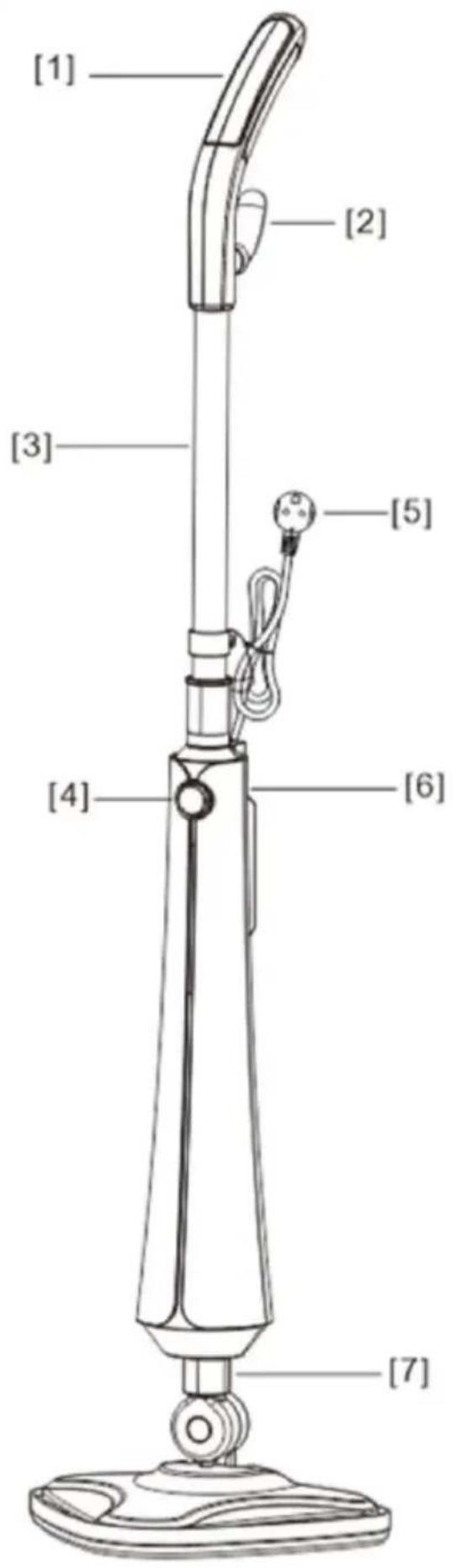

Device description (Graphic A, page 2):

1. Handle
2. Cord holder
3. Metal tube
4. Power switch
5. Power cord
6. Water tank filler
7. Steam head joint

Parts of the machine (Graphic B, page 2):

A. Main body

B. Handle

C. Steam head

D. Microfiber pad

E. Carpet cleaning pad

F. Measure

Before first use:

1. Remove any packing material
2. Wipe all components with a damp soft cloth.
3. Check the condition of the power cord.

Prepare the device for operation:

1. Slide the handle (1) into the main body (A). (Graphic C page 3)
2. There is a bearing in the metal tube (3). It fits into the hole in the main body.
3. When installed correctly, the bearing will fall into the hole in the main body.
4. Connect the steam head (C) to the joint (7) as shown in illustration E page 3.
5. To remove the metal tube, press down on the bearing and pull upward as shown in page 3 illustration C.

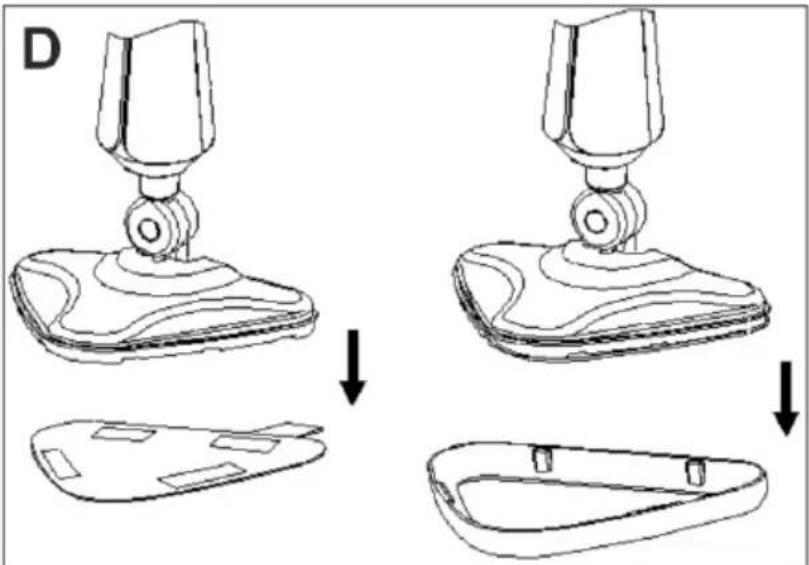

6. Attach a microfiber pad to the steam head (C). To remove the pad, pull it firmly.
7. To refresh carpets, apply the carpet cleaning pad (E) to the previously attached microfiber pad as shown in illustration D page 3.
8. Fill the device with water. To do this, remove the plug located on the back of the device, pour in tap water using the included measuring cup. NO MORE THAN 350 ml. Put the plug back in. As shown in illustration F page 3.

Using the device:

1. Put on either a microfiber pad or a carpet cleaning pad, respectively.
2. After preparing the device for use, plug it into a power outlet.
3. Switch the switch to the on position.
4. As the light changes to green, the device is ready for use.
5. Move the device slowly and steadily back and forth for best results.
6. Check the amount of water on the main body regularly.
7. When you have finished working, turn off the device and let it cool down.
8. Remove the microfiber pad.
9. Wash and dry the pads after each use to ensure hygienic cleanliness.
10. Pour out the remaining water from the tank.
11. The device will light up red until it heats up. This takes approximately 25 seconds, depending on the temperature of the room and water, it may be shorter or longer.

Decalcification:

Water container:

Depending on the hardness of the water in your home, the appliance should be descaled in the water container. To do this, add 2 tablespoons of white vinegar to the full water container and shake the appliance to distribute the solution throughout the water container. Set the device aside for several hours and empty the water container. Then rinse the entire container with clean water and leave the device to dry with the water container open.

Steam generating system:

If you notice a drop in steam generation or no steam generation, you need to remove the scale from the steam generation system. For this purpose:

1. In a measuring cup, create a solution consisting of 1/3 white vinegar and 2/3 tap water.
2. Pour the solution into the water container and close the water container.
3. Put the device in a place resistant to acid, temperature, and water. For example: sink, shower tray, bathtub. A microfiber pad is not needed to perform descaling.
4. Connect the device to electricity.
5. Turn on the device. The device will start producing steam.
6. Wait until the container empties.
7. If the device still does not produce the previous amount of steam, repeat the operation until the desired effect is achieved.
8. After successful descaling, rinse the container with clean water.
9. Fill the container with clean water and turn on the device until the steam generation empties the container.
10. The device is fully descaled.

NOTE: DO NOT LEAVE THE APPLIANCE UNATTENDED DURING THE DESCALING PROCESS.

Troubleshooting:

Problem: No steam, low amount of steam:

Possible cause: Empty water container.

Solution: Add water.

Possible cause: Blocked steam outlet.

Solution: Clean the steam nozzle/decalcify.

Possible cause: No power supply.

Solution: Connect to power supply.

Possible cause: The device is not turned on.

Solution: Turn on the device.

Problem: The device does not turn on.

Possible cause: The device is not plugged in.

Solution: Connect the device to the power supply.

Possible cause: Burnt internal fuse.

Solution: Contact central service.

Technical data:

Power supply current: 220-240V~50Hz

Power: 1300W

Waterproof class: IPX4

Capacity: 350ml

For the sake of the environment. Cardboard packaging and polyethylene (PE) bags should be disposed of in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment. The marking on the product indicates that the device should not be disposed of in the container with municipal waste. Waste electrical equipment is waste that contains substances harmful to humans, animals and the environment. These substances can lead to contamination of the soil, water or air, and through this they can enter the human body and lead to numerous health ailments, such as vision, hearing, speech disorders, they can also damage the kidneys, liver and heart, and cause skin diseases. Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them may risk the above-mentioned health effects. Do not dispose of the device in the municipal waste container!!!

Service: If you wish to purchase spare parts or report any complaints, please contact directly the seller who issued the receipt.
