USER MANUAL XB271HU ACER

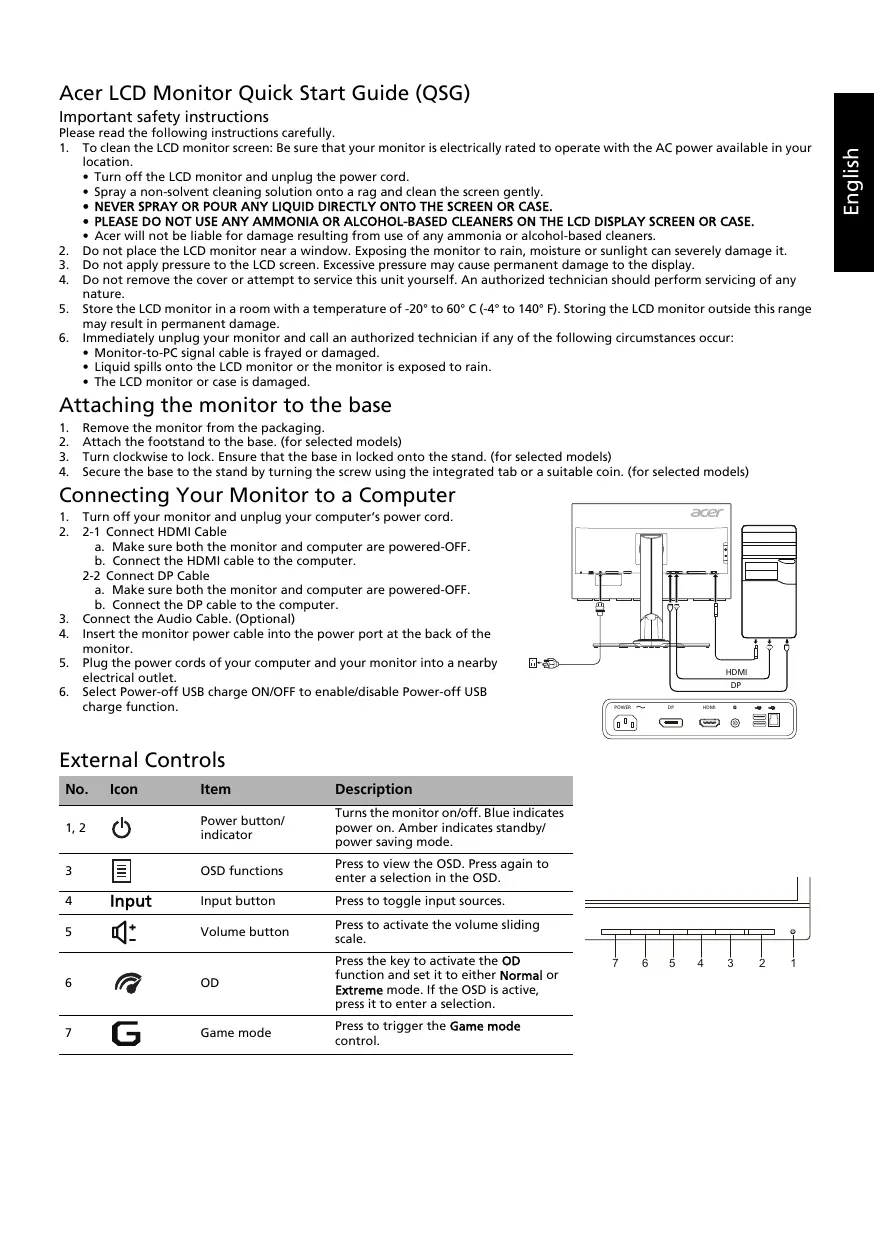

Acer LCD Monitor Quick Start Guide (QSG)

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the AC power available in your location.
2. Turn off the LCD monitor and unplug the power cord.
3. Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
4. NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.
5. PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON THE LCD DISPLAY SCREEN OR CASE.
6. Acer will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
7. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.
8. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
9. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any nature.
10. Store the LCD monitor in a room with a temperature of -20^ to 60^ C (-4^ to 140^ F). Storing the LCD monitor outside this range may result in permanent damage.
11. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:
12. Monitor-to-PC signal cable is frayed or damaged.
13. Liquid spills onto the LCD monitor or the monitor is exposed to rain.
14. The LCD monitor or case is damaged.

Attaching the monitor to the base

1. Remove the monitor from the packaging.
2. Attach the footstand to the base. (for selected models)
3. Turn clockwise to lock. Ensure that the base in locked onto the stand. (for selected models)
4. Secure the base to the stand by turning the screw using the integrated tab or a suitable coin. (for selected models)

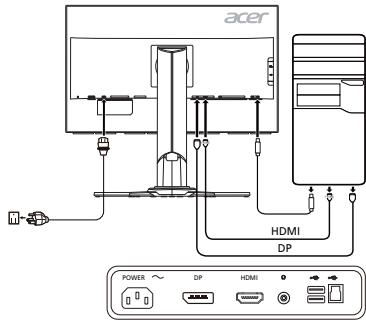

Connecting Your Monitor to a Computer

1. Turn off your monitor and unplug your computer's power cord.
2. 2-1 Connect HDMI Cable

a. Make sure both the monitor and computer are powered-OFF.
b. Connect the HDMI cable to the computer.

2-2 Connect DP Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the DP cable to the computer.

1. Connect the Audio Cable. (Optional)

2. Insert the monitor power cable into the power port at the back of the monitor.

3. Plug the power cords of your computer and your monitor into a nearby electrical outlet.
4. Select Power-off USB charge ON/OFF to enable/disable Power-off USB charge function.

External Controls

No.	Icon	Item	Description
1, 2		Power button/indicator	Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode.
3		OSD functions	Press to view the OSD. Press again to enter a selection in the OSD.
4	Input	Input button	Press to toggle input sources.
5	+	Volume button	Press to activate the volume sliding scale.
6		OD	Press the key to activate the OD function and set it to either Normal or Extreme mode. If the OSD is active, press it to enter a selection.
7	G	Game mode	Press to trigger the Game mode control.

Adjusting the OSD settings

NOTE: The following content is for general reference only. Actual product specifications may vary.

The OSD (on-screen display) can be used to adjust the settings of your LCD monitor. Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings. For advanced settings, please refer to the following pages:

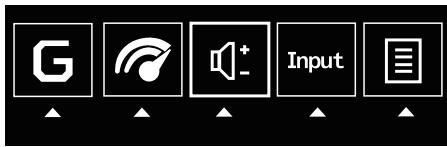

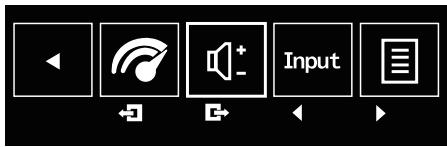

Main page

1. Game mode
2. OD (overdrive) options
3. Volume
4. Input selection
5. Function menu

Turning Game mode on or off

Open the Game mode control and turn Game mode on or off using the arrows (OFF/ON), and select which user-defined profile to use (please see the OSD section for more information).

Adjusting the OD setting

Open the OD control and select your preferred OD setting using the arrows. When you are done, use to go back one level.

Adjusting the volume

Open the Volume control and set the Volume using the arrows. When you are done, use to go back one level.

Selecting the input

Open the Input control and select HDMI or DP. When you are done, use to go back one level.

The Function page

Open the Function page to select the Picture, Color, OSD, or Setting functions, and adjust the settings which you want using the arrows. You can also view your monitor's system information from this page. When you are done, use 5 to go back one level.

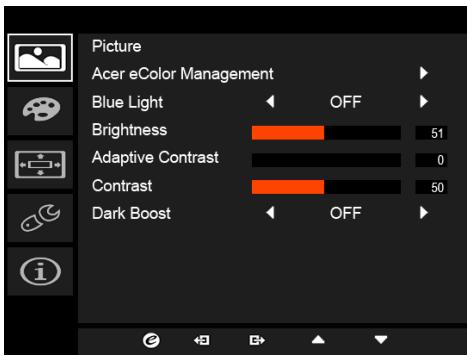

1. Press the MENU key to open the OSD.
2. Using the / keys, select Picture from the OSD. Then navigate to the picture element you wish to adjust.
3. Use the / keys to adjust the sliding scales.
4. The Picture menu can be used to adjust the Acer eColor, Blue Light, Brightness, Adaptive Contrast, Contrast, and Dark Boost.
5. Blue Light: Filters out blue light to protect your eyes by adjusting how much blue light is shown -- 80% , 70% , 60% , or 50% .

NOTE: Higher values allow more blue light through. For the best protection, select a lower value.

1. Brightness: Adjust the brightness from 0 to 100.

NOTE: Adjusts the balance between light and dark shades.

1. Adaptive Contrast: This method usually increases the global contrast of many images, especially when the usable data of the image is represented by close contrast values. This allows for areas of lower local contrast to gain a higher contrast. The method is useful in images with backgrounds and foregrounds that are both bright or both dark. In particular, the method can lead to better views of bone structure in x-ray images, and to better the details in photographs that are over or underexposed.

2. Contrast: Adjust the contrast from 0 to 100.

NOTE: Sets the degree of difference between light and dark areas.

1. Dark Boost: This boosts the amplitude of the dark color levels of the display- blacks will be less black. The higher the level, the higher the boost.

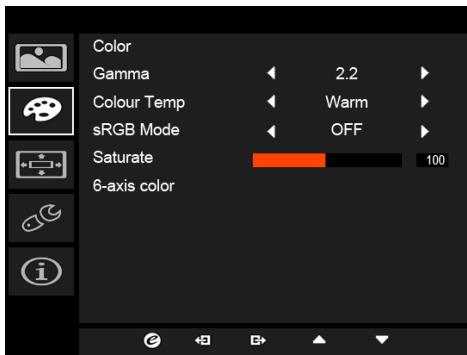

Color

1. Press the MENU key to open the OSD.
2. Using the / keys, select Color from the OSD. Then navigate to the picture element you wish to adjust.
3. Use the / keys to select the setting.
4. Gamma mode allows you to adjust the luminance tone.The default value is 2.2 (standard value for Windows).
5. Color temperature: Default is warm. You can choose Cool, Warm, Normal, Bluelight, or User.

6. sRGB mode is for getting better color matching representation with the peripheral device, such as DSCs or printers.

7. Saturate: Color brightness can be changed by 0~200 adjustment.

8. 6-axis color: Chroma of red, green, blue, cyan, yellow and magenta can be independently adjusted from 0~155, changing the color quality of the image.

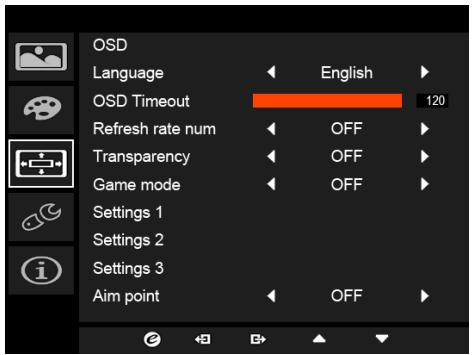

OSD

1. Press the MENU key to open the OSD.
2. Using the / keys, select OSD from the OSD. Then navigate to the setting you wish to change.
3. Use the / keys to adjust any sliding scales.
4. Language: Set the OSD menu language.
5. OSD timeout: Adjust the delay before turning off the OSD menu.
6. Refresh rate num: Display the panel's current refresh rate on the screen.
7. Transparency: Select the transparency when using gaming mode. The transparency can be 0% (OFF), 20% , 40% , 60% , or 80% .
8. Game mode: There are three user-defined profiles available. When you have decided what settings suit you, save them and system will be able to recall the settings in the future when you turn on gaming mode and press 1, 2, or 3.
9. Aim point: Show an Aim point on the screen for shooting games.

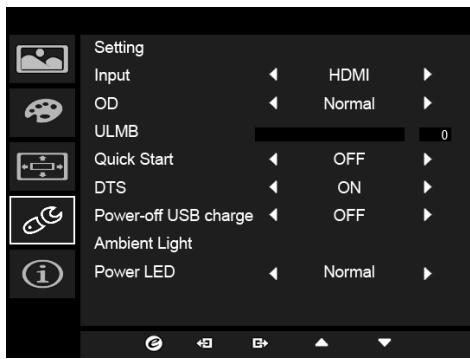

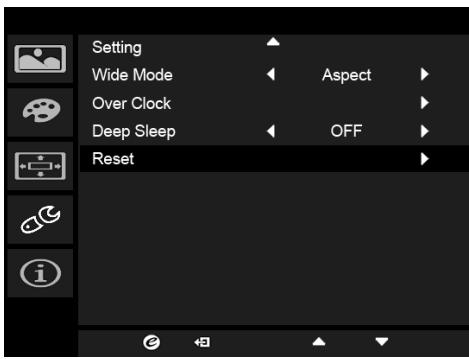

Setting

1. The Setting menu can be used to select the screen menu language and other important settings, including input and OD level.
2. Press the MENU key to open the OSD.
3. Using the / keys, select Setting from the OSD. Then navigate to the setting yo wish to adjust.
4. Use the / keys to select the setting.
5. Input: Select the source from DP In or HDMI.
6. OD: Select Off, Normal, or Extreme.
7. ULMB (Ultra Low Motion Blur): Adjust the slider to reduce motion blur effect while you are watching fast-moving images. Please visit the NVIDIA website for more information.
8. Quick Start: Enable monitor rapidly.
9. DTS (selective models): Turn DTS Sound On or Off. DTS Sound is stratified and creates a remarkable sonic flow.
10. Power-off USB charge: Turn On or Off.
11. Ambient Light (selective models): Adjust the lighting effects, color, and style.
12. Wide Mode: You can select which screen aspect you are using. The options are Aspect and 1:1.

13. Over Clock (selective models): The monitor can be overclocked (at the end user's risk) to a higher refresh rate than advertised by the panel specification.

14. This function allows you to reset the maximum refresh rate in the NVIDIA Control Panel after rebooting. If nothing is displayed, disconnect the DisplayPort cable and use the monitor's on-screen display to select a default refresh rate.

15. Deep Sleep: Default is on. When the function is on, with no HDMI or DP input after 12 minutes, the monitor will go to sleep

mode. When the function is off, with no HDMI or DP input, the monitor will not go to sleep mode.

1. Reset: Resets the custom color settings to the factory defaults.

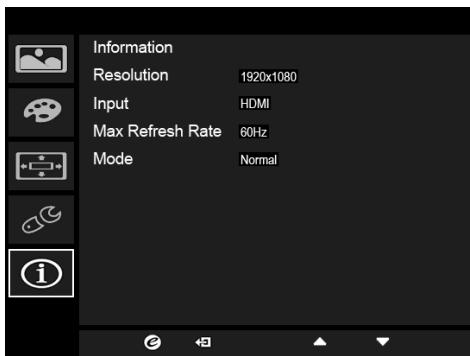

Product information

1. Press the MENU key to open the OSD.
2. Using the / keys, select Information to view the basic information for your monitor and current input.

Standard timing table

Mode	Resolution		Remark
1	640 x 480	60 Hz
2	720 x 480	60 Hz
3	1280 x 720	60 Hz
4	720 x 576	50 Hz
5	1280 x 720	50 Hz
6	1920 x 1080	50 Hz
7	1920 x 1080	60 Hz
8	800 x 600	60 Hz
9	1024 x 768	60 Hz
10	2560 x 1440*	24 Hz
11	2560 x 1440	60 Hz	default (HDMI/DP)
12	2560 x 1440*	85 Hz
13	2560 x 1440*	100 Hz
14	2560 x 1440*	120 Hz
15	2560 x 1440*	144 Hz

*Only for DP mode, not for HDMI mode.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

CE declaration of Conformity

Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Notice:

In order to prevent damage to the monitor, do not lift the monitor by its base.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user authority, which is granted by the Federal Communications Commission, to operate this product.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

SPECIFICATION

LCD Panel	Driving System	TFT Color LCD
	Size	27"W (69 cm)
	Pixel Pitch	0.2331 mm (H) x 0.2331 mm (V)
	Brightness	350 cd/m2 (Typical)
	Contrast	1000:1
	Viewable Angle	178° (H) 178° (V) (CR=10)
	Response Time	4 ms (G to G)
	Panel Type	In-Plane Switching (IPS)
	Video	R, G, B Analog Interface
	H-Frequency	30 kHz - 209 kHz
	V-Frequency	24 - 144 Hz
Display Colors		16.7 million
Dot Clock		570 MHz
Maximum Resolution		2560 x 1440 @ 144 Hz
Plug & Play		VESA DDCCI/DDC2B
Energy Efficiency Class		B
*Annual Energy Consumption		60 (kWh) (for HDMI-input Model)
Power Consumption (at 200 nits)	On Mode	32.02 W (Typical)
	Sleep Mode	0.47 W (Typical)
	Off Mode	0.43 W (Typical)
Input Connector		HDMI 19 pins DP 20 pins
Input Video Signal		HDMI DP
Speakers		2 W x 2 (Only Audio-Input Model) (Optional)
USB		USB 3.0 x 4
Maximum Screen Size		Horizontal: 596.74 mm Vertical: 335.66 mm
Power Source		100-240 V, 50/60 Hz
Environmental Considerations		Operating Temp: 5° to 35°C Storage Temp: -20° to 60°C Operating Humidity: 10% to 85%
Dimensions		611.6 (W) x 400.8 ~ 550.8 (H) x 268.4 (D) mm
Weight (N. W.)		8.0 kg (net)
Mechanism Specifications		Tilt: -5° to +35° (Only at the highest point can 35 degrees of recline be offered for the angle of elevation) Swivel: -30° to +30° Height adjustment: 0 mm to 150 mm Pivot: -90° to 90° Detachable foot stand: Yes (Detachable foot stand with screw release)
External Controls	Switch/Buttons	Power Button Volume MENU/ENTER OD Input Game mode
	Functions	Contrast Aim point Brightness OD 6-axis Saturate DTS (selective models) Color Temperature ULMB Blue Light Quick Start eColor Game mode Gamma Power-Off USB Charge Adaptive Contrast Language Dark Boost OSD Timeout sRGB Mode Input Signal Selection (only Dual input model) Saturate Display Information Refresh rate number Reset Transparency Exit
All specifications are subject to change without notice.

Find manuals and other documents for your Acer product on the official Acer support website.

*Annual energy consumption is calculated using the typical power consumption 4 hours per day, 365 days per year.

Panduan Praktis Monitor LCD Acer (QSG)

YtobH He NoBpeDnTb MOHITOP, He NOpHMaIe ero 3a OCHOBAHne.

番号	アイコン	アイテム	説明
1、2		電源ボtons/ インジーナー	モニタ一をオローはります。青色は電源が 才上ごるとを示ります。才レncy色は、 スチデバイ省電力モードを示ります。
3		OSD 機能	押すと OSD が表示いたします。む一度押すと OSDの才予bethen選択する这句话你能 safely。
4	Input	入力端子ボtons	入力ソードを切り,GLeaderness。
5		音量ボtons	音量スリドをアクテフに,GLeaderness。
6		OD	This is the first time you've spoken. You're in a new situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. This is the first time you've spoken. You're in a new situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situations. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You're in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You’re in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You’re in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situation. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You’re in an emergency situations. You’re in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situations. You're in an emergency situation. You're in an emergency situations. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You’re in an emergency situation. You’re in an emergency situation. you're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an emergency situation. You're in an紧急事項。

規制と安全に関atory注意

FCC に関する注意

BaxHH HNCTpyKcHn 3a 6e3oNaCHOCT

MOnr, npOyTeTe BnHMaTeJHo CneHnTe HNCTpyKuIN.

1. 3aДа NOCHTCE ekpama Na LCD MOHNTOPA: He 3a6pbayIte, Ye bauIMT MOHNTOP e npdHaahueh 3a pa6Ota C ppoMeHHBTOKOB3 axpaHae BbB aBHIM perOHn.
2. I3kIIOUeTe LCD MOHITOPa IN 3BaIeTe 3axpaHbauJra Ka6eJ ot KOHTaKaTa.
3. Hanpbckai Te nouchtaa pa3TBop 6e3 pa3TBopnteIn Bbpxu Kbpna I NOOHTe BHMaTeHNO ekpaHa.
4. HE INPbCKAITE IN HE IN3JIINBAITE TEUHOCT DIPKTHO BbPXU EKPAHA INIIN KOPNYCA.
   HE N3IOJI3BAITE ONUCTBAUINI PEPNAPATNA HA MOHJHA IIN CNPINTHA OCHOBA 3A NOUCHCTBAHE HA LCD EKPAHA IMN KOPNYCA.
   Acer He NCOI OTBOPOHOC 3a NOBpei, NaCTbNIIN B peyNTa H naNIOON3BAHcH O Na NOUCHBaUN pnpapATn H aMOHNA IN CNPTPAO CHOBAA.
5. He octobreile LCD MOHITOPA 6bn3o Do npo3opeu. M3naraheTO ha MOHITOPA Ha bKd, Bnra HnCnBHeBa CBeTnHa MoKe sepnIOHO da ro npoeDien.
6. He npinaraTe Hatnck Bbpxy LCD ekpAna. Ipekomepnrt Hatack Moke da doBee do TpaHNo yBpeXdahe Ha dinCnnie.
7. He OCTpAHBaTBeIaKAna I HE CE ONBtAeJa pEmOHHTnAPATE TOBA yCTPOINCTBO CAMN. YbJIHOMOJEN TEXHNI KTRIBaIa3bIpaBAcEPBNHOHO6CnLYKBAEOT CBRAKAOCTECTBO.
8. CxbpaHbAite LCD MOHITOPA b CTa h CTMEPATyP aT -20o 60o 6o C (-4o 140o F). CxbpaHenHTo h LCD MOHTOPA hBh ToIi dIaONAO MOnE o TaIHO YbpeXdAne.
9. He3abABHO 13BadeTc UeIeCnA To KOTAKTa HA BaaBMOHOTP Ce Oe 6abeTe Ha yIbNtHOMOuEH TExHMK PnI B3HNKBAHETO H AHOE TO CIEDNHTE OeCToRNTCTBa?
10. Ka6eBt 3a cunhajl OT MOHITOPa KbM KOMNIObPa e npotn nn NobpeDeH.
11. Pa3JIbBaHe Ha TeuHocT Bbpxy LCD MOHITopa IIN MOHITOpbTe nI3JNOxEH Na DbXd.
    LCDMOHITOpbTINJINKOPNycbTcaNOBpeDeHN.

3aKpenBaHe Ha MOHITOPa KbM OCHOBAta

1. OtctpaHete MOHHTopa OT ONAKOBkata.
2. 3akpenete ctoKata KBM OCHOBATA.(3a n36paHn MoeJIN)
3. 3aBpTeTne NO cAocOBHIOKoBA tCTpeNka, 3a da 3aknIOUHTe CToiKaTa. YBepeTe CE, Ye OCHOBATA e 3aknIOUHe Bbpy CTOnkata. (3a 3bpaHm MOdeni)
4. 3aKpeTe OCHOBaTa KbM CTOnKaTa KaTO 3aBbPntE BnHTA C NOMOuTa Ha NIOCKe EUNe HIN C N IOXoJua MoHeta. (3a N36paHm MOdeJIi)

Cbpb3BaHe Ha MOHITopa KbM KOMNIOTpba

3a da npedotbpaTne noBpeHa ha MOHToPA, He ro nobDnraTe OT OCHoBaTa My.

BeIeKka: EkpaHpaHn Ka6eHn

BcMnK Bp3kM kM Dpyu nI3HcNtEny HycTPOCTBa Tp8Ba 1a ce I3bPbUBat c NOMOHTa Ha ekpHaIpaHAn Ka6eNl, 3a da OTOBAPRT Ha panaOpEbnTe 3a enekTropMaTHHna CBMbEcIMTOCT (EMC).

Bélejexka: Pēpɪnóféρhny yctpoɪcTba

EINHCTBHeN eepnepn HcTpoeTbA (BXoHDHxOxDNH yctpoeTbA, TepMHnAn, pnpntepn H.T.), KOHTo IMat ceptndnk 3a cbOTBCTBNE c o\rnaenHnra 3a knac B MOran da Ce bPb3at KbM ToBa o6OpyBaNa Paobota C hecertnphiunpanh nepnepn HycToIcTBa MoKe da Doe do CMuehner ha paMQu NtebeinMOHOI pnpmeHa.

BHHMaHHe

PmOeHn MIO MoDfNkAa, KOTo He ca IaIINHO ODoBENa TOnpOBDtNMeTnMOrat Da BoEDaTdo AHyNtPAHe Na TbHOMOuNTa H a NtOpeTbEny, KOTo e PneOCToAB To FedePAnhAT NOMCIN NO KOMYHNKauInTe 3a pObTaC o TOni pOdyKT.

UcIobnHa pa6ota

Toba yctpoICTBO E B CbOTBETCTBVE C cAust 15 ot npabnata Na K Pa6ToT a npeDMt Ha cIeHNTE DBe YCNOIBIA: (1) TOBA yCTPOICTBO HE TpRABa da pInyHbA BPeDNcMcyUeHIN (2) TOBA yCTPOICTBO TpRABa da pInyEMa BCmKNi POnyuEHN CMuyEHHK BKNIOHTENHO CMUYEHH, KOITO 6MbA MOrI Da pInyHHT NHeKeJHAna p6oTa.

Belenkka: Kahandskn noTppe6nteI

Toba zinφpOBO yctpoIcTBo OT kLnB B otroBaRa ha paanopeIbTa ICES-003 Ha KaHaJa.

Olulised ohutusalased juhised

Waiiiaaunauuunnnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanaraannaa

iuaun:

nnaa aananaananaananaananaananaananaananaananaanana ane EMC

Jiajun: aunwaw

Iawuunssuaa (gunssuaa/ana wna naa aanwaaanr) 100000000000000000 Class B wnuuwa

#

Fenrnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne

Jauunnnn

aunnunununun Part 15 aang FCC mnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

i:

auunrnnnnae Class B 11111111111111111111111111111111111111111111

Aailll 1yall yaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

LCD

A. CD A. CD

aLiLiLiLiLiLiLi

1

sally 1dall

(jalld jssaae gajol).Jall lsc sclll Jia n xli. Jiall aell wjie o jil g cally p .3

Aulua aiaa aie aiaaaal aagall aiaaay g yll qyjbc Jaall gaoeell pa .4

(jjall jia 2220ie gaoxl)

jglsl jgsa aalll

jll jlll lal lal lal lal lal

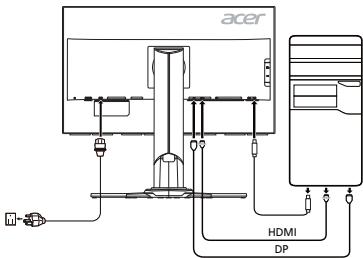

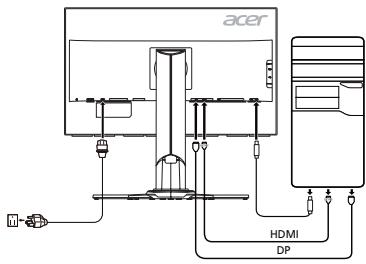

HDMI 2-1 .2

jglgagaiil jiaai jao

HDMI

DP 2-2

jglgagaiil jiaai jao

jssll jdpDpLd

（）.3

Aull 10 gllg jgl g ygal lal bia g aalil alb J4

.5

AebIe USBJnssyjg JnssyjgabIe USBJnssyjgJnssyjg.6

aJill

m = 311

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail:[e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone]

www.acer.it

Declare under our own responsibility that the product:

Product: LCD Monitor

Trade Name: Acer

Model Number: XB271HU

SKU Number: XB271HUXXXXX

^x^ = 0 9 a Z A Z or blank)

To which this declaration refers conforms to the relevant standard or other standardizing documents:

EN55022:2010 Class B; EN55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009, Class D
EN61000-3-3:2008
EN60950-1:2006/A11:2009/A1:2010+A12:2011
Regulation (EC) No. 1275/ 2008; EN 50564:2011; IEC 62301:2011
EN50581:2012

We hereby declare above product is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Year to begin affixing CE marking 2015.

RU Jan / Sr. Manager

Regulation, Acer Inc.

Sep. 24, 2015

Date

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Kontaktperson: Mr. RU Jan, e-mail: [e-mail]

Und,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone]

www.acer.it

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Persona de contacto: Mr. RU Jan, e-mail: [e-mail]

Y,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone]

www.acer.it

RU Jan / Director executivo Reglamento, Acer Inc.

Sep. 24, 2015

Fecha

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Personne contact: Mr. RU Jan, email: [e-mail]

Et,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italie

Tel: [phone], Fax: [phone]

www.acer.it

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contattare: Signor RU Jan, e-mail: [e-mail]

E,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone]

www.acer.it

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contactpersoon: Mr. RU Jan, e-mail: [e-mail]

En,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone]

www.acer.it

RU Jan / Sr. Manager Regulering, Acer Inc.

Sep. 24, 2015

Datum

Declaration of Conformity

A,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail:[e-mail]

Ea,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone]

www.acer.it

RU Jan / Sr. Manager Regulation, Acer Inc.

Sep. 24, 2015

Date

ENERGY STAR®

Acer's ENERGY STAR qualified products save you money by reducing energy costs and helps protect the environment without sacrificing features or performance. Acer is proud to offer our customers products with the ENERGY STAR mark.

What is ENERGY STAR?

Products that are ENERGY STAR qualified use less energy and prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency. Acer is committed to offer products and services worldwide that help customers save money, conserve energy and improve the quality of our environment. The more energy we can save through energy efficiency, the more we reduce greenhouse gases and the risks of climate change. More information refers to http://www.energystar.gov or http://www.energystar.gov/powermangement

Acer ENERGY STAR qualified products:

• Produce less heat and reduce cooling loads, and warmer climates.
• Automatically go into "display sleep" and "computer sleep" mode after 15 and 30 minute of inactivity respectively.
• Wake the monitor when it is in Active Off mode, move the mouse or press any keyboard key.
• Computers will save more than 80% energy at "sleep" mode. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks

Congratulations!

This product is TCO Certified – for Sustainable IT

TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.

This product has been verified to meet all the criteria in TCO Certified, including:

Corporate Social Responsibility

Socially responsible production - working conditions and labor law in manufacturing country

Energy Efficiency

Energy efficiency of product and power supply. Energy Star compliant, where applicable

Environmental Management System

Manufacturer must be certified according to either ISO 14001 or EMAS

Minimization of Hazardous Substances

Limits on cadmium, mercury, lead & hexavalent chromium including requirements for mercury-free products, halogenated substances and hazardous flame retardants

Design for Recycling

Coding of plastics for easy recycling. Limit on the number of different plastics used.

Product Lifetime, Product Take Back

Minimum one-year product warranty. Minimum three-year availability of spare parts. Product takeback

Packaging

Limits on hazardous substances in product packaging. Packaging prepared for recycling

Ergonomic, User-centered design

Visual ergonomics in products with a display. Adjustability for user comfort (displays, headsets)

Acoustic performance - protection against sound spikes (headsets) and fan noise (projectors, computers)

Ergonomically designed keyboard (notebooks)

Electrical Safety, minimal electro-magnetic Emissions

Third Party Testing

All certified product models have been tested in an independent, accredited laboratory.

A detailed criteria set is available for download at www.tcodevelopment.com, where you can also find a searchable database of all TCO Certified IT products.

TCO Development, the organization behind TCO Certified, has been an international driver in the field of Sustainable IT for 20 years. Criteria in TCO Certified are developed in collaboration with scientists, experts, users and manufacturers. Organizations around the world rely on TCO Certified as a tool to help them reach their sustainable IT goals. We are owned by TCO, a non-profit organization representing office workers. TCO Development is headquartered in Stockholm, Sweden, with regional presence in North America and Asia.

English

For customers who own the EPEAT registered-products¹, Acer offers the following services at your costs²:

1. Additional 3 years warranty
2. For the product life extension³, through the use of compatible parts of after-market, or refurbished with equal or higher specification, we offer spare parts or replacement parts for 5 years after end of production

For those INSTITUTIONAL customers who own the EPEAT registered-products¹, Acer offers following additional services at your costs²:

1. Product take-back program of Notebooks, Desktops and Monitors
2. Battery take-back program of Battery Pack of Notebooks
3. Packaging take-back program for packaging which were shipped with EPEAT registered¹ Notebooks, Desktop and Monitor products

For more details of above services, please visit local Acer website

1 EPEAT registered-products, please visit http://www.epeat.net
2 Service availability and costs vary by country; for details, please refer to local Acer website or contact local Acer representatives.
^3 Service for product life extension is available in limited countries, please refer to local Acer website or contact local Acer representatives for details.
4 Service for packaging take back program is free of charge and available in limited countries, please refer to local Acer website or contact local Acer representatives for details.

繁體中文 (台灣適用)

Regulatory Compliance

www.lvt.com ID:1030005002

Barcode

MU.T4T00.001

4J.31M01.071 (xx)
