MXE 1200 - Concrete Mixer Flex - Free user manual and instructions

Product Type	Portable electric stirrer (mixer) for construction materials
Brand	Flex
Model	MXE 1200
Rated power	1200 W
Supply voltage	230 V ~ (according to rating plate)
Protection class	II (double insulation)
Power cable length	4.0 m with plug
Rotational speeds (gear I / II)	Level 1: 210 / 320 rpm; Level 2: 325 / 490 rpm; Level 3: 530 / 780 rpm
Speed control type	Electronic speed variator with 3 levels + gear selector (I/II)
Net weight (approx.)	5.5 kg
Dimensions (L x W x H) (approx.)	500 x 150 x 150 mm
Intended use	Mixing of paints, varnishes, glues, plasters, mortars, resins, etc. (not for foodstuffs)
Overload protection	Automatic stop in case of extreme overload
Noise level (typical)	May exceed 85 dB(A) - use hearing protection
Maintenance and cleaning	Regularly clean ventilation slots and the mixer after use; use compressed air for the motor
Spare parts and accessories	See Flex catalog or www.flex-tools.com; repairs by authorized service center
Warranty	Do not loosen the gearbox screws under warranty
Disposal	Do not dispose with household waste; recycle according to WEEE directive

Frequently Asked Questions - MXE 1200 Flex

What kind of materials can I mix with the Flex MXE 1200?

This stirrer is designed for mixing high-viscosity liquid materials such as paints, varnishes, glues, plasters, mortars, resins, and fillers. It must not be used for foodstuffs.

How do I change the rotational speed?

First stop the motor. Then press the lock (lock button) and turn the speed selector switch to the desired level (I or II) and position (1,2,3). Never change the motor speed while it is running.

What to do if the stirrer does not start?

Stop the device, manually turn the mixer about 45° and try again. If the problem persists, check the power supply and cable. Never disconnect the damaged cable from the plug.

How to clean the mixer after use?

Clean the mixer immediately after use to prevent the mixture from drying. Use water or a suitable solvent depending on the product. Also clean the ventilation slots with compressed air.

Can I use the device without a residual current device?

It is imperative to use the device with a residual current device if you work outdoors, to protect yourself against the risk of electric shock.

How to install or change the mixer (auger)?

First disconnect the device. For models without end stop: screw the mixer onto the drive spindle by blocking it with a 19 mm open-end wrench and tightening the mixer with a 22 mm open-end wrench. For models with end stop, first set the speed selector to the end stop before mounting the mixer.

What does overload protection mean?

In case of extreme and brief overload, a protection device automatically stops the motor to prevent damage. Let it cool for a few moments before restarting.

Is it possible to use the stirrer continuously?

Yes, the device has a continuous operation mode with locking. To activate it, press the lock-off button then the switch, hold the lock button, release the switch, then release the lock-off button. To stop, briefly press the switch.

Where can I find spare parts and accessories?

Consult the Flex catalog or visit www.flex-tools.com for exploded views and spare parts lists. Repairs must be carried out by an authorized service center.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. According to the WEEE directive, it must be collected separately and recycled in an environmentally friendly manner. Take it to an appropriate collection point.

USER MANUAL MXE 1200 Flex

Illustration of two identical electric drill pressers with rotating coils, no text or symbols present

de Originalbetriebsanleitung 6
en Original operating instructions 9
fr Notice d'instructions d'origine 12
it Istruzioni per l'uso originali 16
es Instrucciones de funcionamiento originales 20
pt Instruções de serviço originais 24
nl Originele gebruiksaanwijzing 28
da Originale driftsvejledning 32
no Originale driftsanvisningen 35
sv Originalbruksanvisning 38
fi Alkuperäinen käyttöohjekirja 41
el Auθεντικές οδηγίες χειρισμού 45
tr Orijinal işletme kılavuzu 49
pI Instrukcja oryginalna 52
hu Eredeti üzemeltetési útmutató 56
cs Originální návod k obsluze 60
sk Originálny návod na obsluhu 63
hr Originalna uputa za rad 66
sl Izvirno navodilo za obratovanje 69
ro Instructiuni de functionare originale 72
bg Оригинално упътване за експлоатация 75
ru Оригинальная инструкция по эксплуатации 79
et Originaalkasutusjuhend 83
It Originali naudojimo instrukcija 86
Iv Lietošanas pamācības oriģināls 89
ar 95 ترجمة لإرشادات الأتشغيل الأصلية

Illustration of hands operating a mechanical power tool with a cylindrical head and cable (no text or symbols visible)

RührerMixerAgitateurMescolatoreAgitadorMisturadorMengmachineOmrørerRøremaskinOmrörareSekoitinAvɑμικτήραςKarıştırıcıMieszarka	KeverőMichadloMiešadloMješalicaMešaloAgitatorБъркалкаПеремешива-тельSegurMaišytuvasMaisītājsأداة التقياب		MXE1000	MXE1002	MXE1200	MXE1202	MXE1602
nn1n2		1/min1/min1/min	0–780––	0–5300–780	210/325/530––	210/325/530320/490/780	150/300/530200/400/780
P1 W 1010 1010	1200 1200 1600
P2 W 550 550 710	710 925
			M14 M14	M14 M14 M14
Dmax		mm 120	120 140 140	160
m kg 4,5	4,6 4,6	4,8		5
LpA		dB(A)	79 79 79		79	84
LWA		dB(A)	90 90 90		90	95
K		dB	3	3	3	3	3
ah		m/s2	< 2,5 < 2,5 < 2,5		< 2,5 < 2,5
K		m/s2	1,5	1,5	1,5	1,5	1,5

Verwendete Symbole

WARNUNG!

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

06.09.2019

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE!

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear protective goggles!

Wear ear defenders!

Protection class II

Disposal information for the old machine (see page 11)!

Important safety information

WARNING!

Read all safety instructions and general instructions.

Failure to comply with the safety instructions and general instructions may result in electric shock, fire and/or serious injuries. Keep all safety instructions and general instructions in a safe place for future reference.

Before using the power tool, please read the following and act accordingly:

– these operating instructions,
– the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet no.: 315.915),
- the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The power tool may be operated only if it is

- for its intended use,

– in perfect working order.

Faults which compromise safety must be repaired immediately.

Intended use

The mixer is designed

– for commercial use in industry and trade,

– with mixer paddle of appropriate size and shape,

– for commercial use in industry and trade, – with mixer paddle of appropriate size and shape,

– for mixing liquids of low viscosity such as paint, varnish, adhesive, light plaster, resin,

– for mixing material of high viscosity such as plaster, mortar, lime, screed, filler etc.,

– for mixing stiff and sticky material of high viscosity such as adhesive, resin, sealing and insulating compound etc.,

- for mixing liquids of low viscosity such as paint, varnish, adhesive, light plaster, resin, - for mixing material of high viscosity such as plaster, mortar, lime, screed, filler etc., - for mixing stiff and sticky material of high viscosity such as adhesive, resin, sealing and insulating compound etc.,

– for use with mixer paddles and accessories which are indicated in these instructions or recommended by the manufacturer.

The mixer is not to be used for mixing foodstuffs.

Safety instructions

WARNING!

Read all safety instructions and general instructions.

Failure to comply with the safety instructions and general instructions may result in electric shock, fire and/or serious injuries. Keep all safety instructions and general instructions in a safe place for future reference.

■ Do not process explosive materials (e.g. highly inflammable solvents). Power tools generate sparks that could ignite the vapour given off.
■ Pull out the plug immediately and have the power tool checked by customer service if it falls into the stirred product. Should stirred product makes its way into the electric appliance, damage could ensue and cause an electric shock.
■ When working, hold the power tool firmly with both hands and ensure that you have a secure footing. The power tool is controlled more securely if held with both hands.
■ Do not process any material containing asbestos. Asbestos is carcinogenic.
■ Take protective measures if dust is likely to be generated during work that is hazardous to health, combustible or explosive. For example: some dusts are carcinogenic. Wear a protective mask and use a dust/particle extraction system if one can be fitted.
■ Wait until the power tool has come to a stop before putting it down. The cutting accessory may snag, causing the operator to lose control of the power tool.
- Do not use the power tool if it has a damaged power cord. Do not touch the damaged power cord and pull out the mains plug if the power cord is damaged during work. Damaged power cords increase the risk of an electric shock.
If power tools are to be used outside, connect them to a residual current breaker.

Noise and vibration

Values for the A-weighted sound pressure level and for the total vibration values can be found in the table on page 5. The noise and vibration values have been determined in accordance with EN 62841.

WARNING!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE!

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use. This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

Overview (Figure A)

1 Mixer paddle

2 Gear head

3 Motor housing with 2 handles

4 Rating plate *

5 4.0 m power cord with plug

6 Impact guard and rest

7 O N / O F F s w i t c h

8 Locking button

9 Drive spindle

10 Speed preselector switch

(MXE 1200/1202/1602)

11 Gear selector switch

a) 2nd speed and spindle lock (MXE 1002/1202/1602)

b) 1st speed and spindle lock (MXE 1200)

* not shown

Instructions for use

WARNING!

Before performing any work on the mixer, pull out the mains plug.

CAUTION!

The mains voltage and the voltage specification on the rating plate must match.

Before initial operation

■ Unpack the mixer and check that there are no missing or damaged parts.

Mounting/changing the mixer paddle

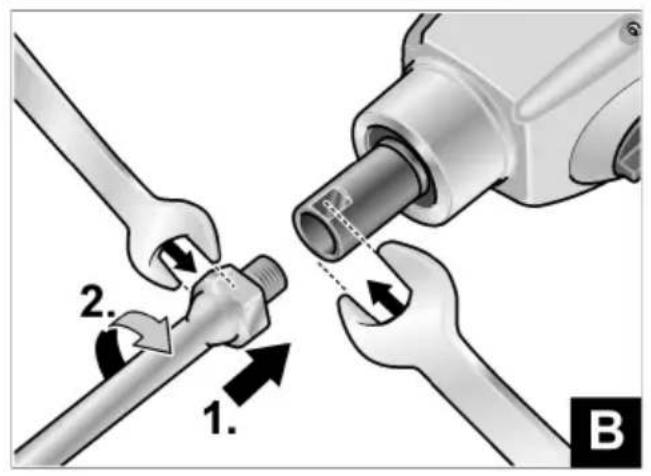

Tool without spindle lock (Figure B):

■ Bolt the paddle onto the drive spindle (1.).

Counterhold the drive spindle with an open-end spanner AF 19 and tighten the mixer paddle with an open-end spanner AF 22 (2.).

Remove in the reverse order.

Tool with spindle lock (Figure C):

■ Press the lock and turn the gear selector switch in anticlockwise direction to 📄.

■ Bolt the paddle onto the drive spindle (2.).

■ Tighten the mixer paddle with an open-end spanner AF 22 (3.).

Remove in the reverse order.

Gear selection (Figure D)

(MXE 1002/1200/1202/1602)

CAUTION!

Only select gear with motor stationary.

■ Press lock (1.) and turn switch in anti-clockwise direction to the required stage (2.)

MXE 1200:

I Output stage

Spindle lock for changing mixer paddle

MXE 1002/1202/1602:

I Output stage with higher torque

II Output stage with higher speed

Spindle lock for changing mixer paddle

Regulating the speed (Figure E)

(MXE 1200/1202)

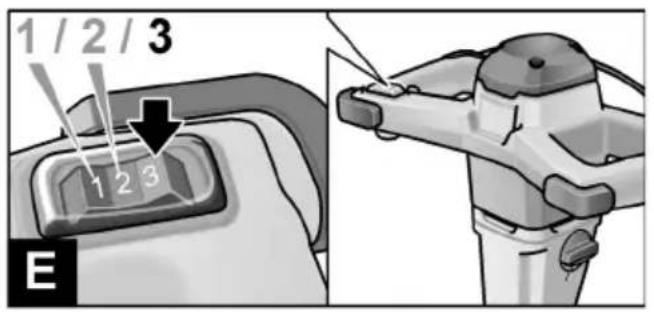

■ To adjust the maximum working speed, set the speed preselector switch to the desired stage.

Stage\Speed	I	II
1 210 320
2 325 490
3 530 780

Switching the mixer on and off

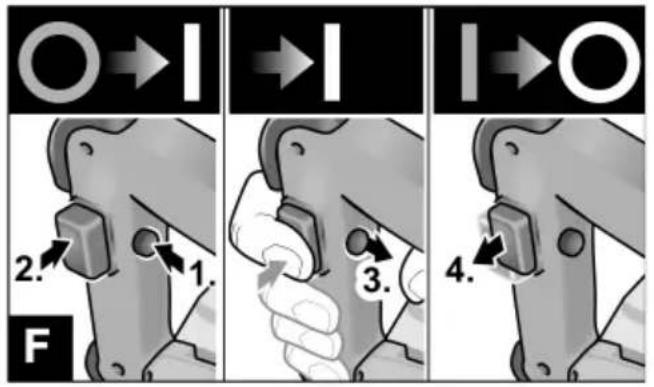

Brief operation without engaged switch rocker (Figure F)

■ First press the starting lockout (1.). Then press and hold down the switch (2). Release switch interlock (3).
■ To switch off, release the switch (4.).

Continuous operation with engaged switch rocker (Figure G)

■ First press and hold down the starting lockout (1.) and then the switch (2.).
■ To lock into position, hold down the locking button and release the switch (3.). Release switch interlock (4.).

To switch off, briefly press and release the switch (5.).

NOTE!

If the mixer does not turn after switching on:

– Switch the power tool off (release lock by pressing switch).
- Rotate the mixer paddle manually by 45^ .
- Switch the power tool back on again.

CAUTION!

Following a power failure, the switched on power tool does not restart.

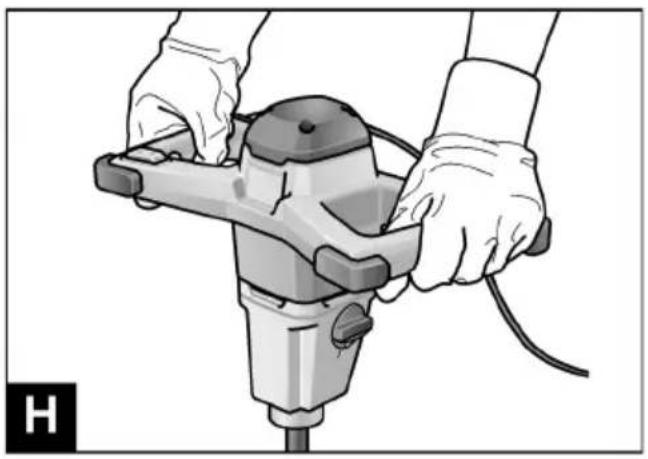

Operating instructions (Figure H)

■ After it has been switched off, the mixer runs on for a short time.
■ If the rotating mixer paddle strikes a surface, it could cause a jolt.
■ Only switch on the tool after the mixer paddle has been immersed in the product to be mixed. When doing this, slowly press the switch and wait until the tool has reached maximum speed.
■ When taking a break from work, place the tool down on the rests.

Overload protection

In the event of a short and extreme overload, the overload protection device prevents damage to the motor by switching the tool off automatically.

For further information on the manufacturer's products go to www.flex-tools.com.

Maintenance and care

WARNING!

Before performing any work on the mixer, pull out the mains plug.

Cleaning

■ Regularly clean the power tool and ventilation slots.
■ Regularly blow out the housing interior and motor with dry compressed air.
■ Clean the mixer paddle straight after use. Do not allow the mixed product to dry on.

Gear

NOTE

Do not loosen the screws on the gear head during the warranty period. Failure to comply with this requirement will invalidate any claims under the manufacturer's warranty.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

Mixer paddles for different applications and other accessories can be gleaned from the manufacturer's catalogues.

Exploded drawings and sparepart lists can be found on our homepage: www.flex-tools.com

Disposal information

WARNING!

Render disused power tools unusable by removing the power cord.

EU countries only.

Do not dispose of electric power tools in the household waste!

In accordance with the European Directive 2012/19/

EU on Waste Electrical and Electronic Equipment and its incorporation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner.

NOTE!

Please ask your dealer about disposal options.

CE-Declaration of Conformity

We declare under our sole responsibility that the product described under page 5 conforms to the following standards or normative documents:

EN 62841 according to the provisions of Directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents:

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profits due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Symboles utilisés

AVERTISSEMENT!

Eckhard Rühle

Manager Research &

Development (R & D)

06/09/2019

Eckhard Rühle

Manager Research &

Development (R & D)

06/09/2019

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

06-09-2019

Manager Research & Development (R & D)

06.09.2019

Eckhard Rühle

Manager Research &

Development (R & D)

06.09.2019

Eckhard Rühle

Manager Research &

Development (R & D)

06.09.2019

Jos koneessa karajarru (Kuva C):

Eckhard Rühle

Manager Research &

Development (R & D)

06.09.2019

Eckhard Rühle

Manager Research &

Development (R & D)

06/09/2019

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

06.09.2019

UE, 2006/42/WE, 2011/65/UE.

Eckhard Rühle

Manager Research & Development (R & D)

06.09.2019

Eckhard Rühle

Manager Research & Development (R & D)

2019.09.06.

Eckhard Rühle

Manager Research &

Development (R & D)

06.09.2019

Manager Research & Development (R & D)

06.09.2019

Klaus Peter Weinper

Head of Quality

Department (QD)

06.09.2019

Orodja z blokado vretena (Slika C):

■ Pritisnite na blokado in zavrtite stikalo za izbiro prestave v desno na stopnjo (1.).
■ Privijte mešalo na pogonsko vreteno (2.).
■ Zategnite mešalo z viličastim ključem dimenzije 22 (3.).

Demontažo izvedite v obratnem vrstnem redu.

Izbira prestav (Slika D)

(MXE 1002/1200/1202/1602)

PREVIDNO!

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

06.09.2019

EN 62841 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Manager Research & Development (R & D)

Klaus Peter Weinper
Head of Quality
Department (QD)

06.09.2019

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD

06.09.2019;

Spindlilukuga seadmed (Joonis C):

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

06.09.2019

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

2019-09-06

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

2019/09/06

- Crossages techniques to determine the objective of the image.
