Rally - Video Conferencing System LOGITECH - Free user manual and instructions

Product Type	Video Conferencing System
Brand	Logitech
Model	Rally
Dimensions (Camera)	152 mm x 152 mm x 163 mm
Weight (Camera)	1.25 kg
Power Supply	AC 100-240V, 50/60 Hz, 1.5A
Video Resolution	Up to 4K at 30 fps
Field of View	90° diagonal
Audio	Advanced beamforming microphone array, full-duplex speakers
Connectivity	USB-C, HDMI, Ethernet, Bluetooth, Wi-Fi
Mounting Options	Table stand, wall mount, tripod mount (1/4-20 thread)
Included Accessories	Camera, table hub, remote, cables, power supply
Cleaning Instructions	Wipe with a soft, dry cloth. Avoid liquids and abrasive materials.
Safety Precautions	Do not block vents; use only approved power adapter; avoid exposure to extreme temperatures.
Spare Parts Availability	Replacement cables, mounts, and power supplies available from Logitech support.
Repairability	Limited user-replaceable parts; professional service for internal components.
Warranty	2 years from date of purchase

Frequently Asked Questions - Rally LOGITECH

How do I set up the Logitech Rally system?

Connect the camera and table hub using the provided cables, then plug the hub into your computer via USB-C or USB-A. Install the Logitech Sync software for updates and configuration.

Can I mount the Rally camera on a wall?

Yes, the Rally camera has a built-in 1/4-20 thread for tripod mounting and a VESA mount adapter (sold separately) for wall mounting.

What is the maximum number of microphones I can connect?

The Rally system supports up to 7 microphone pods when using the optional mixer/splitter.

How do I update the firmware on my Rally?

Use the Logitech Sync application (available for Windows and macOS) to check for and install firmware updates. Ensure the device is connected via USB.

Is the Rally compatible with Zoom, Teams, and other software?

Yes, the Rally works as a standard USB device and is certified for Zoom, Microsoft Teams, and compatible with most major conferencing platforms.

What is the recommended room size for the Rally?

The Rally is designed for medium to large rooms (up to 10x15 meters) with its 4K camera and powerful speaker/microphone array.

How do I clean the camera lens?

Use a lens cleaning cloth (microfiber) to gently wipe the lens. Do not use any liquid cleaners or abrasive materials.

Can I use the Rally without the table hub?

No, the table hub is required for power and data connectivity. The camera connects to the hub, and the hub connects to your laptop.

What should I do if there is no audio?

Check that the table hub is powered on, all cables are securely connected, and the audio output is selected in your conferencing software. Try restarting the system.

Where can I find spare parts for the Rally?

Contact Logitech support or visit the official Logitech spare parts website. Common parts like cables, mounts, and power supplies are available.

USER MANUAL Rally LOGITECH

1. Remote control pairing button
2. USB

3. Status LED

4. Security slot

5. MIPI
6. Tripod Thread
7. Expansion Slot

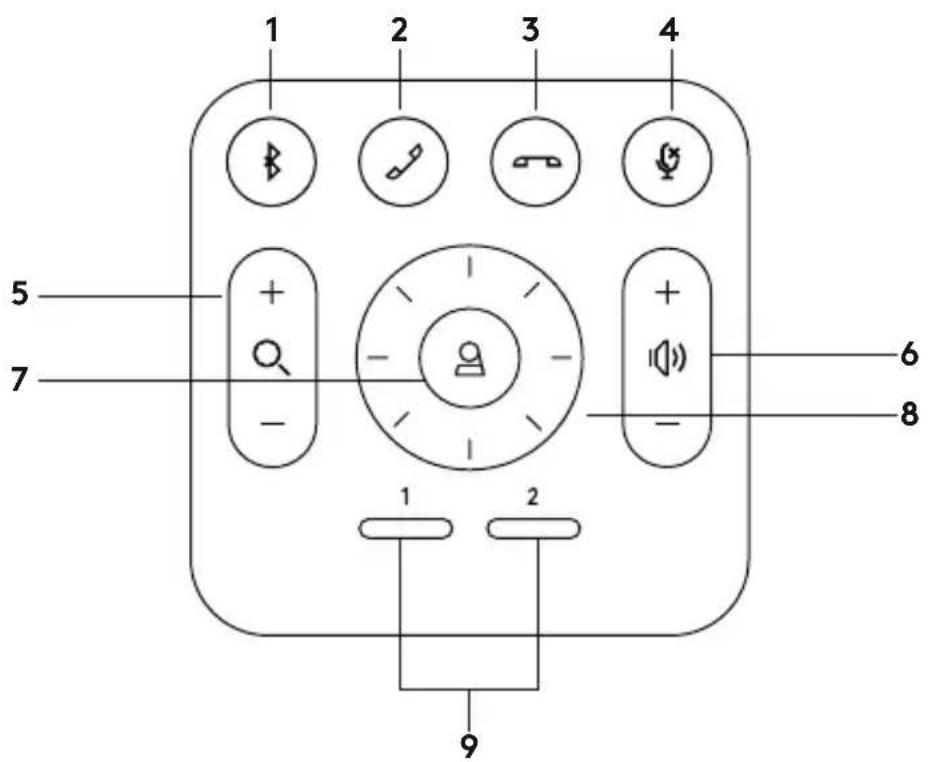

REMOTE

1. Bluetooth pairing
2. Call answer
3. Call end
4. Microphone mute

5. Zoom in/out

6. Volume up/down

7. Home
8. Camera pan/tilt
9. Camera presets

After completing the installation, the system can be checked by running the diagnostic application available at Logitech.com/support/Rally.

MAKE RALLY THE DEFAULT DEVICE

Ensure that R ALLY is chosen as the camera, speaker and microphone in your video conferencing applications. Please consult the application documentation for further instructions on how to do this.

STARTING A VIDEO CALL

After installing RALLY and ensuring it is the default device in your video conferencing application, simply start the application in the normal manner and enjoy the benefits of improved audio and video.

PAIRING RALLY TO A BLUETOOTH DEVICE

You can use RALLY for audio calls when paired to a Bluetooth device. To pair your Bluetooth device to RALLY, follow these simple step:

1. Press and hold the Bluetooth button on the remote control until you see a flashing blue light on the camera and microphones.

2. Place your mobile device in Bluetooth pairing mode and select "Logitech Rally".

3. You are now ready to use RALLY for audio calls.

PAIRING A REMOTE CONTROL TO R ALLY

RALLY and the remote control are paired at the factory. You can pair up to 5 remote controls to RALLY to make it easier to control the system in larger rooms. Or, if you need to pair a remote to the camera, such as when replacing a lost remote, do the following:

1. Press and hold button on the back of the camera until the LED flashes blue.
2. Press and hold the Bluetooth button on the remote for 10 seconds to place it in pairing mode.
3. Once the remote and camera are paired the LED will stop flashing.
4. If the pairing fails, the LEDs will keep flashing. Start from step 2 and repeat.
5. Press and hold the pairing button on the Display Hub until the LED flashes white.
6. Press and hold the Bluetooth button on the remote for 10 seconds to place it in pairing mode.
7. Once the Display Hub and camera are paired the LED will stop flashing.
8. If the pairing fails, the LEDs will keep flashing for 2 minutes then stop. Start from step 2 and repeat.

CAMERA SETTINGS APPLICATION

Use this program to control the camera pan, tilt, zoom, focus, and image quality (like brightness and contrast) from your computer. The software can be downloaded from www.logitech.com/support/Rally.

ENHANCING RALLY

There are several optional accessories that ease installation and allow RALLY to be used in larger rooms:

1. Rally Mounting Kit: Mounting brackets for the Table Hub, Display Hub, Camera and Speakers.
2. Extra Mic Pods: RALLY can support up to 7 Mic Pods allowing great flexibility in room size and configuration.
3. Mic Pod Hub: Used to branch microphone routing and run most of the Mic Pod cabling is below the table. The Mic Pod Hub has 3 jacks that can be connected to a combination of Mic Pods or other Mic Pod Hubs.
4. TV mount: Works with one of either the Camera or Speaker mounting brackets. The TV Mount can be used in pairs to mount the Camera and Speaker above and below the TV.

FOR MORE INFORMATION

You can find additional information on RALLY including:

-FAQs

• Software to enable functions in various application
• How to order replacement parts and more at
  www.logitech.com/support/Rally

WAS IST WAS

TISCH-HUB

RALLY HET STANDAARD- APPARAAT MAKEN

VOOR MEER INFORMATIE

1. Fjärrstyrd parningskontrollknapp
2. USB

3. Statusindikatorlampa

4. Säkerhetslucka

5. MIPI
6. Stativgänga
7. Expansionslucka

FJÄRRKONTROLL

"RALLY" KĀ NOKLUSĒJUMA IERĪCE

1. Dugme za uparivanje daljinskog upravljača
2. USB

3. LED indikator za status

4. Bezbednosni otvor

5. MIPI
6. Kačenje na stativ
7. Priključak za proširenje

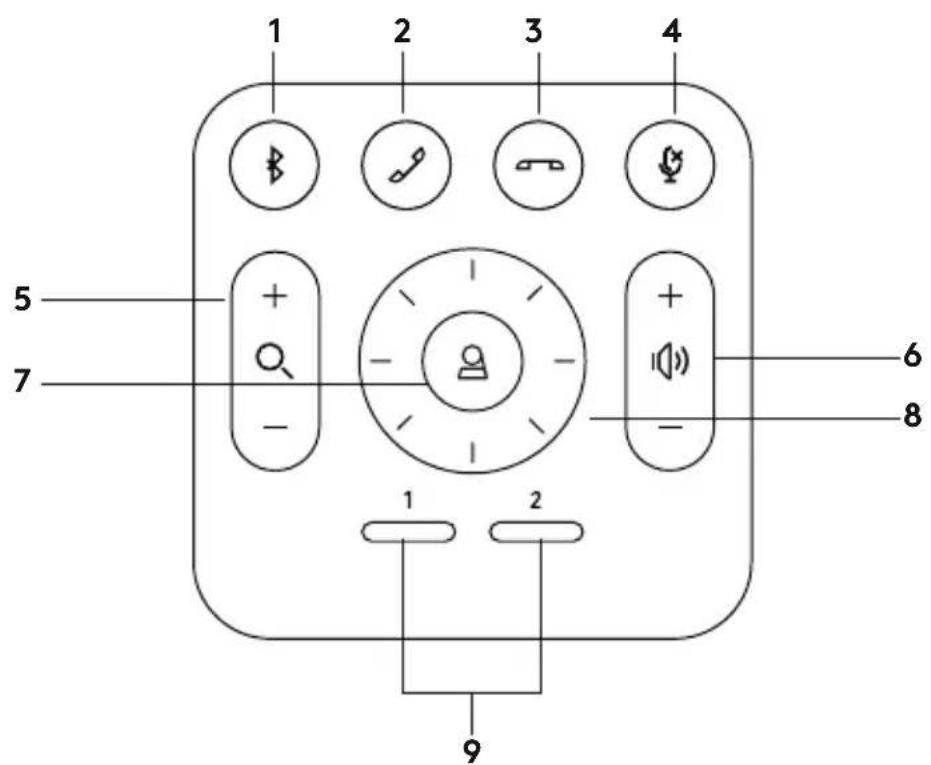

DALJINSKI UPRAVLJAČ

1. Bluetooth uparivanje
2. Odgovaranje na poziv
3. Prekidanje poziva
4. Isključivanje mikrofona

5. Uvećavanje/umanjivanje

6. Povećavanje/smanjivanje jačine zvuka

7. Funkcija tastera Home
8. Horizontalno/vertikalno pomeranje kamere
9. Početne postavke kamere

Po završetku instalacije, sistem je moguće proveriti pokretanjem dijagnostičke aplikacije dostupne na adresi Logitech.com/support/Rally.

POSTAVITE RALLY KAO PODRAZUMEVANI UREĐAJ

Proverite da li je RALLY odabran kao kamera, zvučnik i mikrofon u aplikacijama za video konferencije. Pogledajte dokumentaciju aplikacije za dodatna uputstva u vezi sa ovim.

POKRETANJE VIDEO POZIVA

Nakon što instalirate RALLY i proverite da li je podrazumevani uređaj u aplikaciji za video konferencije, samo pokrenite aplikaciju na uobičajeni način i uživajte u prednostima poboljšanog zvuka i video.

UPARIVANJE RALLY SA BLUETOOTH UREĐAJEM

PENTRU MAI MULTE INFORMATII

© 2018 Logitech, Logi and the Logitech Logo are trademarks or registered trademarks of Logitech Europe S.A. and/or its a liates in the U.S. and other countries. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

WEB-621-001375.002
