Mixing Chef Gusto - Food processor TAURUS - Free user manual and instructions

Product type	Food processor (kneading mixer)
Brand	Taurus
Model	Mixing Chef Gusto (BKA1300P)
Power supply	Mains 220-240 V, 10 A min
Main functions	Knead, mix, whisk, beat
Included accessories	Whisk, beater, dough hook, splash guard, mixing bowl
Flour capacity (dough hook)	800 g maximum
Flour capacity for shortcrust pastry	1000 g maximum
Flour capacity for firm yeast dough	500 g maximum (total weight 820 g)
Flour capacity for soft yeast dough	800 g maximum (total weight 1320 g)
Fruit cake mix capacity	600 g maximum
Thermal protection	Yes, automatic shutdown in case of overheating
Continuous use time	10 minutes maximum
Cooling time	30 minutes before reuse
Cleaning bowl and lid	Dishwasher (gentle cycle) or warm soapy water
Cleaning appliance	Damp cloth, do not immerse
Safety	Locking/unlocking, automatic stop
Cord storage	Compartment under the appliance
Use	Household use only
Warranty	In accordance with current legislation (approved service)
Repairability	Approved technical service, do not disassemble yourself
Standby consumption	0.215 W (off mode)
Automatic standby	After 1 minute

Frequently Asked Questions - Mixing Chef Gusto TAURUS

How to use the robot for the first time?

Before first use, wash the parts that come into contact with food (bowl, splash guard, accessories) in warm soapy water or in the dishwasher. Remove all packaging. Carefully read the safety instructions and plug the appliance into a suitable outlet.

What accessories are included with the robot?

The robot comes with a whisk, a beater, a dough hook, a splash guard and a mixing bowl. These accessories allow you to make different preparations: whisk, mix, knead.

How to clean the bowl and lid?

The bowl and splash guard can be washed in the dishwasher (gentle cycle) or in warm soapy water. Dry them thoroughly before reassembling. Never immerse the robot housing in water.

Can I wash the robot in the dishwasher?

Only removable parts (bowl, splash guard) are dishwasher safe. The main housing and cord should never be immersed. Clean the housing with a damp cloth.

What is the maximum flour capacity for the dough hook?

With the dough hook, the maximum amount of flour is 800 g. For shortcrust pastry, you can use up to 1000 g of flour. Do not exceed these limits to avoid overloading the appliance.

What to do if the robot stops during use?

If the robot stops, it may be due to thermal protection activated in case of overheating. Unplug the appliance and wait approximately 15 minutes before plugging it back in. If the problem persists, contact an approved technical service.

How long can I use the robot continuously?

The robot should not run for more than 10 minutes at a time. After this period, let it cool down for 30 minutes before using it again. This avoids overheating and extends the life of the appliance.

How to change accessories?

To change an accessory, first set the appliance to position 0 and unplug it. Press the locking/unlocking button to raise the upper housing, remove the accessory by turning it, then attach the new accessory onto the mounting shaft by turning it until it locks. Lower the housing and lock.

Can I use the robot for hot preparations?

Yes, but with caution. When mixing hot liquids, do not fill the bowl more than halfway and select the slowest speed. Use the splash guard to avoid splashes.

Where can I find spare parts?

Spare parts and additional accessories can be purchased from Taurus's approved technical support service. Visit the website http://taurus-home.com/ to find the nearest center and order the necessary parts.

USER MANUAL Mixing Chef Gusto TAURUS

MIXING CHEF GUSTO (BKA1300P)

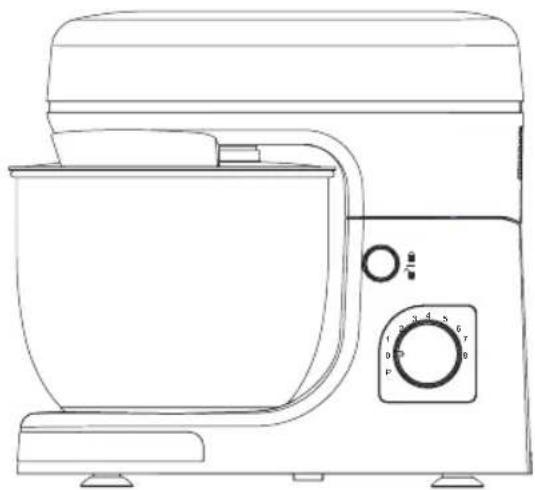

Line drawing of a kitchen mixer with control knob and rotary dial (no text or symbols)

EN. Instructions for use

FR. Mode d'emploi

Simple line drawing of a hook with a circular symbol labeled 'H' (no text or symbols beyond the label)

Pure diagram of a symmetrical mechanical or electrical component with no text, numbers, or symbols

Line drawing of a mechanical component with a labeled force indicator (F), no text or symbols present.

ES

BATIDORA AMASADORA BKA1300P

English (Original instructions)

STAND MIXER BKA1300P

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

SAFETY ADVICE AND WARNINGS

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
• WARNING: Misuse of this appliance can lead to potential injury. Care shall be taken when emptying the bowl and during cleaning.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- This appliance is for household use only, not professional or industrial use.
- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
- Connect the appliance to a mains socket rated at least 10 amperes.
- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
- Do not use the appliance if the supply cord or the plug is damaged.
- Do not pull on the supply cord. Never use the supply cord to lift up, carry or unplug the appliance.
- Do not wrap the supply cord around the appliance.
- Check the state of the supply cord. If it is damaged it will increase the risk of electric shock.
- If the appliance enclosure breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
- Do not use the appliance if it has been dropped, if there are visible signs of damage or if it has a leak.
- Do not touch the plug with wet hands.
- The appliance must be used and placed on a flat, stable surface.
- Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
• Take care to avoid starting the appliance involuntarily.
- Do not touch any of the appliance's moving parts while it is operating.
- Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

USE AND CARE

• Extend the appliance's supply cord before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance if the selector knob does not work.
• Do not move the appliance while in use.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• Do not force the appliance's work capacity.
• When using hot liquids do not fill the bowl more than half way. At all times, when mixing hot liquids in the bowl, select the slowest speed on the selector knob.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Never leave the appliance unattended while in use.
• Do not use the appliance for more than 10 minutes at any one time. Allow to cool for 30 minutes before subsequent use.
• As a reference in the annexed table appears several recipes, that include the amount of food to process, and the operating time of the apparatus.

DESCRIPTION

A Selector knob
B Lock/unlock button
C Upper housing
D Anti-splash lid
E Mixing bowl
F Whisk
G Mixing beater
H Dough hook
I Accessories mount shaft
J Supply cord housing

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

BEFORE USE

• Make sure that all product's packaging has been removed.
• Please read carefully the "Safety advice and warnings" section before first use
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Prepare the appliance according to the function you wish to use.

USE

• Extend the supply cord housing before plugging it in.
• Connect the appliance to the mains.
• Press the lock/unlock button to raise the upper part.
• Fix the anti-splash lid by turning anticlockwise and check it is well fixed.
• Place the accessory that will be used on the mount shaft and turn it until it is tightly fitted.
• Press the lock/unlock button and push down the upper housing until returns to initial position.
• Turn the appliance on, by using the selector knob.
• Select the desired speed.
  • Work with the food you want to process.
• To avoid a fierce start up, it is advisable to start off from the lowest speed position and progressively increase the speed to the desired position.
• To switch off the appliance, turn the selector knob until position 0.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

• Stop the appliance, move to position 0 the selector knob.
  • Take off the anti-splash lid.
• Press the lock/unlock button while raising the upper part.
• Unplug the appliance from the mains.
• Remove the accessory used
• Clean the appliance.

SUPPLY CORD HOUSING

- This appliance has a supply cord housing situated on its underside.

ACCESSORIES WHISK ACCESSORY

• This accessory is used to whipping cream, beat eggs, batters, fatless sponges, meringues, cheesecakes, mousses, and soufflés.
• Do not use this accessory for heavy mixtures. (e. Creaming fat and sugar) could damage appliance.
• Using selector knob gradually increases to maximum speed.

MIXING BEATER ACCESSORY

• This accessory is used for mixing food and making biscuits, pasta and fillings, as well as mashed potatoes.
• To cream fat and sugar, start on minimum speed and gradually increase to maximum.
• Beating eggs into creamed mixtures: from 4 to maximum.
• Folding flour, fruit: From minimum to 1 speed.
• All ingredients for a cake: start from minimum speed and gradually increase to maximum.
• Rubbing fat into flour: from minimum to 2nd speed.
• It is recommended that intermediate speeds are used from 2-6, depending on the type of mixes.

DOUGH HOOK ACCESSORY

• This accessory is used for kneading bread, pizza dough and dense cakes.
• Using selector knob from minimum speed, increase gradually to speed 3.
• Do not use speeds greater than 3.

NOTE: Maximum quantity of flour is 800g

MAXIMUM QUANTITIES

• Short crust pastry: Flour weight: 1000g
• Stiff yeast dough: Flour weight: 500g (Total weight:820g)
• Soft yeast dough: Flour weight: 800g (Total weight:1320g)
• Fruit cake mix: Total weight: 600g

SAFETY THERMAL PROTECTOR

• The appliance has a safety device, which protects the appliance from overheating.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never immerse the appliance in water or any other liquid or place it under running water.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

• The following pieces may be washed in a dishwasher (using a soft cleaning program) or soapy hot water:

• Anti-splash lid.

• Mixing bowl

• The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily.

• Then dry all parts before its assembly and storage.

SERVICE

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY: ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment

(WEEE).

• Information regarding substances of very high concern (SVHC) according to the Regulation 1907/2006/EC (REACH). This product contains the following substances SVHC: Lead (Pb), (CAS Number: 7439-92-1)
• Information relating to Regulation (EU) 2023/826 on ecodesign requirements for energy consumption in off mode and standby mode.

- This appliance has a power consumption of 0.215W in off mode.

- The period after which the equipment reaches automatically off mode is rounded 1 minute.

- This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

FR

ACCESSORIS ACCESSORI BATEDOR

D Anti-Spritz-Deckel

E Rührschüssel

F Schneebesen

G Rührbesen

H Teighaken

- Anti-Spritz-Deckel.

- Mixtopf

VEILIGHEIDSADVIES EN WAARSCHUWINGEN

D Capac anti-stropire

E Bol de amestecare

F Bătaie

NIEPRAWIDŁOWOŚCI I NAPRAWY

FOR EU-PRODUKTVERSIONER OG/ELLER I TILFÆLDE AF, AT DET ER PÅKRÆVET I DIT LAND: PRODUKTETS ∅KOLOGI OG GENANVENDELIGHED

TILBEH∅R TIL DEIGKROK

FÖR EU-PRODUKTVERSIONER OCH/ELLER OM DET KRÄVS I DITT LAND:

PRODUKTENS EKOLOGI OCH ÅTERVINNINGSBARHET

• This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.
• You can find the closest one by accessing the following web link: http://taurus-home.com/
• You can also request related information by contacting us.
• You can download this instruction manual and its updates at http://taurus-home.com/

FRANÇAIS

GARANTIE ET ASSISTANCE TECHNIQUE
