USER MANUAL E8625 Emos

GB | Wireless Weather Station....7

Simple illustration of weather symbols including suns, clouds, raindrops, and raindrops (no text or labels)

3 1 2 3

Three panels showing a crescent moon surrounded by stars, labeled 4, 5, and 6 (no text or symbols on the moon or background)

Three panels showing a white spherical object with radiating lines and stars, labeled 7, 8, and 9 (no text or symbols on the objects themselves)

10 11 6 12

GB | Wireless Weather Station

Safety Instructions and Warnings

Read the user manual before using the device.

Follow the safety instructions stated in the manual.

• Do not tamper with the internal electrical circuits of the product – doing so may damage the product and will automatically void the warranty. The product should only be repaired by a qualified professional.
• Clean the product using a soft, slightly damp cloth. Do not use solvents or cleaning agents – they could scratch the plastic parts and cause corrosion of the electric circuits.
• Do not use the device in the proximity of devices that generate electromagnetic fields.
• Do not expose the product to excessive force, impact, dust, high temperatures or humidity – these may cause the product to malfunction or may deform its plastic parts.
• Do not insert any objects into the openings on the device.
• Do not submerge the device in water.
• Protect the device from falls or impacts.
• Do not throw batteries into a fire and do not disassemble or short-circuit them.
• Keep the batteries out of reach of children. Ingestion may result in poisoning by chemicals, perforation of soft tissues and death.
• Severe poisoning may occur within two hours of first issues appearing. Seek medical attention immediately.
• Only use the device in accordance with the instructions provided in this manual.
• The manufacturer is not liable for damage caused by improper use of the device.
• This appliance is not intended for use by persons (including children) whose physical, sensory or mental disability or lack of experience and expertise prevents safe use, unless they are supervised or instructed in the use of the appliance by a person responsible for their safety. Children must always be supervised to ensure they do not play with the appliance.

Package Contents

• Main weather station
• Wireless sensor
• Adapter, AC 230 V/DC 5 V, 1,000 mA

Technical Specifications

Clock: controlled by radio signal

Time format: 12/24 h

Indoor temperature: 0 °C to +50 °C, 0.1 °C resolution

Outdoor temperature: -40 °C to +70 °C, 0.1 °C resolution

Indoor and outdoor temperature measurement accuracy: ±1 °C for the range 0 °C to +50 °C, ±2 °C for the range -20 °C to 0 °C, ±4 °C for the range -40 °C to -20 °C and +50 °C to +70 °C

Indoor and outdoor humidity: 20 % to 99 % RH, 1 % resolution

Humidity measurement accuracy: ±5 % for the range 35 % to 70 % RH, ±10 % for 20 % to 35 % and for 71 % to 99 % RH

Barometric pressure measurement range: 800 hPa to 1,100 hPa

Unit of pressure: hPa/inHg

Radio signal range: up to 80 m in an open area

Transmission frequency: 433 MHz, 10 mW e.r.p. max.

Number of sensors: max. 3

Main station power supply: 3× 1.5 V AAA batteries (not included)/ AC 230 V/DC 5 V, 1,000 mA adapter (included)

Sensor power supply: 2× 1.5 V AAA batteries (not included)

Description of Icons and Buttons on the Station and Sensor

see Fig. 1

1 – DCF signal reception	20 – outdoor humidity
2 – time	21 – sensor batteries low
3 – alarm	22 – moon phase
4 – snooze	23 – indoor humidity trend
5 – date	24 – station batteries low
6 – day of the week	25 – indoor humidity
7 – indoor comfort indicator	26 – SNOOZE/LIGHT button
8 – indoor temperature	27 – MODE button
9 – indoor temperature trend	28 – ALARM button
10 – weather forecast	29 – ALERT button
11 – pressure trend	30 – CHANNEL button
12 – outdoor temperature warning	31 – UP button
13 – outdoor temperature trend	32 – DOWN button
14 – wireless communication with sensor, sensor channel number	33 – power adapter socket
15 – outdoor temperature	34 – stand
16 – max/min outdoor temperature	35 – station battery compartment
17 – pressure	36 – sensor LED
18 – outdoor comfort indicator	37 – hole for hanging
19 – max/min outdoor humidity	38 – channel selector (1, 2, 3)/RESET button

Getting Started

1. Connect the power adapter to the weather station, then insert batteries (3× 1.5 V AAA) into the station. Remove the cover from the battery compartment on the rear of the sensor, set the sensor channel number using the switch (1, 2, 3), then insert alkaline batteries (2× 1.5 V AAA). Make sure the polarity is correct when inserting the batteries to avoid damaging the weather station or sensor. Only use 1.5 V alkaline batteries of the same type; do not use rechargeable 1.2 V batteries. The lower voltage may cause both of the units to not function.
2. The icon for wireless communication with sensor will start flashing, indicating that the weather station is searching for signal from the outdoor sensor. Place the units next to each other. If outdoor temperature does not appear within 3 minutes, the weather station will stop searching for signal, the icon for wireless communication with sensor will stop flashing and outdoor temperature will be displayed as --.-. If signal from the sensor is not detected, repeat the process from step 1.

Installation and Assembly

We recommend placing the sensor on the north side of the house. The range of the sensor may decrease substantially in areas with large number of obstacles. The sensor is resistant to dripping water; however, it should not be exposed to sustained rain.

Do not place the sensor on metal objects as these would reduce transmission range.

The sensor can be placed vertically or hung on a wall.

If the weather station's screen shows the low battery icon in field no. 21, replace the batteries in the sensor.

If the weather station's screen shows the low battery icon in field no. 24, replace the batteries in the station.

Controls and Functions

Weather Station RESET

If the weather station displays incorrect values or does not respond to button presses, disconnect the power adapter, remove the batteries, then reinsert the batteries and reconnect the adapter. This will erase all data; you will need to set the weather station again. A sensor can be restarted by pressing the RESET button (use a pencil or paper clip).

Changing Sensor Channel and Connecting Additional Sensors

The station can be paired with up to 3 wireless sensors.

1. Press the CHANNEL button repeatedly to choose sensor number 1/2/3.
2. Long-press the CHANNEL button; the station will start searching for signal from sensors; a wireless communication with sensor icon will be flashing.
3. Remove the cover from the battery compartment on the back of the sensor, set the sensor channel number using the selector (1, 2, 3 – each sensor must be set to a different number), then insert alkaline batteries (2× 1.5 V AAA).
4. Data from the sensors will be loaded into the station within 3 minutes. Repeat the whole process if sensor signal is not detected.

Displaying Data from Multiple Sensors, Automatic Cycling through Values from Connected Sensors

Press the CHANNEL button repeatedly to display data from all connected sensors on the weather station, one by one.

You can also activate cycling through data from all connected sensors:

1. Turning on cycle mode: Repeatedly press the CHANNEL ☐ button until the display shows the icon. Data from all connected sensors will be shown automatically and repeatedly one after another.
2. Turning off cycle mode: Repeatedly press the CHANNEL button until the icon disappears.

Radio-Controlled Clock (DCF77)

After registering the wireless sensors, the weather station will automatically search for DCF77 signal (hereinafter referred to as DCF signal) for 7 minutes; the 🎨 icon will flash depending on the strength of DCF signal.

No other data on the screen will be updated and all buttons will be disabled during the search.

Short-pressing the down arrow button terminates the search for DCF signal.

Signal detected – the DCF icon stops flashing and the current time and date will be displayed.

Signal not detected – the DCF icon is not displayed.

Long press the down arrow button to search for DCF signal again for 7 minutes. Short-press the down arrow button again to cancel the search for DCF signal. DCF signal will be synchronised regularly every day between 01:00 and 05:00.

During daylight saving time, a DST icon will be displayed below the DCF icon.

In standard conditions (at safe distance from sources of interference, such as TV sets or computer monitors), the reception of time signal takes several minutes.

If the weather station does not detect the signal, follow these steps:

1. Move the weather station to another location and try to detect DCF signal again.
2. Check the distance of the device from sources of interference (computer monitors or television sets). It should be at least 1.5 to 2 m during the reception of signal.
3. When receiving DCF signal, do not place the weather station in the proximity of metal doors, window frames and other metal structures or objects (washing machines, dryers, refrigerators etc.).
4. DCF signal reception is weaker in reinforced concrete structures (cellars, high-rise buildings etc.), depending on the conditions. In extreme cases, place the weather station close to a window in the direction of a transmitter.

The reception of the DCF radio signal is affected by the following factors:

• Thick walls and insulation, basements and cellars.
• Inadequate local geographical conditions (these are difficult to assess in advance).
• Atmospheric disturbances, thunderstorms, electrical appliances with no interference elimination, television sets and computers located near the DCF receiver.

If the weather station cannot detect DCF signal, time and date must be set manually.

Note: If the weather station detects the DCF signal but the current time on the screen is incorrect (e.g. shifted ±1 hour), you must set the correct time zone for the country where you are using the station, see Manual Setting of Time and Date. The current time will be shown with the appropriate time zone difference.

Manual Settings

1. Long-press the button; settings will start flashing.
2. Use the ▼ and arrow buttons to set the following values:

time shift - 12/24h time format - hour - minute - year - date format - month - day - calendar language (GE, EN, DA, NE, IT, ES, FR) - °C/°F unit of temperature - hPa/inHg unit of pressure.

1. Move between the values by short-pressing the button.
2. Holding the individual arrow buttons adjusts value faster.

Setting an Alarm

Long-press the button; settings will start flashing.

Press the ▼ and ▲ buttons repeatedly to set: hour – minutes.

Navigate in the menu by pressing the 📞 button.

To activate/deactivate, press the 🎨 button repeatedly, the screen will display the alarm activation icon 🔊 – press the 🎨 button to confirm or wait 20 seconds, it will be automatically saved.

To deactivate the alarm, press the 📋 button again. The alarm icon will disappear.

Snooze Function

Use the SNOOZE/LIGHT button to delay alarm ringing by 5 minutes.

Press the button when the alarm starts ringing. The ^2 Z icon will start flashing.

To cancel SNOOZE mode, press any other button except SNOOZE/LIGHT – the icons will stop flashing and 🖱️ will remain on the screen.

The alarm will be re-activated the next day.

If you do not press any button while the alarm is ringing, the ringing will stop automatically after 2 minutes.

The alarm will ring again the next day.

Station Screen Illumination

When powered via adapter:

Permanent screen illumination is set by default. Repeatedly pressing the SNOOZE/LIGHT button allows you to set 3 permanent illumination modes (100 %, 50 %, off). During DCF signal search, the display backlight will be reduced to 50%.

When powered only by 3× 1.5 V AAA batteries:

Screen illumination is off. Pressing the SNOOZE/LIGHT button will turn screen illumination on for 10 seconds, then it turns off again. When the station is only powered by batteries, permanent screen illumination cannot be activated!

Note: The inserted batteries serve as backup for the measured/set data. If batteries are not inserted and you unplug the adapter, all data will be erased.

Memory of Measured Values

Repeatedly pressing the ▼ button displays the maximum and minimum temperature and humidity readings. To erase the memory, long-press the ▲ button.

Temperature, Humidity and Pressure Trends

Trend indicator
	falling constant rising

Comfort Indicator

Displays the level and perceived level of indoor humidity.

Indicator DRY – dry environment		OK – comfortable environment	WET – humid environment
humidity <	40 % 40 to 70 % >70 %

Setting Temperature Alerts for Maximum and Minimum Temperature

Temperature alerts can be set for indoor temperature and independently for up to 3 outdoor temperature sensors.

1. Press the ☐ button repeatedly to select the number of the sensor you want to set the temperature limit for.
2. Long-press the 🔒 button. The value for setting a maximum temperature alert (HI) will start flashing.

3. Use the ▼/▲ buttons to set the value of choice (1 °C resolution). Holding the buttons speeds up the value adjustment.

4. Then press the ☐ button and use the ▼ buttons to set the minimum alert temperature (LO).

5. Confirm by pressing the ⚠ button; the indoor temperature limit setting will start flashing.

6. After setting the values, press the ⚠ button repeatedly; the set values will be displayed in sequence.

7. For each value, the temperature limit alert can be activated separately by repeatedly pressing the ▼/▲ button - alert on ( icon displayed on the screen) or alert off ( icon displayed on the screen).

When the set temperature limit is exceeded, an audio alarm will sound 8× per minute and the value will start flashing. Pressing any button silences the audio signal but the value will continue flashing. The value will stop flashing once it drops below the set temperature or your deactivate the temperature alert function.

Weather Forecast

See Fig. 2

1 – sunny	3 – overcast
2 – cloudy	4 – rain

A glaze ice icon 🌿️! will be displayed at outdoor temperatures between -1 °C and +2.9 °C.

The station uses changes in atmospheric pressure to forecast weather for the next 12–24 hours for an area within the radius of 15–20 km.

The accuracy of the weather forecast is approximately 70 %. As the weather forecast may not be 100 % accurate, neither the manufacturer nor the seller are liable for any loss caused by an incorrect forecast. When you first set or reset the weather station, it takes approximately 12 hours before the weather station begins forecasting correctly.

Note: The currently displayed icon indicates the forecast for the next 12 – 24 hours. It may not reflect the current state of the weather.

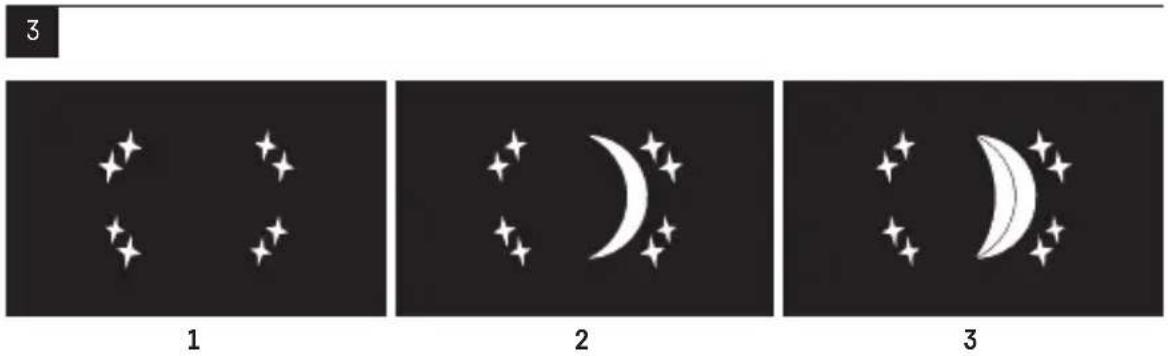

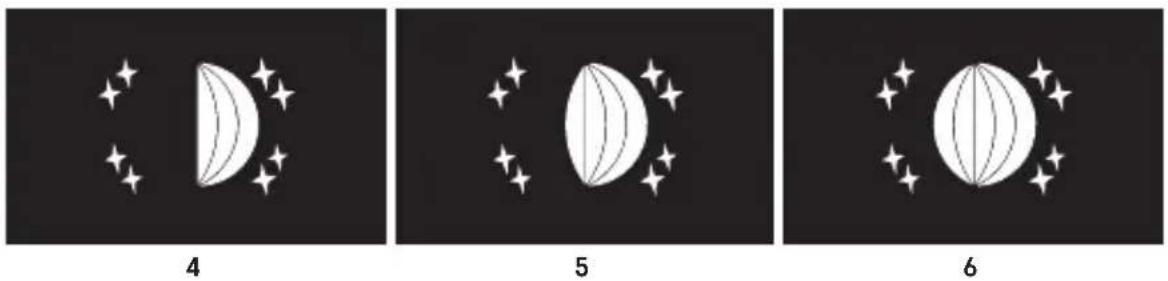

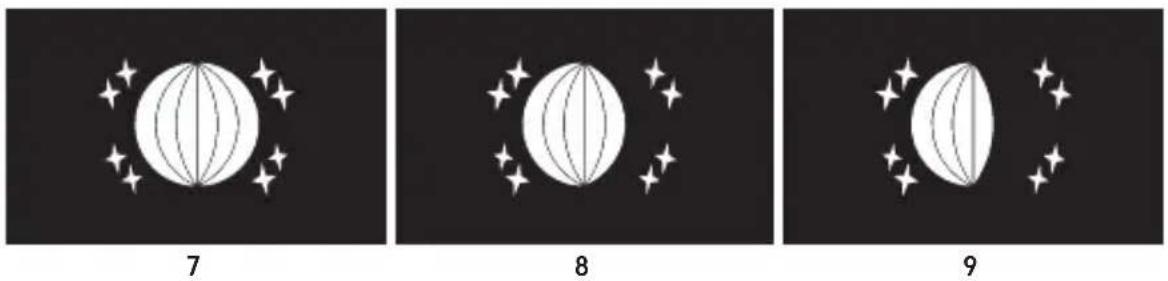

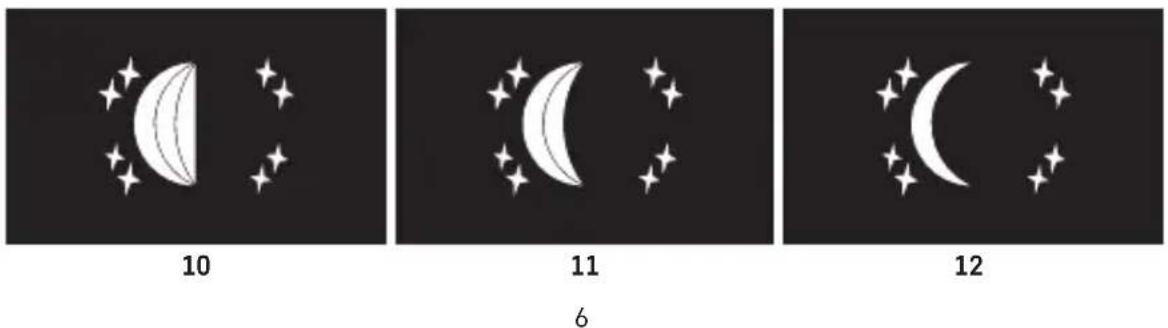

Moon Phase

See Fig. 3

The moon phase icon is displayed in field 22.

1 – new moon	7 – full moon
2 – waxing crescent	8 – waning gibbous
3 – waxing crescent	9 – waning gibbous
4 – first quarter	10 – last quarter
5 – waxing gibbous	11 – waning crescent
6 – waxing gibbous	12 – waning crescent

Troubleshooting FAQ

In place of temperature/humidity, the screen displays LL.L or HH.H

- Move the device to a more suitable spot.

LL.L - the measured value is below the lower boundary of the measurement range HH.H - the measured value is beyond the upper boundary of the measurement range

The screen is difficult to read

- Replace the batteries in the station, check the functioning of the power adapter

Sensor data does not display

• Repeat the pairing process
• Change the batteries in the sensor
• Adjust the distance between the sensor and the station
