USER MANUAL POF 1200 F4 PARKSIDE

Industrial machine with hydraulic head and control lever (no visible text or symbols)

OBERFRÄSE/ROUTER/DÉFONCEUSE POF 1200 F4

DE AT CH

OBERFRÄSE

User manual Translation of the original instructions

FR BE

DÉFONCEUSE

GB/IE User manual Page 46

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing curved arrows and a right-pointing arrow over a textured surface (no text or symbols)

Fräsen

Intended use.... Page 50

Scope of delivery ...... Page 51

Parts list Page 51

Technical data. Page 53

Safety instructions ...... Page 56

General power tool safety warnings ..... Page 56

Safety instructions for routers ..... Page 60

Supplementary notes ...... Page 60

Vibration and noise reduction..... Page 62

Behaviour in emergency situations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Residual risks Page 63

Original accessories/auxiliary equipment..... Page 64

Before first use ...... Page 64

Unpacking the product. Page 64

Accessories Page 64

Preparation...... Page 65

Milling cutter set.... Page 65

Inserting a milling cutter .... Page 66

Connecting the dust extraction adapter..... Page 66

Connecting/removing the reducer ..... Page 66

Changing the collet chuck.... Page 67

Fitting the rip fence. Page 67

Operation...... Page 68

Switching on/off Page 68

Setting the rotational speed.... Page 68

Setting the milling depth.... Page 69

Fine-adjusting the milling depth ..... Page 70

Setting the milling depth using the step stop. . . Page 70

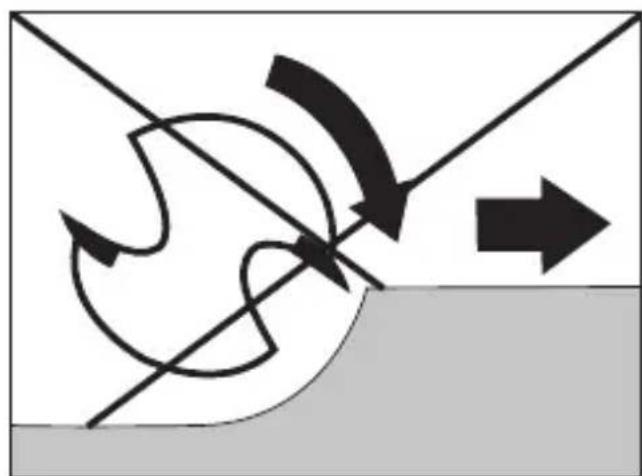

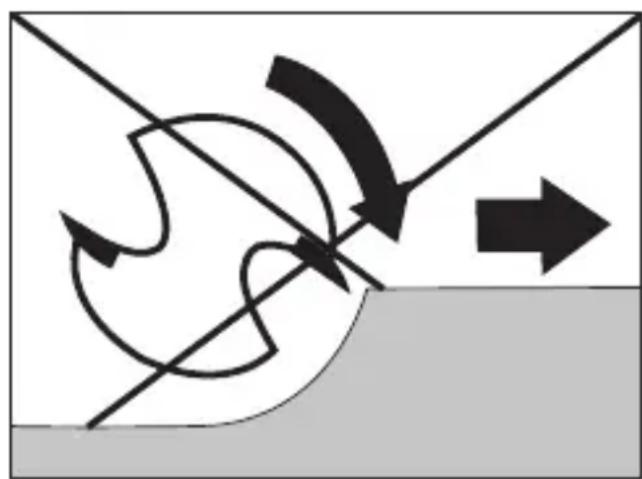

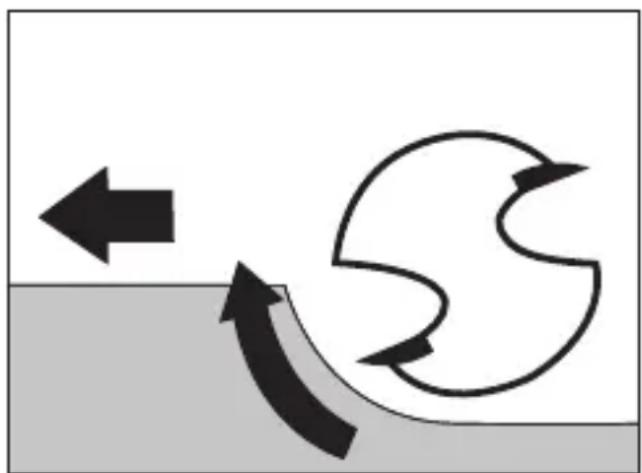

Milling direction. Page 71

Milling operation.... Page 71

Milling with the copy sleeve.... Page 72

Milling with the rip fence. Page 73

Adjusting the rip fence.... Page 73

Milling with a compass.... Page 73

Replacement parts/Accessories ..... Page 74

Cleaning and care ...... Page 76

Cleaning Page 76

Maintenance Page 76

Repair Page 77

Storage Page 77

Transportation. Page 77

Disposal Page 77

Warranty Page 78

Warranty claim procedure. Page 79

Service Page 80

EU declaration of conformity ..... Page 81

List of pictograms used
	Read the instruction manual.
	DANGER! – Designating a hazard with high risk, which will result in death or severe injury if not avoided (e.g. risk of suffocation)
	WARNING! – Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)
	CAUTION! – Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)
	NOTICE! – Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)
	Symbol for a Protection Class II product
	Use the product in dry indoor spaces only.

Switch the product off and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

Wear protective gloves!

Wear ear protection!

Wear eye protection!

Wear dust protection!

Alternating current/voltage

Diameter

No-load speed

Safety information Instructions for use

CE mark indicates conformity with relevant EU directives applicable for this product.

Fold-out page with product illustrations

ROUTER

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended for milling grooves, edges, profiles and oblong holes in wood, plastic and lightweight materials on a fixed support, as well as for copy milling.
The product is exclusively intended for domestic use.
- The product is not intended for commercial use or for similar uses.
- The product is intended to be used in dry indoor spaces only.
■ Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage.
The manufacturer is not liable for any damages caused by improper use.
- Observe all applicable local safety regulations, standards and ordinances. The use of noise emitting power tools may be restricted to certain times by national or local regulations.

- Scope of delivery

DANGER!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Router
1 Open-ended spanner (with slotted hole)
1 Collet chuck (6 mm)
1 Collet chuck (8 mm) (pre-mounted)
1 Dust extraction adapter
1 Reducer
1 Rip fence (with 2 sliding rods)
1 Copy sleeve (with 2 screws)
1 Small compass insert (with 2 screws)
1 Centring point (with wing screw)
1 Milling cutter set (6 pieces)
1 Hex key
1 User manual

Parts list

Before reading, unfold the pages containing the illustrations and familiarise yourself with all functions of the product.

(Fig. A)

1 Adjustment wheel (for setting the rotational speed)
2 Handle
3 Locking switch
4 On/off switch
5 Collet chuck (8 mm)
6 Union nut

7 Locking screw
8 Guide rail
9 Base plate
9a Holes (for dust extraction adapter 17)
10Skid plate
11 Step stop
12Depth stop
13 Milling depth adjustment scale
14Spindle locking button
15Locking screw
16Dial (fine milling depth adjustment)

(Fig. B)

17 Dust extraction adapter
18 Screws (for dust extraction adapter 17 and copy sleeve 22)
19Collet chuck (6 mm)
20Centring point
20a Wing screw (for centring point 20)
21Rip fence
22Copy sleeve
23|Race
24Open-ended spanner (with slotted hole)
25Hex key
26 Sliding rods (for rip fence 21)
27 Reducer (for dust extraction adapter 17)

(Fig. C)

28 Rounding cutter (∅ 22 mm, R 6.3 mm)
29Profile cutter (∅ 25 mm, R 4 mm)
30Chamfer milling cutter (∅ 22 mm, R 6.3 mm)
31V-slot cutter (∅ 12.7 mm, angle 90°)

32 Slotting cutter (∅ 6 mm)
33Slotting cutter (∅ 12 mm)

(Fig. E)

34Clamping lever

(Fig. F)

35 Wing screw (for fine-adjusting the rip fence 21)
36 Wing screw (for adjusting the sliding rods 26)

(Fig. G)

37Dial
38Scale ring
39Scale
40 Centre hole (for centring point 20)
41 Sliding jaws
42 Screws (for the sliding jaws 41)

(Fig. I)

43 Small compass insert (for rip fence 21)
44 Screws (for small compass insert 43)
45 Centre hole (for centring point 20)

- Technical data

Router POF 1200 F4
Model numbers
-VDE plug: HG13473
-CH plug: HG13473-CH
Rated voltage: 230 V~, 50 HzRated power input: 1,200 W
Rated no-load speed n0: 11,000	0–30,000 min-1
Max. operating speed nmax(milling cutter): 35,000 min	-1
Milling basket stroke: 55 mm
Tool holder: 6 mm/8 mm
Protection class:	II/□(double insulation)

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the product is typically as follows:

Sound pressure level: L	pA = 89.7 dB
Uncertainty: K	pA = 3.0 dB
Sound power level: L	WA = 97.7 dB
Uncertainty: K	WA = 3.0 dB

WARNING!

Wear hearing protection!

Total vibration value

Total vibration values (triaxial vector sum) determined in accordance with EN 62841:

Hand/arm vibration: a	_h = 3.98 m/s ^2
Uncertainty: K = 1.5 m/s	^2

NOTE

The declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed.
It is necessary to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5) Maintain power tools diligently. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

● Safety instructions for routers

1) Hold the power tool by insulated gripping surfaces only, because the cutter may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2) Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

● Supplementary notes

WARNING!

Wear protective gloves!

Wear hearing protection!

WARNING!

Wear safety goggles!

Wear breathing protection!

The maximum speed of the milling tool used must be at least as high as the maximum speed specified for the power tool. Accessories which rotate faster than the maximum permissible rate can be destroyed.
- Cutters or other accessories must fit exactly into the collet chuck (shank diameter 6 mm/8 mm) of your power tool. Milling tools which do not fit precisely into the collet chuck of the power tool will rotate unevenly, vibrate severely and can lead to a loss of control.
■ Always switch on the electrical power tool before applying it to the workpiece. Otherwise, there is a risk of a kickback if the accessory tool gets caught in the workpiece.
- Keep your hands clear of the milling area and the milling tool. Hold the auxiliary handle or motor housing with your other hand. If both hands are being used to hold the milling machine, neither can be injured by the milling cutter.
- Never mill over metal objects, nails or screws. The milling cutter can be damaged and it can lead to increased vibrations.

Use a suitable detector to locate hidden utility lines or consult your local utility company. Contact with electrical lines can cause fires or electric shocks. Damage to a gas pipeline can lead to an explosion. Drilling into a water pipe can cause damage to property.
- The maximum speed indicated on the tool must not be exceeded.
■ Tools with visible cracks must be discarded.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
■ Ensure that the product is in good condition and well maintained.
■ Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
- Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
■ Switch the product off if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Hearing damage if suitable ear protection is not worn
■ Health injuries resulting from the effect of vibration on the hands and arms in the event that the product is used over a longer period of time or is not used and maintained properly

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

● Original accessories/auxiliary equipment
- Only use the accessories and additional equipment that are specified in the operating instructions and compatible with the product.
Before first use
● Unpacking the product

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".

Accessories

- Accessories are available through your authorised dealer. When buying always consider the technical requirements of this product (see “Technical data”).

If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

● Preparation

⚠ WARNING! Risk of injury!

Switch the product off and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

- Milling cutter set

(Fig. C)

NOTE

If the ball bearing of a milling cutter has become loose, tighten it with the hex key 25.

Milling cutter Specifications	Application
28Rounding cutter	∅ 22 mmR 6.3 mm	Profiling
29Profile cutter	∅ 25 mmR 4 mm
30Chamfer milling cutter	∅ 22 mmR 6.3 mm
31V-slot cutter	∅ 12.7 mmangle 90°
32 Slotting cutter	∅ 6 mm	Linking
33 Slotting cutter	∅ 12 mm

- Inserting a milling cutter

1. Press and hold the spindle locking button 14.
2. Loosen the union nut 6 by turning it in counter-clockwise direction using the open-ended spanner 24.
3. Release the spindle locking button 14.
4. Insert the desired milling cutter into the collet chuck to a depth of at least 20 mm.
5. Press and hold the spindle locking button 14.
6. Tighten the union nut 6 by turning it in clockwise direction using the open-ended spanner 24.
7. Release the spindle locking button 14.

Connecting the dust extraction adapter

1. Fit the dust extraction adapter 17 onto the holes 9a.
2. Turn the screws 18 into the bottom of the base plate 9 with a standard Phillips screwdriver (not included).
3. Attach an approved dust and sawdust extractor to the dust extraction adapter 17.

Connecting/removing the reducer

(Fig. E)

Connecting

1. Push the reducer 27 into the dust extraction adapter 17.
2. Push the hose of a suitable of vacuum cleaner (e.g. workshop vacuum) onto the reducer 27.

Removing

1. Pull the hose of the vacuum cleaner off the reducer 27.
2. Pull the reducer 27 off the dust extraction adapter 17.

● Changing the collet chuck

NOTE

The milling cutters included in the scope of delivery feature an 8 mm shank and can be used with the pre-mounted collet chuck (8 mm) 5.
When using milling cutters with a 6 mm shank, replace the collet chuck as described below.

1. Press and hold the spindle locking button 14.
2. Loosen the union nut 6 by turning it in counter-clockwise direction using the open-ended spanner 24.
3. Remove the collet chuck (8 mm) 5.
4. Fit the collet chuck (6 mm) 19.

Important: Do not tighten the union nut 6 unless a milling cutter is inserted. Otherwise, the collet chuck may be damaged.

1. Release the spindle locking button 14.

● Fitting the rip fence

(Fig. F)

1. Loosen both wing screws 36.
2. Push the sliding rods 26 into the corresponding openings next to the wing screws 36.
3. Tighten both wing screws 36.

Operation

WARNING! Risk of injury!

Switch the product off and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

Switching on/off

Switching on

1. Connect the mains plug to a suitable socket-outlet.
2. Press and hold the on/off switch 4.
3. For continuous operation: Press the locking switch 3 to lock the on/off switch 4. Then release the on/off switch.

Switching off

☐ Release the on/off switch 4.
☐ When the on/off switch 4 is locked for continuous operation: Briefly press the on/off switch to unlock it and to switch off the product.

Setting the rotational speed

☐ Set the required speed using the adjustment wheel 1.

Position Speed
1	Low
2
3	Medium
4
5	High6
7

- Setting the milling depth

1. Make sure that the clamping lever 34 is locked. If the clamping lever is released, turn it in counter-clockwise direction until it is locked.
2. Place the product onto the workpiece.
3. Rotate the step stop 11 until it engages in the lowest position (0 mm).

The depth stop 12 is now in line with the lowest position (0 mm).

1. Loosen the locking screw 15.
2. Release the clamping lever 34 by turning it in clockwise direction.
3. Push the product downwards until the milling cutter touches the surface of the workpiece.
4. Lock the clamping lever 34 by turning it in counterclockwise direction.
5. Slide the depth stop 12 downwards until it reaches the lowest position (0 mm) of the step stop 11 .
6. Set the depth stop 12 to the desired milling depth. Tighten the locking screw 15.

The values shown on the milling depth adjustment scale 13 do not correspond to the actual milling depth. Set the value relative to a selected point on the milling depth adjustment scale.

1. Release the clamping lever 34 by turning it in clockwise direction.
2. Raise the product.
3. Check the milling depth by means of a practical test.

● Fine-adjusting the milling depth

1. Release the clamping lever 34 by turning it in clockwise direction.
2. Push the product downwards until the depth stop 12 sits on the step stop 11.
3. Lock the clamping lever 34 by turning it in counterclockwise direction.
4. Loosen the locking screw 15.
5. Use the dial 16 to adjust the milling depth adjustment scale 13 so that you can set the exact zero point, for example.
6. Tighten the locking screw 15.
7. Release the clamping lever 34 by turning it in clockwise direction.
8. Raise the product.
9. Check the milling depth by means of a practical test.

- Setting the milling depth using the step stop

NOTE

You can use the step stop ^11 for greater milling depths in several stages with less chip removal.

1. Set the desired milling depth to the lowest position (0 mm) of the step stop 11 (see "Setting the milling depth").
2. Set the higher levels for the first machining steps.
3. Check the milling depth by means of a practical test.

- Milling direction

NOTICE!

Carry out the milling process against the direction of rotation of the milling cutter (reverse rotation).
When milling in the direction of rotation (synchronous running), the product can be ripped out of your hand.

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing curved arrows and a right-pointing arrow over a textured surface (no text or symbols)

- Milling operation

1. Set the desired milling depth (see "Setting the milling depth").
2. Place the product onto the workpiece.
3. Switch the product on (see "Switching on/off").
4. Release the clamping lever 34 by turning it in clockwise direction.
5. Push the product downwards until the depth stop 12 sits on the step stop 11.
6. Lock the clamping lever 34 by turning it in counterclockwise direction.
7. Carry out the milling process at a uniform speed and contact pressure.

- Milling with the copy sleeve

NOTE

Use the copy sleeve ^22 to transfer templates onto the workpiece.

Fitting the copy sleeve

(Fig. D)

1. Fit the copy sleeve 22 into the skid plate 10 from below.
2. Fasten the copy sleeve 22 onto the base plate 9 using the 2 screws 18 of the dust extraction adapter 17. Use a standard Phillips screwdriver (not included). The race 23 must face downwards.

Milling operation

NOTE

The template must be at least as high as the race ^23 of the copy sleeve ^22 .
The outer diameter of the milling cutter must be smaller than the inner diameter of the copy sleeve [22] .

1. Place the product with the copy sleeve 22 on the template.
2. Release the clamping lever 34 by turning it in clockwise direction.
3. Lower the product until the previously set milling depth is reached.
4. Guide the product around the template with the copy sleeve 22 protruding. Do not exert excessive pressure when working.

- Milling with the rip fence

1. Slide the rip fence 21 into the guide rails 8 on the base plate 9 according to the required dimension.
2. Tighten the locking screws 7.
3. Place the rip fence 21 onto the edge of the workpiece (Fig. F).

- Adjusting the rip fence

Changing the width of the sliding jaws

1. Loosen the screws 42 with a standard Phillips screwdriver (not included).
2. Move the sliding jaws 41 into the desired position.
3. Tighten the screws 42.

Fine-adjusting the rip fence

1. Loosen the wing screw 35.
2. Setting the desired distance:
3. Turn the dial 37. One turn corresponds to 1 mm.
4. You can read the distance on the scale 39.

5. To set values < 1 mm, you can use the freely rotatable scale ring 38 for orientation.

6. Tighten the wing screw 35.

- Milling with a compass

(Fig. H)

1. Slide the rip fence 21 turned by 180^ (upside down) into the guide rails 8 on the base plate 9 according to the required dimension.

2. Tighten the locking screws 7.

3. For a circle radius ≥ 19 cm:

-Insert the centring point 20 into the centre hole 40 on the rip fence 21.
-Tighten the centring point 20 with the wing screw 20a. Counter the centring point using the oblong hole of the open-ended spanner 24 while tightening.

For a circle radius ≥ 15 cm to <19 cm:

• Mount the small compass insert 43 to the rip fence 21 using the screws 44 (Fig. I). Tighten the screws with a standard Phillips screwdriver (not included).
  -Insert the centring point 20 into the centre hole 45 on the small compass insert 43.
  -Tighten the centring point 20 with the wing screw 20a. Counter the centring point using the oblong hole of the open-ended spanner 24 while tightening.

• Stab the centring point 20 into the marked centre point of a circle.

• Check the setting by means of a practical test.

● Replacement parts/Accessories

□ Customers can obtain compatible replacement parts and accessories via www.optimex-shop.com.
☐ Have the order number ready for your order.
☐ You can only place orders online.
☐ Contact the Lidl service hotline (see "Service") for further information.

Part Order number
5 Collet chuck (8 mm)	99948622303
17 Dust extraction adapter	99948622304
19 Collet chuck (6 mm)	99948622302
Set:20 Centring point20a Wing screw	99948622308
Set:21 Rip fence26 Sliding rod (×2)	99948622306
Set:18 Screw (×2)22 Copy sleeve	99948622307
24 Open-ended spanner (with slotted hole)	99948622301
25 Hex key	99948622310
27 Reducer	99948622305
Set:28 Rounding cutter (∅ 22 mm, R 6.3 mm)29 Profile cutter (∅ 25 mm, R 4 mm)30 Chamfer milling cutter (∅ 22 mm, R 6.3 mm)31 V-slot cutter (∅ 12.7 mm, angle 90°)32 Slotting cutter (∅ 6 mm)33 Slotting cutter (∅ 12 mm)	99948622309

- Cleaning and care

WARNING! Risk of injury!

Switch the product off and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.

Cleaning

• Do not immerse the product in water or other liquids.
• Do not allow liquids to enter the inside of the product.
• Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.
• Regular and proper cleaning will help ensure safe use and prolong the life of the product.
  □ Keep the product clean, dust-free, dry and free from oil or grease.
  ☐ After each use: Clean the product with a soft, dry and lint-free cloth. For stubborn stains, use a slightly damp cloth and a mild detergent.
  ☐ Use a soft brush for areas that are hard to reach.

Maintenance

If replacement of the mains connection cable is necessary, this must be carried out by the manufacturer or his representative in order to avoid safety hazards.

Before and after each use: Check the product and its accessories for wear and damage.

Repair

This product does not contain any parts that can be repaired by the user.

☐ Contact an authorised service centre or a similarly qualified person to have the product checked and repaired.

Storage

□ Always store the product and its accessories

-clean,
-dry,
-protected against dust,
-out of the reach of children.

- Transportation

□ Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
☐ Secure the product to prevent it from slipping or falling over.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 486223_2501) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 486223_2501 takes you to the operating instructions for your item.

PDF ONLINE parkside-diy.com

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

EUdeclarationofconformity

EU DECLARATION OF CONFORMITY (No 486223\_2501)

IAN: 486223_2501

Product identification:

"PARKSIDE" ROUTER

Model Number: HG13473

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015/A11:2022

EN 62841-2-17:2017

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A2:2024

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm 20.05.2025

Place

Date

ppa. Jena Buchheim Authorised Signatory P pa. Dr. Thorsten Maier Authorised Signatory

EN

Activer/désactiver.... Page 106

- Activer/désactiver

Mise en marche

Diagram showing fluid flow with curved arrows indicating direction, no text or symbols present

Diagram showing airflow around a curved obstacle with directional arrows, no text or symbols present

Fraiser

⚠ WAARSCHUWING! Verwondingsgevaar!

⚠ WAARSCHUWING! Verwondingsgevaar!

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing curved arrows and a right-pointing arrow over a textured surface (no text or symbols)

- Frezen

WAARSCHUWING! Verwondingsgevaar!

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing airflow around a curved obstacle with directional arrows, no text or symbols present

Frezowanie

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing curved arrows and a right-pointing arrow over a textured surface (no text or symbols)

Frézování

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing curved arrows and a right-pointing arrow over a textured surface (no text or symbols)

Frézovanie

Icon set with a lowercase 'i' and a stylized open book or folded panel, accompanied by a right-side label containing a shaded section.

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing curved arrows and a diagonal line intersecting a surface, with no visible text or symbols.

Fresado

Icon set with a lowercase 'i' and a stylized open window, accompanied by a shaded pattern on the right pan.

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing curved arrows and a right-pointing arrow over a textured surface (no text or symbols)

Fræsning

Icon set with a lowercase 'i' and a stylized open window, accompanied by a shaded pattern on the right pan.

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing airflow around a curved obstacle with directional arrows, no text or symbols present

Fresatura

Icon set showing an information symbol and a stylized open door with a shaded interior, likely representing information exchange or storage.

Diagram showing fluid flow with arrows indicating direction and a curved arrow, no text or symbols present

Diagram showing curved arrows and a right-pointing arrow over a textured surface (no text or symbols)

Marás
