USER MANUAL PEMH 2400 B2 PARKSIDE

Black and white photo of a portable lawn mower with wheels, no visible text or symbols

Translation of the original instructions

NL BE

Messenhakselaar

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Service-Center....20

Importeur.... 20

Scope of delivery/accessories....22

Overview.... 23

Description of functions....23

Technical data....23

Safety information....24

Meaning of the safety information...... 24

Pictograms and symbols.... 24

General safety instructions.... 25

Residual risks....31

Assembly....31

Fitting the chassis....31

Fitting the connecting strut....31

Fitting the wheels....31

Fitting the collection bag.... 32

Fitting the pushing element.... 32

Operation.... 32

Working instructions.... 32

Switching on and off....32

Restart lock....32

Overload protection.... 33

Cleaning, maintenance and storage..... 33

General cleaning and maintenance..... 33

Emptying the collection bag.... 33

Removing the housing upper section.... 33

Removing blockages.... 33

Turning the blades.... 33

Replacing the blade plate.... 34

Storage.... 34

Troubleshooting.... 34

Disposal/environmental protection......35

Service.... 35

Guarantee.... 35

Repair service.... 36

Service Centre.... 36

Importer.... 36

Spare parts and accessories.... 36

Translation of the original EU declaration of conformity.... 37

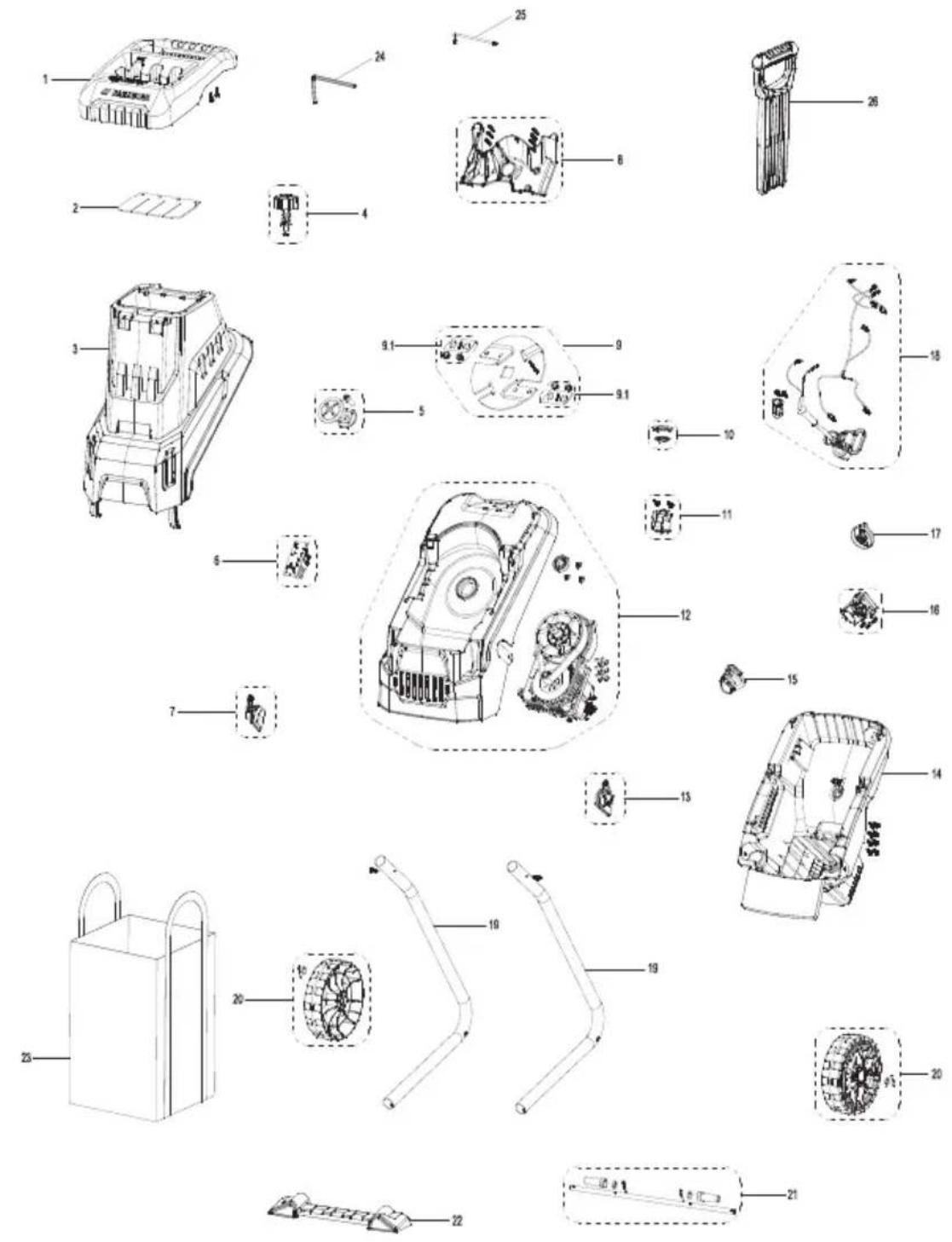

Exploded view.... 195

Introduction

Congratulations on purchasing your new garden shredder (hereafter referred to as device or power tool).

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is only intended for the following use:

- Shredding of green waste, bushes and shrubs with branch thicknesses ≤ 40 mm.

The shredder must not become filled with stones, glass, metal, bones, plastics or fabric waste.

Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.

Scope of delivery/accessories

Unpack the device and check that everything is present.

Dispose of the packaging material properly.

• Garden Shredder
• Chassis (3-piece)
• 2× Wheel + Wheel cover
• Pushing element

• Collection bag

• Connecting strut

• Paper bag:

• Torx wrench

• Hex key
• Holder (Pushing element)
• 2× Holder (Collection bag)

• 2× Torx screw
  • Assembly materials Wheels:

• 2× Bushing

• 4× Washer
• 4× Split pin

- Instructions

Overview

The illustrations for the device can be found on the front and back fold-out page.

Fig. A

1 Holder (Pushing element)
2 Handle
3 Hopper
4 Torx wrench
5 Hex key
6 Housing-Upper section
7 Housing-Lower section
8 Collection bag
9 Holder (Collection bag) (2×)

10 Pushing element

11 Housing-Lock
12 On/Off switch
13 Power cord
14 Cable-Strain relief
15 Connecting strut

Fig. B

16 Chassis
17 Wheel cover (2×)
18 Wheel (2×)
19 Bushing (2×)
20 Axle
21 Washer (4×)
22 Split pin (4×)
23 Torx screw (2×)

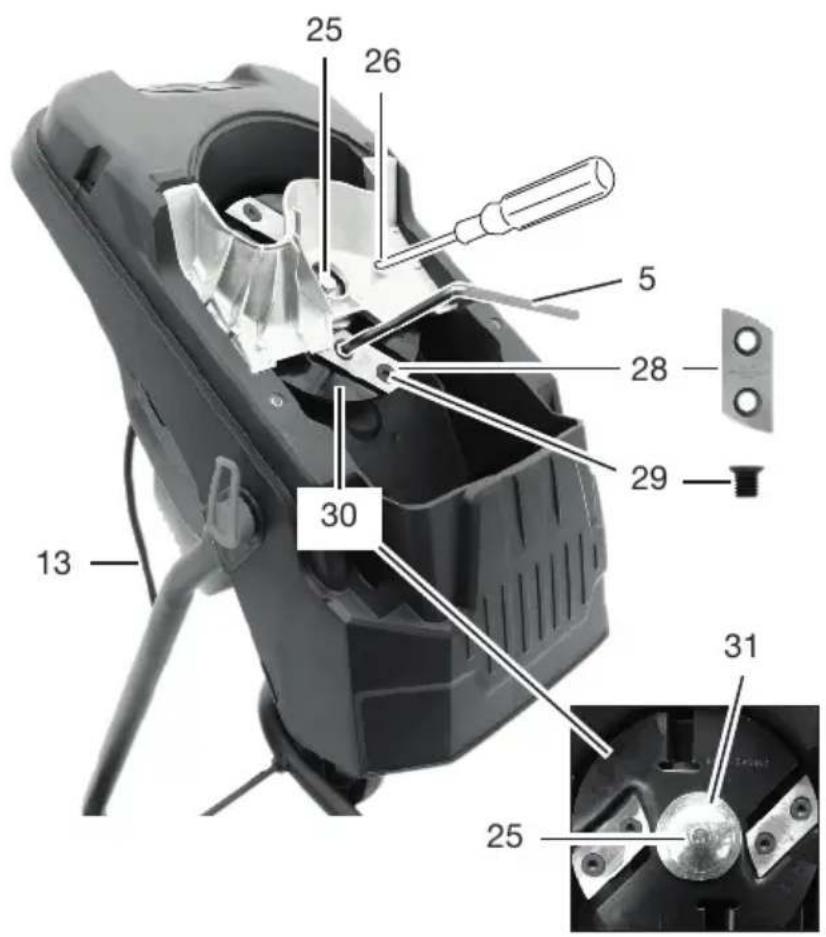

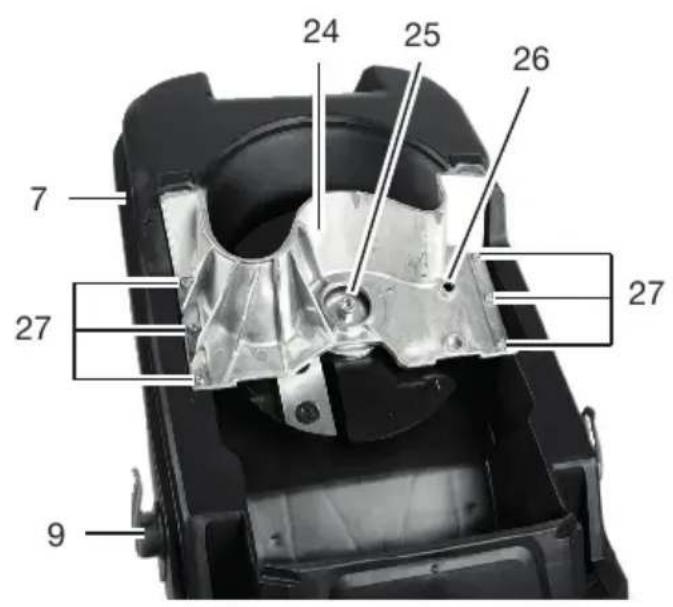

Fig. D

24 Blade guard (metal)
25 Screw (Flange)

26 Access hole
27 Screw (Blade guard) (4×)
28 Blade (2×)
29 Screw (4×)
30 Blade plate
31 Flange

Description of functions

The garden shredder is equipped with a powerful electric motor with overload protection. Two reversible blades made of hardened special steel serve as the cutting system.

Please refer to the descriptions below for information on how the operating elements work.

Technical data

Garden Shredder ......PEMH 2400 B2

Rated voltage U .... 220–240 V \~, 50 Hz

Rated input power P .... 2400 W (P40) ^*

Protection class ...... □ II

Protection type ......IPX4

No-load rotation speed n_0 .....4500 min ^-1

Branch thickness .... ≤ 40 mm **

Volume (Collection bag) ≈ 40 l

Weight (Without accessories) .... ≈ 8.6 kg

Sound pressure level ( L_pA ) 92.3 dB; K_pA=3 dB

Sound power level ( L_WA )

- Measured ....103.1 dB; K_WA=2.25 dB

– Guaranteed ....107 dB

Sound values were determined according to noise measurement method EN 50434:2014.

Noise values were determined in accordance with the standards and regulations specified in the Declaration of Conformity.

* Continuous operation with intermittent load:

40 sec. Load

60 sec. Idle

** The maximum branch thickness that can be shredded depends on the type of wood and the nature of the shredded material.

The maximum branch thickness that can be shredded is lower for hardwood such as oak or beech than for softwood such as pine or spruce.

The shredding thickness is also reduced for dry or gnarled wood.

Safety information

CAUTION! The fol- lowing basic safety precautions must be observed while using electrical devices to protect against elec- tric shock, injury and risk of fire.

Meaning of the safety information

▲ DANGER! If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.

▲ WARNING! If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

⚠ CAUTION! If you do not observe this safety instruc-

tion, an accident will occur. The result of which is likely minor or moderate bodily injury.

NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols Symbols on the device

Attention!

Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly.

Use eye protection and hearing protection

Use protective gloves

Risk of injury! Switch off the machine, pull out the mains plug and wait for the blade to come to a stop.

Rotating cutting blades

Injury hazard caused by rotating tool! Keep away from feet and hands.

Risk of injury due to ejected parts!

Maintain a distance from hopper and ejection zone.

Keep persons in the vicinity away from the device

Use of the device in the rain or a damp environment is prohibited.

Ensure that you do not touch any of the dangerous moving parts before you have unplugged the machine from the mains supply, and that the dangerous moving parts have come to a complete standstill.

Hopper

Protection class II (double insulation)

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

Guaranteed sound power level L_WA in dB.

Open the housing lock.

Close the housing lock.

Symbols used in the instruction manual

Attention!

General safety instructions General Information

- Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly.

- In the case of an accident or malfunction during operation, the machine must be switched off immediately and disconnect the mains plug. Injuries must be properly treated or medical assistance sought. For possible causes of a malfunction: Troubleshooting, p. 34 or contact our service centre.

• Children, individuals with limited physical, sensory or mental capabilities, as well as those who have insufficient experi-

ence or knowledge or are not familiar with the instructions must never be permitted to use the machine. Local regulations may specify a restricted age limit for the user.

• If the power cord of this device is damaged, it must be replaced by the manufacturer or their representative to avoid safety hazards. contact the service centre.
• Cleaning and user maintenance must not be carried out by children.
• The machine must not be used at altitudes over 2000 m.
• Note that the user is responsible for any accidents or risks to others and their property.
• Observe noise protection rules and other local regulations.

Preparation

- Wear hearing protection and safety goggles. Wear these at all times while operating the machine. There is a risk of hearing damage and eye injuries.

• Always wear sturdy shoes and full-length trousers during operation of the machine. Do not operate the machine in bare feet or with open sandals. Avoid wearing clothing that hangs loose or with hanging cords or ties. These could get caught in the hopper and lead to serious injuries.
- Never operate the machine if there are people, particularly children or animals, nearby.
- Only use the machine out in the open (i.e. not against a wall or other rigid object) and only while standing on a solid, level surface.
- Do not use the machine on a paved, gravelled surface where ejected material could cause injury.
- Before putting into operation, always visually inspect the machine, the cutting tools, the screws of the cutting tools and other fastening materials to ensure they are secure, and that the hous-

ing is undamaged and the safety equipment and protective guards are in place. Damaged or worn parts are to be replaced as a set to ensure the machine remains balanced. Damaged or illegible stickers must be replaced.

- Prior to use, always check the power cord and extension cord for signs of damage or wear and tear. If the cord is damaged during use, it must be disconnected from the supply network immediately. DO NOT TOUCH THE CABLE BEFORE IT HAS BEEN DISCONNECTED FROM THE POWER SUPPLY. Do not use the device if the cord is damaged or worn.

Operation

- Pay attention, be aware of what you are doing and take the utmost care when working with the device. Do not use the device if you are tired or you are under the influence of drugs, alcohol or medication.

• Make sure that the hopper is empty before switching on the machine.

- Keep your head and body away from the feed opening.

- Do not allow hands or other body parts or clothing to enter the hopper or discharge chute. Keep them away from moving parts.

- Ensure you are standing securely and do not lose your balance. Avoid an abnormal body posture. Do not lean forward. When material is being fed in, never stand on a higher level than the base of the machine.

- Ensure secure footing on slopes.

- Operate the device at walking speed.

• Always stand outside the ejection zone while operating the machine.

- Do not use the product in bad weather, especially when there is a risk of lightning.

- Only work in daylight or with good artificial lighting.

- When feeding in material, pay special attention to ensure it does not contain any metal, stones, bottles, cans or other foreign bodies.

- Make sure that no processed material accumulates in the ejection zone; this could prevent the material from being ejected correctly and lead to kickback of the material through the feed opening.

- If the machine becomes clogged, turn off the power supply and disconnect the machine from the mains supply before starting to clean it out. Ensure the motor is free of waste and other deposits to protect the motor from damage or the potential for fire.

- Do not operate the machine with damaged or defective safety equipment or protective guards, of if the safety equipment, e.g. the col-

lection bag, are not in place.

- Do not operate the machine with a damaged or worn out cord. Ensure that you do not connect a damaged cord to the power supply or touch a damaged cord before it has been disconnected from the power supply since damaged cords pose the risk of coming into contact with live parts.

- Keep the extension cord away from dangerous moving parts to prevent damage to the cord that can lead to contact with live parts.

- Keep the ventilation holes free of waste and other deposits to protect the motor from damage or fire.

- Do not overload your machine. Only work within the power range indicated. Observe the maximum indicated branch thickness. Do not use your machine for purposes for which it is not intended.

- Only turn off the machine once the hopper is fully emptied otherwise the machine may become clogged and, under some circumstances, may not start again.

- Do not use the machine if the switch cannot be turned on and off. Damaged switches must be replaced by our service centre.

- Use only approved extension cables of type H07RN-F that are not more than 75 m long and are designed for outdoor use. The wire cross section of the extension cable must be at least 2x 1.5 mm ^2 . Always roll out the cable drum completely before use. Check the extension cable for damage.

- Do not tilt the machine while the motor is running.

- Never transport the device while the drive is running.

- Never use the power cord to pull the plug out of the outlet or to pull the

device. Protect the power cord from heat, oil and sharp edges.

- Switch off the device and disconnect the plug from the power outlet. Make sure that all moving parts have come to a complete stop

• when leaving the device,
• if the power cord or extension cord is damaged or entangled,
• before removing obstructions or loosening blockages,
• before checking the device, cleaning it or performing maintenance work on it.

- If foreign bodies enter the cutting tools, or if the machine generates unusual noises or vibrates unusually, immediately turn off the power supply and allow the machine to come to a standstill. Disconnect the machine from the mains supply and perform the following steps before switching the machine on again and operating it:

• search for signs of damage,
• replace damaged parts,
• Check for loose parts and tighten them if necessary.

Cleaning, maintenance and storage

• Allow the motor to cool down before storing the device for a longer period.
• Replace worn or damaged parts in the interests of safety. Use only original spare parts and accessories. Using externally produced parts results in the immediate loss of any warranty claim.
• Switch the drive off, disconnect the device from the power supply and allow the device to cool off if you want to clean, adjust, store the device or to exchange an accessory part.
• Handle the device with care and keep it clean.
• Store the device out of reach of children.
• When maintaining the shredding unit, be aware

that it can always still move even if the power supply is switched off by the locking function or protective equipment.

- Never try to circumvent the locking function of the protective equipment.

- Do not try to repair the device by yourself unless you have professional training. All work not mentioned in this instruction manual may only be performed by our service centre. Many accidents are caused by poorly maintained appliances.

- Warning! Risk of injury by dangerous moving parts!

- Ensure that you do not touch any of the dangerous moving parts before you have unplugged the machine from the mains supply, and that the dangerous moving parts have come to a complete standstill.

- If the power cord of this device is damaged, it must be replaced by the manufacturer, their customer service or by a

similarly qualified per- son in order to avoid haz- ards. contact the service centre.

Additional safety instruction for machines with a collection box

- Switch off the machine before attaching or removing the collection bag.

Residual risks

There will always be residual risks even if you operate this device according to the instructions. The following hazards may occur in connection with the type and design of this device:

• Eye damage if no suitable eye protection is worn.
  • Hearing damage if suitable ear protection is not worn.
• Injuries and property damage caused by loose parts of the running power tool that are unexpectedly ejected from the power tool due to sudden damage, wear or incorrect insertion.
• Injuries caused by moving parts or hot surfaces.

▲ WARNING! Danger due to electromagnetic field generated while the tool is in operation. Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the tool.

Assembly

Fitting the chassis

Tools and aids required

• Torx wrench (4)
• 2× Torx screw (23)

Procedure (Fig. B)

1. Place the shredder on the hopper (3).
2. Slide the chassis (16) into the shredder.
3. Fix the chassis with the enclosed Torx screws (23).

Fitting the connecting strut

Slide the two openings of the connecting strut (15) over the ends of the chassis (16) until the two push buttons on the chassis click into the holes on the underside of the connecting strut (seeFig. B).

The connecting strut is now fixed in place.

Fitting the wheels

Tools and aids required

• 2× Bushing (19)
• 4× Washer (21)
• 4x Split pin (22)

Procedure (Fig. B)

1. Push the axle (20) through a tube on the chassis (16).

2. Put 2 washers (21) on the axle.

3. Push the axle through the second tube on the chassis.
4. Press the washers outwards and insert a split pin (22) through the holes in the axle. The axle is now fixed in the centre.
5. Slide the sleeves (19) onto the axle on the right and left, with the curvature facing the chassis.
6. Place the wheels (18) without wheel covers on the axle on the right and left.
7. Secure the wheels using the split pin and washer.
8. Clip the wheel covers (17) onto the wheels.

Fitting the collection bag

Requirements

- The hopper must be empty.

Procedure (Fig. A)

1. Clip the two collection bag holders (9) into the intended positions on the right and left of the housing lower section (7).
2. Hook the two tabs on the collection bag (8) into the holders.

Fitting the pushing element

1. Clip the holder (1) into the intended position on the side of the housing lower section (7) (see Fig. A).
2. Hook the pushing element (10) into the holder.

Operation

Working instructions

⚠ WARNING! Risk of injury! Long branches can rebound when fed in. Keep a sufficient distance from the machine.

• Use eye protection and hearing protection
• Use protective gloves
• Fill the hopper with the material to be shredded. When feeding branches into the machine, hold them until they feed in automatically.

- Be sure to keep to the infeed speed of the shredder and do not overload the machine.

- Shred wilted garden waste that has been stored for several days and thin twigs alternately with branches to prevent clogging.

• Remove soil and stones from roots before shredding.
• Do not shred soft, damp material such as kitchen waste. Compost it instead.
• Allow the shredder to completely shred the material before adding new material.
• Do not use your hands to push the shredding material forward. Only use the pushing element (10) or other shredding material for this purpose.
• Pick up a few dry branches at the end and use them to help clean the machine.
• Only switch off the machine when all shredded material has passed through the shredding unit. Otherwise, the cutting tool may become blocked when restarting.

Switching on and off

Tools and aids required

- Extension cord for outdoor use

Information on the power supply

• Ensure that the mains voltage and mains frequency match the specifications on the rating plate.
• Connect the device only to a power outlet with a residual current device (RCD) of rated residual current no more than 30 mA.
• Only use extension cords that are suitable for outdoors.

Switching on

1. Make a loop from the end of the extension cable and attach this to the cable strain relief (14).
2. Connect the machine to the power supply.
3. Set the on/off switch to ON.

Switching off

⚠ WARNING! Risk of injury due to rotating blades! The blades continue to run after switching off. Wait until the blades have come to a standstill.

1. Set the on/off switch to OFF.
2. Pull the device plug out of the wall outlet if you are leaving the device unattended or if you have finished working.

Restart lock

If the power supply is interrupted during operation, the machine will not start automatically after the power supply is restored.

To start, first set the on/off switch (12) to OFF and then to ON. The machine starts as normal.

Overload protection

If the machine is overloaded e.g. by branches that are too thick, it will switch off automatically.

To restart the machine, allow it to cool down and then switch it on again.

Cleaning, maintenance and storage

WARNING! Electric shock! Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and disconnect the mains plug from the socket.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

General cleaning and maintenance

NOTICE! Risk of damage! Improper cleaning can damage the device. Never spray down the device with water. Do not clean the device under running water. Do not use any abrasive cleaning agents or solvents.

• Always keep the machine, wheels and ventilation holes clean.
• Use a brush or cloth for cleaning, but do not use any cleaning agents or solvents.
• Check the machine, especially the protective equipment, before each use for damage such as loose, worn or damaged parts.
• Ensure that all nuts, bolts and screws are firmly in place.
• Check the covers and protective devices for damage and correct fit. Replace these if necessary.

Emptying the collection bag

Notes

- Empty the collection bag in good time. Be aware that the collection bag fills unevenly under the discharge chute.

- Risk of injury! Switch off the machine, pull out the mains plug and wait for the blade to come to a stop.

Procedure

1. Set the on/off switch to OFF.
2. Remove the collection bag (8) and empty it.
3. Hook the two tabs of the collection bag back onto the collection bag holders (9).

Removing the housing upper section

WARNING! Danger of injury and death due to electric shock, fire and rotating blades. Before any maintenance or cleaning work, turn the machine off, pull out the mains plug and wait for the blades to stop.

Procedure (Fig. C)

1. Set the on/off switch to OFF.
2. Release ⬆ the housing lock (11).
3. Tilt the housing upper section (6) forwards.
4. Alternatively, you can lift off the housing upper section and put it to one side.
5. You now have access to the blades.

Removing blockages

Requirements

- Use protective gloves

Procedure (Fig. D)

1. Remove the blockage in the machine.
2. Reattach the housing upper section (6) and tighten ⬇ the housing lock (11).

Notes

The machine has a safety switch.

The housing lock (11) must always be tightened hand-tight, otherwise the machine cannot be started.

Turning the blades

NOTICE! For safety reasons, we recommend that sharpening and blade replacement should only be carried out by specialist workshops.

Tools and aids required

• Use protective gloves
• Hex key (5)
• Screwdriver (not included)
• Torque wrench (not included)

Releasing the blades (Fig. D)

1. Block the blade plate (30) e.g. with a screwdriver. Guide the screwdriver through the access hole (26) and carefully rotate the blade plate until you reach one of the two blocking openings. You can

now guide the screwdriver through the blade plate to block it.

1. Loosen the two screws (29) with the hex key (5) and remove the blade (28) upwards.

Fitting the blades (Fig. D)

The blades have two cutting edges, which can be turned around. Always replace and turn the blades in pairs. Do not attempt to sharpen the blades.

1. To mount the blade, tighten the screws with 16 Nm tightening torque using a torque wrench.
2. Always use the new screws supplied when mounting new blades.
3. Reattach the housing upper section (6), see Removing blockages, p. 33.

Replacing the blade plate

Tools and aids required

• Open-end spanner (not included)
• Screwdriver (not included)
• Pliers (not included)

Procedure (Fig. D)

1. Use a screwdriver to loosen the 6 screws (27) from the blade guard (24).
2. Remove the blade guard.
3. Hold the blade plate (30) e.g. with pliers.
4. Loosen the screw (25) from the flange (31) anticlockwise using an open-end spanner ⬆.
5. Remove the screw and flange.
6. Remove the blade plate.
7. Fit the new blade plate in reverse order.
8. Reattach the housing upper section (6), see Removing blockages, p. 33.

Storage

Always store the device and accessories:

• clean
• dry
• protected against dust
• protected against frost
  • out of the reach of children
• Give the motor time to cool off before you store the device in an enclosed space.
• Do not wrap the device in plastic bags as moisture and mildew may form.

Troubleshooting

The following table will assist you in fixing faults:

Problem Possible cause Error	correction
Motor not running	No mains power supply Check	the socket, mains connection cable, plug and fuse and have them repaired by a qualified electrician if necessary.
	Housing lock not closed Tighten	housing lock by hand
Garden waste is not drawn in	Shredding material too soft Push	h through using wood or shred dry branches
	Blade plate is blocked Release	blockage (seeRemoving blockages, p. 33)
	Shredding material in ejection chute	Pull out the mains plug, wait for the blades to stop, remove the chopped material from the ejection chute
Machine does not shred satisfactorily	Blade (28) blunt Check blades,	turn, grindor replace if necessary (seeTurning the blades, p. 33)

Disposal/environmental protection

The device, accessories and packaging should be properly recycled.

Waste electrical and electronic equipment (WEEE) must not be disposed of with domestic waste.

The symbol of the crossed-out wheeled bin means that this product must not be disposed of as unsorted municipal waste at the end of its useful life.

Directive 2012/19/EU on waste electrical and electronic equipment:

Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this way, environmentally friendly and resource-saving recycling is ensured. Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an official collection point,
• Return to the manufacturer/distributor.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Service

Guarantee

Dear Customer,

This product is provided with a 3 year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The guarantee period begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective product and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The product has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. Blade) or to cover damage to breakable parts.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and product number (IAN 495950_2504) ready as proof of purchase for all enquiries.
• Please refer for the product number to the type plate on the product, an engraving on the product, the title page of the operating instructions (bottom left) or the sticker on the back or underside of the product.
• Should functional errors or other defects occur, please initially contact the service centre specified below by telephone or use the contact form available on parkside-diy.com in the category Service.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the appliance inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

PDF ONLINE parkside-diy.com

You can view and download these and many other manuals on parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and search for the operating instructions via the search mask. You can open your operating instructions by entering the article number (IAN) 495950_2504.

Repair service

For repairs that are not covered by warranty, contact the service centre. They will gladly create a cost estimate for you.

- We can only work on devices which are sent in properly packed and with postage paid.

Note: Please send your device cleaned and with an indication of the defect to the address named for the service centre.

- The following are not accepted: devices sent in without prepaid postage, sent as bulky goods, sent as an Express shipment, or devices sent as any other form of special freight.

- We will dispose of defective devices you ship to us free of charge.

Service Centre

GB Service Great Britain Tel.: [phone]

Contact form on parkside-diy.com

IAN 495950_2504

MT Service Malta Tel.: [phone] Contact form on parkside-diy.com IAN 495950_2504

Importer

Please note that the address below is not a service address. Contact the service centre named above first.

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact: Service Centre, p. 36

Pos. nr. Name Order No.
8 Collection bag 91120396
9 Collection bag-Holder (2×) 91120392
10 Pushing element 91120398
15, 16, 20, 21, 22	Connecting strut, Chassis, Axle, Washer (2×), Split pin (2×)	91120394
18, 21, 22 Wheel, Washer, Split pin 91120395
28, 29, 30 Blade plate, Blade (2×), Screw (4×) 91120393

Translation of the original EU declaration of conformity

Product: Garden Shredder

Model: PEMH 2400 B2

Serial number: 000001 - 142000

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2006/42/EC • 2014/30/EU • 2000/14/EC & 2005/88/EC • 2011/65/EU & (EU) 2015/863

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

To ensure conformity, the following harmonised standards and national standards and regulations have been applied:

EN 60335-1:2012/A15:2021 • EN 50434:2014 • EN 62233:2008

EN IEC 55014-1:2021 • EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A2:2024

EN 61000-3-3:2013/A2:2021 • EN ISO 3744:2010

EN IEC 63000:2018

In accordance with the Directive 2000/14/EC relating to noise emission, the following is confirmed: Sound power level ( L_WA )

- Measured: 103.1 dB;

- Guaranteed: 107 dB

Followed conformity assessment procedure according to 2000/14/EC, Annex V.

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Authorised representative of documentation

Sommaire

Introduction...... 38

Service-Center....56

Importateur.... 56

Overbelastingbeveiliging....69

Service-Center....73

Importeur.... 73

QR code image containing encoded data, with a central logo or watermark symbol

PDF ONLINE
parkside-diy.com

Service-Center....90

Importador....90

Volumen (Saco colector) ≈ 40 l

• 2× Manguito (19)
• 4× Arandela (21)
• 4x Pasador (22)

Service-Center....107

Importatore.... 107

Ricambi e accessori.... 108

• Chiave Torx (4)
• 2× Vite Torx (23)

Procedura (Fig. B)

Service-Center....123

Dovozce....123

Service-Center....139

Importér.... 139

- 2× Skrutka Torx (23)

Postup (Obr B)

1. Drvič umiestnite na plniacu násypku (3).

2. Zasuňte podvozok (16) do drviča.

3. Podvozok zaistite pomocou priložených skrutiek Torx (23).

• Klucz Torx (4)
• 2× Šruba Torx (23)

Service-Center....190

Importør.... 190

Diagram of a mechanical device with numbered parts and directional arrows indicating assembly or movement.

D

24 25 26 7 27 27 9

25 26 5 28 29 30 13 31 25

Explosionszeichnung • Exploded view • Vue éclatée • Vista esplosa • Vista explosionada • Explosietekening • Eksploderet tegning • Robbantott ábra • Widok rozłożony • Rozložený pohled • Rozložený pohlád

PEMH 2400 B2

Exploded view diagram of a mechanical device with numbered parts and exploded views

informativ • informative • informatif • informatief • informativo • informatív • informacyjny • informační • informatívny

FR ©
