USER MANUAL PLEMM 25 A1 PARKSIDE

Operation and safety notes

FR BE CH

TELEMETRE LASER

List of pictograms used. 44

Introduction 46

Intended use. 46

Scope of delivery. 47

Parts list 47

Technical data. 48

General safety

instructions. 49

Safety instructions for

batteries/rechargeable

batteries. 52

Before first use

55

Unpacking the product. 55

Inserting/replacing the

batteries 55

Operation.

57

Switching on/off. 57

Changing the

measurement unit. 58

Activating/deactivating

the acoustic signal 58

Selecting the function. 59

Laser distance

measurement 59

Height measurement . 61

Cross line measurement. 62

Tape measurement. 62

Wheel measurement. 63

Error codes 65

Cleaning and care 66

Cleaning 66

Maintenance 67

Storage. 67

Disposal 67

Warranty. 69

Warranty claim procedure. . 71

Service 73

List of pictograms used
	Read the user manual.
	WARNING! - Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)
	CAUTION! - Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)
	NOTICE! - Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)
	Danger of explosion!
	Wear protective gloves!
	Direct current/voltage
	Battery included
	Protect yourself from laser radiation!
	Do not stare into the laser beam!
Keep out of reach of children
Do not dispose of in fire
Do not insert incorrectly
Do not deform/damage
Do not open/dismantle
Do not mix different types or brands
Do not mix new and used
Do not charge
Keep away from water and excessive moisture
Do not short circuit
Insert correctly
Safety information Instructions for use
CE mark indicates conformity with relevant EU directives applicable for this product.

LASER DISTANCE

MEASURER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for measuring distances, lengths and heights in indoor spaces.
Any other use or product modification shall be considered improper use

and hold considerable safety hazards.

The manufacturer assumes no liability for damages due to improper use.
The product is not intended for commercial use.

Scope of delivery

1 Laser Distance Measurer
2 Batteries (type AAA)
1 User manual

Parts list

Fig. A

1 Cross laser line
2 Receiver lens
3 Laser beam output
4Display
5 MEAS button
6 UNIT button
7 MODE button
8 Wheel
9Tape

Fig. B

10 Mirror for height measurement
Battery cover
11b Battery compartment

Fig. C

12 Battery charge level
13Function icon
14 Measurement unit

15Second line (latest measured value)
16First line (previous measured value)
17Area measurement

Technical data

Operating voltage: 3 V
Batteries: 2 × 1.5 V	LR03
Battery type: AAA
Weight (without batteries): approx.	111 g
Dimensions (H×W×D):	12.2 cm × 5.1 cm × 2.7 cm
Degree of protection: IP20
Pollution degree: 2
Operating temperature:	0 °C to +40 °C
Relative humidity: ≤ 75 %
Max. altitude: 2,000 m

Laser

Laser class: 2
Wavelength λ: 625 nm to 660 nm
Maximum power Pmax: < 1 mW
Smallest display unit: 1 mm
Measuring accuracy: ± 2.0 mm
Measurement range
Reference point top side:	0.075 m to 25 m *
Reference point bottom side:	0.175 m to 25 m *
* In favourable conditions: A deviation influence of ±0.05 mm/m must be taken into account. In unfavourable conditions (e.g. intense sunshine, poorly reflecting/black target surface or high temperature variations): A higher deviation is expected.

General safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the

safety instructions, no liability is accepted!

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

• Never leave children unsupervised with the packaging material.
  The packaging material represents a danger of suffocation.
  Children frequently underestimate the dangers.
  Always keep children away from the packaging material.
  This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not use the product in locations where there is a risk of fire or explosion, e.g. in the vicinity of inflammable liquids or gases.
• Do not leave the product unattended when switched on, and switch off the product

directly after use. Other people could be blinded by the laser beam.

Protect the product from wetness or direct sunlight.
- Do not expose the product to any extremes of temperature or temperature fluctuations. - Example: Do not leave the product in a car for extended periods.
After exposure to large temperature fluctuations: Allow the product to acclimatise before using it again. The precision of the product can be adversely affected by extreme temperatures or temperature fluctuations.
Avoid hefty knocks or dropping the measuring tool.

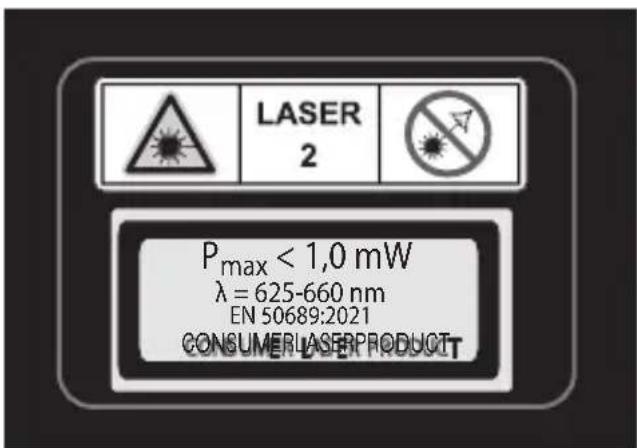

WARNING! Risk of laser radiation!

Protect yourself from laser radiation!

WARNING! Risk of laser radiation!

This is a class 2 laser product! Do not stare into the laser beam!

• Never look directly into the laser beam or into the opening from which it emerges.
  Looking at a laser beam through optical instruments (e.g. magnifying glasses etc.) can cause eye injuries.
  If operating and adjustment equipment is used or procedures other than those specified here are carried out: This may result in hazardous radiation exposure.
• Never aim the laser beam at reflective surfaces, people or animals. Even brief visual contact with a laser beam can result in eye injuries.

Safety instructions for batteries/ rechargeable batteries

DANGER TO LIFE!

• Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

• Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries/ rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

• Never throw batteries/ rechargeable batteries into fire or water.
• Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries/ rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
  If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries/ rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.

Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.

Remove batteries/ rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery/rechargeable battery!

Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.

Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/ rechargeable battery and in the battery compartment before inserting!

Remove exhausted batteries/ rechargeable batteries from the product immediately.

Before first use

Unpacking the product

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".
4. Remove the protective film from the display 4.

- Inserting/replacing the batteries

(Fig. B)

1. Check the battery charge level 12 on the display 4:

Icon Battery charge level
□ High battery charge level
□ Medium battery charge level
Icon Battery charge level
	Low battery charge level Measurements are still possible. The batteries have to be replaced soon.
	Very low battery charge level Replace the batteries. Measurements are no longer possible.

1. Opening the battery cover [1ld]: Gently push down the latch of the battery cover.
2. Remove the battery cover 11d from the battery compartment 11b.
3. Remove the used batteries from the battery compartment [11b] if necessary.
4. Insert the new batteries. Ensure the correct polarity as shown on the diagram inside the battery compartment 11b.
5. Reattach the battery cover 11a.

Operation

- Switching on/off

NOTE

If no button is pressed for 30 seconds:
- The laser beam switches off automatically.
The backlight of the display 4 switches off.
-Press any button to switch on the backlight of the display 4 again.
If no button is pressed for 3 minutes: The product switches off automatically, emitting an audible signal.

Switching on

Switching on the product: Press the MEAS button 5. The display 4 switches on.
- Switching on the laser: Press the MEAS button 5 again.

Switching off

Press and hold the MEAS button 5 for approx. 5 seconds. The display 4 shows OFF.

- Changing the measurement unit

NOTE

You can display the measurements in metres (m), feet (ft) and inches (in).
□ Changing the measurement unit 14: Press and hold the UNIT button 6.
Activating/deactivating the acoustic signal

NOTE

Each press of a button and every error-free function that is carried out is confirmed by a short acoustic signal.
If the functions or are selected: A double acoustic signal is emitted in the event of any fault.
In the continuous measurement mode:
- Short acoustic signals are continuously emitted in a fast pace.
- In the event of an error: The double acoustic signal slows down.
□ Activating or deactivating the acoustic signal at any mode: Press the UNIT button 6 and the MODE button 7.

- Selecting the function

Press the MODE button one or multiple times to select the suitable function. The function icon 13 indicates the selected function:

Function icon Function
	Laser distance measurement *
	Height measurement
+	Cross line measurement
←	Tape measurement
	Wheel measurement
* Default function

Laser distance measurement

NOTE

Calculating the area: This requires 2 sets of valid data.

1. Press the UNIT button 6 to select the reference point:

UNIT button	Reference point
1x	Front
2x	Rear

1. Activating the laser: Press the MEAS button 5.
2. Align the laser horizontally with the target (front or rear
3. Starting a single distance measurement: Press the MEAS button 5. The measurement is displayed in the second line 15.
4. For repeated measurements: Follow the steps 1. to 4. The previous measured value is displayed on the first line [16]. The latest measured value is displayed on the second line [15].
5. Calculating the area: Press and hold the MODE button 7. s 17 is shown. Press any button to exit area display.

Continuous measurement mode

NOTE

Calculating the area: This requires 2 sets of valid data.

1. Starting the mode: Press and hold the MEAS button 5 for 3 seconds.

2. Pausing/restarting the mode: Press the MEAS button 5.

3. Press the MEAS button 5 to calculate the area:

MEAS button	Result
1x	Receive the first set of data
2x	Return to the continuous measurement mode
3x	Receive the second set of data

1. Exiting the mode: Press the MODE button 7.

Press and hold the MODE button 7. s 17 is shown.

Press any button to exit area display.

1. Exiting the mode: Press the MODE button 7 .

- Height measurement

(Fig. D)

NOTE The laser is reflected at a 90^ angle, with the reference plane on the left side of the product.

1. Switching to the height measurement mode: Attach the mirror [10] to the product.

The mode automatically switches to height measurement. is shown on the function icon 13.

1. Follow the measurement steps (see "Laser distance measurement").

Cross line measurement

1. Selecting the cross laser line measurement mode: Press the MODE button 7. is shown on the function icon 13. The display 4 shows CROSS LINE.
2. Switching on the laser: Press the MEAS button 5.
3. Align the product so that the air bubble in the bubble levels is centrally positioned between the two line markings
4. Mark the desired points.

Tape measurement

NOTE

The reference point is the front position of the tape 9 handle.
Calculating the area: This requires 2 sets of valid data.

1. Selecting the tape measurement mode: Press the MODE button 7.

is shown on the function icon 13.

1. Before measuring: Retract the tape to its original position. Press the UNIT button to reset the data.
2. Pull the tape to the desired measurement position. The measured distance is shown in real-time on the second line [15].
3. Press the MEAS button 5 to hold the current measurement. The measurement is displayed on the first line 16.
4. For repeated measurements: Follow the steps 1. to 4. The previous measured value is displayed on the first line [16]. The latest measured value is displayed on the second line [15].
5. Calculating the area: Press and hold the MODE button 7. s 17 is shown. Press any button to exit area display.

Wheel measurement

NOTE

Calculating the area: This requires 2 sets of valid data.

1. Selecting the wheel measurement mode: Press the MODE button 7 .

is shown on the function icon 13.

1. Before measuring: Press the UNIT button to reset the data.
2. Ensure the wheel 8 is in full contact with the surface being measured, with sufficient friction to turn the wheel.
3. Move the product in forward or backward direction. The measured distance is shown in real-time on the second line [15].
4. Press the MEAS button 5 to hold the current measurement. The measurement is displayed on the first line 16.
5. For repeated measurements: Follow the steps 1. to 5. The previous measured value is displayed on the first line [16]. The latest measured value is displayed on the second line [15].
6. Calculating the area: Press and hold the MODE button 7. 17 is shown. Press any button to exit area display.

Error codes

If errors occur during the

measuring process: The errors are indicated by the following error codes on the display 4:

Error code → Cause	Solution
204 → Calculation error	Repeat the procedures.
220 → Low battery	Replace or charge the batteries.
255 → Received signal too weak or measurement time too long	Use white paper to improve the reflective surface.
256 → Received signal too strong	Improve the reflective surface.
261 → Out of measuring range	Measure the distance within the measurement range.
500 → Hardware error	Switch on/off the product. If the error code still appears after several times: Contact the service centre (see “Service”).

Cleaning and care

Cleaning

NOTICE! Risk of short circuit!

Never submerse the product in water or other liquids. Do not allow any moisture to penetrate into the product during cleaning.
Before cleaning: Remove the batteries from the battery compartment 11b.

NOTICE! Risk of product damage!

During cleaning: Do not exert any strong pressure on the product.
Do not use abrasive, aggressive cleaning agents or hard brushes for cleaning.

Clean the opening of the laser beam output 3 and the receiver lens 2 with a gentle air stream.
If required, remove the dirt with a damp cotton swab.
Clean the housing with a soft dry cloth.
- Keep the product clean to ensure fault free operation.

Maintenance

WARNING!

Have the product repaired by qualified professionals and only with original replacement parts. This ensures that the safety of the product is maintained.

The product is maintenance-free.

Storage

If the product is not used for a long time: Remove the batteries from the battery compartment 11b.
Store the product in a clean, dry place that is not exposed to direct sunlight.
Store the product out of reach of children.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility.
Dispose them separately,
following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/ rechargeable batteries must be recycled. Return the batteries/ rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/ rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 509984_2504) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 509984_2504 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 509984_2504

IE Service Ireland

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 509984_2504

NI Service Northern Ireland

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 509984_2504

CY Service Cyprus

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 509984_2504

MT Service Malta

Tel.: [phone]

Contact form on

parkside-diy.com

IAN 509984_2504

CE

Activer/désactiver. 90

Activer/désactiver lesignalsonore. 91

WAARSCHUWING! Risico door laserstraling!

WAARSCHUWING! Risico door laserstraling!

Gooi batterijen/accu's nooit in vuur of water.

NOSIC REKAWICE OCHRONNE!

NOSTE OCHRANNÉ RUKAVICE!

NOSTE OCHRANNÉ RUKAVICE!
