Sicherheitshinweise

All instructions must be read and observed in order for the measuring tool to function safely. The safeguards integrated into the measuring tool may be compromised if the measuring tool is not used in accordance with these instructions. Never

24 | English

make warning signs on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE AND INCLUDE THEM WITH THE MEASURING TOOL WHEN TRANSFERRING IT TO A THIRD PARTY.

▶ Warning! If operating or adjustment devices other than those specified here are used or other procedures are carried out, this can lead to dangerous exposure to radiation.
The measuring tool is delivered with a laser warning sign (marked in the illustration of the measuring tool on the graphics page).
If the text of the laser warning label is not in your national language, stick the provided warning label in your national language over it before operating for the first time.

Do not direct the laser beam at persons or animals and do not stare into the direct or reflected laser beam yourself. You could blind somebody, cause accidents or damage your eyes.

▶ If laser radiation hits your eye, you must close your eyes and immediately turn your head away from the beam.
▶ Do not make any modifications to the laser equipment.
▶ Have the measuring tool repaired only by a qualified specialist using only original replacement parts. This will ensure that the safety of the measuring tool is maintained.
▶ Do not let children use the laser measuring tool unsupervised. They could unintentionally blind themselves or other persons.
▶ Do not use the measuring tool in explosive atmospheres which contain flammable liquids, gases or dust. Sparks may be produced inside the measuring tool, which can ignite dust or fumes.

▶ Do not modify or open the battery. There is a risk of short-circuiting.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
If used incorrectly or if the battery is damaged, flammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another. A short circuit between the battery terminals may cause burns or a fire.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
▶ Only charge the batteries using chargers recommended by the manufacturer. A charger that is suitable for one type of battery may pose a fire risk when used with a different battery.

Protect the rechargeable battery against heat, e.g. including prolonged sun exposure, fire, water,

26 | English

and moisture. There is a risk of explosion and short circuit.

▶ Do not use the laser goggles (accessory) as protective goggles. The laser goggles make the laser beam easier to see; they do not protect you against laser radiation.
▶ Do not use the laser goggles (accessory) as sunglasses or while driving. The laser goggles do not provide full UV protection and impair your ability to see colours.

Safety instructions for power supply

This power supply is not intended for use by children or persons with physical, sensory or mental limitations or a lack of experience or knowledge. This power supply can be used by children aged 8 or older and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the power supply and they understand the associated dangers. Otherwise, there is a risk of operating errors and injuries.

Do not expose the power supply to rain or wet conditions. Water entering the power supply will increase the risk of electric shock.

▶ Keep the power supply clean. Dirt poses a risk of electric shock.
▶ Always check the power supply before using it. Stop using the power supply if you discover any damage. Do not open the power supply yourself, and have it repaired only by Bosch or by an authorised after-sales service centre using only original replacement parts. Damaged power supplies increase the risk of an electric shock.

Product Description and Specifications

For more information, you can scan the QR code or access the online operating instructions:

https://rb-pt.com/160992AA3Y

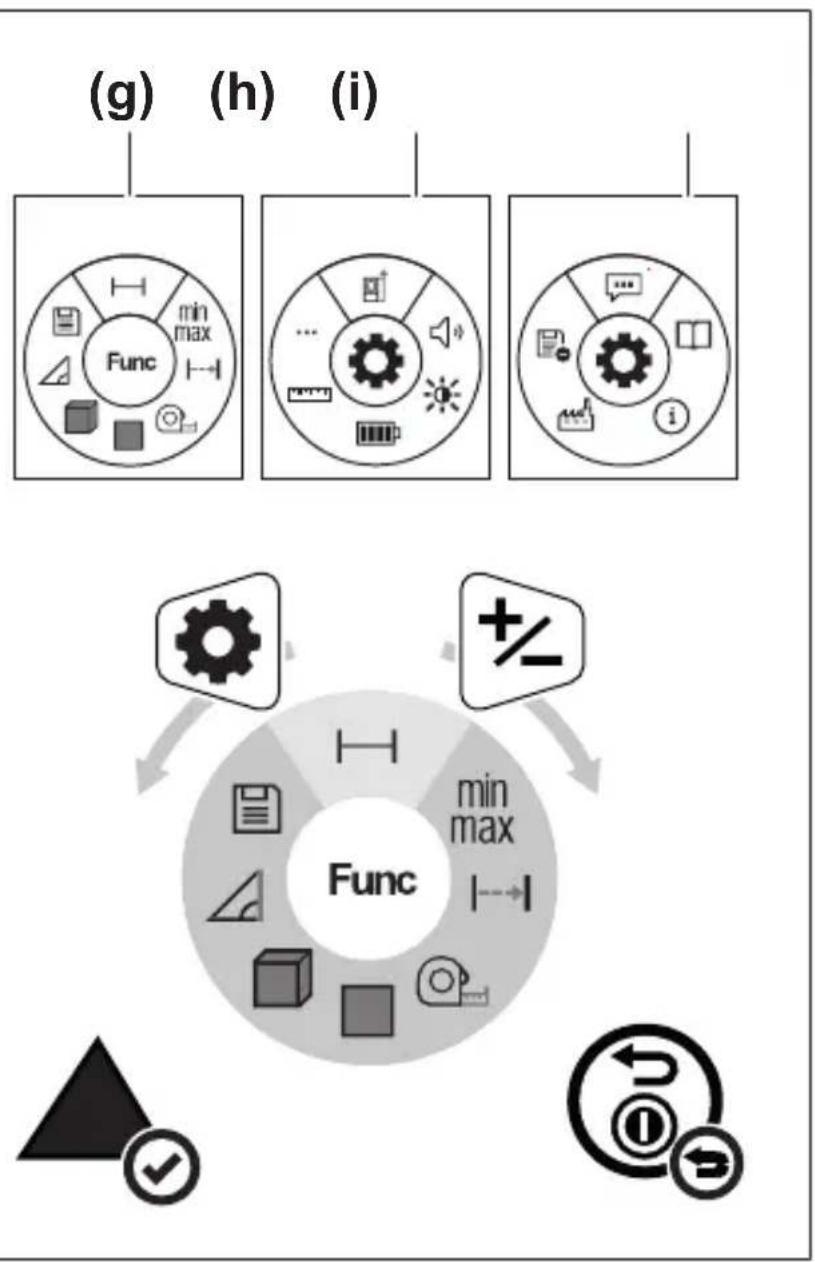

Please unfold the fold-out page with the diagram of the measuring tool and leave it open while reading the instruction manual.

Intended Use

The measuring tool is intended for measuring distances, lengths, heights and clearances, and for calculating areas and volumes.

The measuring tool is suitable for indoor and outdoor use.

This product is a consumer laser product in accordance with EN 50689.

Product Features

The numbering of the product features refers to the representation of the measuring tool in the images.

(1) Settings button
(2) Func Function button
(3) Display
(4) Notched markings for tape measurement
(5) ▲ Measuring button
(6) Plus/minus button
(7) On/off/back button

28 | English

(8) Protective bag
(9) Laser warning label
(10) Serial number
(11) Battery compartment cover locking mechanism
(12) Battery compartment cover
(13) Laser beam output
(14) Reception lens
(15) Li-ion battery pack ^A)
(16) Li-ion battery pack locking mechanism ^A)
(17) Flap for USB port ^A)

A) This accessory is not part of the standard scope of delivery.

Display Elements

(a) Reference level of measurement
(b) Battery indicator
(c) Measured value lines
(d) Result line
(e) Measuring function display
(f) Status bar
(g) Functions menu
(h) Settings menu
(i) More settings menu

Technical data

Digital laser measure GLM 40-31

Article number

3 601 K75 0..

English | 29

Digital laser measure GLM 40-31
Measuring rangeA)	0.05–40 m
Measuring range (unfavourable conditions)B)	0.05–20 m
Measuring accuracyA)	±1.5 mm
Measuring accuracy (unfavourable conditions)B)	±3.0 mm
Smallest display unit 0.5 mm
General
Operating temperatureC)	-10 °C to +45 °C
Storage temperature -20 °C to +70 °C
Relative air humidity max. 90 %
Max. altitude 2000 m
Pollution degree according to IEC 61010-1	2D)
Laser class 2
Laser type 635 nm, < 1 mW
Divergence of the laser beam < 1.5 mrad (full angle)
Automatic switch-off after approx.
- Laser 20 s
- Measuring tool (without measurement)	5 min
Non-rechargeable batteries 2 × 1.5 V LR6 (AA)
Battery pack (accessory) Li-ion
Type BA 3.7V 1.0Ah A
Article number	1 607 A35 ON8
USB charging connection Type-C®
Recommended USB Type-C® cable	1 600 A01 6A8

Bosch Power Tools 1 609 92A A3X | (19.05.2025)

30 | English

Digital laser measure GLM 40-31

Rated voltage	3.7 V ---
Capacitance 1.0 Ah
Number of battery cells 1
Permitted charging temperature range	+10 °C to +35 °C

Power supply

Output voltage	5.0 V ---
Output current 500 mA
Recommended power supplyE)	2 609 120 713 (EU)
	2 609 120 718 (UK)

A) When measuring from the front edge of the measuring tool, this applies for high reflectivity of the target (e.g. a wall painted white), weak background lighting and a 20 °C operating temperature; a distance-dependent deviation of ±0.05 mm/m must additionally be factored in.
B) When measuring from the front edge of the measuring tool, this applies for high reflectivity of the target (e.g. a wall painted white), strong background lighting, a 20 °C operating temperature and high elevation; a distance-dependent deviation of ±0.15 mm/m must additionally be factored in.
C) In continuous measurement mode, the max. operating temperature is +40 °C.
D) Only non-conductive deposits occur, whereby occasional temporary conductivity caused by condensation is expected.
E) For additional technical data, visit: https://www.bosch-professional.com/ecodesign

The serial number (10) on the type plate is used to clearly identify your measuring tool.

Inserting/Changing the Battery

Always replace all the non-rechargeable batteries at the same time. Only use non-rechargeable batteries from the same manufacturer and which have the same capacity.

When inserting the batteries, ensure that the polarity is correct according to the illustration on the inside of the battery compartment.

▶ Take the batteries out of the measuring tool when you are not using it for a prolonged period of time. The batteries can corrode during prolonged storage in the measuring tool.

Never store the measuring tool without an inserted battery compartment cover (12) or lithium-ion battery pack (15) (accessory), particularly in dusty or humid environments.

Lithium-ion battery pack (accessory)

Inserting/changing the lithium-ion battery pack (accessory)

» Insert the lithium-ion battery pack (15) (accessory).
» To remove the lithium-ion battery pack (15) (accessory), press the locking mechanism (16) and take the lithium-ion battery pack out. (see Fig. A, page 5)

32 | English

Charging the lithium-ion battery pack (accessory)

For charging, use the recommended USB power supply unit or a USB power supply unit whose output voltage and minimum output current comply with the requirements in the "Technical data" section. Observe the operating manual of the USB power supply unit. Recommended power supply unit: See "Technical data".
▶ Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power adaptor. Power adaptors marked with 230 V can also be operated with 220 V.

Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.

Operation

Starting Operation

▶ Never leave the measuring tool unattended when switched on, and ensure the measuring tool is switched off after use. Others may be dazzled by the laser beam.
▶ Protect the measuring tool from moisture and direct sunlight.
▶ Do not expose the measuring tool to any extreme temperatures or variations in temperature. For example, do not leave it in a car for extended periods of time. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into op-

eration. The precision of the measuring tool may be compromised if exposed to extreme temperatures or variations in temperature.

▶ Avoid substantial knocks to the measuring tool and avoid dropping it. After strong external influences on the measuring tool, you should always carry out an accuracy check (see "Accuracy Check", page 36) before further work.

Switching On and Off

» Press the ▲ button to switch the measuring tool and the laser on.
→ You can also switch on the measuring tool without the laser by pressing the button.
» Press and hold the button to switch off the measuring tool.
→ The measured values and device settings in the memory are retained.

Measuring Process

When switching on for the first time, the measuring tool will be in the length measurement function. When switching on every subsequent time, the measuring tool will be in the measuring function that was last used.

Two settings are available for the reference level of the measurement. (see "Reference level", page 34)

» Apply the measuring tool to the point at which you want to start the measurement (e.g. wall).
» If you have switched on the measuring tool with the button, then briefly press the ▲ button to switch on the laser.

34 | English

» Press the ▲ button to start the measurement.

Once the measurement process is complete, the laser beam will switch off. For a further measurement, repeat this process.

Measured values or end results can be added or subtracted.

The measuring tool must not be moved during a measurement (with the exception of the Min/Max,

Continuous meas. and Tape functions). Therefore, place the measuring tool, as far as this is possible, against or on a firm stop or supporting surface.

The reception lens (14) and the laser beam output (13) must not be covered during the measuring process.

Reference level

For the measurement, you can select from various reference levels:

The rear edge of the measuring tool (e.g. when placing against walls)

The front edge of the measuring tool (e.g. when measuring from a table edge)

Settings menu

You can find the following settings in the Settings menu:

• Reference level (see "Reference level", page 34)
• Audio signals
• Brightness
• Battery save mode

English | 35

• Measurement unit
• Language
• Manual
• Tool information
• Factory reset
• Delete memory

» Press the button to open the Settings menu.

» Use the button or button to select the required setting.

» To confirm a selection, press the ▲ button.

Measuring functions

Selecting/Changing Measuring Function

You will find the following functions in the Functions menu:

• Length
• Min/Max
• Continuous meas.
• Tape
• Area
• Volume
• Indirect height
• Internal memory

» Press the button to open the Functions menu.

» Use button or button to select the required measuring function.

36 | English

» To confirm the selection, press the ▲ button.

Accuracy Check

Regularly check the accuracy of the distance measurement.

For more information, you can scan the QR code or access the online operating instructions: https://rb-pt.com/160992AA3Y

Error Message

If a measurement cannot be performed correctly, the error message ERROR will appear in the display.

» Try to perform the measuring process again.
» If the error message appears again, switch the measuring tool off and back on, and start the measurement again.

The measuring tool monitors correct operation in every measurement. If a defect is detected, the display will indicate only the symbol shown opposite and the measuring tool switches itself off. In this

case, have the measuring tool checked by an after-sales service agent for Bosch power tools.

Maintenance and Service

Maintenance and Cleaning

Only store and transport the measuring tool in the protective bag provided.

Keep the measuring tool clean at all times.

Never immerse the measuring tool in water or other liquids.

Wipe off any dirt using a damp, soft cloth. Do not use any detergents or solvents.

Take particular care of the reception lens (14), which must be handled with the same level of care you would give to a pair of glasses or a camera lens.

If the measuring tool needs to be repaired, send it off in the protective bag (8).

After-Sales Service and Application Service

Great Britain

Tel. Service: [phone]

You can find our service addresses and links to the repair service and spare parts ordering at www.bosch-pt.com/serviceaddresses

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Disposal

Measuring tools, rechargeable/non-rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the measuring tools or battery packs/batteries with household waste.

Only for EU countries and United Kingdom:

Electrical and electronic equipment or used batteries that are no longer suitable for use must be collected separately and disposed of in an environmentally friendly manner. Use the designated collection systems. Incorrect disposal may cause harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Français

https://rb-pt.com/160992AA3Y

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

Aviso de fallo

Calle Robert Bosch No. 405

C.P. 50071 Zona Industrial,

Toluca - México, RFC: RBO910102QJ9

Tel.: [phone]

Tel.: [phone]

España

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

Mensagem de erro

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

Messaggio di errore

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

Foutmelding

www.bosch-pt.com/serviceaddresses

114 | Dansk

Tlf. Service Center: 44898855

Du kan finde vores serviceadresser og links til repa- rationsservice og bestilling af reservedele på: www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

Virheilmoitus

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

Μήνυμα σφάλματος

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

Hata uyarısı

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

Komunikat błędu

https://rb-pt.com/160992AA3Y.

Chybové hlášení

www.bosch-pt.com/serviceaddresses

232 | Slovenčina

https://rb-pt.com/160992AA3Y

Chybové hlásenie

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

Hibaüzenet

https://rb-pt.com/160992AA3Y

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

www.bosch-pt.com/serviceaddresses

modification of the following text:

(1) 356500000000000000000000000000000000000
(2) Func Money amount money money
(3) 03m56n
(4) ამოქრილი ნიმნულები რეეიმისთვის რულეტპა
(5) ▲ 3s8md3nU m0ms3n
(6) ≠ ΜΩΜΩΣΩ 3ΩΥΙΟ/∂οδΥΙΟ
(7) ① ๑ ๒ ๓ ๔ ๕ ๖ ๗ ๙ ๚ ๑ ๖ ๜ ๪ ๵
(8) மூஷானு செய்பூரம்
(9) மூற்றுமான செமுவாற்றும் செமுவாற்றும் செமுவாற்றும்
(10) სერიული ნომერი

Jusnoyano | 319

(11) odds funds, funds buy money, uses funds, and fund business

(12) odds mgln gbsymgngdln lsgsmn

(13) ###

(14) ∂∂∂μγδον χησδδς

zs8md3nU 36mm2g1nU 40s1m7g1m7g1nU 39d40g3 m58g6m7m0 lubn3n 36dm0m0m3g0s. 39d40g3m0n 368md3g1nU0m3nU zsndgm6m gJ 36mm2g0m7s.

• Min/Max
• Continuous meas.
• Tape
• Area
• Volume
• Indirect height
• Internal memory

நஷேஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷா

www.bosch-pt.com/serviceaddresses

ங்செ 30πb3g10n l̄s̄m̄dμ̄j̄d6s̄ūns̄b φσ3s̄3̄dn̄m̄ḡ10n āḡdạnb3g3s̄ạn s̄b l̄ūns̄q̄ω̄s̄m̄z̄m b̄s̄h̄n̄m̄ḡ10n l̄d̄ḡ3ḡnn̄ūs̄l s̄ȳp̄n̄m̄j̄d̄w̄s̄o n̄ d̄n̄ȳnn̄m̄ḡn 3̃m̄m̄q̄ȳj̄f̄20n l̄ 10-6b̄d̄b̄s l̄ūs̄f̄mb̄mm b̄m̄ḡf̄n. ḡu b̄m̄ḡf̄n o ār̄ḡnd̄m̄nσ o n̄bɔŋm̄m b̄ḡm̄us̄f̄ȳm l̄d̄mb̄b̄ȳm oʒn̄m̄zɔnÕs8j.

ΥΩΝΟΛΟΥΣΥΟΣ

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

Mesajul de eroare

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

• Reference level (shih "Reference level", Faqe 390)
• Audio signals
• Brightness
• Battery save mode
• Measurement unit
• Language
• Manual
• Tool information
• Factory reset
• Delete memory

• Length
• Min/Max
• Continuous meas.
• Tape
• Area
• Volume
• Indirect height
• Internal memory

https://rb-pt.com/160992AA3Y

Mesazh gabimi

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

Javljanje greške

www.bosch-pt.com/serviceaddresses

Molimo da kod svih pitanja i naručivanja rezervnih delova neizostavno navedete broj artikla sa 10 brojčanih mesta prema tipskoj pločici proizvoda.

Uklanjanje dubreta

Merne alate, akumulatore/baterije, pribor i pakovanja treba predati na reciklažu koja je u skladu sa zaštitom životne sredine.

Merne alate i akumulatorske baterije/baterije nemojte bacati u kućni otpad!

Samo za EU-zemlje:

Električni i elektronski uređaji ili istrošeni akumulatori i baterije koji više ne mogu da se koriste moraju da se skupljaju zasebno i odlože u otpad u skladu sa ekološkim propisima. Koristite naznačene sisteme za sakupljanje. Zbog mogućih opasnih materija koji se nalaze u uređaju, nepravilno odlaganje u otpad može da bude opasno za okolinu i zdravlje.

Slovenščina

Varnostna opozorila

https://rb-pt.com/160992AA3Y

Sporočilo napake

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

Poruka pogreške

Ako se mjerenje ne može ispravno izvršiti, tada se na zaslonu prikazuje poruka pogreške ERROR.

https://rb-pt.com/160992AA3Y

Veateade

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

Klaidos pranešimas

www.bosch-pt.com/serviceaddresses

https://rb-pt.com/160992AA3Y

https://rb-pt.com/160992AA3Y

بلاغ excerpt

www.bosch-pt.com/serviceaddresses

https://www.bosch-professional.com/ecodesign

. (Tape 9 .Continuous meas

-Reference,, by (506 صفده, "level

-Audio signals

-Brightness

-Battery save n

-Measurement

-Language

-Manual

i -Tool informati

-Factory reset

-Delete memor
