USER MANUAL ExactFit 5 BUA 6350 BRAUN

Braun upper arm blood pressure monitor has been developed for accurate and comfortable blood pressure measurements. The measuring accuracy of Braun's upper arm blood pressure monitor was tested at the time of manufacture and was proven by clinical research in accordance with ESH.

What you should know about blood pressure

Blood pressure constantly changes throughout the day. It rises sharply in the early morning and declines during the late morning. Blood pressure rises again in the afternoon and finally drops to a low level at night. Also, it may vary in a short period of time. Therefore, readings from successive measurements can fluctuate.

This device will display your blood pressure reading referring to two values: systolic and diastolic. The systolic blood pressure (the upper number) indicates how much pressure your blood is exerting against your artery walls when the heart beats. The diastolic blood pressure (the lower number) indicates how much pressure your blood is exerting against your artery walls while the heart is resting between beats. The pulse value is also displayed after each measurement.

Blood pressure measured in a doctor's office only provides a momentary value. Repeated measurements at home better reflect one's actual blood pressure values under everyday conditions.

Moreover, many people have a different blood pressure when they measure at home, because they tend to be more relaxed than when in the doctor's office. Regular blood pressure measurements taken at home can provide your doctor with valuable information on your normal blood pressure values under actual «everyday» conditions.

The ESH (European Society of Hypertension) and WHO (World Health Organisation) have set up the following standard blood pressure values when measured with a resting pulse at home:

Blood pressure (mmHg)	Normal values	Grade 1 mild hypertension	Grade 2 moderate hypertension	Grade 3 severe hypertension
SYS = systole (upper value)	up to 134 135-159 160-179 ≥180
DIA = diastole (lower value)	up to 84 85-99 100-109 ≥110

Safety information and important precautions

To ensure accurate measuring results, read the complete instructions for use carefully.

People suffering from cardiac arrhythmia, vascular constriction, arteriosclerosis in the extremities, diabetes or users of cardiac pacemakers should consult their doctor before measuring their blood pressure themselves. Deviations in blood pressure values may occur in such cases.

If your blood pressure reading is in the severe hypertension range with values of 180 mmHg systolic and above, and/or 110 mmHg diastolic and above; and you find you have one or two readings in this range - please see your doctor straight away.

If you are under medical treatment or taking any medication, please consult your doctor first.

The use of this blood pressure monitor is not intended as a substitute for a consultation with your doctor.

Key rules for accurate blood pressure measurement

Always take readings at the same time of day, under the same conditions.

Do not take a measurement within 30 minutes of smoking, drinking coffee or tea or any form of exertion. These factors will influence the measurement.

Always measure on the same arm. The left arm is recommended. Do not move or speak. Keep your legs uncrossed and feet flat on the floor.

Place the cuff in direct contact with the skin. Do not wrap the cuff over a jacket, sweater or shirt.

If you want to take multiple measurements, wait approximately 3 minutes before repeating a measurement.

Product description (See page 1-2, Fig. 1)

1. Start button ⏻

2. Memory button M

3. Date / time adjust button ▲

4. Set button Ⓛ

5. Average button

6. User A / B switch

7. LCD display

8. Hose port

9. Connector

10. Arm cuff (supplied with 2 cuffs)

11. Air hose

12. Battery compartment cover (4 X 1.5V type AA (LR6) batteries)

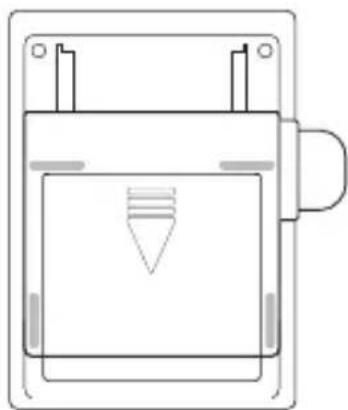

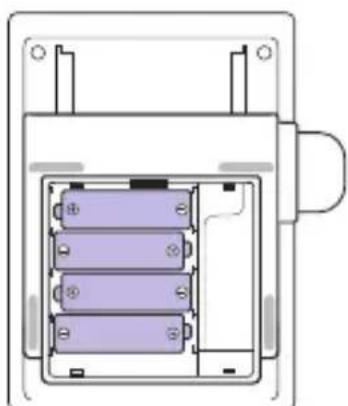

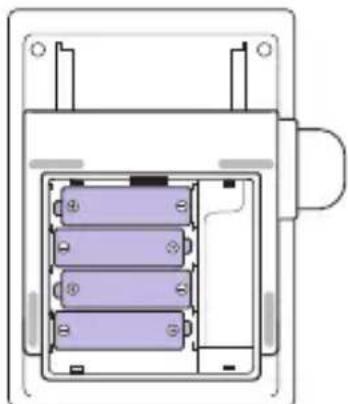

Inserting batteries (See Fig. 2-3)

- Remove the battery compartment cover at the bottom of the unit and insert 4 AA LR6 alkaline batteries with correct polarity (see symbol in the battery compartment).

- Note: always re-set date and time after replacing new batteries to make sure the measurement results are stored with correct date and time.

iscard empty batteries.

They should not be disposed of in the household waste, but at appropriate collection sites or at your retailer.

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 2

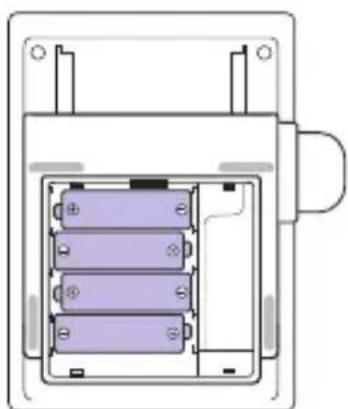

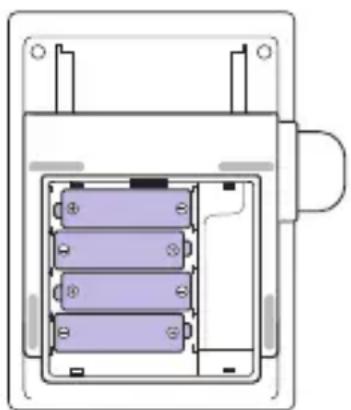

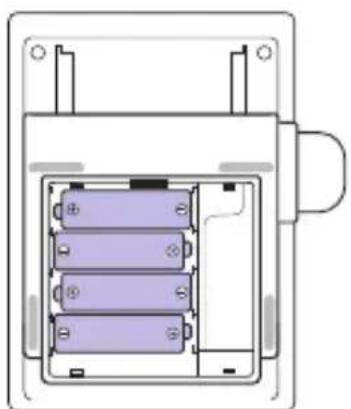

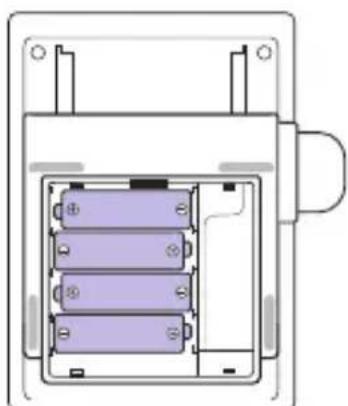

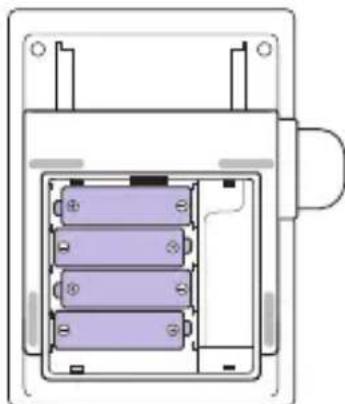

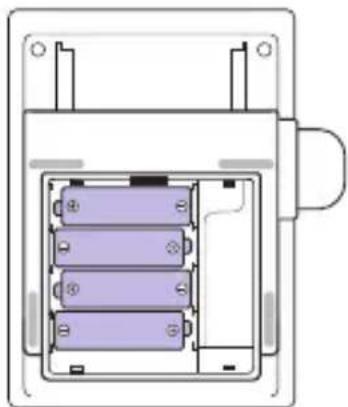

Diagram of a battery pack inside a housing, showing four internal compartments with no text or symbols

Fig. 3

Choosing the right cuff

For accurate measurement, it is important to choose the correct size cuff which best fits your upper arm. Choose the cuff size according to your arm circumference and make sure the bottom of the cuff is 2\~3cm above your elbow.

• Small/Medium Cuff = 22\~32cm arm circumference
  • Large/XLarge Cuff = 32\~42cm arm circumference

Applying the arm cuff

1. Slide the end of arm cuff furthest from the tube through the metal ring to a loop. The smooth cloth should be on the inside of the cuff.

Line drawing of a hand holding a tool next to a device with a scroll wheel (no text or symbols)

Fig. 4 Fig. 6

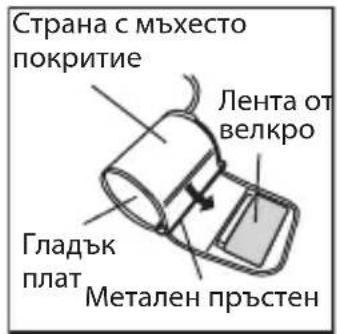

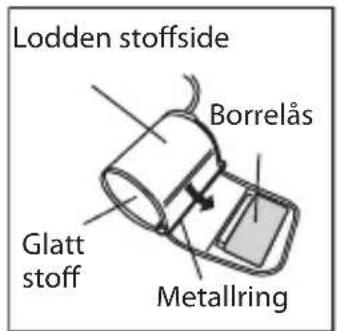

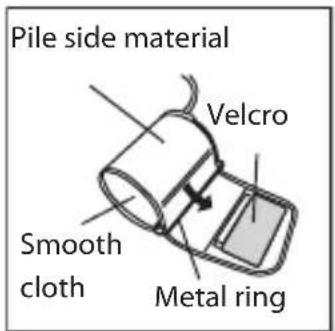

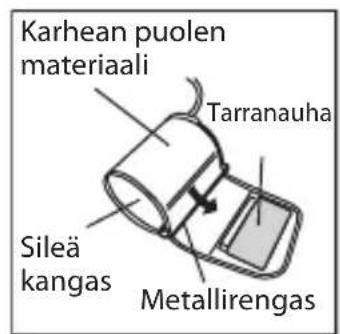

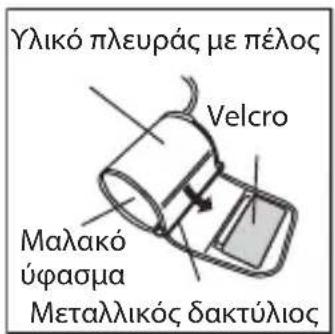

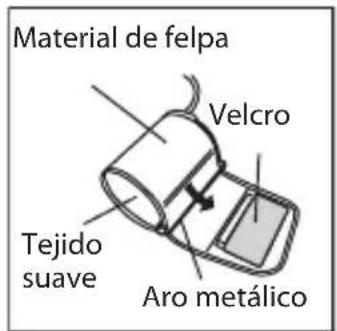

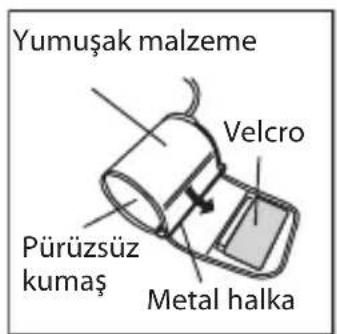

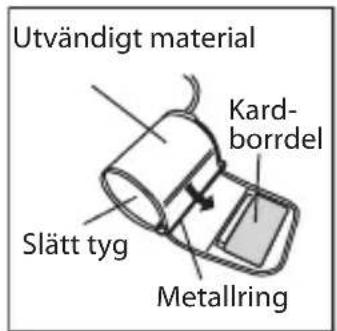

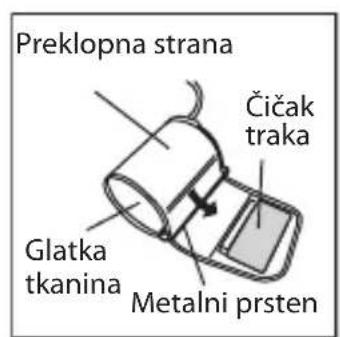

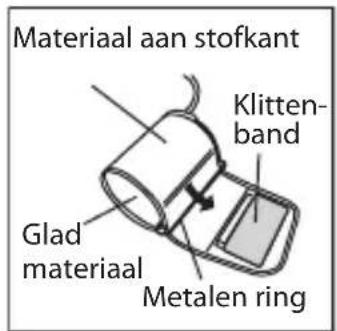

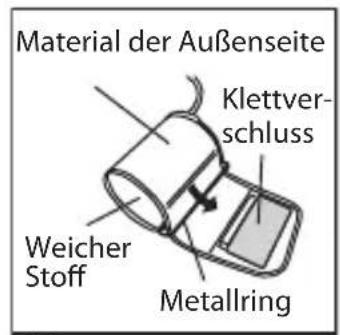

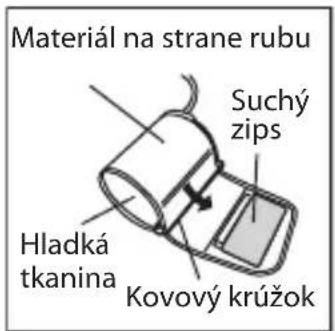

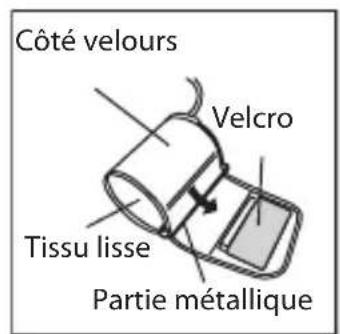

Pile side material Velcro Smooth cloth Metal ring

Fig. 5

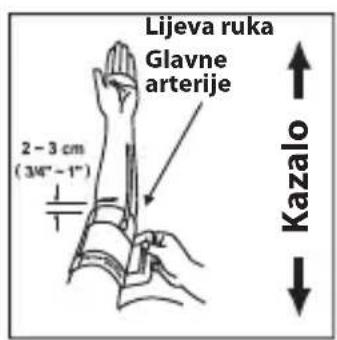

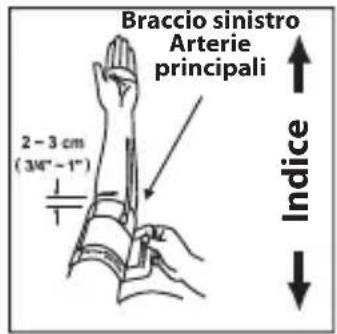

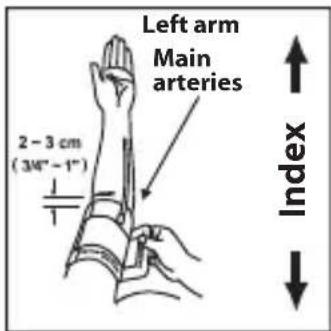

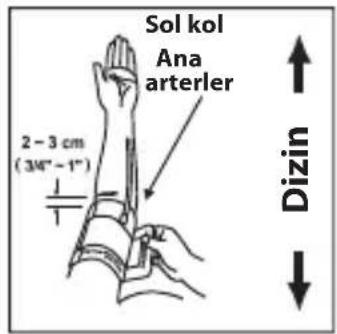

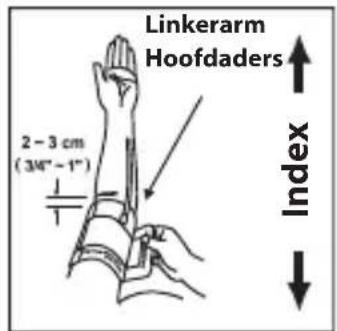

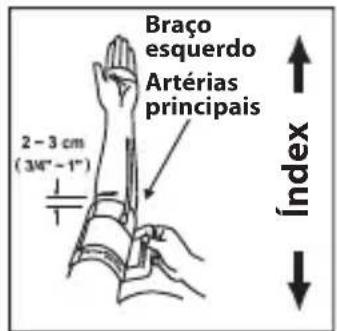

Left arm Main arteries 2 - 3 cm (34" - 1") Index

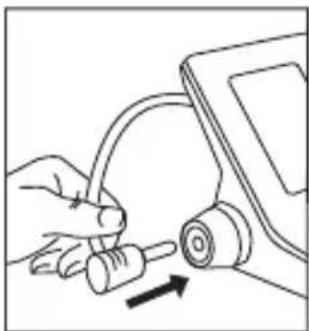

1. Plug the air hose into the connector (Fig. 4).
2. If the cuff is located correctly, the velcro will be on the outside of the cuff and the metal ring will not touch the skin (Fig. 5).
3. Put your left arm through the cuff loop. The bottom of the cuff should be approximately (2\~3 cm) above elbow. The tube should lie over the brachial artery on the inside of the arm (Fig. 6).

Line drawing of a human forearm with wristband and wristpin, no text or symbols present

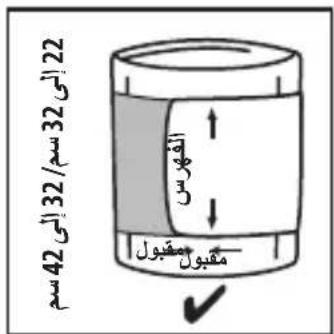

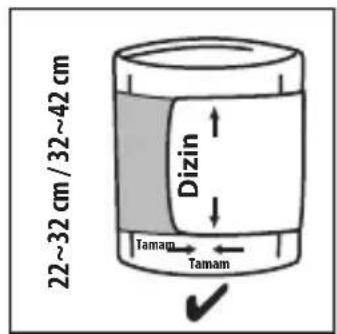

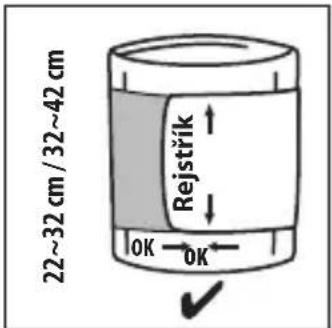

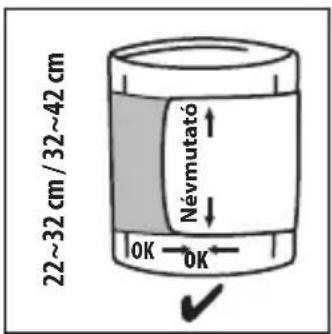

22~32 cm / 32~42 cm Index OK OK

Line drawing of a human hand with a heart symbol attached to the arm, no text or labels present

1. Pull the cuff so that the top and bottom edges are tightened around your arm (Fig. 7).
2. When the cuff is positioned properly, press the Velcro firmly against the pile side of the cuff.
3. This cuff is suitable for use if the <> mark falls within the <> marked by two arrows when the cuff is tightened around your arm (Fig. 8).
4. Sit on a chair and place your arm on the table so that the cuff is at the same level as your heart (Fig. 9).

Display

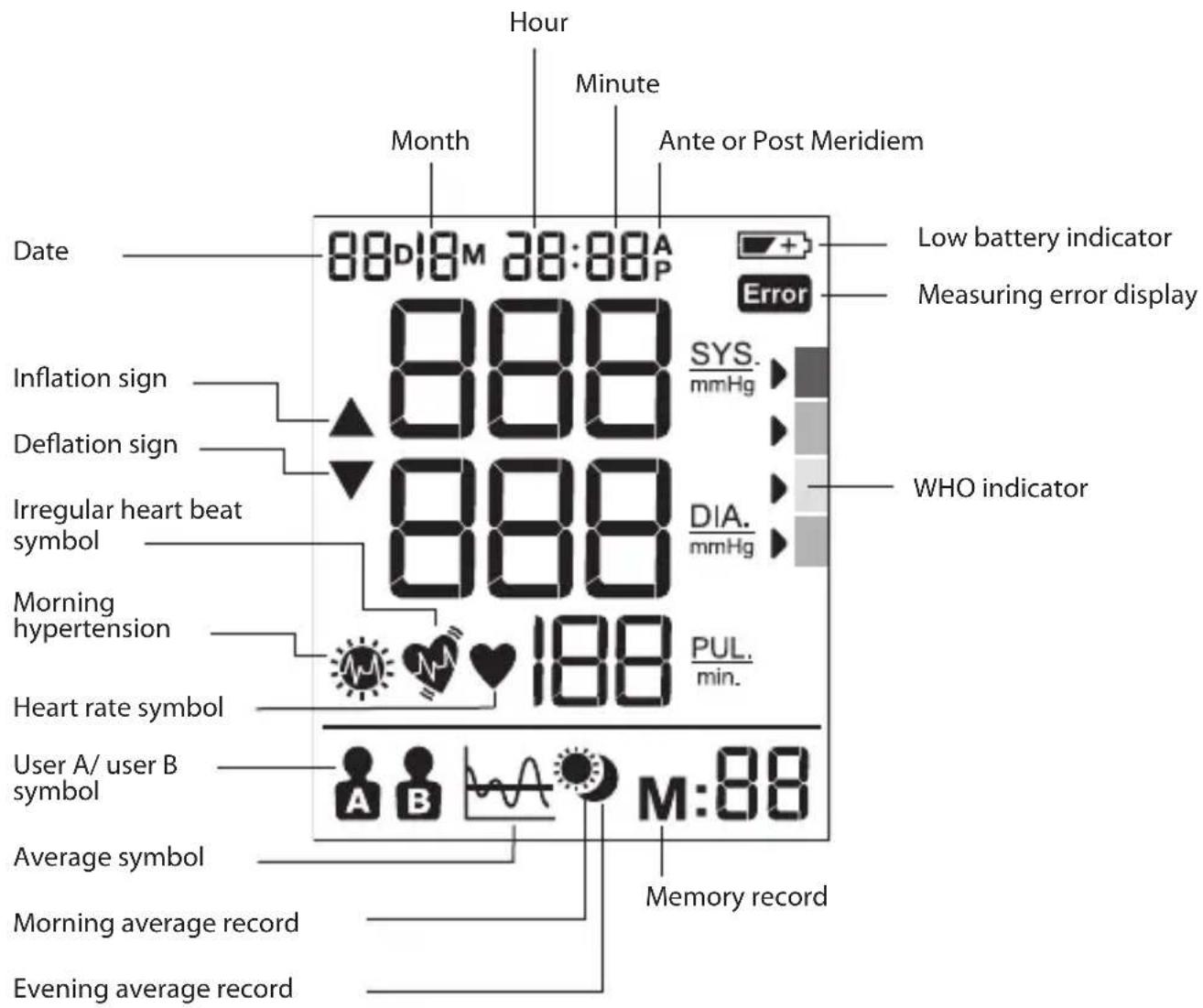

Hour Month Minute Ante or Post Meridiem Date 88D18M 28:88A P Error Low battery indicator Measuring error display Inflation sign 888 SYS. mmHg WHO indicator Deflation sign 888 DIA. mmHg Irregular heart beat symbol Morning hypertension 188 PUL. min. Heart rate symbol User A/ user B symbol Average symbol Morning average record Evening average record Memory record

How to select user A /user B

• Make sure the Product is in power off mode.
- Slide the user switch to user A or user B, the current user mode will flash on the LCD display.

The WHO/ESH indicator to evaluate blood pressure data

RED > !!! ORANGE > !! YELLOW > ! GREEN > ✓

This device has a blood pressure level indicator established according to WHO and the European Hypertension Society Guidelines (ESH). For every measurement displayed on the screen, the cursor will indicate the blood pressure level with the corresponding color code, from green to red. You can use this classification daily to guide you to understand your blood pressure level. If you are really concerned by the classification level, you should consult your doctor as soon as possible.

If your blood pressure reading is in the severe hypertension range with values of 180 mmHg systolic or above, and/or 110 mmHg diastolic and above, and if you find you have one or two readings in this range - please see your doctor straight away.

Setting month, date and time

a. Switch off the device for the date/time setting.
b. Press set button ④ to start the year setting, then the "year" will blink on display. Press ▲3) to adjust year by 1 step.
c. Press set button (4) to start the month setting, then the "month" will blink on display, user can press adjust (3) to adjust month by 1 step.
d. Press set button ④ to start the day setting, then the "day" will blink on display, user can press adjust ▲(3) to adjust day by 1 step.
e. Press set button (4) to start the hour setting, then the "hour" will blink on display, user can press adjust (3) to adjust hour by 1 step.
f. Press set button (4) to start the minute setting, then the "minute" will blink on display, user can press adjust (3) to adjust minute by 1 step.
g. Press set button ④ to end all the date/time setting, all blinking stops.

Note: Holding the adjust button will scroll the value.

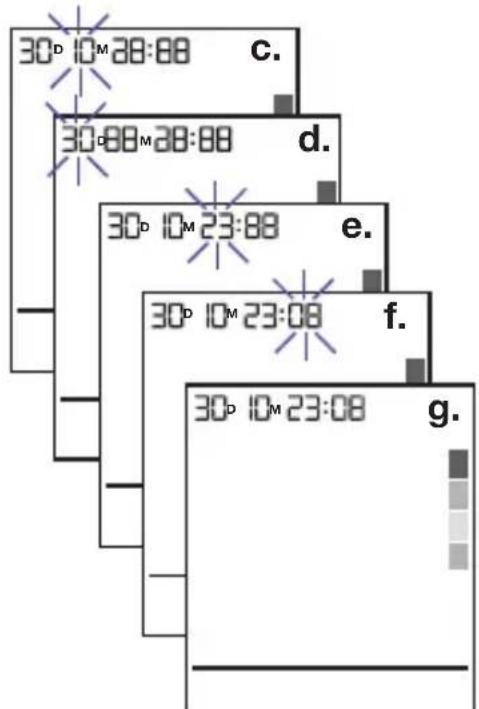

30D 10M 28:88 c. 30-88M 28:88 d. 30D 10M 23:88 e. 30D 10M 23:08 f. 30D 10M 23:08 g.

Taking a measurement

Wrap the cuff around the arm (see "applying the arm cuff" section above).

1. Sit upright on the chair to have a correct posture.
2. Press and release start button ⏻, date/time and current user will be displayed.
3. Set user A/B switch (6) to A for user A or B for user B, LCD display will show user A or B symbol.

4. Press and release the start button ⏻, all icons on display will be shown for 2 seconds. Air pressure will automatically pump up to certain pressure level and then start the measurement.
   Do not move or talk in the midst of taking blood pressure measurement. During the measurement, keep your legs uncrossed and feet flat on the floor.

5. After the air pressure has increased, the pulse is detected, the heart rate symbol will start flashing.

6. LCD Display will show the results and WHO indicator arrow after measurement.

After using the device, turn it off by pressing the start button ⏻) or it will automatically turn off after 1 minute.

Memory function

Your blood pressure monitor can store the latest 60 readings for each user.

Storing measurement data

After each blood pressure measurement, the systolic pressure, diastolic pressure, pulse rate and the time & date of specific day will be automatically stored. Memory #01 is always the most recent one. Once the memory is full, the oldest values will be overwritten.

Press memory button M(2) to review the stored data. The last memory data (sys/dia/pul) with measurement date/time, IHB and WHO indicator will show on LCD. Press memory button M(2) again to show the previous data. Ensure that the correct user; A or B, is selected before use.

This device is not intended as a substitute for regular check-ups by your doctor, please continue to visit your doctor on a regular basis for a professional reading.

Average function

Press the average button (S) to show the full day average of past 7 days on LCD. Press the average button a second time to show the morning average of past 7 days on LCD. If results indicate morning hypertension, the following icon will be shown ☑ Press the average button a third time to show the evening average of past 7 days on LCD. Press the average button a fourth time to show the full day average of past 7 days again.

98 SYS DATA 65 64 PUL A

Erasing data

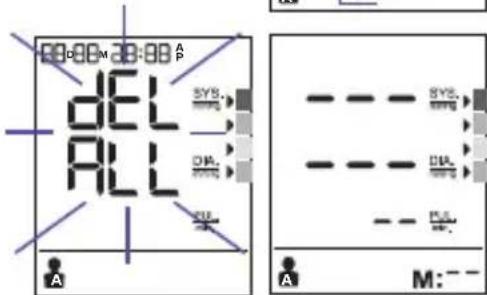

Switch off the device, press and hold memory button M (2) for more than 5 seconds, LCD display will blink "dEL ALL". Ensure that the correct user; A or B, is selected before use.

DELM 38:00 A P SYS. DIL. FU A SYS. DIL. FU. A M:--

Press memory button M(2) again, LCD will display “---” to show all the stored data of corresponding user have been deleted.

Irregular heart beat detector

The appearance of this symbol signifies that a certain pulse irregularity was detected during the measurement. Talking, moving, shaking or an irregular pulse during the measurement can result in the appearance of this icon. Usually this is not a cause for concern, however, if the symbol appears often, we recommend you seek medical advice. The device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Low battery indicator

When the low battery indicator flashes on the display, it means the battery is low and the four batteries need to be replaced with alkaline LR6 (AA) batteries.

** After replacing batteries, ExactFit™ 5 will go into time-setting mode automatically and show the last measurement time on screen. Please set the current date / time before taking the next measurement to get correct average result.

Storage and cleaning

• Always keep the unit in the carrying case after its use.
- Do not put the item directly under the sunlight, in high temperature or humid and dusty places.
- Do not store in extremely low (less than -20^ ) or high (more than 60^ ) temperature.
- Use a piece of cloth with water or mild cleansing agent to clean the case and then use a piece of dry cloth to wipe it dry. Use a piece of dry cloth to wipe the cuff when it is dirty.
- Do not use any strong cleansers to clean it.
- When the unit is not to be used for a long time, remove the batteries. (Batteries may leak or cause harm).
- Do not modify the device. NEVER open the device! This will make the manufacturer's warranty invalid.

What to do if .....

Problem Reason Solution
Heart rate symbol	Appears in the measurement condition and flashes when pulse is detected.	• Measurement in progress, remain quiet.
Low battery indicator	Appears when the battery voltage is excessively low or the positions of the batteries are incorrect.	• Replace all four batteries with new ones. Insert the batteries in the correct positions. Be aware of +/- positions.
Measuring error	Appears when the accurate blood pressure and pulse could not be obtained.	• Press “start/stop” button again and remeasure.• Check if cuff is wrapped according to instructions.• Check that there are no kinks in tube.• Check that hand is relaxed.• Check if talking or moving during measurement.• Check if posture is correct.
E1 shows The cuff is not secure. • Refasten the cuff and then measure again.
E2 shows The cuff is very tight. • Refasten the cuff and then measure again.
E 10 or E 11 shows	The monitor detected motion, talking or the pulse is too poor while measuring.	• Relax for a moment and then measure again.
E 20 shows The measurement process does not detect the pulse signal.		• Loosen the clothing on the arm and then measure again.
E 21 shows Measure incorrectly. • Relax for a moment and then measure again.
EE 3 - EE15 Error while measuring. • Retake the measurement. If the problem persists, contact the retailer or our customer service department for further assistance. Refer to the warranty for contact information and return instructions.

Specifications

Method of measurement Oscillometric

Model number BP6200

Range of measurement Pressure 0\~300 mmHg

Pulse 40\~199 beats/minute

Accuracy Pressure +/- 3 mmHg

Pulse +/- 5 % Max.

Inflation Deluxe automatic

Display LCD with backlight

Sets of memory 60 sets per user

Cuff size Small cuff = 22-32cm arm circumference

Large cuff = 32-42cm arm circumference

Operating temperature +10 °C \~ + 40 °C, less than 85 % R.H.

Storage temperature -20 °C \~ +60 °C, less than 85 % R.H.

Operating atmospheric pressure 860-1060 hPa

Unit weight Approximately 500gr (without batteries)

Power supply Alkaline battery: 4 x AA (LR6) 1.5V

Battery life 300 times measurement

Auto power off

Whenever not used for 1 minute

Accessories

4 batteries, 2 arm cuffs with tube, instruction manual, pouch, travel bag

Service life: 5 years.

Important

Read the operating instructions.

If the device is not used within the specified temperature, humidity and atmospheric pressure ranges, the technical accuracy of the measurement cannot be guaranteed.

Classification:

Internally powered equipment

Type BF applied parts

IP22 Protected against solid foreign objects of 12.5 mm diameter and larger. Protected against water drops falling vertically when the device is tilted up to 15°.

Not suitable for use in the presence of flammable anaesthetic mixtures with air, oxygen or nitrous oxide.

Continuous operation with short-time loading.

Operating temperature

Storage temperature

Storage humidity

Subject to change without notice.

This product conforms to the provisions of the EC directive 93/42/EEC (Medical Device Directive).

MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC.

For detailed description of EMC requirements visit www.hot-europe.com/support.

Portable and mobile RF communications equipment can affect medical electrical equipment.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at your local retailer or at appropriate collection points provided in your country.

Warranty

Please read all instructions before attempting to use this device. Please retain the receipt as proof of and date of purchase. The receipt must be presented when making any claim within the relevant warranty period. Any claim under the warranty will not be valid without a proof of purchase.

Your device is warranted for two years (2 years) from date of purchase.

This warranty covers defects in materials or workmanship that occur under normal use; defective devices meeting these criteria will be replaced free of charge.

The warranty DOES NOT cover defects or damage resulting from abuse or failure to follow the user instructions. The warranty becomes void if the device is opened, tampered with, or used with non-Braun branded parts or accessories, or if repairs are undertaken by unauthorised persons.

Accessories and consumables are excluded from any warranty.

For support requests, please visit www.hot-europe.com/support or find service contact information at the end of this owner's manual.

This warranty is applicable to Europe, Russia, Middle East and Africa only.

UK Only: This does not affect your consumer statutory rights.

The LOT and SN of your device are printed on the rating label on the back of the product.

Production date is given by the LOT located in the back of the device. The first 3 numeric digits after the LOT No represents the day of the year of manufacture. The next 2 numeric digits represent the last two numbers of the calendar year of manufacture and the letters at the end designate the manufacturer of the product. E.g. LOT 15614TRA this product was made on the day 156, year 2014 at manufacturer identifier TRA.

Technical line drawing of a mechanical component with no visible text or symbols

Фиг. 2

Diagram of a battery pack inside a housing, showing four internal compartments with no text or symbols

Фиг. 3

Избор на правилния маншет

Illustration of a hand holding a cable with a directional arrow indicating motion (no text or symbols)

Фиг. 4 Фиг. 6

Line drawing of a human hand wearing a wristband with fingers (no text or symbols)

Medical diagram showing a human arm with an ECG electrode placement and a heart symbol indicating blood pressure measurement.

Technical line drawing of a mechanical component with no visible text or symbols

Obr. 2

Diagram of a battery pack with four internal compartments and mounting points (no text or labels)

Obr. 3

Illustration of a hand holding a tool next to a device with a scroll wheel (no text or symbols)

Obr. 4 Obr. 6

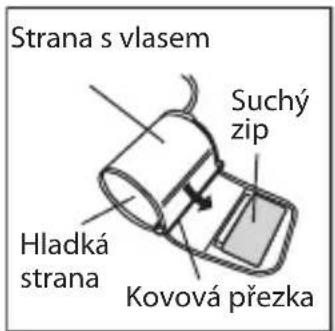

Line drawing of a human forearm with wristband and wristpin, no text or symbols present

Obr. 7 Obr. 9Obr. 8

22~32 cm / 32~42 cm Rejstřík OK OK

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Abb. 2

Diagram of a battery pack inside a housing, showing four internal compartments with no text or symbols

Abb. 3

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols visible)

Abb. 4 Abb. 6

Line drawing of a human hand with wristband and wristpin, no text or symbols present

Abb. 7 Abb. 9Abb. 8

22~32 cm / 32~42 cm Index OK OK

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

98 65 64 SYS CTA PSL A

Daten löschen

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 2

Diagram of a battery pack with four internal compartments and mounting points (no text or symbols)

Fig. 3

Illustration of a hand holding a cable with a directional arrow indicating motion (no text or symbols)

Fig. 4 Fig. 6

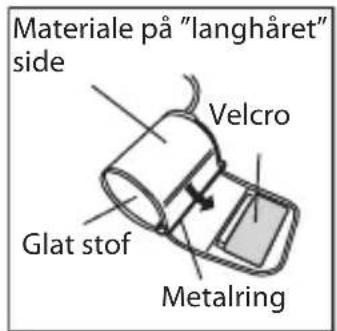

Materiale på "langhåret" side Velcro Glat stof Metalring

Fig. 5

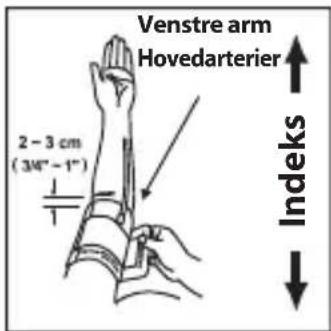

Venstre arm Hovedpuls- ärer 2 - 3 cm (34" - 1") Indeks

Line drawing of a human hand with wristband and wristpin, no text or symbols present

Medical diagram showing a human arm with an ECG electrode placement and a heart symbol on the left side.

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 2

Diagram of a battery pack with four internal compartments and mounting points (no text or symbols)

Fig. 3

Illustration of a hand holding a cable with a directional arrow indicating motion (no text or symbols)

Fig. 4 Fig. 6

Material de felpa Velcro Tejido suave Aro metálico

Fig. 5

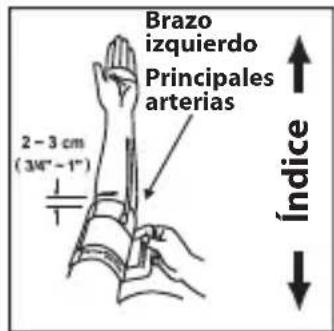

Brazo izquierdo Principales arterias 2 - 3 cm (3/4"-1") Índice

Line drawing of a human hand wearing a wristband with fingers (no text or symbols)

Medical diagram showing a human arm with an ECG electrode placement and a heart symbol indicating blood pressure measurement.

98 SYS 65 Data 64 PLS A

Borrar datos

Technical line drawing of a mechanical component with no visible text or symbols

Kuva 2

Diagram of a battery pack inside a housing, showing four internal compartments with no text or symbols

Kuva 3

Illustration of a hand holding a tool next to a device with a curved arrow indicating direction (no text or symbols)

Kuva 4 Kuva 6

Line drawing of a human hand with wristband and index finger (no text or symbols)

Medical diagram showing a human arm with an ECG electrode placement and a heart symbol indicating blood pressure measurement.

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 2

Diagram of a battery pack with four internal compartments and mounting points (no text or symbols)

Fig. 3

Choix du brassard

Illustration of a hand using a tool to connect a cable to a device (no text or symbols visible)

Fig. 4 Fig. 6

Line drawing of a human hand wearing a wristband with fingers (no text or symbols)

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Eik. 2

Diagram of a battery pack with four internal compartments and mounting points (no text or labels)

Eik. 3

Illustration of a hand using a tool to adjust a device (no text or symbols visible)

Eik. 4 Eik. 6

Line drawing of a human hand with wristband and wristpin, no text or symbols present

Εικ. 7 Εικ. 9Εικ. 8

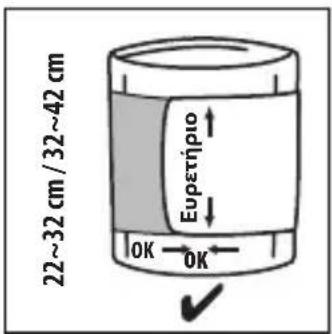

22~32 cm / 32~42 cm Eupetripio OK OK

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Sl. 2

Diagram of a device housing with four internal compartments and mounting points (no text or symbols)

Sl. 3

Illustration of a hand using a tool to adjust a component with a directional arrow (no text or symbols)

Sl. 4 Sl. 6

Preklopna strana Čičak traka Glatka tkanina Metalni prsten

Sl. 5

Lijeva ruka Glavne arterije 2 - 3 cm (34" - 1") Kazalo

1. Cijev za zrak utaknite u utičnicu (sl. 4).
2. Ako je manžeta postavljena pravilno, čičak traka će biti s vanjske strane manžete a metalni prsten neće dodirivati kožu (sl. 5).
3. Lijevu ruku provucite kroz omču manžete. Donji rub manžete treba biti približno (2\~3 cm) iznad lakta. Cijev treba biti položena na nadlaktičnu arteriju (sl. 6).

Line drawing of a human wrist with two fingers, no text or symbols present

Sl. 7 Sl. 9Sl. 8

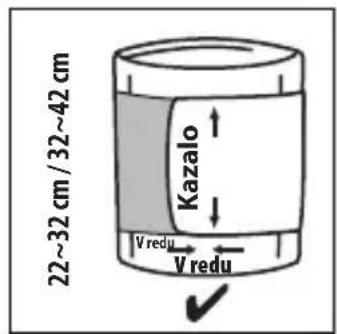

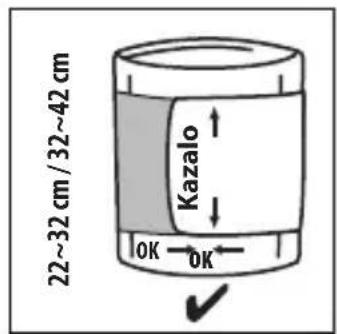

22~32 cm /32~42 cm Kazalo OK OK

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

1. Povucite manžetu tako da su gornji i donji rub stegnuti oko nadlaktice. (sl 7).
2. Kada je manžeta pravilno postavljena pritisnite čičak traku čvrsto na preklopnu stranu na manžeti.
3. Ova je manžeta podesna za upotrebu ako je <> oznaka unutar <> označena dvijema strelicama kada je manžeta stegnuta oko nadlaktice (sl. 8).
4. Sjednite na stolac i stavite ruku na stol tako da je manžeta u razini Vašeg srca (sl. 9).

Zaslon

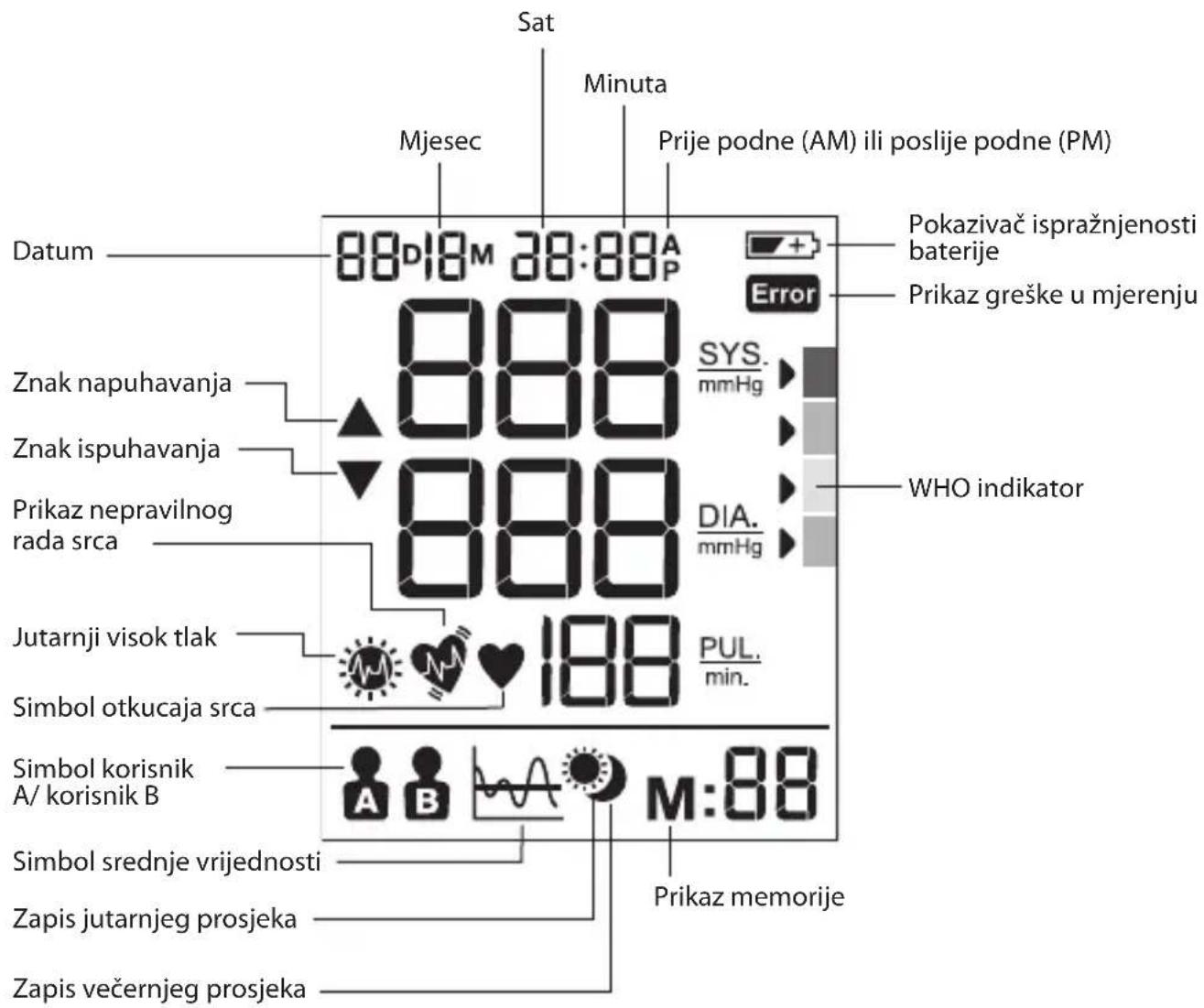

Sat Mjesec Minuta Prije podne (AM) ili poslije podne (PM) Datum 88D18M 28:88A P Error Pokazivač ispražnjenosti baterije Prikaz greške u mjerenju Znak napuhavanja 888 SYS. mmHg WHO indikator Znak ispuhavanja 888 DIA. mmHg Jutarnji visok tlak 188 PUL. min. Simbol otkucaja srca Simbol korisnik A/ korisnik B A B M:88 Simbol srednje vrijednosti Zapis jutarnjeg prosjeka Zapis večernjeg prosjeka Prikaz memorije

Kako izabrati - korisnik A /korisnik B

Technical line drawing of a mechanical component with no visible text or symbols

1. ábra

Diagram of a device housing with four internal compartments and mounting points (no text or symbols)

1. ábra

Line drawing of a human wrist with fingers extending outward (no text or symbols)

1. ábra 9. ábra8. ábra

22~32 cm / 32~42 cm Névmutató OK OK

Medical diagram showing a human arm with an ECG electrode placement and a heart symbol on the left side.

98 SYS 65 DAS 64 PLS A

Adatok törlése

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 2

Diagram of a battery pack with four internal compartments and mounting holes (no text or symbols)

Fig. 3

Illustration of a hand holding a tool next to a device with a curved tool, showing an arrow indicating direction (no text or symbols present)

Fig. 4 Fig. 6

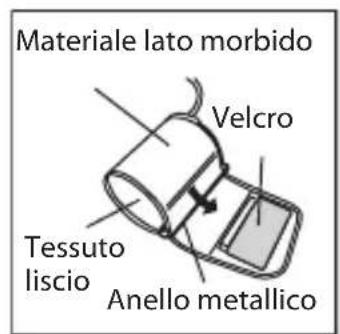

Materiale lato morbido Velcro Tessuto liscio Anello metallico

Fig. 5

Braccio sinistro Arterie principali 2 - 3 cm (3/4"-1") 1 1 Indice

Line drawing of a human wrist with fingers extending outward (no text or symbols)

22~32 cm / 32~42 cm Indice OK OK

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Afb. 2

Diagram of a device housing with four internal battery modules (no text or symbols)

Afb. 3

• Small/Medium manchet = armomtrek 22\~32 cm
  • Large/XLarge manchet = armomtrek 32\~42 cm

Illustration of a hand holding a cable with a directional arrow indicating motion (no text or symbols)

Afb. 4 Afb. 6

Materiaal aan stofkant Glad materiaal Metalen ring Klitten-band

Afb. 5

Linkerarm Hoofdaders 2 - 3 cm (3/4" - 1") Index ↓

Line drawing of a human hand wearing a wristband with fingers (no text or symbols)

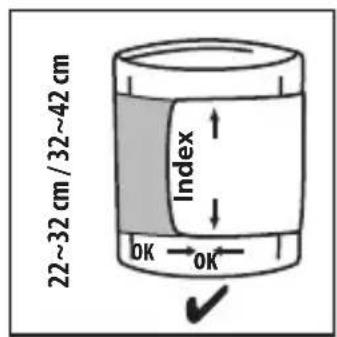

22~32 cm / 32~42 cm Index OK OK

Diagram showing a person's arm with an ECG electrode placement and a heart symbol indicating blood pressure measurement.

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 2

Diagram of a battery pack with four internal compartments and mounting points (no text or labels)

Fig. 3

Illustration of a hand holding a cable with a directional arrow indicating motion (no text or symbols)

Fig. 4 Fig. 6

Lodden stoffside Borrelås Glatt stoff Metallring

Fig. 5

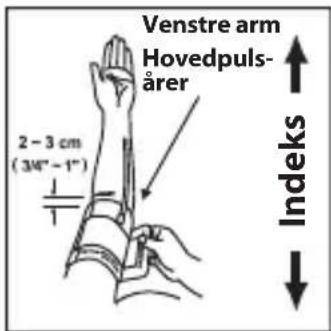

Venstre arm Hovedarterier 2 - 3 cm (34" - 1") Indeks

Line drawing of a human wrist with fingers extending outward (no text or symbols)

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

98 SYS 65 DAS 64 PLS A

Sletting av data

Technical line drawing of a mechanical component with no visible text or symbols

Rys. 2

Diagram of a battery pack inside a housing, showing four internal compartments with no text or symbols

Rys. 3

Illustration of a hand using a tool to connect a cable to a device (no text or symbols visible)

Rys. 4 Rys. 6

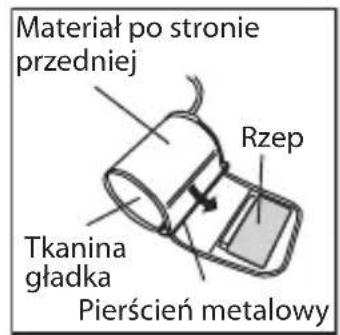

Line drawing of a human hand with wristband and wristpin, no text or symbols present

Diagram showing a human arm with an ECG electrode placement and a heart symbol indicating blood pressure or cardiac pressure.

Colocar as pilhas (Ver a Fig. 2-3)

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 2

Diagram of a battery pack with four internal compartments and mounting holes (no text or symbols)

Fig. 3

Illustration of a hand holding a cable with a directional arrow indicating motion (no text or symbols)

Fig. 4 Fig. 6

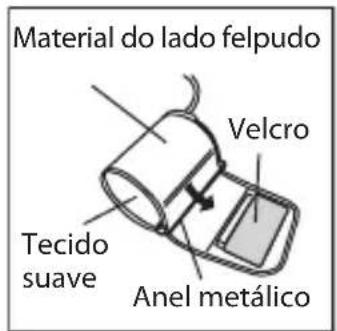

Material do lado felpudo Velcro Tecido suave Anel metálico

Fig. 5

Line drawing of a human hand wearing a wristband with fingers (no text or symbols)

22~32 cm / 32~42 cm index OK OK

Medical diagram showing a human arm with an ECG electrode placement and a heart symbol indicating blood pressure measurement.

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 2

Diagram of a battery pack inside a housing, showing four internal compartments with no text or symbols

Fig. 3

Line drawing of a hand holding a cable with a directional arrow indicating motion (no text or symbols)

Fig. 4 Fig. 6

Line drawing of a human wrist with fingers extending outward (no text or symbols)

22~32 cm / 32~42 cm Index OK OK

Diagram showing a person's leg with an ECG electrode placement and a heart symbol on the left arm.

Technical line drawing of a mechanical component with no visible text or symbols

Sl. 2

Diagram of a battery pack with four internal compartments and mounting points (no text or symbols)

Sl. 3

Izbira prave manšete

Illustration of a hand holding a tool next to a device with a curved tool, showing an arrow indicating direction (no text or symbols present)

Sl. 4 Sl. 6

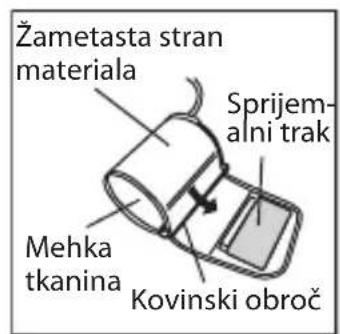

Žametasta stran materiala Sprijem- alni trak Mehka tkanina Kovinski obroč

Sl. 5

Leva roka Glavne arterije 2 - 3 cm (3/4" - 1") Kazalo

Line drawing of a human hand with wristband and wristpin, no text or symbols present

Sl. 7 Sl. 9Sl. 8

22~32 cm / 32~42 cm Kazalo V redu V redu

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Obr. 2

Diagram of a battery pack with four internal compartments and mounting points (no text or symbols)

Obr. 3

Line drawing of a hand holding a cable with a directional arrow indicating motion (no text or symbols)

Obr. 4 Obr. 6

Line drawing of a human forearm with wristband and wristpin, no text or symbols present

Obr. 7 Obr. 9Obr. 8

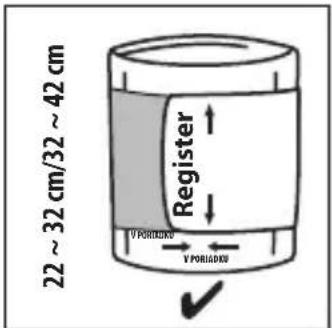

22 ~ 32 cm/32 ~ 42 cm Register V PortR200 V PortL000

Line drawing of a human hand with a heart symbol attached to the arm, no text or labels present

Technical line drawing of a mechanical component with no visible text or symbols

Şekil 2

Diagram of a battery pack with four internal compartments and mounting points (no text or labels)

Şekil 3

Illustration of a hand holding a tool next to a device with a curved tool, showing an arrow indicating direction (no text or symbols present)

Şekil 4 Şekil 6

Yumuşak malzeme Velcro Pürüzsüz kumaş Metal halka

Şekil 5

Sol kol Ana arterler 2 - 3 cm (3/4"-1") ↑ Dizin ↓

Line drawing of a human hand with wristband and wristpin, no text or symbols present

Şekil 7

22~32 cm / 32~42 cm Dizin Tamam Tamam

Şekil 8

Line drawing of a human hand with an ECG electrode placement and a heart symbol on the left (no text or labels)

Şekil 9

Illustration of a hand using a tool to adjust a device with a scroll wheel (no text or symbols)

الشكل 6 الشكل 4

Line drawing of a human hand with an ECG electrode inserted, showing pressure measurement (no text or symbols)

الشكل 9

Line drawing of a human wrist with fingers and a device attached (no text or symbols)

الشكل 7

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

الشكل 2

Diagram of a battery pack inside a device housing (no text or symbols)

3 الشكل

ExactFit™ 5

Support contact numbers

Austria

[phone]

Bahrain

[phone]

Belgium/Luxemburg

[phone]

Bosnia

[phone]

Bulgaria

[phone]

Croatia

[phone]

Cyprus

[phone]

Cyprus Northern region

+0392 22 72 367

Czech Republic

[phone]

Denmark

[phone]

Finland

[phone]

France

[phone]

Germany

Western Region - Jeddah

[phone]

Central Region - Riyadh

[phone]

Eastern Region - Al-Khobar

[phone]

South Region - Abha

[phone]

Slovakia

[phone]

Slovenia

[phone]

South Africa

[phone]

Spain

[phone]

Sweden

[phone]

Switzerland

[phone]

Tunisia

[phone]

Turkey

[phone]

UAE

[phone]

United Kingdom/Ireland

[phone]

www.hot-europe.com

This product is manufactured under license to the 'Braun' trademark. 'Braun' is a registered trademark of Braun GmbH, Kronberg, Germany. ExactFit™ is a trademark of Helen of Troy Limited.

Kaz Europe Sàrl

Place Chauderon 18

CH-1003 Lausanne

Switzerland

0297

Made and printed in China

© 2018 All rights reserved.

P/N A002825R0 30MAY18
