USER MANUAL Signature Versiti Joie

Line drawing of a baby stroller with a backrest seat and wheels (no text or symbols)

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Stroller Assembly

Line drawing of a mechanical device with an arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a hand interacting with it, no text or symbols present

Line drawing of a mechanical lever system with numbered components (no text or symbols)

4 CLICK

5 CLICK

6 1 2

7

Line drawing of a car's wheel and side-mounted sensor (no text or symbols)

9 2 2 1

Line drawing of a baby stroller with wheels and a seat (no text or symbols)

Stroller Operation

11 2 3 1 X

12

Illustration of a hand inserting a small object into a chair frame (no text or symbols)

Line drawing of a car interior with a hand holding a small object, no text or symbols present

14 1 2

3 CLICK

19 1 3 2

20 CLICK

15

Diagram of a mechanical device with a belt and lever, showing an upward arrow (no text or symbols)

21 2

22 2 1

23 1 2 1

Line drawing of a car interior with a highlighted seat area and orange arrow indicating direction (no text or symbols)

25

26 CLICK

27 CLICK

Abstract line drawing of a folded paper or fabric structure with no text or symbols

29

Line drawing of a mechanical device with a mesh component and directional arrow (no text or symbols)

31 1 2

3

32 2

Line drawing of a baby car climbing stairs with directional arrows indicating movement (no text or symbols)

39

39 1 2 1

41 CLICK

43 1 2 1

40 CLICK

42

44

Line drawing of a stroller with fabric and accessories, shown from side to front (no text or symbols)

47

Line drawing of two identical mechanical stroller designs with wheels and a handle, shown from top and side views (no text or symbols)

Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

48 1 2

46 1 2

Line drawing of a stroller with a wheel and handle (no text or symbols)

Accessories

(May not be included in purchase)

Accessories may be sold separately or may not be available depending on region.

50

50 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

*The upper mount must be adjusted to the highest position

*The upper mount must be adjusted to the middle position

51

Line drawings of a stroller with four different views (front, side, side, and top) showing different body positions (no text or symbols)

52

Line drawings of a baby stroller with a basket, shown in five sequential poses (no text or symbols on the car itself)

53

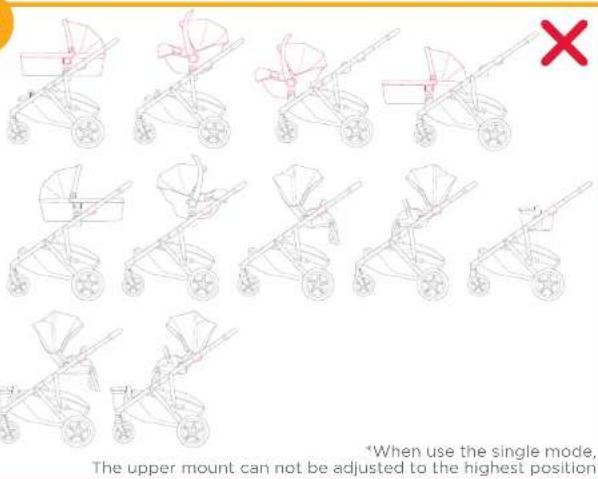

When use the single mode, The upper mount can not be adjusted to the highest position

Line drawing of a baby护理 box with no text or symbols

Line drawing of a baby护理 box with a handle and arrow indicating rotation (no text or symbols)

Line drawing of a baby seat with arrows indicating motion (no text or symbols)

Line drawing of a rectangular bucket with handle and side handles, no text or symbols present

Line drawing of a stroller with wheels and handle, no text or symbols present

Line drawing of a baby stroller with wheels and handle (no text or symbols)

Line drawing of a baby stroller with a handle and seat, no text or symbols present

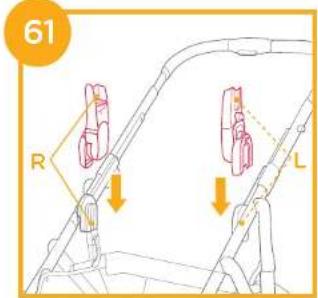

61 R L

62 CLICK

63 2 1

64

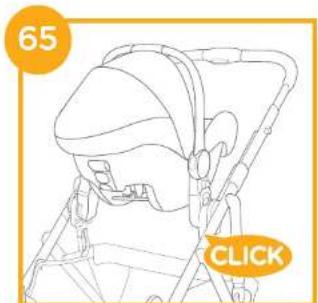

65 CLICK

66 1 2 1

Line drawing of a person wearing a hooded shirt with straps, no text or symbols present

Line drawing of a stroller with a highlighted button labeled 'CLICK' and page number 68 (no text or symbols on the diagram itself)

69 2 1

Line drawing of a stroller with arrows indicating movement or change, no text or symbols present

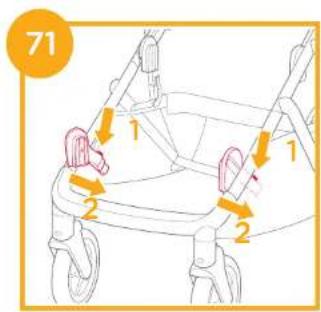

71 1 2 1 2

72 R

73 CLICK

74

Line drawing of a baby stroller with arrows indicating motion or movement (no text or symbols)

Line drawing of a baby stroller with wheels and a seat (no text or symbols)

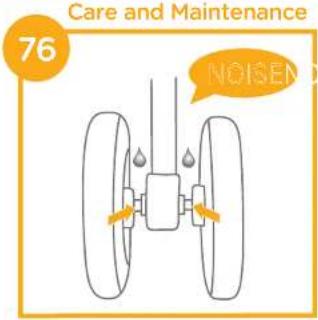

76 Care and Maintenance NOISEND

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie versiti, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018+A1:2022. The stroller is intended for children from birth up to 15 kg with rearward facing mode and from birth up to 22 kg or 4 years whichever comes first with forward facing mode. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at joiebaby.com

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

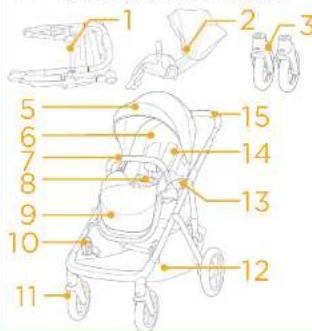

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame
2 Seat
3 Front Wheels
4 Rear Wheels
5 Canopy
6 Seat Pad
7 Armbar
8 Buckle
9 Calf Support
10 Lower Mount
11 Front Wheel
12 Storage Basket
13 Seat Release Button

14 Shoulder Harness
15 Handle
16 Canopy Window
17 Seat Height
Adjustment Buttons
18 Swivel Lock
19 Storage Latch
20 Rear Wheel
21 Brake Lever
22 Recline Handle
23 Handle Adjustment
Button/One-Hand-
Fold Handle
24 Secondary Lock

1 2 3 5 6 7 8 9 10 11 12 13 14 15

4 16 24 23 22 17 18 19 21 20

Accessories

(May not be included)

1 Adapter (on certain models)
2 Rain Cover (on certain models)
3 Handheld Basket Pocket
4 Handheld Basket (on certain models)
Accessories may be sold separately or may not be available depending on region.

WARNING

! Always use the restraint system.
! Ensure that all the locking devices are engaged before use.
! Do not let the child play with this product.
! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
! Adult assembly required.
! Use the stroller with only one child at a time in the each seat. The stroller is intended for children from birth up to 15 kg with rearward facing mode and from birth up to 22 kg or 4 years whichever comes first with forward facing mode.
! Use of the stroller with a child weighing more than 15 kg with rearward facing mode or more than 22 kg with forward facing mode will cause excessive wear and stress on this stroller.
! To prevent a hazardous, unstable condition, do not place more than 10kg in the storage basket.
! Never leave the child unattended.
! Never place purses, shopping bags, parcels or accessory items on the handle or canopy.
! Accessories which are not approved by the manufacturer shall not be used.
! Only replacement parts supplied or recommended by the manufacturer shall be used.
! To avoid injury ensure that the child is kept away when unfolding and folding this product.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing the children.

! For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
! Carry cot shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees. Maximum weight of the child: 9kg.
! No additional mattress shall be added unless recommended by the manufacturer.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
! The maximum load of storage pocket on the back of backrest is 0.45kg (1lb).
! The maximum load of handheld basket is 10kg.

Stroller Assembly

(Please refer to figures on page 1-16)

Please read all the instructions in this manual before assembling and using this product.

Open Stroller

see images 1 - 4

Separate storage latch from storage mount, and then lift the handle upwards ⚠️ & ☑, a click sound means the stroller is open completely.

Check that the stroller is completely latched before continuing to use.

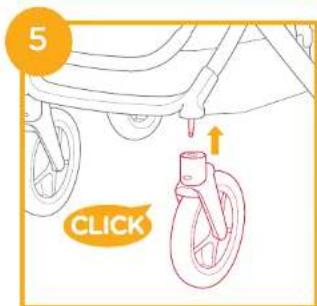

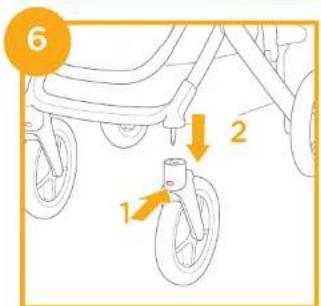

Assemble & Detach Front Wheel

see images

Assemble & Detach Rear Wheel

see images

The completely assembled stroller is shown as

Stroller Operation

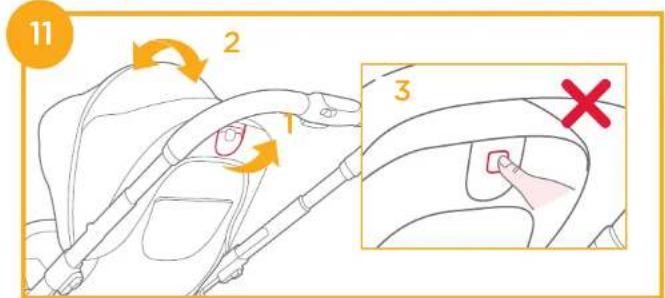

Adjust Backrest

see image

There are 4 recline angles for the backrest.

To raise or recline the backrest, rotate the recline handle on the back of the seat, pull down on the backrest.

Please do not press the releasing button - 3 on the middle of the recline handle when adjusting the angle for the recline.

Make sure the recline is set properly for use.

The maximum load of storage pocket on the back of backrest is 0.45kg.

Use Buckle

see images ⑦ - ⑧

Release Buckle

Press the button, the buckle will release automatically.

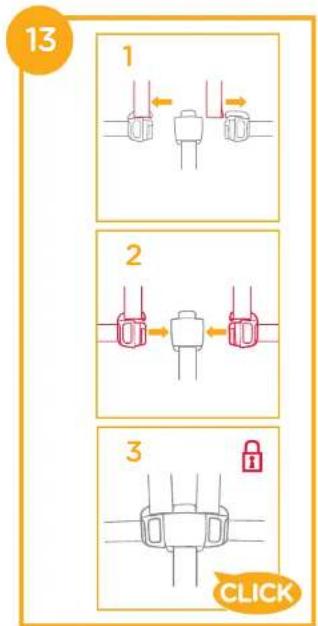

Lock Buckle

Match the waist belt buckle with the shoulder buckle ① - 1, and align them with the center buckle, the buckle can lock automatically ② - 2. A "click" sound means the buckle is locked completely. ③ - 3

To avoid serious injury from falling or sliding out, always secure your child with harness.

Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.

Do not cross the shoulder belts. This will cause pressure on a child's neck.

Use Shoulder & Waist Harnesses

see images

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

-1 Shoulder harness anchor

-2 Slide adjustor

For larger child, use shoulder harness anchor and the highest shoulder slots. For smaller child, use shoulder harness anchor and the lowest shoulder slots.

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. Rethread it through the slot that is closest to child's shoulder height.

Use slide adjuster to change the harness length.

Press the button - 2, while pulling the waist harness to proper length. - 3

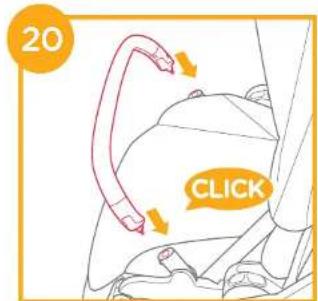

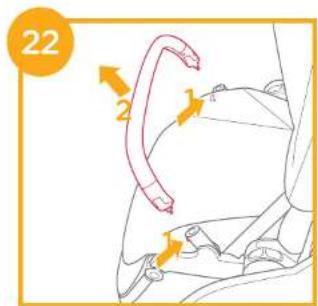

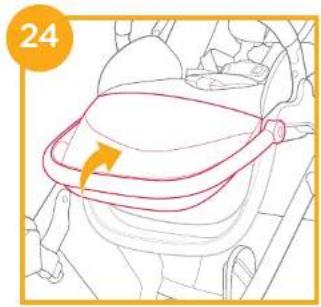

Assemble & Detach Armbar

see images

Adjust Calf Support

see images

The calf support has 2 positions.

To lower calf support, press the adjustment buttons on both sides of the calf support - 1, and rotate the calf support downwards. - 2

To raise the calf support, push it upwards. A "click" sound means the calf is locked completely.

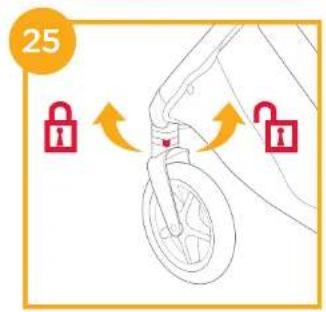

Use Front Swivel Lock

see Image

Front wheel locked or unlocked status as

Tip It is recommended to use swivel locks on uneven surfaces.

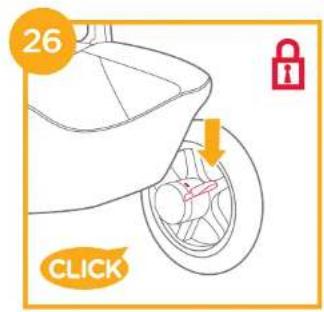

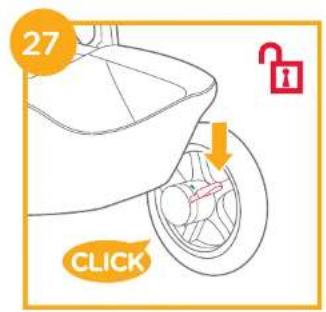

Use Brake

see images

To lock wheels, step the brake lever downwards, the indicator will show red

To release wheels, step the brake lever downwards again, the indicator will show green

Tip Always set the parking brake when stroller is not moving.

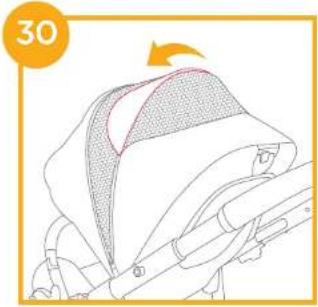

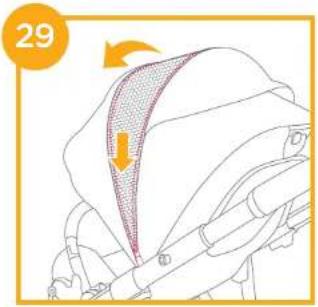

Use Canopy

soc images

The canopy can be opened or folded, pull it toward front or back.

The canopy can be opened completely to protect your child from the sun uttermostly, just unzip the zip 🔍, and then pull the canopy toward front.

There is a window on the canopy, through which you can view your baby.

The canopy can be detached show as

Adjust Handle

see image

The handle has 5 positions.

Adjust Seat Height

see Image

The seat has 3 positions.

Press the seat height adjustment buttons and pull up to increase or push down to decrease the seat height.

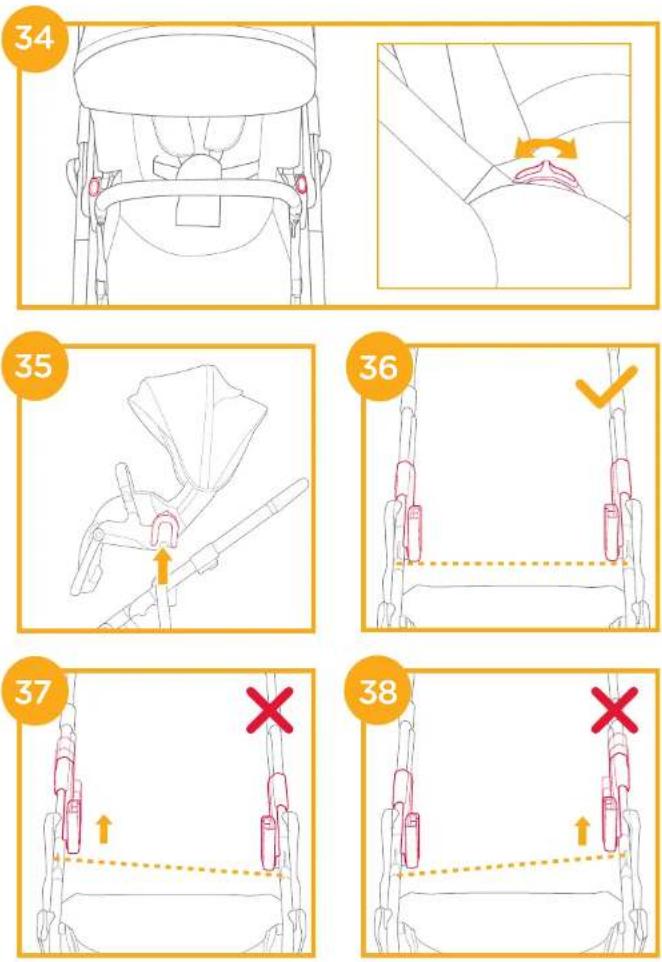

Switch Seat

see images

The seat can be switched which makes mother and child can face to face with each.

Slide the seat release buttons while lifting the seat. Turn the seat to reverse direction and then insert the seat to seat mounts.

Both seat mounts need to be level shown as ☐, if the situations shown as ☐ & ☐ happen, please press the seat height adjustment button and pull up or push down to adjust the seat mount to make sure the both seat mounts to be level.

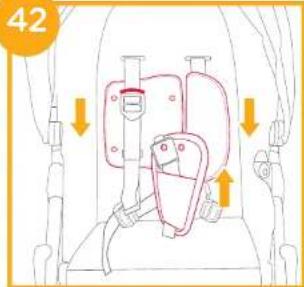

Use Shoulder Harness Cover and Crotch Harness Cover

see image 2

The shoulder harness cover or crotch harness cover can be removed from the webbing.

To assemble shoulder harness cover and crotch harness cover in reverse steps.

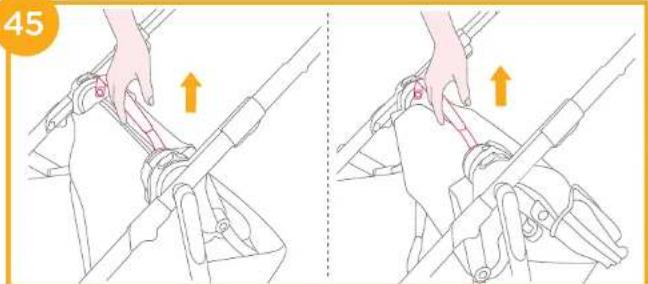

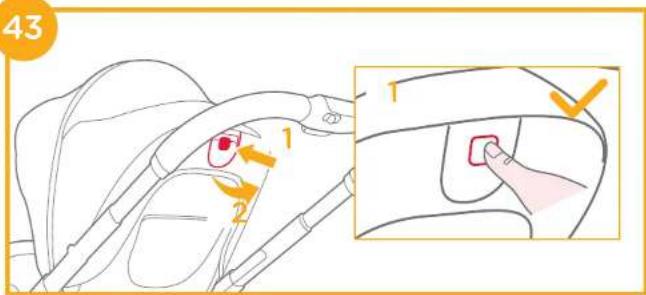

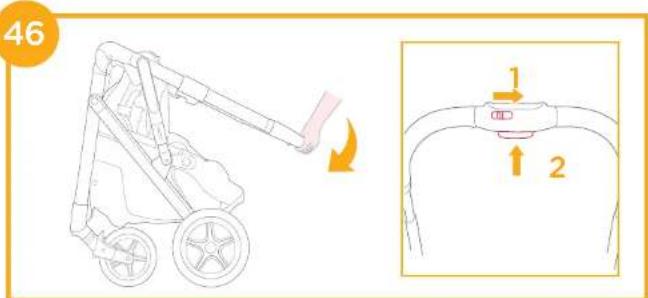

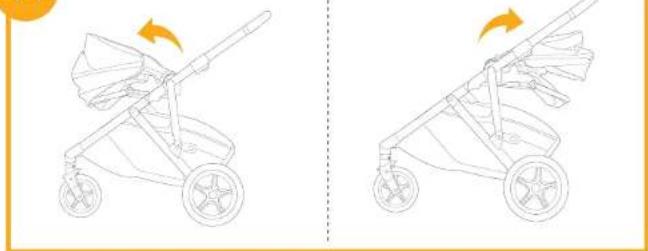

Fold Stroller

see images

Please fold the canopy before folding the stroller.
The button on the middle of the recline handle is used for folding the seat.

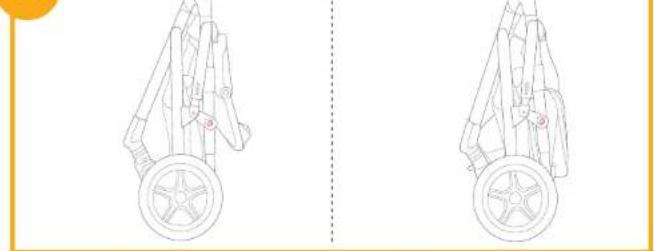

The folded stroiler can stand except the handle is in the highest position.
Please do not fold the frame when front wheel swivel lock is locked.
The storage latch will automatically hook onto the storage mount, then the stroller is folded and locked completely.

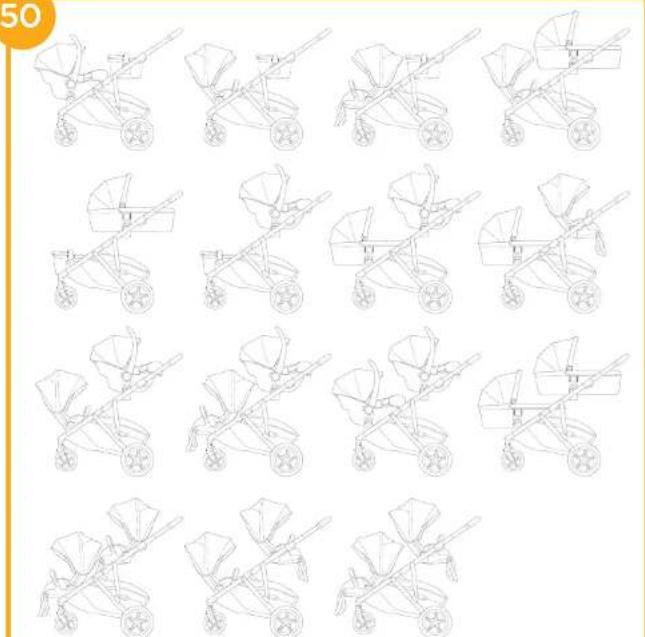

Seating Option Use

see imagos

The stroller can be used with double mode or single mode. When using the stroller frame with seat (Vorsiti Sibling Seat), handhold basket, Joie carry cot (rambic, ramble xl and calmi) or Joie infant child restraint (i-Sung 2, i-Gemm 3, i-Jemini, sprint and i-Level Pro), please refer to the following instructions.

! NOT all accessories are included on some models and not all modes are allowed.
When use the double mode, the upper mount must be adjusted to highest position or middle position. Please refer to fig. for specific position for upper mount.
When use the single mode, only be used with the upper mount. Soat, carry cot or infant child restraint must be adjusted to middle or lowest position, handheld basket must be adjusted to lowest position only.
DO NOT use the stroller frame with the seat, handheld basket, carry cot or infant child restraint shown as

Use Accessories

Accessories may be sold separately or may not be available depending on region.

Use with Handheld Basket

see images

When using with handheld basket, please refer to the following instructions.
I Please open the mount on both sides before attaching the handheld basket.
I Please do not fold the stroller when the handheld basket is still attached.

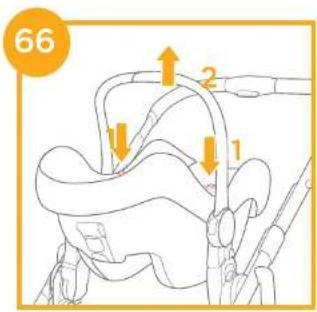

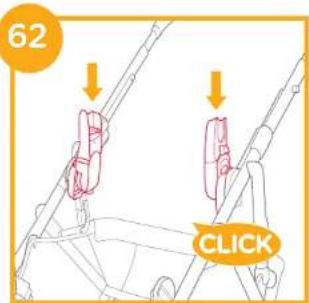

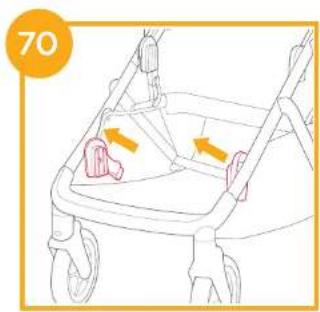

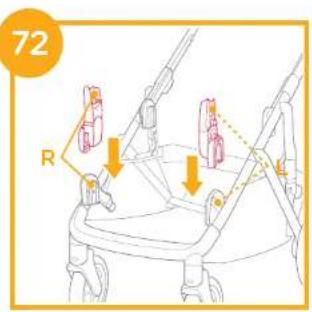

Use with Infant Child Restraint on Upper Mount

see images

When using with Joie infant child restraint, please refer to the following instructions.
The letters on the adaptors are the same as those on the frame plastic.
A "click" sound means the adaptors is locked completely.
The infant child restraint angle can be adjusted with our adjustable adaptors.
The adapters has 3 positions. Please do not use the product when the baby's head is lower than feet after attached infant child restraint.
Please do not fold the stroller when the infant child restraint is still attached.
If you have any problems about using the infant child restraint, please refer to their own instruction manuals.

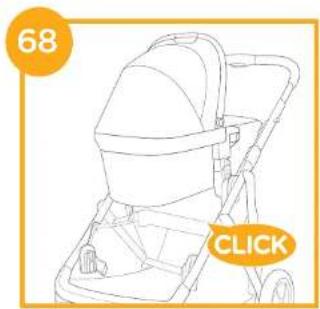

Use with Joie Carry Cot on Upper Mount

see images

When using with Jolie carry cat, please refer to the following instructions.

A "click" sound means the adapters is locked completely.
Please do not use the product when the baby's head is lower than feet after attached carry cot.
Always use the mattress when using the carry cot.
Please don't fold stroller when attaching the carry cot.
If you have any problems about using the carry cot, please refer to their own instruction manuals.

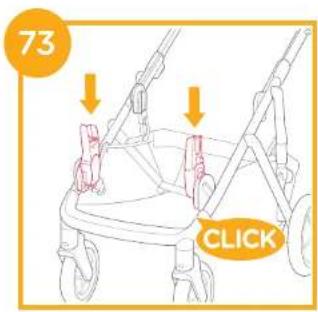

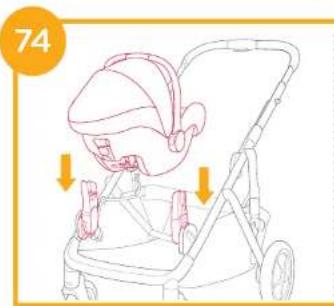

Use with Infant Child Restraint and Carry Cot on Lower Mount

see images

When using with Jolie infant child restraint and carry cot, please refer to the following instructions.

Please pull out the lower mount on both sides before used.

Lower mount can be folded by pressing buttons on both sides.

The letters on the post adaptors are the same as those on the frame plastic.

A "click" sound means the adapters is locked completely.

The infant child restraint angle can be adjusted of 3 positions with our adjustable adaptors.

Please do not use the product when the baby's head is lower than feet after attached infant child restraint or carry cot.

Always use the mattress when using the carry cot.

Please don't fold stroller when attaching the infant child restraint or carry col.

If you have any problems about using the infant child restraint and carry cot, please refer to their own instruction manuals.

Use Rain Cover

see Image

To assemble the rain cover, place it over the seat.

When using the rain cover, please always check its ventilation.
When not in use, please check that the rain cover has been cleaned and dried before folding.
Do not fold the stroller after assembling the rain cover.
Do not place your child into the stroller assembled with rain cover during hot weather.

Cleaning and Maintenance

see image

To clean stroller frame, use only household soap and warm water. No bleach or detergent. Please refer to the care label for instructions on cleaning the fabric parts of the stroller.

Removable soft goods can be washed by machine. No bleach. Do not twist the seat cover and inner padding to dry with great force. It may leave the seat cover and inner padding with wrinkles.

From time to time, check your stroller for loose screws, worn parts torn material or stitching. Replace or repair the parts as needed. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.

Excessive exposure to sun or heat could cause fading or warping of parts.
If stroiler becomes wet, open canopy and allow to dry thoroughly before storing.
If wheels squeak, use a light oil (e.g., Silicon Spray, antitrust oil, or sewing machine oil), it is important to get the oil into the axle and wheel assembly.
When using your stroller at the beach or other sandy/dusty environments, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

Diagram showing four labeled parts of a plastic container or container, with numbered annotations pointing to each part.

AVERTISSEMENTS

1. Controller of de helling good is ingesteld.

Diagram showing four labeled parts of a plastic container or container, with numbered annotations pointing to each part.

AVVERTENZA

Diagram showing four labeled parts of a plastic container or container, with numbered annotations pointing to each part.

FIGYELEM

Diagram showing four labeled parts of a plastic container or storage unit, with numbered annotations pointing to each component.

UYARI

Diagram of a stroller with numbered parts for identification and assembly reference.

10 17 1Y 1A 19 Y Y Y Y Y Y Y Y

Line drawings of four different household items: a pair of shoes, a bucket with handle, and a bag (no text or symbols)

الملحقات

(قد لا تكون مرفقة)

Diagram showing four labeled parts of a plastic container or storage unit, with numbered annotations pointing to each component.

ADVARSEL

1. Semin 6, Semin 7, Semin 8, Semin 9, Semin 10, Semin 11, Semin 12, Semin 13, Semin 14, Semin 15, Semin 16, Semin 17, Semin 18, Semin 19, Semin 20, Semin 21, Semin 22, Semin 23, Semin 24, Semin 25, Semin 26, Semin 27, Semin 28, Semin 29, Semin 30, Semin 31, Semin 32, Semin 33, Semin 34, Semin 35, Semin 36, Semin 37, Semin 38, Semin 39, Semin 40, Semin 41, Semin 42, Semin 43, Semin 44, Semin 45, Semin 46, Semin 47, Semin 48, Semin 49, Semin 50, Semin 51, Semin 52, Semin 53, Semin 54, Semin 55, Semin 56, Semin 57, Semin 58, Semin 59, Semin 60, Semin 61, Semin 62, Semin 63, Semin 64, Semin 65, Semin 66, Semin 67, Semin 68, Semin 69, Semin 70, Semin 71, Semin 72, Semin 73, Semin 74, Semin 75, Semin 76, Semin 77, Semin 78, Semin 79, Semin 80, Semin 81, Semin 82, Semin 83, Semin 84, Semin 85, Semin 86, Semin 87, Semin 88, Semin 89, Semin 90, Semin 91, Semin 92, Semin 93, Semin 94, Semin 95, Semin 96, Semin 97, Semin 98, Semin 99, Semin 100

1 2 ms, 3 4

BRĪDINĀJUMS

Diagram showing four labeled parts of a container or storage unit, including a handle, lid, and basket.

경고

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Boumanweg 178 C, 2352 JD Leiderdorp, The Netherlands
