ENGLISH (EN) TRANSLATION OF THE ORIGINAL INSTRUCTIONS Quartz infrared illuminator: 90-112

The product is only suitable for well-insulated rooms or for occasional use.

NOTE: BEFORE USING THE EQUIPMENT, PLEASE READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. PERSONS WHO HAVE NOT READ THE INSTRUCTIONS SHOULD NOT CARRY OUT ASSEMBLY, ADJUSTMENT OR OPERATION OF THE EQUIPMENT.

READ THE USER MANUAL CAREFULLY TO FAMILIARISE YOURSELF WITH THE APPLIANCE KEEP THIS MANUAL FOR FUTURE REFERENCE.

SPECIFIC SAFETY PROVISIONS NOTE!

Read the operating instructions carefully, follow the warnings and safety conditions contained therein. The appliance has been designed for safe operation. Nevertheless: installation, maintenance and operation of the appliance can be dangerous. Following the following procedures will reduce the risk of fire, electric shock, injury and will reduce the installation time of the appliance.

This equipment may be used by children of at least 8 years of age and by people with reduced physical or mental capabilities or lack of familiarity with the equipment if supervision or instruction is provided on how to use the equipment safely so that the associated risks are understood. Children should not play with the equipment. Unsupervised children should not carry out cleaning and maintenance 'of the equipment The unit is used for occasional operation.

SAFETY RULES

• The unit must not be used outdoors in damp weather, in bathrooms or other wet or humid environments.
• Please note that the appliance can become very hot. Therefore, the appliance should be placed at a safe distance of at least 1 metre (3 feet) from flammable objects such as: furniture, curtains etc.
• Do not cover the unit with, for example, a towel.
• The appliance must not be located directly under a wall socket.
• The appliance must not be connected to the mains via a timer or programmable switch.
• The appliance must not be placed in rooms where flammable dusts, liquids or gases are used or present.
• If the appliance is connected by means of an extension cord, ensure that the extension cord is as short as possible and fully extended and of the correct cross-section.
• The unit should not be used in the immediate vicinity of a bath, shower or swimming pool.
• If the power supply cable is damaged, it must be replaced by the manufacturer, its representative, service or a qualified person in order to avoid danger.
• Do not connect other devices to the same mains socket to which the device is connected.
• The appliance should not be left unattended. Keep children and pets away from the appliance.
• Do not place the unit on unstable, moving surfaces or where the unit can be knocked over.
• If the appliance is not used for a long time, unplug it from the power supply. Do not leave the appliance switched on unattended. When disconnecting the appliance from the mains, pull out the plug, never pull on the power cord.
• Keep the unit away from curtains, curtains or places where the air inlet is easily blocked.
• To prevent possible electric shock, never operate the appliance with wet hands or when there is water on the power cord.
• Do not dispose of electrical appliances with unsorted municipal waste, use separate collection points. Contact your local authorities for information on available collection systems. If electrical appliances are disposed of in landfill sites, hazardous substances can seep into the groundwater and enter the food chain, damaging your health.
• This equipment is not intended for use by persons (including children) with reduced physical or mental capabilities or without experience unless supervision or instruction is provided regarding the safe use of the equipment so that the associated risks are understood.
• Children should be supervised to ensure that they do not play with the appliance.

- Do not modify or repair the appliance yourself. To do so, send it to a service centre or qualified electrician (during the post-warranty period).

PICTOGRAMS AND WARNINGS

1 2 3 4 5 6 7 8 9 10

1. Read the operating instructions, observe the warnings and safety conditions contained therein!
2. The device may require installation
   3.Do not touch the hot surface
   4.Do not cover
3. Disconnect from power supply before repair or maintenance
4. For indoor use
5. Protect from moisture
6. Keep out of the reach of children
   9.Do not dispose of with household waste
   10.Recyclable

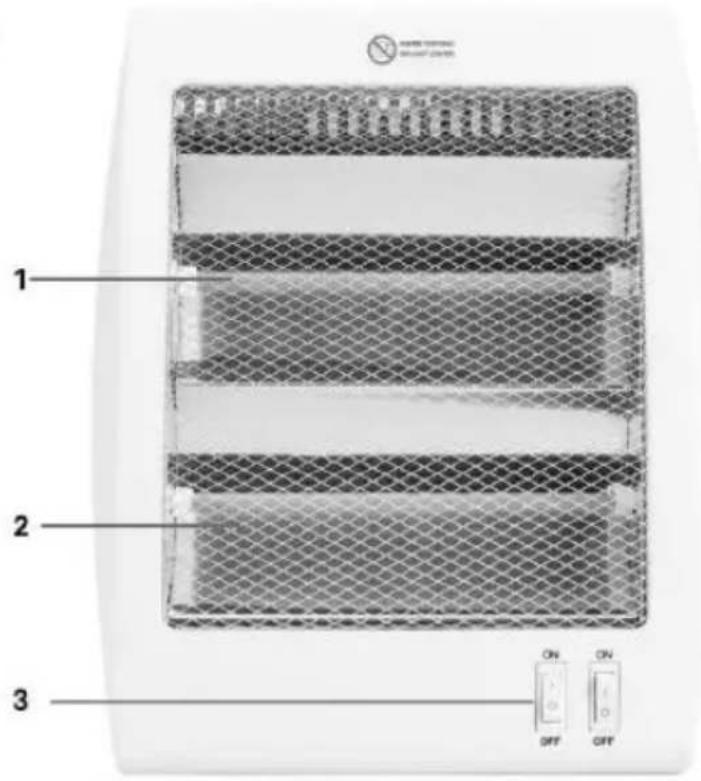

DESCRIPTION OF THE GRAPHIC ELEMENTS

The following numbering refers to the components of the device shown on the graphic pages of this manual.

Designation	Description
1	Heater
2	Heater
3	Heater switches
4	Transport handle
5	Ventilation openings
6	Legs

* There may be differences between the graphic and the actual product

PURPOSE

This product is intended for home and office use only and not for industrial or other commercial use. Use only with a power supply cord that is undamaged and in good condition, which meets the applicable standards and regulations. The heater must be powered from the mains whose parameters are specified in the rating table. Do not connect other additional appliances on the same circuit as the heater in operation.

The unit is equipped with a two-stage heating system, activated by two independent switches Figure A3 and by heaters Figure A1 and A2

To start the heater, press the button or buttons Fig. B of the switch to the I/ON position Fig. B1.

To switch the heater off, press the button or buttons Fig. B of the switch to the 0/OFF position Fig. B3.

The buttons activating the heaters and the heaters themselves operate independently of each other and can be activated in any order.

SECURITY

The radiator is fitted with a safety mechanism that disconnects the power if the radiator is tilted or overturned. The control button for this mechanism is located on the underside of the heater fig. B4.

ATTENTION is strongly recommended not to use the button while the unit is in operation

Always operate the heater in an upright position, following all instructions and recommendations listed in this manual

HEATER LOCATION:

Place the heater in the coldest part of the room

HEATER CONNECTION:

Plug the heater directly into a wall socket. Make sure that the plug fits tightly into the socket. A loose connection can cause overheating and damage to the plug.

NOTE: To prevent overloading the circuit, do not connect the heater to a circuit that serves other electrical needs.

MAINTENANCE AND STORAGE

- Unplug the appliance from the power supply and allow it to cool down before cleaning. The housing of the appliance gets dirty easily,

so wipe it frequently with a soft sponge. Wipe any soiled component with a sponge soaked in warm water with mild detergent. Then wipe the washed item with a dry cloth. Take care that water does not get inside the unit. To protect the housing, do not use solvents or strong detergents for cleaning.

• Care should be taken to prevent dust from settling on the heater protection grille. For this purpose, the grille should be periodically cleaned of dust and other elements.
• Clean the power cord and plug, then dry and pack in a plastic bag.
• Store the unit in a dry ventilated room away from children.

Quartz infrared heater 90-112
Parameter	Value
Supply voltage	230V AC
Supply frequency	50 Hz
Heating power (1st stage / 2nd stage)	400W / 800W
Dimensions	305x145x370
Protection class	I
IP degree of protection	IPX0
Weight (without accessories)	0.96 kg
Year of production	2025

ENVIRONMENTAL PROTECTION

Electrically-powered products should not be disposed of with household waste, but should be taken to appropriate facilities for disposal. Contact your product dealer or local authority for information on disposal. Waste electrical and electronic equipment contains environmentally inert substances. Unrecycled equipment poses a potential risk to the environment and human health.
