SOL-R1

FLIGHTSTICK

Enjoy a truly unique stellar experience with the Sol-R 1 Flightstick joystick: it will accompany you right to the heart of your space battles and explorations.

This manual will help you install and use your Sol-R 1 Flightstick in the best possible conditions. Before taking off, be sure to read the instructions and warnings carefully: they will help you get the maximum amount of enjoyment out of your product.

Updating the firmware

In order for the Sol-R 1 Flightstick joystick to work properly with video games, you need to update its firmware.

To carry out the update, visit

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Select Drivers and follow the instructions, including the downloading and installation procedure.

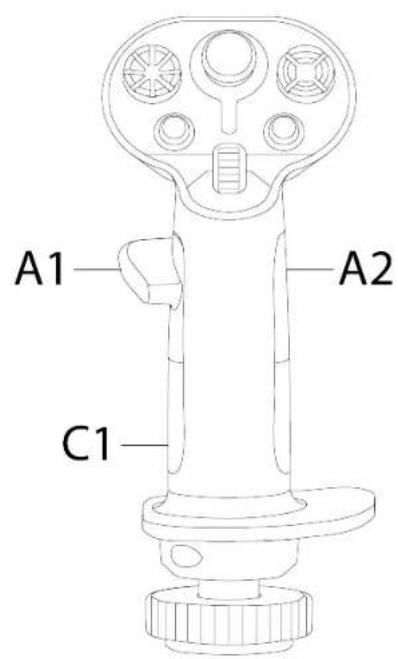

1. Box contents

A1 A2 C1

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

2. Technical features

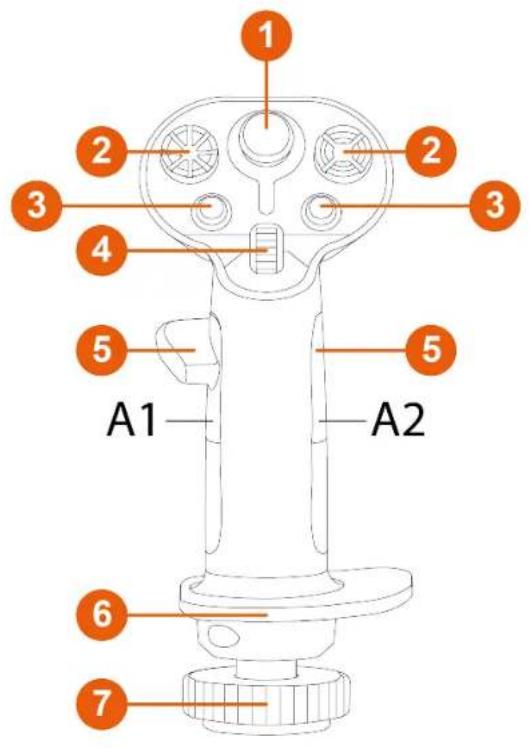

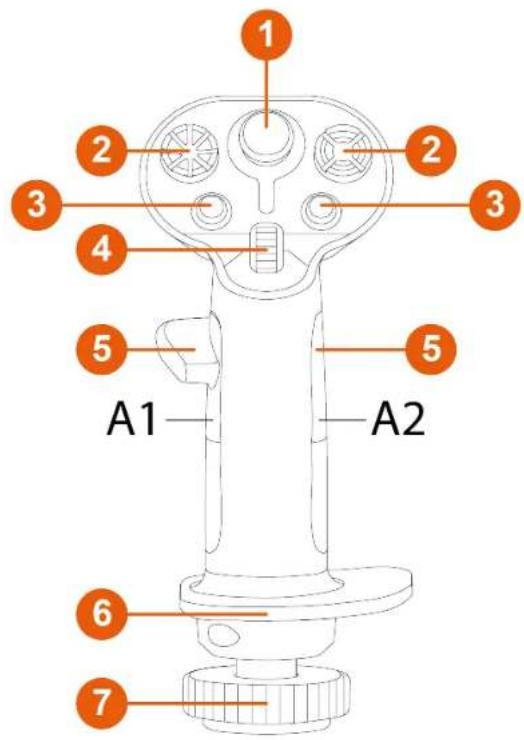

1 2 3 4 5 A1 A2 6 7 2 3 5

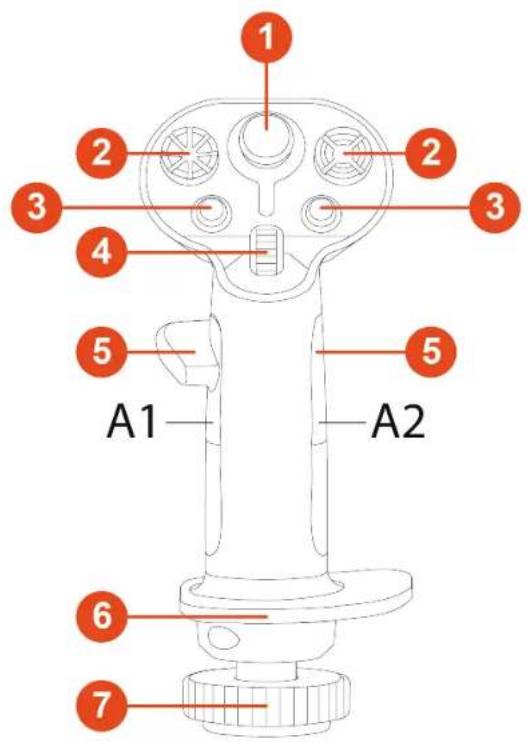

① Analog mini-stick
2 8-way multidirectional point of view hat switches
③ Action buttons
4 Scroll wheel
5 Thumb rests (right-handed and left-handed)
6 Ambidextrous wrist rest
⑦ Rudder function via rotating the flight stick grip (lockable)

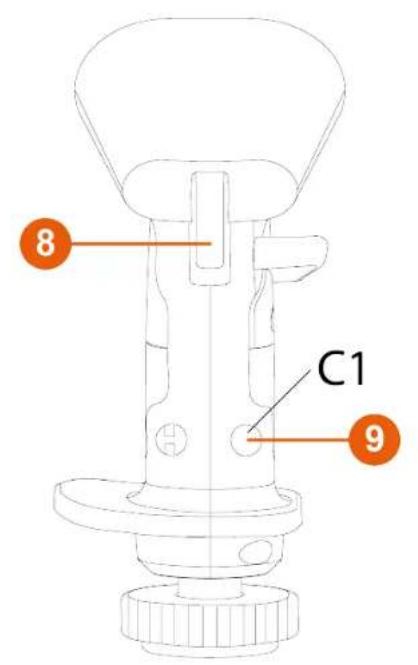

8 C1 9

9 C2 10 D

8 Triggers (including one dual-position trigger)

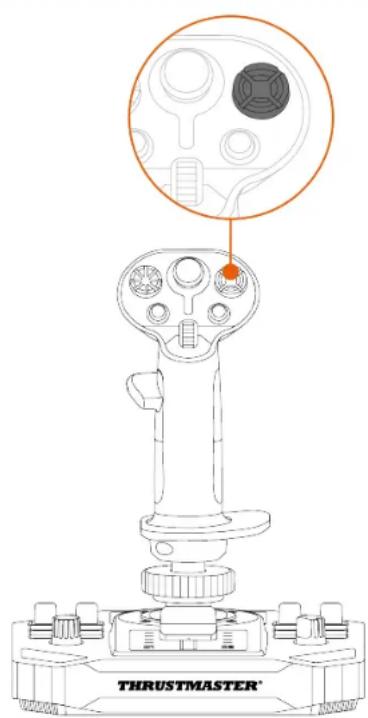

9 Removable buttons
⑩ Removable height adapter (right-handed and left-handed)

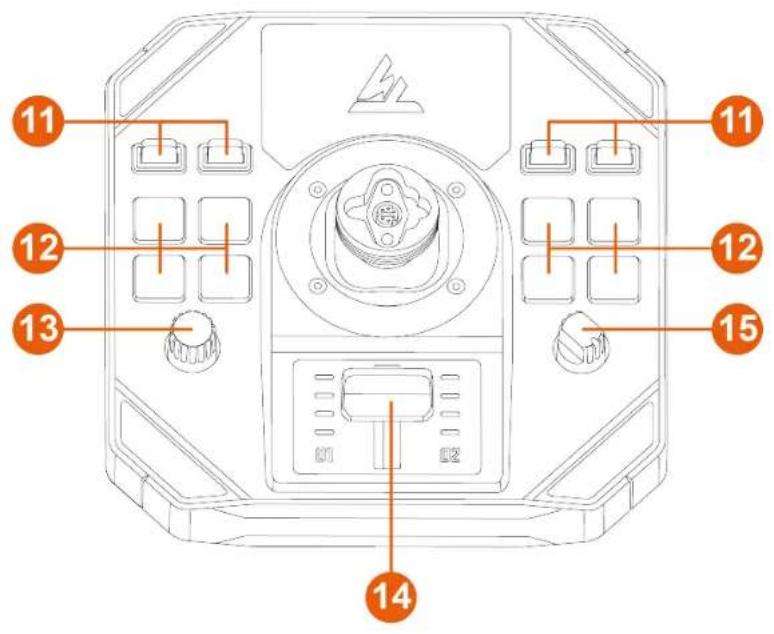

11 12 13 14 15 11 12 13

11 Toggle switches (two positions)
12 Backlit action buttons
13 Encoder
14 Throttle with indicator lights
15 Rotary selector (four positions)

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

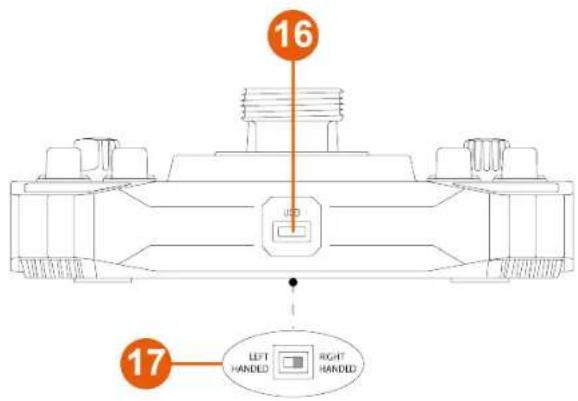

16 USB-C connector
17 Selector switch: LEFT HANDED / RIGHT HANDED
18 USB-A – USB-C cable
19 Stability supports

3. Information regarding use

Documentation

Before using this product, carefully read this documentation again and keep it for future reference.

Pinch hazard

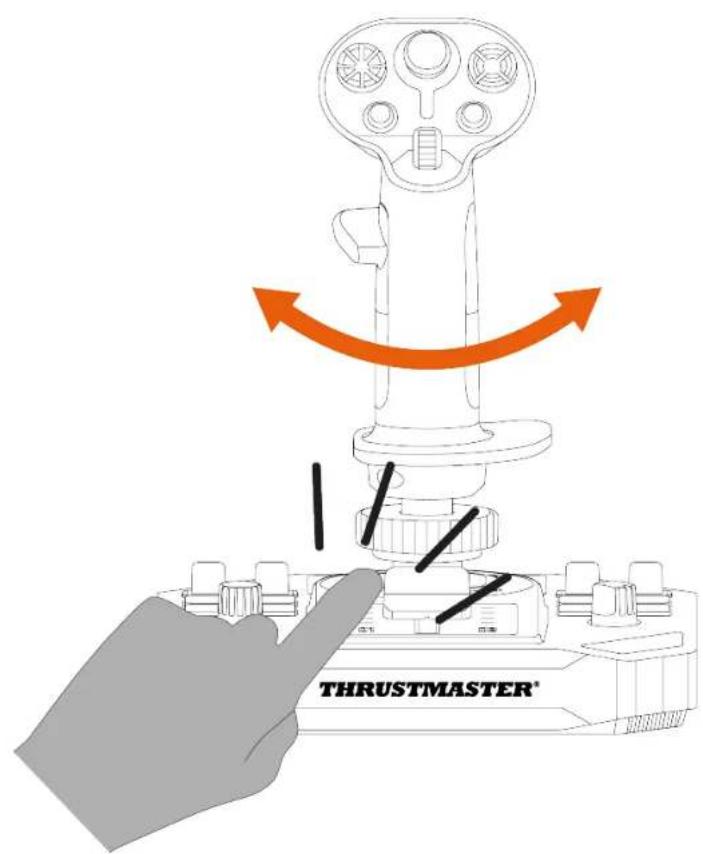

When using the Sol-R 1 Flightstick joystick, never place your fingers in the space between the base and the flight stick grip's axis.

THRUSTMASTER®

4. Assembly

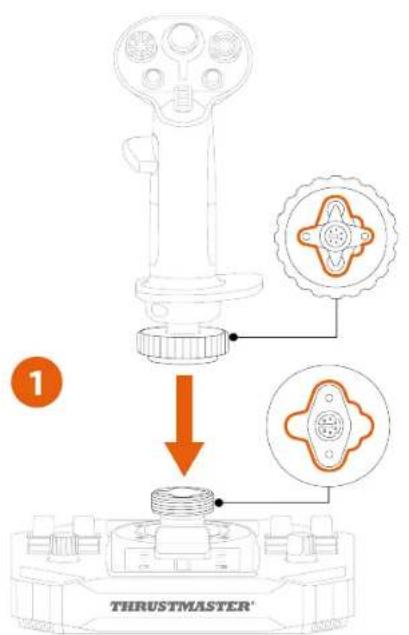

1. Place the flight stick grip on the base. Make sure that the flight stick grip is properly positioned, as shown in the diagram below.

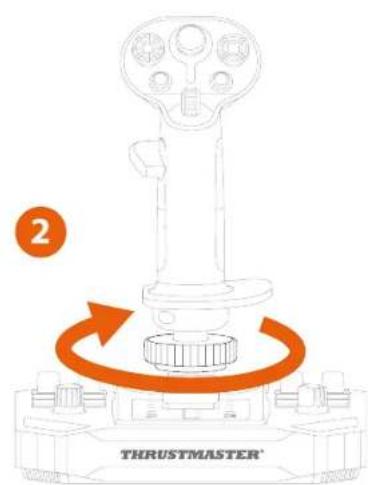

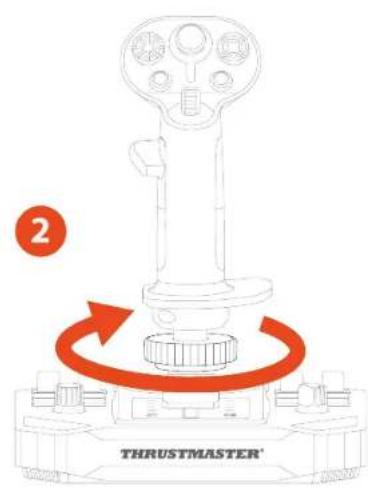

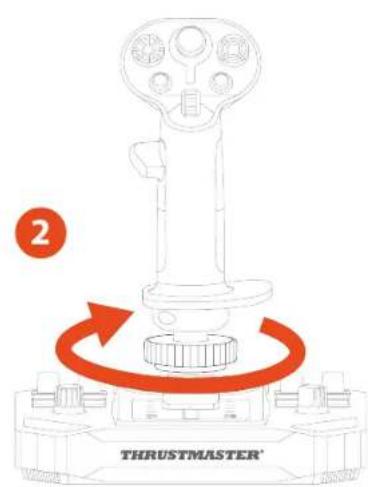

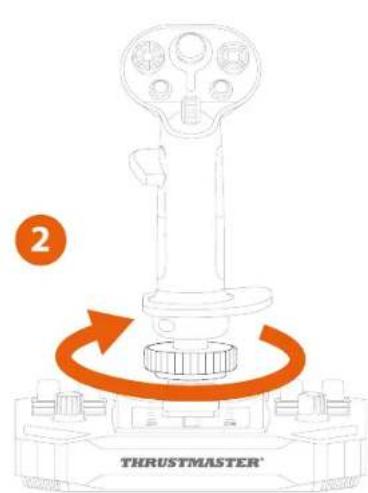

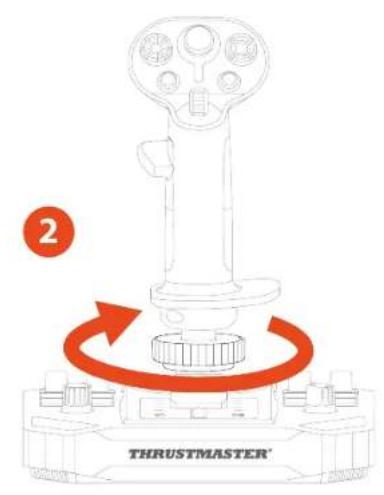

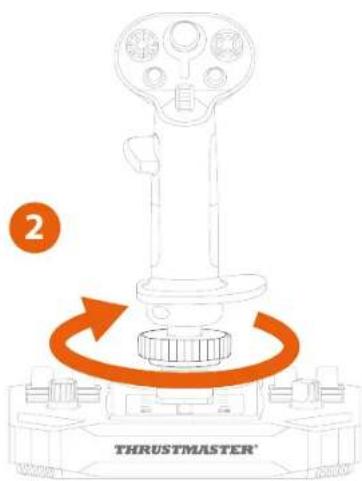

2. Tighten the clamping ring.

THRUSTMASTER

2 THRUSTMASTER®

If you feel any resistance, do not force it. Make sure that the connectors for the base and the flight stick grip are properly aligned, as shown above. Failure to comply with this instruction may result in damage to the products.

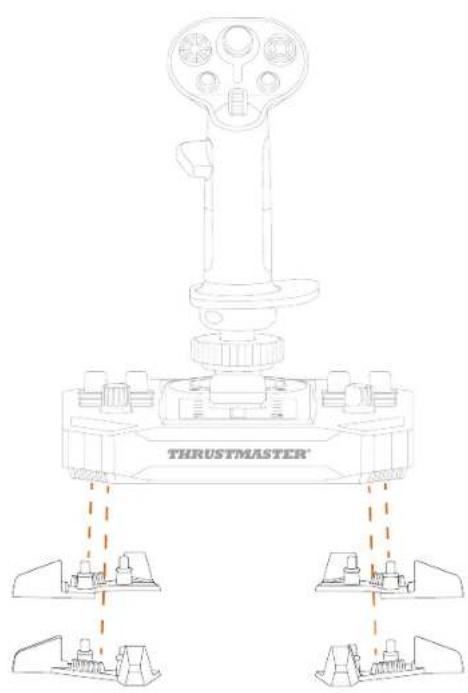

1. (Optional) Clip the stability supports into the four corners of the base.

THRUSTMASTER®

5. Installation on PC

1. Please visit:

https://support.thrustmaster.com/product/sol-r-1-flightstick.

1. Download and install the PC driver and its customized interface for the Windows control panel.

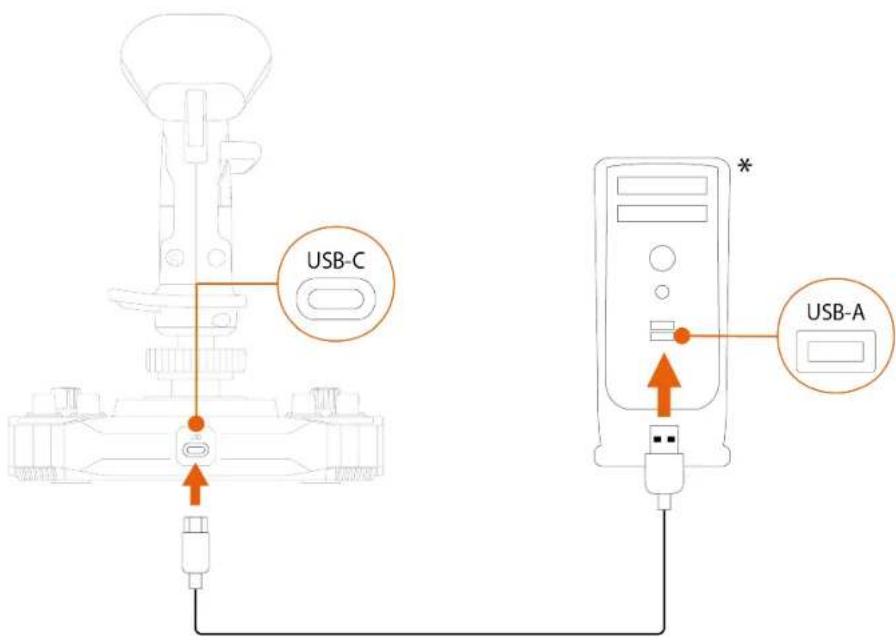

2. Once the PC driver has been installed, connect the Sol-R 1 Flightstick joystick to one of your PC's USB ports, using the USB-A – USB-C cable.

USB-C USB-A

Control panel

To access the control panel, select Start, type Control Panel or Control Panel in the search bar, and then click Control Panel or Control Panel (in Windows® 10/11).

Control Panel

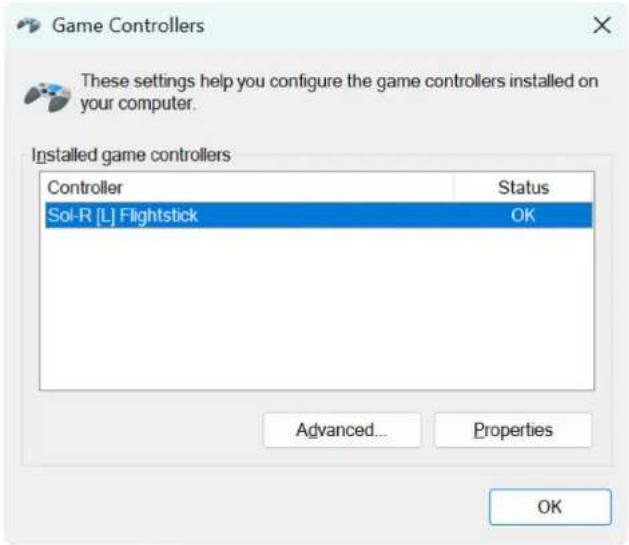

The Game Controllers dialog box is displayed. The accessory appears onscreen with the name Sol-R [R] Flightstick or Sol-R [L] Flightstick and OK status.

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

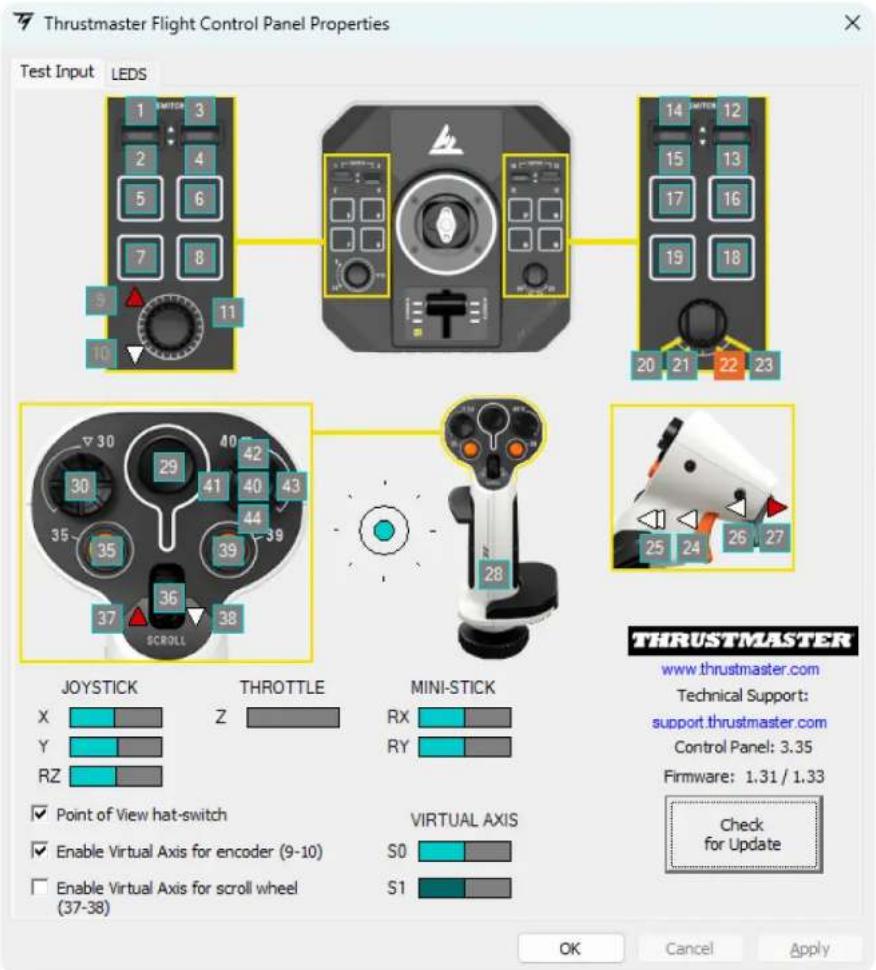

In the Game Controllers dialog box, click Properties to test and view all features.

Thrustmaster Flight Control Panel Properties Test Input LEDs 1 SWITCH 3 2 4 5 6 7 8 9 10 11 14 SWITCH 12 15 13 17 16 19 18 20 21 22 23 JOYSTICK THROTTLE MINI-STICK X Z RX RY Y RZ ✓ Point of View hat-switch ✓ Enable Virtual Axis for encoder (9-10) ☐ Enable Virtual Axis for scroll wheel (37-38) VIRTUAL AXIS S0 S1 OK Cancel Apply THRUSTRMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update

Customizable LEDs

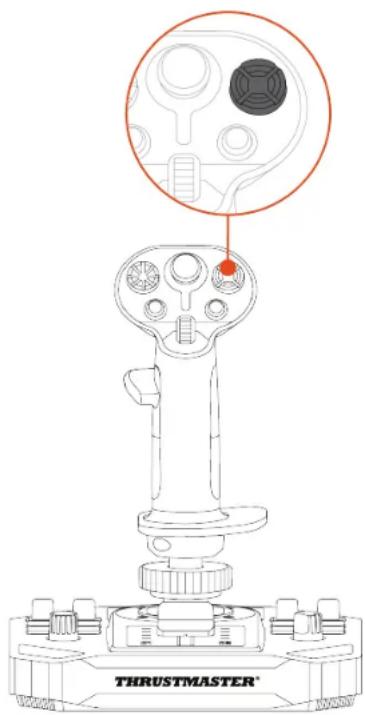

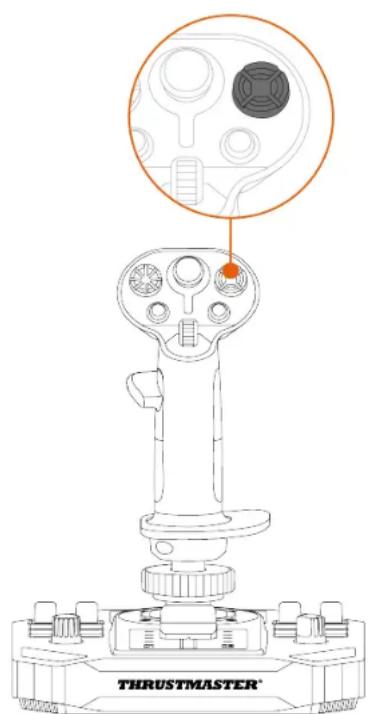

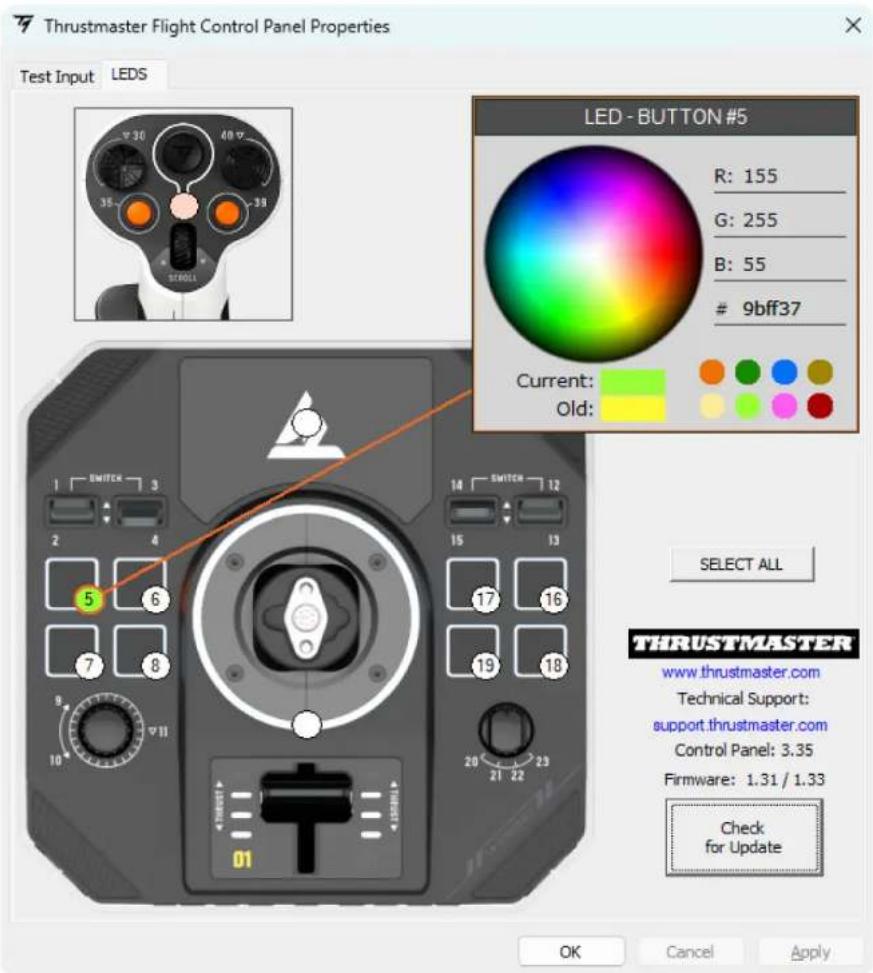

The Sol-R 1 Flightstick joystick features eleven LEDs that can be customized via the control panel.

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

You can assign a different color to each LED.

To change the color of the LEDs:

1. Go to the control panel for the Sol-R 1 Flightstick joystick.

2. In the Game Controllers dialog box, click Properties.

3. In the LEDS tab, click on one of the colored circles to select the LED that you want to change.

4. Use the color wheel or the palette of predefined colors, or enter a color code (RGB or HEX) to change the color.

5. Click OK to save the change.

When the Sol-R flight stick grip is installed on an AVA base*, the mini-stick area is backlit and you can change the color.

Mapping

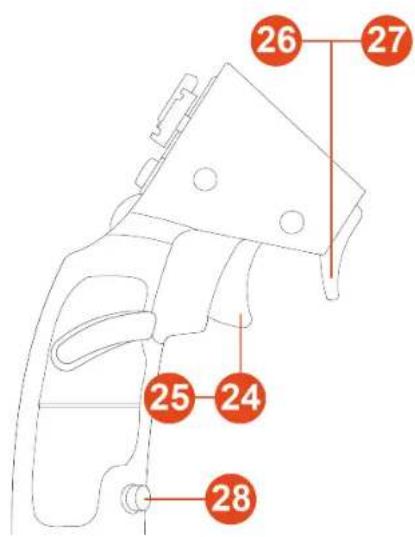

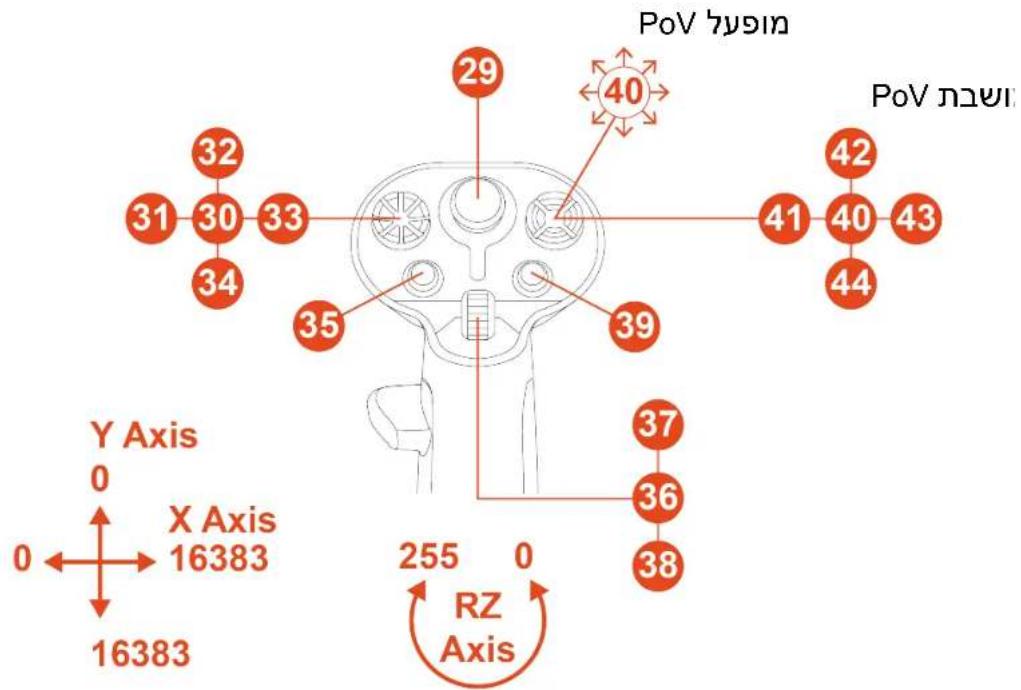

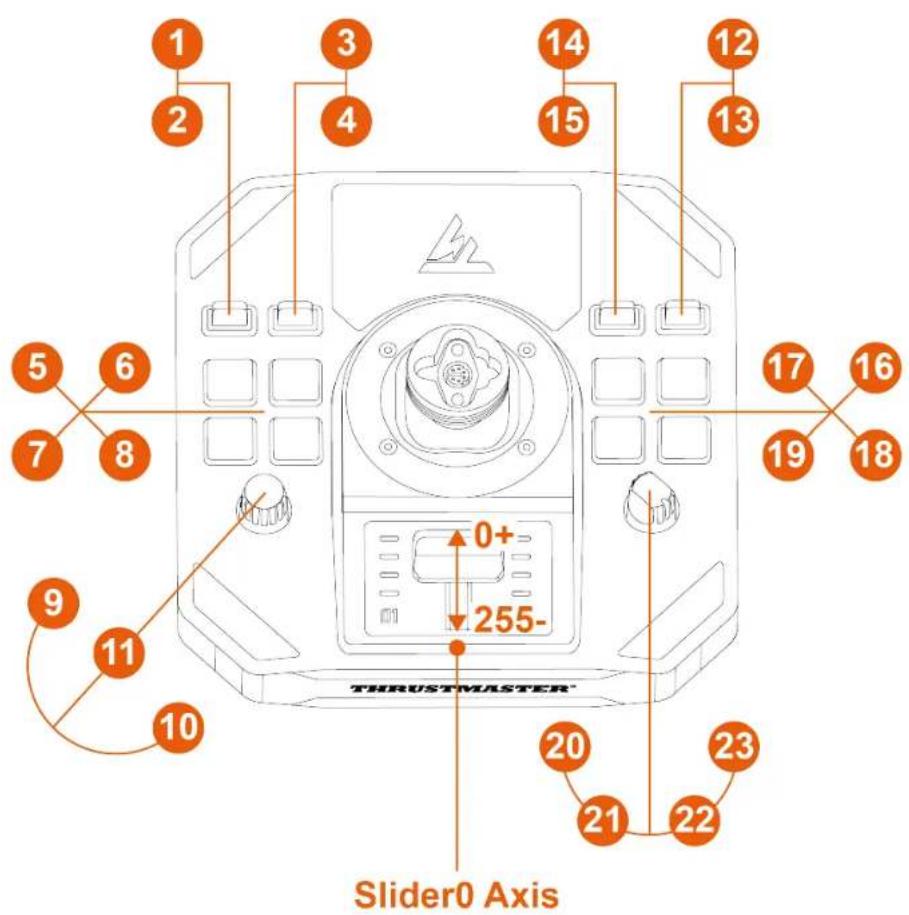

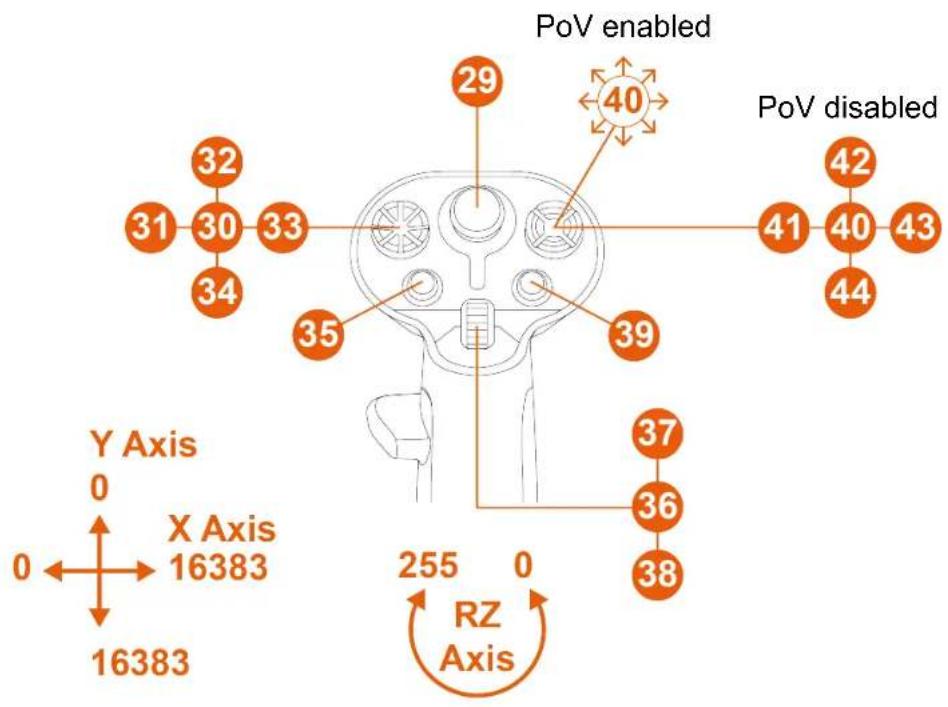

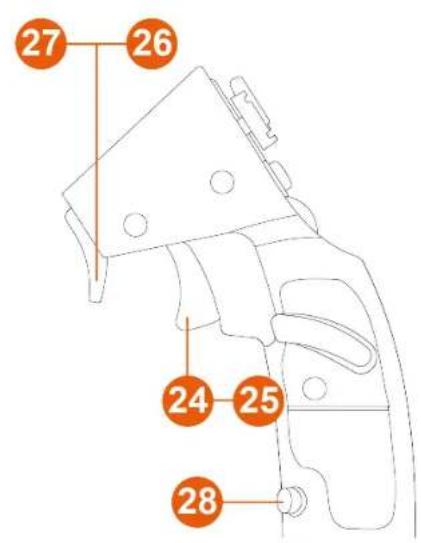

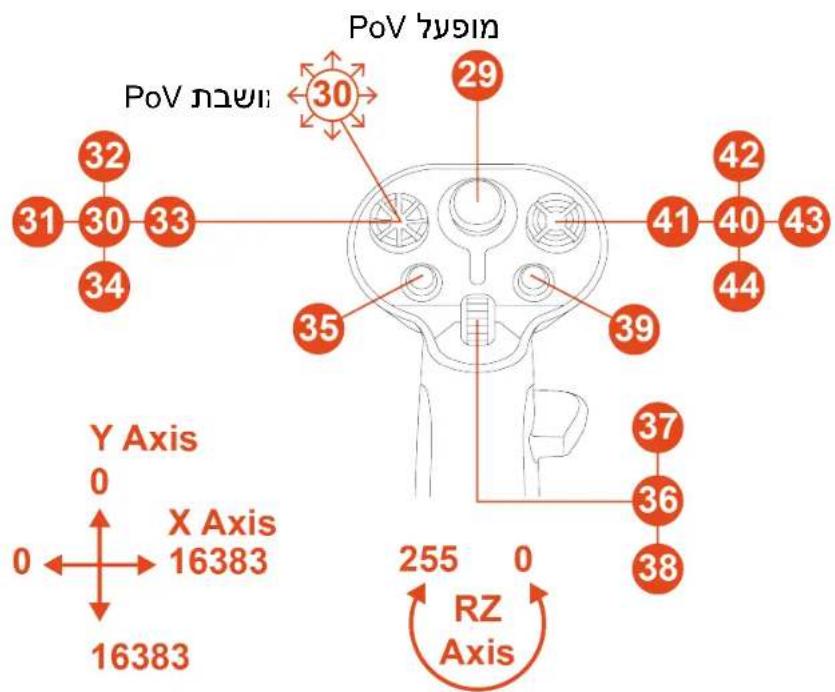

1 2 3 4 14 15 12 13 5 6 7 8 9 11 10 0+ 255- THRUSTMASTER Slider0 Axis 20 21 22 23

Right-handed mode

27 26 24 25 28

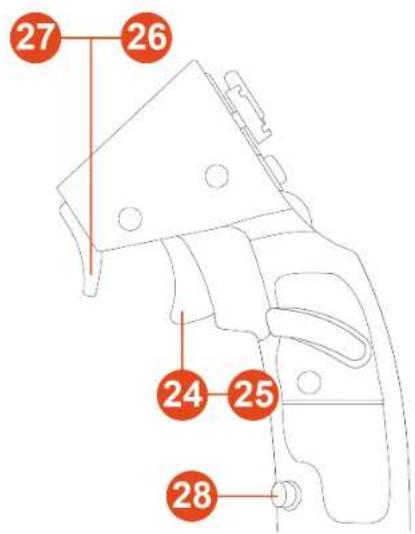

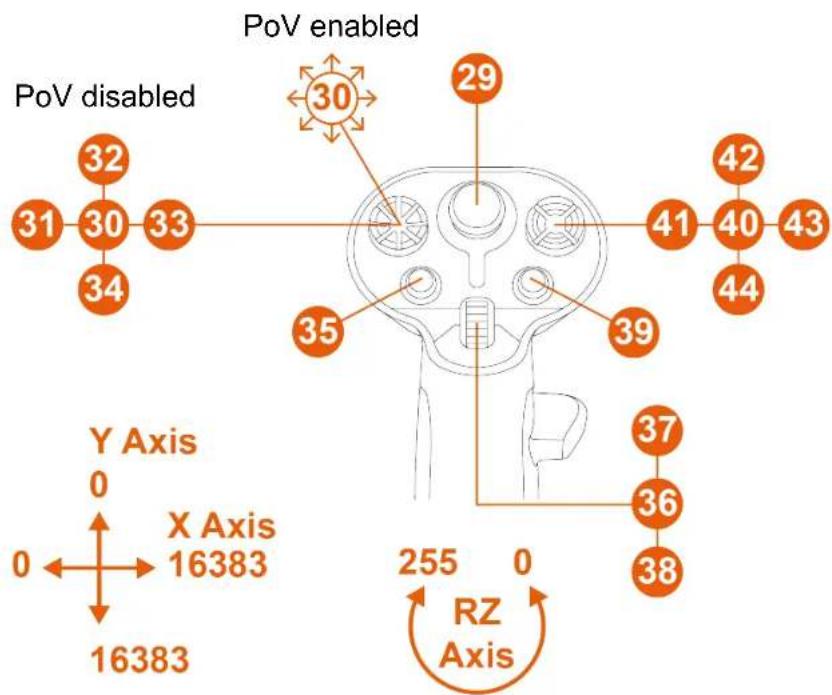

PoV enabled PoV disabled 32 31 30 33 34 35 29 40 41 40 43 39 42 44 37 36 38 Y Axis 0 X Axis 16383 16383 255 0 RZ Axis

Left-handed mode

26 27 25 24 28

PoV enabled PoV disabled 30 29 31 30 33 34 42 41 40 43 44 35 39 37 36 38 Y Axis 0 X Axis 16383 255 0 RZ Axis 16383

6. Installation on a support

You can install the Sol-R 1 Flightstick joystick on different types of supports using M6 screws (not included) and the screw threads located on the underside of the base. Inside the base, the maximum length of the screw must not exceed 15 ~mm .

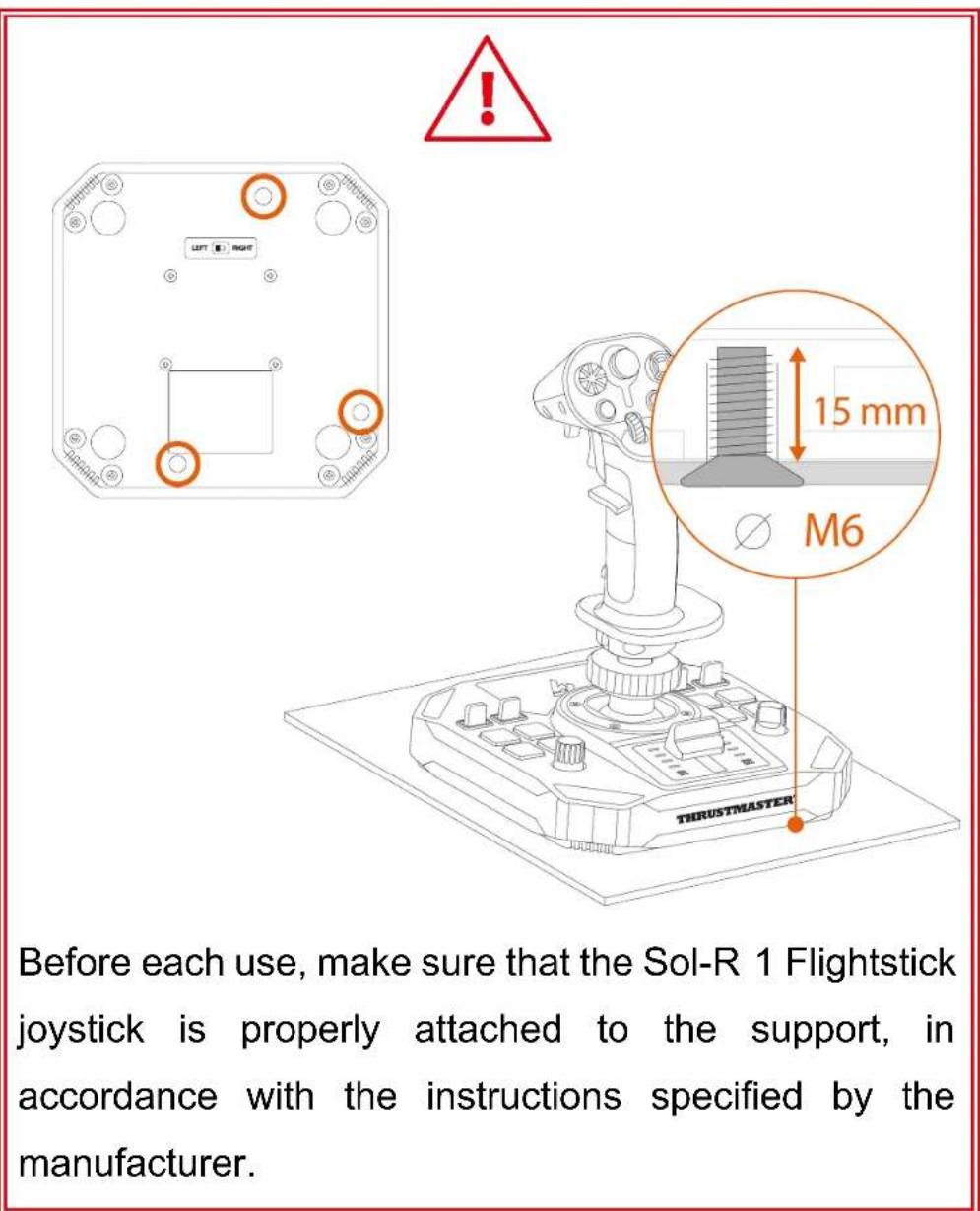

Before each use, make sure that the Sol-R 1 Flightstick joystick is properly attached to the support, in accordance with the instructions specified by the manufacturer.

Installation on a TM Flying Clamp\*

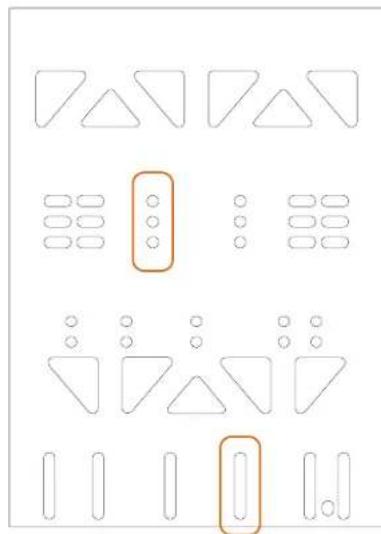

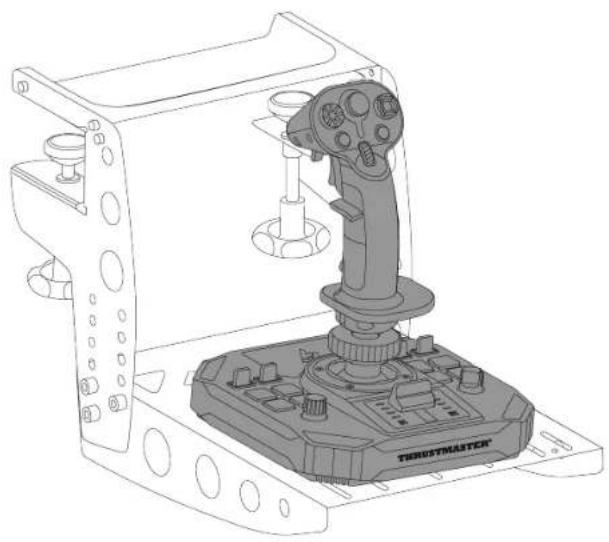

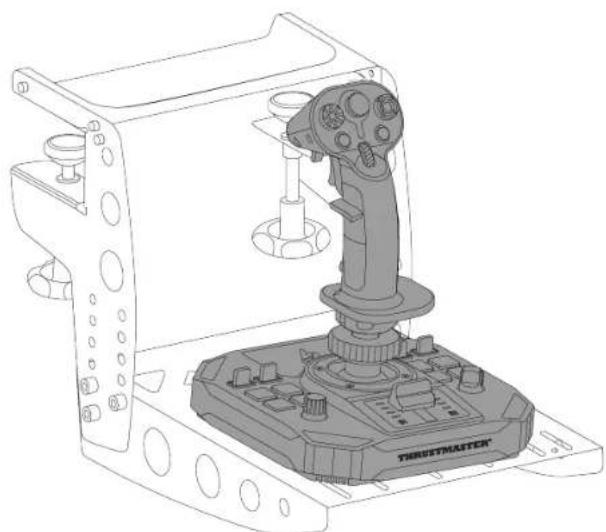

To attach the Sol-R 1 Flightstick joystick to the TM Flying Clamp support*, use two M6 screws (not included).

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and labeled 'TERUSTMASTER' (no text or symbols on the device itself)

Installation on a cockpit\* or another fixed support\*

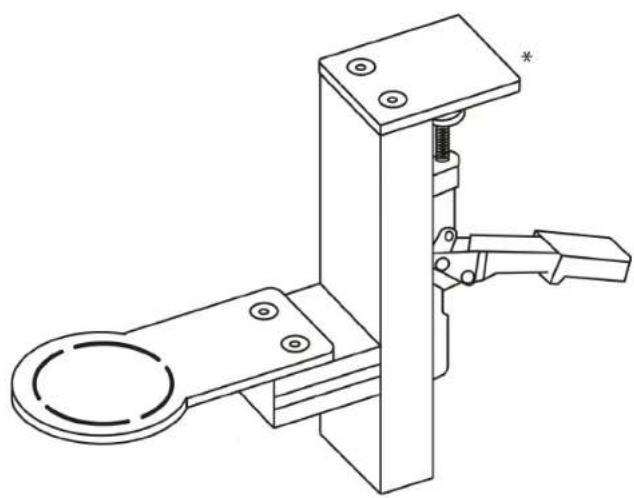

To attach the Sol-R 1 Flightstick joystick to a cockpit* or a desk support*, use M6 screws (not included) and the screw threads located on the underside of the base.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

To avoid damaging the Sol-R 1 Flightstick joystick, please consult the cockpit manufacturer or technical support in order to determine the cockpit's compatibility with Thrustmaster products.

7. Features

Throttle

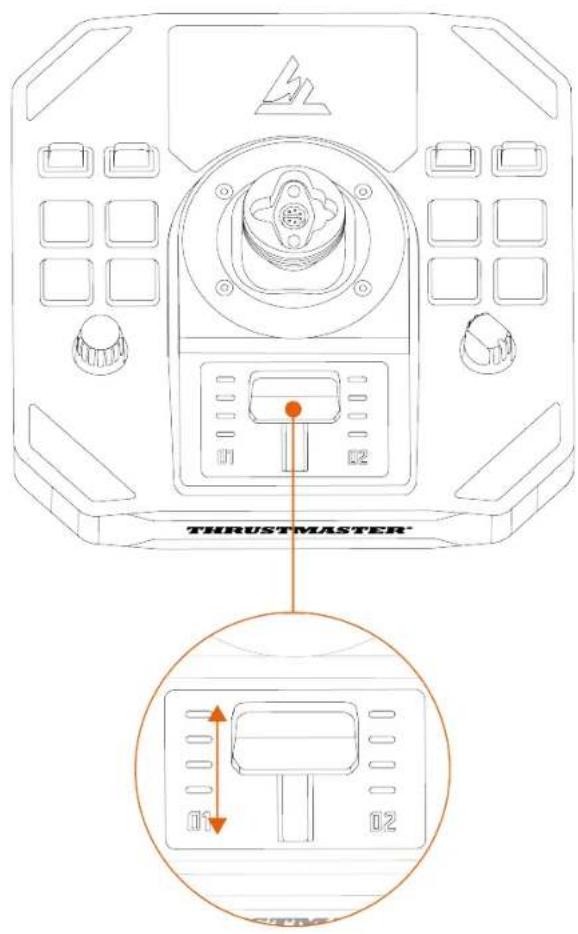

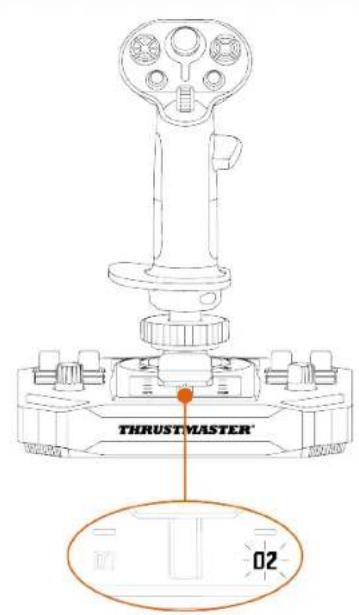

The Sol-R 1 Flightstick joystick features a throttle that makes it easy to control your spacecraft engine's thrust. Indicator lights help you to be more precise.

THRUSTMASTER 01 02

Rudder function

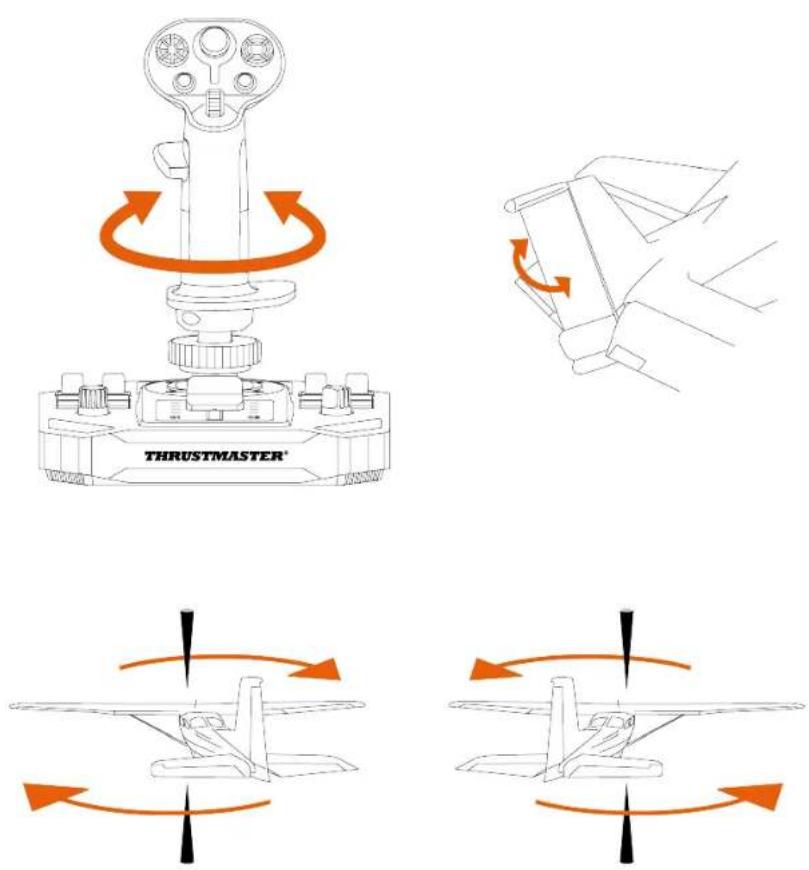

The Sol-R 1 Flightstick joystick features a rudder function that can be accessed by rotating the flight stick grip to the left or to the right.

In an airplane, the pilot manipulates the rudder to pivot the plane around its vertical axis (making the plane turn to the left or to the right).

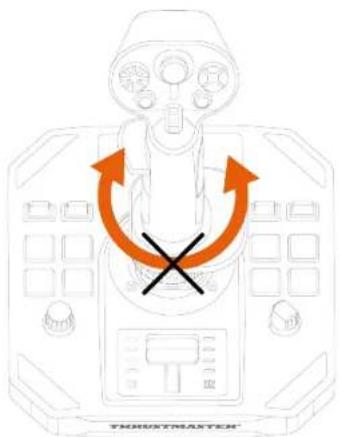

This function can be disabled by locking the rotation of the Z axis (yaw).

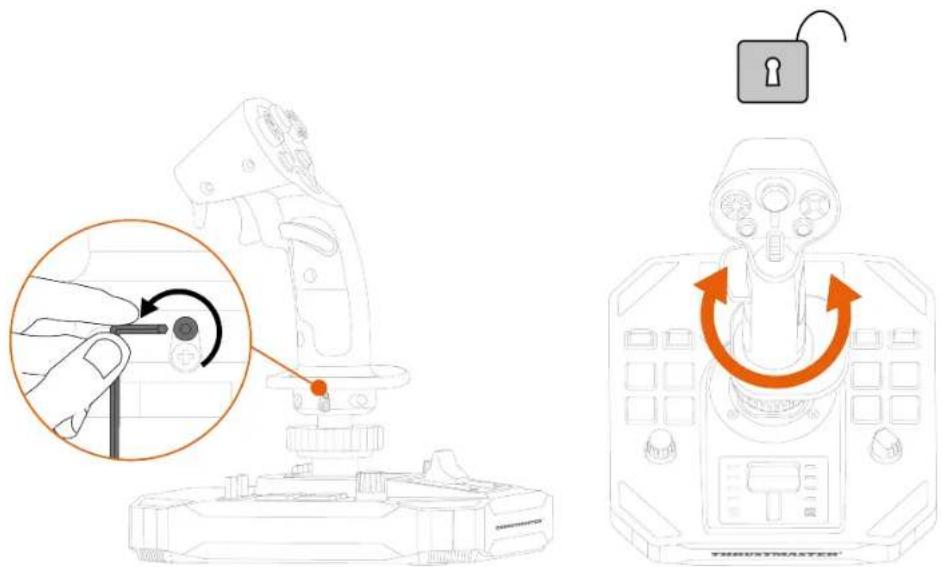

To lock the rudder function:

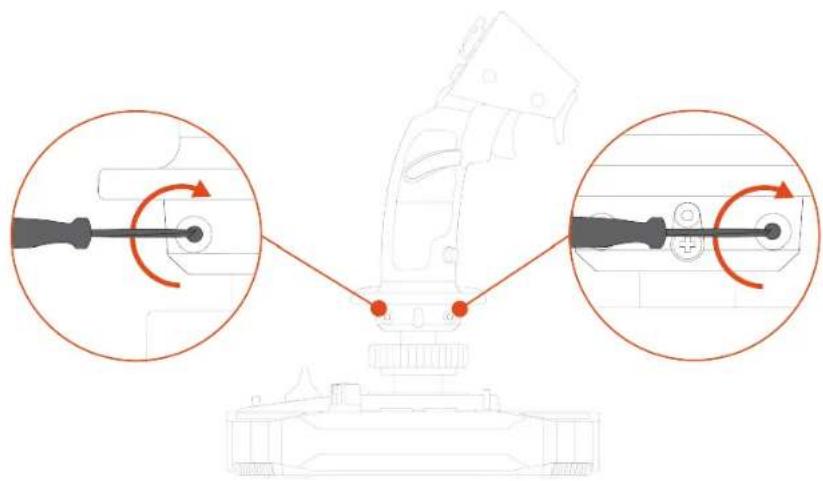

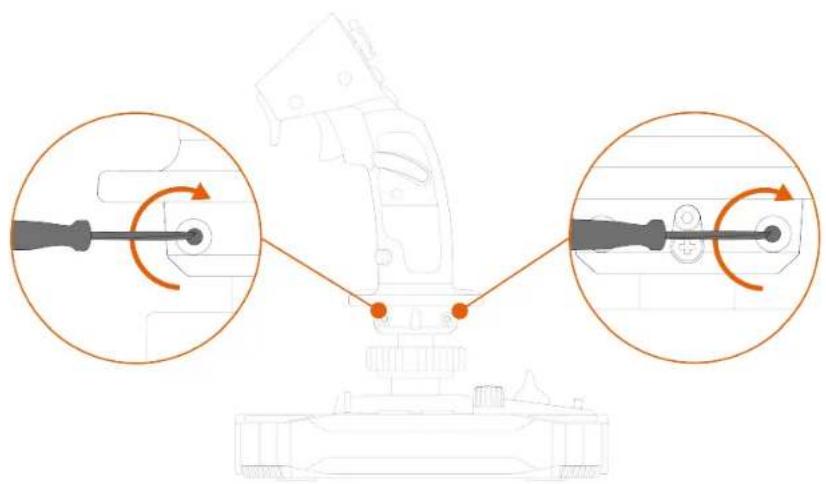

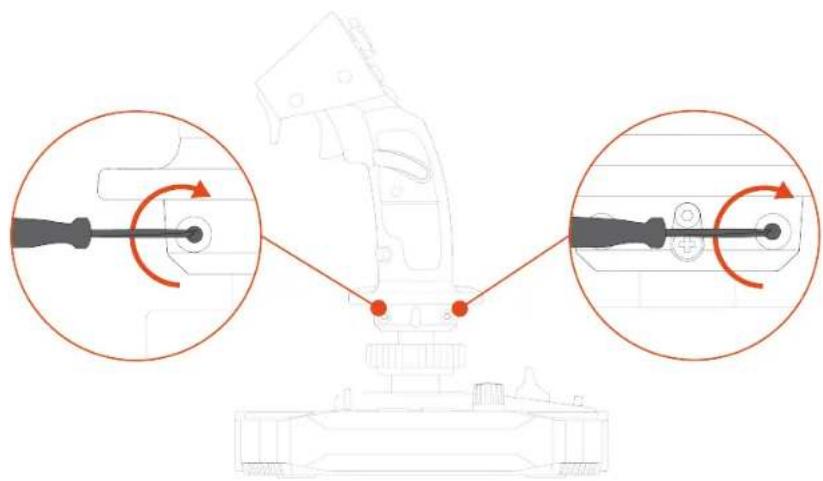

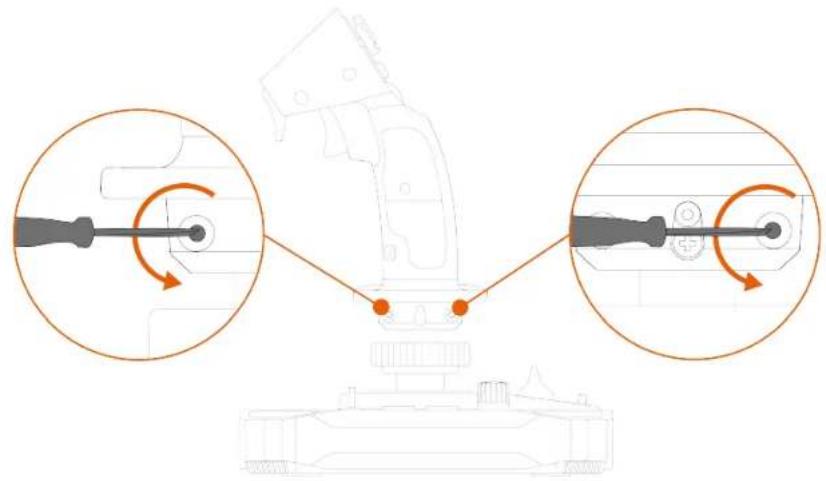

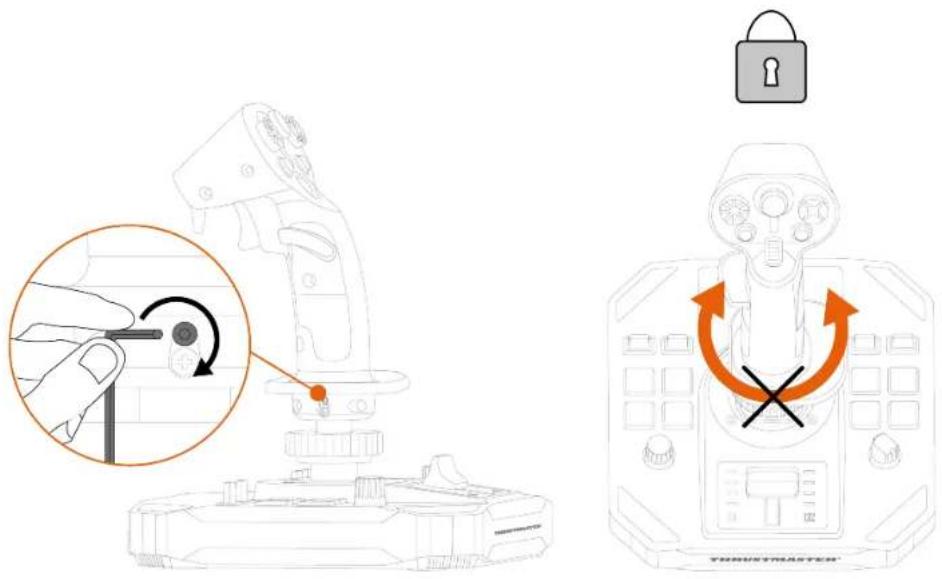

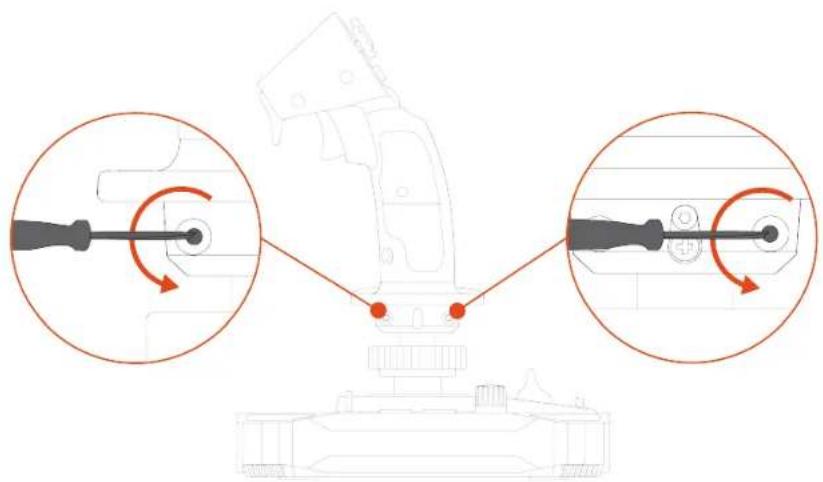

- Using a 2 mm Allen wrench (not included), tighten the hexagonal screw located below the wrist rest.

Diagram illustrating robot control mechanism with labeled parts and directional arrows indicating rotation or locking operations.

To unlock the rudder function:

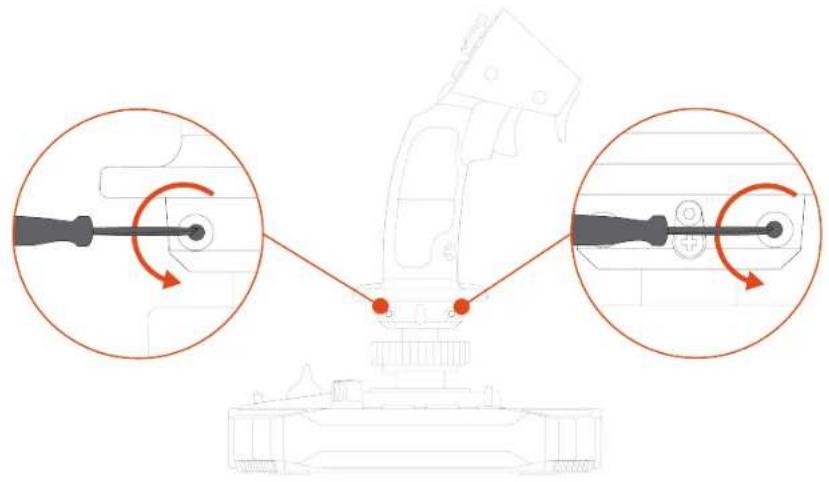

- Using a 2 mm Allen wrench (not included), untighten the hexagonal screw located below the wrist rest.

Diagram illustrating a camera mechanism with labeled parts and rotation arrows, including a hand adjusting the button.

Multidirectional point of view hat switch

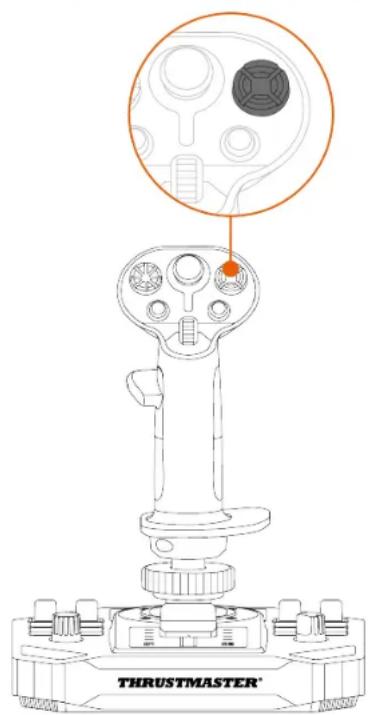

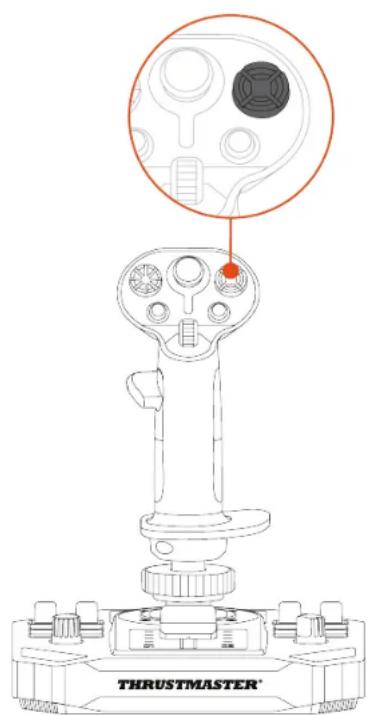

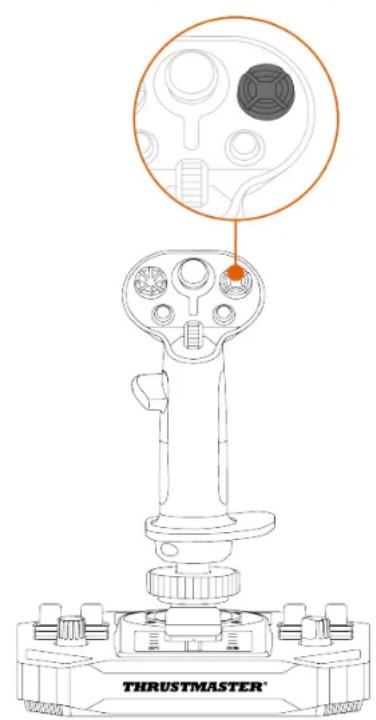

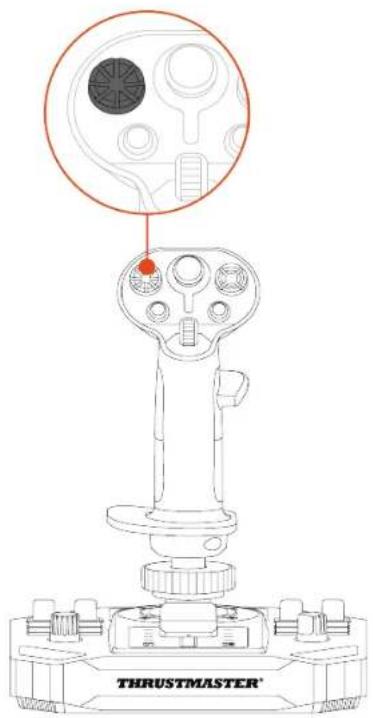

The Sol-R 1 Flightstick joystick features a multidirectional point of view hat switch that lets you monitor what's going on around your spacecraft (in games that allow this).

From your game's configuration menu, you can program the different views (rear view, left view, right view, external views) onto the directions of the multidirectional point of view hat switch.

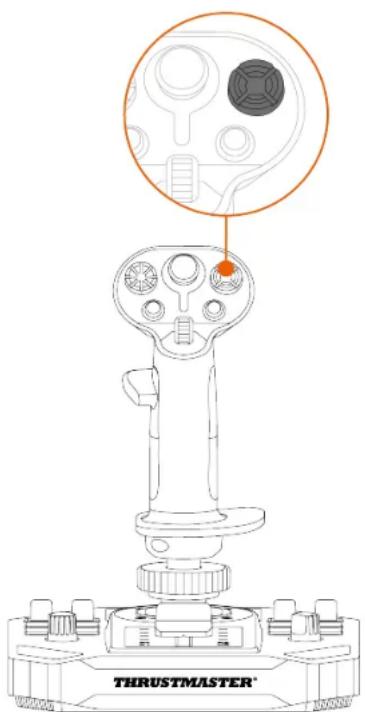

You can also reserve the multidirectional point of view hat switch for other uses (shooting, etc.).

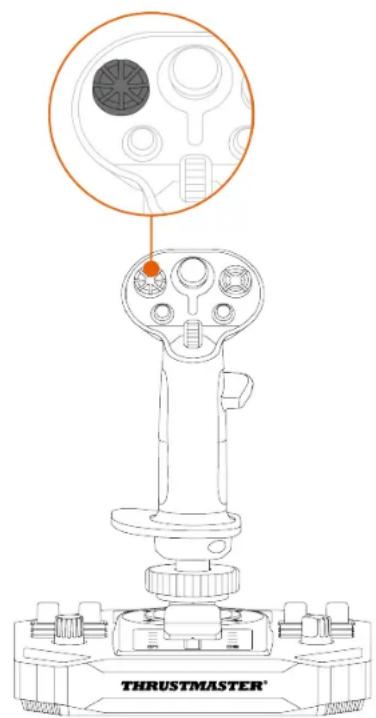

Left-handed mode

THRUSTMASTER®

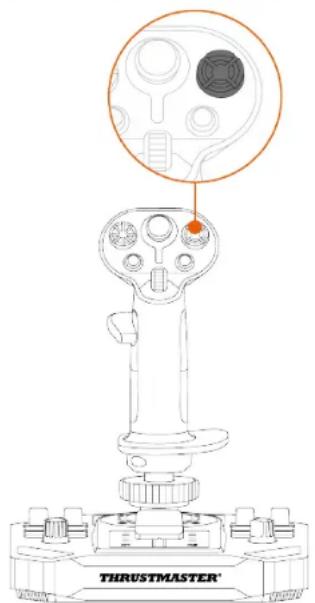

Right-handed mode

THRUSTMASTER®

The point of view function can be disabled. However, the multidirectional hat switch can still be used.

To disable the point of view function:

1. Go to the control panel for the Sol-R 1 Flightstick joystick.

2. In the Game Controllers dialog box, click Properties.

3. In the Test input tab, uncheck (i.e. deselect) Point of view hat-switch.

Point of view function (Right-handed mode)

Enabled
Disabled

Point of view function (Left-handed mode)

Enabled
Disabled

8. Configuring the flight stick grip

Right-handed or Left-handed mode

The Sol-R 1 Flightstick joystick is ambidextrous, in order to perfectly adapt to all gamers (whether right-handed or left-handed).

By default, the joystick is configured in Right-handed mode.

Left-handed mode

THRUSTMASTER 02

Right-handed mode

THRUSTMASTER 01

Carry out the procedure to switch from Right-handed to Left-handed mode (or vice versa) before connecting the joystick to your PC.

To set the joystick in Left-handed mode:

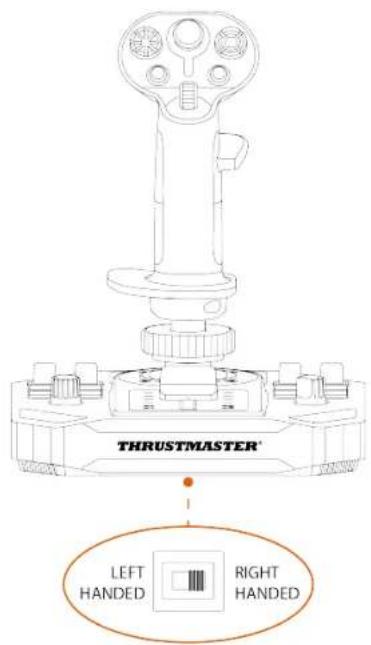

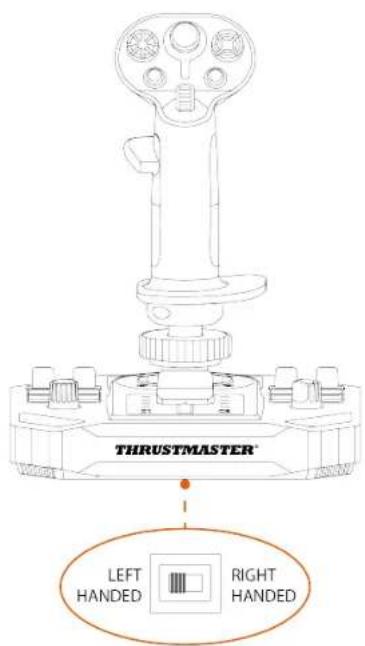

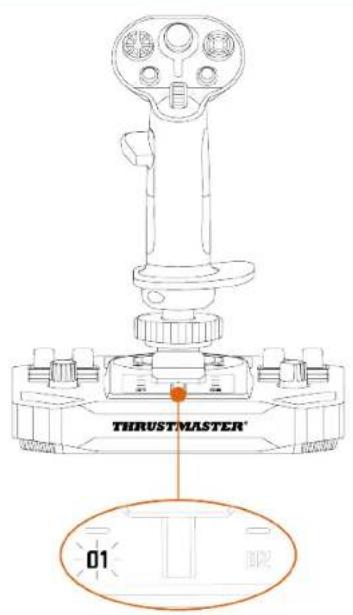

1. Set the selector switch located on the underside of the joystick's base to LEFT HANDED.

The joystick is recognized with the name Sol-R [L] Flightstick.

THRUSTMASTER LEFT HANDED RIGHT HANDED

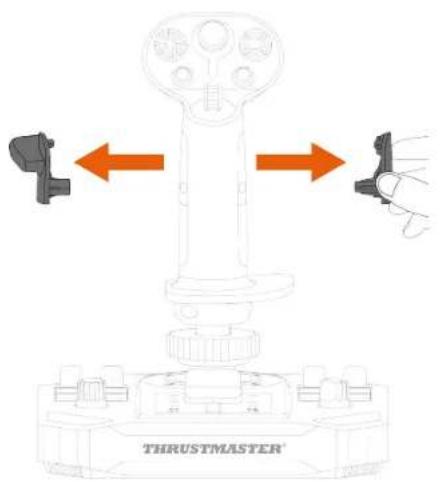

1. Unscrew the right-hand thumb rest (A1).

THRUSTMASTER

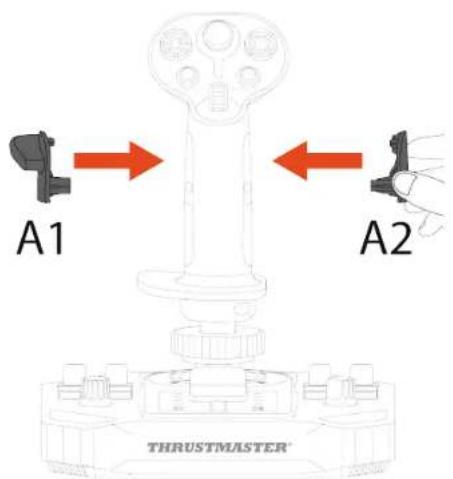

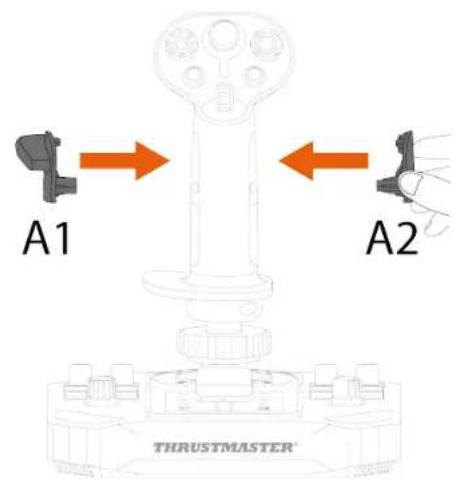

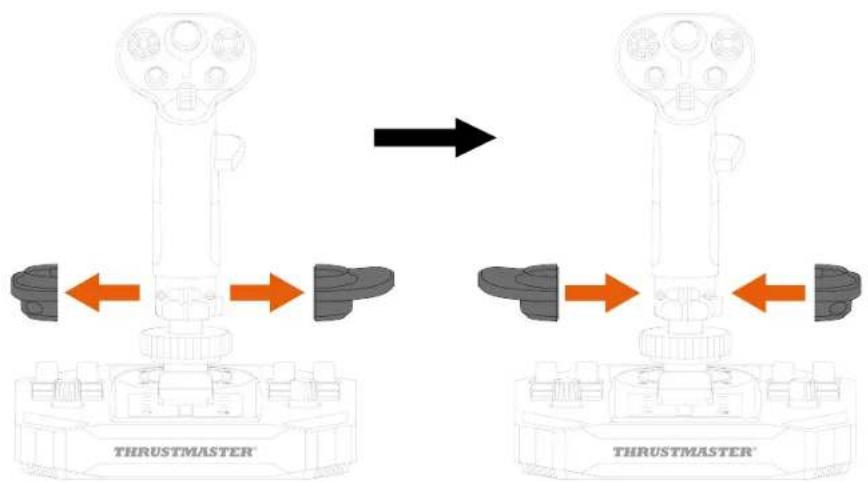

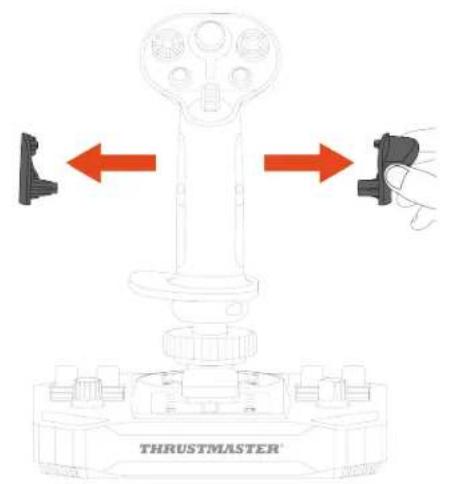

1. Remove both parts of the right-hand thumb rest (A1 and A2).

THRUSTMASTER®

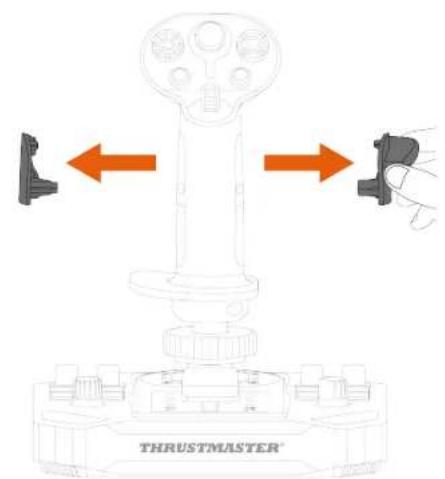

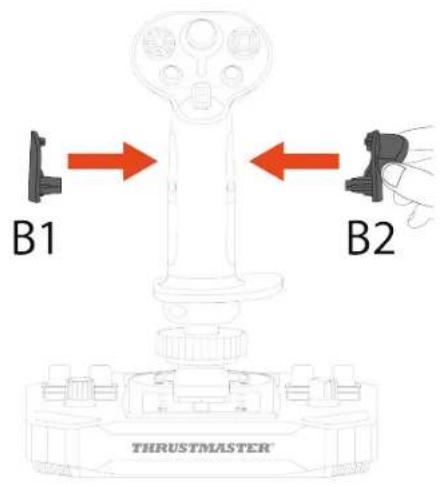

1. Place both parts of the left-hand thumb rest (B1 and B2) on the flight stick grip.

B1 B2 THRUSTMASTER®

1. Screw in the left-hand thumb rest (B1).

THRUSTMASTER®

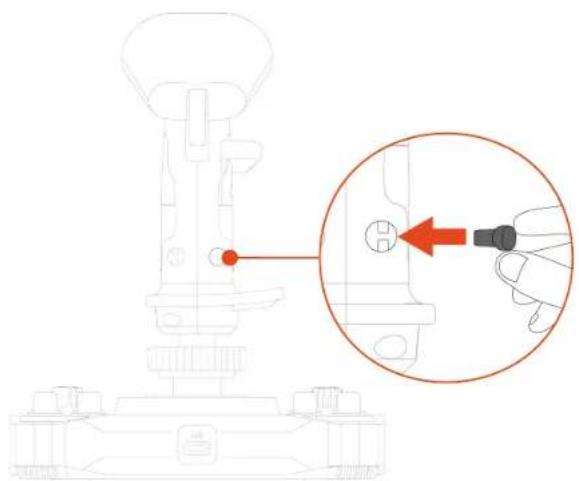

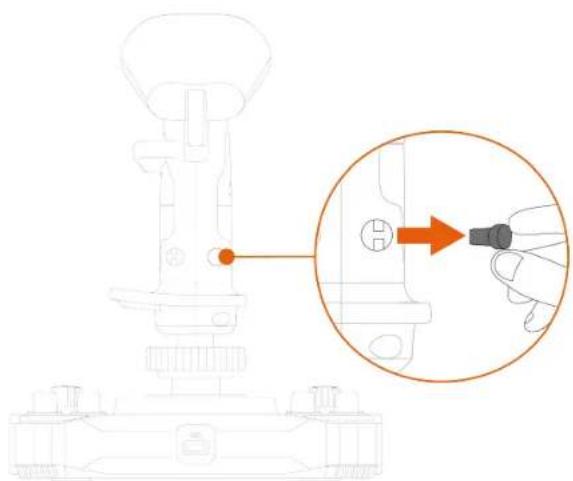

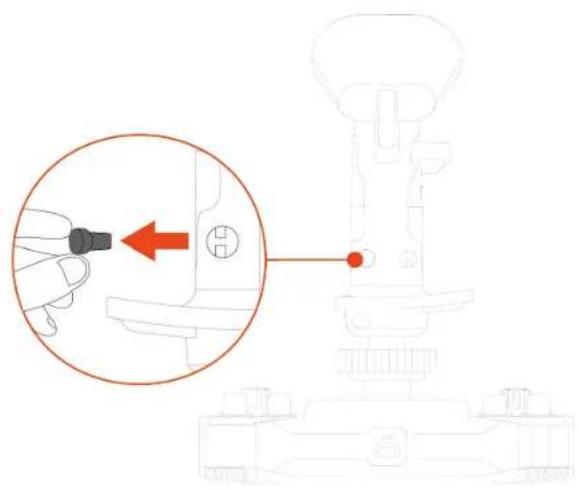

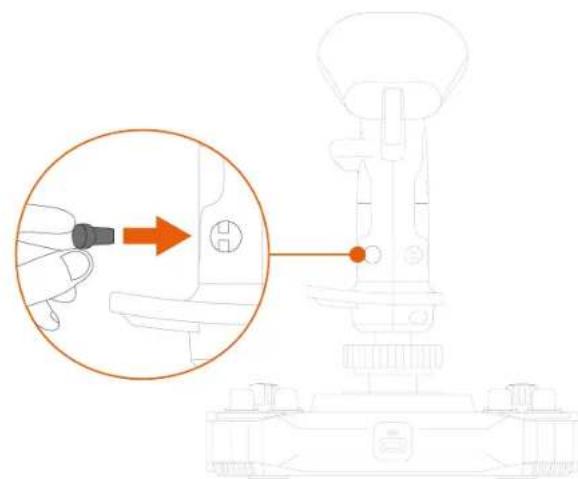

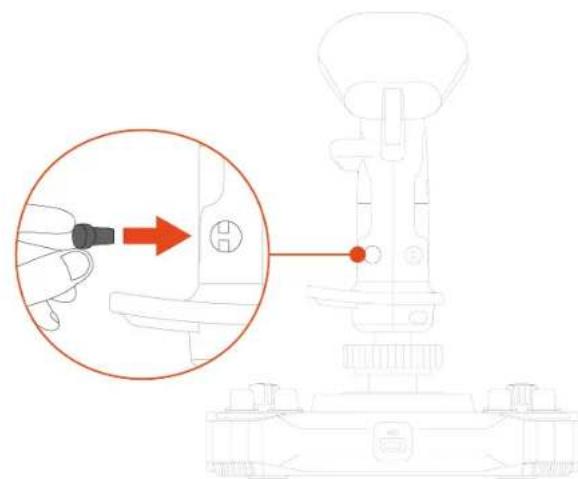

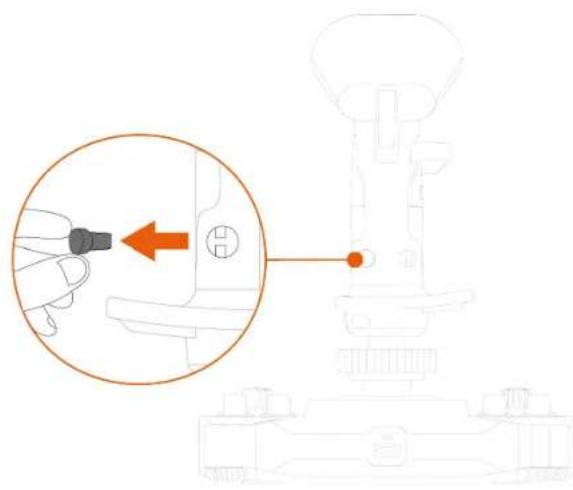

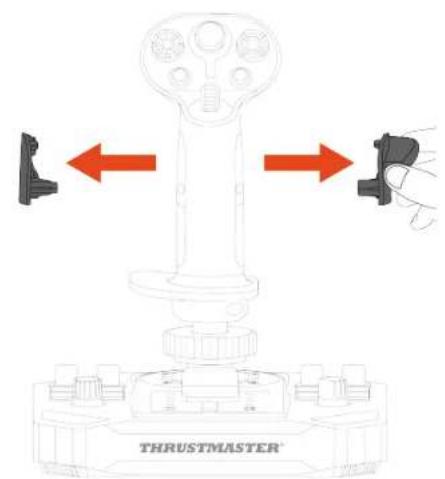

1. Remove the removable button (C1 or C2) located on the back of the flight stick grip.

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

1. Insert the removable button that you prefer (C1 or C2) below the B2 thumb rest.

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

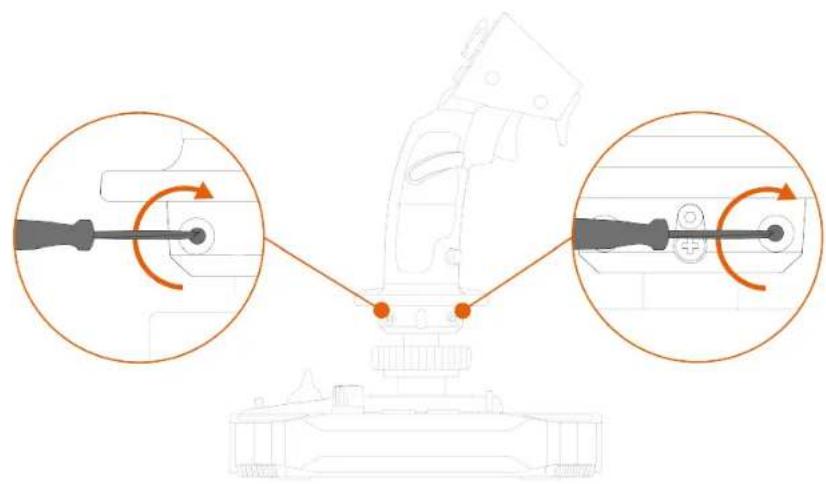

1. Unscrew the two screws holding the wrist rest in place.

Technical diagram showing mechanical assembly with two circular insets illustrating rotational components and motion arrows.

1. Remove the two parts of the wrist rest, and then reposition them on the flight stick grip by reversing the parts.

THRUSTMASTER® THRUSTMASTER®

1. Screw in the two screws that hold the wrist rest in place.

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

To set the joystick in Right-handed mode:

1. Set the selector switch located on the underside of the joystick's base to RIGHT HANDED.

The joystick is recognized with the name Sol-R [R] Flightstick.

THRUSTMASTER* LEFT HANDED RIGHT HANDED

1. Unscrew the left-hand thumb rest (B1).

THRUSTMASTER™

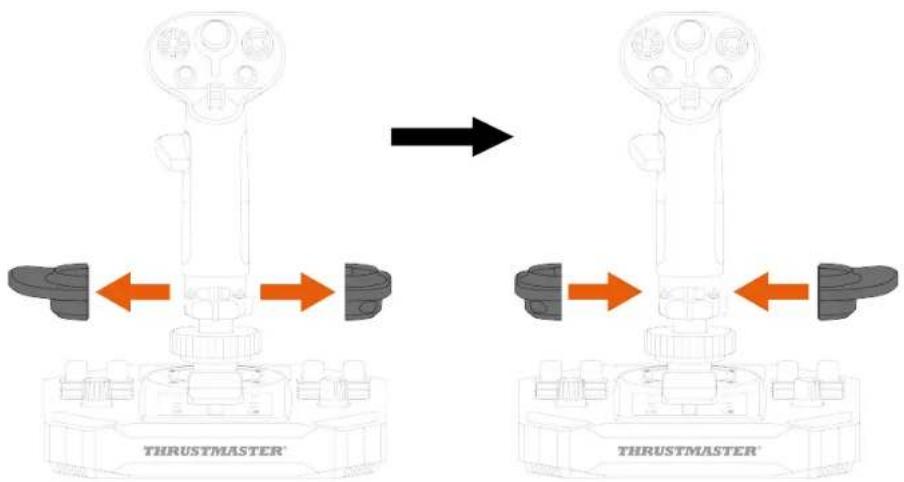

1. Remove both parts of the left-hand thumb rest (B1 and B2).

THRUSTMASTER®

1. Place both parts of the right-hand thumb rest (A1 and A2) on the flight stick grip.

A1 A2 THRUSTMASTER®

1. Screw in the right-hand thumb rest (A1).

THRUSTMASTER®

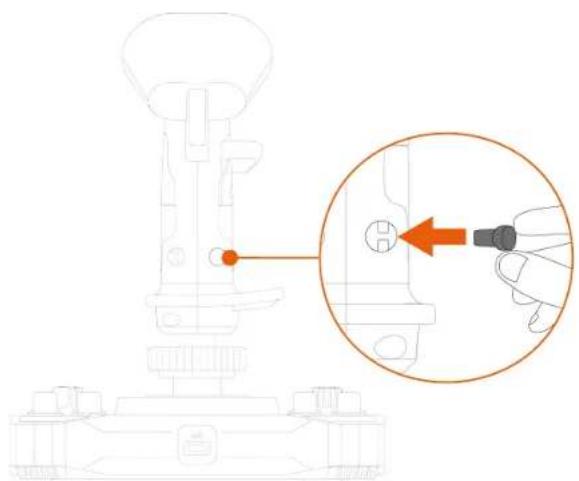

1. Remove the removable button (C1 or C2) located on the back of the flight stick grip.

Diagram showing a hand inserting a small component into a mechanical device, with no visible text or symbols.

1. Insert the removable button that you prefer (C1 or C2) below the A1 thumb rest.

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a component into a housing (no text or symbols present)

1. Unscrew the two screws holding the wrist rest in place.

Diagram of a mechanical device with two circular insets showing rotational components (no text or symbols)

1. Remove the two parts of the wrist rest, and then reposition them on the flight stick grip by reversing the parts.

THRUSTMASTER® THRUSTMASTER®

1. Screw in the two screws that hold the wrist rest in place.

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Height adapter

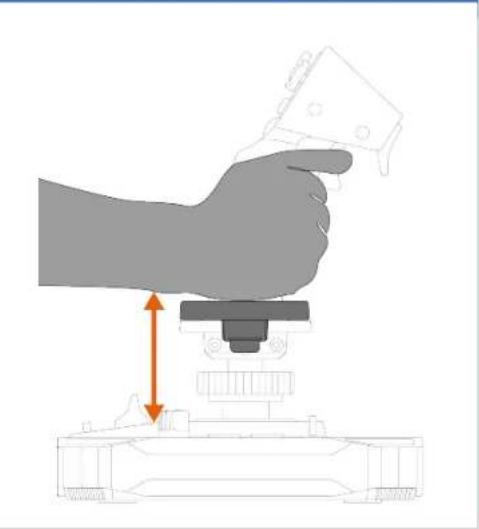

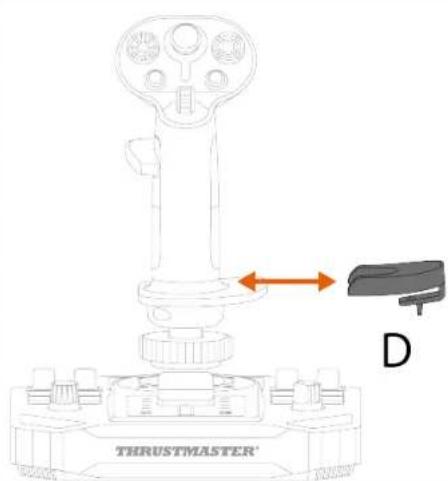

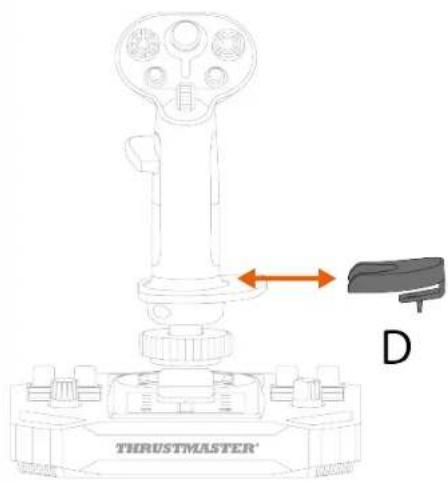

The Sol-R 1 Flightstick joystick features a height adapter to raise your hand when you're holding the flight stick grip, for greater comfort.

Without the adapter

Illustration of a hand pressing down on a mechanical component with an orange arrow indicating motion (no text or symbols)

With the adapter

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

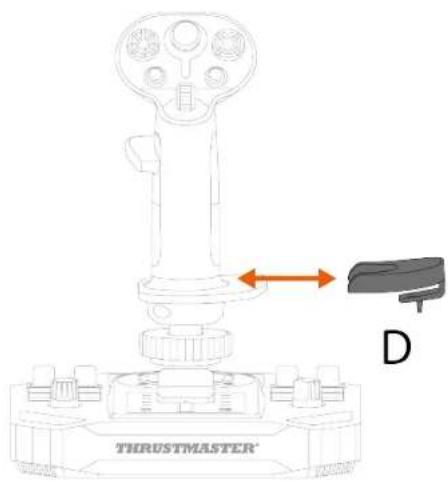

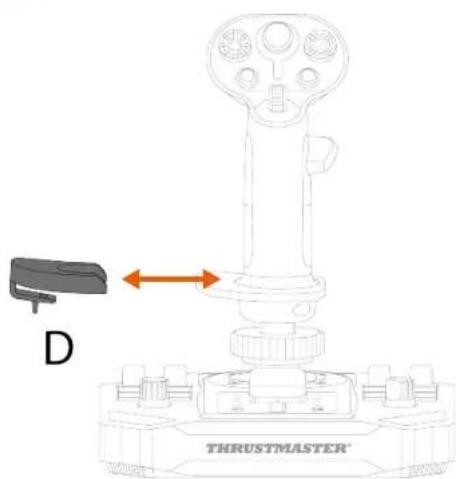

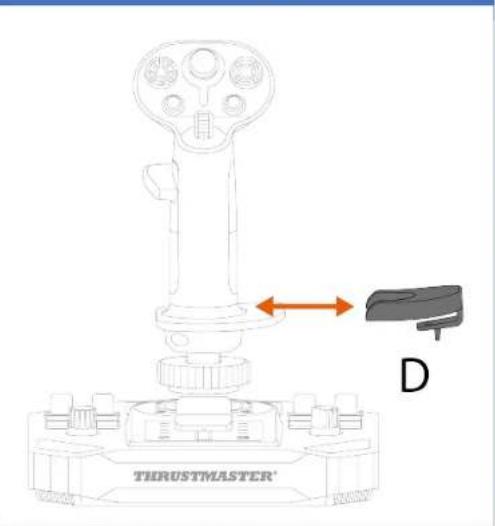

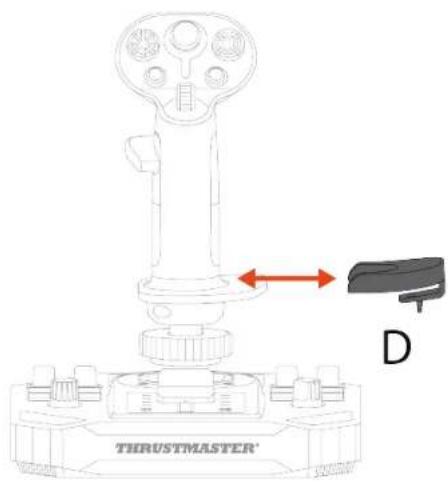

To install the height adapter, clip it to the wrist rest.

Left-handed mode

D THRUSTMASTER®

Right-handed mode

THRUSTMASTER D

9. Compatibility

Be sure to only use authorized accessories. The use of unauthorized accessories may damage the product and void the warranty.

Flight stick grips

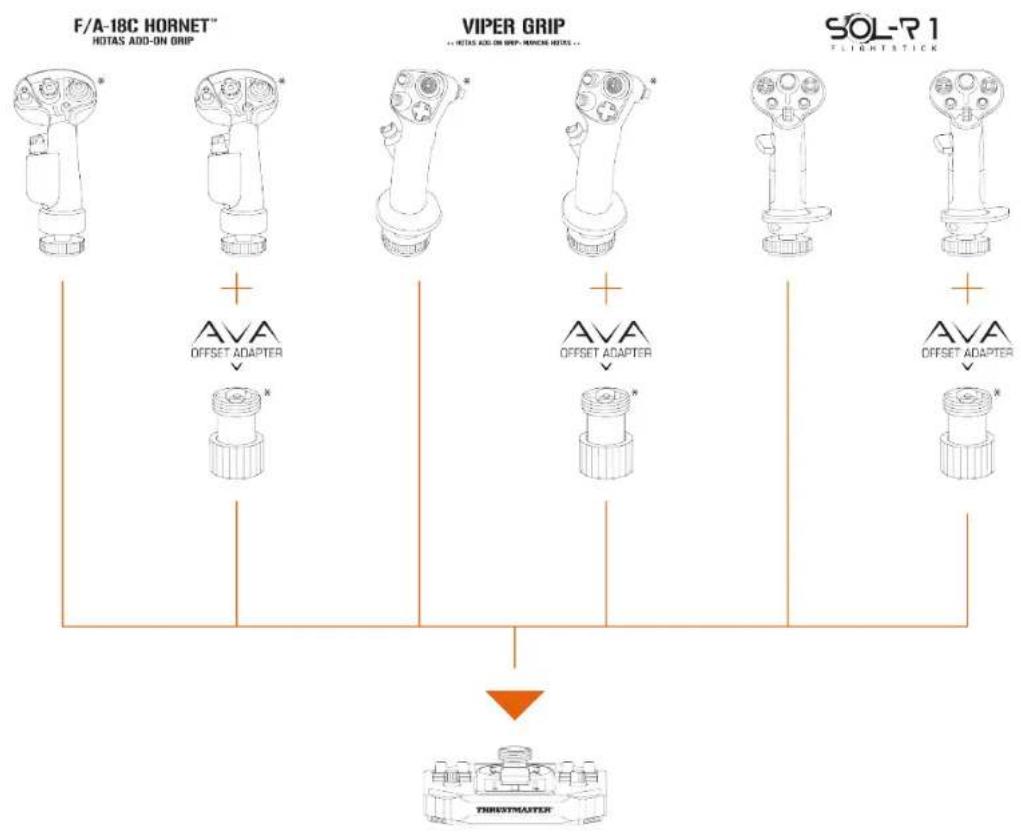

The Sol-R base is compatible with the following flight stick grips and accessories:

• F/A-18C Hornet™ HOTAS Add-On Grip flight stick grip*;
• Viper Grip - HOTAS Add-On Grip flight stick grip* (formerly F16-C Viper HOTAS Add-On Grip);
• AVA Offset Adapter adapter*;
• future Thrustmaster flight stick grips*.

*Sold separately

Base

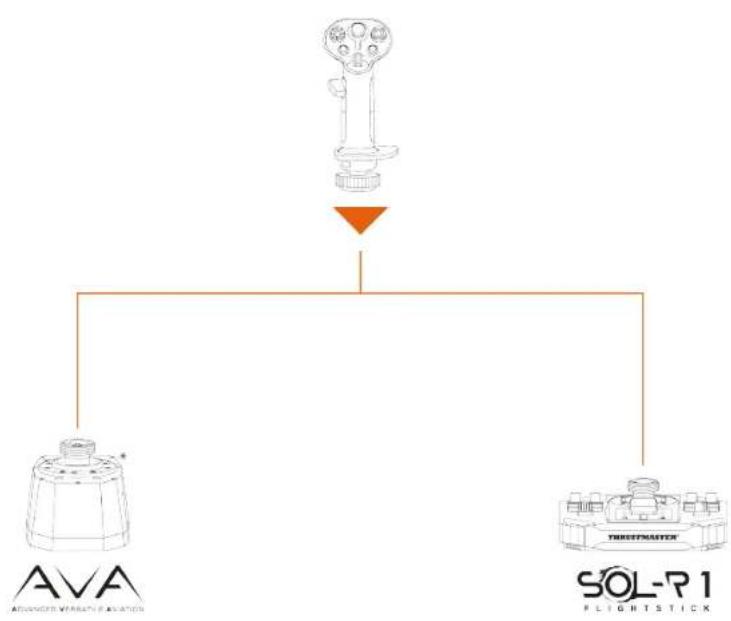

The Sol-R flight stick grip is compatible with the AVA base*.

*Sold separately

Rudders

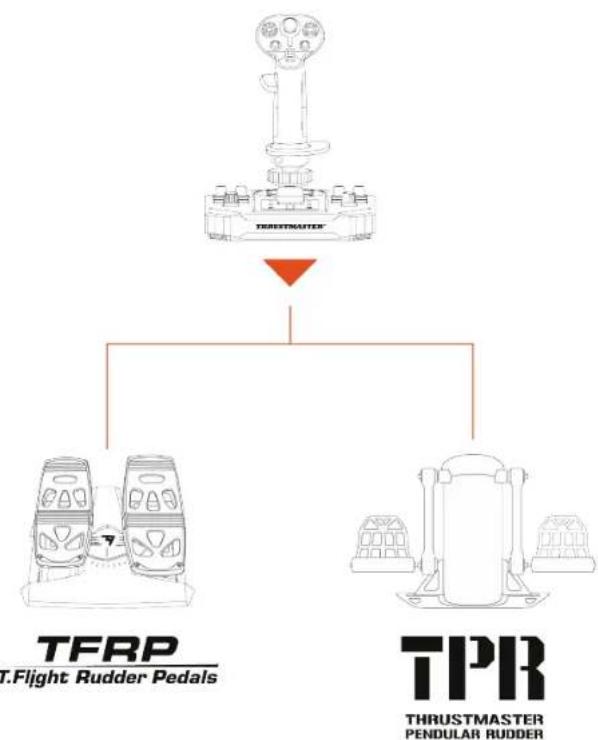

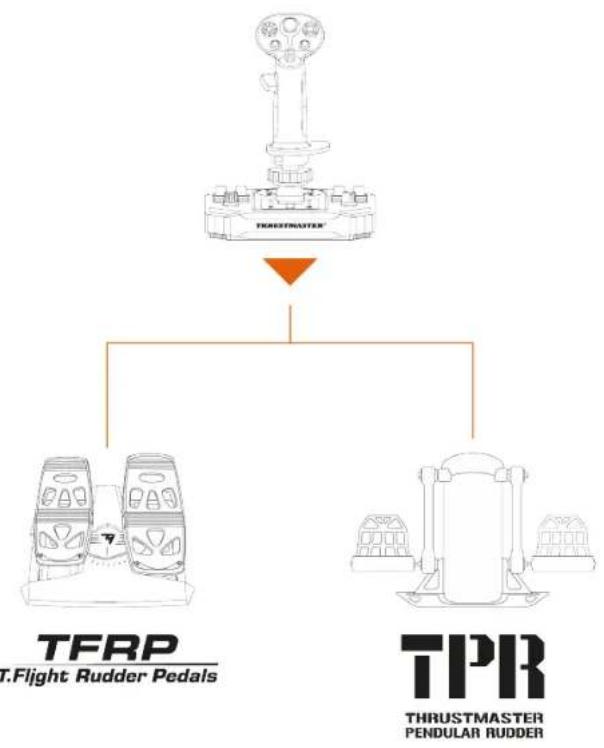

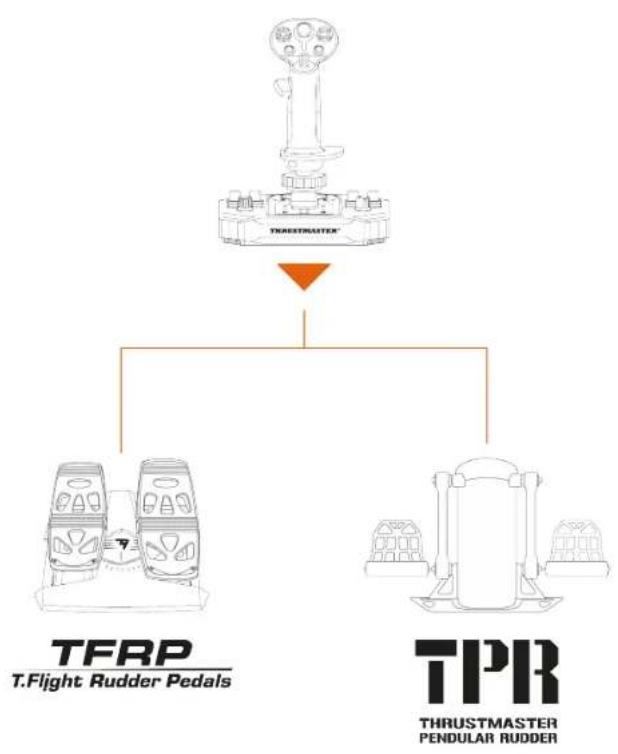

The Sol-R 1 Flightstick joystick is compatible with the following rudder pedals systems:

- TFRP T.Flight Rudder Pedals*:

- TPR: Thrustmaster Pendular Rudder*.

- The TFRP and the TPR must be connected to your PC via USB.

- The TFRP and the TPR are compatible in all games that support multi-USB and rudders.

*Sold separately

10. T.A.R.G.E.T

advanced

programming software

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

T.A.R.G.E.T (Thrustmaster Advanced pRogramming Graphical EdiTor) is an innovative, high-performance software suite allowing for improvements to most Thrustmaster flight controllers, and the sharing of profiles with the Thrustmaster community.

Installation

1. Visit:

https://support.thrustmaster.com/product/sol-r-1-flightstick.

1. In the Software section, download and install the T.A.R.G.E.T advanced programming software.

Main features

• Various possible configurations of the axes.
• Multiple programming levels available: Basic, Advanced and Script.
• Use of the Drag and Drop principle.
• Ability to merge the Sol-R 1 Flightstick joystick with other Thrustmaster flight simulation accessories (Hotas Cougar*, T.16000M FCS*, TWCS*, TFRP*, MFD Cougar Pack*, TCA range*, VIPER range*, AVA range* — all of which are also compatible with T.A.R.G.E.T), allowing for them to be recognized as a single USB device.
• Access to advanced profiles created by the Thrustmaster community.

11. FAQ and technical support

Do you have questions regarding the Sol-R 1 Flightstick joystick, or are you experiencing technical problems? If so, visit the Thrustmaster technical support website: https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

1. My joystick isn't working properly, or seems to be improperly calibrated

• Power off your PC, disconnect your joystick and then reconnect it, restart your PC and start up your game again.
• When connecting your joystick, be sure to keep the flight stick grip centered and avoid moving it, to avoid any calibration problems.

2. I can't configure my joystick

• Access your game's menu and select Options > Controller > Gamepad or Joystick. Then choose the most appropriate configuration, or completely reconfigure the joystick's options.
• For more information, please refer to your game's user manual or online help.

3. My joystick is too sensitive, or not sensitive enough

• Sol-R 1 Flightstick automatically self-calibrates after a few movements on the different axes.
• Access your game's menu and select Options > Controller > Gamepad or Joystick. Then adjust your joystick's sensitivity and dead zones if these options are available.

4. My joystick isn't working

- In order for the Sol-R 1 Flightstick joystick to work properly with video games, you need to update its firmware.

To carry out the firmware update, visit

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Select Drivers and follow the instructions, including the downloading and installation procedure.

THRUSTMASTER®

SOL-P 1

FLIGHTSTICK

Pour PC (Windows® 10/11)

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Montage

1 THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device control mechanism with labeled parts and directional arrows indicating rotation or state change.

Diagram illustrating the step-by-step installation of a device with a lock and switch, showing hand positioning and rotation mechanism.

THRUSTMASTER®

Mode Droitier

THRUSTMASTER®

THRUSTMASTER

THRUSTMASTER®

B1 B2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

Diagram of a tank's internal components with two circular insets showing rotational motion (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a mechanical device, with an orange arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram of a mechanical device with two circular insets showing rotational components (no text or symbols)

THRUSTMASTER® THRUSTMASTER®

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

Mode Gaucher Mode Droitier D THRUSTMASTER' THRUSTMASTER' D

9. Compatibilité

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Zusammenbau

1 THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating robot control mechanism with labeled parts and directional arrows indicating rotation or state change.

Diagram illustrating the step-by-step insertion of a device from a control panel to a device with lock and rotation arrows.

Multidirektionaler

Point-of-View-

Schalter

THRUSTMASTER®

Rechtshänder-Modus

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical component with an inset showing a hand holding a small component (no text or symbols present)

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and a central mechanical component.

THRUSTMASTER® THRUSTMASTER®

Diagram of a mechanical device with two circular insets showing rotational components (no text or symbols)

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER™

THRUSTMASTER®

Diagram showing a hand inserting a small component into a device, with an orange arrow indicating the direction of insertion.

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a screw into a housing component (no text or symbols present)

Diagram of a tank with two circular insets showing mechanical components and rotation arrows (no text or symbols)

THRUSTMASTER® THRUSTMASTER®

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Höhenadapter

Illustration of a hand pressing down on a mechanical component with an orange arrow indicating motion (no text or symbols)

Mit Adapter

Illustration of a hand pressing down on a tank, showing mechanical components and motion direction (no text or symbols)

D THRUSTMASTER®

Rechtshänder-Modus

THRUSTMASTER D

9. Kompatibilität

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

2. Technische specificaties

1 2 3 4 5 A1 A2 5 6 7

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Montage

1 THRUSTMASTER'

2 THRUSTMASTER®

THRUSTMASTER®

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes and symbols without any text, numbers, or labels

Technical line drawing of a robotic control device with a lever and base mount (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device control mechanism with labeled parts and directional arrows indicating rotation or state change.

Diagram illustrating the step-by-step installation of a device with a lock and switch, showing hand positioning and rotation mechanism.

Multidirectionele switch

Point-of-View-hat-

THRUSTMASTER®

Rechtshandige modus

THRUSTMASTER'

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER®

1. Schroef de linker duimsteun (B1) vast.

Diagram of a hand using a screwdriver to adjust a thrust mechanism on a mechanical base (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

Diagram of a tank's internal components with two circular insets showing rotational motion (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Om de joystick in de Rechtshandige modus te zetten:

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

1. Schroef de rechter duimsteun (A1) vast.

THRUSTMASTER®

Diagram showing a hand inserting a small component into a mechanical device, with an orange arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram of a mechanical device with two circular insets showing rotational components (no text or symbols)

THRUSTMASTER® THRUSTMASTER®

Technical diagram showing mechanical assembly with two circular insets illustrating rotational motion between components

Hoogte-adapter

Illustration of a hand pressing down on a tank component with an orange arrow indicating motion (no text or symbols)

Met de adapter

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

D THRUSTMASTER®

Rechtshandige modus

D THRUSTMASTER

9. Compatibiliteit

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Assemblaggio

THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and labeled 'TERUSTMASTER' (no text or symbols on the device itself)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating robot control mechanism with labeled parts and directional arrows indicating rotation or locking operations.

Diagram illustrating a robotic device's rotary adjustment mechanism, showing hand positioning and lock mechanism with orange rotation arrows.

THRUSTMASTER®

Modalità destrimane

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a hand pin pointing to a component (no text or symbols present)

Diagram of a tank with two circular insets showing mechanical components and rotation arrows (no text or symbols)

THRUSTMASTER' THRUSTMASTER'

Diagram of a tank with two circular insets showing mechanical components and rotational arrows (no text or symbols)

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a mechanical device, with an orange arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a screw into a housing component (no text or symbols present)

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and a central mechanical component.

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

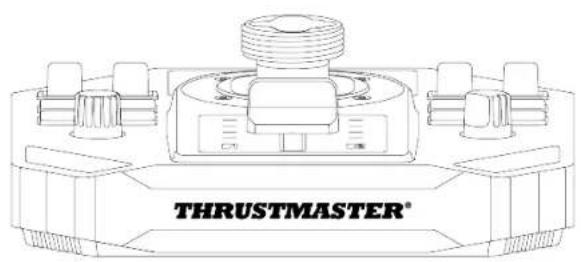

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of C "18"

19 x 4

16 Conector USB-C
17 Interruptor selector: LEFT HANDED (zurdo) / RIGHT HANDED (diestro)
18 Cable USB-A - USB-C
19 Soportes de estabilidad

THRUSTMASTER®

4. Montaje

THRUSTMASTER®

2 THRUSTMASTER®

THRUSTMASTER®

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and labeled 'TERUSTMASTER' (no text or symbols on the device itself)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device's lock mechanism with labeled parts and directional arrows indicating rotation or locking.

Diagram illustrating a robotic device's lock mechanism with labeled parts and rotation arrows

THRUSTMASTER®

Modo para diestros

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

Diagram illustrating mechanical assembly with labeled components and rotational arrows, showing a tank silhouette and mechanical assembly.

THRUSTMASTER® THRUSTMASTER®

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a mechanical device, with an orange arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram of a mechanical device with two circular insets showing rotational components (no text or symbols)

THRUSTMASTER® THRUSTMASTER®

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Adaptador de altura

Illustration of a hand pressing down on a mechanical component with an orange arrow indicating motion (no text or symbols)

Con el adaptador

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

D THRUSTMASTER®

Modo para diestros

THRUSTMASTER D

9. Compatibilidad

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

16 Conector USB-C
17 Seletor: LEFT HANDED (Modo Esquerdino) / RIGHT HANDED (Modo Destro)
18 Cabo USB-A/USB-C
19 Suportes de estabilidade

THRUSTMASTER®

4. Montagem

1 THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

5. Instalação no PC

1. Visite:

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and labeled 'TERUSTMASTER' (no text or symbols on the device itself)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating robot control mechanism with labeled parts and directional arrows indicating rotation or state change.

Diagram illustrating the step-by-step operation of a device's lock switch, showing hand positioning and rotation mechanism.

Hat switch de ponto de vista

multidirecional

THRUSTMASTER®

Modo Destro

THRUSTMASTER®

THRUSTMASTER

THRUSTMASTER®

B1 B2 THRUSTMASTER®

1. Enrosque o descanso do polegar esquerdo (B1).

THRUSTMASTER®

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

Technical diagram showing mechanical assembly with two circular insets illustrating rotational components and a tank silhouette.

THRUSTMASTER® THRUSTMASTER®

Diagram of a mechanical device with two circular insets showing rotational components (no text or symbols)

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a mechanical device, with an orange arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a component into a housing (no text or symbols present)

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Adaptador de altura

Illustration of a hand pressing down on a mechanical component with an orange arrow indicating motion (no text or symbols)

Com o adaptador

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

D THRUSTMASTER®

Modo Destro

THRUSTMASTER' D

9. Compatibilidade

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

Para proceder à atualização do firmware, visite https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of A: 18
    note right of D: 0

19 x 4

THRUSTMASTER®

4. Сборка

THRUSTMASTER

2 THRUSTMASTER

THRUSTMASTER®

5. Установка на ПК

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and base mount (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device lock operation with labeled parts and directional arrows indicating rotation or adjustment.

Diagram illustrating the step-by-step installation of a device with a lock and switch, showing hand positioning and rotation mechanism.

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER

THRUSTMASTER

B1 B2 THRUSTMASTER

THRUSTMASTER®

Technical line drawing of a mechanical component with a magnified inset showing a hand inserting a black plug into a housing (no text or symbols)

Technical diagram showing a hand inserting a component into a device, with an arrow indicating direction and a red dot marking the end.

Diagram of a tank with two circular insets showing mechanical components and rotation arrows (no text or symbols)

THRUSTMASTER THRUSTMASTER

Diagram illustrating mechanical assembly with labeled components and rotational arrows, showing a tank-like structure with two circular insets.

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a component into a device, with an arrow indicating the direction of insertion.

Technical line drawing of a mechanical assembly with a magnified inset showing a hand inserting a screw into a component (no text or symbols)

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Адаптер высоты

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

С адаптером

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

D THRUSTMASTER®

THRUSTMASTER D

9. Совместимость

Рули направления

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Montáž

1 THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

5. Instalace na PC

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes and symbols without any text, numbers, or labels

Technical line drawing of a robotic control device with a lever and base mount (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating robot control mechanism with labeled parts and directional arrows indicating rotation or locking operations.

Diagram illustrating the step-by-step operation of a device's lock switch, showing hand positioning and rotation mechanism.

THRUSTMASTER®

Režim pro praváky

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

Diagram of a tank's internal components with two circular insets showing rotational motion (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a device, with an orange arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a component into a housing (no text or symbols present)

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Technical diagram showing mechanical assembly with labeled components and rotational arrows indicating motion or movement.

Výškový adaptér

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

1. UÇUŞ KOLUNUN AYARLANMASI .....32

https://support.thrustmaster.com/product/sol-r-1- flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Takma

THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

5. PC'de kurulum

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and labeled 'TERUSTMASTER' (no text or symbols on the device itself)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device's lock mechanism with labeled parts and directional arrows indicating rotation or locking.

Diagram illustrating a robotic device's lock mechanism with labeled parts and rotation arrows

THRUSTMASTER

THRUSTMASTER®

B1 B2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

Diagram of a tank's internal components with two circular insets showing rotational motion (no text or labels)

THRUSTMASTER THRUSTMASTER

Diagram of a mechanical device with two circular insets showing rotational components (no text or symbols)

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a mechanical device, with an orange arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a component into a housing (no text or symbols present)

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Yükseklik adaptörü

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

1. ZAAWANSOWANA APLIKACJA DO

PROGRAMOWANIA T.A.R.G.E.T. 48

Instalacja 48

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Zakładanie

1 THRUSTMASTER®

2 THRUSTMASTER®

THRUSTMASTER®

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a mechanical device with a lever and control panel (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device's lock mechanism with labeled parts and directional arrows indicating rotation or locking.

Diagram illustrating a robotic device's lock mechanism with labeled parts and rotation arrows

THRUSTMASTER®

Tryb praworęczny

THRUSTMASTER®

THRUSTMASTER

THRUSTMASTER®

B1 B2 THRUSTMASTER®

Diagram of a hand using a screwdriver to adjust a thrust mechanism on a mechanical device (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a hand inserting a plug into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with a hand pin inserted, showing a close-up view of the component (no text or symbols present)

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER THRUSTMASTER

Diagram illustrating mechanical assembly with labeled components and rotational arrows, showing a tank-like structure with two circular insets.

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical assembly with an inset showing a hand pin pointing to a component (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a screw into a housing component (no text or symbols present)

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Diagram illustrating mechanical assembly with labeled components and rotational arrows, showing a tank-like structure with two circular insets.

Adapter wysokości

Illustration of a hand pressing down on a tank component with an orange arrow indicating motion (no text or symbols)

Z adapterem

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

D THRUSTMASTER®

Tryb praworęczny

THRUSTMASTER' D

9. Zgodność

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

INNEHÅLLSFÖRTECKNING

1. INNEHÅLL I FÖRPACKNINGEN ......6
2. TEKNISKA DELAR....7
3. ANVÄNDNINGSINFORMATION ......11
4. MONTERING....13
5. INSTALLATION PÅ PC....15

Kontrollpanelen 16

Mappning....20

1. INSTALLATION PÅ ETT STÖD ......23

Installation på en TM Flying Clamp*......24

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

2. Tekniska delar

1 2 3 4 5 A1 A2 6 7 2 3 5

B1

B2

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Montering

1 THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

5. Installation på PC

1. Gå till:

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

LT S RQF 15 mm M6 THRUSTMASTER

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and labeled 'TERUSTMASTER' (no text or symbols on the device itself)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device control mechanism with labeled parts and directional arrows indicating rotation or state change.

Diagram illustrating a robotic device's rotary adjustment mechanism, showing hand positioning and lock mechanism with orange rotation arrows.

POV-hattknapp

THRUSTMASTER

THRUSTMASTER®

B1 B2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical device with an inset showing a hand holding a small component (no text or symbols present)

Diagram showing a hand inserting a component into a mechanical device, with no visible text or symbols.

Technical diagram showing mechanical assembly with two circular insets illustrating rotational components and a tank silhouette.

THRUSTMASTER® THRUSTMASTER®

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a device, with an orange arrow indicating the direction (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a component into a housing (no text or symbols present)

Diagram of a mechanical device with two circular insets showing rotational components (no text or symbols)

THRUSTMASTER® THRUSTMASTER®

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Höjdadapter

Illustration of a hand pressing down on a mechanical component with an orange arrow indicating motion (no text or symbols)

Med adaptern

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

D THRUSTMASTER®

Högerhänt läge

THRUSTMASTER' D

9. Kompatibilitet

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID

18

19 x 4

THRUSTMASTER®

4. Asennus

1 THRUSTMASTER®

2 THRUSTMASTER®

THRUSTMASTER®

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Napsauta

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and base (no text or symbols)

* Myydään erikseen.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating the step-by-step mechanism of a device's lock operation, showing hand positioning and rotation around a key.

Diagram illustrating the step-by-step operation of a device's lock switch, showing hand positioning and rotation around keyhole.

THRUSTMASTER®

Oikeakätinen tila

THRUSTMASTER®

Näkymätoiminto

voidaan

poistaa

käytöstä.

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER

THRUSTMASTER®

Technical line drawing of a mechanical component with an inset showing a hand inserting a plug into a housing (no text or symbols present)

1. Aseta haluamasi irrotettava painike (C1 tai C2) B2-peukalotuen alle.

Diagram showing a hand inserting a component into a device, with an arrow indicating direction and a red dot marking the step.

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

THRUSTMASTER' THRUSTMASTER'

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER

Technical line drawing of a mechanical component with a red arrow indicating a step, no text or symbols present.

1. Aseta haluamasi irrotettava painike (C1 tai C2) A1-peukalotuen alle.

Technical line drawing of a mechanical assembly with a magnified inset showing a red arrow pointing to a component (no text or symbols present)

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

Korkeussovitin

Illustration of a hand pressing down on a mechanical component with an upward arrow indicating motion (no text or symbols)

Sovittimen kanssa

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

D THRUSTMASTER®

Oikeakätinen tila

THRUSTMASTER D

9. Yhteensopivuus

* Myydään erikseen.

Sivuperäsimet

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick.

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID

18

19 x 4

16 USB-C konektor
17 Prepínač: LEFT HANDED (pre l'avákov) / RIGHT HANDED (pre pravákov)
18 USB-A – USB-C kábel
19 Podpory stability

THRUSTMASTER®

4. Montáž

THRUSTMASTER®

2 THRUSTMASTER®

THRUSTMASTER®

5. Inštalácia na PC

1. Navštívte:

https://support.thrustmaster.com/product/sol-r-1-flightstick.

1. Stiahnite si a nainštalujte PC ovládač a jeho prispôsobené rozhranie pre ovládací panel Windows.

2. Po nainštalovaní ovládača pre PC pripojte joystick Sol R 1 Flightstick k jednému z USB portov vášho počítača pomocou kábla USB A – USB C.

USB-C USB-A

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating the step-by-step instructions for adjusting a device, showing hand positioning and lock mechanism with red arrows.

Technical diagram showing a hand operating a camera with a lock icon and a close-up of the device's rotation mechanism.

THRUSTMASTER®

Režim pre pravákov

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER

1. Zaskrutkujte l'avú opierku palca (B1).

THRUSTMASTER®

Technical line drawing of a mechanical component with an inset showing a hand inserting a plug into a housing (no text or symbols present)

Diagram showing a hand inserting a component into a device, with an arrow indicating direction and a red dot marking the end.

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and a tank silhouette.

THRUSTMASTER® THRUSTMASTER®

Diagram of a tank with two circular insets showing mechanical components and rotational arrows (no text or symbols)

Ak chcete nastavit' joystick v režime pre pravú ruku:

THRUSTMASTER®

1. Odstráňte obe časti l'avej opierky palca (B1 a B2).

THRUSTMASTER®

A1 A2 THRUSTMASTER®

1. Naskrutkujte pravú opierku palca (A1).

THRUSTMASTER

Technical line drawing of a mechanical component with a red arrow indicating a step, no text or symbols present.

Technical line drawing of a mechanical assembly with a magnified inset showing a red arrow pointing to a component (no text or symbols present)

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

THRUSTMASTER® THRUSTMASTER®

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

Výškový adaptér

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. Összeszerelés

1 THRUSTMASTER®

2 THRUSTMASTER®

THRUSTMASTER®

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes and symbols without any text, numbers, or labels

Technical line drawing of a robotic control device with a lever and base mount (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating the step-by-step operation of a device's lock mechanism, showing hand positioning and rotation around a key.

Diagram illustrating a hand operating a camera mechanism with an orange rotation arrow, alongside a device labeled 'TRUSTMASTER'.

THRUSTMASTER®

Jobbkezes mód

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER

THRUSTMASTER®

Technical line drawing of a mechanical device with an inset showing a hand inserting a component into a housing (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a hand pin pointing to a component (no text or symbols present)

Diagram of a tank-mounted sensor or actuator with two circular insets showing rotational components (no text or symbols present)

THRUSTMASTER THRUSTMASTER

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a mechanical device, with no visible text or symbols.

Technical line drawing of a mechanical assembly with an inset showing a hand inserting a screw into a housing component (no text or symbols present)

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

Magasság adapter

Illustration of a hand pressing down on a mechanical component with an orange arrow indicating motion (no text or symbols)

Az adapter nélkül

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

D THRUSTMASTER®

Jobbkezes mód

THRUSTMASTER D

9. Kompatibilitás

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

https://support.thrustmaster.com/product/sol-r-1-flightstick.

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-

flightstick

,הכלההוּרָה

Technical line drawing of a mechanical component with threaded shaft and mounting flanges (no text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

תְרָה בְּרָה.2

1 2 2 3 3 4 5 5 A1 A2 6 7

5

5

B2

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

USB-C 16

RIGHT / (אַרְהָרִי) LEFT HANDED

17 :

HANDED (I'Y)

USB-A - USB-C

18

תְרָהִיַעֹת אַרְבָר

19

תַלְרָה בְּרָה

THRUSTMASTER®

תְבָרִי.4

THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

PC 1277-1277.5

https://support.thrustmaster.com/product/sol-

r-1-flightstick.

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

.LED אַרְׁעֹת אַרְׁעֹת אַרְׁעֹת אַרְׁעֹת אַרְׁעֹת אַרְׁעֹת

הכלה, AVA o'or 's' is Sol-R n'or 's' is

*

1 2 3 4 14 15 12 13 5 6 7 8 9 11 10 0+ 255- THRUSTMASTER Slider0 Axis 20 21 22 23

הַרְשָׁה

27 26 24 25 28

PoV 40 PoV 42 PoV 43 32 31 30 33 34 35 39 37 36 38 Y Axis 0 X Axis 16383 16383 255 0 RZ Axis

26 27 25 24 28

PoV 720 PoV 720 30 29 32 31 30 33 34 42 41 40 43 44 35 39 37 36 38 Y Axis 0 X Axis 16383 255 0 RZ Axis 16383

תְבָרִי הַלְהַעֹן.6

15 mm M6 THRUSTMASTER

Pure electrical circuit lines without any symbols

Technical line drawing of a robotic control device with a lever and base (no text or symbols)

תָרִיְה בַעּוֹם*

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device's lock mechanism with labeled parts and directional arrows indicating rotation or adjustment.

Diagram illustrating the step-by-step operation of a robotic device, showing hand positioning and lock mechanism with red arrows indicating rotation.

"Point of View" PoV

THRUSTMASTER®

תָאַעְרִי הַעְרִי

THRUSTMASTER®

Point of view hat- ⁷⁶ (הכלההוֹרָה כְרִי)

.תְרָבִי-הַת ("Point Of View") PoV בַלְעֹן) switch

THRUSTMASTER

THRUSTMASTER®

הכלה (B2-1 B1)

.תְקּוֹר אַל

B1 B2 THRUSTMASTER

.(B1) 7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500-7500

THRUSTMASTER®

הכלה (C2 16 C1)

.תְקַרָה אַלְבָרִים

Technical line drawing of a mechanical component with an inset showing a hand inserting a small component (no text or symbols present)

Diagram showing a hand inserting a component into a device, with an arrow indicating direction and a red dot marking the step.

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and a central mechanical component.

THRUSTMASTER' THRUSTMASTER'

10

.תְקּרָה בַעֹשִׁ

Diagram of a mechanical device with two circular insets showing internal components and rotation arrows (no text or symbols)

THRUSTMASTER®

-1 B1) 7707777777777777777777777777777777777777777

B2.(

THRUSTMASTER®

הכלה (A2-IA1)

.תְקַרָה אַע

A1 A2 THRUSTMASTER®

THRUSTMASTER®

הכלה (C2 16 C1)

.תְפַעֹר אָה בְּוֹם

Diagram showing a hand holding a small black object with an arrow pointing to a mechanical component, no text or symbols present.

Technical line drawing of a mechanical assembly with a magnified inset showing a red arrow pointing to a component (no text or symbols present)

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

THRUSTMASTER® THRUSTMASTER®

10

.תְקּרָה בַעֹשִׁ

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

THRUSTMASTER D THRUSTMASTER THRUSTMASTER

.*Thrustmaster Pendular Rudder :TPR –

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

Thrustmaster Advanced pRogramming) T.A.R.G.E.T

https://support.thrustmaster.com/product/sol-r-1-

.flightstick

.Script - Advanced, Basic:

-

MFD ,*TFRP ,*TWCS ,*T.16000M FCS ,*Cougar

https://support.thrustmaster.com/product/sol-r-1-.flightstick

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-.1-flightstick

https://support.thrustmaster.com/product/sol-r-1-

.flightstick

Technical line drawing of a mechanical component labeled 'THRUSTMASTER' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

16 17 LEFT HANDID RIGHT HANDID

18

19 x 4

USB-C موصّ 16 ل

THRUSTMASTER®

4. تجmeg القطع

1 THRUSTMASTER®

2 THRUSTMASTER®

THRUSTMASTER®

https://support.thrustmaster.com/product/sol-r-

.1-flightstick

رواجهتی 2

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with labeled 'TROSTMASTER' on the base (no other text or symbols)

* تُباع منفصلة

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand using a tool to adjust a circular component, with an inset showing the step and rotation (no text or symbols)

Top-down schematic of an aircraft cockpit with orange arrows indicating clockwise motion and a black X mark on the control panel (no text or symbols)

لفتح وظيفة التوجيه:

Line drawing of a microscope with an inset showing a hand holding a tool, highlighting the eye area (no text or symbols present)

Line drawing of a YHNUXTMASTER airship control panel with orange circular arrows indicating rotational flow (no text or symbols on the diagram itself)

THRUSTMASTER®

وضع اليد اليسرى

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER

B1 B2 THRUSTMASTER®

THRUSTMASTER®

Technical line drawing of a mechanical component with an inset showing a hand holding a small black connector (no text or symbols present)

Diagram showing a hand inserting a plug into a mechanical component, with an arrow indicating direction (no text or symbols present)

Diagram illustrating mechanical assembly with labeled components and rotational arrows, showing a tank-like structure with two circular insets.

THRUSTMASTER® THRUSTMASTER®

Diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER®

THRUSTMASTER

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small component into a device, with an orange arrow indicating the direction of insertion.

Technical line drawing of a mechanical assembly with an inset showing a hand holding a screwdriver (no text or symbols present)

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

THRUSTMASTER THRUSTMASTER

Diagram of a tank with two circular insets showing rotational components (no text or labels)

.*Thrustmaster Pendular Rudder :TPR -

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

T.A.R.G.E.T (Thrustmaster Advanced pRogramming

Graphical EdiTor

https://support.thrustmaster.com/product/sol-r-

.1-flightstick

MFD Cougar و *TFRPTWCS و *T.16000M FCS و

*AVA *Viper *TCA *Pack

https://support.thrustmaster.com/product/sol-r-1-.flightstick

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-

.1-flightstick

https://support.thrustmaster.com/product/sol-r-1-flightstick

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

2. 技術仕様

1 2 2 3 3 4 5 5 A1 A2 6 7

5 B1 5 B2

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4

THRUSTMASTER®

4. 組み立て

1 THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

5. PC で使用する

1. 以下のサイトにアクセスしてください:

https://support.thrustmaster.com/product/sol-r-1-flightstick

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure geometric shapes with no text, numbers, or symbols

Technical line drawing of a robotic control device with a lever and base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating a robotic device control mechanism with labeled parts and directional arrows indicating rotation or state change.

ラダー機能のロックを解除するには:

Diagram illustrating the step-by-step mechanism of a robotic device, showing hand positioning and lock operation with red arrows indicating rotation.

多方向視点ハットスイッチ

THRUSTMASTER®

右利きモード

THRUSTMASTER®

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER

THRUSTMASTER®

Technical line drawing of a mechanical assembly with a magnified inset showing a hand pin (no text or symbols present)

Diagram showing a hand inserting a component into a device, with an arrow indicating direction and a red dot marking the end.

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

Diagram illustrating mechanical assembly with labeled components and rotational arrows, showing a tank-like structure with two circular insets.

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

THRUSTMASTER®

Diagram showing a hand inserting a small black component into a mechanical device, with no visible text or symbols.

Technical line drawing of a mechanical assembly with a magnified inset showing a hand inserting a component (no text or symbols)

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and a vehicle silhouette.

THRUSTMASTER® THRUSTMASTER®

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

高さアダプター

ラダー

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

T.A.R.G.E.T ( Thrustmaster Advanced pRogramming

https://support.thrustmaster.com/product/sol-r-1-flightstick

https://support.thrustmaster.com/product/sol-r-1-flightstick

QR code image containing encoded data, no visible human-readable text

https://support.thrustmaster.com/product/sol-r-1-flightstick

Technical line drawing of a mechanical component labeled 'THRUSTMASTER' (no other text or symbols)

更新固件

http://support.thrustmaster.cn/product/sol-r-1-flightstick

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

2. 技术特性

1 2 2 3 3 4 5 5 A1 A2 6 7

5 B1 5 B2

16 17 LEFT HANDID RIGHT HANDID

18

19 x 4

16 USB-C 接口
17 选择器开关: LEFT HANDED (左利手) / RIGHT HANDED (右利手)
18 USB-A - USB-C 电缆
19 稳定支架

3. 用法信息

文档

THRUSTMASTER®

4. 组装

1 THRUSTMASTER

2 THRUSTMASTER®

THRUSTMASTER®

5. 安装到 PC 上

1. 请访问：

http://support.thrustmaster.cn/product/sol-r-1-flightstick

Control Panel

Game Controllers These settings help you configure the game controllers installed on your computer. Installed game controllers Controller Status Sol-R [L] Flightstick OK Advanced... Properties OK

Thrustmaster Flight Control Panel Properties Test Input LEDs LED - BUTTON #5 R: 155 G: 255 B: 55

9bff37

Current: Old: SELECT ALL THRUSTMASTER www.thrustmaster.com Technical Support: support.thrustmaster.com Control Panel: 3.35 Firmware: 1.31 / 1.33 Check for Update OK Cancel Apply

Pure electrical circuit lines without any symbols

Technical line drawing of a robotic control device labeled 'TERUSTMASTER' (no text or symbols on the device itself)

*另售

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram illustrating the step-by-step instructions for adjusting a device's lock mechanism, with magnified view showing hand positioning and rotation.

要解锁方向舵功能，请：

Diagram illustrating the step-by-step installation of a device with a key inserted, showing hand positioning and rotation mechanism.

多向视角苦力帽开关

THRUSTMASTER®

THRUSTMASTER®

B1 B2 THRUSTMASTER®

5.拧紧左手拇指托(B1)。

THRUSTMASTER®

Technical line drawing of a mechanical component with an inset showing a hand holding a small black object (no text or symbols present)

Technical diagram showing a hand operating a mechanical component with an arrow indicating direction, alongside a schematic sketch of the device.

1. 拧松用于固定腕托的两颗螺丝。

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

THRUSTMASTER® THRUSTMASTER®

1. 拧紧用于固定腕托的两颗螺丝。

Technical diagram of a mechanical assembly with two circular insets showing internal components (no text or symbols)

要将摇杆设置为右利手模式，请：

THRUSTMASTER®

THRUSTMASTER®

A1 A2 THRUSTMASTER®

5.拧紧右手拇指托(A1)。

THRUSTMASTER®

Diagram showing a hand holding a small black object with an arrow pointing to a mechanical component, connected to a base (no text or symbols present)

Technical line drawing of a mechanical assembly with a magnified inset showing a hand holding a screwdriver (no text or symbols present)

1. 拧松用于固定腕托的两颗螺丝。

Technical diagram of a mechanical assembly with two circular insets showing rotational components (no text or labels)

THRUSTMASTER® THRUSTMASTER®

1. 拧紧用于固定腕托的两颗螺丝。

Technical diagram showing mechanical assembly with two circular insets highlighting rotational components and directional arrows.

高度适配器

THRUSTMASTER T.F.R.G.E.T. ADVANCED PROGRAMMING GRAPHICAL EDITOR

http://support.thrustmaster.cn/product/sol-r-1-flightstick

http://support.thrustmaster.cn/product/sol-r-1-flightstick

QR code image containing encoded data, no visible human-readable text

http://support.thrustmaster.cn/product/sol-r-1-flightstick

https://support.thrustmaster.com/product/sol-r-1-flightstick。

Technical line drawing of a mechanical component labeled 'THRUSTMASTER®' (no other text or symbols)

B1

B2

C2

D

Pure electrical circuit lines without any symbols

x 4

2. 技術特性

1 2 2 3 3 4 5 5 A1 A2 6 7

5 B1 5 B2

16 17 LEFT HANDID RIGHT HANDID
    note right of B "18"

19 x 4
