USER MANUAL SS-5095 Sogo

Exterior view of a modern K600 juice<|im_start|> Greenland tea maker with black and silver casing (no text or symbols visible)

Descarga tu manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

Exploded view diagram of a food blender with numbered parts for identification

7. Exprimir

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any purpose other than that described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on a flat and even surface.
• This product is designed for indoor domestic, non-industrial and non-commercial use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems with the appliance and may cause injury to the user.
• Make sure that the voltage indicated on the rating plate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the mains socket when the appliance is not in use. Do not leave the appliance unattended when it is switched on.
• Supervision is necessary when any electrical appliance is used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and allow it to cool down.
• Appliances are not designed to be operated by an external timer or separate remote-control system.
• This appliance is intended for use in domestic and similar applications, such as

- Staff kitchen areas in shops, offices and other working environments;

- Cottages and guest houses in hotels, motels and other residential type environments;

- Bed and breakfast environments;

- Catering and similar non-retail applications.

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.

• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorised service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorised service facility for examination, repair or adjustment.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating of the cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
  • Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capa-

bilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

Instructions to follow when using the appliance

- Before juicing, first confirm that juicing net and rotor clutch is put in position, and there should be no hard contact between juicing net cutter and transparent cover. Put the transparent cover on, fasten tight the handle, then turn on the machine.

- Before being used, when the motor works in running-in phase, there may be a slight peculiar smell and sparks. This is normal. After the motor works for some period, the above phenomenon will disappear.

- During juicing, make sure there is not too much juice and residue in the middle part of the juicing container and the residues container. If you find the containers are too full, please cut off power supply, clean up, then use again.

- During the usage, do not open the cup cover. In case power supply is on, do not put hand or any utensils into the mixing cup or feed port, otherwise, accident may occur or this machine may be damaged.

- In order to prolong service life of this machine, over-temperature protective device is mounted in the motor. If the motor works for a long time or overloaded, then temperature rises too much and at that time power supply will automatically cut off. Once the motor stops, pull out plug of power supply, wait for the motor to cool down (about for 30 min), and then use it again.

- When this appliance is doing the work of mixing, mincing or grinding, leaving the main juicing container empty or over loaded, both are strictly prohibited.

• After the operation, do not pour the food out until the power supply plug is pulled out.

- The cutters are very sharp. In order to avoid danger, when cleaning a cutter, please put the cutter under water tap for washing, do not wash it with hand.

- Avoid contact with moving parts of the appliance during operation.

- Switch off the appliance and disconnect it from the mains before changing accessories or approaching moving parts in use.

- Do not connect the appliance to the mains until it is fully assembled and always disconnect the appliance before assembling or disassembling.

- If too much pressure is applied to the cone while juicing, the motor may stop running.

3. CARACTÉRISTIQUES TECHNIQUES

Voltage Power Frequency
AC220-240V600W 50-60Hz

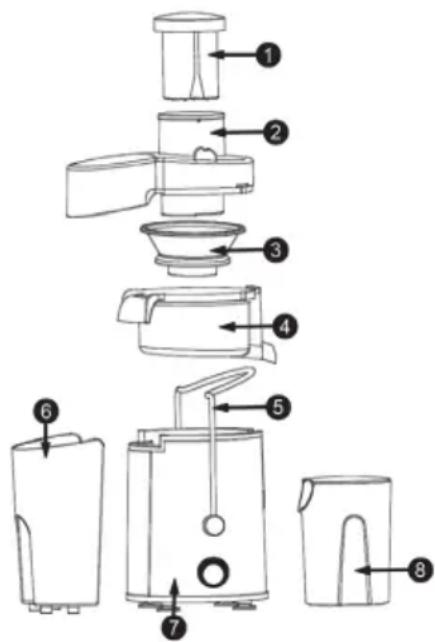

4. PARTS DIAGRAM NAME AND POSITION OF MAIN COMPONENTS

1. Pushing bar
2. Transparent cover
3. Juicing net
4. Middle ring
5. Handle
6. Pulp container
7. Main machine
8. Juicer jug

5. PRODUCT FEATURES

• Extracts juice of fruits and vegetables such as apples, carrots, pears, etc
• 1.5L pulp container and jug with lid 0.5L for juice
- Keeps the juice separated from the pulp and provides healthy drinks
- Powerful 600W motor and two speed selectors to effectively extract the juice from both soft or hard fruits or vegetables
- With blue LED indicator ring
- Adjustable Drip Spout: eliminates spills to keep your desk clean.
- The feeding tube (65mm) allows you to place whole fruits and vegetables with ease
- Allows you to remove dishwasher safe parts for easy cleaning
- Stainless Steel body
- Provides a more durable and long-term use
• High speed electric motor with overheating protection
• Equipped with safety lock unit

- For the juicer with large diameter, entire apple or pear can be put in for juicing, no cutting apart needed, easy and quick.

Exploded view diagram of a food blender with numbered parts for identification

6. ATTENTION BEFORE USING

• This machine is set with a safety measure. To ensure user safety, the motor will not be turn on, until handle does not fasten the cover or the cutter seat is not fastened,
• When disassembling or assembling the juicer, press the upper of feed port of the cover with your hand, then force the handle to slide in or out of cover slot.
• When disassembling juicing net, first remove the cover and residue barrel, then put up the middle ring by holding juicing nozzle with your hand, and take up, the juicing net will automatically leave the rotor.
• In order to avoid damage, before using, first check power supply for compliance with rated voltage.
• Clean all parts able to disassemble (refer to the section of "maintenance and cleaning").
• When assembling, please carefully read the diagram of "name and position of main components".
• Please carefully read the "safety instructions" before using.

7. JUICING

• Before using, please make sure that on/off switch is in off position. to avoid any personal injury and appliance damage make sure to assemble the unit before use.
• Before juicing, first confirm juicing net and rotor are clutched in position, and that there is no hard contact between juicing net cutter and transparent cover. Put the transparent cover on, put the handle into the cover slot, then turn on the machine.
• For using, assemble the unit following diagram of “name and position of main components”. Turn on power supply, press switch to let the machine run with no-load for 5 sec. Put prepared vegetable or fruit into the feed port of the juicer, press with the pushing bar, evenly, hard and slowly. Then the juice of the vegetable or fruit can be collected in the serving jar attachment.
• Note: While pressing food with the pushing bar, do not force heavily and suddenly. Push it evenly and slowly to maximize the juicing effect

8. OPERATING TIME

• This Juicer is provided with one single button with Power and 2 speed positions.
  (O) position is to Turn off the appliance.
  (I) to turn on the appliance with low speed and for soft fruits and vegetables.
  (II) to turn on the appliance with maximum speed and for hard fruits and vegetables.
• Maximum operational time of appliance is 1 minute, after every single minute switch off the appliance, wait to cool down the appliance for 1 minute and then operate it again.
• After using the appliance 3 time continuously let it rest for 15 minutes before using it again. Do not use it again until motor cool down completely. This procedure helps, that appliance works smoothly and efficiently.

9. MAINTENANCE AND CLEANING

• Always keep the motor and other operating parts dry and clean.
- If not using the appliance for a long time, store it in a dry and well-ventilated place so as to prevent the motor from any kind of malfunction.
- Do NOT wash the main machine. When cleaning the main machine, only wipe with wet cloth. Other components may be washed directly with water, such as pushing bar, cover, middle seat, residue cup, juice nozzle.

SUGGESTED RECIPES FOR FRUIT AND VEGETABLE JUICES:

JUICE OF APPLE WITH CARROT

Ingredients:

3 Big Apples (Wash them and remove the stem)

1 Carrot (wash, peel and cut the stem)

Preparation:

1 Once we washed the apples introduce into the juice extractor and extract the juice. (We can mix between red and green apples for best flavour)

2 Then we pass the carrot through the juice extractor

3 Mix well both the juices, serve and drink immediately

4 Optionally you can spice up with a sprig of mint or a piece of ginger

PAPAYA JUICE

Ingredients:

1 Large and ripe Papaya (peeled and seeded).

Preparation:

1 With the de-seeding of papaya cut them up into

smaller pieces and introduce them into the juice extractor

2 Serve in a glass and take away

GRAPE JUICE

Ingredients:

1 A bunch of Grapes white, black or red (washed and without stems)

Preparation:

1 PIs introduce the washed grapes into the juice extractor to extract the juice 2 Serve fresh and drink

FRESH TOMATO JUICE

Ingredients:

1 kilo of fresh and ripe tomatoes

Some stalks of celery

Preparation:

1 We pass the tomatoes and celery through the juice extractor
2 Mix the juices in a bowl and season it with some salt and pepper to taste
3 Serve and drink

WATERMELON JUICE

Ingredients and Preparation:

1 Cut the watermelon to taste taking out the outer skin and seeds
2 Cut into pieces of sufficient size to enter into your juice extractor
3 Once passed through the extractor, serve and drink

CARROT AND CELERY JUICE

Ingredients:
4 Large carrots (wash, peel and cut the stem)
1 Large stalk celery with leaves (wash)

Preparation:

1 Once all the ingredients are thoroughly washed, cut the carrots and pass it through the juice extractor.

Then do the same with the celery 2 Serve and drink immediately to take all your vitamins

CARROT, APPLE, ORANGE AND TOMATO JUICE

Ingredients:

1 Carrot
1 Apple
1 Tomato
1 Orange

Preparation:

Wash apples, peel the carrot and go through the extraction of juice, grate the tomato pulp and strain it to get the juice. Mix all the juices and add the squeezed orange juice to it and stir it again. Serve cold and drink it right away to take advantage of all the heathy properties of this juice

ORTANT:

Exploded view diagram of a blender with numbered parts for identification

6. ATTENTION AVANT L'UTILISATION

Exploded view diagram of a coffee maker with numbered parts for identification

Exploded view diagram of a blender with numbered parts for identification

Exploded view diagram of a coffee maker with numbered parts for identification

Exploded view diagram of a food blender with numbered parts for identification

6. POZORNOST PŘED POUŽITÍM

Exploded view diagram of a coffee maker with numbered parts for identification

6. OPMÆRKSOMHED F∅R BRUG

Exploded view diagram of a coffee maker with numbered parts for identification

6. POZORNOST PRED UPORABO

Exploded diagram of a coffee maker with numbered parts for identification

6. PAŽNJA PRIJE UPOTREBE

SOK OD MRKVE I CELERA

Sastojci:

4 veće mrkve (operite, ogulite i odrežite peteljku)

MRKVA, JABUKA, NARANČA I SOK OD RAJČICE

Sastojci:

1 mrkva

1 jabuka

1 rajčica

1 naranča

priprema:

Exploded diagram of a coffee maker with numbered parts for identification

6. UWAGA PRZED UŻYCIEM

SOK MARCHWIOWY, JABŁKOWY, POMARAŃCZOWY I POMIDOROWY

Składniki:

Exploded view diagram of a food blender with numbered parts for identification

6. ATENTIE ÎNAINTE DE UTILIZARE

Diagram of a multi-step cleaning or cleaning device with numbered parts for identification

Exploded view diagram of a food blender with numbered parts for identification

6. ATENCIÓ ABANS D'UTILITZAR

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
