USER MANUAL SS-5517 Sogo

EN Instructions for use

FR Mode d'emploi

Exterior view of a modern NUTRI EXPLODE blender with black handle and digital display (no text or symbols on device body)

Descarga tu manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

Labeled diagram of a portable blender with numbered parts for identification

5. INSTRUCCIONES DE USO

Descripción de uso:

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Safety instructions for the user

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• This appliance is intended to be use used in household and similar applications.
• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remo-te-control system.
• This appliance is intended to be used in household and similar applications such as:
  – staff kitchen areas in shops, offices and other working environments;
  – farm houses;
  – by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments

Restrictions on use to avoid personal injury

- Do not place or operate this appliance near water sources.

• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

- Children should be supervised to ensure that they do not play with the appliance.

- Keep the appliance and its cord out of the reach of the children.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- Do not allow the children to use the appliance.

- Appliances can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless instructed concerning use of

the appliance by a person responsible for their safety

Instructions to follow when using the appliance

• The appliance cannot be used for blending hard and dry substance, otherwise the blades might get blunt.
• Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.
• Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming.
• Never remove the lid until the knife has stopped completely.
• This appliance is designed to process small quantities. Do not exceed the quantities indicated in these instructions for use.
• Do not use this appliance to mix glutinous food or substance.

WARNING: The blades are very sharp!

• Avoid contacting moving parts of the appliance while in function.
• Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.
• Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.
• Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.
• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
• To reduce the risk of injury, never place cutting blade on base without mounting with the jar properly.

CAUTION: Do not operate the unit when empty.

CAUTION: Do not put hot ingredients into the jar. Before food preparation, allow food to cool down for a few minutes.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

CAUTION: Maximum time of food processing should not exceed 20 secs. of continuous use. In case your food which needs to be blended further to achieve the required smoothness, use the appliance with 1min. pause to avoid permanent damage to the motor.

- It is strictly forbidden to start the blender, when the lid and the base are Not tightened firmly

• Do not use the blender nearby hot sources as it might damage the blender and, battery will explode of burn with high temperatures.
• The battery must be charged every three months, otherwise the battery will be permanently damaged
• The unit is equipped with a security function. The unit can only be switched on if the jug is put on the motor base properly. If the unit cannot be switched on, remove the jug and mount it properly and try again.

CLEANING AND MAINTENANCE: Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

3. TECHNICAL SPECIFICATIONS

Charging adaptor: 100-240V \~ 50-60Hz (Not included)

Input: 5V ; 1A

Power: 100W

Battery: 1500*2mAh, 7.4V

Charging time: 4H

Max. working time: 20 secs.

Jar Capacity: 750ml

This product complies with EU regulation 2023/826 under directive 2009/125

EC on the Eco design requirements.

Power consumption in off mode: <0.3 W

Power consumption in standby mode: N/A

Time after which the product enters into off mode: N/A

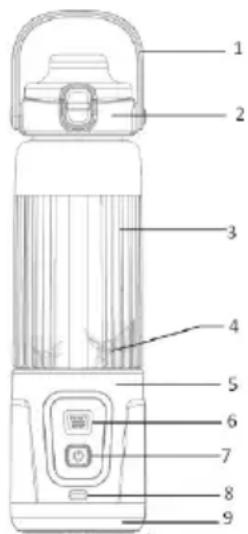

4. PARTS DESCRIPTION

1. Handle
2. Lid opening press button
3. Plastic Jar
4. Twin blades
5. Motor base
6. Start / Stop button
7. Power button
8. Charging port
9. Bottom

Accesories :

1. Type C charging câble
2. Jar bottom cover
3. Cleaning brush

Labeled diagram of a portable device with numbered parts for identification

5. INSTRUCTIONS FOR USE

Description of USE :

1. Make sure that unit is fully charged before using it.
2. Press power button to turn on and press the same button to power off.
3. Once jar is mounted on the motor body, circular blue LED turn on and flashes 5 times indicating unit is ready to work and unit enters into standby mode.
4. Place the chopped fruits or vegetables in the jar.
5. Add appropriate amount of water or liquid. Make sure that jar should not be overfilled.
6. Press the start button to start the blending function and same button can be pressed to stop the

process.

1. The LED light rotates clockwise when the machine is turned on, and the max.running time is 20 seconds.

CAUTION

1. NOTE: Do not blend dry, thick or heavy mixtures.
2. For simple blending tasks, for example, mayonnaise, salad dressings etc., do not operate for longer than 20 secs. at one single time.
3. Do not use the blender to beat egg whites as it will not incorporate air.
4. Do not use the blender to mash potatoes.
5. Do not use the blender to knead dough or other heavy mixtures.
6. Do not place large pieces of solid or frozen foods into the blender jug. Always break pieces before blending.
7. Do not overload the blender with more than specified amounts. Overloading could cause the motorto stall.
8. Do not process boiling liquids or hot ingredients. Allow hot ingredients to cool before placing them into the blender jug.
9. Do not expose the jug to sudden temperature changes (i.e. immersing the jug into hot water directly after immersing it into cold water or vice versa).
10. Over-filled can block the operation, please turn off the unit and do not connect the plug, take out some of material, then operating.
11. If with the single press unit doesn't start and the red blue display is replaced, it means that the safety switch is not detected in the safety protection mode.
12. If by pressing unit doesn't trun on and red LED is on, indicating that the voltage is too low and enters the bottom voltage protection mode.
13. Once turning on, the red LED flashes for 5 seconds, means there is an object stucked or ablade stuck or the over loading protection mode is entered.
14. The red LED is on when charging, and the blue LED is on when fully charged.

When charging, the red and blue LED alternatively light up to protect the battery temperature from being too high.

1. Make sure to cut the fruits and vegetable in 5 cm size.

2. Do not overfill the jar make sure to add the food in certain proportion.

Twin blades:

This blender is provided with twin blades that work together to blend food quickly and evenly. The twin blades make it easy to make the smoothies and shakes quickly. With two blades doing the job, you get faster results and better texture every time.

Charging Instructions:

1. Connect the charging cable to power adaptor
2. Insert the power adaptor to wall outlet
3. Press power button red LED light will turn on.
4. Connect the type c end to the unit charging port and unit start charging and RED LED lights up in sequence in clockwise direction.
5. Once unit fully charged, blue LED lights up.

Note: When not in use make sure to charge every 3 months to avoid complete discharge.

Do not clean the blades by hand or fingers. Instead use cleaning brush provided with this unit.

DISPOSAL OF BATTERY OPERATED UNITS

Do not dispose the battery operated units as normal rubbish, always these should be recycle in proper manner and according to the local municipal

laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big

super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Note: If the Remote control is not working, it may be because the batteries of the remote control are discharged / used completely.

6. CLEANING AND MAINTENANCE

• In addition to this, user must refer to the security precautions.
• Do not clean Motor main body.
• Clean the motor base with a soft, wet piece of cloth and some mild cleaning agent.
• Fill the jug half-full with hot water and a little cleaning agent. Let the unit run on speed 2 until the jug is clean.
• Clean jug, cover, closure, base and blades with sealing ring with hot water and some cleaning agent. Dry well before re-using. Caution! The blades inside of the jug are very sharp.
• Never use aggressive cleaning agents.
  WARNING: Do not to touch the sharp blade. When clean, please wipe by dishcloth, to avoid any type of injury.
  WARNING: Do not put hot ingredients into the jar. Before any food preparation, allow food to cool down for a few minutes
  ⚠️ CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.
  ⚠️ CAUTION: Maximum time of food processing should not exceed 1 Minute of continuous use. In case the food which needs to be blended further to achieve the required smoothness use the appliance dividing in various cycles with few second pauses in between each cycle to avoid permanent damage to the motor.

Trouble shooting:

1: When the power is turned on, the blue LED does not light up and cannot be turned on?

The power switch is not turned on, and the fruit juice jar does not fitted properly to the main machine.

Please mount the jar tightly and press the power switch.

2: When unit turned on, the red LED lights up and cannot be turned on?

When the battery voltage is too low, please charge it.

3: The red LED flashes after startup and stops?

Make sure to add proper quantity of fruits or food, if the quantity is too low or too high unit will not work properly.

4: The red/blue LED flashes when charging?

If the battery pack is faulty, replace the battery or return it to the seller for maintenance.

5:Cup body leakage?

If the silicone ring is not installed properly or has foreign matter, please clean the silicone ring or reinstall it.

PORTANT:

Labeled diagram of a blender with numbered parts for identification

5. MODE D'EMPLOI

Diagram of a blender with numbered parts labeled 1 through 9, showing internal structure and control buttons.

Ladeadapter: 100–240 V \~ 50–60 Hz

Diagram of a blender with numbered parts labeled 1 through 9, showing internal structure and control buttons.

Diagram of a portable device with numbered parts labeled 1 through 9

5. ISTRUZIONI PER L'USO

Diagram of a portable device with numbered parts for identification

5. NÁVOD K POUŽITÍ

Labeled diagram of a blender with numbered parts for identification

5. INSTRUKTIONER TIL BRUG

Vsebina posode: 750 ml

Labeled diagram of a portable device with numbered parts for identification

5. NAVODILA ZA UPORABO

Labeled diagram of a portable device with numbered parts for identification

Opis UPORABE:

Diagram of a blender with numbered parts for identification

5. INSTRUKCJA OBSŁUGI

Opis użytkowania:

Capacitate recipient: 750 ml

Labeled diagram of a blender with numbered parts for identification

5. INSTRUCTIUNI DE UTILIZARE

Diagram of a portable blender with numbered parts labeled 1 through 9

Labeled diagram of a blender with numbered parts for identification

5. INSTRUCCIONS D'ÚS

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
