SS-10235 - Frying Pan Sogo - Free user manual and instructions

Product Type	Outdoor gas stove (hob)
Brand	Sogo
Model	SS-10235
Gas Category	I3+ (LPG 28-30/37 mbar)
Number of Burners	2 burners
Power per Burner	2.2 kW per burner
Total Power	4.4 kW
Gas Consumption	160 g/h per burner (G30 butane)
Recommended Gas Pressure	28-30 mbar for butane, 37 mbar for propane
Ignition	Electronic piezo
Main Material	Metal with coating
Grid	Removable metal grid
Cover	Protective cover
Intended Use	Outdoor only
Warranty	3 years
After-Sales Service	www.sogosat.com / 0034 902 222 161
Dimensions (approx.)	Approx. 50 x 30 x 10 cm (estimated)
Weight (approx.)	Approx. 3 kg (estimated)
Cleaning	Damp cloth and mild detergent, no abrasives
Safety	Do not use indoors, keep away from flammable materials, do not leave unattended

Frequently Asked Questions - SS-10235 Sogo

How do I connect the gas hose to the Sogo SS-10235 stove?

Fix the gas hose (max length 1.5 m) to the connection head at the back of the appliance, tighten with a suitable metal clamp. Use a regulator set to 28-30 mbar for butane or 37 mbar for propane. Check for leaks with soapy water, never with a flame.

Can I use this stove indoors?

No, this stove is designed for outdoor use only. It does not have a combustion gas exhaust system and can cause carbon monoxide poisoning.

How do I light the burners?

Press the burner knob and turn it counterclockwise to the maximum position. Press until the electronic ignition sparks. Then adjust the flame to the desired height.

What should I do if I smell gas?

Immediately close the gas bottle valve and the regulator. Open doors and windows to ventilate. Do not light any flames or operate electrical appliances (do not turn on lights, do not use the phone). Contact an approved technical service.

What type of regulator and hose should I use?

Use a TSE certified regulator set to 28-30 mbar for butane or 37 mbar for propane. The hose must comply with TS1846 standard, be rubber for LPG, and not exceed 1.5 m. Replace it every 4 years or as soon as it shows wear.

How do I clean the stove after use?

Allow it to cool completely. Clean the surface with a damp cloth and mild dishwashing detergent, then dry. Never use abrasive products, sharp objects, or steam appliances to avoid damaging the coating.

What is the warranty for this product?

Sogo offers a 3-year warranty from the date of purchase against material or manufacturing defects. The warranty is void in case of incorrect use, failure to follow instructions, or unauthorized repairs.

Can I use glass utensils or sealed jars?

No, it is forbidden to heat glass jars or sealed cans because the pressure could cause them to burst and cause injury.

How do I check for gas leaks?

Open the regulator and apply a soapy solution to the connections. If bubbles appear, there is a leak. Never use a flame to check. If a leak is found, close the gas and contact a professional.

What should I do if the burner does not light or the flame is irregular?

Check that the injectors and venturis are not blocked by food residue. If the problem persists, contact an approved technical service. Do not attempt to repair the appliance yourself.

USER MANUAL SS-10235 Sogo

Download your manual

ref. SS-10233 / SS-10235

SS-10237/SS-10275

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

SPANISH P.3 ENGLISH P.11 FRENCH P.19 PORTUGUESE P.27 GERMAN P.35 ITALIAN P.43 CZECH P.51 DANISH P.59 SLOVENIAN P.67 CROATIAN P.75 POLISH P.83 ROMANIAN P.91 UKRAINIAN P.99 CATALAN P.107 GREEK P.115

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using. This manual can be downloaded from our web page www.sogo.es
• Keep these instructions for future reference.

Symbols and Description:

1

2

3

4

1- Important information and useful hints on use 2- Warning against dangerous situations in terms of life and property 3- Warning against fire risk 4- Warning against hot surfaces

SAFETY INSTRUCTIONS FOR THE USER

Intended use

This product is designed for outdoor use. It is not allowed for commercial use. "CAUTION: This product may be used only for cooking. It should not be used to heat the room or any other purpose."

• Be careful to avoid getting burned by touching the top panel of the gas table as it gets very hot near the burner when in use.
• Do not apply excessive pressure to the gas control knobs.
• To avoid damage, do not place charcoal on the burners.
• Do not allow the holes in the burners to become clogged.
• Keep the gas table clean for better service and a longer operation life.
• At night or when leaving the house, be sure to turn off not only the control knobs of the gas table, but also the main gas valve of gas bottle as well.
• For better complete combustion, keep the burners clean.
• Check the rubber gas hose which connect the gas cooker to the gas bottle regularly for wear or leak, it must be replaced occasionally. Keep it away from heat source and keep it clean.
• Make sure that there are no inflammable objects near the gas table.
• The cooker must be connected to the cylinder using a rubber hose for LPG in conformity with the regulations of the country in which the cooker is to be used.
• Do not move the stove when using it.
• Keep all ventilation channels unobstructed around them.

After each use of the product, make sure the pressure-reducing valve is closed.

• Do not use sharp and piercing materials to clean inside and glass of the product; such materials may give damage to your product.
• The hose must be no longer than 1.5 m and should be replaced in compliance with the current legislation in the country of use and in any case after 4 years of use.
• Always use a low-pressure regulator to connect the cooker to the cylinder. This regulator must have a normalized fixed calibration at 28-30 mbar for butane and 37 mbar for propane.
• Metal hose clips suitable for gas must be used to secure the hose to the cooker and to the regulator in the countries where it is allowed to fix the hose to the actual appliance.
• When you smell gas (leakage), close the pressure-reducing valve immediately.
• Never use flames to check for gas leaks. Always use a special spray.
• Never operate the appliance if the rubber hose is not firmly secured with the recommended clips.
• Do not use the appliance if there are leaks, damage, or malfunction.
• Ensure the objects are positioned at least 1m from the cooker in all directions
• Do not let pets roam freely in the vicinity of the cooker
• Never leave the cooker lit without supervision
• Never let children approach the cooker
• In the event of malfunction or smell of gas, never check the heater yourself, but take it to the dealers. In any case, close the gas cylinder tap immediately.
• Open all the doors and windows if there is a smell of gas and DO NOT light the fire or DO NOT use any device which may cause a spark.
• Protect the electronic ignition system from water.
• The electronic igniter will not work if it gets wet. Be careful not to spill water.
• This product is not designed for use by any handicapped people, mentally, physically, or sensually, or by any people having no knowledge or experience (including children), unless they are attended by a person who may assume their safety or give directions for use of it. Children must be supervised and must not be allowed to play with the product.
• During and after operation of the product, the exposed parts of the product will remain hot until it gets cool; keep the children

away from it.

• CAUTION: During operation of the grill, the accessible parts may be hot. Keep small children away from it.
• It is risky for children below 8 years old to come into contact with the product when they are not attended by an adult person.
• This product may be used by children above 8 years old and/or by any physically, sensually, or mentally handicapped people if they are informed about the risks and proper operation of the product is shown to them.
• Children should not play with the product. Cleaning and maintenance of the product may not be performed by children not supervised by adults.
• Packaging materials may be risky for children. Keep them in places out of reach of children and sort them out according to the waste instructions and dispose of them.
• If the vents of your stove become clogged due to food overflow, contact the authorized service center and have the eye of the stove unclogged.
• If the product is damaged or has any visible defect, do not operate the product.
• Do not perform any repair or modification on the product.
• Do not use the product when your discernment is impaired due to taking drugs and/or alcohol. Always call the authorized service center for installation and repair operations. The manufacturing company may not be held responsible for any damage that may arise as a result of operations by unauthorized persons, and the warranty will become invalid as a result.
• Be careful when using alcohol in your food. Alcohol evaporates at high temperature and when it comes into contact with hot surfaces, it blazes up and can cause a fire risk.
• Do not heat closed tin cans and glass jars.
• Pressure buildup may cause the jar to burst.
• Do not bring flammable materials near the product when it is operating because its sides may be hot.
• The product and its parts that are accessible by hand are hot during use.
• The product may be hot after use. If you have to touch it, wear heat-resistant gloves.

Technical Specifications

Specifications G30	30mbar Inyector	1 Burner stove	2 Burners stove	3 Burners stove	4 Burners stove
Gas category I3+(2	8-30/37) I3+(28-	30/37) I3+(28-30/37) I3+(28-30/37)	7) I3+(28-30/37)	7) I3+(28-30/37)
Power Gas Burner	Ø 0.7 mm Ø 0.5 mm	1X 2.2 KW 2 X	2.2 KW 2 x 2.2	KW 1 X 1 KW	4 x 2.2 KW
Gas Burner Diameter		1 x Ø 103mm 2	x Ø 103mm 2 x	Ø 103mm 1 x Ø 68.6 mm	4 x Ø 103mm
LPG 28-30 mbar 1	x 160 g/h 2 x 160 g/h	2 x 160 g/h	h	1 x 75 g/h	8,8 KW

Pressure classification(Bar)
Model Nos. Category	Pressure
SS-10233, SS-10235; SS-10237, SS-10275	13+28 – 30/37mbar 28 – 30	0/37mbar

• Your stove is designed to operate on G28-30 / 37mbar (LPG) gas. It is not possible to convert the stove to operate on different gases. Use a 1.5 kg / 300 mm SS pressure-reducing valve on your stove as per TSE standards. This product is designed for outdoor use only. Technical specifications may be changed without prior notice to improve product quality.
• Figures in the manual are schematic and may not exactly match your product.
• Declared values on the product markings or in other printed documents provided with the product are values obtained in the laboratory according to the respective standards. These values may vary depending on the use and environment of the product.

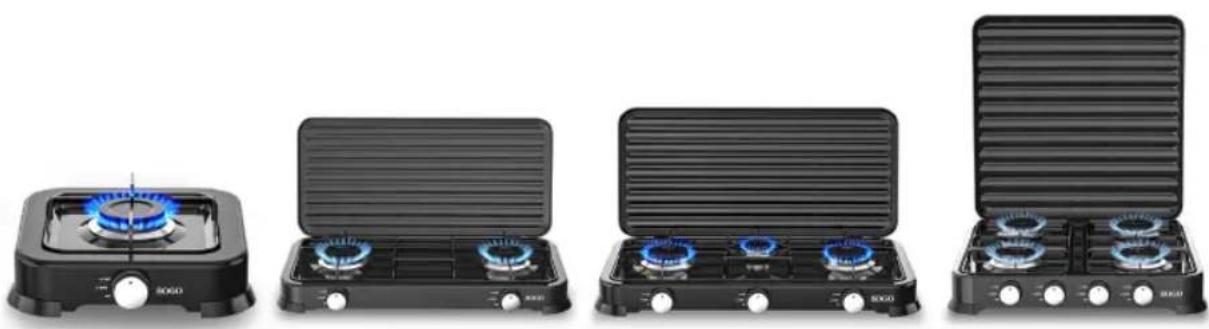

Product

SS-10233 SS-10235 SS-10237 SS-10275

General appearance

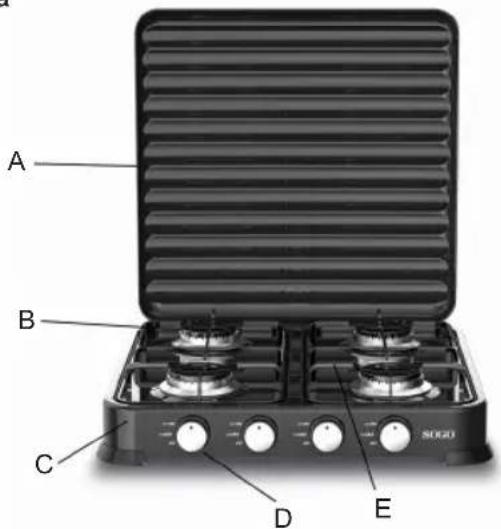

A. Lid B. Burners C. Metal gas stove body D. Knobs E. Grill

Installation

• Install your stove in the sizes shown in the figure. Make sure the vents are open.
• Make sure the place where you install the stove is made of heat-resistant material. Do not place it on plastic and similar materials. Make

Make sure the gas installation is proper. Preparation of the installation place as well as gas installation is for responsibility of the product. - The rules set forth in the applicable local standards regarding gas should be observed during installation of the product. Damaged products may pose danger for your safety. - Any operation on the gas equipment and systems should be performed by authorized and competent persons. The product is not equipped with a system for evacuation of the gases that may form after combustion. - The product should be installed and connected as per the applicable installation regulations. Requirements related to ventilation should be specially observed.

Connections

Property damage!

Do not use the cover, gas hose and/or gas control switches to carry or move the product.

Gas Connections

Any operation on the gas equipment and systems should be performed by authorized and competent persons. Prior to installation, make sure the local distribution conditions (gas type and gas pressure) are compliant with the settings of the product.

LPG connection

• Be careful that gas hose and gas-reducing valve you will use for the stove should be reliable. Fix the gas supply hose to the hose nozzle behind the stove and tighten with a hose clamp and screwdriver (Figure 6). Make sure it is tightened well. Length of the gas hose of the stove should not be longer than 1500 mm.
• Pressure of the gas-reducing valve to be used for LPG should be 1.5 kg / 300 mm SS and duly certificated.
• Hoses old, cracked, softened, hardened and used more than 2 years should be replaced.
• Hoses for connecting the containers to the equipment should comply with TS1846 standard and should be made of such material as not to be affected by gas.
• Use your stove with 12 kg gas container. Gas supply hose should not pass through the hot part at the rear of the stove. Temperature of the gas hose should not exceed 90°C. Make sure the system does not leak gas prior to use of it.

Leakage control

Open the gas-reducing valve and check for any gas leaks on the connection you have made using highly foamed soapy water.

Never check for leaks with a flame.

Final check

1- Make sure the installation of your stove is proper. 2- Check the functions.

Preliminary preparation

First use

Make sure the requirements set forth in the manual have been fulfilled.

First cleaning

Some detergents or cleaning agents may damage the surface.

1. Remove all packaging materials.
2. Wipe the surface of the product with a damp cloth or sponge, then dry it with a cloth.

Description of the use of the stove

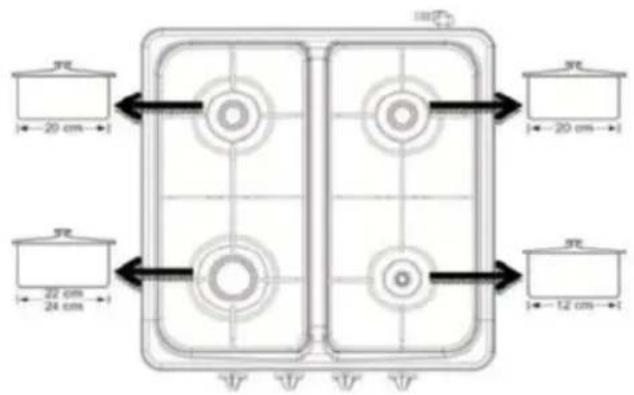

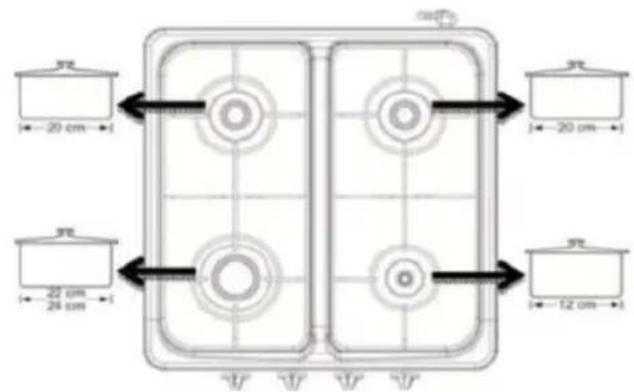

1: Push and turn the gas stove switch anticlockwise to reach high flame. 2: Ignite the lighter according to the characteristics of your stove. 3: Adjust to the desired flame position. 4: When cooking is finished, turn the switch clockwise to the high point to cut off the burner.

The size of the container and the size of the gas flame should match each other. Adjust the gas flame so that it does not exceed the base of the container. Place the container in the center of the pan support.

Maintenance and cleaning

General information

If the product is regularly cleaned, its service life will be extended and frequently encountered problems will be reduced.

• Hot surfaces may cause burns! Allow the product to cool down before cleaning.
• The product should be cleaned thoroughly after each use. This makes it easy to remove food deposits and prevents them from burning on during subsequent use.
• No special cleaning agent is required. Clean the product with washing liquid, lukewarm water, and a soft cloth or sponge, then wipe it dry.
• Make sure no liquids remain after cleaning, and immediately clean any food splashes during cooking.
• Do not use cleaning agents containing acid or chlorine on stainless steel or inox surfaces and handles. Clean by wiping in one direction with a soft cloth and a mild, non-abrasive liquid detergent.

Some detergents or cleaning agents may damage the surface. Do not use aggressive detergents, cleaning powders/creams, or sharp objects.

Do not use steam cleaning products for cleaning.

Cleaning the control panel

• Clean the control panel and control buttons with a damp cloth, then wipe dry with a dry cloth.
• The control panel may be damaged! Do not remove the control switch to clean the control panel.

Disposal of the product

Disposal of the packaging

Packaging materials are dangerous for children. Keep packaging materials out of reach of children.

Packaging of the product is produced by recyclable materials. Sort them out according to the waste instructions and dispose. Do not throw them together with the domestic waste.

Future handling operations

• Keep the original cartoon of the product and carry the product inside this box. Comply with the instructions given on the cartoon. If its original cartoon is not available, wrap it by use of bubble packaging material or a thick cardboard and band it tightly.
• Band and fix the heads and pan supports tightly.

Do not use the cover or handle to carry or move the product.

Do not put any article on the product. The product should be carried upright.

Control the product visually against any damage that may have occurred during the handling.

Disposal of the old product

• Dispose the old product in such a way not to give any damage to the environment. The product has a symbol (WEEE) on it, indicating that electric and electronic equipment waste should be collected separately.
• You should comply with the Directive 2002/96/EC in order to recycle or divide into part for minimization of its possible effect on the environment. For further details please apply to the local or regional authorities.
• Electronic products not subject to the controlled collection operation would constitute potential risk for both environment and human health due to the harmful materials they contain.
• You may contact your dealer or the garbage collection department of the municipality.

WARRANTY PERIOD:

SOGO provides you 3 years warranty from the date of purchase against any defect due to defective material or workmanship of the product. If the product poses any defect or become defective during this period, SOGO will repair it free of cost (change in certain cases) in any of their own or authorized after-sales service centre.

The warranty does not cover if the product has been used in a wrong way or being used other than its intended use. Failing to follow the SOGO manual guidelines in order to ensure the product and user safety will lead to warranty extinction. Also the guarantee will be invalid, if the product servicing or repair has been done by any service centre other than SOGO'S its own service centres or officially authorized centres.

In order to get the complete info about the after sales issues and complete list of our authorized service centres information, kindly visit to the SOGO customer service website given at the end of this manual. There also you can find the contact details of our main service centre.

Welcome to the SOGO family and hope the correct use and maintenance of the product gives you long service life.

IMPORTANT:

The gas flow was cut off High flame

Low flame

The appliance must be installed, and the gas must be turned on only by a qualified person. Keep the appliance away from children.

• WARNING: During operation, accessible parts may become hot. Keep small children away from it. Children should not be allowed to touch the product without adult supervision.
• The product can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Packaging materials can be dangerous for children. Keep them in a place inaccessible to children, dispose of them according to the instructions for waste disposal and dispose of them. If the ventilation openings are blocked due to lint, contact an authorized service center and ask to clean the openings. If the product is damaged or has any defects, do not use it. Do not perform repairs or modifications to the product. Do not use the product if your vision is impaired due to drugs or alcohol. For installation and repair work, always contact an authorized service center. The manufacturer is not responsible for any damage that may occur as a result of operation performed by unauthorized persons and as a result of improper use, and in such case the warranty becomes void.
• Be careful when using alcohol in the kitchen. Alcohol evaporates at high temperatures and in contact with hot surfaces.
• Do not heat closed cans and glass jars. The pressure that builds up can cause the can to burst.
• Avoid flammable materials during operation of the appliance, as its sides may be hot. During operation, the product may heat up. The product and its parts that can be touched by hands are hot during use. After use, the product may be hot. If you need to touch it, wear thermal protective gloves.

Technical specifications

Texhічніхаразсторік	G30 30мбар Inyector	Пальни Кова пл'tа	Пл'tа на 2 конфорк	Пл'tа на 3 конфорк	Пл'tа на 4 Конфорк
Кateropія ra3у I3+(28-30/37) I3+(28-30/37) I3+(28-30/37) I3+(28-30/37) I3+(28-30/37)
Потужни ra3OBni палнIK	Ø 0.7 MM Ø 0.5 MM	1X 2.2 KBT 2 X	2.2 KBT 2 x 2.2	KBT 1 X 1 KBT	4 x 2.2 KBT
Дiametr ra3OBoro палнИka		1 x Ø 103MM 2	x Ø 103MM 2 x Ø	Ø 103MM 1 x Ø 68.6MM	4 x Ø 103MM
Зрдожни ra3 28-30 мбар		1 x 160 r / rod	2 x 160 r / rod 2	x 160 r / rod 1 x 75 r / rod	8,8 KBT

Control panel

Description of the control panel and control buttons for the gas hob and the electric hob. - The control panel may be damaged! Do not remove the control panel for cleaning the control panel.

Product disposal

Packaging

Packaging materials are safe for children. Store packaging materials out of reach of children.

The packaging is made from materials suitable for recycling. Dispose of them in accordance with the instructions for waste disposal and recycling. Do not dispose of them with household waste.

Future loading and unloading operations

Keep the original cardboard packaging and store the product in this box. Follow the instructions on the cardboard packaging. If the original packaging is unavailable, secure the product in bubble wrap or thick cardboard and seal it tightly with tape. Close the lid and protect the product thoroughly.

Do not use hooks or handles to lift or move the product. Do not place heavy objects on the product. The product must be transported in a vertical position. Visually inspect the product for any damage that may have occurred during transport.

Disposal of old product

• Dispose of the old product in a way that does not harm the environment. The product bears the symbol (WEEE), which indicates that waste electrical and electronic equipment must be collected separately. You are obliged to comply with Directive 2002/96/EC, to recycle or dispose of parts separately for possible recovery to protect the environment. For more detailed information about disposal, contact your local or regional authorities.
• Electronic products that are not subject to controlled collection pose a potential risk to the environment and human health due to the hazardous materials they contain.
• You can contact your dealer or the local waste disposal authority.

WARRANTY TERMS:

SOGO provides you with a warranty from the date of purchase for any defect related to materials or workmanship of the product. If during this period the product becomes defective, SOGO will repair it free of charge (or replace it in certain cases) at any authorized service center after-sales service.

The warranty does not cover cases where the product has been used not in accordance with its intended use. Incorrect installation of the SOGO manual to ensure product safety and use will result in loss of warranty. The warranty will also be void if servicing or repair of the product has been performed by any service center other than SOGO's own service centers or officially authorized centers.

To obtain complete information about after-sales service and the full list of our authorized service centers, please visit the SOGO customer service website indicated at the end of this manual. You can also find the contact details of our nearest service center.

This product is simple and durable, and proper use and maintenance will ensure you a long service life.

IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with the Gas Appliances Regulation Directive (GAR) (EU) 2016/426/AB EN 484: 2019 / TS EN 484: 2019 related to appliances that burn gaseous fuels and with Directive 2015/863/EU on restrictions on the use of certain dangerous substances.

DECLARATION DE CONFORMIDADE

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161

ref. SS-10233 / SS-10235

SS-10237/SS-10275
