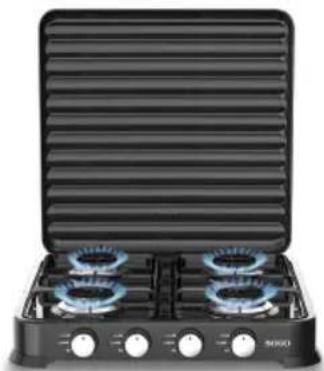

SS-10275 - Frying Pan Sogo - Free user manual and instructions

Brand	Sogo
Model	SS-10275
Product type	Gas cooktop (outdoor stove)
Number of burners	4
Gas type	LPG (Butane/Propane) - category I3+ (28-30/37 mbar)
Total power	8.8 kW (4 x 2.2 kW)
Burner diameter	103 mm each
Injectors	Ø 0.5 mm
Gas pressure (Butane)	28-30 mbar
Gas pressure (Propane)	37 mbar
Gas consumption (Butane)	640 g/h (4 x 160 g/h)
Usage	Outdoor only
Body material	Metal (enameled steel/stainless steel)
Dimensions (L x D x H)	Approximately 580 x 520 x 120 mm (estimated)
Net weight	Approximately 8 kg (estimated)
Ignition	Electronic by rotary knob
Safety	Low-pressure regulator, hose ≤1.5 m, leak check with soapy water
Maintenance	Clean with mild detergent and non-abrasive sponge
Warranty	3 years
Included accessories	Regulator 1.5 kg / 300 mm SS
Country of manufacture	China

Frequently Asked Questions - SS-10275 Sogo

How to install the gas hose?

Use an LPG rubber hose conforming to standards (max 1.5 m). Attach it to the hose fitting at the back of the stove and tighten with a hose clamp. The regulator pressure must be 1.5 kg / 300 mm SS. Check for leaks with soapy water, never with a flame.

How to ignite the burners?

Press the rotary knob and turn it counterclockwise to the maximum position. Hold it down until the electronic ignition triggers. Then adjust the flame to the desired level. To turn off, turn the knob clockwise to the off position.

What to do in case of gas smell?

Immediately close the regulator. Open all doors and windows to ventilate. Do not light a flame or plug in any electrical appliance. Do not check yourself, contact an authorized technical service.

Can this stove be used indoors?

No, this product is designed for outdoor use only. There is no exhaust system for combustion gases. Using it indoors poses a risk of poisoning.

How to clean the burners?

After cooling, remove the grates and burners. Clean them with warm water and mild detergent, then dry thoroughly. Do not use sharp or abrasive objects. Make sure the burner holes are not clogged.

What type of regulator to use?

Use a certified low-pressure regulator with fixed calibration at 28-30 mbar for butane and 37 mbar for propane. The recommended model is 1.5 kg / 300 mm SS, conforming to TSE standards.

What to do if a burner does not ignite?

Check that the electronic igniter is not wet. Make sure the burner holes are not blocked and that gas is flowing (regulator open). If the problem persists, contact authorized after-sales service.

Can I use glass containers or canned goods?

Do not heat glass jars or closed cans. Pressure could cause them to burst. Use containers suitable for gas cooking.

How to check for gas leaks?

Use a soapy solution on the connections (hose, regulator, appliance inlet). If bubbles appear, there is a leak. Never use a flame to check.

What is the product warranty?

Sogo offers a 3-year warranty against material or manufacturing defects. The warranty does not cover incorrect use or unauthorized repairs. For after-sales service, contact [e-mail] or 0034 902 222 161.

USER MANUAL SS-10275 Sogo

EN Instructions for use

FR Mode d'emploi

SS-10233

SS-10235

SS-10237

SS-10275

Download your manual

Download your manual

ref. SS-10233 / SS-10235

SS-10237 / SS-10275

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS STOVE

GAS COOKER

GAS COOKER

GAS COOKER

GAS COOKER

GAS COOKER

GAS COOKER

GAS COOKER

GAS COOKER

GAS COOKER

GAS COOKER

SPANISH P. 3

ENGLISH P. 11

FRENCH P. 19

PORTUGUESE P. 27

GERMAN P. 35

ITALIAN P. 43

CZECH P. 51

DANISH P. 59

SLOVAK P. 67

CROATIAN P. 75

POLISH P. 83

ROMANIAN P. 91

UKRAINIAN P. 99

CATALAN P. 107

GREEK P. 115

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

SS-10233 SS-10235 SS-10237 SS-10275

General Appearance

LPG Connection

Leak Control

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

Symbols and Description:

1

2

3

4

1- Important information and useful hints on use 2- Warning against dangerous situations in terms of life and property 3- Warning against fire risk 4- Warning against hot surfaces

SAFETY INSTRUCTIONS FOR THE USER

Intended use

This product is designed for outdoor use. It is not allowed for commercial use. “CAUTION: This product may be used only for cooking. It should not be used to heat the room or any other purpose.”

• Be careful to avoid getting burned by touching the top panel of the gas table as it gets very hot near the burner when in use.
• Do not apply excessive pressure to the gas control knobs.
• To avoid damage, do not place charcoal on the burners.
• Do not allow the holes in the burners to become clogged.
• Keep the gas table clean for better service and a longer operation life.
• At night or when leaving the house, be sure to turn off not only the control knobs of the gas table, but also the main gas valve of the gas bottle.
• For better complete combustion, keep the burners clean.
• Check the rubber gas hose that connects the gas cooker to the gas bottle regularly for wear or leaks; it must be replaced occasionally. Keep it away from heat sources and keep it clean.
• Make sure that there are no inflammable objects near the gas table.
• The cooker must be connected to the cylinder using a rubber hose for LPG in conformity with the regulations of the country in which the cooker is to be used.
• Do not move the stove while it is in use.
• Keep all ventilation channels unobstructed around them.

• After each use of the product, make sure the pressure-reducing valve is closed. - Do not use sharp or piercing materials to clean the inside and glass of the product; such materials may damage your product. - The hose must be no longer than 1.5 m and should be replaced in accordance with the current legislation in the country of use, and in any case after 4 years of use. • Always use a low-pressure regulator to connect the cooker to the cylinder. This regulator must have a normalized fixed calibration of 28-30 mbar for butane and 37 mbar for propane. - Metal hose clips suitable for gas must be used to secure the hose to the cooker and to the regulator in countries where it is allowed to fix the hose to the actual appliance. - If you smell gas (leakage), close the pressure-reducing valve immediately. - Never use flames to check for gas leaks. Always use a special spray. - Never operate the appliance if the rubber hose is not firmly secured with the recommended clips. - Do not use the appliance if there are leaks, damage, or malfunction. - Ensure that objects are positioned at least 1 m from the cooker in all directions. - Do not let pets roam freely in the vicinity of the cooker. - Never leave the cooker lit without supervision. - Never let children approach the cooker. - In the event of malfunction or smell of gas, never check the heater yourself, but take it to the dealers. In any case, close the gas cylinder tap immediately. - Open all doors and windows if there is a smell of gas, and DO NOT light a fire or use any device that may cause a spark. - Protect the electronic ignition system from water. - The electronic igniter will not work if it gets wet. Be careful not to spill water. - This product is not designed for use by any handicapped people, mentally, physically, or sensually, or by any people having no knowledge or experience (including children) unless they are attended by a person who may assume their safety or give directions for use. Children must be supervised and must not be allowed to play with the product. - During and after operation of the product, the exposed parts of the product will remain hot until it cools; keep children

away from it.

• CAUTION: During operation of the grill, the accessible parts may be hot. Keep small children away from it.
• It is risky for children below 8 years old to come into contact with the product when they are not attended by an adult.
• This product may be used by children above 8 years old and/or by any physically, sensorially, or mentally handicapped people if they are informed about the risks and proper operation of the product is shown to them.
• Children should not play with the product. Cleaning and maintenance of the product may not be performed by children unless supervised by adults.
• Packaging materials may be risky for children. Keep them out of reach of children and sort them according to waste instructions and dispose of them.
• If the venturis of your stove become clogged due to food overflow, contact the authorized service center and have the burner unclogged.
• If the product is damaged or has any visible defect, do not operate the product.
• Do not perform any repair or modification on the product.
• Do not use the product when your discernment is impaired due to taking drugs and/or alcohol.

Always call an authorized service center for installation and repair operations. The manufacturing company may not be held responsible for any damage that may arise as a result of operations by unauthorized persons, and the warranty will become invalid as a result.

• Be careful when using alcohol in your food. Alcohol evaporates at high temperature and when it comes into contact with hot surfaces, it blazes up and causes a fire risk.
• Do not heat closed tin cans and glass jars.
• Pressure that develops may cause the jar to burst.
• Do not bring flammable materials near the product when it operates because its sides may be hot.
• The product and its parts accessible by hand are hot when in use.
• The product may be hot after use. If you have to touch it, wear heat-resistant gloves.

Technical Specifications

Specifications G30	30mbarInyector	1 Burnerstove	2 Burnersstove	3 Burnersstove	4 Burnersstove
Gas category I3+(2	8-30/37) I3+(28-	30/37) I3+(28-30/37)	I3+(28-30/37)	I3+(28-30/37)
Power GasBurner	∅ 0.7 mm∅ 0.5 mm	1X 2.2 KW 2 X	2.2 KW 2 x 2.2	KW1 X 1 KW	4 x 2.2 KW
Gas BurnerDiameter		1 x ∅ 103mm 2	x ∅ 103mm 2 x	∅ 103mm1 x ∅ 68.6 mm	4 x ∅ 103mm
LPG 28-30 mbar 1	x 160 g/h 2 x 160 g/h 2 x 160 g/h			1 x 75 g/h	8,8 KW

Pressure classification(Bar)
Model Nos. Category	Pressure
SS-10233, SS-10235; SS-10237, SS-10275	I3+28 – 30/37mbar 28 – 30/37mbar

• Your stove is designed to operate on G28-30 / 37mbar (LPG) gas. It is not possible to convert the stove to operate on different gases.
• Use a 1.5 kg / 300 mm SS pressure-reducing valve on your stove as per TSE standards. • This product is designed to operate outdoors only.
• Technical specifications may be changed without prior notice in order to improve product quality.
• Figures given in the manual are schematic and may not exactly match your product.
• The declared values on the product markings or in other printed documents provided with the product are values obtained in the laboratory as per the respective standards. These values may vary depending on the use and environment of the product.

Product

SS-10233 SS-10235 SS-10237 SS-10275

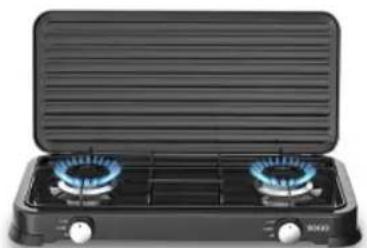

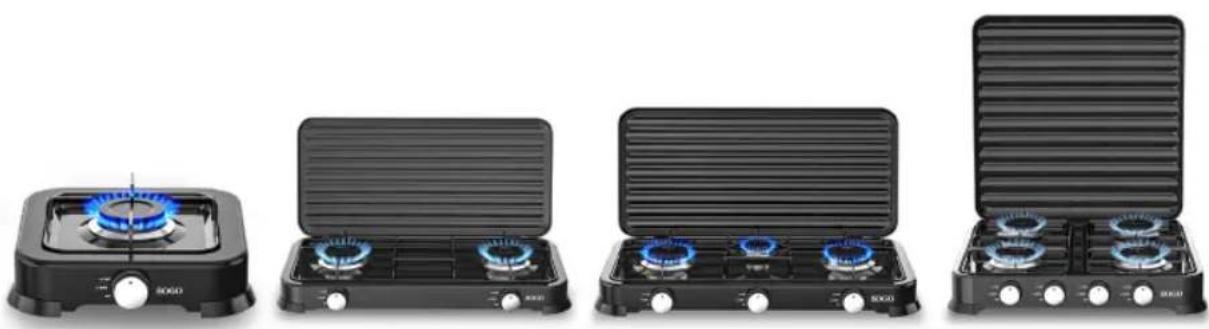

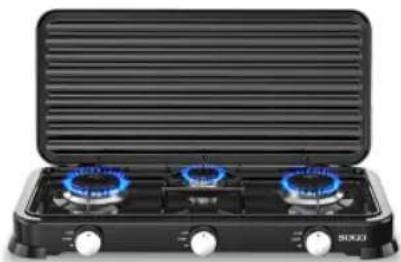

General appearance

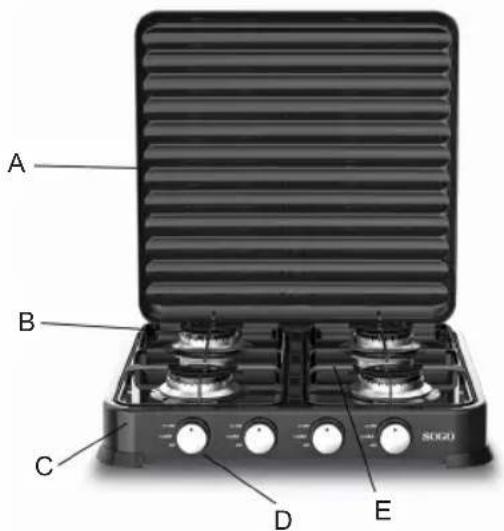

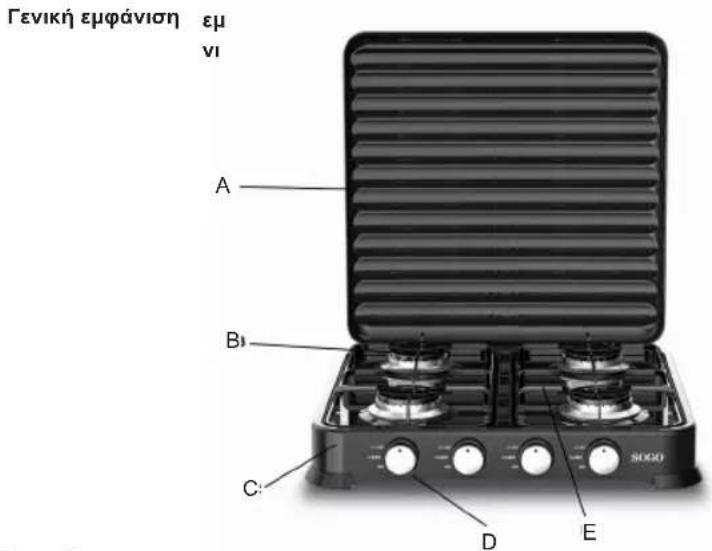

A. Lid B. Burners C. Metal gas stove body D. Knobs E. Grill

Installation

• Install your stove in the sizes shown in the figure. • Make sure the vents are open. • Make sure the place where you install the stove is made of heat-resistant material. Do not place it on plastic or similar materials.

• Make sure the gas installation is proper.
• Preparation of the installation place as well as gas installation is the responsibility of the product. • The rules set forth in the applicable local standards regarding gas should be observed during installation of the product.
• Damaged products may pose danger for your safety. Any operation on the gas equipment and systems should be performed by authorized and competent persons. The product is not equipped with a system for evacuation of the gases that may form after combustion. The product should be installed and connected as per the applicable installation regulations. Requirements related to ventilation should be specially observed.

Connections

Property damage!

Do not use the cover, gas hose and/or gas control switches to carry or move the product.

Gas Connections

Any operation on the gas equipment and systems should be performed by authorized and competent persons. Prior to installation, make sure the local distribution conditions (gas type and gas pressure) are compliant with the settings of the product.

LPG connection

• Be careful that gas hose and gas-reducing valve you will use for the stove should be reliable. Fix the gas supply hose to the hose nozzle behind the stove and tighten with a hose clamp and screwdriver (Figure 6). Make sure it is tightened well.
• Length of the gas hose of the stove should not be longer than 1500mm.
• Pressure of the gas-reducing valve to be used for LPG should be 1.5 kg/300mm SS and duly certificated.
• Hoses old, cracked, softened, hardened and used more than 2 years should be replaced.
• Hoses for connecting the containers to the equipment should comply with TS1846 standard and should be made of such material as not to be affected by gas.
• Use your stove with 12 kg gas container. Make sure the system does not leak gas prior to use of it.

Gas supply hose should not pass through the hot part at the rear of the stove. Temperature of the gas hose should not exceed 90°C.

Leakage control

Open the gas-reducing valve and check for any gas leakage on the connection you have made using highly foamed soap water.

Never check for leaks with a flame.

Final control

1- Make sure the installation of your stove is proper. 2- Control the functions.

Preliminary Preparation

First use

Make sure the requirements set forth in the manual have been fulfilled.

First cleaning

Some detergents or cleaning agents may damage the surface.

1. Remove all packaging materials.
2. Wipe clean the surface of the product with a damp cloth or sponge and then wipe it dry with a cloth.

Description of the use of the stove

1: Push and turn anticlockwise the gas stove switch to bring to high flame. 2: Ignite the lighter according to the characteristic of your stove. 3: Bring it to the desired flame position. 4: When the cooking is over, turn the switch clockwise to the high point to cut off the burner.

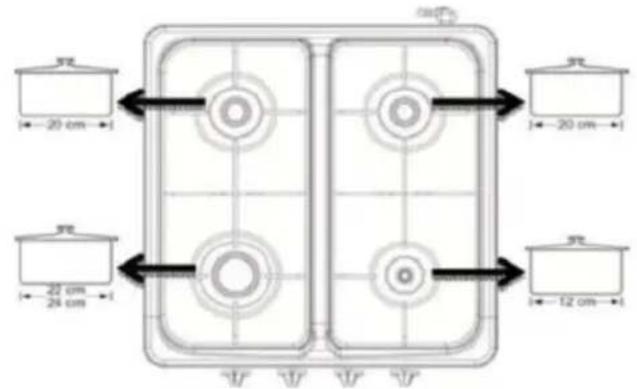

The size of the container and the size of the gas flame should exactly comply with each other. Adjust the gas flame in such a way that it will exceed the base of the container. Put the container on the centre of the pan supporter.

Maintenance and cleaning

General information

If the product is regularly cleaned, its service time will be extended and frequently encountered problems will be reduced.

• Hot surfaces may cause burns! Allow the product to cool down before you clean the product.
• The product should be cleaned thoroughly after each use. Thus the food deposits are easily cleaned off and thus such deposits are prevented from burning in the subsequent use of the product.
• No special cleaning agent is required to clean the product. Clean the product with the washing liquid, lukewarm water and soft cloth or sponge and wipe it dry.
• Make sure that no liquids left after the cleaning process and you immediately clean any splash of food during the cooking.
• Do not use any cleaning agent containing acid or chlorine to clean the stainless or inox surfaces and handle. Clean by wiping in one direction by help of soft cloth soapy and liquid (no-scratch) detergent.

Some detergents or cleaning agents may give damage to the surface. Do not use aggressive detergents, cleaning powder/cream or sharp objects.

Do not use steam cleaning products for cleaning purpose.

Cleaning of the control panel

• Clean the control panel and control buttons with a damp cloth and wipe it with a dry cloth.
• Control panel may be damaged! Do not remove the control switch to clean the control panel.

Disposal of the product

Destruction of the packaging

Packaging materials are dangerous for the children. Keep the packaging materials at a place out of reach of the children.

Packaging of the product is produced by recyclable materials. Sort them out according to the waste instructions and dispose. Do not throw them together with the domestic waste.

Future handling operations

• Keep the original cartoon of the product and carry the product inside this box. Comply with the instructions given on the cartoon. If its original cartoon is not available, wrap it by use of bubble packaging material or a thick cardboard and band it tightly.
• Band and fix the heads and pan supports tightly.

Do not use the cover or handle to carry or move the product.

Do not put any article on the product. The product should be carried upright.

Control the product visually against any damage that may have occurred during the handling.

Disposal of the old product

• Dispose the old product in such a way not to give any damage to the environment. The product has a symbol (WEEE) on it, indicating that electric and electronic equipment waste should be collected separately.
• You should comply with the Directive 2002/96/EC in order to recycle or divide into part for minimization of its possible effect on the environment. For further details please apply to the local or regional authorities.
• Electronic products not subject to the controlled collection operation would constitute potential risk for both environment and human health due to the harmful materials they contain.
• You may contact your dealer or the garbage collection department of the municipality.

WARRANTY PERIOD:

SOGO provides you 3 years warranty from the date of purchase against any defect due to defective material or workmanship of the product. If the product poses any defect or become defective during this period, SOGO will repair it free of cost (change in certain cases) in any of their own or authorized after-sales service centre.

The warranty does not cover if the product has been used in a wrong way or being used other than its intended use. Failing to follow the SOGO manual guidelines in order to ensure the product and user safety will lead to warranty extinction. Also the warrantee will be invalid, if the product servicing or repair has been done by any service centre other than SOGO'S its own service centres or officially authorized centres.

For complete information about after-sales issues and the full list of our authorized service centers, please visit the SOGO customer service website provided at the end of this manual. There you will also find contact details for our main service center.

Welcome to the SOGO family. We hope that proper use and maintenance of the product will give you long service life.

IMPORTANT:

SS-10233 SS-10235 SS-10237 SS-10275

General view

SS-10235 SS-10237 SS-10275

General view

SS-10233 SS-10235 SS-10237 SS-10275

General view

LPG connection

Leak check

SS-10233 SS-10235 SS-10237 SS-10275

Appearance

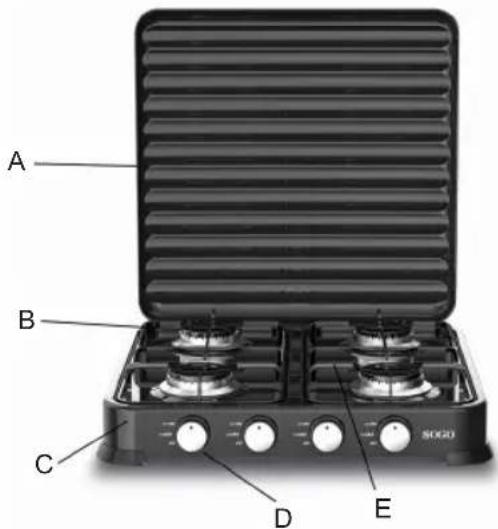

A. Lid B. Burners C. Metal gas stove body D. Knobs E. Grid

Installation

Possible damage!

SS-10233 SS-10235 SS-10237 SS-10275

General appearance

Leak check

SS-10233 SS-10235 SS-10237 SS-10275

General appearance

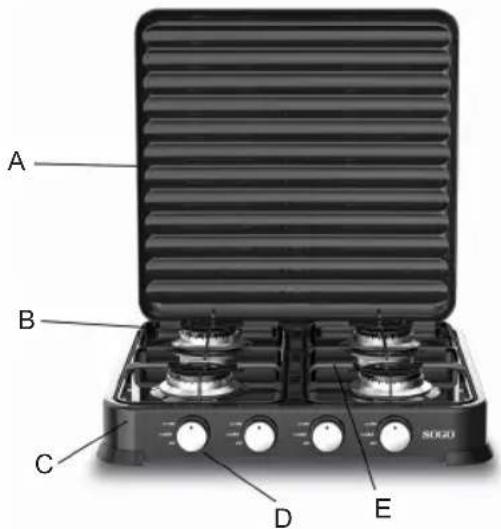

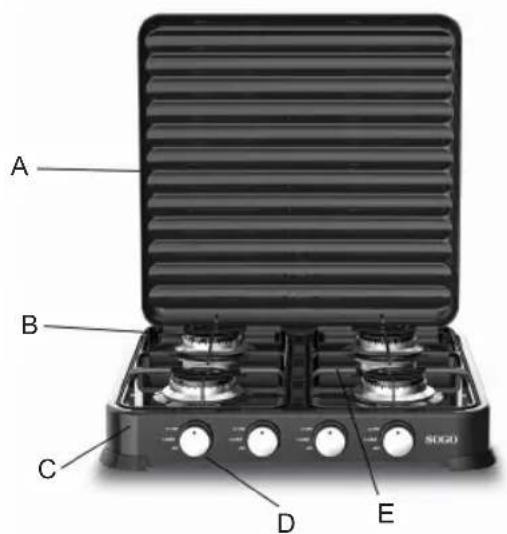

A. Lid B. Burners C. Gas stove body in metal D. Knobs E. Grill

Installation

LPG connection

Leak check

LPG connection

- Make sure that the gas hose and gas pressure reducer that you will use for the stove are reliable. Attach the gas supply hose to the stove fitting and tighten it with a hose clamp and screwdriver (Figure 6). Make sure it is well tightened.

Leak check

SS-10233 SS-10235 SS-10237 SS-10275

General appearance

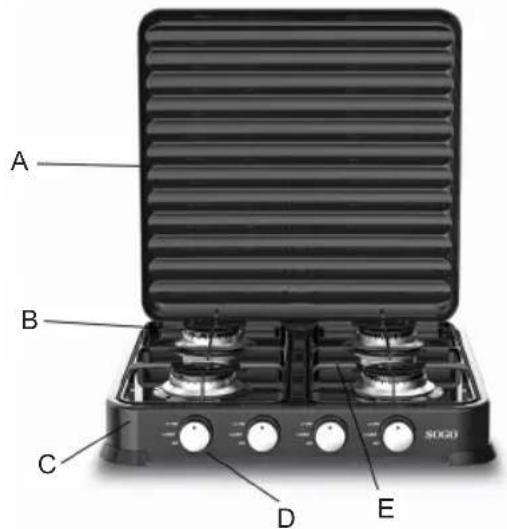

A. Lid B. Burners C. Gas hob body D. Knobs E. Grid

Installation

- Install your hob in the dimensions shown in the figure.

LPG Connection

- Make sure that the gas hose and the gas pressure regulator you will use for the hob are reliable. Attach the gas hose to the hose nozzle at the back of the hob and tighten it with a hose clamp and a screwdriver (Figure 6). Make sure it is tightened well.

Leak Check

Open the gas pressure regulator and check with heavily foamed soapy water for gas leaks at the connection you made.

The size of the cookware and the size of the flame should match each other exactly. Adjust the gas flame so that it does not extend beyond the base of the cookware. Place the cookware in the center of the pan support.

SS-10233 SS-10235 SS-10237 SS-10275

General appearance

Leak check

SS-10233 SS-10235 SS-10237 SS-10275

General appearance

LPG connection

SS-10233 SS-10235 SS-10237 SS-10275

General view

Leak check

SS-10233 SS-10235 SS-10237 SS-10275

General view

Leak check

SS-10233 SS-10235 SS-10237 SS-10275

Gas connection

Leak check

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

This device complies with the Gas Appliances Regulation Directive (GAR) (EU) 2016/426/AB EN 484: 2019 / TS EN 484: 2019 related to appliances that burn gaseous fuels and with Directive 2015/863/EU on restrictions on the use of certain dangerous substances.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
