Product Type	Outdoor Gas Cooktop
Brand	Sogo
Model	SS-10265
Gas Category	LPG (G30 30 mbar, G31 37 mbar)
Burners	4 burners: 1 rapid (1.85 kW), 1 normal (1.50 kW), 1 auxiliary (1.00 kW), 1 extra burner not specified
Ignition	Electronic ignition (battery)
Dimensions (approx.)	70 x 40 x 10 cm
Weight (approx.)	10 kg
Power Source	LPG gas cylinder 12 kg with regulator 1.5 kg/300 mm SS
Usage	Outdoor only (non-domestic)
Material	Stainless steel, glass
Maintenance and Cleaning	Clean with mild detergent and damp cloth; avoid abrasives and steam
Safety	Check for leaks with soapy water; keep away from flammable materials; do not leave unattended
Spare Parts	Not specified; contact after-sales service
Repairability	Repairs reserved for an authorized technical service
Warranty	2 years against manufacturing defects
General Information	Compliant with GAR Directive (EU) 2016/426 and RoHS Directive

Frequently Asked Questions - SS-10265 Sogo

What type of gas to use with the Sogo SS-10265 cooker?

Use LPG gas of butane (G30) or propane (G31) type with a pressure of 30 mbar for butane and 37 mbar for propane (or 50 mbar in Austria and Germany). The regulator must be certified and set to 1.5 kg/300 mm SS.

Can I use this cooker indoors?

No, this cooker is designed exclusively for outdoor use. It does not have a flue gas evacuation system and must not be used in an enclosed space.

How to ignite the burners?

Press the knob of the desired burner and turn it counterclockwise to the maximum position. Keep pressed until the electronic ignition triggers the flame. Then adjust the flame to the desired position.

How to check for a gas leak?

Never use a flame. Apply a soapy solution to the connections and open the regulator. Bubbles indicate a leak. If a leak is detected, immediately close the regulator and have it repaired by a professional.

What cookware to use?

Use pots and pans suitable for the size of the burners. The flame must not extend beyond the bottom of the container. Always center the container on the burner.

How to clean the cooktop?

Allow to cool completely. Clean with a mild dishwasher detergent, warm water and a soft cloth or sponge. Never use abrasive products, scouring powder or steam cleaner.

What to do in case of gas odor?

Immediately close the gas cylinder valve. Open all doors and windows. Do not light a fire or plug in any electrical device that may produce a spark. Have the installation checked by a professional.

What is the lifespan of the gas hose?

The gas hose must be replaced at least every 2 years, or immediately if it has cracks, deformations or has hardened. The length must not exceed 1.5 meters.

Can I convert the cooker for another type of gas?

No, this cooker is factory set to operate with LPG (G30 at 30 mbar). It is not possible to convert it for another gas like natural gas.

How to safely extinguish the burners?

Turn the burner knob clockwise to the off position (top point). Make sure the flame is completely out. In case of prolonged absence, also close the gas cylinder valve.

USER MANUAL SS-10265 Sogo

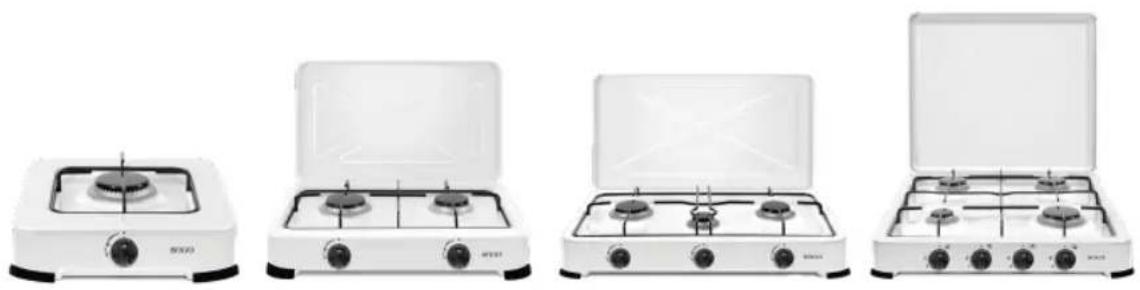

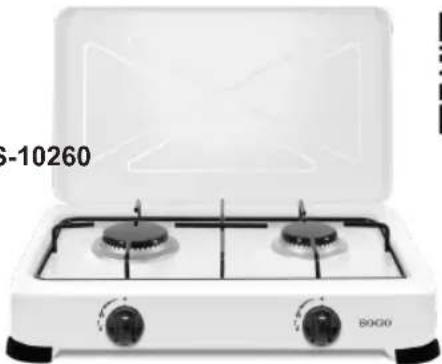

SS-10255 SS-10260

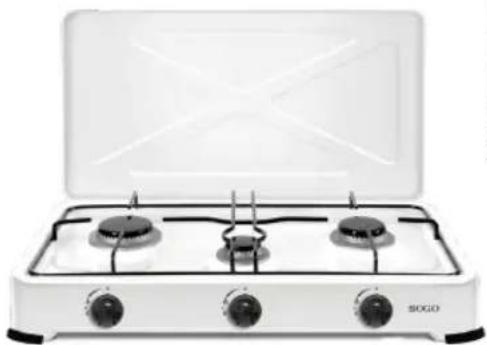

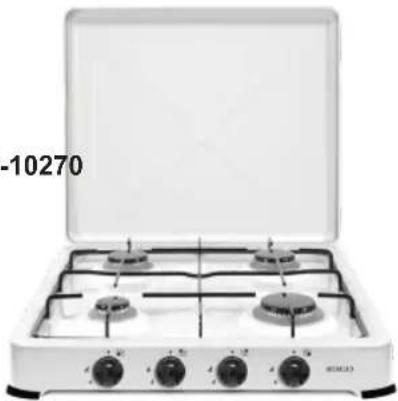

SS-10265 SS-10270

Caution: please read and preserve these important instructions

IMPORTANT:

2

3

4

General Appearance

Leak Control

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

Symbols and Description:

1

2

3

4

1- Important information and useful hints on use 2- Warning against dangerous situations in terms of life and property 3- Warning against fire risk 4- Warning against hot surfaces

SAFETY INSTRUCTIONS FOR THE USER

Intended use

This product is designed for outdoor use. It is not allowed for commercial use. “CAUTION: This product may be used only for cooking. It should not be used to heat the room or any other purpose.”

- Be careful to avoid getting burned by touching the top panel of the gas table as it gets very hot near the burner when in use.

• Do not apply excessive pressure to the gas control knobs.
• To avoid damage, do not place charcoal on the burners.
• Do not allow the holes in the burners to become clogged.
• Keep the gas table clean for better service and a longer operation life.
• At night or when leaving the house, be sure to turn off not only the control knobs of the gas table, but also the main gas valve of gas bottle as well.
• For better complete combustion, keep the burners clean.
• Check the rubber gas hose which connect the gas cooker to the gas bottle regularly for wear or leak, it must be replaced occasionally. Keep it away from heat source and keep it clean. • Make sure that there are no inflammable objects near the gas table.
• The cooker must be connected to the cylinder using a rubber hose for LPG in conformity with the regulations of the country in which the cooker is to be used.
• Do not move the stove when using it.
• Keep all ventilation channels unobstructed around them. • After each use of the product, make sure the pressure-reducing valve is closed.
• Do not use sharp or piercing materials to clean the inside and glass of the product; such materials may damage your product.
• The hose must be no longer than 1.5 m and should be replaced in compliance with the current legislation in the country of use and in any case after 4 years of use.
• Always use a low-pressure regulator to connect the cooker to the cylinder. This regulator must have a normalized fixed calibration at 30 mbar for butane and 37 mbar for propane (50 mbar solely for Austria and Germany).
• Metal hose clips suitable for gas must be used to secure the hose to the cooker and to the regulator in countries where it is allowed to fix the hose to the actual appliance.
• When you smell gas (leakage), close the pressure-reducing valve immediately. Never use flames to check for gas leaks. Always use a special spray.
• Never operate the appliance if the rubber hose is not firmly secured with the recommended clips. Do not use the appliance if there are leaks, damage, or malfunction.
• Ensure objects are positioned at least 1 m from the cooker in all directions.
• Do not let pets roam freely in the vicinity of the cooker.
• Never leave the cooker lit without supervision.
• Never let children approach the cooker.

In the event of malfunction or smell of gas, never check the heater yourself, but take it to the dealers. In any case, close the gas cylinder tap immediately.

Open all doors and windows if there is a smell of gas and do not light the fire or do not use any device which may cause a spark.

Protect the electronic ignition system from water.

- The electronic igniter will not work if it gets wet. Be careful not to spill water.

- This product is not designed for use by any handicapped people, mentally, physically, or sensually, or by any people having no knowledge or experience (including children) unless they are attended by a person who may assume their safety or give directions for its use. Children must be supervised and must not be allowed to play with the product.

- During and after operation of the product, the exposed parts of the product will remain hot until it cools down; keep children away from it.

- CAUTION: During operation of the grill, the accessible parts may be hot. Keep small children away from it.

- It is risky for children below 8 years old to come into contact with the product when they are not attended by an adult.

- This product may be used by children above 8 years old and/or by any physically,

sensually, or mentally handicapped people if they are informed about the risks and proper operation of the product is shown to them.

• Children should not play with the product. Cleaning and maintenance of the product may not be performed by children unless supervised by adults.
• Packaging materials may be risky for children. Keep them in places out of reach of children and sort them according to waste instructions and dispose of them properly.
• If the venturis of your stove become clogged due to food overflow, contact the authorized service center and have the burner unclogged.
• If the product is damaged or has any visible defect, do not operate it.
• Do not perform any repair or modification on the product.
• Do not use the product when your judgment is impaired due to taking drugs and/or alcohol.

Always call the authorized service center for installation and repair operations. The manufacturing company may not be held responsible for any damage that may arise as a result of operations by unauthorized persons, and the warranty will become invalid as a result.

- Be careful when using alcohol in your food. Alcohol evaporates at high temperature and when it comes into contact with hot

On surfaces, it blazes up and causes fire risk.

• Do not heat closed tin cans and glass jars. • Pressure may build up and cause the jar to burst. • Do not bring flammable materials near when the product is operating because its sides may be hot. - The product and its accessible parts are hot during use. - The product may be hot after use. If you need to touch it, wear heat-resistant gloves.

Technical Specifications

Specifications	G30 30mbar Injector	Single Stove	Dual Stove	Triple Stove	Quartet Stove
Gas Category 1	3B/P 13B/P 13B/P 13B/P 13B/P 13B/P
Strong Burner ∅	0.65 1.85 KW 1.85 KW 1.85 KW 1.85 KW
Normal burner ∅	0.60 1.50 KW 1.50 KW 2x1.50 KW
Auxiliary Burner	∅ 0.50 1 KW 1 KW

Pressure classification (Bar)
Model No. Category	Pressure
SS-10255, SS-10260SS-10265, SS-10270	I3+ 28 – 30/37mbar

• Your stove is designed to operate on G30 29mbar (LPG) gas. It is not possible to convert the stove to operate on different gases.
• Use a 1.5 kg/300mm SS pressure-reducing valve on your stove as per TSE standards. • This product is designed for outdoor use only.
• Technical specifications may be changed without prior notice to improve product quality.
• Figures in the manual are schematic and may not exactly match your product.
• The declared values on the product markings or in other printed documents provided with the product are values obtained in the laboratory according to the respective standards. These values may vary depending on the use and environment of the product.

Product

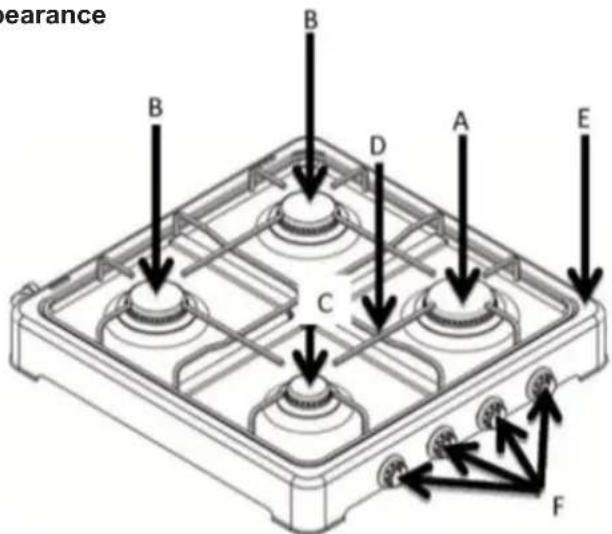

General appearance

A. Strong burner B. Normal burner C. Auxiliary burner D. Upper grill E. Body F. Control switch

Installation

• Install your stove in the sizes shown in the figure. • Make sure the vents are open. • Make sure the place where you install the stove is made of heat-resistant material. Do not place it on plastic or similar materials. • Make sure the gas installation is proper. • Preparation of the installation place as well as gas installation is the responsibility of the product. • The rules set forth in the applicable local standards regarding gas should be observed during installation of the product. • Damaged products may pose a danger to your safety. • Any operation on the gas equipment and systems should be performed by authorized and competent persons. The product is not equipped with a system for evacuation of the gases that may form after combustion. • The product should be installed and connected as per the applicable installation regulations. Requirements related to ventilation should be specially observed.

! Connections

Property damage!

Do not use the cover, gas hose and/or gas control switches to carry or move the product.

Gas Connections

Any operation on the gas equipment and systems should be performed by authorized and competent persons. Prior to installation, make sure the local distribution conditions (gas type and gas pressure) are compliant with the settings of the product.

LPG connection

- Be careful that gas hose and gas-reducing valve you will use for the stove should be reliable. Fix the gas supply hose to the hose nozzle behind the stove and tighten with a hose clamp and screwdriver (Figure 6). Make sure it is tightened well.

- Length of the gas hose of the stove should not be longer than 1500mm.

- Pressure of the gas-reducing valve to be used for LPG should be 1.5 kg/300mm SS and duly certificated.

- Hoses old, cracked, softened, hardened and used more than 2 years should be replaced.

- Hoses for connecting the containers to the equipment should comply with TS1846 standard and should be made of such material as not to be affected by gas.

- Use your stove with 12 kg gas container. Gas supply hose should not pass through the hot part at the rear of the stove. Temperature of the gas hose should not exceed 90°C. Make sure the system does not leak gas prior to use of it.

Leakage control

Open the gas-reducing valve and control with highly foamed soap water for any gas leakage on the connection you have made.

Never control it with flame.

Final control

1- Make sure the installation of your stove is proper. 2- Control the functions.

Preliminary Preparation

First Use

Make sure the requirements set forth in the manual have been fulfilled.

First Cleaning

Some detergents or cleaning agents may damage the surface.

1. Remove all packaging materials.
2. Wipe the surface of the product with a damp cloth or sponge, then wipe it dry with a cloth.

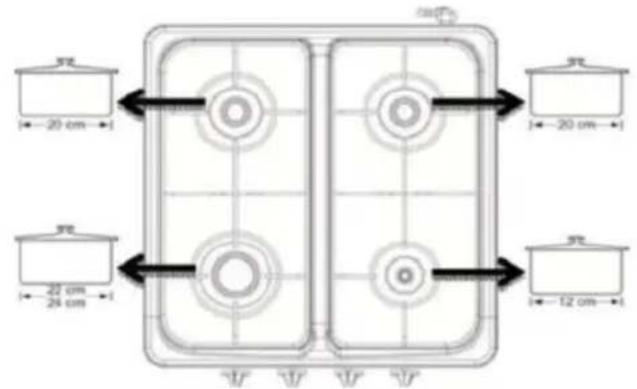

Description of the Use of the Stove

1: Push and turn the gas stove switch anticlockwise to reach the high flame. 2: Ignite the lighter according to the characteristics of your stove. 3: Adjust to the desired flame position. 4: When cooking is finished, turn the switch clockwise to the high point to cut off the burner.

The size of the container and the size of the gas flame should match each other exactly. Adjust the gas flame so that it does not exceed the base of the container. Place the container in the center of the pan support.

Maintenance and Cleaning

General Information

If the product is cleaned regularly, its service life will be extended and frequently encountered problems will be reduced.

• Hot surfaces may cause burns! Allow the product to cool down before cleaning. - The product should be cleaned thoroughly after each use. This makes it easier to remove food deposits and prevents them from burning on during subsequent use. - No special cleaning agent is required. Clean the product with dishwashing liquid, lukewarm water, and a soft cloth or sponge, then wipe it dry. • Make sure no liquids remain after cleaning, and immediately clean any food splashes during cooking. - Do not use cleaning agents containing acid or chlorine on stainless steel or inox surfaces and handles. Clean by wiping in one direction with a soft cloth and a soapy, liquid (non-scratch) detergent.

Some detergents or cleaning agents may damage the surface. Do not use aggressive detergents, cleaning powders/creams, or sharp objects.

Do not use steam cleaning products for cleaning purposes.

Cleaning of the control panel

• Clean the control panel and control buttons with a damp cloth and wipe it with a dry cloth.
• Control panel may be damaged! Do not remove the control switch to clean the control panel.

Disposal of the product

Destruction of the packaging

Packaging materials are dangerous for children. Keep the packaging materials at a place out of reach of children.

Packaging of the product is produced by recyclable materials. Sort them out according to the waste instructions and dispose. Do not throw them together with the domestic waste.

Future handling operations

• Keep the original cartoon of the product and carry the product inside this box. Comply with the instructions given on the cartoon. If its original cartoon is not available, wrap it by use of bubble packaging material or a thick cardboard and band it tightly.
• Band and fix the heads and pan supports tightly.

Do not use the cover or handle to carry or move the product.

Do not put any article on the product. The product should be carried upright.

Control the product visually against any damage that may have occurred during the handling.

Disposal of the old product

• Dispose of the old product in a way that does not harm the environment. The product bears the WEEE symbol, indicating that waste electrical and electronic equipment should be collected separately.
• You should comply with Directive 2002/96/EC to recycle or dismantle the product in order to minimize its potential impact on the environment. For further details, please contact your local or regional authorities.
• Electronic products that are not subject to controlled collection may pose a potential risk to both the environment and human health due to the harmful materials they contain.
• You may contact your dealer or the municipal waste collection department.

WARRANTY PERIOD:

SOGO provides a 2-year warranty from the date of purchase against any defects due to defective materials or workmanship. If the product becomes defective during this period, SOGO will repair it free of charge (or replace it in certain cases) at any of its own or authorized after-sales service centers.

The warranty does not cover misuse or use other than the intended purpose. Failure to follow the SOGO manual guidelines to ensure product and user safety will void the warranty. Additionally, the warranty will be invalid if servicing or repair is performed by any service center other than SOGO's own or officially authorized centers.

For complete information about after-sales issues and a full list of authorized service centers, please visit the SOGO customer service website provided at the end of this manual. There you will also find contact details for our main service center.

Welcome to the SOGO family. We hope that proper use and maintenance of the product will give you long service life.

IMPORTANT:

2

3

4

General overview

2

3

4

General view

LPG connection

2

3

4

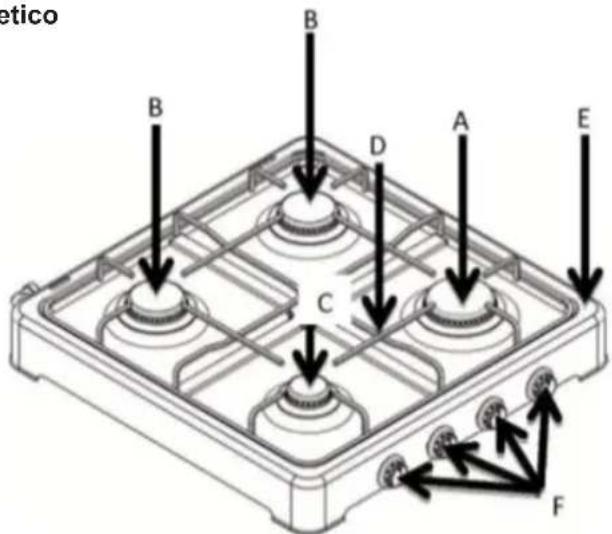

Aesthetic appearance

DECLARATION OF CONFORMITY

This device complies with the Gas Appliances Regulation Directive (GAR) (EU) 2016/426/AB EN 484: 2019 / TS EN 484: 2019 related to appliances that burn gaseous fuels and with Directive 2015/863/EU on restrictions on the use of certain dangerous substances.

DECLARATION OF CONFORMITY

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in Turkey – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
