| Brand | Sogo |
| Model | SS-10233 |
| Appliance type | Outdoor gas stove |
| Gas category | I3+ (LPG) |
| Gas pressure | 28-30 mbar (butane) / 37 mbar (propane) |
| Number of burners | 2 |
| Nominal power | 2 x 2.2 kW |
| Gas consumption | 160 g/h per burner |
| Ignition | Electronic (piezo) |
| Body material | Steel |
| Grid material | Steel |
| Usage | Outdoor only |
| Burner diameter | 103 mm |
| Safety | Low-pressure regulator mandatory; hose ≤ 1.5 m; leak check with soapy solution |
| Cleaning | Mild detergent, warm water, soft cloth; no abrasives or steam cleaner |
| Warranty | 3 years |
| After-sales service | sogosat@sogosat.com / 0034 902 222 161 |
| Standards | GAR Directive (EU) 2016/426, RoHS 2015/863 |
| Country of origin | China |
| Importer | Sanysan Appliances S.L, Valencia, Spain |
Frequently Asked Questions - SS-10233 Sogo
User questions about SS-10233 Sogo
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Frying Pan in PDF format for free! Find your manual SS-10233 - Sogo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SS-10233 by Sogo.
USER MANUAL SS-10233 Sogo
EN Instructions for use
FR Mode d'emploi
SS-10233
SS-10235
SS-10237
SS-10275
Download your manual
Download your manual
ref. SS-10233 / SS-10235
SS-10237 / SS-10275
SPANISH P. 3
ENGLISH P.11
FRENCH P. 19
PORTUGUESE P. 27
GERMAN P. 35
ITALIAN P. 43
CZECH P. 51
DANISH P. 59
SLOVENIAN P. 67
CROATIAN P. 75
POLISH P. 83
ROMANIAN P. 91
UKRAINIAN P. 99
CATALAN P. 107
Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.
SS-10233 SS-10235 SS-10237 SS-10275
General Appearance
LPG Connection
Leak Control
• Always read the instruction book carefully before using. • This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.
Symbols and Description:
1- Important information and useful hints on use 2- Warning against dangerous situations in terms of life and property 3- Warning against fire risk 4- Warning against hot surfaces
SAFETY INSTRUCTIONS FOR THE USER
Intended use
This product is designed for outdoor use. It is not allowed for commercial use. "CAUTION: This product may be used only for cooking. It should not be used to heat the room or any other purpose."
- Be careful to avoid getting burned by touching the top panel of the gas table as it gets very hot near the burner when in use.
- Do not apply excessive pressure to the gas control knobs. • To avoid damage, do not place charcoal on the burners.
- Do not allow the holes in the burners to become clogged.
- Keep the gas table clean for better service and a longer operation life.
- At night or when leaving the house, be sure to turn off not only the control knobs of the gas table, but also the main gas valve of gas bottle as well.
- For better complete combustion, keep the burners clean.
- Check the rubber gas hose which connects the gas cooker to the gas bottle regularly for wear or leak, it must be replaced occasionally. Keep it away from heat source and keep it clean. • Make sure that there are no inflammable objects near the gas table.
- The cooker must be connected to the cylinder using a rubber hose for LPG in conformity with the regulations of the country in which the cooker is to be used.
- Do not move the stove when using it.
- Keep all ventilation channels unobstructed around them.
• After each use of the product, make sure the pressure-reducing valve is closed. - Do not use sharp or piercing materials to clean the inside and glass of the product; such materials may damage your product. - The hose must be no longer than 1.5m and should be replaced in accordance with the current legislation in the country of use and in any case after 4 years of use. • Always use a low-pressure regulator to connect the cooker to the cylinder. This regulator must have a normalized fixed calibration at 28-30 mbar for butane and 37 mbar for propane. - Metal hose clips suitable for gas must be used to secure the hose to the cooker and to the regulator in countries where it is allowed to fix the hose to the actual appliance. - When you smell gas (leakage), close the pressure-reducing valve immediately. - Never use flames to check for gas leaks. Always use a special spray. - Never operate the appliance if the rubber hose is not firmly secured with the recommended clips. - Do not use the appliance if there are leaks, damage, or malfunction. - Ensure objects are positioned at least 1 m from the cooker in all directions. - Do not let pets roam freely in the vicinity of the cooker. - Never leave the cooker lit without supervision. - Never let children approach the cooker. - In the event of malfunction or smell of gas, never check the heater yourself, but take it to the dealers. In any case, close the gas cylinder tap immediately. - Open all the doors and windows if there is a smell of gas and DO NOT light the fire or operate any device which may cause a spark. - Protect the electronic ignition system from water. - The electronic igniter will not work if it gets wet. Be careful not to spill water. - This product is not designed for use by any handicapped people, mentally, physically, or sensually, or by any people having no knowledge and experience (including children) unless they are attended by a person who may assume their safety or give directions for use of it. The children must be supervised and must not be allowed to play with the product. - During and after operation of the product, the exposed parts of the product will remain hot until it gets cool; keep the children
away from it.
- CAUTION: During operation of the grill, the accessible parts may be hot. Keep small children away from it.
- It is risky for children below 8 years old to come into contact with the product when they are not attended by an adult person.
• This product may be used by children above 8 years old and/or by any physically, sensually, or mentally handicapped people if they are informed about the risks and proper operation of the product is shown to them.
• Children should not play with the product. Cleaning and maintenance of the product may not be performed by children not supervised by adults.
- Packaging materials may be risky for children. Keep them in places out of reach of children and sort them out according to the waste instructions and dispose of them.
- If the venturies of your stove become clogged due to food overflow, contact the authorized service center and have the burner unclogged.
- If the product is damaged or has any visible defect, do not operate the product.
- Do not perform any repair or modification on the product.
- Do not use the product when your judgment is impaired due to taking drugs and/or alcohol.
Always call an authorized service center for installation and repair operations. The manufacturing company may not be held responsible for any damage that may arise as a result of operations by unauthorized persons, and the warranty will become invalid as a result.
- Be careful when using alcohol in your food. Alcohol evaporates at high temperature and when it comes into contact with hot surfaces, it blazes up and can cause a fire risk.
- Do not heat closed tin cans and glass jars.
- Pressure may develop and cause the jar to burst.
- Do not bring flammable materials near the product when it operates because its sides may be hot.
• The product and its parts accessible by hand are hot when in use.
• The product may be hot after use. If you have to touch it, wear heat-resistant gloves.
Technical Specifications
| Specifications G30 | 30mbarInyector | 1 Burnerstove | 2 Burnersstove | 3 Burnersstove | 4 Burnersstove |
| Gas category I3+(2 | 8-30/37) I3+(28- | 30/37) I3+(28-30/37) | I3+(28-30/37) | I3+(28-30/37) | |
| Power GasBurner | ∅ 0.7 mm∅ 0.5 mm | 1X 2.2 KW 2 X | 2.2 KW 2 x 2.2 | KW1 X 1 KW | 4 x 2.2 KW |
| Gas BurnerDiameter | 1 x ∅ 103mm 2 | x ∅ 103mm 2 x | ∅ 103mm1 x ∅ 68.6 mm | 4 x ∅ 103mm | |
| LPG 28-30 mbar 1 | x 160 g/h 2 x 160 g/h 2 x 160 g/h | 1 x 75 g/h | 8,8 KW | ||
| Pressure classification(Bar) | ||
| Model Nos. Category | Pressure | |
| SS-10233, SS-10235; SS-10237, SS-10275 | I3+28 – 30/37mbar 28 – 30/37mbar | |
- Your stove is designed to operate on G28-30 / 37mbar (LPG) gas. It is not possible to convert the stove to operate on different gases.
- Use a 1.5 kg / 300 mm SS pressure-reducing valve on your stove as per TSE standards. • This product is designed to operate outdoors only.
- Technical specifications may be changed without prior notice in order to improve product quality.
- Figures given in the manual are schematic and may not exactly match your product.
- The declared values on the markings of the products or in other printed documents provided together with the product are values obtained in laboratory as per the respective standards. These values may vary depending on the use and environment of the product.

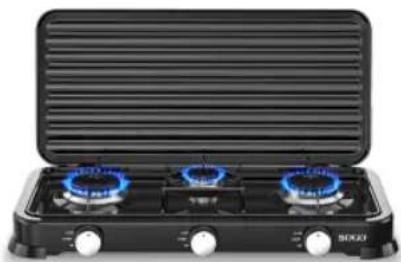

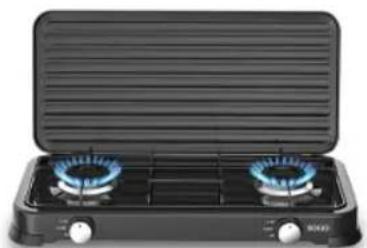

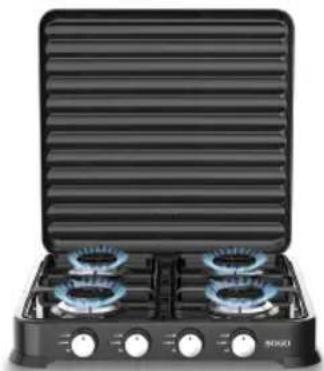

Product

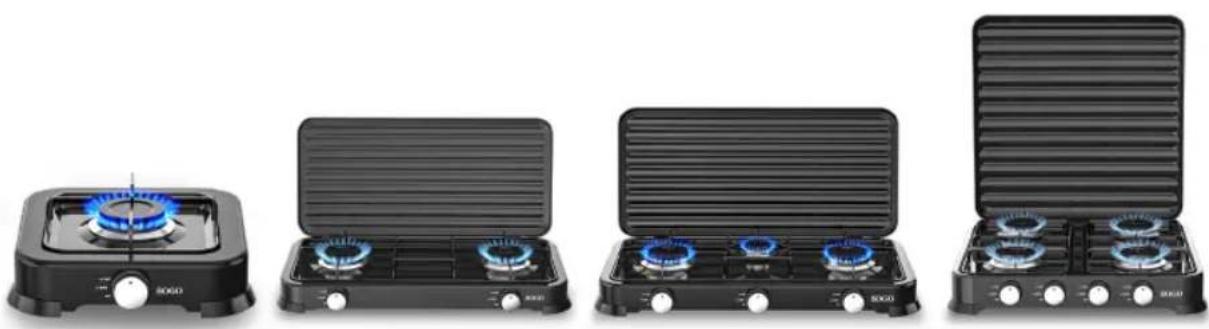

SS-10233 SS-10235 SS-10237 SS-10275
General appearance

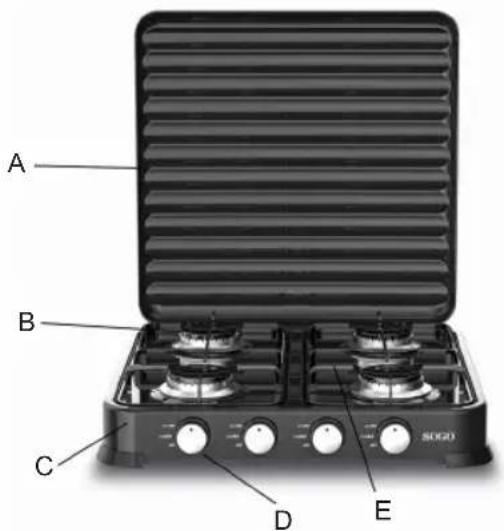

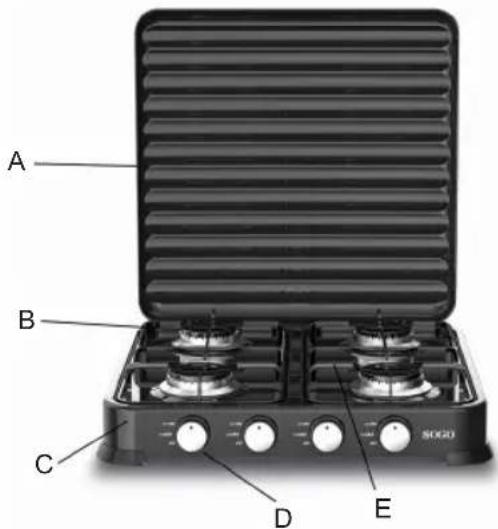

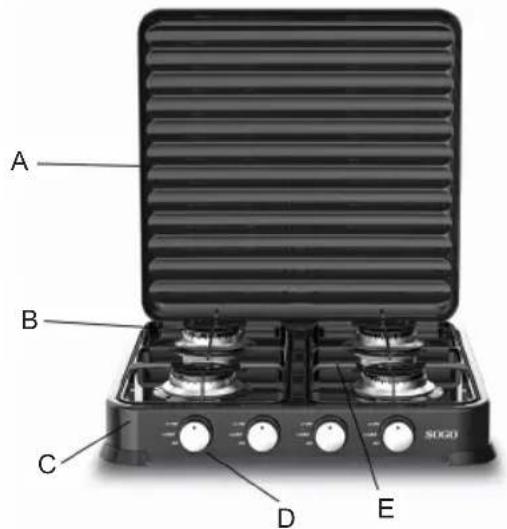

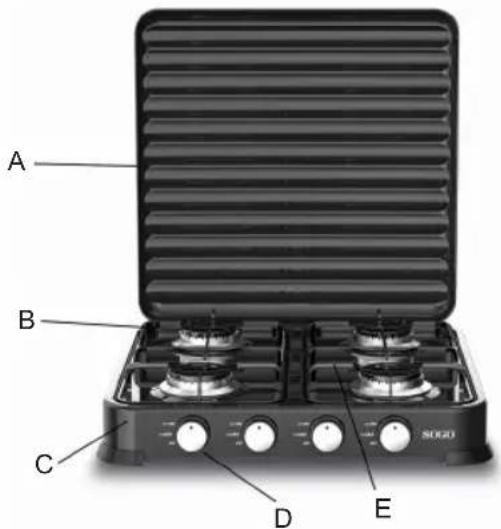

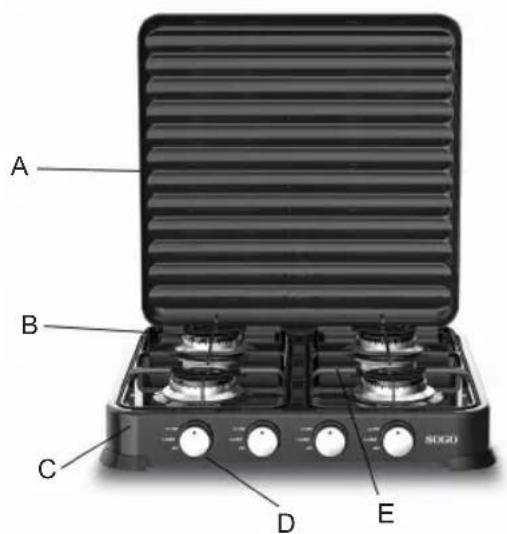

A. Lid B. Burners C. Metal gas stove body D. Knobs E. Grill
Installation
• Install your stove in the sizes shown in the figure. • Make sure the vents are open. • Make sure the place where you install the stove is made of heat-resistant material. Do not place it on plastic and similar materials. • Make sure the gas installation is proper. • Preparation of the installation place as well as gas installation is the responsibility of the product. • The rules set forth in the applicable local standards regarding gas should be observed during installation of the product. • Damaged products may pose danger for your safety. • Any operation on the gas equipment and systems should be performed by authorized and competent persons. The product is not equipped with a system for evacuation of the gases that may form after combustion. • The product should be installed and connected as per the applicable installation regulations. Requirements related to ventilation should be specially observed.
! Connections
Property damage!
Do not use the cover, gas hose and/or gas control switches to carry or move the product.
Gas Connections
Any operation on the gas equipment and systems should be performed by authorized and competent persons. Prior to installation, make sure the local distribution conditions (gas type and gas pressure) are compliant with the settings of the product.
LPG connection
- Be careful that gas hose and gas-reducing valve you will use for the stove should be reliable. Fix the gas supply hose to the hose nozzle behind the stove and tighten with a hose clamp and screwdriver (Figure 6). Make sure it is tightened well.
- Length of the gas hose of the stove should not be longer than 1500mm.
- Pressure of the gas-reducing valve to be used for LPG should be 1.5 kg/300mm SS and duly certificated.
- Hoses old, cracked, softened, hardened and used more than 2 years should be replaced.
- Hoses for connecting the containers to the equipment should comply with TS1846 standard and should be made of such material as not to be affected by gas.
- Use your stove with 12 kg gas container. Make sure the system does not leak gas prior to use of it.
Gas supply hose should not pass through the hot part at the rear of the stove. Temperature of the gas hose should not exceed 90° C.
Leakage control
Open the gas-reducing valve and control with highly foamed soap water for any gas leakage on the connection you have made.
Never control it with flame.
Final control
1- Make sure the installation of your stove is proper. 2- Control the functions.
Preliminary Preparation
First use
Make sure the requirements set forth in the manual have been fulfilled.
First cleaning
Some detergents or cleaning agents may damage the surface.
- Remove all packaging materials.
- Wipe the surface of the product with a damp cloth or sponge, then dry it with a cloth.
Description of the use of the stove
1: Push and turn the gas stove switch anticlockwise to reach the high flame. 2: Ignite the lighter according to the characteristics of your stove. 3: Adjust to the desired flame position. 4: When cooking is finished, turn the switch clockwise to the high point to cut off the burner.

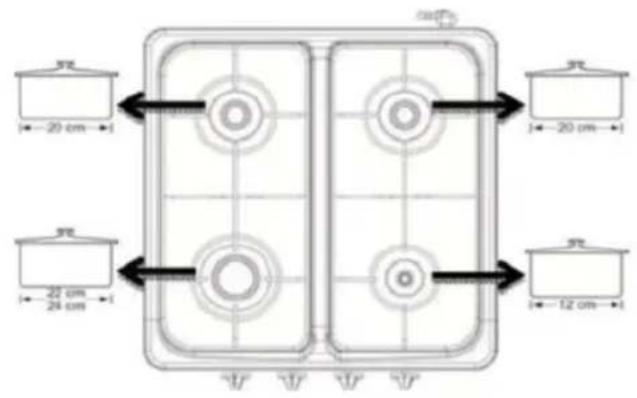

The size of the container and the size of the gas flame should match each other. Adjust the gas flame so that it exceeds the base of the container. Place the container in the center of the pan support.
Maintenance and cleaning
General information
If the product is cleaned regularly, its service life will be extended and common problems will be reduced.
- Hot surfaces may cause burns! Allow the product to cool down before cleaning.
- The product should be thoroughly cleaned after each use. This makes it easy to remove food deposits and prevents them from burning on during subsequent use.
- No special cleaning agent is required. Clean the product with dishwashing liquid, lukewarm water, and a soft cloth or sponge, then wipe it dry.
- Ensure no liquids remain after cleaning, and immediately clean any food splashes during cooking.
- Do not use cleaning agents containing acid or chlorine on stainless steel or inox surfaces and handles. Clean by wiping in one direction with a soft cloth and a soapy, non-scratching liquid detergent.
Some detergents or cleaning agents may damage the surface. Do not use aggressive detergents, cleaning powders/creams, or sharp objects.
Do not use steam cleaning products for cleaning purposes.
Cleaning of the control panel
- Clean the control panel and control buttons with a damp cloth and wipe it with a dry cloth.
- Control panel may be damaged! Do not remove the control switch to clean the control panel.
Disposal of the product
Destruction of the packaging
Packaging materials are dangerous for children. Keep the packaging materials at a place out of reach of children.
Packaging of the product is produced by recyclable materials. Sort them out according to the waste instructions and dispose. Do not throw them together with the domestic waste.
Future handling operations
- Keep the original cartoon of the product and carry the product inside this box. Comply with the instructions given on the cartoon. If its original cartoon is not available, wrap it by use of bubble packaging material or a thick cardboard and band it tightly.
- Band and fix the heads and pan supports tightly.
Do not use the cover or handle to carry or move the product.
Do not put any article on the product. The product should be carried upright.
Control the product visually against any damage that may have occurred during the handling.
Disposal of the old product
- Dispose of the old product in a way that does not harm the environment. The product has a symbol (WEEE) on it, indicating that waste from electrical and electronic equipment should be collected separately.
- You should comply with Directive 2002/96/EC in order to recycle or break it down into parts to minimize its possible impact on the environment. For further details, please contact your local or regional authorities.
- Electronic products that are not subject to controlled collection operations could pose a potential risk to both the environment and human health due to the harmful materials they contain.
- You may contact your dealer or the municipal waste collection department.
WARRANTY PERIOD:
SOGO provides you with a 3-year warranty from the date of purchase against any defect due to defective material or workmanship of the product. If the product has any defect or becomes defective during this period, SOGO will repair it free of charge (or replace it in certain cases) at any of its own or authorized after-sales service centers.
The warranty does not cover cases where the product has been used incorrectly or used for purposes other than its intended use. Failure to follow the SOGO manual guidelines to ensure product and user safety will lead to warranty extinction. Also, the warranty will be invalid if the product has been serviced or repaired by any service center other than SOGO's own service centers or officially authorized centers.
To get complete information about after-sales issues and the full list of our authorized service centers, please visit the SOGO customer service website provided at the end of this manual. There you can also find the contact details of our main service center.
Welcome to the SOGO family, and we hope that correct use and maintenance of the product will give you long service life.
