USER MANUAL EDGE-L1 MSW

PORTABLE EDGE BANDING MACHINE

DE	Produktname	KANTENANLEIMMASCHINE
EN	Product name	PORTABLE EDGE BANDING MACHINE
PL	Nazwa produktu	OKLEINIARKA
CZ	Název výrobku	PŘENOSNÝ STROJ NA OLEPOVÁNÍ HRAN
FR	Nom du produit	PLAQUEUSE DE CHANTS PORTATIVE
IT	Nome del prodotto	BORDATRICE PORTATILE
ES	Nombre del producto	MÁQUINA DE ENCOLADO DE BORDES PORTÁTIL
HU	Termék neve	MOBIL ÉLSZALAGOZÓ GÉP
DA	Produktnavn	KANTLIMER TRANSPORTABEL
FI	Tuotteen nimi	SIIRRETTÄVÄ REUNANAUHAKONE
NL	Productnaam	DRAAGBARE BANDEROLLEERMACHINE
NO	Produktnavn	BÆRBAR KANTBÅNDMASKIN
SE	Produktnamn	PORTABEL KANTLISTNINGSMASKIN
PT	Nome do produto	COLADEIRA DE FITA DE BORDA PORTATIL
SK	Názov produktu	PRENOSNÝ STROJ NA OLEPOVANIE HRÁN
DE	Modell	MSW-EDGE-L1
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Produtor
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó cime
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do produtor
SK	Adresa výrobcu

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

Close-up of black metal legs with connectors and a small white component, no visible text or symbols

Person operating a blue foam board with orange liquid, next to a mechanical press or machine (no visible text or symbols)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Portable edge banding machine
Model	MSW-EDGE-L1
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W].	765
Safety class	I
Dimensions [width x depth x height; mm]	350 x 400 x 390
Weight [kg]	11,4
Feed speed [m/min]	Up to 5
Veneer thickness [mm]	0,3-3
Operating temperature range [°C]	120-180
Veneer width [mm]	10-60
Gluing type	one-sided
Glue container volume [g]	Approx. 570

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

EN

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a situation (general warning sign).
	Wear a dusk mask (protecting the respiratory tract).
	Use the safety cover.
	CAUTION! Risk of electric shock!
	CAUTION! Spinning elements!
	Warning against poisoning by toxic substances!

EN

	CAUTION! Danger of crushing your hand!!
	Emergency stop!
	Caution! Hot surface can cause burns!
	For indoor use only.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to the:

Portable edge banding machine

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.

b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.

c) Do not touch the device with wet or damp hands. Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.

d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
f) To avoid electric shock, do not immerse the cable, plug, or the appliance itself in water or other liquid. Do not use the appliance on wet surfaces.
g) CAUTION – DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
h) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
i) Before the initial use, please check whether the type of current and mains voltage corresponds to those indicated on the rating plate. Do not allow the machine to get wet. Risk of electric shock!

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the device.
b) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
c) If you have any doubts as to whether the unit is working properly or if it is damaged, contact the manufacturer's service department.
d) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
e) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
f) No children or unauthorized persons are allowed in the work area. Inattention can cause losing control of the unit.
g) Use the product in a well-ventilated area.
h) Dust and debris are generated during product use. Protect bystanders against their harmful effects.
i) In the event of danger to life or limb, accident, or breakdown, stop the unit with the EMERGENCY STOP button!
j) Check the condition of the safety stickers regularly. If the stickers are illegible, they must be replaced.
k) Keep these instructions for use for future reference. If the unit is to be passed on to third parties, the operating instructions must also be handed over together with the unit.

I) Keep packaging components and small installation parts out of the reach of children. Do not point the pressure hose toward yourself or other people or animals. Pressurized air can cause serious injury.
m) Keep the device away from children and animals.
n) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the equipment.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The unit may be operated by persons who are physically fit, capable of operating it, and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
c) Please be attentive and use common sense when operating this equipment. A moment's inattention during operation may result in serious personal injury.
d) Use the personal protective equipment required when working with the device, as specified in point 1. "Explanation of symbols." The use of appropriate, approved personal protective equipment reduces the risk of injury.
e) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
f) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
g) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
h) Before switching the unit on, remove any regulating tools or keys. Any tools or keys left in the rotating part of the unit may cause injury.
i) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.
j) If the unit is provided with extraction connections, check that they are correctly connected and fixed. Using dust extraction can reduce dust hazards.

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected unit will do a better and safer job for which it was designed.
b) Do not use the device if the "ON / OFF" switch does not work properly (does not turn the device on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
c) Unplug the unit before making adjustments, changing accessories, or putting it away. This precaution reduces the risk of accidental start-up. Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
d) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
e) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
f) Keep the product out of the reach of children.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the device from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the device is used.
i) Avoid situations where the unit stops working because it is handling a heavy load. This can cause overheating of the drive elements and consequent damage to the equipment.
j) Do not touch any moving parts or accessories unless the device is unplugged.
k) Do not move, shift, or rotate the device while in operation.
I) Do not leave the device switched on unattended.
m) Clean the device regularly to prevent permanent dirt build-up.
n) Do not process two workpieces at the same time.
o) Do not tamper with the device to alter its performance or design.
p) Keep the unit away from sources of fire and heat.
q) Do not block the ventilation openings of the unit!
r) CAUTION! Some parts of the unit become very hot during operation - there is a danger of burning!
s) Use protective glasses. When working in a dusty environment, additionally use a dust mask.
t) Keep the handles dry, clean and free of oil or grease. The air supplied to the machine should be dehumidified, clean, and free of contaminants. Contaminants can clog hoses and cause damage to the machine and its components.

EN

CAUTION! Although the product has been designed to be safe and has adequate safeguards and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the product. Caution and common sense are advised when using the product.

3. Instructions for use

The product is designed to apply decorative and finishing strips (made of ABS, melamine, veneer, PVC, etc.) on straight and curved edges of any furniture boards in veneer.

The user is responsible for any damage resulting from misuse.

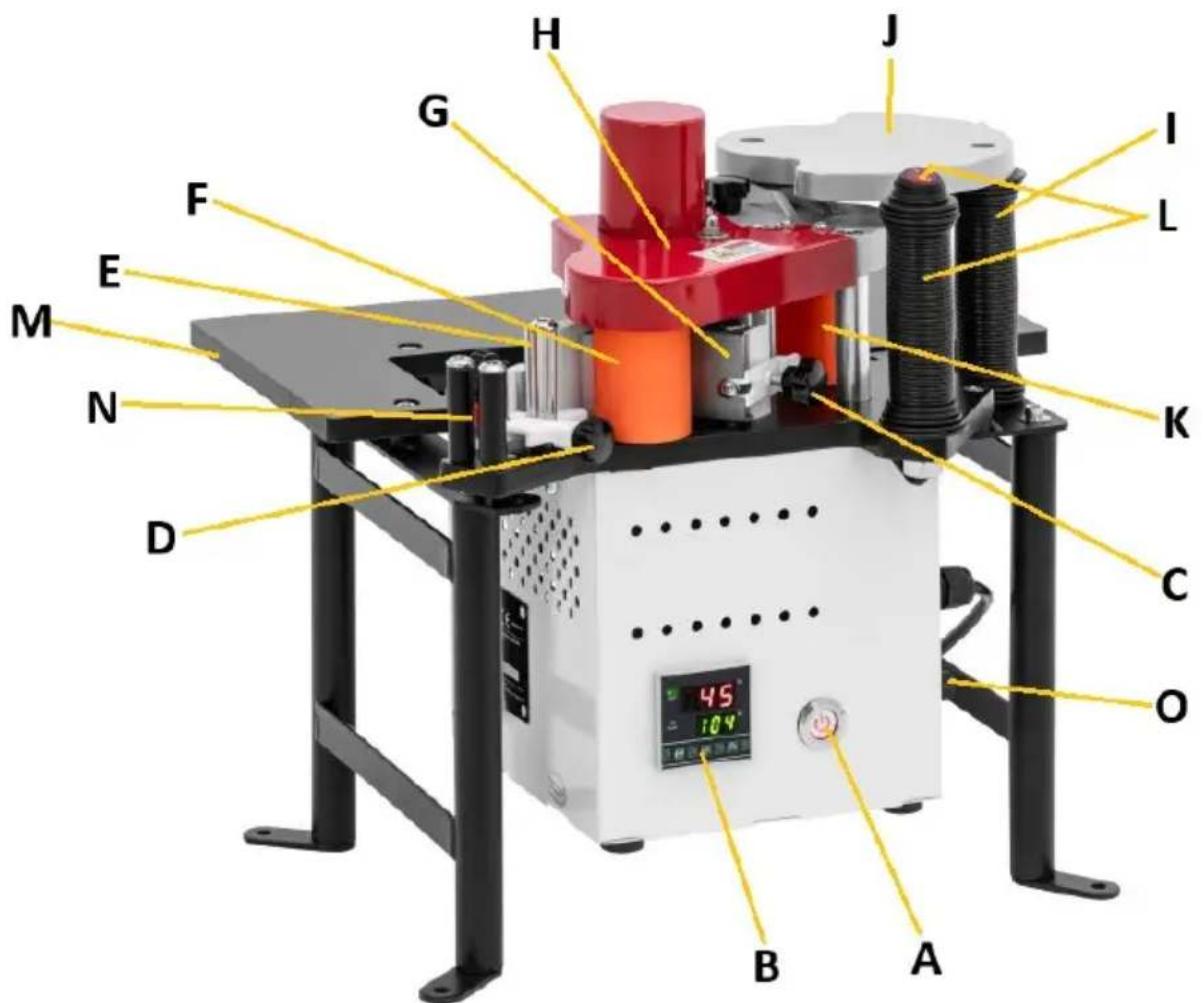

3.1. Product overview

H J G I F L E M N K D C O B A

A. The main power switch of the machine
B. Temperature controller with display
C. Glue dosage knob

D. Finishing strip limiter knob

E. Roller top limiter guide with belt

F. Press roller

G. Fastening of the press roller

H. Mechanism head cover

I. Pressing handle

J. Pressing device

K. Drive roller from the engine

L. Handle with quick turn on/off (emergency stop switch)

M. Working top

N. Tape receiving guide

O. Fuse socket

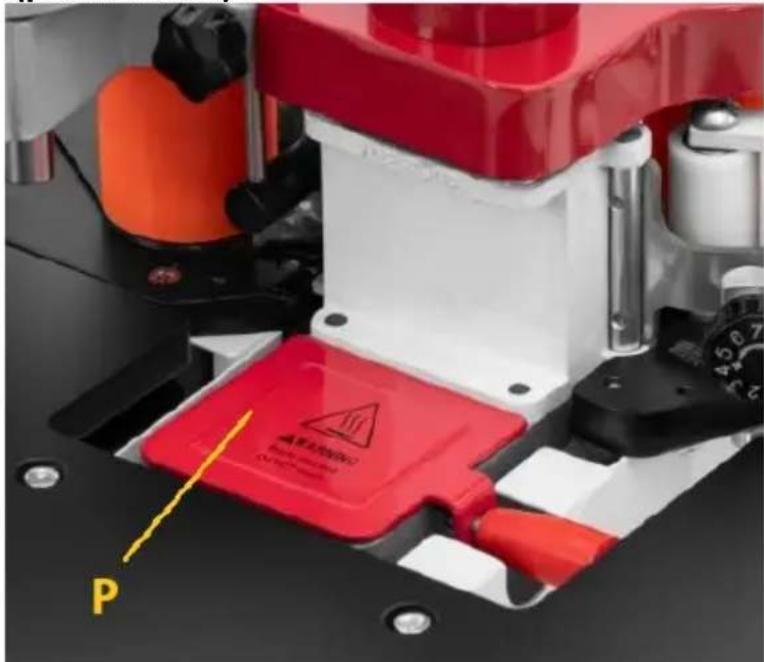

P. Glue container (photo below)

P

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Keep a minimum safe distance from each wall of the device, ensuring freedom of movement for the operator. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

ASSEMBLY OF THE DEVICE

The unit is delivered mostly ready for operation - only the worktop with the pressing mechanism and the legs need to be assembled. Use the included screws and tools to fasten these components. If the device is to be used always in the same place, it is recommended to fix it to the surface on which it will work to increase the stability of the work. Use the holes in the adapters at the bottom of the legs to attach them:

Close-up of black metal support legs with a white rectangular component on the right (no text or symbols visible)

3.3. Working with the device

IMPORTANT: Before starting work, make sure that:

- The edge of the piece to be processed is smooth and free from dirt and loose pieces, while the strip to be glued is even and sufficiently flexible.

- The glue dosage knob is set according to the thickness of the finishing strip after the drive has started

- The finishing strip thickness limiter is set so that the strip does not slide off the roll and is evenly applied to the element.

Operation:

• Connect the device to the power supply.
• Fill up the container with glue.
• Turn on the power.
  • Install the roller with the finishing strip to be glued on
• Set the glue heating temperature on the controller (to the value recommended by the glue manufacturer). After reaching the target temperature, the device goes into its maintenance mode and starts the machine drive, i.e. you can start working.

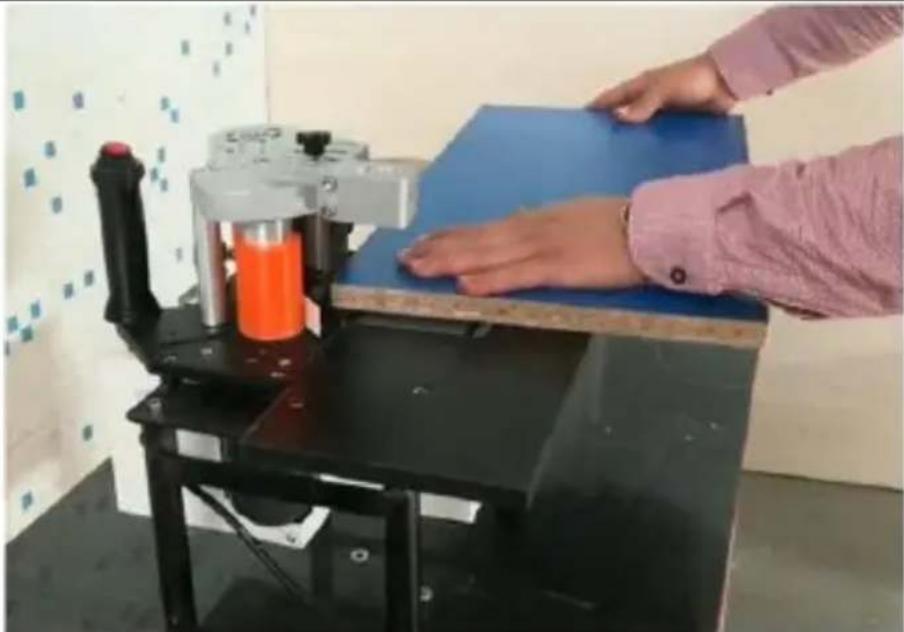

• Move the wooden element along the table top according to the operating speed of the machine (see the photo below):

Person operating a blue foam board with orange liquid, next to a mechanical press or machine (no visible text or symbols)

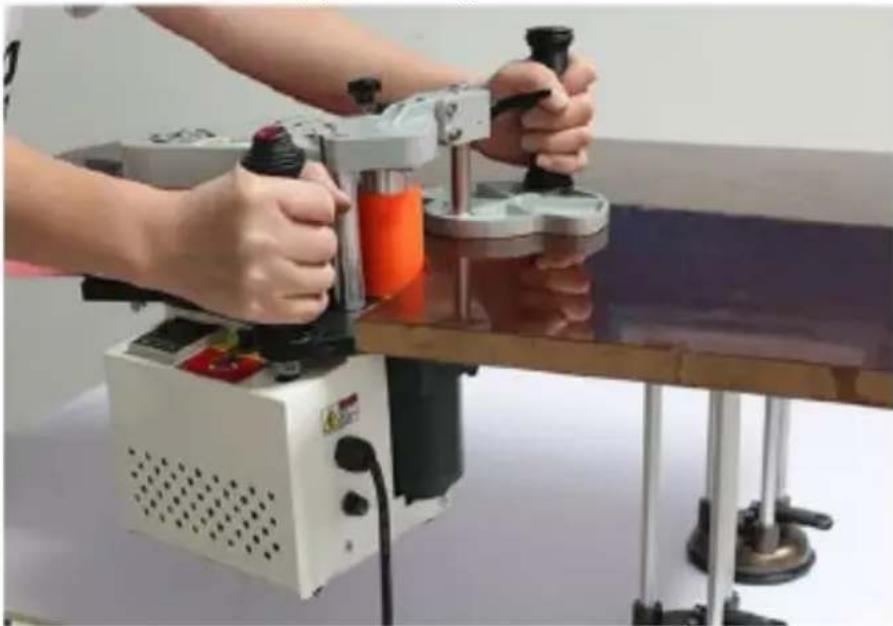

When processing larger workpieces, attach the clamp and additionally hold the machine during processing:

Person using a power tool on a glass table, no visible text or symbols

- In the event of a sudden need to stop the operation of the machine, press the button on one of the handles - the drive will stop but the device will still maintain the set operating temperature for the glue.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.

- Wait until the rotating parts stop.

b) Use only non-corrosive cleaning agents for cleaning the surfaces.

c) After each cleaning, all the parts should be dried well before the unit is used again.

d) Store the unit in a dry and cool place protected from moisture and direct sunlight.
e) Do not spray the unit with a stream of water or immerse it in water.
f) Make sure that no water enters through the ventilation openings in the casing.
g) Clean the ventilation openings with a brush and compressed air.
h) Perform regular inspections of the unit checking technical fitness and any damages.
i) Use a soft cloth for cleaning.
j) Clean the device after each use.
k) Parts of the machine that come in contact with hot glue should be cleaned with gasoline or other agents that remove such glue.
I) The glue container should be emptied and cleaned every 50 working hours, and fresh glue should be used for further work. To clean the glue container, first heat the glue to the operating temperature (with the machine drive turned off) to bring it to a liquid form. Then empty the glue, e.g. with a spoon, etc.

CAUTION: heated glue is hot! Protect your hands from burns, e.g. with special gloves, etc.

DISPOSAL OF WASTE APPLIANCES

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

PL H G F E M N D J I L K C O B A

Close-up of black metal legs with a white rectangular object on top, no visible text or symbols

Person operating a blue foam board machine with orange liquid, no visible text or symbols

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

Close-up of black metal legs with mounting holes and a small white component, no visible text or symbols

Person operating a blue foam panel on a black workbench with orange spray bottle and mechanical device (no visible text or symbols)

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

Close-up of black metal legs with connectors and a small white object on the right (no text or symbols visible)

Person operating a blue foam board on a black workbench with an orange spray bottle and mechanical device nearby (no visible text or symbols)

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

Close-up of black metal legs with a cable and a white rectangular object, no visible text or symbols

Person operating a blue foam board on a black workbench with an orange spray bottle nearby (no visible text or symbols)

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

Close-up of black metal structural components with mounting holes and a white rectangular component (no text or symbols visible)

Person operating a blue foam board with orange cylindrical component on a black workbench, no visible text or symbols

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

Close-up of black metal legs with a cable and a small white object, no visible text or symbols

Person operating a blue foam board with orange liquid, next to a mechanical testing machine (no visible text or symbols)

H J G I F L E M N K D C O B A

Close-up of a red and white industrial machine component with a yellow warning label and 'P' marker (no readable text or symbols beyond labels)

APPARATETS PLACERING

Close-up of black metal structural components with mounting flanges and a white component (no text or symbols visible)

Person operating a blue foam board with orange liquid, next to a mechanical testing machine (no visible text or symbols)

H J G I F L E M N K D C O B A

Close-up of a red and white industrial machine component with a yellow warning label and 'P' marker (no readable text or symbols beyond labels)

Close-up of black metal structural components with mounting holes and a white component (no visible text or symbols)

Person operating a blue foam panel on a machine, with orange spray bottle and mechanical components nearby (no visible text or symbols)

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printing machine with a yellow warning label and 'P' marker (no readable text or symbols beyond labels)

Close-up of black metal legs with a white rectangular component, no visible text or symbols

Person operating a blue foam board with orange liquid, next to a mechanical press or testing machine (no visible text or symbols)

H J G I F L E M N K D C O B A

A. Maskinens hovedstrømbryter
B. Temperaturregulator med display
C. Limdoseringsknapp
D. Avslutningslistbegrenserknapp
E. Rulletoppbegrenserføring med belte
F. Pressrulle
G. Festing av pressvalsen
H. Mekanisme hodedeksel

Close-up of a red and white industrial machine component with a yellow warning label and 'P' marker (no readable text or symbols beyond labels)

Close-up of black metal structural components with mounting holes and a white component (no visible text or symbols)

Person operating a blue workbench with orange spray bottle and mechanical device (no visible text or symbols)

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

PLACERING AV APPARATEN

Close-up of black metal legs with mounting holes and a small white component, no visible text or symbols

Person operating a blue foam board with orange spray bottle on a black workbench, no visible text or symbols

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

Close-up of black metal legs with connectors and a small white object on the right (no text or symbols visible)

Person operating a blue workbench with an orange cylindrical device, no visible text or symbols

H J G I F L E M N K D C O B A

Close-up of a red and white 3D printer with warning label and yellow arrow pointing to component (no readable text or symbols)

Close-up of black metal legs with a cable and a small white object on top, no visible text or symbols

Person operating a blue workbench with orange spray bottle and mechanical device (no visible text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
