USER MANUAL RCKM-20 Royal Catering

Silhouette of a lion-like creature on a blue background (no text or symbols)

DE	Produktname	Kaffeemaschine
EN	Product name	Coffee maker
PL	Nazwa produktu	Ekspres do kawy
CZ	Název výrobku	Kávovar
FR	Nom du produit	Cafetière
IT	Nome del prodotto	Macchina per il caffè
ES	Nombre del producto	Cafetera
HU	Termék neve	Kávéfőző
DA	Produktnavn	Kaffemaskine
FI	Tuotteen nimi	Kahvinkeitin
NL	Productnaam	Koffiezetapparaat
NO	Produktnavn	Kaffetrakter
SE	Produktnamn	Kaffebryggare
PT	Nome do produto	Cafeteira
SK	Názov produktu	Kávovar
BG	Име на продукта	Кафемашина
EL	Όνομα προϊόντος	καφετιέρα
HR	Naziv proizvoda	Aparat za kavu
LT	Produkto pavadinimas	Kavos virimo aparatas
RO	Numele produsului	Filtru de cafea
SL	Ime izdelka	Aparat za kavo
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtėλo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCKM-20
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Modern silver coffee water heater with a white cup of coffee, no visible text or symbols

Technical diagram of a coffee maker with numbered parts and cross-sectional view

Close-up of a black plastic component with a textured surface and red measurement markings (no visible text or symbols)

Close-up of a metallic saucer with a circular vent and red needle inserted, showing internal components (no text or symbols visible)

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Coffee maker
Model	RCKM-20
Voltage [V~] / Frequency [Hz]	230 ~ / 50
Power [W]	1500
Tank's capacity (up to the maximum level) [L]	16
Tank's total capacity [L]	21
Weight [kg]	5.5

Symbols

Operation manual must be reviewed.

Never dispose of electrical equipment together with household waste.

This machine conforms to CE declarations.

Attention! Hot Surface may cause burns.

Safety instructions

General safety information for the use of electrical devices:

To avoid injury from fire or electric shock, please ensure compliance with safety instructions when using this device. Please read the instructions carefully and make sure that you have understood them well. Keep the manual near the equipment to be able to read it at any time. Always use current sources connected to the ground and providing the necessary voltage (indicated on the label on the device). If you have any doubt, let an electrician check that your outlet is properly grounded. Never use a damaged power cable. Do not open the unit in damp or wet environment, or if your hands or body are damp or wet. Protect the unit from solar radiation. Use the device in a protected location to avoid damaging the equipment or endangering others. Make sure the device is able to cool and avoid placing it too close to other devices that produce heat. Before cleaning, disconnect it from the power source. Use a soft damp cloth for cleaning.Avoid using detergents and make sure that no liquid enters the unit. No internal element of this device needs to be maintained by the user. Opening the device without our approval leads to a loss of warranty!

Safety guidelines

1. Please read these instructions carefully and understand them before operating the device! Please observe the safety guidelines carefully in order to prevent damages through improper use!
2. Please keep this manual available for future reference. If this device is passed on to third parties, the manual must be passed on with it.
3. Only use this device indoors and for its intended use.
4. We do not offer any warranty for damages resulting from improper use or incorrect operation.
5. Check before first use whether main voltage type and current comply with the indicated data on the type plate.
6. This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instruction from this person as to how the device is used.
7. ELECTRICAL SHOCK HAZARD! Do not attempt to repair the unit yourself. In case of device failures, repairs must be done by qualified experts.
8. Please check main plug and power cable regularly. If the power cable for this device is damaged, it has to be replaced by the manufacturer or its customer service or another qualified person in order to prevent hazards.
9. Prevent damages to the power cable by avoiding squeezing or bending it or rubbing it on sharp edges. Also keep the power cable away from hot surfaces and open flames.
10. ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
11. Open the housing under no circumstances.
12. The drinks warmed up by the device can get very hot. Adapt adequate protective measures.
13. Clean the coffee maker regularly to prevent permanent soiling.
14. Replace coffee paper filters regularly.

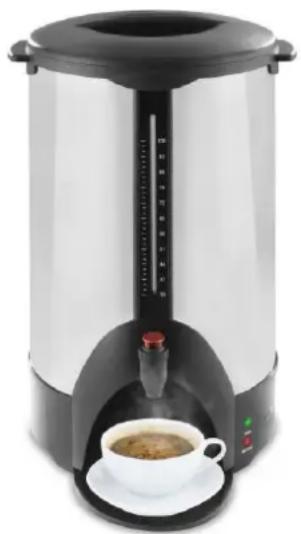

Product overview

White and black water heater with a coffee cup on the side, no visible text or symbols.

The product is only designed for the preparation of coffee using cold water.

Do not use the coffee maker for:

- cook soups or other drinks than coffee;

• warm up liquids containing sugar, sweeteners, acids, bases or alcohol;
• warm or warm up flammable, noxious, particularly volatile, or any other toxic substances.

The user is liable for any damage resulting from unintended use of the product.

Usage

Before first use

Upon receipt of the goods, check the packaging for integrity and open it. If the packaging is damaged, please contact your transport company and distributor within 3 days, and document the damages in as much detail as possible. Do not turn the package upside down! When transporting the package, please ensure that it is kept horizontal and stable.

Disposing of packaging

Please keep all packaging materials (cardboard, plastic tapes and Styrofoam), so that in case of a problem, the device can be sent back to the service centre in accurate condition.

Installing the appliance

Appliance location

The temperature of environment must not be higher than 45 °C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is used. The distance between the back of the device and the wall should be at least 20 cm, minimum distance between the sides of the device and the walls should be at least 10 cm on each side and 35 cm between the top of the device and the ceiling. Keep the device away from hot surfaces. Operate the device on flat, stable, clean, refractory and dry surfaces out of the reach of children and people with mental disabilities. Install the device making sure that constant access to the main plug is ensured. The power cord connected to the appliance must be properly grounded and correspond to the technical details. Before first use, remove all elements and clean them along with the entire device.

Principle of operation

1- Coffee maker handle
2- Lid handle
3- Tank
4- ON/OFF switch
5- Power cable

6- Control lights

• "HEATING" (coffee is brewing)
• "WARM" (coffee is ready)
7- Coffee maker base and the reset button

8- Drip tray
9- Dispensing valve
10- Water level indicator
11- Filter basket
12- Basket support tube

Mount the basket support tube and the filter basket inside the tank then pour water into the tank. Do not fill the coffee maker above the "100" level on the water indicator. Place a filter into the basket and fill with coffee. The amount of coffee should reflect the volume of water in the tank and user preferences. Place the lid on top of the tank and twist clockwise until firmly closed. Then plug the power cable into a socket and switch the percolator on using the ON/OFF switch. The red "HEATING" light will be on when the coffee is brewing. Once the coffee is brewed the red light will go off and the green "WARM" light will come on. The coffee percolator will automatically maintain a high water temperature, to make sure the coffee is always hot. To pour coffee, place an appropriate container on the drip tray (glass, mug, cup, etc.) and push the valve down. Once the desired amount is dispensed, release the valve. When not in use, make sure the ON/OFF switch is in the "OFF" position. Before pouring out the remaining coffee and cleaning out the filter and coffee grounds wait until they've cooled down. Check water level when in use - brew fresh coffee when required. Turn the percolator off if the water level falls below the required minimum on the water level indicator (30).

Please note! The device features overheating detector. It will activate when water evaporates or when water level is below the allowable level and the device is still on. If this happens a protection will trip and switch the device off. In such a case wait until the device cools down then drain water from the tank, turn the device 180° (upside down) and press the reset button (marked as "Reset button"). Now the device can be used again.

Do not turn the coffee maker on without water! This may damage the percolator and invalidate the guarantee!

Assembly / disassembly of the device's elements:

Close-up of a black curved object with a textured surface and red measurement lines (no visible text or symbols)

1. Assemble all elements before turning on. Make sure the drip tray is attached using both mounting points.

Close-up of a mechanical device with a metallic top and internal components, no visible text or symbols.

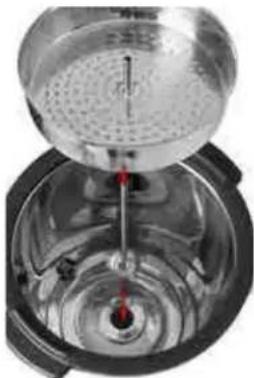

1. Mount the basket support tube and the filter basket inside the tank. To do that, slide the filter basket over the support tube and insert the tube into the opening at the bottom of the tank.

Transportation and storage

Shaking, crashing and turning upside down of the device should be prevented when transporting it. Store it in a properly ventilated location with dry air and without any corrosive gas.

Cleaning and maintenance

• Disconnect from electricity when cleaning equipment.
• Use cleaner without corrosive substances to clean surface.
• Dry all parts well after cleaning before the device is used again.
• Store the unit in a dry, cool location, free from moisture and direct exposure to sunlight.

Scale removal

When using hard water scale may build up in the water tank. The sediment may extend the time necessary to heat water in the tank and lead to damage of the device. To avoid sediments in the tank use filtered water. Descale the percolator regularly using generally available descaling substances suitable for coffee makers.

Regular control of the device

Regularly control whether the device is damaged. If it should be damaged, please stop using it immediately and contact your customer service to solve the problem.

What to do in case of a problem?

Please contact your customer service and prepare the following information:

• Invoice number and serial number (the latter is to be found on the technical plate on the device).
• If relevant, a picture of the damaged, broken or defective part.
- It will be easier for your customer service clerk to determine the source of the problem if you give a detailed and precise description of the matter. Avoid ambiguous formulations like “the device does not heat”, which may mean either that it does not heat enough or that it does not heat at all. The more detailed your information, the better the customer service will be able to solve your problem rapidly and efficiently!

CAUTION: Never open the device without the authorization of your customer service. This can lead to a loss of warranty!
