USER MANUAL RC-CU20-2 Royal Catering

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Coffee urn double wall 20l
Model	RC-CU20-2
Rated voltage [V~] / frequency [Hz]	230V~/50Hz
Rated power [W]	1650
Protection rating IP	IPX3
Dimensions [width x depth x height; mm]	410 x 370 x 490
Weight [kg]	4.7

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)
	ATTENTION! Electric shock warning!
	ATTENTION! Hot surface, risk of burns!

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Coffee urn double wall 201

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
d) If working with the device outdoors, make sure to use an extension cord suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
c) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
d) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
e) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
g) Keep packaging elements and small assembly parts in a place not available to children.
h) Keep the device away from children and animals.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
f) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual.
) K eep the device in perfect technical condition.
d) Keep the device out of the reach of children.
e) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
f) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
g) Do not move, adjust or rotate the device in the course of work.
h) Clean the device regularly to prevent stubborn grime from accumulating.
i) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
j) Do not run the device when empty.
k) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.

Although the total capacity of the coffee container is 20 l, the maximum capacity shouldn't exceed 17,2 l. Water may become boiling and spill around the device, if the water level is too high. It water boils, reduce it's temperature.
m) To avoid burning yourself, do not touch the housing of the device during operation. Use only the tap, temperature regulating knob and lid handle. After operation is finished, use the handles on the sides of the device to move it.
n) Steam plumes from the device after removing the lid. To avoid burning, it is recommended to use long protective gloves and keep hands high above the container. Do not lean over the device when removing the lid.
o) Do not keep coffee in the container for a long time. After operation is finished, pour coffee away, clean and rinse the container. Before next use, pour fresh water in.
p) Regularly check the coffee level. Do not let an empty container to heat up.
q) The tap shouldn't protrude beyond the surface which the device is placed on. It poses the risk of accidental burning (e.g. feet burning) as several drops may fall off the tap.
r) The device must not be used to prepare dishes or heat harmful to health, explosive and flammable substances up.
s) Use coarse or medium grind coffee beans. Do not brew fine-grained coffee.
t) After brewing is finished, remove the coffee filter with beans before consuming.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed only for preparing coffee using cold water.

The device should not be used for:

• cooking soups or other drinks than coffee;
• warming up liquids containing sugar, sweeteners, acids, bases or alcohol;
• warming up flammable, noxious, particularly volatile, or any other toxic substances.

The user is liable for any damage resulting from unintended use of the device.

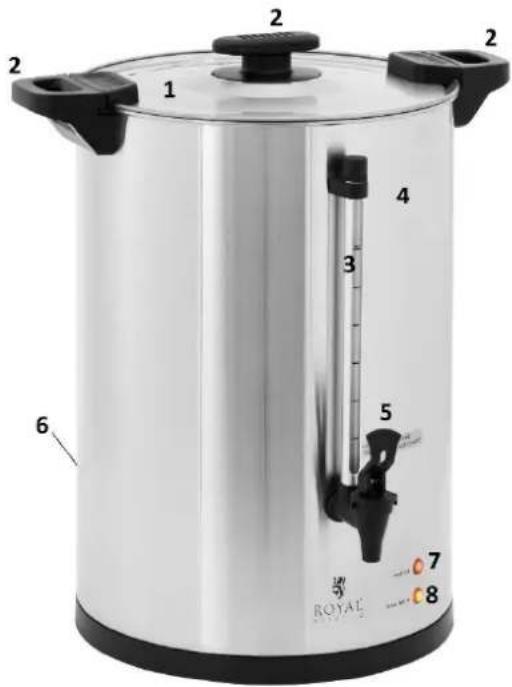

3.1. Device description

1. Tank cover

2. Handles

3. Water level indicator

4. Tank

5. Dispenser tap

6. ON/OFF switch

7. "Heating" indicator light

8. "Keep Warm" indicator light

9. Filter basket

10. Percolator tube

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ and the relative humidity should be less than 85% . Ensure good ventilation in the room in which the device is being used. There should be at least 10cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions.

Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

1) Open the cover of the machine, and then pull out the filter basket and the percolator tube. Pour the required amount of water into the tank. You can check the amount of water according to the water level indicator [I]/[number of cups]. Do not pour hot or warm water into the machine - pour cold water only.
2) First moisten the filter basket. This prevents finely ground coffee from getting inside the unit. To add the correct amount of ground coffee powder, you can use a regular soup spoon or a measuring cup. The use of evenly, medium ground coffee is recommended so that the brewed coffee will be tastier.
3) Place the filter basket on the percolator tube. Grasp the upper end of the tube and properly insert the lower end of the tube into the heating section at the bottom of the unit. (Note: the bottom end of the tube must be correctly placed in the recess, otherwise the filtering function will fail). Then attach (tighten) the cover of the unit. Connect the power cord to the power source and turn the power switch ON/OFF.
4) When the "Heating" indicator light illuminates, the unit is operating. When the unit has reached the set temperature and all the coffee powder has been filtered, the unit will keep the coffee warm. The "Keep Warm" indicator light, indicating that the unit is keeping warm, will light up and the "Heating" indicator light will go out. Then use the dispenser tap to pour the coffee.
5) If it is necessary to brew another batch of coffee, the machine and its parts must first be cooled and cleaned. Then repeat steps 1 to 5 above.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
Carefully open the lid or pull out the internal parts to avoid injury.
m) A dishwasher can be used to clean the lid, filter basket, and parts of the percolator tube. To clean the percolator tube, remove the bottom end of the tube from the heating section. If the percolator tube is clogged by coffee powder, push the tube through with a thin rod or wooden stick and then rinse with water.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.
