USER MANUAL RC-CU9 Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

DE	Produktname:	KAFFEEAUTOMAT
EN	Product name:	COFFEE URN
PL	Nazwa produktu:	ZAPARZACZ DO KAWY
CZ	Název výrobku	KÁVOVAR
FR	Nom du produit:	MACHINE À CAFÉ
IT	Nome del prodotto:	MACCHINA DEL CAFFÈ
ES	Nombre del producto:	CAFETERA DE FILTRO
HU	Termék neve	KÁVÉFŐZŐ
DA	Produktnavn	KAFFEBRYGGER
DE	Modell:	RC-CU9RC-CU15
EN	Product model:
PL	Model produktu:
CZ	Model výrobku
FR	Modèle:
IT	Modello:
ES	Modelo:
HU	Modell
DA	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

Technische Daten

Labeled diagram of a water heater with numbered parts for identification

10 11

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.Please read the instructions before use.
	Recyclable product.
	CAUTION! or WARNING! or REMINDER! describing a situation.(general warning sign).
	CAUTION! Warning of electric shock!
	Caution! Hot surface can cause burns!
	For indoor use only.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or severe personal injury or death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the COFFEE URN.

2.1. Electrical safety

a) The plug of this unit must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.

b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device exposed to direct rain, wet pavement, and operation in a humid environment. If water enters the device, there is an increased risk of damage to the device and electric shock.

c) Do not touch the unit with wet or damp hands.

d) Do not use the cord in an unintended manner. Never use it to carry the unit or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.

e) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.

f) To avoid electric shock, do not immerse the cable, plug, or unit itself in water or other liquid. Do not use the unit on wet surfaces.

g) Do not use the device in rooms with very high humidity / in the immediate vicinity of water tanks!

2.2. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.

b) Do not use the appliance in an explosive area, for example in the presence of flammable liquids, gases or dust. The appliance produces sparks that can ignite dust or fumes.

c) If you find any damage or irregularities in the operation of the unit, immediately turn it off and report it to an authorized person.

d) Only the manufacturer's service department may repair the unit. Do not carry out repairs yourself!

e) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.

f) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)

g) Check the condition of the safety stickers regularly. Replace them if they are illegible.

h) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.

i) Keep the packaging and small assembly parts out of the reach of children.

j) Keep the unit away from children and animals.

k) When using this unit together with other units, also follow the other instructions for use.

Please note! Keep children and other bystanders safe while operating the unit.

2.3. Personal safety

a) Do not operate this unit if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the unit.
b) The unit is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the unit.
c) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
d) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
e) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.

2.4. Safe use of the unit

a) Do not use the unit if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Unplug the unit before making adjustments, changing accessories, or putting it away. This precaution reduces the risk of accidental start-up.
c) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.
d) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the unit). If damaged, have the unit repaired before use.
e) Keep the unit out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the unit, do not remove factory-installed covers or loosen screws.
h) Do not move, shift, or rotate the machine while in operation.
i) Clean the unit regularly to prevent permanent dirt build-up.
j) The unit is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
k) Do not start up an empty unit.
I) Do not tamper with the unit to alter its performance or design.
m) Keep the unit away from sources of fire and heat.

n) Do not open the lid of the appliance while the water is heating, as a large amount of hot water may escape from the percolator tube and result in personal injury.

o) If there is less than 25 cups of water in the unit, do not heat or boil it.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The unit is designed to brew coffee.

The user is responsible for any damage resulting from misuse.

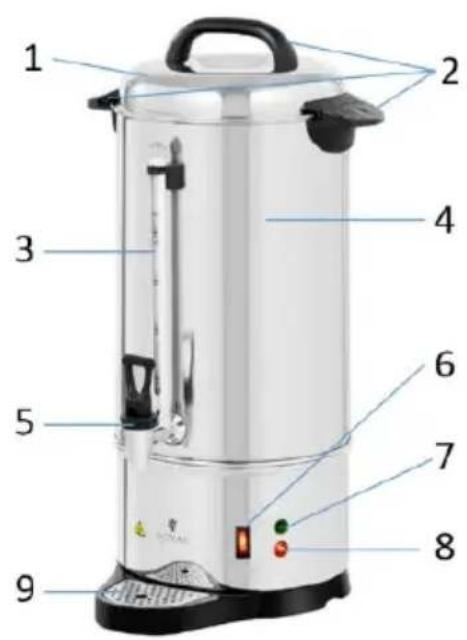

3.1. Description

RC-CU9 / RC-CU15

Labeled diagram of a silver coffee maker with numbered parts for identification

10 11

1. Tank cover
2. Handles
3. Water level indicator
4. Tank
5. Dispenser tap

6. ON/OFF switch

7. Green indicator light READY

8. Red indicator light NOT READY

9. Drip tray

10. Filter basket
11. Percolator tube

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

Before using the unit for the first time, disassemble all parts and wash them as well as the entire unit.

ASSEMBLY OF THE UNIT

1. Unpack the entire unit.
2. Place the unit on a suitable surface.

3.3. Working with the unit

1. Open the cover of the machine, and then pull out the filter basket and the percolator tube. Pour the required amount of water into the tank. You can check the amount of water according to the water level indicator [l]/[number of cups]. Do not pour hot or warm water into the machine - pour cold water only.
2. First moisten the filter basket. This prevents finely ground coffee from getting inside the unit. To add the correct amount of ground coffee powder, you can use a regular soup spoon or a measuring cup.

The use of evenly, medium ground coffee is recommended so that the brewed coffee will be tastier.

Below are the quantities of coffee powder according to the amount of coffee needed for a 9 l and 15 l machine.

For a 9 l machine
Necessary amount of brewed coffee [l]	Quantity of coffee powder [g].
3	170
5	280
7	390
9	500

For a 15 l machine
Necessary amount of brewed coffee [l]	Quantity of coffee powder [g].
6	400
9	600
12	800
15	1000

1. Place the filter basket on the percolator tube. Grasp the upper end of the tube and properly insert the lower end of the tube into the heating section at the bottom of the unit. (Note: the bottom end of the tube must be correctly placed in the recess, otherwise the filtering function will fail). Then attach (tighten) the cover of the unit. Connect the power cord to the power source and turn the power switch ON/OFF.

2. When the red (NOT READY) indicator light illuminates, the unit is operating. When the unit has reached the set temperature and all the coffee powder has been filtered, the unit will keep the coffee warm. The green (READY) indicator light, indicating that the unit is keeping warm, will light up and the red indicator light will go out. Then use the dispenser tap to pour the coffee.

3. If it is necessary to brew another batch of coffee, the machine and its parts must first be cooled and cleaned. Then repeat steps 1 to 5 above.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.

b) Use only non-corrosive cleaning agents for cleaning the surfaces.

c) Only mild detergents designed for cleaning food contact surfaces may be used to clean the unit.

d) After each cleaning, all the parts should be dried well before the unit is used again.

e) Store the unit in a dry and cool place protected from moisture and direct sunlight.

f) Do not spray the unit with a stream of water or immerse it in water.

g) Make sure that no water enters through the ventilation openings in the casing.

h) Perform regular inspections of the unit checking technical fitness and any damages.

i) Use a soft, damp cloth for cleaning.

j) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.

k) Carefully open the lid or pull out the internal parts to avoid injury.

I) A dishwasher can be used to clean the lid, filter basket, and parts of the percolator tube. To clean the percolator tube, remove the bottom end of the tube from the heating section. If the percolator tube is clogged by coffee powder, push the tube through with a thin rod or wooden stick and then rinse with water.

m) You can use the included accessories to clean:

- rod with brush - to clean the percolator tube and water level indicator,

- a cross - for removing sediments and limescale from the recess in the device at the lower end of the percolator tube.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this unit are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used units.

Your local administration will provide you with information about the appropriate disposal point for used units.

Dane techniczne

Labeled diagram of a water heater with numbered parts for identification

10 11

Labeled diagram of a coffee maker with numbered parts for identification

10 11

Labeled diagram of a coffee maker with numbered parts for identification

10 11

Labeled diagram of a coffee maker with numbered parts for identification

10 11

Labeled diagram of a coffee maker with numbered parts for identification

10 11

Labeled diagram of a water heater with numbered parts for identification

10 11

Labeled diagram of a water heater with numbered parts for identification

10 11

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.
