HBW7519DT - Refrigerator HAIER - Free user manual and instructions

Product type	Built-in refrigerator-freezer
Brand	Haier
Model	HBW7519DT
Total volume	300 L
Refrigerator volume	214 L
Freezer volume	86 L
Dimensions (H x W x D)	1935 x 550 x 550 mm
Electrical supply	220-240 V ~ 50 Hz, 2 A
Energy efficiency class	C
Annual consumption	156 kWh/year
Freezing capacity	8 kg/24h
Climate class	SN/N/ST/T (10 °C to 43 °C)
Refrigerant	R600a (isobutane, flammable)
Control panel	Touch with digital display
Main functions	Super Cool, Super Freeze, ECO, Holiday, Wi-Fi, My Zone (Fruit&Veg, QuickCool, 0°C Fresh), Humidity Zone, multi-air flow
Lighting	LED (12 V max. 10 W refrigerator, 2 W freezer)
Defrosting	Automatic (no frost)
Maintenance and cleaning	Clean interior and exterior with a soft sponge and neutral detergent; do not use abrasive products or solvents; automatic defrosting; LED replacement by a professional
Safety	Fire risk (flammable refrigerant), panel lock, open door alarm, child safety (minimum age 8 years for use)
Spare parts and repairability	Spare parts available for 7 years (thermostats, sensors, printed circuit boards, light sources); handles, hinges, bins and baskets 7 years; door gaskets 10 years

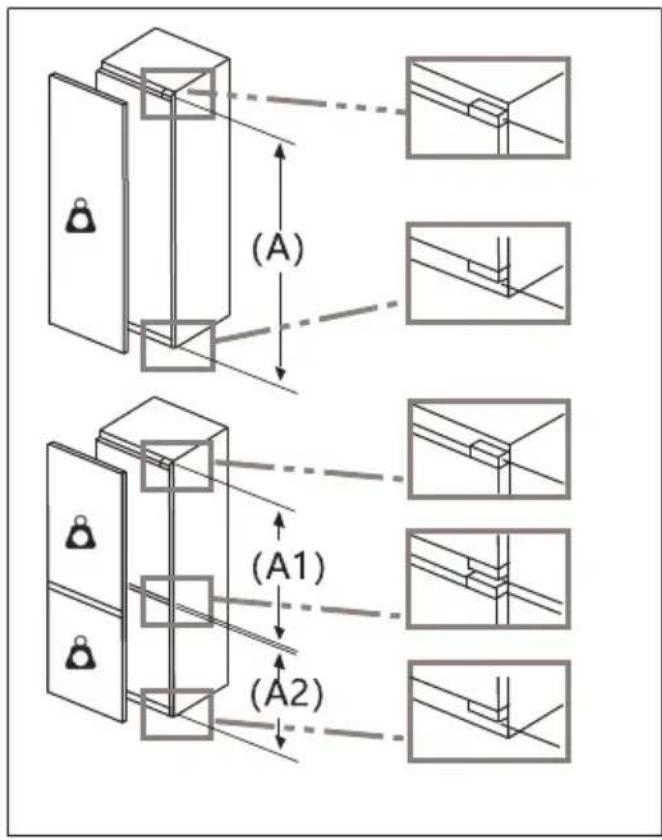

General information	Maximum weight of unit fronts: 22 kg (1500-1750 mm); recommended space: min. 10 mm at the rear; waiting time before commissioning: 2 h

Frequently Asked Questions - HBW7519DT HAIER

How to set the refrigerator temperature?

Unlock the screen by pressing and holding key K10 (3S Unlock) for 3 seconds. Press key K4 to select the refrigerator (indicator E lights up). Use K5 (-) or K6 (+) to adjust the temperature from 1 °C to 9 °C. After 5 seconds of inactivity, the temperature is saved automatically.

How to activate the Super Freeze function?

Unlock the screen, then press key K9 (Super Freeze). Indicator P lights up. The function quickly freezes food and stops automatically after 50 hours or when the set temperature is reached. To deactivate manually, press K9 again.

What to do in case of a power cut?

Food stays cold for about 5 hours. Open the door as little as possible. Do not add more food. If the power cut exceeds 5 hours, prepare ice cubes and place them at the top of the refrigerator. When power is restored, check the condition of the food.

How to clean the inside of the refrigerator?

Unplug the appliance. Use a soft sponge soaked in warm water with a neutral detergent. Do not use a hard brush, solvents, or steam. Clean glass shelves with cold water to prevent them from breaking. Rinse and dry with a soft cloth.

What does the Holiday function mean and how to use it?

The Holiday function is designed for short-term absences. It sets the refrigerator to about 17 °C to save energy. Empty the refrigerator before activating it. Activate it by pressing K3 (indicator D lights up). To deactivate, press K3 again.

How to connect the refrigerator to Wi-Fi?

Download the hOn app, create an account, then follow the pairing instructions. On the appliance, press K1 for 3 seconds to enter configuration mode. The Wi-Fi icon flashes quickly. Once connected, the icon stays steady.

Why does my refrigerator make a running water noise?

This noise is normal and comes from the circulation of refrigerant in the circuit. No action is necessary.

How to use the My Zone drawer?

The My Zone drawer offers three functions: Fruit&Veg (for fruits and vegetables), QuickCool (for beverages), and 0°C Fresh (for meat and fresh products). Select the function by pressing K7 until the corresponding indicator lights up. Only one function can be active at a time.

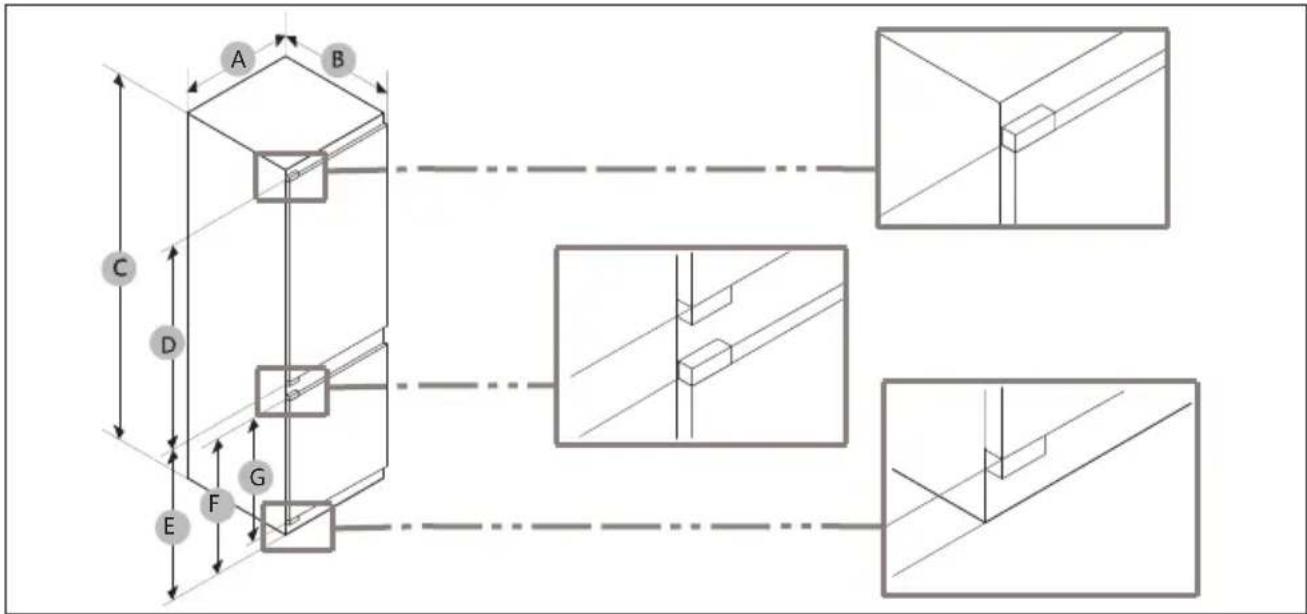

What are the required recess dimensions?

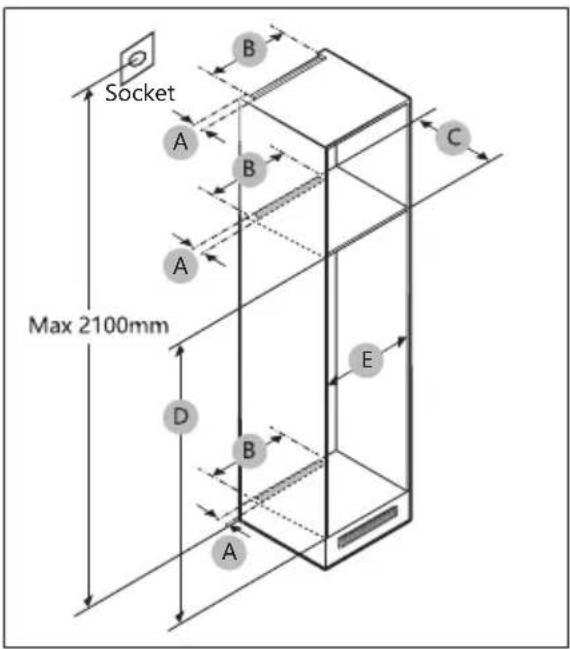

The minimum recess dimensions are: height 1941 mm, width 560 mm, depth 555 mm. It is recommended to leave at least 10 mm space at the rear for ventilation. Consult the installation guide for more details.

How to unlock the control panel?

The screen locks automatically after 30 seconds of inactivity. To unlock, press and hold key K10 (3S Unlock) for 3 seconds until indicator Q turns off. A beep sounds.

USER MANUAL HBW7519DT HAIER

WARNING: Risk of fire/flammable material

EN

The symbol indicates there is a risk of fire since flammable materials are used.

Take care to avoid causing a fire by igniting flammable material.

WARNING: Risk of fire/flammable material. BG

The symbol indicates that there is a risk of fire, since flammable materials are used. Be careful not to cause a fire by igniting flammable material.

Lock/unlock panel 13

Adjust the temperature for fridge 13

Adjust the temperature for freezer 13

Interconnection function 14

ECO function 15

Holiday function 15

Super Cool function 15

Super Freeze function 16

My Zone function select 17

19 Equipment

20 Energy saving tips

21 Care and cleaning

23 Troubleshooting

27 Installation

33 Technical data

35 Customer service

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Ice cube tray

Egg tray

Energyable

Warranty card

User manual

Screw L16 Screw cover

Screw L19 Hinge cover_top

Hole cover

Fixed plate

Fixed plate - door side

Hinge cover

Seal sponge

Fixed plate_top Bottom cover

Bottom side cover Seal strip

Ruler cover

Fixed ruler

Door cover_FR

Door cover_FF

WARNING - Important Safety information

NOTICE - General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets from getting closed in the appliance.

Before switching on the appliance for the first time, read the following safety hints!

WARNING!

Before first use

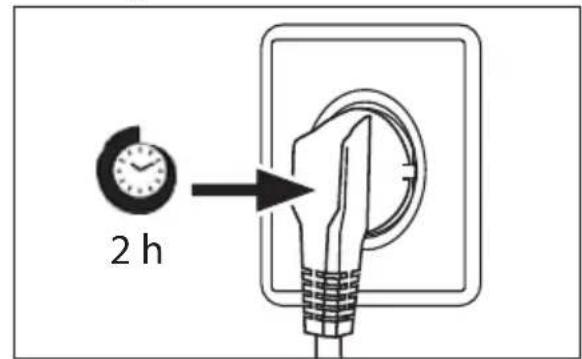

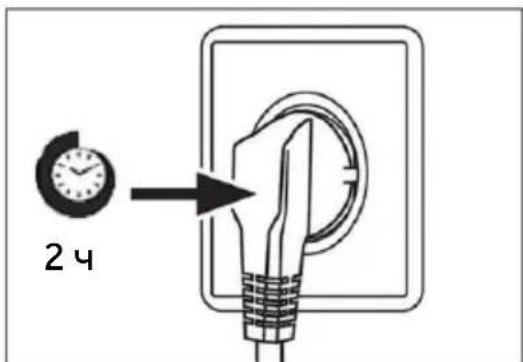

Make sure there is no transport damage. - Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. ▶ Handle the appliance always with at least two persons because it is heavy. - Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner. Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION. Precool the compartments at high settings before loading with food. The function Power-Freeze helps to cool down the compartments quickly. - The refrigerator temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Installation

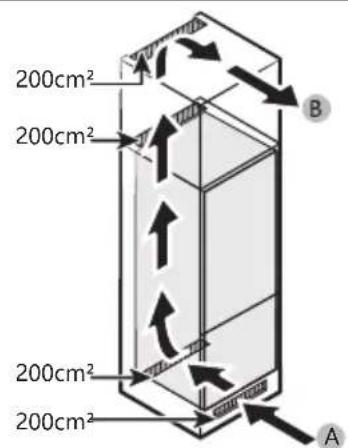

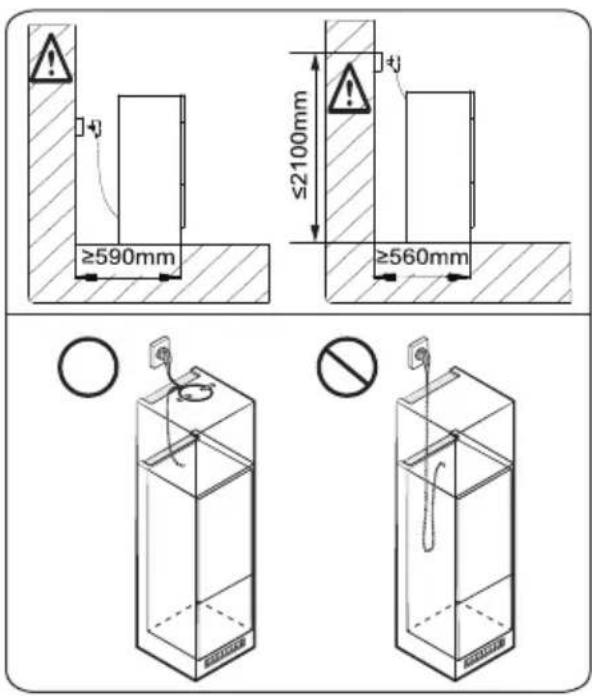

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance. Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. Do not install the appliance in direct sunlight or near heat sources (e.g., stoves, heaters). Install and level the appliance in an area suitable for its size and use. Keep ventilation openings in the appliance or in the built-in structure clear of obstruction. Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. Do not use multi-adapter and extension cables. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

• Use a separate earthed socket for the power supply which is easily accessible. The appliance must be earthed. Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances. - Keep children under 3 years of age away from the appliance unless they are constantly supervised. Children shall not play with the appliance. - If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance. - Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range. - Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water. Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple. - Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

• Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
• Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
• Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. Check the condition of food if a warming in the freezer has taken place.
• Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst.
• Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk of frostbite or the formation of frost blisters. First aid: keep immediately under running cold water. Do not pull away! Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
• Unplug the appliance in the event of a power interruption or before cleaning. Wait at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
• Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning: Make sure children are supervised if they carry out cleaning and maintenance.
• Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

• Hold the plug, not the cable, when unplugging the appliance.
• Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
• Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
• Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption. Do not spray or flush the appliance during cleaning. Do not use water spray or steam to clean the appliance.
• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

CE

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

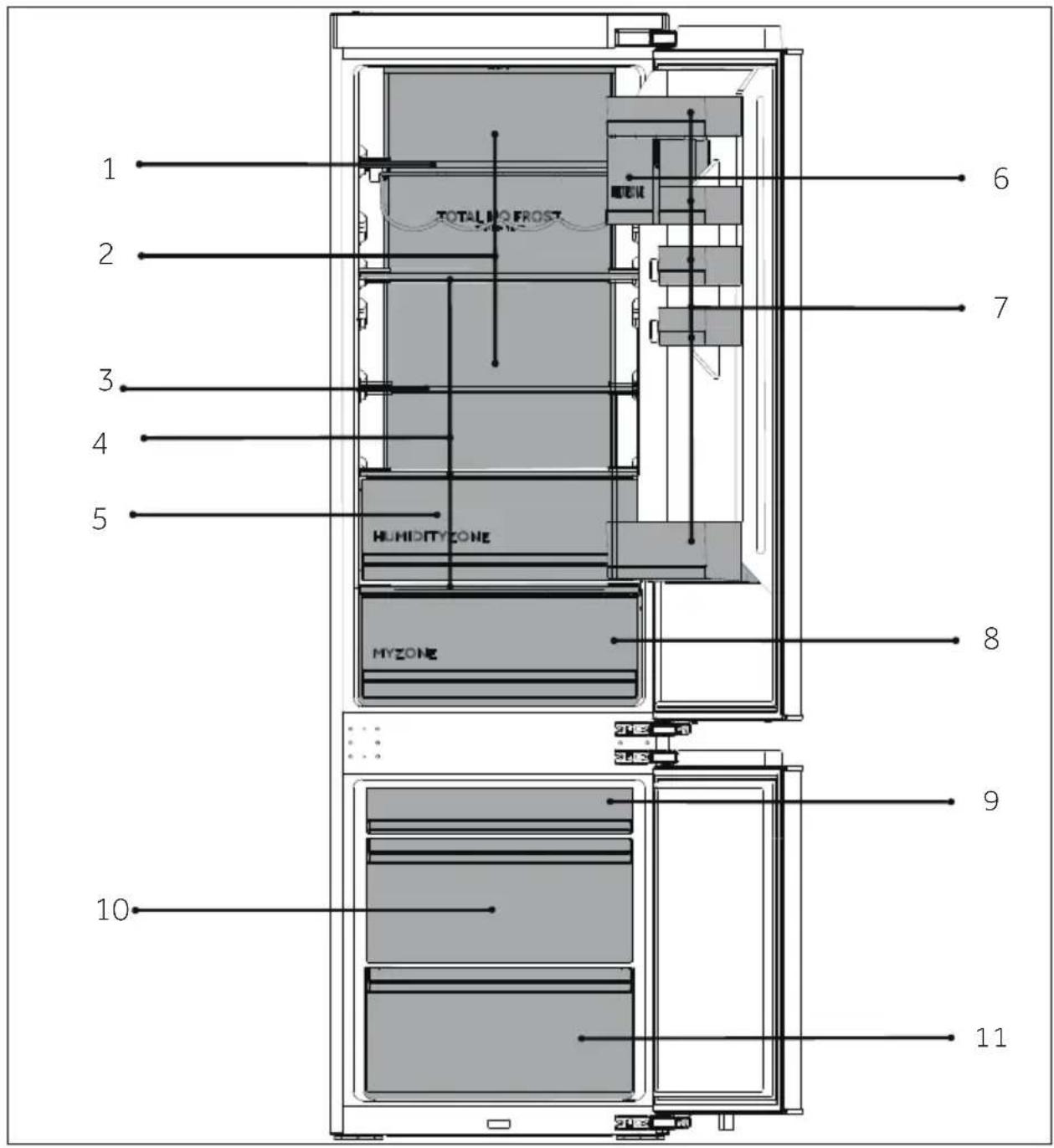

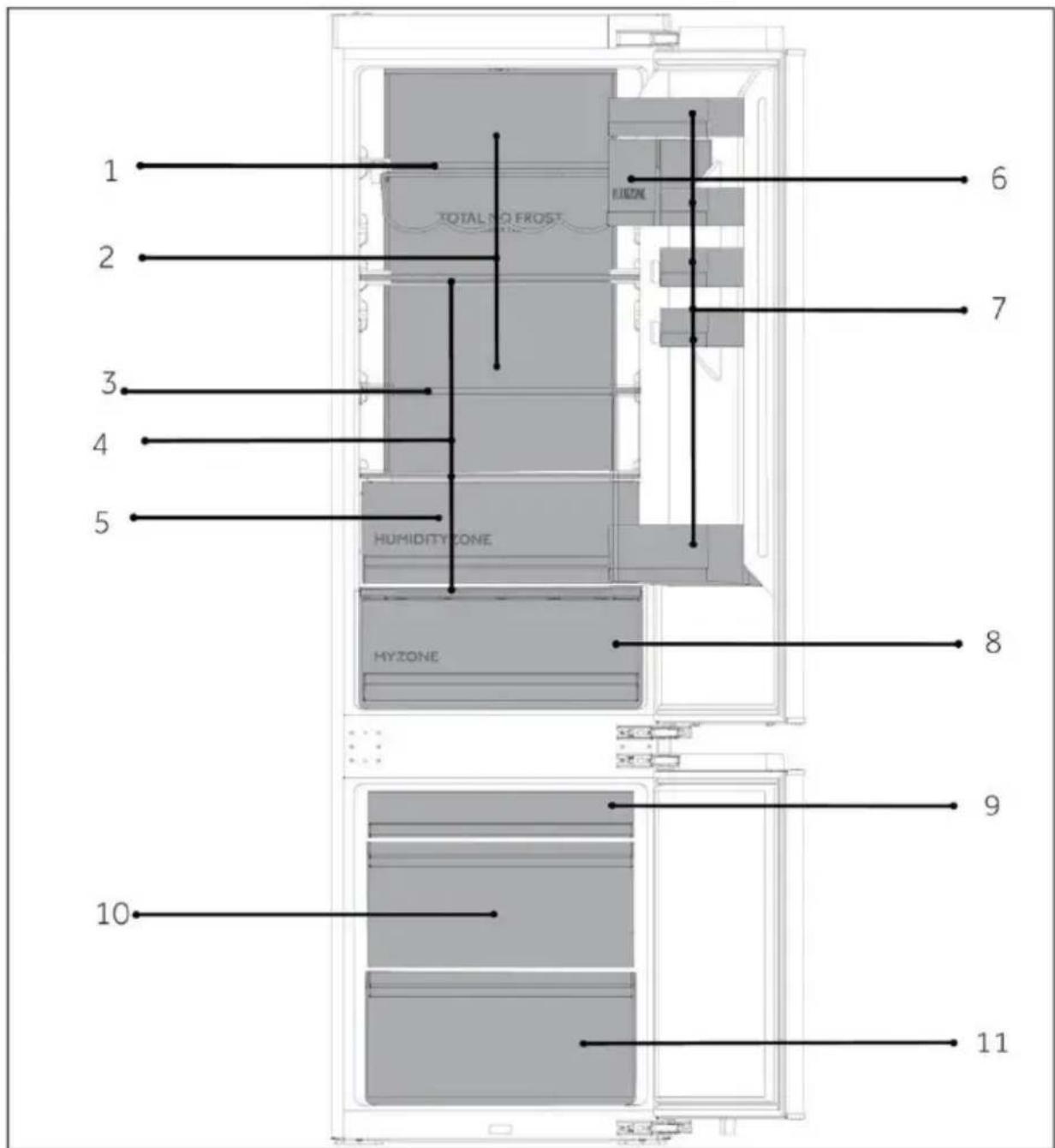

A: Refrigerating chamber

1 Wine rack 2 Refrigerated air duct 3 Folding shelves 4 Ordinary shelves 5 Humidity Zone drawer 6 Sealed container 7 Bottle holder 8 MyZone drawer

B: Freezing chamber

9 Upper freezer drawer 10 Middle freezer drawer 11 Lower freezer drawer

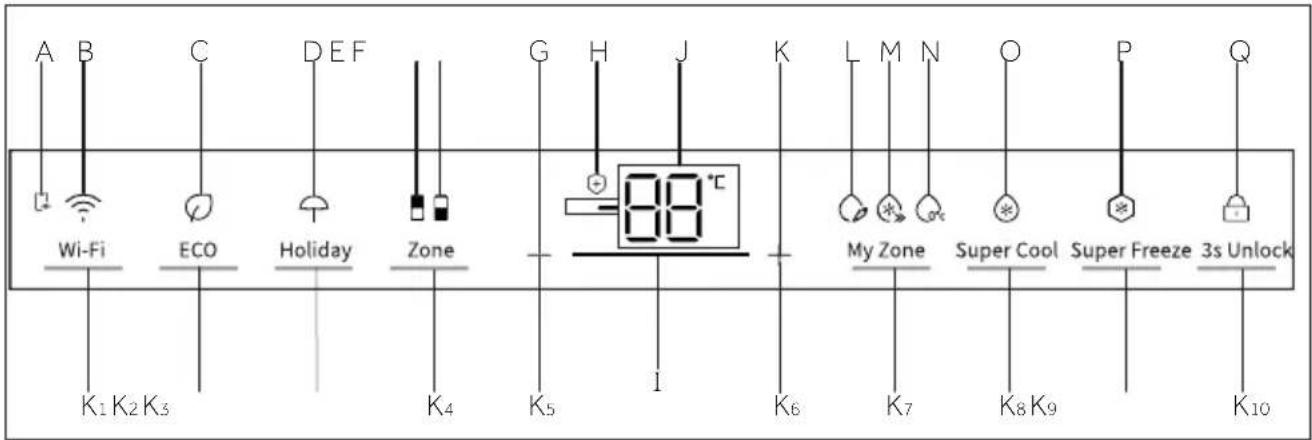

Control panel

Indicators:

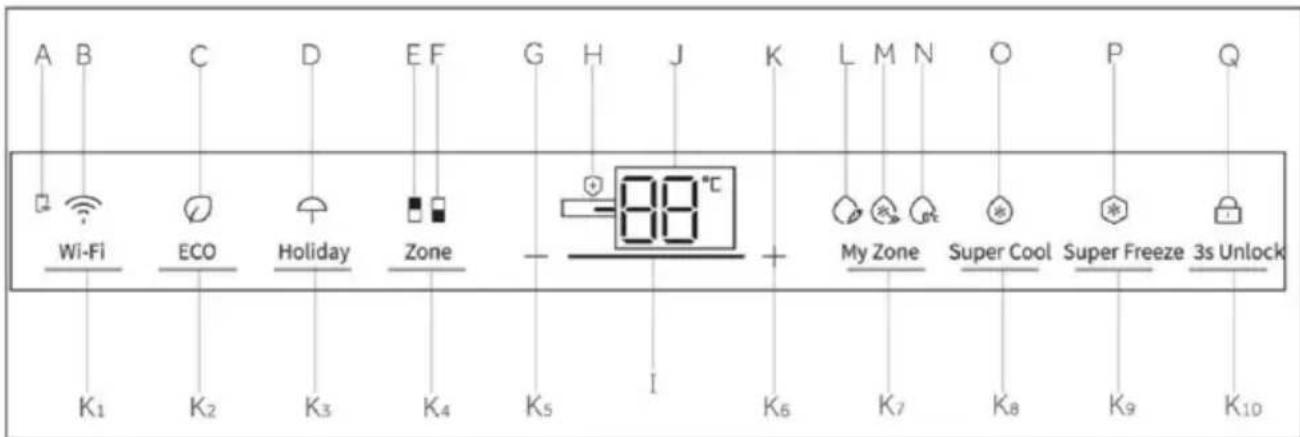

A Mobile APP connection B Wi-Fi function C ECO function D Holiday function E Fridge indicator F Freezer indicator G Temperature adjustment " - " H Bactericidal function I Gear strength effect display J Temperature display K Temperature adjustment "+" L Fruit&Veg function M QuickCool function N 0° C Fresh function O Super Cool function P Super Freeze function Q Lock and Unlock

Buttons:

K1 Wi-Fi setting button, K2 ECO function button, K3 Holiday function button, K4 Zone select button, K5 Temperature adjustment button "-", K6 Temperature adjustment button "+", K7 My Zone function select button, K8 Super Cool select button, K9 Super Freeze select button, K10 Lock and Unlock button

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on/off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator "J" (Temperature display) illuminates. The fridge temperature and freezer temperature are automatically set to 5°C and -18°C respectively. The indicator "M" (QuickCool display) illuminates.

The My Zone is automatically set to QuickCool function.

Maybe the panel lock is active.

NOTICE

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out of the power socket.

Lock/unlock panel

Automatic lock: When the fridge door and freezer door are closed and there is no key operation within 30 seconds, the display screen will be automatically extinguished and locked.

Manual lock: When the display screen is unlocked, press the button "K10" (3S Unlock) and hold for 3 seconds, the buzzer rings once, the indicator "Q" (Panel lock) illuminates, and the display is locked.

Unlock: When the display screen is locked, press the button "K10" (3S Unlock) and hold for 3 seconds, the buzzer rings once, the indicator "Q" (Panel lock) goes off, and the display is unlocked.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature, frequency of door opening, amount of stored foods, and installation of the appliance.

Adjust the temperature for fridge

When the display screen is unlocked, press the button "K4" (Zone selector). The buzzer rings once, the indicator "E" (Fridge indicator) illuminates, and then the temperature setting mode of the fridge is activated.

Press the button "K5" (Temperature adjustment button "-") each time; the buzzer rings once, and the set temperature of the fridge will be reduced by 1. The fridge temperature will display in the sequence of "9°C -> 8°C -> 7°C -> 6°C -> 5°C -> 4°C -> 3°C -> 2°C -> 1°C".

Press the button "K6" (Temperature adjustment button "+") each time; the buzzer rings once, and the set temperature of the fridge will be increased by 1. The fridge temperature will display in the sequence of "1°C -> 2°C -> 3°C -> 4°C -> 5°C -> 6°C -> 7°C -> 8°C -> 9°C".

NOTICE

After setting the temperature, if there is no operation within 5 seconds, the system will automatically determine and save the set temperature.

Adjust the temperature for freezer

When the display screen is unlocked, press the button "K4" (Zone selector). The buzzer rings once, the indicator "F" (Freezer indicator) illuminates, and then the

temperature setting mode of the freezer is activated.

Press the button "K5" (Temperature adjustment button "-") each time; the buzzer rings once, and the set temperature of the freezer will be reduced by 1. The freezer temperature will display in the sequence of "-14°C -> -15°C -> -16°C -> -17°C -> -18°C -> -19°C -> -20°C -> -21°C -> -22°C -> -23°C -> -24°C".

Press the button "K6" (Temperature adjustment button "+") each time; the buzzer rings once, and the set temperature of the freezer will be increased by 1. The freezer temperature will display in the sequence of "-24°C -> -23°C -> -22°C -> -21°C -> -20°C -> -19°C -> -18°C -> -17°C -> -16°C -> -15°C -> -14°C".

NOTICE

After setting the temperature, if there is no operation within 5 seconds, the system will automatically confirm and save the set temperature.

Step 1: Download the hOn-App from the app stores.

Get it on Google Play

Download on the App Store

Explore it on AppGallery

Step 2: Create your account in the hOn-App or log in if you already have an account.

Step 3: Follow the pairing instructions in the hOn-App.

Wi-Fi function

1. Follow the instructions in the app to configure the Wi-Fi.
2. Once the Wi-Fi is configured and the connection is established, the Wi-Fi icon "B" will be bright and fixed.
3. If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information when the Wi-Fi is turned on. To turn off the Wi-Fi, press the Wi-Fi button "K1" and the Wi-Fi icon "B" turns off.
4. To turn on the Wi-Fi and start the configuration, press the Wi-Fi button "K1" and the Wi-Fi icon "B" starts flashing slowly. If you want to configure the Wi-Fi function, press the button "K1" for 3 seconds; the Wi-Fi icon flashes quickly and enters configuration mode. If you want to turn off the Wi-Fi function, press button "K1" once. The above steps can be repeated.
5. If the product has been configured and the Wi-Fi function was turned off, the refrigerator will not enter configuration mode after reconnecting the power.

ECO function

1. When the display screen is unlocked, press the button "K2" (ECO function button), the buzzer rings once, the indicator "C" (ECO function) illuminates, and then the ECO function will be turned on.
2. When the display screen is unlocked, press the button "K2" (ECO function button), the buzzer rings once, the indicator "C" (ECO function) goes off, and then the ECO function will be turned off.

Holiday function

1. When the display screen is unlocked, press the button "K3" (Holiday function button), the buzzer rings once, the indicator "D" (Holiday function) illuminates, and then the Holiday function will be turned on.
2. When the display screen is unlocked, press the button "K3" (Holiday function button), the buzzer rings once, the indicator "D" (Holiday function) goes off, and then the Holiday function will be turned off.

NOTICE

1. The Holiday function is mainly used for short-term travel and other life scenes, and the fridge room must be emptied when using the holiday function.
2. In the Holiday function, the temperature of the fridge room will be higher (about 17°C), please pay attention to empty the food in the fridge room to avoid food deterioration.
3. In Holiday function, the setting of "Fruit&Veg, QuickCool, 0°C Fresh" icons in My zone will be switched off and the temperature of My zone cannot be adjusted. The fridge compartment and My zone will display in the previous setting once exiting the Holiday function.

Super Cool function

1. When the display screen is unlocked, press the button "K8" (Super Cool selector), the buzzer rings once, the indicator "O" (Super Cool function) illuminates, and then the Super Cool function will be turned on.
2. When the indicator "O" (Super Cool function) illuminates, press the button (Super Cool selector), the buzzer rings once, the indicator "O" (Super Cool function) goes off, and then the Super Cool function will be turned off.
3. After the Super Cool function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K8" (Super Cool selector) to turn it off.

NOTICE

1. Under Super cool state, the fridge temperature cannot be adjusted. If either button "K5" (Temperature adjustment button "-") or button (Temperature adjustment button "+") is pressed to adjust the temperature of the fridge, the indicator "O" (Super Cool indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
2. In the state of Super cool function, the Auto-set function cannot be turned on at the same time due to different modes. When you choose one function that conflicts with another function, the original function will automatically exit.
3. This function will be automatically disabled after 4 hours.

Super Freeze function

1. When the display screen is unlocked, press the button "K9" (Super Freeze selector), the buzzer rings once, the indicator "P" (Super Freeze function) illuminates, and then the Super Freeze function will be turned on.
2. When the indicator "P" (Super Freeze function) illuminates, press the button "K9" (Super Freeze selector), the buzzer rings once, the indicator "P" (Super Freeze function) goes off, and then the Super Freeze function will be turned off.
3. After the Super Freeze function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K9" (Super Freeze selector) to turn it off.

NOTICE

1. Under Super Freeze state, the freezer temperature cannot be adjusted. If either button "K5" (Temperature adjustment button "-") or button "K6" (Temperature adjustment button "+") is pressed to adjust the temperature of the freezer, the indicator "P" (Super Freeze indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
2. Super Freeze function is designed to keep the nutrition value of frozen food, it will freeze food in the shortest time. If large quantities of frozen food are to be frozen at one time, Super Freeze function should be set 24h in advance to make the freezer have a relatively low temperature and put food in. At this time, the freezing speed of the freezer is improved, food can be frozen quickly, the nutrition of food is effectively kept, and the storage becomes quite convenient.
3. The Super Freeze function will automatically switch off after 50 hours. The appliance is then operated at the previously set temperature.

My Zone function select

When the display screen is unlocked, press the button "K7" (My Zone function select button), the buzzer rings once, the indicator "L" (Fruit&Veg function) illuminates, and then the Fruit&Veg function will be turned on. If either button "K7" is pressed to select the My Zone function, the buzzer rings once again, and the indicator "M" (Quick Cool function) illuminates, and then the Quick Cool function will be turned on. The My Zone function options are "Fruit&Veg, QuickCool, and 0°C Fresh" in turn.

NOTICE

1. When the refrigerator is first powered on, the indicator "L" illuminates, and the My Zone is automatically set to QuickCool function. One of the three My Zone indicators must be lit. When you select the My Zone function again, the previously lit My Zone indicator cannot be selected. Only one of the three functions can be configured. The three functions are mutually exclusive.
2. My Zone storage temperature setting number cannot be higher than the fridge temperature setting number.
3. To reduce the refrigerator compartment temperature, use the 0Fresh function. To increase it, use the Fruit & Veg function.

My Zone drawer

The fridge compartment is equipped with a My Zone drawer. In accordance with the food's storage demands, the most suitable temperature can be selected to get the optimal nutritional value of the foods. The following modes are available.

Function Fruit & Veg

This function is suitable for storing fruits and vegetables like apples and carrots, etc.

Function QuickCool

This function is suitable for storing drinks like coke and beer, etc.

NOTICE: Fruit & Veg

Cold-sensitive fruits like pineapples, avocado, bananas, grapefruits, and vegetables such as potatoes, aubergines, beans, cucumbers, zucchini, and tomatoes, as well as cheese, should not be stored in the My Zone drawer.

Function 0°C Fresh

This function sets the temperature in the My Zone drawer to 0°C. It is suitable for storing fresh food such as meat or instant products. Most foods stay fresh at 0°C but not frozen.

NOTICE: 0Fresh

1. Due to different water contents of meat, some meat with more moisture will be frozen at temperatures lower than 0°C. So "immediately cut" meat should be stored in the My Zone drawer, with temperatures min 0°C.
2. When you choose 0°C for the temperature of the refrigerating compartment in the low level (below 5 °C), in order to preserve your food in the optimal storage environment.

Humidity Zone drawer

In this compartment the humidity level is higher than the fridge compartment. It is controlled automatically by the system and is suitable for storing fruits, vegetables, salads, etc.

NOTICE

1. Do not remove the plastic cover inside the two zones.
2. They maintain the humidity.
3. Cold-sensitive fruits like pineapple, avocado, bananas, and grapefruits are not recommended to be stored in these two drawers.

Multi-air-flow

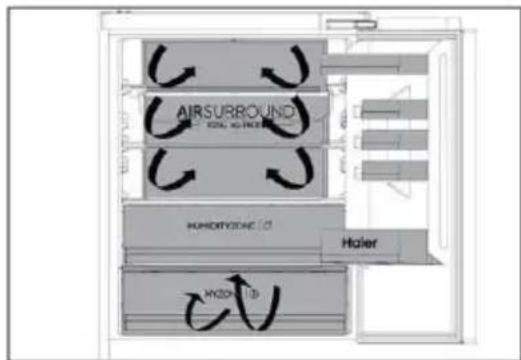

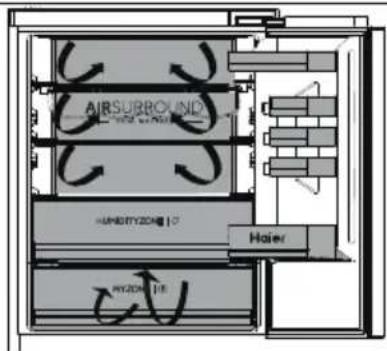

1. The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

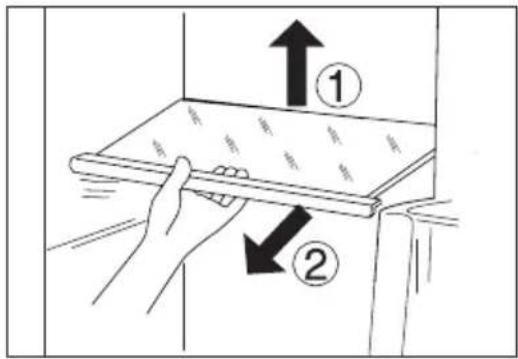

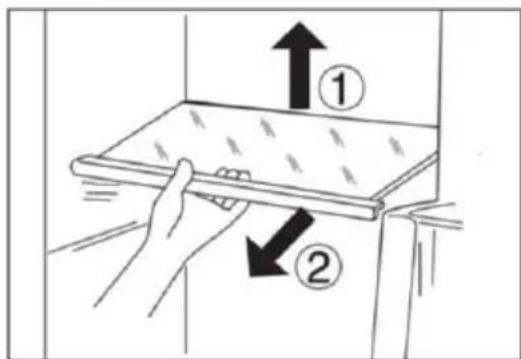

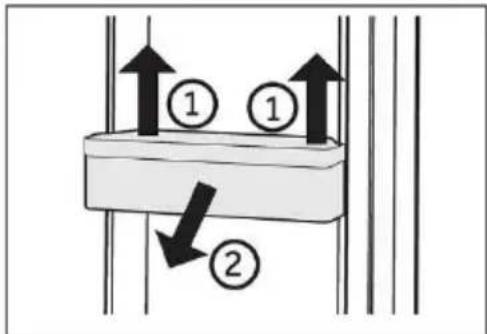

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

NOTICE

Ensure that all ends of a shelf are level.

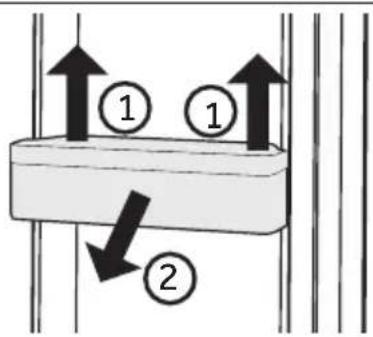

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

NOTICE

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

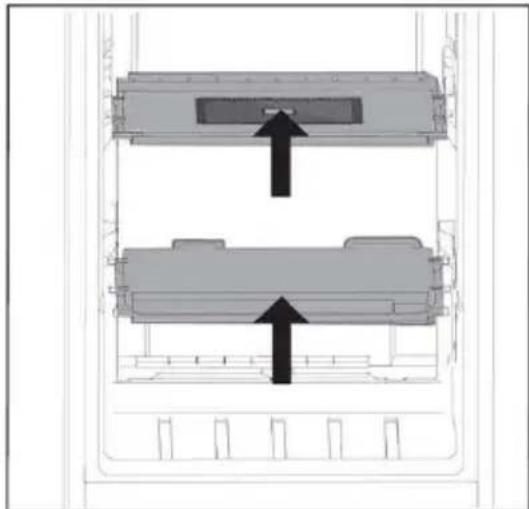

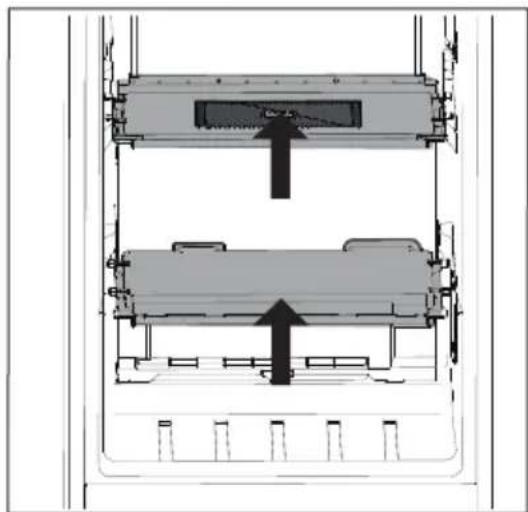

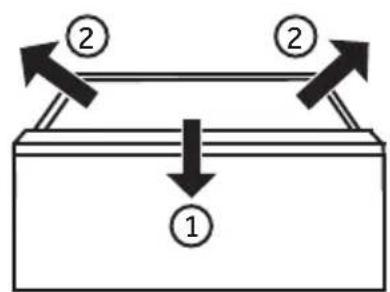

Removable drawer

To remove the drawer out, pull out to the maximum extent ①, lift and remove ②.

In order to insert the drawer, the above steps are carried out in reverse order.

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.

Energy saving tips

Make sure the appliance is properly ventilated (see INSTALLATION). - Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). - Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.

Functions like super Freeze consume more energy.

• Allow warm food to cool down before placing it in the appliance.
• Open the appliance door as little and as briefly as possible. Do not overfill the appliance to avoid obstructing the air flow. Ensure that the door always closes correctly. Defrost frozen food in the fridge storage compartment. The most energy-saving configuration requires the appliance to keep drawers, food boxes, and shelves in factory-fresh condition, and food should be placed as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

• Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
• Do not spray or flush the appliance during cleaning. Do not use water spray or steam to clean the appliance.
• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
• Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. In case of heating, check the condition of frozen goods.

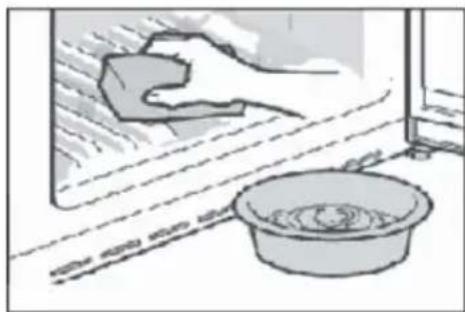

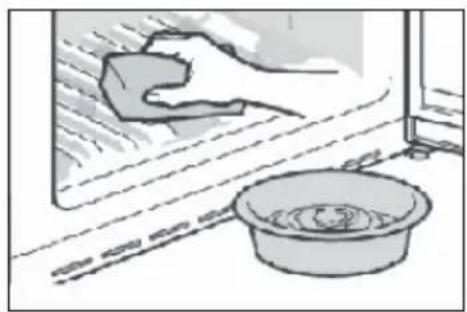

Always keep the door gasket clean. - Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent. 1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge. 3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40°C for some time, then rinse with the flow water, dry and place it back into the fridge. 4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service. Rinse and dry with soft cloth. Do not clean any of the parts of the appliance in a dishwasher. - Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED lamps

WARNING!

Do not replace the LED lamp yourself; it must only be replaced by the manufacturer or an authorized service agent.

The lamps use LEDs as their light source, featuring low energy consumption and long service life. If there is any abnormality, please contact customer service. See CUSTOMER SERVICE.

Lamp parameters:

Refrigerator compartment: 12 V max 10 W

Freezer compartment: 12 V max 2 W

Non-use for a longer period

If you do not use the appliance for a long time and do not want to use the Holiday function:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent bad odors inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45 degrees to avoid damaging the refrigerating system.

WARNING!

Do not lift the appliance by its handles. Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause	Possible Solution
The compressor does not work.	•Mains plug is not connect-ed in the mains socket.The appliance is in the defrosting cycle	•Connect the mains plug.•This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	•The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty,worn, cracked or mismatched.The required air circulation is not guaranteed.	•In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained.It takes 24 hours for the refrigerator temperature to become stableCLEAN the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	•The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	•Clean the inside of the refrigerator.•Wrap the food thoroughly.
It is not cold enough inside the appliance.	·The temperature is set too high. ·Too warm goods has been stored. ·Too much food has been stored at one time. ·The goods are too close to each other. ·A door/drawer of the appliance is not tightly closed. ·The door/drawer has been opened too frequently or for too long.	·Reset the temperature. ·Always cool down goods be-fore storing them. ·Always store small quantities of food. ·Leave a gap between several foods allowing air flowing. ·Close the door/drawer. ·Do not open the door/drawer too frequently.
It is too cold inside the appliance.	·The temperature is set too low. ·The Super Freeze/Super Cool function is activated or is running too long.	·Reset the temperature. ·Switch off the Super Freeze/Super Cool function
Moisture formation on the inside of the refrigerator compartment.	·The climate is too warm and too damp. ·A door/drawer of the appliance is not tightly closed. ·The door/drawer has been opened too frequently or for too long. ·Food containers or liquids are left open.	·Increase the temperature. ·Close the door/drawer. ·Do not open the door/drawer too frequently. ·Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	·The climate is too warm and too damp. ·The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	·This is normal in damp climate and will change when the hu-midity decreases. ·Ensure that he door/drawer is tightly shut.
Display light work, but do not feel cool.	·It is in the demo mode.	·Please note what condition it is in, if it is in Demo mode, exit it. Exit: Hold the "ECO" button, and click the "Super freeze" key 5 times in 5s.
Strong ice and frost in the freezer compartment.	·The goods were not adequately packaged. ·A door/drawer of the appliance is not tightly closed. ·The door/drawer has been opened too frequently or for too long. ·The door/drawer gasket is dirty, worn, cracked or mismatched. ·Something on the inside prevents the door/drawer to close properly.	·Always pack the goods well. ·Close the door/drawer. ·Do not open the door/drawer too frequently. ·Clean the door/drawer gasket or replace them by new ones. ·Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	·-·This is normal.
The appliance makes abnormal sounds.	·The appliance is not located on level ground. ·The appliance touches some object around it.	·Adjust the feet to level the appliance. ·Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	·-·This is normal.
You will hear an alarm beep. You will hear a faint hum. The interior lighting or cooling system does not work.	·The fridge storage com-·Close partment door is open. ·The anti-condensation system is working ·Mains plug is not connect-ed in the mains socket. ·The power supply is not intact. ·The LED-lamp is out of order.	·The fridge storage com-·Close the door. ·This prevents condensation and is normal ·Connect the mains plug. ·Check the electrical supply to the room. Call the local electricity company! ·Please call the service for changing the lamp.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

• Open the door/drawer as few times as possible.
• Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment. An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons. - Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner. Take the appliance out of the packaging. Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10°C and 43°C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators).

Space suggestion

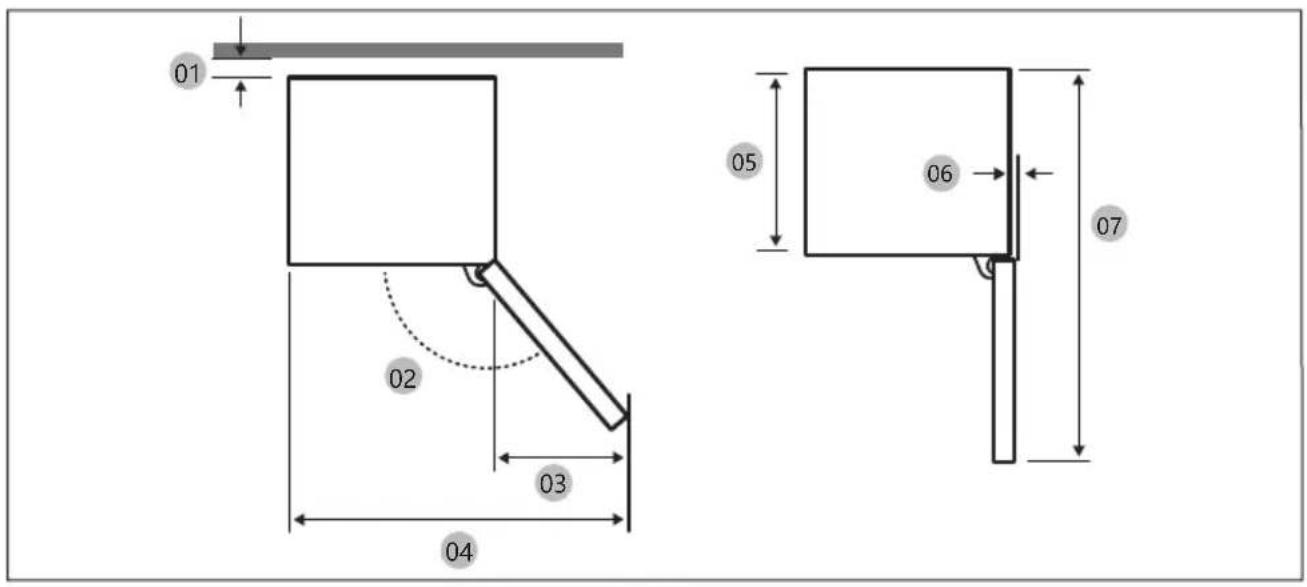

Suggested space when door is opened (Without cabinet door panel)

01 *10	(Min.) / 30 (Recommended)
02	113°(Recommended)
03 213
04	753
05	515
06	2.6
07	1124

(unit: mm)

Product dimension

A(mm) B(mm)		C(mm) D(mm)		E(mm) F(mm) G(mm)
550±2550±21935±271669		1190		675

NOTICE

• The specified energy consumption is based on the condition of a 10mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than every, consumes slightly more energy. We recommend using a cabinet that is 19mm thick with hinges less than 17mm thick.
• The measurements in the above table may differ, depending on the measuring method.
• For built-in installation the Installation Guide.

Ventilation cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

A: Ventilation options B: Air outlet ≥ 200 cm² Ventilation options

A1

A2

Cabinet dimension

CAUTION!

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes.
2. Defective cabinet.
3. Mistakes by the installer or the user.

Clearance

See the pictures and tables below for space requirements for installation.

Size	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Remark
Min.	50400		56019	41555
Recommend			580	1943	562
Max.			-	1945	568

NOTICE

• If the width of a cabinet is larger than 568 feet between the refrigerator and the cabinet) can become loose.
• If the cabinet is higher than by our previous extension (1945mm), her finishing materials to fill the gap.

NOTICE

To install a cabinet requiring a 4 mm gap(03), see the cabinet reference table below.

A.Lowgeredtaabthef pnel e the air ventilation B.Front panebverahg

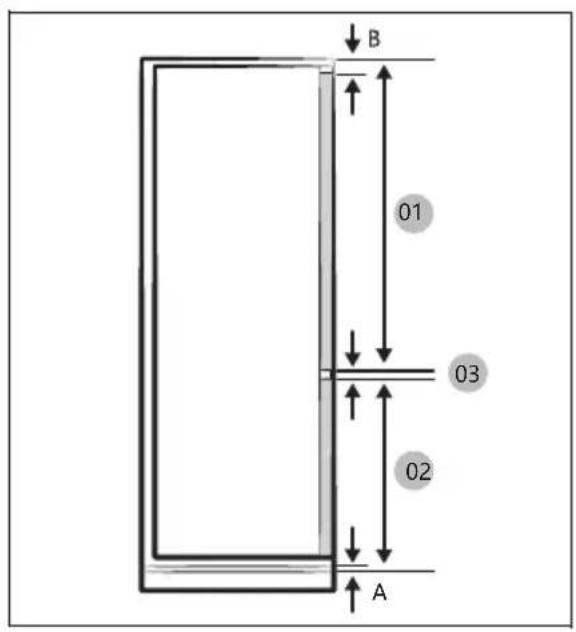

01	Min.1220+B Max.1240+B
02	Min.691+A Max.711+A
03	4 mm (fridge and freezer cabinet door panel gap)

(unit: mm)

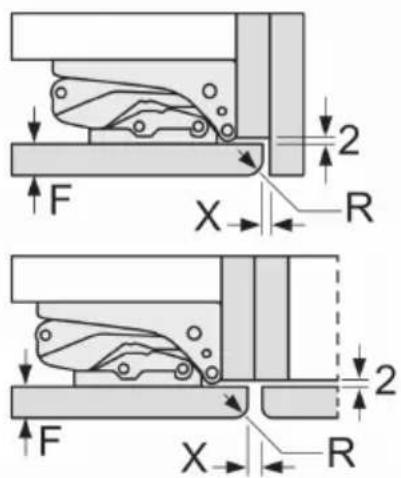

Recommended gap dimensions for flat hinges(For Fixed type).

(unit: mm)

FR	X
16-19	0-3	2.5
20	0-1	3
	2-3	2.5
21	0-1	3
	2-3	2.5
22	0	4
	1	3.5
	2-3	3

The gap dimensions recommended in the table must be adhered to in order to ensure that appliance doors do not collide with anything when they are opened, and to avoid causing damage to kitchen units.

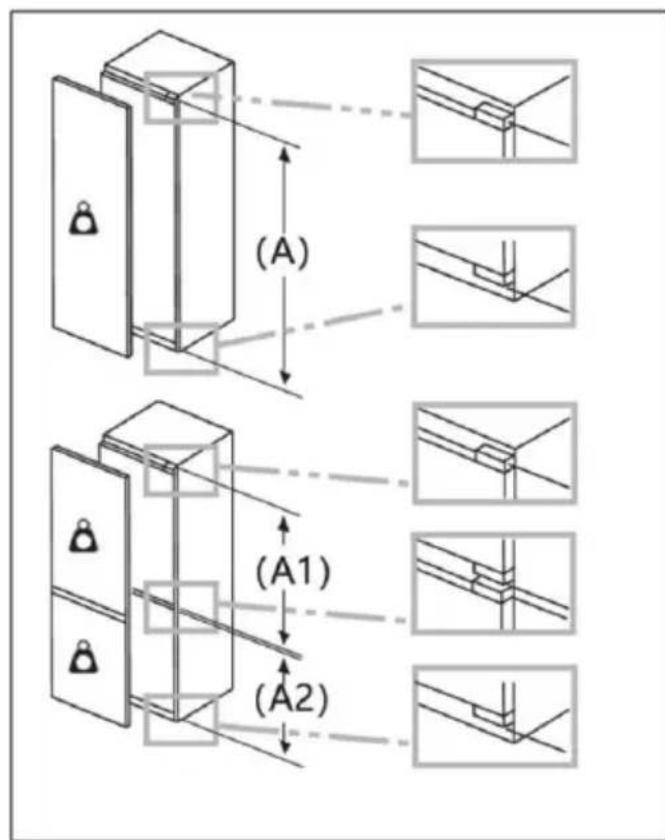

Maximal permissible weight of the unit fronts

Fitted unit fronts that exceed the permissible weight may cause damage and result in functional impairment of the hings.

Weight (kg)

1500-1750 mm	22
720-1400 mm	19
A1	15
A2	15

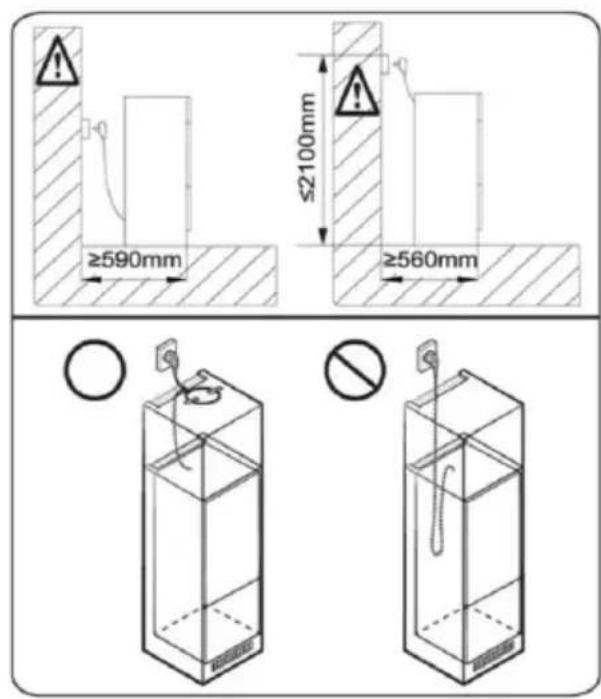

Consideration for socket outlet location and required space

NOTICE

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator it could decrease the energy efficiency.

Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▸ power supply, socket and fusing are appropriate to the rating plate. The power socket is earthed and no multi-plug or extension. The power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand	Haier
Category of the model	Refrigerator freezer
Energy efficiency class	C
Annual energy consumption(kWh/year)(1)	156
Total volume(L)	300
Volume refrigerator(L)	214
Volume freezer(L)	86
Volume chiller section(L)	/
Volume auto ice maker(L)	/
Star rating	4
Temperature of other compartments>14°C	Non applicable
Frost-free system	Yes
Freezing capacity(kg/24h)	8
Climate rating(2)	SN/N/ST/T
Noise emission class and airborne acoustical noise emissions(db(A)re1pW)	B 32
Temperature rise time(h)	12
Ice making capacity	/
Type of appliance	Built-in

Explanations:

-Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance. (2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C

Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C

Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C

Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency	220-240V ~/ 50Hz
Input current (A)	2
Main fuse (A)	16
Coolant	R600a
Dimensions (H/W/D in mm)	1935/550/550

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

your local dealer or our European Call Service-Center (see listed phone numbers below) or the Service & Support area at www.haier.com where you can activate the service claim and also find FAQs.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model

Serial No.

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 539 39 99	14 Ct/Min Landline max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	14,53 Ct/Min Landline max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

• For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

39Information for safety 44Intended use 45Product description 46Control panel 47 Use

Before first use 40 Installation 40 Daily use 41 Information for the user 43 Switching on/off the panel 47 Temperature regulation in the refrigerator 47 Temperature regulation in the

freezer 47

Switching on/off the device

The appliance must be connected to the power supply before it can operate.

When the refrigerator is switched on for the first time, the indicator "D" (temperature display) lights up. The temperature of the refrigerator and freezer is set automatically to 5°C and -18°C respectively. The indicator "M" (for the "QuickCool" function) lights up.

"My Zone" is automatically set to the "QuickCool" function.

It is possible that the panel lock is activated.

NOTE

The appliance may need up to 12 hours to reach the correct temperatures after being switched on for the first time.

Unplug the appliance before switching it off. To switch off the appliance, remove the plug from the socket.

Switching On/Off the Appliance

Automatic switching on: After the refrigerator door and the freezer door have been closed and the buttons have not been used for 30 seconds, the display automatically switches on and off.

Manual switching on: When the display is off, press the "K10" button (3S Unlock) and hold for 3 seconds. After a signal sounds, the indicator "Q" (Appliance On/Off) will light up and the display will be switched on.

Switching off: When the display is on, press the "K10" button (3S Unlock) and hold for 3 seconds. After a signal sounds, the indicator "Q" (Appliance On/Off) will go out and the display will be switched off.

Temperature Regulation

The temperatures are affected by the following factors:

Ambient temperature, how often the doors are opened, the quantity of food stored, and the installation of the appliance.

Adjusting the refrigerator temperature

When the display is off, press the "K4" button (Compartment Selector). After a signal sounds, the indicator "E" (Refrigerator Indicator) will light up and then you can set the refrigerator temperature.

Each time you press "K5" (Temperature Decrease Button "-"), a signal will sound and the set refrigerator temperature will decrease by 1. The refrigerator temperature changes in the following sequence: 9°C → 8°C → 7°C → 6°C → 5°C → 4°C → 3°C → 2°C → 1°C.

Each time you press "K6" (Temperature Increase Button "+"), a signal will sound and the set refrigerator temperature will increase by 1. The refrigerator temperature changes in the following sequence: 1°C → 2°C → 3°C → 4°C → 5°C → 6°C → 7°C → 8°C → 9°C.

NOTE

If no manipulation is performed within 5 seconds after setting the temperature, the system automatically saves the set temperature.

Press the button for the freezer temperature.

When the display is on and the button is pressed, press the "F" button (freezer button). Before the signal sounds, the "F" indicator (freezer indicator) will light up. After that, you can set the freezer temperature.

With each press of the "K5" button (button for temperature regulation, "-"), a signal will sound and the set freezer temperature will decrease by 1. The freezer temperature changes in the following sequence: 14°C -> 15°C -> -16°C -> -17°C -> -18°C -> -20°C -> -21°C -> -22°C -> -23°C -> -24°C. With each press of the "K6" button (button for temperature regulation, "+"), a signal will sound and the set freezer temperature will increase by 1. The freezer temperature changes in the following sequence: 24°C -> -23°C -> -22°C -> -21°C -> -20°C -> -19°C -> -18°C -> -17°C -> -16°C -> -15°C -> -14°C.

NOTE

If no manipulation is performed within 5 seconds after setting the temperature, the system automatically saves the set temperature.

Step 1 Download the hOn app from the stores.

GETITON GooglePlay

Download on the App Store

EXPLORITON AppGallery

Step 2 Create your profile in the hOn app or log in if you already have one.

Step 3 Follow the instructions for connection in the hOn app.

Wi-Fi function

1. Follow the instructions in the app to configure Wi-Fi.
2. Once Wi-Fi is configured and the connection is established, the Wi-Fi icon "B" will be lit and fixed.
3. If Wi-Fi is already configured, when Wi-Fi is turned on, it will automatically connect using the configuration information.
4. To turn off Wi-Fi, press the Wi-Fi button "K1", and the Wi-Fi icon "B" will turn off.
5. To turn on Wi-Fi and start configuration, press the Wi-Fi button "K1" and the Wi-Fi icon "B" will light up briefly. If you want to configure the Wi-Fi function, press the "K1" button for a few seconds, and the Wi-Fi icon will blink quickly and enter configuration mode. If you want to turn off the Wi-Fi function, press the "K1" button again. Repeat the above steps.
6. If the product was configured and the Wi-Fi function was turned off, the appliance will enter configuration mode after a repeated power-on.

Function "ECO"

1. When the display is off, press the "K2" button (button for the "ECO" function), a signal will sound, the indicator "C" (function "ECO") will light up, and the "ECO" function will be enabled.
2. When the display is off, press the "K2" button (button for the "ECO" function), a signal will sound, the indicator "C" (function "ECO") will go out, and the "ECO" function will be disabled.

Function "Holiday"

1. When the display is off, press the "K3" button (button for the "Holiday" function), a signal will sound, the indicator "D" (function "Holiday") will light up, and the "Holiday" function will be enabled.
2. When the display is off, press the "K3" button (button for the "Holiday" function). A signal will sound, the indicator "D" (function "Holiday") will go out, and the "Holiday" function will be disabled.

NOTE

1. The "Holiday" function is mainly used for short absences. When using the "Holiday" function, the refrigerator must be emptied.
2. During the "Holiday" function, the temperature in the refrigerator compartment will be set higher (around 17°C). Please do not store food to avoid spoilage. 3. When the "Holiday" function is active, the settings for "Fruit&Veg", "QuickCool", "0°C Fresh" and "My zone" will be disabled, and the temperature of "My zone" cannot be adjusted. The refrigerator compartment and the "My Zone" compartment will return to their previous settings after you exit the "Holiday" function.

Function "Super Cool"

1. When the display is off, press the "K8" button (selector for the "Super Cool" function), a signal will sound, the indicator "O" (function "Super Cool") will light up, and the "Super Cool" function will be enabled.
2. When the indicator "O" (function "Super Cool") is lit, press the "K8" button (selector for the "Super Cool" function). A signal will sound, the indicator "O" (function "Super Cool") will go out, and the "Super Cool" function will be disabled.

Exceptions. 3. After the "Super Cool" function has been activated, the refrigerator will automatically switch off when the set temperature is reached. If you want to switch it off manually, you can do so by pressing the "K8" button (the "Super Cool" function selector).

NOTE

1. While the "Super Cool" function is on, the refrigerator temperature cannot be regulated. If you press the "K5" button (the button for regulating the temperature "-") or the "K6" button (the button for regulating the temperature "+") to change the refrigerator temperature, the "O" indicator (the indicator for the "Super Cool" function) will flash and a signal will sound, indicating that this operation cannot be performed. 2. While the "Super Cool" function is on, the "Auto-Set" mode cannot be activated, as it is a matter of different control modes. When you select a function that conflicts with another function, the first function will be switched off automatically.
2. This function will be deactivated automatically after 4 hours.

The "Super Freeze" function

1. When the appliance is switched on, press the "K9" button (the selector for the "Super Freeze" function). A signal will sound, the "P" indicator (the "Super Freeze" function) will light up, and the "Super Freeze" function will be activated.
2. When the "P" indicator (the "Super Freeze" function) is lit, press the "K9" button (the selector for the "Super Freeze" function). A signal will sound, the "P" indicator (the "Super Freeze" function) will go out, and the "Super Freeze" function will be deactivated.
3. After the "Super Freeze" function has been activated, the refrigerator will automatically switch off when the set temperature is reached. If you want to switch it off manually, you can do so by pressing the "K9" button (the selector for the "Super Freeze" mode).

NOTE

1. While the "Super Freeze" function is on, the freezer temperature cannot be regulated.

If you press the "K5" button (the button for regulating the temperature "-") or the "K6" button (the button for regulating the temperature "+") to change the freezer temperature, the "P" indicator (the indicator for the "Super Freeze" function) will flash and a signal will sound, indicating that this operation cannot be performed.

2. The "Super Freeze" function is intended for freezing food in the shortest possible time, in order to preserve its nutritional value. If you need to freeze large quantities of fresh food.

The "Super Freeze" function should be switched on 24 hours in advance, so that the temperatures in the freezer can be lowered and the food can be placed inside. In this way, the time required for freezing in the freezer is shortened, the food can be frozen quickly, its nutritional value is preserved, and storage becomes more convenient.

1. The "Super Freeze" function will be deactivated automatically after 50 hours, after which the appliance will continue to operate at the previously set temperature.

Selector for the "Zone" function

Press the button "K7" (button for selecting the "My Zone" function), where the signal sounds, the indicator "L" (function, Fruit&Veg) lights up and the "Fruit&Veg" function is activated. If you press the "K7" button again to select the "My Zone" function, the indicator "M" (function, Quick Cool) will light up, after which the "Quick Cool" function will be activated. The options for the "My Zone" function are "Fruit&Veg", "QuickCool" and "0°C Fresh" in this order.

NOTE

1. When the refrigerator is switched on for the first time, the indicator "L" lights up and "My Zone" is automatically set to the "QuickCool" function. One of the three "My Zone" indicators must light up. When you switch on the "My Zone" function again, you cannot select the same indicator. Only one of the three functions can be set at a time. The three functions are mutually exclusive.
2. The set temperature for storage in "My Zone" cannot be higher than the temperature of the refrigerator.
3. To lower the temperature of the refrigerator compartment, use the "0°C Fresh" function. To increase it, use the "Fruit&Veg" function.

Compartment "My Zone"

The refrigerator compartment is equipped with the "My Zone" compartment. According to the requirements for food storage, you can select the most suitable temperature to extract the optimal nutritional value of the food. The following modes are available.

Function "Fruit&Veg"

This function is suitable for storing fruits and vegetables such as apples, carrots, etc.

Function "QuickCool"

This function is suitable for storing drinks such as cola, beer, etc.

NOTE: Fruit&Veg

Fruits, vegetables sensitive to cold temperatures such as pineapple, avocado, grapefruit, and vegetables like potatoes, eggplant, beans, cucumbers, zucchini, tomatoes, as well as cheeses, should not be stored in the "My Zone" compartment. Function "0°C Fresh"

This function sets the temperature in the "My Zone" compartment to 0°C. It is suitable for storing fresh food such as meat or products for quick preparation. The food stays fresh at 0°C without freezing.

NOTE: 0°C Fresh

1. Due to the low oxygen content in the place, some foods may freeze at temperatures below 0°C. For "Unforgettable Freshness", store in the "My Zone" compartment at temperatures near 0°C.
2. When you select "0°C Fresh", set the temperature of the refrigerator compartment to a low level (below 5°C) to keep food in an optimal storage environment.

Humidity Zone

In this compartment, the humidity level is higher than in the refrigerator compartment. It is controlled automatically by the system and is suitable for storing fruits, vegetables, salads, etc.

NOTE

1. Do not remove the plastic caps located inside the drawers.
2. They maintain humidity.
3. Fruits sensitive to cold temperatures, such as avocados, bananas, grapefruit, should not be stored in these compartments.

Multi Air Flow

1. The refrigerators are equipped with a Multi Air Flow system, which allows cold air streams to flow through every shelf. This helps maintain a constant temperature, so your food stays fresh longer.

Adjustable shelves

1. The height of the shelves can be adjusted according to your storage needs.
2. To move a shelf, first remove it by lifting the front part ① and pulling it out ②.
3. To put it back, slide it onto the rails from both sides and push it to the rear position until the rear part of the frame locks into the side openings.

NOTE

Make sure all sides of the frame are aligned.

Door shelves / bottle racks

1. The door shelves can be removed for cleaning:
2. Hold the shelf from both sides, lift it up ① and pull it out ②
3. To put the shelf back on the door, follow the above steps in reverse order.

NOTE

After the appliance has been switched on, it may take up to 12 hours to reach the correct temperatures.

To remove the drawer, pull it out as far as possible ①, then lift it up and take it out ②.

To put the drawer back, follow the above steps in reverse order.

Lighting

When the door is opened, the internal LED lighting turns on. The operation of the lights is not affected by any external settings on the device.

Energy consumption

Make sure the appliance is ventilated properly (see "Installation"). Do not install the appliance in places exposed to direct sunlight or near heat sources (e.g., cookers, heaters). Avoid placing the appliance in areas with high ambient temperatures. Energy consumption increases the higher the ambient temperature is. ▸ The "Super Freeze" function consumes more energy. Let hot food cool down before placing it in the appliance. Open the door as little as possible and for as short a time as possible. Do not interrupt the appliance's operation to avoid disrupting the air circulation. Avoid placing food items in packaging that contains air. ▸ Keep the door gaskets clean so that the door closes properly. Defrost frozen food in the refrigerator compartment. The most energy-efficient configuration requires that shelves, food containers, and drawers in the appliance be positioned as close to the back as possible, and that food be placed as far away from the air vents as possible to avoid obstructing air circulation.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance regularly when little or no food is stored in it.

The appliance should be cleaned every four months for proper maintenance and to prevent unpleasant odors from stored food.

WARNING!

Do not clean the appliance with hard brushes, steel wool, abrasive cleaners, benzene, ammonia, alcohol, or organic solvents, acidic or alkaline solutions. Clean with a special cleaner for refrigerators to avoid damage. Do not spray or rinse the appliance during cleaning. Do not use water jets or steam for cleaning the appliance. Do not clean glass shelves with hot water. Sudden temperature changes may cause the glass to crack. Do not touch the interior surface of the freezer compartment, especially with wet hands, as your hands may freeze to the surface. In case of temperature rise, check the condition of the frozen food.

Clean the door gaskets regularly. ▸ Clean the interior and exterior of the appliance with a soft cloth, warm water, and a neutral cleaner. 1. Wipe the interior and exterior parts of the refrigerator, including the door gaskets, door shelves, glass shelves, containers, etc., with a soft cloth or sponge soaked in warm water (you may add a neutral cleaner to the warm water).

2. If the appliance is warm, remove all dirty parts, rinse them directly with warm water, dry them, and put them back in the refrigerator. 3. If there is stubborn dirt (such as dried-on food), remove all dirty parts, soak them for a while in warm water at about 40°C, then rinse with warm water, dry them, and put them back in the refrigerator. 4. If small parts are difficult to remove (between the drawers and the shelves), use a small soft brush to remove them. If you cannot reach the part, contact our customer service department.

Rinse and dry with a soft cloth. Do not put any parts of the appliance in the dishwasher. Wait at least 5 minutes before turning the appliance on again, as immediate restarting may damage the compressor.

Defrosting

Defrosting of the refrigerator and freezer compartments is performed automatically: no manual control is required.

Maximum permissible temperature of the front parts of the appliance

The front parts that reach the permissible temperature may be damaged and may cause damage to the panels.

Temperature

(K)

1500-1750 MM	22
720-1400 MM	19
A1	15
A2	15

Diagram for the location of the contacts and the required space

NOTE

If you install the refrigerator in a cabinet with a depth of 560 mm, make sure that the power cord is positioned away from the refrigerator before you plug it into the electrical outlet. If the power cord is in the rear part of the refrigerator, this may reduce the energy efficiency.

Time delay

The lubricating oil, which does not require maintenance, is located in the compressor housing. This oil may spread through the sealed pipe system while the appliance is being transported and when it is in an inclined position. Before connecting the appliance to the power supply, you must wait at least 2 hours so that the oil can return to the compressor housing.

Connection to the electrical supply

Before connecting, check that:

Store the contacts in accordance with the project documentation. The grounding contact must be connected to the disconnector or switch. The contacts must be in full compliance.

Connect the circuit to the correct installation contact for household use.

WARNING!

To avoid risk, if the supply cord is damaged, it must be replaced by the customer service department (see warranty card).

Download on the App Store

EXPLORITON AppGallery

Operation 0°C Fresh

Operation and use of the appliance in the refrigerator compartment My Zone at 0°C for storage of fresh foods, such as meat and dairy products. Perishable foods are kept fresh at 0°C, but do not freeze.

NOTE: 0° C Fresh

Download on the App Store

EXPLORITON AppGallery

Download on the App Store

EXPLORE IT ON AppGallery

Download on the App Store

EXPLORITON AppGallery

Download on the App Store

EXPLORITON AppGallery

"Humidity Zone" stalcius

Westgate House, Westgate, Ealing

London, W5 1YY

Download on the App Store

EXPLORITON AppGallery

Download on the App Store

EXPLORE IT ON AppGallery

Replace the LED lamps

WARNING!

Westgate House, Westgate, Ealing

London, W5 1YY

Standard directive

Humidity Zone drawer

Refrigerator compartment: 12 V max. 10 W

Freezer compartment: 12 V max. 2 W

Westgate House, Westgate, Ealing

London, W5 1YY

Freezer compartment: 12 V max 2 W

Download on the App Store

EXPLORITON AppGallery

1. Step: Create your account in the hOn app or log in if you already have an account.

Humidity Zone drawer

Download on the App Store

EXPLORE IT ON AppGallery

Technical changes and different models may differ from the illustrations in this manual.

A: Refrigerator compartment

1 Shelf 2 Refrigerator thermostat 3 Crisper drawers 4 Vegetable drawers 5 Humidity Zone drawer 6 Temperature container 7 Door shelves 8 MyZone drawer

B: Freezer compartment 9 Upper freezer drawer 10 Middle freezer drawer 11 Lower freezer drawer

Indicator:

A Wi-Fi indicator B ECO function C Holiday function D Holiday function E Fridge temperature indicator F Freezer temperature indicator G Temperature regulator "-" H Bacteriostatic function I Power indicator J Digital temperature display K Temperature regulator "+" L Fruit&Veg function M QuickCool function N 0°C Fresh function O Super Cool function P Super Freeze function Q Lock/Unlock

Keys:

K1 Wi-Fi button K2 ECO button K3 Holiday button K4 Zone selection button K5 Temperature regulator "-" K6 Temperature regulator "+" K7 My Zone function selection button K8 Super Cool selection button K9 Super Freeze selection button K10 Lock/Unlock button

Touch keys

The control panel keys are touch keys that respond to a light touch.

Switching on/off

The appliance starts working as soon as it is plugged into the power supply.

During switching on, the fridge indicator "J" (digital temperature display) lights up. The temperature of the fridge and freezer compartments is automatically set to 5°C and -18°C respectively. Then the indicator "M" (QuickCool function) lights up.

For the My Zone zone, the QuickCool function is automatically set.

Possibly, the panel lock is active.

SWITCHING OFF

When the appliance is switched off via the power supply, it may take up to 12 hours to reach the required temperature.

Switch off the appliance before switching it on. To switch off the appliance, pull the plug out of the socket.

Download on the App Store

EXPLORE IT ON AppGallery

Step 2. To create an account, press the button or log in to the system if you already have an account.

Replacing the light bulbs

WARNING!

Do not replace the light bulb yourself; it must be replaced by a qualified technician or a service agent.

The light bulbs are used as a light source because they have low energy consumption and a long service life. In case of any deviations from the norm, contact the customer service. See the customer service section.

Lamp parameters:

Cold light: 12 V, max. 10 W

Frost light: 12 V, max. 2 W

Non-use for a long period

If you do not use the device for a long period and you do not want to use the Holiday function:

Remove the product from power supply.

Remove the plug from the power outlet.

Description of the device, as described above.

To prevent the formation of hazardous substances inside.

MAINTENANCE

Switch on the device only when absolutely necessary.

Pressing the device

1. Disconnect the device from the electrical outlet before cleaning.
2. Close the doors and moving parts in cold and frosty conditions with a key.
3. Do not tilt the refrigerator more than 45 degrees to prevent damage to the cooling system.

WARNING!

Do not lift the device by the handle. Never place it horizontally on the floor.

Many problems that arise can be solved independently without special knowledge. In case of problems, first check all the listed options and follow the instructions given below before contacting the after-sales service. See CUSTOMER SERVICE.

WARNING!

Before servicing, turn off the device and unplug it from the outlet. Electrical appliances should only be serviced by qualified electricians, as improper repair can lead to serious consequences. In case of cable damage, its replacement must be carried out by the manufacturer, its service representative, or persons with similar qualifications.

The warranty does not cover any malfunctions of the product related to the above-mentioned reasons.

1. Unsuitable operating conditions or incorrect dimensions of the shaft.
2. Defective shaft.
3. Installation or use errors.

Installation dimensions

Dimensions for installation are shown in the figures and in the tables.

To install the 4 mm gap (03), see the table of values.

The lower edge of the front panel directs the air flow to the height of the front panel.

Insert the plug into the appropriate household socket.

WARNING!

To avoid risks, the damaged power cord must be replaced by the manufacturer's service or qualified personnel (see warranty).

Product technical data sheet in accordance with EU Regulation No. 2019/2016
