USER MANUAL PTK 250 S ATIKA
Original instructions – Safety instructions – Spare parts
89331 Burgau – Germany
Close-up of hands operating a machine with a labeled component (no readable text or symbols)Do not operate machine before having read the operating instructions, understood all the notes and assembly the machine as described here.
Keep the instructions in a safe place for future use.
Contents
| Declaration of conformity 13 | |
| Characteristics data of noise 13 | |
| Symbols machine /operating instructions 14 | |
| Extent of delivery 14 | |
| Normal intended use 14 | |
| Residual risks 15 | |
| Safety instructions 15 | |
| Description of device / Spare parts 17 | |
| Assembly 18 | |
| Transport locking device 18 | |
| Assembling the stand 18 | |
| Securing the saw on the stand 18 | |
| Preparing the commissioning 18 | |
| Commissioning | 18 |
| Mains connection | 19 |

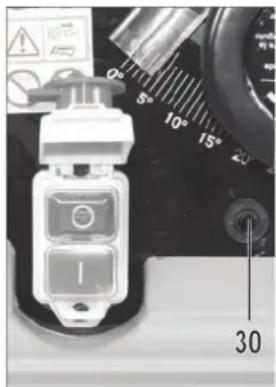

| On / Off Switch | 19 |
| Dust/chip exhaustion | 19 |
| Adjusting the saw | 19 |
| Riving knife setting | 19 |
| Telescoping table extension | 19 |
| Sliding carriage | 19 |
| Set the cutting height | 19 |
| Adjust saw blade pitch | 20 |
| Fitting and adjusting the transverse stop | 20 |
| Fitting and adjusting the longitudinal stop | 20 |
| Working with the saw | 20 |

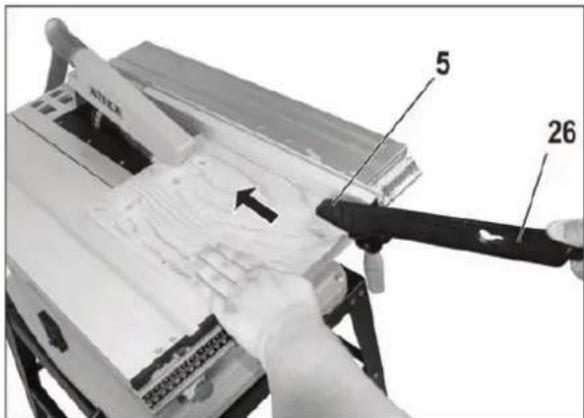

| Cutting narrow workpieces | 20 |

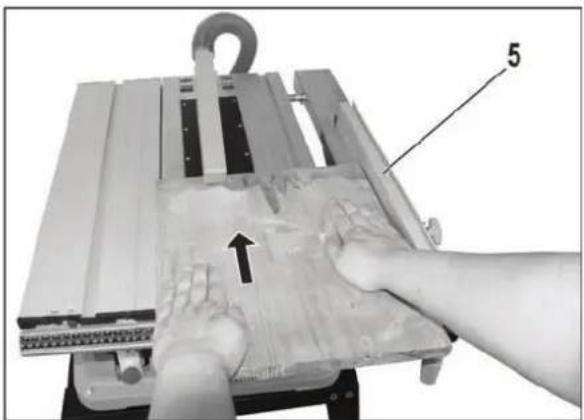

| Cutting wide workpieces | 21 |

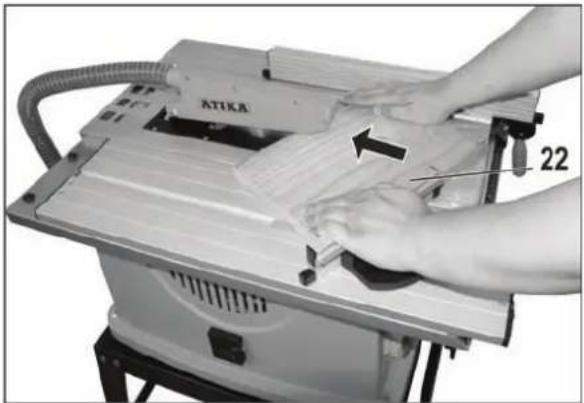

| Cross cuts / mitre cuts | 21 |
| Maintenance and cleaning | 21 |
| Maintenance | 21 |
| Cleaning | 22 |
| Transport | 22 |
| Storage | 22 |
| Guarantee | 22 |
| Possible faults | 22 |
| Technical data | 23 |
EC Declaration of Conformity
No. (S-No.): 13375
according to EC directive: 2006/42/EC
We,
ATIKA GmbH
herewith declare under our sole responsibility that the product
Tischkreissäge (Circular Saw Bench)
Model PTK 250 S - Type M1D-SD-250EA
Serial number: 000001 - 0200000
is conform with the above mentioned EC directives as well as with the provisions of the guidelines below:
2004/108/EC and 2011/65/EU.
Following harmonized standards have been applied:
EN 61029-1:2009+A11; EN 61029-2-1:2010;
EN 55014-1:2006+A1; EN 55014-2:1997+A1+A2;
EN 61000-3-2:2006+A1+A2; EN 61000-3-11:2000
Duly authorised person for the compilation of technical documents:
ATIKA GmbH – Technical department
Josef-Drexler-Str. 8 – 89331 Burgau – Germany
Burgau, 05.01.2015
DIN EN ISO 4871
Use of the machine as a bench to circular saw with standard circular saw blade.
| Noise power level | Sound pressure level at the workplace | |
| Load | L_WA = 108,7 dB(A) | L_pA = 95,7 dB(A) |
| Factor of measurement uncertainty | K_WA = 3 dB(A) | K_pA = 3 dB(A) |
The values given are emission values and must therefore not simultaneously represent safe workplace values too. Although there is a relationship between emission and immersion levels, it can be reliably deduced whether additional precautionary measures are necessary or not. Factors, which can influence the immersion level currently existing at the workplace include the duration of the effects, the special type of the workroom, other noise sources, etc. e.g. the number of machines and other adjacent processes. The permissible workplace values can also vary from country to country. This information should however enable an improved assessment of the danger and risk to be carried out.
Symbols machine

Carefully read operator's manual before handling the machine.

Shut off engine and remove power cord before performing cleaning, maintenance or repair work.

Risk of injuries of fingers and hands by the saw blade

Do not expose to rain. Protect against humidity.

Wear eye and ear protection

Wear dust mask.

This product complies with European regulations specifically applicable to it.

Machine of the protection class II (double insulated)

Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an eco-friendly recycling.
According to the European Directive 2012/19/EU on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.
Symbols Operating instructions

Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.

Important information on proper handling of the saw. Not observing this instruction can lead to faults in the machine.

User information. This information helps you to use all the functions of the chain saw optimally.

Assembly, operation and servicing. Here you are explained exactly what to do.

Please refer to the attached assembly and operating instruction sheet for references to figure numbers in the text.
Extent of delivery
• Circular saw PTK 250 S including
— Power cable and plug
- TCT saw blade ∅ 254 / 30 mm x 3.0; 40 teeth
- Riving knife
• Safety guard with exhaust outlet
- Longitudinal stop
- Telescoping table extension to the right
- Sliding carriage
- Pushstick
- Extraction hose
- screw bag
• 2 spanners for replacing saw blade
• Crank for height adjustment
- Bottom cover
- Frame consisting of:
- 4 table legs
- 2 short frame sections
- 2 long frame sections
- 2 connecting braces short
- 2 connecting braces long
- 4 push-on bases
- Operating manual
• Assembly and operating instruction sheet
- Warranty declaration

After unpacking, check the contents of the box
▶ That it is complete
▶ Check for possible transport damage
Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.
Normal intended use
- The bench-type circular saw is intended exclusively for ripping and cross-cutting solid wood and panel materials such as chipboard, core-board and medium density fiberboard with square or rectangular cross-section using carbide tipped saw blades, whereby only saw blades conforming to EN 847-1 are accepbench.
- It is not allowed to machine metallic materials with this product.
- The use of saw blades made of HSS steel (high-alloy high speed steel) is not permitted since this steel is hard and brittle. Risk of injury through saw blade breakage and expulsion of saw blade pieces.
- Cutting round material (posts, firewood, etc.) is not permitted.
- The diameter of the saw blade must lie between 245 and 250 mm.
-
Only workpieces which have been securely mounted and aligned can be processed.
-
The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
- The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with.
- Any other use is deemed not to be use as prescribed. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.
- Independently made alterations to the circular saw preclude any liability of the manufacturer for resulting damages of any kind.
- The circular saw may only be equipped, used and serviced by persons who are familiar with these and have been instructed in the hazards. Repair works may only be carried out by us or by a customer service agent nominated by us.
- The machine may not be used in a potentially explosive environment or be exposed to the rain.
■ Metal parts (nails, etc.) must be removed from the timber to be sawn.
Residual risks
Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.
Residual risks can be minimised if the “Safety information” and the “Intended usage” as well as the whole of the operating instructions are observed.
Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.
- Danger of injury of fingers and hands by the tool (saw blade) or work piece, e.g. when replacing the saw blade.
- Injury from parts of the workpiece spinning off.
- Throwback of the workpiece or workpiece parts.
■ Breakage and expulsion of saw blade. - Risk from electricity, by using non-standard electrical connections.
■ Touching live parts of opened electrical components. - Impairment of hearing when working on the machine for longer periods of time without ear protection.
- Emission of harmful timber dust when operating without exhaust suction.
In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.
Safety instructions
⚠ Wood processing machines can be dangerous when used improperly. The use of electrical tools requires the observation of basic safety precautions to eliminate risk of fire, electrical shock and personal injuries.
Before commissioning this product, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.
Pass the safety instructions on to all persons who work with the machine.
i Keep these safety instructions in a safe place.
- Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.
- Be observant. Attend to what you do. Start working with rationality. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.
- Avoid unusual posture. Provide a safe standing position and keep at any time the balance. Do not lean forward.
■ Wear suitable work clothes:
- do not wear loose-fitting clothes or jewellery; they can catch in moving parts.
- slip-proof shoes
— wear a hair-net if your hair is long
■ Wear protective clothing:
- ear protection (sound pressure levels at the workplace usually exceed 85 dB(A))
- safety goggles
— Dust mask with work activities generating dust - Wear working gloves when handling saw blades and materials with rough surfaces. Always transport saw blades in a container whenever possible.
— Do not wear gloves when working with the machine.
■ Only operate the circular saw on a
- solid
- level
- slip-free
– vibration free surface
- Keep your workplace in an orderly condition! Untidiness can result in accidents.
■ Take into consideration environmental influences:
— Do not expose the saw to rain.
— Do not use the saw in a damp or wet environment.
— Provide for good illumination.
- Do not use the saw near to flammable liquids or gases.
Normal brush sparking could cause an ignition. There is a risk of fire or explosion in the event of failure to observe the above instruction.
Note the fire detection and fire fighting facilities (e.g. location of and how to use fire extinguishers).
- When sawing wood, circular saws must be connected to a dust collection device.
■ Always make sure that no excessive dust concentration can occur.
- Always keep the saw blade well sharpened and make sure that the safety guard is lowered over the workpiece.
— Always use a suited extraction system.
— Wood dust is explosive and can be harmful.
- In particular tropical woods as well as beech and oak are classified as carcinogenic.
■ Never leave the saw unattended.
- Persons under the age of 18 must not operate the circular saw. An exception is youngsters under the age of 16 within the scope of their vocational training under supervision.
- Keep other persons away.
Do not allow other persons, especially children, to touch the tool or cable.
Keep them away from your working area.
■ Take up a working position, in which you are always to the side of the saw blade outside of the cutting level.
- Remove all nails and metal objects from the work piece prior to sawing.
- Pay attention that the work piece does not contain any cables, ropes, cords or the like.
- Only begin cutting after the saw blade has reached its required rotational speed.
- Do not overload the machine! You work better and safer in the given performance range.
■ Always use the right power tool.
Do not use machines for high-duty work for which they are not rated. Do not use the power tool for purposes for which it is not meant.
Example: Do not use a portable circular saw for cutting branches or wood billets.
- Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.
- Replace the bench insert if the sawing gap is worn.
- Do not use any cracked saw blades or such that have changed their shape.
- Use only sharp saw blades since dull saw blades not only increase the danger of back kicking but also cause excessive load on the motor.
- Do not use saw blades made of high speed steel (HSS) since this steel is hard and brittle; use only tools according to EN 847-1.
⚠ The use of other tools and other accessories can signify a risk of injury for you.
Pay attention that the saw blade conforms to the dimensions specified under "Technical Data" and is suitable for the work piece material.
- Always use saw blades the allowed max. rotational speed of which is not lower than the max. spindle speed of the circular table saw and the material to be cut.
- Make sure to select a saw blade that is suited for the material to be cut.
- Use the riving knife provided. It must be set so that its distance to the tooth rim of the saw blade is no more than 2-5 mm above the bench.
- When mounting the saw blade check that the riving knife is aligned with the saw blade.
- Use an additional support (e.g. table, stand) for longer workpieces to prevent the machine from tipping over. Do not allow other persons to hold the workpiece.
■ Make sure to safely hold and guide all workpieces when they are machined. Do not cut too small workpieces.
- Use only fine-tooth saw blades to cut thin or thin-wall work pieces.
- Only saw one work piece at a time. Never saw several work pieces at the same time or do not bundle several individual pieces together for cutting. There is danger that individual pieces may be caught by the saw blade in an uncontrolled manner.
- Do not use the saw for purposes it is not intended for (see intended use).
- When longitudinally cutting narrow workpieces (distance between the saw blade and the parallel rip fence less than 120 mm), use the pushstick.
- To push narrow workpieces against the parallel rip fence, use a pushstick.
→ Pushsticks can be purchased in retail outlets.
■ Do not use defective pushsticks.
- Always keep the pushstick or the handle for a pushing block on the circular table saw when they are not used.
- You work better and safer in the given performance range. It has to be positioned in the way that the saw blade is covered completely except for the part necessary for the work piece machining.
- Ensure that cut off pieces are not caught up by the saw blade and projected away.
- Do not remove splinters, chips and waste from the hazardous area of the saw blade by hand.
■ Always use the mitre guide for cross cutting.
- It is not permissible to use wobble devices and groove milling tools.
- Circular saws may not be used for slitting (groove ending in the workpiece).
- Never reach in the running machine. Keep hands, fingers and arms away from a rotating saw blade.
- Never reach over or around the saw blade. Do not reach behind the guide bar close to the saw blade; the distance between hand and rotating saw blade is too small.
- Always keep sufficient distance to the saw blade. Maintain sufficient distance from driven components during operation.
- The saw blade runs after. Wait until the saw blade has come to a standstill before remove splinters, chips and waste.
- Do not slow the saw blade down by applying lateral pressure to it.
- Protect the saw blade against impacts and strokes. Do not expose it to lateral pressure.
- Switch the machine off and remove the mains plug from the socket when
– carrying out repair works
— maintenance and cleaning
- removal of faults (this also includes the removal of jammed splinters)
– checks of connecting lines, whether these are knotted or damaged
- Transporting the saw
- Changing the saw blade
– leaving the saw unattended (even during short interruptions)
- Look after your saw with care:
- Keep your tools sharp and clean in order to be able to work better and safer.
- Follow the maintenance instructions and the instructions for tool exchange.
- Keep handles dry and free of oil and grease.
- Check the machine for possible damage:
- Before further use of the machine the protection devices or slightly damaged parts must be checked carefully for their proper and intended function.
- Check whether the movable parts function perfectly and do not stick or whether the parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the saw
- Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
- Damaged or illegible security labels have to be replaced.
- Do not start a machine that is not in a technically perfect condition. Lock the machine against accidental starting by disconnecting the mains plug.
- Do not allow any tool key to be plugged in!
Before switching on, check always that wrenches and adjusting tools are removed.
- Store unused equipment in a dry, locked place out of the reach of children.
Electrical safety
■ Design of the connection cable according to IEC 60 245 (H 07 RN-F) with a core cross-profile section of at least
- 1.5 mm2 for cable lengths up to 25m
-
2.5 mm2 for cable lengths over 25m
-
Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced.
- Plugs and coupler outlets on connection cables must be made of rubber, non-rigid PVC or other thermoplastic material of same mechanical stability or be covered with this material.
- Protect yourself against electric shocks. Avoid body contact with grounded parts (e.g. pipes, heating apparatus, cookers, fridges etc.).
- Protect yourself against electric shocks. Avoid touching earthed parts with your body.
- The connector of the connection cable must be splash-proof.
■ Wind off completely the cable when using a cable drum. - Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket.
-
Regularly check the saw cable and if damaged, have it renewed by a recognised skilled electrician.
-
When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet.
- Regularly check the extension cables and replace them if they are damaged.
- Do not use any defective connection cables.
- When working outdoors, only use extension cables especially approved and appropriately labelled for outdoor use.
- Do not set up any provisional electrical connections.
- Never bypass protective devices or deactivate them.
- Only hook up the machine by means of a fault-current circuit breaker (30 mA).
The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations – especially regarding protective measures – must be observed.
⚠️ Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.
⚠ Use only original spare parts and accessorie parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.
Description of device / spare parts
| Pos. | Denomination Order-No. | |
| 1 | Safety guard | 363411 |
| 2 | Riving knife | 363395 |
| 3 | Saw blade | 363421 |
| 4 | Table insert | 363383 |
| 5 | Fence | --- |
| 6 | Table extension, telescoping | 363382 |
| 7 | Fence holder | --- |
| 8 | Scale for longitudinal stop | 363384 |
| 9 | Clamping lever for longitudinal stop | --- |
| 10 | Pushstick holder | --- |
| 11 | Supporting section (C) | 363378 |
| 12 | Table leg (A) | 363375 |
| 13 | Connecting brace (E) | 363376 |
| 14 | Rubber foot | 363374 |
| 15 | Connecting brace (D) | 363377 |
| 16 | Supporting section (B) | 363379 |
| 17 | On/Off switch | 363386 |
| 18 | Handle for height adjustment | 363409 |
| 19 | Handwheel for cross-cut adjustment | |
| 20 | Set screw for saw blade | --- |
| 21 | Locking lever | --- |
| 22 | Transverse stop | 363414 |
| 23 | Sliding carriage | 363381 |
| 24 | Installation wrench | 363416 |
| 25 | Ring wrench | 363415 |
| 26 | Push stick | 363410 |
| Pos. | Denomination | Order-No. |
| 27 | Saw blade flange | 363398 |
| 28 | Hexagon screw 363399 | |
| 29 | Carbon brush cover | 363390 |
| 30 | Carbon brush | 363389 |
| 31 | Extraction hose | 363403 |
| 32 | Dust extraction port 363402 | |
| 34 | Machine knob M6 | --- |
| 35 | Star grip M6 | 363428 |
| 36 | Bottom plate | 363380 |
| 37 | Motor protection | --- |
Assembly of the saw
Transport locking device
▶ At first, remove the transport locking device between motor and housing.
▶ ▲ Secure the bottom plate (36) using the screws St 4.2 x 12.
Assembling the stand
▶ C At first, connect 2 legs Ⓐ (12) with one supporting section Ⓞ (16) each. For this, use 4 round-head screws with square neck M 6 x 12, washers A 6.4 and self-locking nuts M6 each.
▶ C Then, connect one brace ① (15) each. For this, use 2 round-head screws with square neck M 6 x 12, washers A 6.4 and self-locking nuts M6 each.
▶ C Connect both stand halves with 2 supporting sections
© (11) and braces E (13) each.
▶ Fix the 4 rubber feet (14) to the table legs Ⓐ (12).
Securing the saw on the stand
▶ Place the saw onto the stand so that the holes of the saw housing (A) are aligned with the holes in the supporting sections of the stand (B).
▶ D Connect the circular table saw with the stand using the supplied four hexagon screws M 6 x 45, washers ∅ 16 x ∅ 6.6 x 1.6 and self-locking nuts M6.
▶ E Attach the safety guard (1) to the riving knife (2).
▶ Screw the handle (18) on the handwheel.
▶ V Plug the suction hose (31) onto its connection on the housing (32).
▶ Plug the suction hose (31) onto its connection on the safety guard (1).
▶ Y6u can place the push rod (26) within reach to the side.
Preparing for commissioning
To achieve flawless functioning of the machine, please follow the instructions listed:
- Place the saw in a place that fulfils the following conditions:
– secured against slipping
– free of vibrations - even
– free of tripping hazards - adequate light
■ Before each use, check
- Connection cables for defects (cracks, cuts, etc.) Do not use any defective cables.
— that the guard is in a proper condition
— the riving knife setting (see riving knife setting)
— that the table insert is in a proper condition
— whether the pushstick is to hand
— the saw blade for flawless condition
- Do not use any cracked saw blades or such that have changed their shape.
- Do not use any saw blades made of HSS steel.
- Immediately replace a worn or damaged table insert.
- When sawing, place yourself to the side of the danger area (saw blade).
■ Lower the guard onto the bench top
— when working on the workpiece
— when interrupting the work or leaving the saw
Commissioning
Rotational direction of the saw blade
i Ensure that the rotational direction of the saw blade is the same as the rotational direction given on the guard (1).
Selection of saw blades
Consider when selecting the saw blade, that no edgeless or damaged saw bands are used and that the diameter of the blade location hole is 30 mm.
The saw blade supplied as a standard is suitable for timber and most plastics.

Other saw blades are available for other uses on request. Ask your dealer or us.
Mains connection
Compare the voltage given on the machine model plate e.g. 230 V with the mains voltage and connect the saw to the relevant and properly earthed plug
i Alternating current motor:
Use a shockproof plug, mains voltage 230 V with residual current circuit breaker (FI switch 30 mA).
i Main fuse: 16 A
Use the connection or extension cable according to IEC 60245 (H 07 RN-F) with a core cross-profile section of at least
■ 1.5 mm2 for cable lengths up to 25m
■ 2.5 mm2 for cable lengths over 25m
Power system impedance
In case of disadvantageous power system conditions short-term voltage reductions can occur during the starting process of the device which can influence other devices (e.g. jittering of a lamp).
Such influences are not expected at a system impedance of Z_max 0.382 . For more information contact your local power supply company.
On / Off Switch
Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.
Switch on

Press the green button (1) on the switch.

If there is a power cut, the machine switches off automatically. To switch on again, press the green (1) button.

Press the red button (0) on the switch.
Motor protection

The motor is equipped with a safety switch and switches off independently when overloaded.
It can be switched back on following cooling phase (5 - 10 min.).
First press
- the red button (0)
- the small black button (37)
- the green button ( I ) to start
Dust/chip exhaustion

The wood dust generated during operation impedes the necessary view and is harmful to health to some degree.
When sawing wood a chip exhaustion system (e.g. portable small vacuum) has to be connected to the exhaust neck (32).
Chip exhaustion
Connect a chip exhauster or a small vacuum to the chip exhaust neck (32) (∅ 39 mm) using a suited adapter.
Air velocity at the exhaust neck of the saw ≥ 20 m/sec Use a special exhaust device when exhausting dusts that are especially harmful to health, carcinogen or dry.
Adjusting the saw

Pull the mains plug before performing settings.
Riving knife setting
The riving knife is an important safety device as it prevents the workpiece from recoiling
⚠️ Always use the supplied riving knife.
▶ To guarantee the function of the riving knife, its distance from the toothed wheel its distance from the teeth of the saw blade above the table must not be more than 2-5 mm.
▶ Q Screw off the 8 screws from the table insert and remove the table insert.
The saw blade must be in the highest position.
▶ Slightly loosen the 2 hexagon screws and correctly adjust the riving knife. The riving knife must be in line with the saw blade.
▶ T Comply with the stated dimensions.
▶ Tighten the two hexagon screws using the ring wrench (25).
Telescoping table extension
▶ G, H Loosen the two wing screws under the saw table on the left and right side and pull out the table extension (6) to the desired extent.
▶ Then, tighten the wing screws again.
Sliding carriage
▶ Turn the locking lever (21) counterclockwisely to be able to move the sliding carriage.
Set the cutting height
▶ The cutting height can be continuously adjusted from 0 to approx. 74 mm using the handle (18).
⚠️ Before setting the cut height, tighten the set screw for the saw blade (20).
Set the cutting height 5 mm higher than the material thickness.
Adjust saw blade pitch

The saw blade must not be set to the inclined position when the blade is turning. The motor must be switched off first.

Adjusting between 0° - 45°
▶ K, L Loosen the clamping screw (20).
▶ Press in the handwheel (19) and rotate it until the desired angle ( 0^ - 45^ ) is indicated.
▶ Retighten the set screw.
Adjusting the angle indicator:
▶ Turn the machine off and unplug the power cord.
▶ Use an angle stop to align the saw blade vertically.
▶ K Loosen the screw (A) and slide the angle indicator to the 0^ mark.
Fitting and adjusting the longitudinal stop

Fit the longitudinal stop to the saw table plate.
Mount the stop bar (5) using the 2 supplied star gips, hexagon screws and washers on the stop support.

Make sure that the stop is correctly adjusted (see "Working with the saw").

Setting the longitudinal stop
Place the longitudinal stop in the guide profile on the bench.
▶ N Set the desired dimension and turn the lever (9) down.
▶ To obtain a precise cut, first make a test cut and then readjust the stop as needed.
Fitting and adjusting the transverse stop

The transverse stop supplied can be used as a verse or mitre stop.

Make sure that the stop is correctly adjusted (see "Working with the saw").

Use an angle gauge for a correct 90° adjustment.

Fit the transverse stop to the saw table plate
▶ 0 Slide the transverse stop in the groove on the saw table plate.

Use the sliding carriage for mitre cuts.
▶ Firmly tighten the machine knob (34).

Setting the angle
▶ 0 Loosen the star grip (35) and adjust the mitre guide to the desired angle.
▶ Retighten the star grip (35).
Working with the saw
Before starting to work consider the following safety advices to keep the risk of injuries as small as possible.
■ Protective guard, riving knife and saw blade ok?
- Place your hands flat on the workpiece with fingers closed.
■ Stoppers (fences) ready for use and pushstick to hand?
■ Workplace tidied?
- You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and installed the machine as described!
Before making adjustments to the saw settings (e.g. replacing the saw blade etc.)
- switch off device
— Wait for standstill of the saw blade - pull out main plug

Also, note the following important points:
■ Place yourself outside of the area of danger.
- Place your hands flat on the workpiece with fingers closed. With it, lead the work piece with the hand only up to the leading edge of the saw blade protection.
- Never remove loose splinters, chips, or similar by hand.

Observe all safety instructions in any case.
Cutting narrow workpieces
(Width less than 120 mm)

Push the workpiece forward with both hands, in the area of the saw blade, use the pushstick (26).

When working on very flat and narrow workpieces (Width 30 mm and less) use the lower guide area of the fence (5).
- With the flat of the hand and the fingers closed, push the work piece to be cut along the stop.
- Push the longitudinal stop (5) into the required position, so that the work piece can be securely held in place.
- Place the workpiece to be cut against the stop rails.
- Hold the workpiece firmly in place and push it past the saw blade using the transverse stop. Use the pushing bar if necessary.
Maintenance and Care

Before each maintenance and cleaning work
- switch off device
- wait for stop of chain saw
- pull out main plug
Malfunctions of the machine including defective guards or saw blade must be reported to the person responsible for safety immediately after detection.
Further maintenance and cleaning works than described in this chapter shall only be carried out by the manufacturer or companies named by the manufacturer.
For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.
Use only original parts. Other parts can result in unexpected damages and injuries.
Maintenance
Changing the saw blade

Before replacing the saw blade:
- switch off device
— wait for stop of chain saw - pull out main plug
- The saw blade is a wearing part and will become dull after prolonged or frequent use.
renew the saw blade or have it sharpened
- Do not use any saw blades made of HSS steel.
- Do not use any cracked saw blades or such that have changed their shape.
■ Only use well-sharpened saw blades - The saw blade must comply with the specified requirements under "Technical data".
Danger of cutting! Wear gloves when replacing the saw blade.
Use only suitable saw blades.
Danger of burning! The saw blade is still hot shortly after cutting.
▶ Bring the saw blade to the highest position.
▶ E Remove the safety guard (1).
▶ Q Screw off the 8 screws from the table insert and remove the table insert.
▶ R Hold the saw blade flange (27) using the wrench (24) and loose the hexagon screws (28) using the ring wrench (25)
Wear safety gloves.
▶ S Remove the hexagon screws (28) and the saw blade flange (27). Pull the saw blade (3) off.
- Clean the saw blade receiver using a cloth or brush before installing a new saw blade.
▶ Clean the flanges.
Fit the new saw blade in reverse order.
① Note the direction in which the saw blade turns (see arrow on saw blade). The teeth of the saw blade must point towards the front of the machine and the directions of the arrows on the saw blade and on the guard must be identical.
Finally, fit the safety guard again.
- Check the satisfactory function of the exhaustion system on a daily basis.
- If the motor fails to come to a stop within 10 seconds, replace the wearing parts of the motor brake. Only the manufacturer may do this.
Replacing the table insert
Immediately replace a worn or damaged table insert.

Replacing the carbon brushes
Replace the carbon brushes if they are worn.
▶ Place the machine on its side, remove the 6 screws and the bottom cover.
Remove the carbon brush cover (29) on the side of the motor cover by turning it counter clockwise using a suitable screw driver.
- Remove the carbon brushes; note the position of the spring retention.
▶ Insert the new carbon brushes (30) observing the correct position of the spring retention.
▶ Replace the carbon brushes only in pairs.
▶ Screw in the carbon brush cover (29) again.
▶ Remount the bottom cover and place the machine upright.

45° and 90° fine adjustment
In the event that the saw blade cannot reach the 45^ and 90^ standard angles to the table plate, you can adjust the end stops as follows:
Place the machine on its side and remove the bottom plate. Loosen the locking nuts of the end stops and align the saw blade at an angle of 90^ and 45^ to the saw table. Retighten the locking nut.
▶ Remount the bottom cover and place the machine upright.
Cleaning

Observe the following to maintain the functionality of the saw.
- Regularly clean the machine housing using a soft cloth or brush, preferably after each use.
- Keep the ventilation slits on the motor free from sticking dust or dirt.
■ Do not wash down device with water.
■ Remove splints and sawdust only with a brush or vacuum cleaner.
■ Clean and oil all moving parts regularly.

Never use any grease!
Use for instance sewing machine oil, liquid hydraulic fluid or environmentally acceptable spray oil.
■ Take care that the saw blade remains free of rust and resin.
■ Remove all resin residues from the saw bench top
- Take care that the saw blade remains free of rust and resin. - Remove all resin residues from the saw bench top
i Resin residues can be removed with a commercial maintenance and care spray.
Transport

Remove mains plug before each transport.

Always transport the saw with the saw blade lowered. This will avoid injury by the saw blade.
- Always use the transport devices (e.g. table plate) for handling or transporting the machine, never use any safety devices (e.g. protective guard).
Storage

Remove the mains plug from the socket.
- Store unused equipment in a dry, locked place out of the reach of children.
To extend the service life of the saw and guarantee smooth operation, before storing for a longer period
— thoroughly clean the saw - treat all movable parts with an environmentally friendly oil

Never use any grease!
Guarantee
Please observe the enclosed terms of guarantee.
Possible faults

Before each fault clearance
- switch off device
— wait for stop of chain saw - pull out main plug
After each fault clearance, put into operation and recheck all security installations.
| Fault Possible cause Removal | ||
| Machine fails to start after switching on or switches off during idle running | Power failureExtension cable defectMotor or switch defectSaw blade sticksCarbon brushes worn after a longer period of operation. | Replace fuseCheck cable, no longer use defect cableHave motor or switch checked by an approved electrician or replaced by original spare partsRemove the cause of the jam.Replace the carbon brushes |
| Machine stops while cutting | Saw blade bluntFeed is too greatMotor protecting switch has tripped | Replace saw bladeAllow motor to cool and proceed working with less pressureSwitch motor back on after cooling ("Motor protection", page 19) |
| Workpiece sticks when feeding | Saw blade is dull | Hold the workpiece firmly and switch the motor off immediately. The have the saw blade sharpened or renew |
| Burned spots at the cut areas | Saw blade is not suitable for the work step or is dull | Replace saw blade or have it sharpened |
| Chip outlet is clogged | No exhaust system connectedExhaust power too weak | Switch off saw, remove chips and connect exhaust systemSwitch off saw, remove chips and increase exhaust power (air velocity 20 m/sec at chip exhaust neck). |
| Saw vibrates | Saw blade is warpedSaw blade not properly mounted | Replace saw bladeMount saw blade properly |
| Cut not perpendicular | Angle end stops not accurately adjusted | Align the saw blade in 90° and 45° exactly right-angled to the saw table (see "45° and 90° fine adjustment") |
Technical data
| Model PTK 250 S | |
| Year of constructions see last page | |
| Motor input P_1 1800 W S1 | |
| Mains voltage 230 V~ | |
| Mains frequency 50 Hz | |
| Protection class | □ II (double insulated) |
| Saw blade speed 5000 min | -1 |
| Mains fuse 16 A | |
| Hard metal saw blade ∅ maximum 250 mm | |
| Hard metal saw blade ∅ minimum | 245 mm |
| Saw blade thickness | 1.8 mm |
| Cut width | 3.0 mm |
| Number of teeth | 40 |
| Thickness of riving knife | 2 mm |
| Saw blade location hole | 30 mm |
| Cutting speed (at maximum saw blade ∅) | 65.4 m/s |
| Cutting height at 90° (for maximum saw blade ∅) ca. 0 - 74 mm | |
| Cutting height at 45° (for maximum saw blade ∅) ca. 54 mm | |
| Bevel cut adjustment | 0° – 45° |
| Saw table size: | 630 x 510 mm |
| Table size (with width extension) | 630 x 760 mm |
| Table height (with stand) | 920 mm |
| Weight (with stand) | ca. 23 kg |
| exhaust outlet saw guard ∅ | 32 mm |
| Exhaust connection ∅ | 39 mm |
Commercial small dust removers or industrial vacuum cleaners can be used for exhaustion.

89331 Burgau – Germany
Burgau, 05.01.2015
Close-up of hands operating a lathe machine with a tool, no visible text or symbolsnatural_image
Close-up of a mechanical control panel with no visible text or symbols on the main componentИзключване
Close-up of hands operating a lathe machine with a tool, no visible text or symbols89331 Burgau – Germany
Burgau, 05.01.2015
Close-up of a mechanical device with a dial and control knob, no visible text or symbolsKikapcsolás
Close-up of hands operating a lathe machine with a tool, no visible text or symbolsnatural_image
Close-up of a mechanical device with a control knob and dial indicator (no readable text or symbols)lsključivanje

Pritisnite crveno dugme (O) na prekidaču.
Zaštita motora
- Gurajte poprečni graničnik (22) u utor za vođenje u stolu i podesite ga na željeni kut.
- Pomjerite uzdužni graničnik (5) u željenu poziciju da bi se izradak mogao sigurno nasloniti.
■ Stavite izradak koji se želi piliti uz graničnu šipku. - Držite dobro i čvrsto izradak i gurajte ga poprečnim graničnikom (22) pokraj lista pile. U slučaju potrebe koristite štap za guranje.
2004/108/CE e 2011/65/UE.
89331 Burgau – Germany

Burgau, 05.01.2015
i.A./G. Koppenstein
Close-up of hands operating a latika machine with a tool, no visible text or symbols89331 Burgau – Germany
89331 Burgau – Germany
Burgau, 05.01.2015

Stof-/spanenafzuiging
Burgau, 05.01.2015
DIN EN ISO 4871
Person operating a latika machine with tools and a numbered component (no visible text or symbols)conform directivei CE: 2006/42/EG
Prin prezenta noi
ATIKA GmbH
Close-up of hands operating a NIKA machine with a tool, no visible text or symbols on the machine itselfnatural_image
Close-up of a mechanical device with a dial and control knob, no visible text or symbolsVypnutie
Close-up of hands operating a machine with a wooden workpiece and a labeled component (no readable text or symbols)2004/108/ES in 2011/65/EU.
Uporabljeni so bili naslednjih harmonizirani standardi:
EN 61029-1:2009+A11; EN 61029-2-1:2010;
EN 55014-1:2006+A1; EN 55014-2:1997+A1+A2;
EN 61000-3-2:2006+A1+A2; EN 61000-3-11 :2000

Pritisnite rdeči gumb (0) stikala.
Zaščita motorja
- Potisnite prečno prislonsko vodilo (22) v vodilno tirnico v mizi in ga nastavite na želeni kot.
- Prestavite vzdolžno prislonsko vodilo (5) v želeni položaj, da obdelovanec varno nalega.
- Obdelovanec, ki ga želite žagati, položite na omejilno tirnico.
- Obdelovanca dobro držite in ga s prečnim prislonskim vodilom (22) potisnite mimo žaginega lista. Po potrebi uporabite potisno palico.
89331 Burgau – Germany

Burgau, 05.01.2015
Close-up of hands operating a latika machine with a tool, no visible text or symbolsnatural_image
Close-up of a wooden plank with visible grain patterns and two circular holes (no text or symbols)D
Year of construction Bouvwjaa NL
F
