USER MANUAL BWS 700 N-2 ATIKA

Original instructions

Page 11

Notice originale

Page 19

Do not operate machine before having read the operating instructions, understood all the notes and assembly the machine as described here.

Keep the instructions in a safe place for future use.

Contents

Declaration of conformity 11

Extent of delivery 11

Description of device / spare parts 11

Characteristics noise values 11

Operating times 12

Symbols machine / operating manual 12

Normal intended use 12

Residual risks 12

Safety working 13

Assembling 14

Before the first start-up 14

Unlocking the transport safety device 14

Start-up 15

Working with the saw 15

Maintenance and cleaning 16

• Changing the saw blade 16
  Replacing the plastics insert 16
• Replacing the recuperating spring 16

Transport 17
Storage 17
Possible faults 17
Technical data 18
Guarantee 18

EC Declaration of Conformity

No. (S-No.): 26344

according to Directive 2006/42/EC

Altrad Lescha Atika GmbH

Josef-Drexler-Str. 8, 89331 Burgau - Germany

declare under our sole responsibility, that the product

Brennholzwippkreissäge (Log saw) BWS 700 N-2

Serial number: 000001 - 020000

is conform with the above mentioned EC directives as well as with the provisions of the guidelines below:

2004/108/EC and 2011/65/EU.

Following harmonized standards have been applied:

EN 1870-6:2017; EN 55014-1:2017; EN 55014-2:2015;

EN 61000-3-2:2014: EN 61000-3-3:2013; EN ISO 3746 :2010

Duly authorised person for the compilation of technical documents:

Altrad Lescha Atika GmbH - Technical department

Josef-Drexler-Str. 8 - 89331 Burgau - Germany

Burgau, 31.10.2019

Engineering design management

Extent of delivery

• 1 log saw
• assembly tools
  2 wheels
  operating manual
• 1 connecting bar
• assembly and operating instruction sheet
• 1 srcew bag
• terms of guarantee

After unpacking, check the contents of the box

That it is complete
Check for possible transport damage

Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

17 Description of device / spare parts

Pos.	Spare part-no.	Description
1	365116	Wheel
1A	365138	Spacer sleeve
2		Tilt table
2A		Safety flap
3	365117	Safety hook
4	365118	Spring cotter pin
5	365119	Saw blade - TCT - ∅ 700 mm
6	365070	Screw M 12x30
7	365139	Washer ∅ 42x12x4
8	365120	Front saw blade flange
9	391647	Washer ∅ 44x26x4
9A	365121	Rubber washer
9B	365134	Washer ∅ 37x21x3
10	365122	Support pin
11	365123	Return spring
12	365124	Cover plate
13	365125	Locking pin
14		Handle
15	365126	Rear saw blade flange
16	365127	Three-phase motor

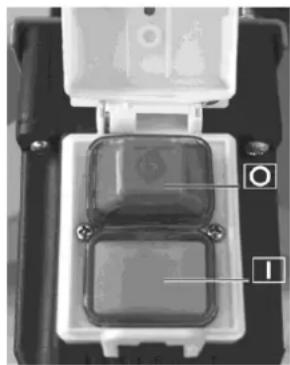

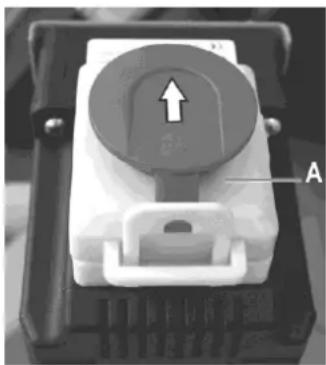

17	365128	On/Off switch
18	365129	Plastic inset
19		Safety guard
20	365130	Feather key 8x7x32
21	365131	Fan hood
22	365132	Fan blade
23	365133	Connecting bar
24	365003	Safety label
25	365135	Safety label
26	365191	Longitudinal stop
27	365054	Star grip screw M6x20
28	365150	Support extension
29	359690	Star grip screw M8x12

Characteristics noise values

Use of the machine as log saw for firewood with standard saw blade.

Noise power level (Load)

LWA=99 dB(A)

The factor of measurement uncertainty is 4 dB.

The values given are emission values and must therefore not simultaneously represent safe workplace values too. Although there is a relationship between emission and immersion levels, it can be reliably deduced whether additional precautionary measures are necessary or not. Factors, which can influence the immersion level currently existing at the workplace include the duration of the effects, the special type of the workroom, other noise sources, etc. e.g. the number of machines and other adjacent processes. The permissible workplace values can also vary from country to country. This information should however enable an improved assessment of the danger and risk to be carried out.

Operating times

Before initiating the device please observe the provisions pertaining to corresponding laws (regional provisions) for the noise control.

Symbols machine

Carefully read operator's manual and the safety instructions before starting the machine and observe the instructions when operating.

Wear protective gloves.

Wear safety shoes.

Wear eye protection.

Wear ear protection.

Wear protective clothing.

Use light-duty breathing protection.

Risk of injuries of fingers and hands by the saw blade.

Shut off engine and remove power cord before performing cleaning, maintenance or repair work.

Warning of hot surfaces. Danger of burning! Do not touch hot engine parts.

Direction of saw blade rotation

This product complies with European regulations specifically applicable to it.

Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an eco-friendly recycling.

According to the European Directive 2012/19/EU on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

Symbols operating instructions

	Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.
	Important information on proper handling. Not observing this instruction can lead to faults.
	User information. This information helps you to use all the functions optimally.
	Assembly, operation and servicing. Here you are explained exactly what to do.
1, 2, 3, ...	Please refer to the attached assembly and operating instruction sheet for references to figure numbers in the text.

Normal intended use

This machine is designed for cross cutting firewood in the house and hobby field.
- Cutting of round material having a diameter smaller than 30mm and greater than 240mm is not allowed as these pieces can not be held safely.
- The length of the material to be cut must not exceed 1000mm . The length of the material must be 200mm as a minimum.
- Only high-quality saw blades acc. to EN 847-1 up to a max. diameter of 700mm must be used.
- Because it has no extraction device this machine must only be used outdoors.
- Only work pieces are allowed to be processed which can be safely placed and held in the jigging device.
- The use of saw blades made of HSS steel (high-alloy high speed steel) is not permitted since this steel is hard and brittle. Risk of injury through saw blade breakage and expulsion of saw blade pieces.
- The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
- The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with.
- Any other use is deemed not to be intended use. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.
- Unauthorized modifications to the saw preclude any liability of the manufacturer for resulting damages of any kind.
- The saw may only be equipped, used and serviced by persons who are familiar with it and have been instructed on the hazards. Repair works may only be carried out by us or by a customer service agent nominated by us.
- The machine may not be used in a potentially explosive environment or be exposed to rain.
Metallic parts (wires etc.) have unconditionally to be removed from the material to be cut.

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the "Safety instructions" and the "Normal intended use" as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Danger of injury of fingers and hands by the tool (saw blade) or work piece, e.g. when replacing the saw blade.
• Injury by catapulted workpiece parts.
• Throwback of the workpiece or workpiece parts.
• Breaking or catapulting of saw blade.
• Risk from electricity, by using non-standard electrical connections.
• Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.
• Emission of harmful wood dusts. Wear therefore a protective mask.
• Noise emission: Use saw blades designed for noise reduction and keep the machine in a good condition.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safe working

Woodworking machines can be dangerous if not used properly. If electrical tools are used, the fundamental safety precautions must be met to preclude the risks of fire, electric shock and injuries to persons.

Before starting this device, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

Pass the safety instructions on to all persons who work with the machine.
① Keep these safety instructions in a safe place.

• Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.
• Be attentive. Be careful what you do. Behave sensibly when working. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.
• This unit may not be used by persons having reduced physical, sensory or cognitive abilities or by persons with lack of adequate knowledge or experience unless they are supervised or instructed by a person who is responsible for them.
• The machine must not be operated by children.
• Persons under the age of 18 must not operate the circular saw.
• Persons who have not read this operating instruction manual may not operate this unit.
  Children must be supervised to make sure that they do not play with the device.
• Keep children away from machine.
• Never leave the saw unattended.
• Keep other persons away.

Do not allow other persons, especially children, to touch the tool or the cable.

Keep them away from your working area.

• Wear suitable work clothes:

• do not wear loose-fitting clothes or jewellery; they can catch in moving parts.
  slip-proof shoes

• hairnet in case of long hair

• Wear suitable personal protective equipment:

• ear protection (Sound intensity level at workplace can exceed 85 dB (A))

• eye protection
• breathing protection

• gloves when working on saw blades saw blade change, for example (whenever possible transport saw blade in a tool holder).

• Dust exposition depends on the type of material to be sawed. Because this firewood saw has no extraction system, it may only be operated outdoors.

• Dust arising during work is often harmful to health and should not come into the human body. Wear a suited protective mask. Thoroughly remove accumulated dust, e.g. by vacuum.
• ONLY OPERATE the circular saw on a

-solid
level
slip-free
- vibration free surface

• Keep your workplace in an orderly condition! Untidiness can result in accidents.
  Take into consideration environmental influences:

Do not expose the saw to rain.

• Do not use the saw in moist or wet ambience.
• Provide for good illumination.

• Do not use this saw near inflammable liquids or gases.

• Avoid abnormal posture. Provide a safe standing position and keep at any time the balance. Do not lean forward.

• Assume the correct work posture. Stand in front of the operating side frontally to the saw blade line.
• Start cutting only when the saw blade has reached its required speed.
• Do not overload the machine! You work better and safer in the given performance range.
• Immediately report any malfunction on the machine including isolating safety devices or saw blade after you have detected them.
• Only operate the saw with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.
• Replace the plastics inserts if the sawing gap is worn.
• Do not use any cracked saw blades or such that have changed their shape.
• Use only well sharpened saw blades as edgeless saw blades increase not only the risk of backstrokes but also charge the motor.
• To minimise the noise emission make sure that you work with a sharp saw blade and that all elements for noise reduction (covers, etc.) are properly attached or adjusted.
• Do not use saw blades made of high speed steel (HSS) since this steel is hard and brittle; use only tools according to EN 847-1.

The use of other tools and other accessories can signify a risk of injury for you.
Pay attention that the saw blade conforms to the dimensions specified under "Technical Data" and is suitable for the work piece material.
- Observe the maximal speed indicated on the saw blade.
Always use genuine saw blade flanges.
- Arrange the stack of work pieces to be cut and the finished work pieces close to the work place.
- Only saw one work piece at a time. Never saw several work pieces at the same time or do not bundle several individual pieces together for cutting. There is danger that individual pieces may be caught by the saw blade in an uncontrolled manner.
- Ensure that cut off pieces are not caught up by the saw blade and projected away.
- Do not use the saw for unsuitable purposes (see "Normal intended use").
- Remove all nails and metallic objects from the work piece before sawing.
- Pay attention that the work piece does not contain any cables, ropes, cords or the like.
- Only cut work pieces with dimensions that allow secure holding while sawing.
- The length of the material to be cut must not exceed 1000mm . The length of the material must be 200mm as a minimum.
- Only wood pieces up to a max. diameter of 240mm are allowed to be cut to avoid dangerous turnover cutting.
- Always keep sufficient distance to the saw blade. Maintain sufficient distance from driven components during operation.
- The saw blade runs after. Wait until the saw blade has come to a standstill before remove splinters, chips and waste.
- Do not slow the saw blade down by applying lateral pressure to it.
- Do not remove splinters, shavings and waste with your hands from the dangerous area of the saw blade.
- Remove cutting waste from the machine (as required) to prevent any safety impairment at the workplace. This also applies to sawdust. Keep the chip clearance free.
- Do not remove cut or other parts of the work piece from the cutting area with the machine still running unless you use a pushstick.
- Switch the machine off and remove the mains plug from the socket when

• carrying out repair works
  maintenance and cleaning

• removal of faults (this also includes the removal of jammed splinters)

• checks of connecting lines, whether these are knotted or damaged

• transporting the saw
• changing the saw blade

• leaving the saw (also for short-term interruption)

• Maintain your saw with care:

• Keep your tools sharp and clean in order to be able to work better and safer.

• Follow the maintenance instructions and the instructions for tool exchange.

• Keep handles dry and free of oil and grease.

• Check the machine for possible damage:

Before further use of the machine the protection devices or slightly damaged parts must be checked carefully for their proper and intended function.
- Check whether the movable parts function perfectly and do not stick or whether the parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the saw.
- Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
- Damaged or illegible safety labels should be replaced immediately.

• Do not allow any tool key to be plugged in!
  Before switching on, check always that wrenches and adjusting tools are removed.
• Store unused equipment in a dry, locked place out of the reach of children.
• Adopt safe procedures for cleaning, maintenance and regular removal of chips and dust to prevent the risk of fire.
• Make sure during its entire foreseeable life cycle that the machine including its parts cannot tip over or move in an uncontrolled manner when transporting, assembling, putting out of service and scrapping

Electrical safety

• 1.5 ~mm^2 for cable lengths up to 25 ~m
  2.5mm^2 for cable lengths over 25m

• Design of the connection cable according to IEC 60 245 (H 07 RN-F) with a core cross-section of at least

• Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced.
• Plugs and coupler outlets on connection cables must be made of rubber, plasticised PVC or other thermoplastic material of same mechanical stability or be covered with this material.
• Protect yourself against an electric shock. Avoid touching earthed parts with your body.
  The connector of the connection cable must be splash-proof.
• Wind off completely the cable when using a cable drum.
• Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket.
• Regularly check the saw cable and if damaged, have it renewed by a recognised skilled electrician.
• When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet.
• Regularly check the extension cables and replace them if they are damaged.
• Do not use any defective connection cables.
• When working outdoors, only use extension cables especially approved and appropriately labelled for outdoor use.
• Do not set up any provisional electrical connections.
• Never bypass protective devices or deactivate them.
• Only hook up the machine by means of a fault-current circuit breaker (30 mA).

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations - especially regarding protective measures - must be observed.
Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.
Use only original spare parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Assembling

Assembling the wheels

1 Slide each one spacer sleeve (1A) and one wheel (1) on both axle ends of the preassembled unit.

Secure them each with a washer and a screw. [2x screw M8x20, 2x washer A10.5]

Assembling the connecting bar

2 Mount the connecting bar (23) to the device unit.

[4x screw M8x20, 8x washer A8.4, 4x nut M8 self-locking].

Assembling the switch / cable holder

3 Bolt the switch base (a) to the frame.
[2x screw M8x20, 4x washer A8.4, 2x nut M8 self-locking].
17 Assembling the cable holder [1x screw M4x15, 1x cable holder, 2x washer A4, 1x nut M4, self-locking].

Before the first start-up

To achieve flawless functioning of the machine, please follow the instructions listed:

• Place the saw at a location which meets following conditions:

• outdoor

• secured against slipping
• free of vibrations

• even
  free of tripping hazards
  adequate light

• To ensure a safer foothold when working with the saw secure the saw against rolling away.

Before each use, check

• connection cables for defects (cracks, cuts, etc.)

Do not use any defective cables.

• that the plastics inserts is in a proper condition
  the saw blade for flawless condition
  the functioning of the jigging device

• Do not use any cracked saw blades or such that have changed their shape.

• Do not use any saw blades made of HSS steel.
• Immediately replace a worn or damaged plastics inserts.
• Assume the correct work posture. Stand in front of the operating side frontally to the saw blade line.

Unlocking the transport safety device

Push the tilt table (2) towards the saw blade.
The safety flap (2A) must be closed properly.
The safety hook (3) comes free.
5 Turn down the safety hook.

6 Thanks to its return spring (11), the tilt table (2) automatically comes to its home position.

Start-up

Rotational direction of the saw blade

Ensure that the rotational direction of the saw blade is the same as the rotational direction given on the guard (19).

You can change the direction by placing a screw-driver in the slot provided in the plug collar, and adjust the correct direction by moving to the left or right applying slight pressure.

Selection of saw blades

Consider when selecting the saw blade, that no edgeless or damaged saw bands are used and that the diameter of the blade location hole is 30mm (note the nameplate on the machine).

Mains connection

Compare the voltage given on the machine model plate e.g. 230V with the mains voltage and connect the machine to the relevant and properly earthed plug.

Use a shockproof plug, mains voltage 230V with residual current circuit breaker (Fl switch 30mA ).

① Main fuse: 16 A inert

On/Off switch

Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

Switching on

Open the switch cover (A).

Press the green button on the switch.

If there is a power cut, the machine switches off automatically.

Push the green button to start the machine again.

Switching off

Press the red button on the switch or the red button on the switch cover (A).

The built-in brake will decelerate the saw blade up to the dead stop within 10 seconds.

Attention! The motor hums during and shortly after the braking time. The switch must never be operated during this phase. (Do not switch on or off.) The motor may only be switched on again after the humming sound has stopped.

The saw must not be used if the brake is defective, i.e. if the

time from switching off up to the saw blade's dead stop exceeds 10 seconds.

Motor guard

The motor is equipped with a guard switch and it switches off automatically when overload. The motor can be switched on again after a cooling-down period (approx. 5 - 10 min.).

Working with the saw

Before starting to work consider the following safety advices to keep the risk of injuries as small as possible.

• Saw blade, plastic inserts, recuperating spring o. k.
• Workplace tidied?
• You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and installed the machine as described!

Before making adjustments to the saw settings (e.g. replacing the saw blade etc.)

• switch off device
• wait for standstill of the saw blade.
• pull out power plug

Also, note the following important points:

• Place yourself outside of the area of danger.
• Place the wood piece in the jigging device. Cut through the piece with uniform pressure.
• Never remove loose splinters, chips, or similar by hand.

At any case pay attention to all safety instructions.

Working instructions

1. Secure the saw against rolling away.
2. Place the wood piece in the jigging device.

It is possible to cut wood with a diameter of min. 30mm to max. 240 mm are allowed to be sawed.
4 You will get pieces of equal length if you pull out the length stop (26) and fix it in the desired position using the machine knob (27)

Use the support extension (28) for long wood pieces. Loosen the star grip screw (29), pull out the extension a bit and fix it again.
5 Close the safety flap (2A).

Saw only with the safety flap closed.

1. 6 Now hold the handle (14) on the safety flap with both hands and push the tilt table uniformly towards the saw blade. Avoid erratic movements.

The barbs on the jigging device prevent any turning of the wood piece during sawing.
Do not force the jigging device against the saw blade, the motor speed should not drop too far.

1. After cutting, the jigging device is automatically brought back to its home position by spring force.

If the recuperating spring (11) is broken or worn, the jigging device will not automatically return to its home position. Replace the recuperating spring. See "Replacing the return spring".
Never saw without or with a damaged recuperating spring.

1. Only advance the wood piece after a completed sawing operation.

Conduct in case of accident or failure

1. Press the red button on the ON/OFF switch.
2. Wait until the saw blade has come to a stop.
3. Disconnect the mains plug.
4. Initiate first aid actions in the event of injuries.

Conduct in the case of blocked saw blade due to stuck wood pieces

1. Press the red button on the ON/OFF switch.
2. Disconnect the mains plug.
3. Remove the blockage.

Wear protective gloves.

Do not remove the stuck wood piece with your hands but using a suited wood piece.

1. Check the saw blade for any damages.

Maintenance and cleaning

Before each maintenance and cleaning work

Switch off device
Wait until the saw blade comes to a stop
Pull out power plug

Maintenance and repair work other than those described in this chapter is only allowed to be carried out by service staff.

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Use only original parts. Other parts can result in unexpected damages and injuries.

Cleaning

Observe the following to maintain the operability of the machine:

• Do not wash down device with water.
• Remove shavings and dust only with a brush or vacuum cleaner.
  Clean and oil all moving parts regularly.

Never use any grease!

Use for instance sewing machine oil, liquid hydraulic fluid or environmentally acceptable spray oil.

Take care that the saw blade remain free of rust and resin.
- Remove resin residues from the push frame surface.

Resin residues can be removed with a commercial maintenance and care spray.

• The saw blade is a wearing part and will become dull after prolonged or frequent use.

Renew the saw blade or have it sharpened.

Maintenance

Changing the saw blade

Remove the mains plug before changing the saw blade.

Danger of cutting! The saw blade is massive and it could be to slick. Wear gloves when replacing the saw blade.

• Do not use any saw blades made of HSS steel.
• Do not use any cracked saw blades or such that have changed their shape.
• Only use well-sharpened saw blades.

Danger of burning! The saw blade is still hot shortly after cutting.

1. Remove the screw from the cover plate (12).
2. Remove the spring cotter pin (4) and the three washers (9B + 9 + 9A) . When doing so, firmly hold the tilt table.

3. 9 Slowly lower the tilt table towards the ground.

4. Use the locking pin (13) to secure the saw blade (5) against turning.

5. 11 Loosen the screw (6).
6. Remove the washer (7), the front saw blade flange (8) and the saw blade (5).
7. Clean the saw blade flanges (8, 15).
8. Install a new or sharpened saw blade.

Pay attention to the correct running direction of the saw blade: The arrow on the safety guard and the arrow on the saw blade must show to the same direction.

1. 11 Reinstall the front saw blade flange and the washer.
2. 11 Secure the saw blade using the screw.
3. 12 Slide the washer (9) on the support pin (10).
4. 13 Lift the tilt table and guide the support pin into the hole (A).
5. 8 Slide first the rubber washer (9A) on the support pin (10), then the large washer (9) and at last the small washer (9B).
6. Plug the spring cotter pins through the support pin.
7. Re-attach the cover plate (12).
8. 10 Remove the locking pin (13).

14Replacing the plastics insert

Immediately replace the worn or damaged plastics inserts (18).

1. Loosen the screws of the plastics insert and remove them.
2. Insert a new plastic insert and screw it tightly in place.

Replacing the recuperating spring

Immediately replace a worn or damaged recuperation spring.

1. Remove the screw from the cover plate (12).
2. Remove the spring cotter pin (4) and the three washers (9B + 9 + 9A) . When doing so, firmly hold the tilt table.
3. 7 Slowly lower the tilt table towards the ground.
4. Remove the washer (9) and the saw blade recuperating spring (11).
5. 12 Slide a new recuperating spring on the support pin (10) and then the washer (9).
6. 11 Lift the tilt table and guide the support pin into the hole (A).
7. Slide first the rubber washer (9A) on the support pin (10), then the large washer (9) and at last the small washer (9B).
8. 6 Plug the spring cotter pins through the support pin.
9. Re-attach the cover plate (12).

Transport

Remove mains plug before each transport.

Before each transport:

1. 4 Push the tilt table towards the saw blade.
   The safety flap (2A) must be closed properly.
2. 5 Turn down the safety hook until it engages.

15 Transport: Hold the handle (14), put one foot onto the axle and tilt the firewood saw towards your body.
16 In this position, it is easy to move the saw.

Putting down: Put one foot onto the axle and carefully put down the firewood saw.

Storage

Pull out power plug

Store unused equipment in a dry, locked place out of the reach of children.
Before a longer period of storage carry out the following to extend the saw service life and ensure an easy operating:

thoroughly clean the device
treat all movable parts with an environmentally friendly oil

Never use any grease!

Possible faults

Before each fault elimination:

Switch off device

Wait until the saw comes to a stop.
Pull out power plug

After each fault clearance, put into operation and recheck all security installations.

Fault Possible cause Remedy
Machine fails to start after switching on	• Power failure • Extension cable defect • Motor or switch defect	• Check the fuse. • Check cable, no longer use defect cable • Have motor or switch checked by an approved electrician or replaced by original spare parts
Jigging does not work	• Safety hook is not released • Safety flap not pressed down properly.	• Release the safety hook (3). • Press down the safety flap properly.
Machine stops while cutting	• Saw blade blunt • Feed is too great	• Replace saw blade or have it sharpen • Allow motor to cool and proceed working with less pressure
Burned spots at the cut areas	• Saw blade blunt	• Replace saw blade or have it sharpen
Saw vibrates	• Saw blade is warped • Saw blade not properly mounted	• Replace saw blade • Mount saw blade properly
Recuperating mechanism of the jigging device does not work	• Recuperating spring broken or worn out	• Replace the recuperating spring
Deceleration too slow (time to dead stop >10 sec.)	• Brake defective • Different causes	• Switch checked by an approved electrician or replaced by original spare part

Technical data

Type BWS 700 N-2
Year of construction see last page
Motor rating P1 4,5 kW S6 20%
Mains voltage 400 V 3~
Mains frequency 50 Hz
No-load speed n0	approx. 1420 min-1
Protection class IP 54
Mains fuse	16 A intert
Carbide tipped saw blade ∅	700 mm
Saw blade location hole ∅	30 mm
Number of teeth 42
Thickness of splitting wedge 3.2 mm
Cut width 4.2 mm
Cutting capacity	approx. ∅ min. 30 mm to max. 240 mm
Wood length, max. approx. 1000 mm
Wood length, min. approx. 200 mm
Dimensions (length x breadth x height) Approx. 1150 x 745 x 1085 mm
Weight (incl. accessories) approx. 107 kg
Operating mode: S6 - 20 %
	Continuous intermittent operation
	For 10 min.:
	2 min. continuous operation
	8 min. operation at no or low load

Guarantee

Please observe the enclosed terms of guarantee.

Pripojenik siti el. energia

Inden hver transport

2004/108/CE e 2011/65/UE.

conform Directivei UE: 2006/42/UE

Prin prezenta noi

Altrad Lescha Atika GmbH

Josef-Drexler-Str. 8, 89331 Burgau - Germania

declarampepropireraspundereca produsul

Brennholzwippkreissäge (Ferästräu circular basculant pentru lemne de foc) BWS 700 N-2

Numarul de série: 000001 - 020000
