USER MANUAL Z 5 Ec Mafell

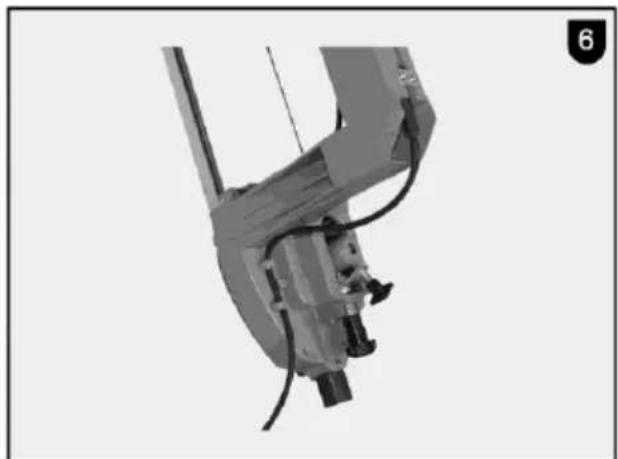

Mechanical device with a curved frame and mounted components, no visible text or symbols

MAF01223/a

WARNUNG

Please read all safety instructions and directions. Failure to comply with the safety instructions and directions can cause electric shock, fire and/or serious injuries. Please retain all safety instructions and directions for future reference.

AVERTISSEMENT

Person using a wooden plank with measurement lines and a tool, no visible text or symbols

MAF01227/a

Mechanical assembly diagram showing a robotic arm with attached components and wiring (no text or symbols visible)

MAF01228/a

GB · EC Declaration of Conformity

We herewith confirm that the machine Z 5 Ec complies with the EU directives quoted. The standards listed were used for design and construction.

Empowered person for the configuration of the technical documents: Mafell AG

1	Signs and symbols	15
2	Product information	15
2.1	Manufacturer's data	15
2.2	Machine identification	15
2.3	Technical data	16
2.4	Emissions	16
2.5	Scope of supply	16
2.6	Safety devices	17
2.7	Use according to intended purpose	17
2.8	Residual risks	17
3	Safety instructions	17
4	Setting / Adjustment	19
4.1	Mains connection	19
4.2	Chip extraction	19
4.3	Saw band selection	19
4.4	Saw band replacement and setting	19
5	Operation	20
5.1	Initial operation	20
5.2	Switching on and off	20
5.3	Work instruction	20
5.4	Pivot saw band	20
5.5	Conversion of the Z 5 Ec to a two-man saw	20
6	Service and maintenance	20
6.1	Transport and storage	21
7	Troubleshooting	21
8	Optional accessories	21
9	Exploded drawing and spare parts list	21

1 Signs and symbols

This symbol is found in all places where you will find information for your safety.

Non-compliance with these instructions may result in very serious injuries.

This symbol indicates a potentially hazardous situation.

If this situation is not avoided, the product or objects in its vicinity may get damaged.

This symbol indicates tips for the user and other useful information.

2 Product information

in respect of machines with item No. 925301, 925320, 925321, 925322

2.1 Manufacturer's data

MAFELL AG, Beffendorfer Straße 4, D-78727 Oberndorf / Neckar, Phone [phone], Fax [phone], e-mail: [e-mail]

2.2 Machine identification

All details required for machine identification are available on the attached rating plate.

Protection class II

CE symbol to document compliance with the basic safety and health requirements according to Appendix I of the Machinery Directive.

For EU countries only

Do not dispose of electric tools together with household waste material! In accordance with the European directive 2002/96/EC on waste electrical and electronic equipment and transposition into national law, obsolete electrical tools must be collected separately and recycled in an environmentally-compatible manner.

To reduce the risk of injury, please read the operating instructions.

2.3 Technical data

Cutting depth	305 mm (12 in.)
Roller diameter	205 mm (8 1/16 in.)
Saw band width	6 - 8 mm (15/64 – 5/16 in.)
Saw band length	1752 mm (69 in.)
Saw band gauge max.	0.65 mm (1/32 in.)
Band pivoting	30°
Idling speed	1550 - 650 rpm
Cutting speed when idle	16.6 – 6.9 m/s (54.4 – 22.6 ft/sec)
Hose connector diameter	35 mm (1 3/8 in.)
Weight without mains cable	13,6 kg (29.9 lbs)
Universal motor with radio and television interference	230 V~, 50 Hz
Input power continuous operation	2250 W
Current at nominal load	10 A

2.4 Emissions

The declared noise emission values have been measured in accordance with DIN EN 62841-1 and may be used for comparing the tool Z5 Ec (Z4 Ec) with another and also in a preliminary assessment of exposure.

Danger

The noise emissions during actual use of the power tool Z5 Ec can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed.

Always wear hearing protection, even when the power tool is running idle in addition to the trigger time!

2.4.1 Noise emission specifications

Noise emission values determined according to EN 62841:

	Sound power level	Workplace-related emission value
Idling	99 dB (A)	88 dB (A)

The noise measurements were conducted using the band saw blades included in the delivery specification.

2.4.2 Vibration specifications

The typical hand-arm vibration is less than 2.5 m/s^2 .

2.5 Scope of supply

Portable band saw Z 5 Ec complete with:

1 saw band, coarse 8 mm (5/16 in.), serrated
1 saw band, coarse 6 mm (15/64 in.)
1 saw band, coarse 8 mm (5/16 in.)
1 handle cpl.
1 adapter
1 operating manual
1 folder "Safety Instructions"

2.6 Safety devices

Danger

These devices are required for the machine's safe operation and may not be removed or rendered inoperative.

Before operating the machine, check the safety devices for function and possible damage. Do not use the machine with missing or ineffective safety devices.

The machine is equipped with the following safety devices:

• Top cover
• Bottom cover
• Band guard
• Large base plate
• Handles

- Switchgear and mechanical brake

2.7 Use according to intended purpose

The MAFELL portable band saw is designed exclusively for cutting solid wood and board materials such as chip board, table tops and MDF panels when using tempered saw bands.

The dimensions of the saw bands must lie within the following ranges:

Saw band length 1752 mm (69 in.) ±10 mm

Saw band width 6 - 8 mm (15/64 - 5/16 in.)

Saw band gauge max. 0.65 mm (1/32 in.)

Any other use than described above is not permissible. The manufacturer cannot be held liable for any damage arising from such other use.

So as to use the machine as intended, comply with the operating, maintenance and repair instructions specified by Mafell.

2.8 Residual risks

Danger

Even if used in accordance with its intended purpose and despite conforming with the safety instructions, residual risks caused by the intended use that can lead to health consequences will always remain.

• Touching the saw band in an open area.
• Breakage or saw band or the saw band coming off.
• Touching live parts with the housing open and the mains plug not removed.
• Hearing can be impaired when working for long periods without ear protectors.
• Emission of harmful wood dusts during longer operation without extraction.

3 Safety instructions

Danger

Always observe the following safety instructions and the safety regulations applicable in the respective country of use!

General instructions:

• Never work without the protection devices stipulated for the respective operating sequence and do not effect any modifications on the machine that could impair safety.
• Children and adolescents must not operate this machine. This rule does not apply to young persons receiving training and being supervised by an expert.
• Damaged cables or plugs must be immediately replaced. Replacement may only be carried out by Mafell or an authorised MAFELL service workshop in order to avoid safety hazards.
• Always check before beginning work whether the protection and work devices are safely attached and not damaged. Damaged protection devices and parts must be repaired or exchanged appropriately.

• Consider environmental influences. Do not expose the machine to rain and avoid working in a damp or wet environment as well as near to combustible liquids and gases.

• Do not carry the machine by its cable and do not use the cable to pull the plug out of the socket outlet.

• Pay attention that the cable is protected against oil and heat and is not pulled across sharp edges.
• Avoid sharp bends in the cable. Especially when transporting and storing the machine, do not wind the cable around the machine.
• Only allow an electrician to carry out work on the electrical parts of the machine.
• Store the machine in a dry, locked place outside the reach of children.
• Check the machine for damage before initial operation.
• Use a transport cart (order No. 202110) to transport and store the machine. This prevents injuries, e.g. caused by the machine falling down.

Do not use:

• Cracked or contorted saw bands.
• Dull saw bands due to the bad saw roller coming off.
• Saw bands of which the gauge is greater than 0.65 mm (1/32 in.).

Instructions on the use of personal protective equipment:

• Always wear ear protectors during work.
• Always where a dust mark during work.

Instructions on operation:

• Plug in the machine only when it is switched off.
• Provide for an unobstructed and slip-proof location with adequate lighting.
• Before switching the machine on, check that the saw band is properly tensioned and that the protective coverings are attached.
• Unplug the power cord before changing tools, making adjustments or rectifying faults (including the removal of jammed chips).
• Do not work on workpieces which are too small or too large for the capability of the machine.
• Whenever possible, secure the workpiece against slipping, e.g. with screw clamps.
• Remove the machine's protective coverings only when changing tools. Never work without protective coverings!

• Start cutting the workpiece only once the saw band has reached its full speed.

• Examine the workpiece for foreign objects. Never attempt to cut into nails or other metal objects.

• Always keep the connection cable behind the machine while sawing (fig. 6).
• Match the feed speed during sawing to the material thickness. Pushing forward too quickly leads to the motor overload, jagged saw cuts and quick dulling of the saw band.
• Never reach in front of or under the workpiece while cutting (risk of injury!).
• Never brake the saw band with sideward counterpressure.
• Remove the machine from the workpiece only after the saw band has come to a standstill.
• Never reach over the chip ejector or into the saw band while the machine is running.
• Use only saw bands with the specifications noted in this operating manual.
• Never reach under the workpiece during operation.
• Keep the area under the workpiece free of obstacles. At the same time, pay attention to the machine's pivoting range.
• Before starting to saw, pay attention that there are no persons or objects in the surroundings of the saw.
• As the operator, pay attention to the second person during two-man operation. Interrupt the sawing process if you note any malpractice.
• As the second person, always pay attention to the main operator. Leave the saw intake area if you observe any malpractice of the main operator. Pull out the mains plug.
• Avoid touching the saw band after a sawing process. The saw band can be hot.

Instructions on service and maintenance:

• Regularly cleaning the machine, especially the adjusting devices and guides, constitutes an important safety factor.
• Only original MAFELL spare parts and accessories may be used. Otherwise the manufacturer will not accept any warranty claims and cannot be held liable.

4 Setting / Adjustment

4.1 Mains connection

Prior to commissioning make sure that the mains voltage complies with the operating voltage stated on the machine's rating plate.

Direction of rotation

The band saw roller moves rightward as seen from the front.

4.2 Chip extraction

Connect the machine to a suitable external dust extractor during all work generating a considerable amount of dust. The air velocity must be at least 20 m/s (65.6 ft / sec.).

The inside diameter of the hose connector is 35 mm (1 3/8 in.).

4.3 Saw band selection

Use a sharp tool to obtain a good cut quality and select a tool from the following list according to material and application:

Cutting sry and hard wood; for tight curves:

- Saw band 1752 x 6 x 0,65; 6 teeth/inch

Cutting wet and dry wood; for tight curves:

- Saw band 1752 x 6 x 0,65; 4 teeth/inch

All-purpose for wet and dry wood; curves and straight lengthwise and cross cuts:

- Saw band 1752 x 8 x 0,65; 4 teeth/inch

4.4 Saw band replacement and setting

Danger

Pull the power plug during all service work.

Danger!

Risk of injury from idle saw band

The saw band is sharp. You can sustain injuries when working on the saw band. Wear protective gloves when working on the saw band. Exercise caution when working on the saw band.

To replace the saw band, proceed as follows:

• Unscrew the cover 23 below and 22 above (fig. 2).
• Loosen the cylinder screws 104 and remove the band guard 145.
• Loosen the band tension by turning the star handle 6 to the left (fig. 5) until the saw band can be removed. If necessary, clean the roller coating of residual resin and chips.
• First place the saw band with the tooth tips in the direction of rotation on the lower roller (arrow on the roller).
• Then roll the saw band onto the upper roller and tension it by turning the star handle to the right 6. The correct band tensioning is achieved when the friction clutch in the star handle engages.
• Manually move the band saw roller in the direction of rotation. When doing so regulate the the saw band by rotating the star handle screw 79b until the back of the saw band runs slightly against the 2 band blushing stones 82 and the 2 slotted bolts 137.

If the saw band does not come into contact with the upper or lower band blushing stone / slotted bolts despite adjustment with star handle screw, adjust the friction clutch in the star handle as follows:

• Completely loosen the band tension by turning the star handle 6 to the left.
• Maintain the distance clearance "X" between the base plate and any edge of the pivoting band guide.
• This distance must be reduced by at least 4 mm (5/32 in.) but not more than 6 mm (15/64 in.) when tensioning the saw band with the star handle. If this distance is reduced more than 6 mm (15/64 in.) or less than 4 mm (5/32 in.), the friction clutch in the star handle 6 must be adjusted with a hexagonal spanner SW 6 (6 mm) (less tension to the left, more tension to the right), until the friction clutch engages in the tension range of 4 - 6 mm (5/32 to 15/64 in.).
• Then set the band position with the handle screw 79. Ensure that the back of the saw band runs slightly against the band blushing stones 82 / slotted bolts 137.

- To check, again loosen the star handle 6, and re-tighten it until the friction clutch engages. When doing so, check the reduction of the clearance between the base plate and roller housing to ensure that it is 4 - 6 mm (5/32 to 15/64 in.).

The band guard or covering above and below must always be attached.

Only saw bands with a width of 6 - 8 mm (1/4 or 5/16 in.) may be used.

5 Operation

5.1 Initial operation

Personnel entrusted to work with the machine must be made aware of the operating instructions, calling particular attention to the chapter "Safety instructions".

5.2 Switching on and off

Danger

Switch on the machine only whenever the saw band is not touching the workpiece.

• Switching on: First move the locking mechanism 24 (fig. 3) upward and then press the the end of the rocker marked with "I".
• Switching off: Then press the red pushbutton 20. Continuing to press it will brake the saw blade until it reaches a standstill. Set down the machine only once it has been switched off.

5.3 Work instruction

When sawing always keep the machine in a secure position and guide it with both hands.

5.4 Pivot saw band

Press lever 21 completely forward 21 (fig. 2): The saw band continuously pivots 30° (fig. 3) to the band roller axis toward the right. In this position wood up to a thickness of 9 cm (3 9/16 in.) can be sawed at right angles at any point. Pull the lever back: The saw band returns to its initial position.

5.5 Conversion of the Z 5 Ec to a two-man saw

In order for two people to use the Z 5 Ec, it must be equipped with a third handle! First turn both handles 7 (fig. 4) on the motor to the left until they can be folded back by 90°; then tighten them in this position. Turn the rubber buffer 156 three turns to the left and remove it from the slot. From the accessories included, put the handle verp. 507 into the slot and tighten it.

The base plate can be removed for a better view of the interface. To do this remove it from the rollers according to the section "Change and tension saw band" and loosen the base plate from it's mount by turning the wing screw 61 to the left 61. Re-mount and set the saw band and protective coverings. The machine is guided by both hands when sawing. The saw band can also be pivoted outward with levers 21 and 30 for two-man sawing°.

6 Service and maintenance

Danger

Pull the power plug during all service work.

MAFELL machines are designed to be low in maintenance.

The ball bearings used are greased for life. When the machine has been in operation for a longer period of time, we recommend to hand the machine in at an authorised MAFELL customer service shop for inspection.

Only use our special grease, order No. 049040 (1 kg tin) for all greasing points.

The machine must be regularly cleaned off deposited dust. The ventilation openings on the motor should be cleaned with a vacuum cleaner.

The band saw rollers on the machine should be deresinified at regular intervals.

6.1 Transport and storage

Danger!

Risk of injury due to improper transport or storage

Bystanders can be injured by the machine due to improper transport or storage. For transport and storage, place the machine onto the base plate so that the saw band is exposed at the bottom. It is recommended to use the Mafell transport cart for transport and storage (see Chapter 8, “Special accessories”).

Clean the machine thoroughly if the machine is not used for a longer period of time. Spray blank metal parts with a rust-proofing agent.

7 Troubleshooting

Danger

Determining the causes for existing defects and eliminating these always requires increased attention and caution. Unplug the rechargeable battery beforehand!

Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, contact your dealer or the MAFELL customer service.

Defect	Cause	Elimination
Machine cannot be switched on	No mains voltage	Check power supply
Undervoltage shutdown	No mains voltage (power interruption)	Switch machine off and on again
Saw band is stuck	Dull saw band	Replace saw band
Chip ejection blocked	Wood is too damp
	Extended operation without extraction	Connect to an external extraction, e.g. portable dust extractor

8 Optional accessories

• Pair of adapters for parallel stop for hooking into the guide rail
  Order No. 037195
• Guide rail cpl., 3 m (9.8 ft) long
  Order No. 037037
• Guide rail extension part, 1.5 m (4.9 ft) lang
  Order No. 036553
• Guide rail one-piece, cpl., 3 m (9.8 ft) long
  Order No. 200672
• Transport cart Z 5 Ec
  Order No. 202110
• Saw bands, 10 pcs 1752 x 6 x 0.65 4 teeth/1"
  Order No. 092335
• Saw bands, 10 pcs 1752 x 6 x 0.65 6 teeth/1" fine
  Order No. 092333
• Saw bands, 10 pcs 1752 x 8 x 0.65 4 teeth/1"
  Order No. 092336
• Saw bands, 10 pcs with serration 1752 x 8 x 0.65 4 teeth/1"
  Order No. 092337

9 Exploded drawing and spare parts list

The corresponding information in respect of spare parts can be found on our homepage: www.mafell.com

Sommaire

Two mechanical components, one with a pointed tool and the other with a curved blade (no text or symbols visible)

KSS 300 / KSS 40 18M bl KSP 40 Flexistem MT 55 cc

Close-up of a mechanical device with no visible text or symbols

Exterior view of a modern office building (no signage)

MKS 130 Ec - MKS 185 Ec

Close-up of a chain-linking saw with visible blades and handle (no text or symbols)

ZSX Ec

Mechanical device with two wheels mounted on a frame (no visible text or symbols)

Z 5 Ec

Industrial machine with articulated arm and control panel (no visible text or symbols)

Exterior view of a small industrial vacuum cleaner with attached hose (no visible text or symbols)

S 35 MERIKA 60 E - B

Mechanical device with cylindrical components and metal brackets (no visible text or symbols)

DD40 P / DD40 G EVA 150 E ZH 205 Ec - ZH 320 Ec MF 26 cc

Close-up of a black and white industrial power tool with lever and base (no visible text or symbols)

Industrial cutting tool with mechanical components (no visible text or symbols)

Mechanical device with mounted components and mounting base (no visible text or symbols)

Mechanical device with articulated arms and mounting bracket (no visible text or symbols)

SKS 130

Mechanical device with circular components and a flat base (no visible text or symbols)

Close-up of a mechanical tool or clamp device with no visible text or symbols

LS 103 EcZK 115 EcLO

GARANTIEGegen Vorlage der Garantieunterlage (Original-Kaufbeleg) werden innerhalb der jeweils gültigen Gewährleistungsregelungen kostenlos alle Reparaturen ausgeführt, die nach unseren Feststellungen wegen Material-, Bearbeitungs- und Montagefehlern erforderlich sind. Verbrauchs- und Verschleißteile sind hiervon ausgeschlossen. Hierzu muss die Maschine bzw. das Gerät frachtfrei an das Werk oder an eine MAFELL-Kundendienststelle geschickt werden. Vermeiden Sie, die Reparatur selbst zu versuchen, da dadurch der Garantieanspruch erlischt. Für Schäden, die durch unsachgemäße Behandlung oder durch normalen Verschleiß entstanden sind, wird keine Haftung übernommen.

WARRANTYUpon presentation of the warranty document (original invoice), we will carry out all repairs free of charge in accordance with the applicable warranty provisions, processing and mounting faults free of charge on presentation of this properly filled-in Guarantee Certificate and your original receipt. This is not valid for consumables and wearing parts. For this purpose, the machine or the appliance is to be forwarded freight paid to our plant or to an authorized MAFELL repair service. Refrain from trying to carry out the repairs yourself as otherwise your warranty claim will become extinct. We do not accept any liability for any damage resulting from improper handling or normal wear.

GARANTIESur présentation de cette carte de garantie, duement remplie par votre fournisseur et accompagnée de l'original de la pièce justifiant l'achat, nous effectuerons gratuitement toutes les réparations faisant l'objet d'un recours en garantie pendant la période indiquée, de la construction ou de la fabrication, à l'exclusion des pièces de consommation et d'usure. La machine ou l'appareil doit être pour cela expédié franco de port à notre usine ou à un atelier de service après-vente MAFELL. Évitez de procéder vous-mêmes à toute réparation, ceci périmant tout recours en garantie par la suite. Nous déclinons toute responsabilité en cas de dommages découlant d'une manipulation non conforme ou d'une usure normale.

GARANZIADietro presentazione del presente certificato di garanzia, regolarmente compilato, insieme alla ricevuta originale, vengono eseguite gratuitamente tutte le riparazioni necessarie riscontrate dai nostri accertamenti, entro il periodo di garanzia vigente, dovuti a difetti di materiale, di lavorazione o di montaggio. Da ciò sono esclusi pezzi di consumo e pezzi soggetti ad usura. A questo scopo la macchina ovvero l'apparecchio (eletrico) va spedito franco di porto allo stabilimento oppur e a d un punto di assistenza clienti della MAFELL. Evitate di tentare Voi stessi di effettuare la riparazione, altrimenti il diritto di garanzia viene revocato. Non ci assumiamo alcuna responsabilità per danni derivanti da trattamento non conforme o da normale usura.

GARANTIETegen vertoon van dit reglementair ingevuld garantie-bewijs, samen met het originele koopbewijs worden binnen de telkens geldige garantieregelingen gratis alle reparaties uitgevoerd, die volgens onzeconstateringen op grond van materiaal-, bewerkings- en montagefouten vereist zijn. Verbruik- en slijtagedelen zijn hiervan uitgesloten. Hiervoor moet de machine resp. het apparaat vrachtvrij naar de fabriek of naar een MAFELL-klantenservice worden gestuurd. Vermijdt u het de reparatie zelf uit te voeren, omdat daardoor de garantieclaim vervalt. Voor schade die door ondeskundige behandeling of door normale slijtage is ontstaan, wordt geen aansprakelijkheid aanvaardt.

GARANTÍAPresentando este documento de garantía (recibo original de compra), todas las reparaciones necesarias por defectos de material, errores de mecanizado o faltas de montaje en el marco de las reglamentaciones de la garantía concedida por parte del fabricante se efectuarán libre de gastos. Se excluyen sin embargo piezas fungibles o de desgaste. Para ello, entregue a porte pagado la máquina o el equipo a las fábricas del fabricante o a uno de los puntos de asistencia técnica de MAFELL. No realice nunca las tareas de reparación a cuenta propia. De lo contrario, caducará el derecho a garantía. No se asumirá responsabilidad alguna por los daños que se desprendan del uso inapropiado ni por el desgaste en el uso diario.

TAKUUTätä takuukuittia (alkuperäinen ostokuitti) vastaan suoritetaan voimassa olevan takuuajan sisällä maksutta kaikki korjaukset, jotka olemme todenneet tarpeellisiksi materiaali-, valmistus- ja asennusvirheistä johtuen. Käyttö- ja kuluvat osat ei kuulu takuupiriin. Korjausta varten kone tai laite on lähetettävä asianmukaisesti postitettuna joko tehtaalle tai johonkin MAFELL-asiakaspalveluun. Älä yritä korjata konetta itse, koska siinä tapauksessa takuu sammuu. Takuu ei vastaa vahingoista, jotka johtuvat asiaankuulumattomasta käytöstä tai normaalista kulumisesta.

GARANTIMot uppvisande av kvitto utförs kostnadsfritt, under giltiga garantiåtaganden, alla reparationer som efter fastställande från vår sida kan härledas till material-, bearbetnings- eller monteringsfel. Förbruknings- och förslitningsdelar undantagna. Maskinen eller verktyget måste skickas fraktfritt till fabrik eller till MAFELLkundservice. Undvik att själv försöka utföra reparationen då detta leder till att garantianspråk förfaller. För skador som uppkommer på grund av felaktig behandling eller normalt slitage övertas inget ansvar.

GARANTIMod fremlæggelse af garantibeviset (original kvittering) ydes der gratis reparation af materiale-, fremstillings- og monteringsfejl, i henhold til de gældende garantibetingelser. Forbrugs- og sliddele udelukkes fra denne garanti. Hertil sendes maskinen/apparatet fragtfrit til producenten eller et Mafell-kundeserviceværksted. Hvis kunden selv forsøger at reparere maskinen, bortfalder garantien. Der overtages intet ansvar for beskadigelser, der opstår pga. uhensigtsmæssig brug eller normal slitage.

ГарантияПри предъявлении документации на гарантию (оригинальная квитанция) в соответствии с правилами о предоставлении гарантии мы бесплатно произведем все необходимые ремонты, которые по нашему определению необходимы в связи с дефектом материала, обработки и сборки. Это не относится к расходным материалам и изнашиваемым деталям. Для этого машина или устройство должно быть франко-фрахт отправлено на завод или мастерскую обслуживания клиентов фирмы MAFELL. Избегайте попыток самостоятельного ремонта, поскольку в этом случае гарантия аннулируется. Мы не несем ответственности на вред, причиненный в результате неправильного обращения или естественного износа.

GWARANCJAPo przedstawieniu gwarancji (oryginału dowodu zakupu) wykonane zostaną w ramach terminu gwarancji wszelkiego rodzaju naprawy, które według naszej oceny są konieczne z powodu błędów materialowych oraz błędów przy obróbce i montażu.Nie dotyczy to części zamienne i zużywalne. Prosimy o przesłanie maszyny wzgl. urządzenia na nasz koszt do zakładu lub serwisu MAFELL. Unikać dokonywania samodzielnych napraw, gdyż powoduje to utratę roszczeń gwarancyjnych. Nie przejmujemy odpowiedzialności za szkody powstałe w wyniku niefachowej obsługi lub normalnego zużycia.

ZÁRUKAPo předložení záručních podkladů (originální doklad o koupi) budou provedeny v rámci aktuálně platných pravidel pro poskytování záruky provedeny všechny opravy, které jsou podle našich zjištění požadovány z hlediska vad materiálu, zpracování a montáže. Díly podléhající používání a opotřebení jsou z tohoto vyjmuty. Navíc k tomu musí být stroj, případně přístroj zaslán vyplaceně do závodu nebo zákaznického servisu MAFELL. Nezkoušejte stroj opravovat sami, protože tím zaniká nárok na záruku. Záruky se nevztahují na škody vzniklé neodbornou manipulací nebo na ty, které vznikly v důsledku normálního opotřebování.

GARANCIJAOb priložitvi garancijske dokumentacije (originalni nakupni račun) bodo v okviru veljavnih garancijskih pogojev brezplačno opravljena vsa popravila, ki so po naši oceni potrebna zaradi napak v materialu, obdelavi in montażi. Porabni in obrabni deli so izvzeti iz tega določila. V ta namen morate stroj oz. napravo prosto voznine poslati v tovarno ali v pooblaščeno MAFELL servisno delavnico. Popravil ne skušajte opravljati samostojno, saj s tem ugasne pravica do garancije. Za škodo, ki nastane zaradi nestrokovnega ravnanja ali zaradi normalne obrabe, ne prevzemamo odgovornosti.

ZÁRUKAPo predložení záručného listu (originálneho dokladu o kúpe) budú všetky opravy, ktoré určíme ako nevyhnutné z dôvodu chýb materiálu, spracovania a montáže, wykonané bezplatne v rámci platných záručných predpisov. Spotrebné diely a diely podliehajúce opotrebeniu sú z toho vylúčené. K tomu sa musí zaslať stroj alebo prístroj bez dopravného do podniku alebo zákaznickeho servisu MAFELL. Vyhnite sa pokusom o samostatnú opravu, pretože tým stratíte nárok na záruku. Za škody spôsobené neodbornou manipuláciou alebo bežným opotrebovaním nepreberáme žiadnu zodpovednosť.

mafell creating excellence

MAFELL AG

Beffendorfer Straße 4, D-78727 Oberndorf / Neckar

Telefon [phone]

Internet:

E-Mail:

Fax [phone]

www.mafell.de

[e-mail]
