CK245

EN Mobile refrigeration appliance Operating manual....7

© 2024 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or pending patent. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

1432

2 × - + - - - + - - - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3

220-240 V~

4

Line drawing of a portable air conditioner unit with attached cable and ventilation slots (no text or symbols)

5

Line drawing of a kitchen appliance with a wine bottle, glass, plate with food, and utensils (no text or symbols)

7

Technical line drawing of a connector with three views: top, side, and front (no text or symbols)

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit kampaoutdoors.com.

Contents

Explanation of symbols....7

Safety instructions .....7

Scope of delivery....9

Intended use 9

Technical description .....9

Operation....10

Cleaning and maintenance....12

Troubleshooting .....12

Warranty....13

Disposal....13

Technical data ....13

Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

Safety instructions

DANGER! Failure to obey these warnings will result in death or serious injury.

Electrocution hazard

• On boats: If the device is powered by the mains, ensure that the power supply has a residual current circuit breaker (RCCB) or a ground fault circuit interrupter (GFCI). Installation, especially in potentially damp areas, must be in accordance with all applicable installation regulations.
• Do not touch exposed cables with your bare hands.
• Before starting the device, ensure that the power supply line and the plug are dry.

WARNING! Failure to obey these warnings could result in death or serious injury.

Electrocution hazard

• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced by the manufacturer, a service agent or a similarly qualified person in order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• Plug the device to sockets that ensure proper connection especially when the device needs to be earthed.

Fire hazard

• When positioning the device, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device.

- The refrigerant in the refrigerant circuit is highly flammable and in the event of a leakage combustible gases could build up if the appliance is in a small room.

In the event of any damage to the refrigerant circuit:

- Keep naked flames and potential ignition sources away from the refrigerator.

- Ventilate the room well.

- Switch off the refrigerator.

For cooling devices with R600a refrigerant:

- The refrigeration circuit contains a small quantity of an environmentally friendly but flammable refrigerant. It does not damage the ozone layer and does not increase the greenhouse effect. Any leaking refrigerant may ignite.

- Keep the ventilation openings on the device housing or in installations free of obstructions.

- Do not use any mechanical objects or other means to speed up the defrosting process, unless they have been recommended by the manufacturer for this purpose.

- Do not open or damage the refrigerant circuit.

- Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose.

Health hazard

• Children must be supervised to ensure that they do not play with the device.

- Cleaning and user maintenance must not be carried out by unsupervised children.

Explosion hazard

- Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION! Failure to obey these cau-tions could result in minor or moderate injury.

Electrocution hazard

- Before starting the cooling device, ensure that the power supply line and the plug are dry.

- Disconnect the cooling device from the power supply

– Before each cleaning and maintenance

- After every use

Health hazard

To avoid contamination of food, observe the following instructions:

- Check if the cooling capacity of the device is suitable for storing the food to be cooled.

- Food may only be stored in its original packaging or in suitable containers.

- Opening the cooling device for long periods of time can cause significant increase of the temperature in the compartments of the device.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- If the device is left empty for long periods:

- Switch off the device.

- Defrost the device.

– Clean and dry the device.

– Leave the lid open to prevent mold developing within the device.

NOTICE! Damage hazard

- Check that the voltage specification on the data plate corresponds to that of the energy supply.

- Only connect the cooling device to a DC power supply in the vehicle with the DC connection cable.

- Connect the cooling device to an AC power supply with the AC connection cable.

- Never pull the plug out of the socket by the cable.

- Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device.

- Disconnect the cooling device or switch it off when turning off the engine. Otherwise the battery may be discharged.

- The cooling device is not suitable for transporting caustic materials or materials containing solvents.

- The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.

- Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

- Risk of overheating!

Ensure at all times that there is a minimum of 50 mm ventilation on all sides of the cooling device. Keep the ventilation area free of any objects that could obstruct the air flow to the cooling components.

Do not use or store the cooling device in closed compartments or areas with none or minimal air flow.

• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
• The device shall not to be exposed to rain.

Scope of delivery

Mobile refrigeration appliance

Intended use

The cooler is suitable for cooling food. The cooler is also suitable for use on vehicles. The cooler is designed to be operated from a DC power supply socket of a vehicle or from an AC power supply.

The cooler is also suitable for camping use.

The cooler is intended to be used in household and similar applications such as

• Staff kitchen areas in shops, offices and other working environments
• Farm houses
• Clients in hotels, motels and other residential type environments
• Bed and breakfast type environments
• Satering and similar non-retail applications

The cooler is not suitable for:

- Storage of corrosive, caustic or solvent-containing substances

This cooler is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the cooler. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer

- Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

Technical description

The cooler cools and freezes foods and drinks.

The cooler features a cooling system with a refrigerant circuit and compressor.

The cooling system is low maintenance.

The cooler is portable.

The cooler can be connected to a DC or AC power supply.

In thermoelectric mode (connection to 12 V==), the cooler can cool goods down to max. 20 °C below ambient temperature and keep them cool. The temperature does not have to be set. The display is deactivated.

In compressor mode (connection to 230 V\~), the cooler can cool goods and keep them cool or freeze them down to -15 °C. The temperature can be set within a range of +10 °C to -15 °C. The display shows the current cooling temperature.

Operating and display elements

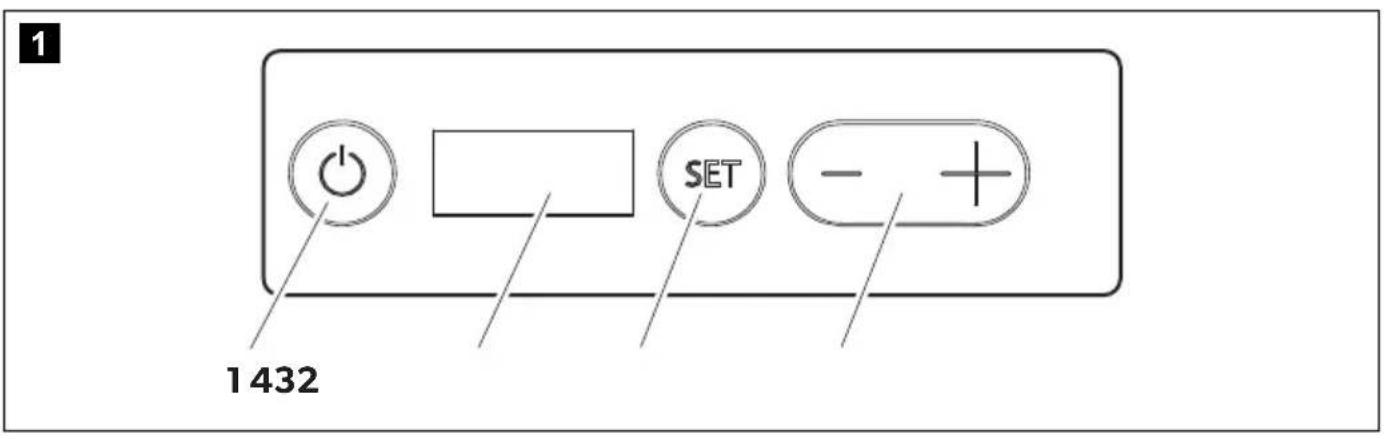

No. in fig. 1, Description page 3
1 ON/OFF button
2	D	i	s	p	l	a
3 SET button
4 Temperature button

Operation

NOTICE! Health hazard

Ensure that the food and items placed in the cooler are suitable for cooling to the selected temperature.

NOTICE! Damage hazard

• Place the device so that it cannot fall down.
• Do not lay the cooler down.
• Place the cooler on a surface strong enough to support the weight of the cooler and its contents.
• Do not switch on the device immediately after transporting it. This could damage the cooling system. Leave the device to stand for about 30 minutes after transporting before switching it on. This allows the refrigerant to collect again in the compressor and the compressor does not run dry.
• Only operate the device from a single energy source. Simultaneous use of the thermoelectric cooling system and the compressor is not permitted.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers.

NOTICE! Risk of overheating

• Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate.
• Ensure that the ventilation slots are not covered.
• Ensure that the device is not close to walls or other objects so that the air can circulate.

Before initial use

NOTE

Before starting the cooler for the first time, clean it inside and outside with a damp cloth for hygienic reasons (refer chapter "Cleaning and maintenance" on page 12).

Tips for operating

To avoid food waste, note the following:

• Keep temperature fluctuation as low as possible. Only open the cooling device as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well.
• Adjust the temperature to the quantity and type of the foodstuff.
• Foodstuff can easily absorb or release odor or taste. Always store foodstuff covered or in closed containers/bottles.

Saving energy

• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
• If the cooler has a basket: For optimal energy consumption, position the basket according to its position on delivery.
• On a regular basis, make sure the lid seal still fits properly.

Connecting the cooler

Connecting to a battery

NOTICE! Damage hazard

• For protection of the device the DC cable supplied includes a fuse inside the plug. Do not remove the fused DC plug.
  Only use the DC cable supplied.
• Disconnect the cooler and other consumer units from the battery before connecting the battery to a quick charging device.
  Over voltage can damage the electronics of the device.

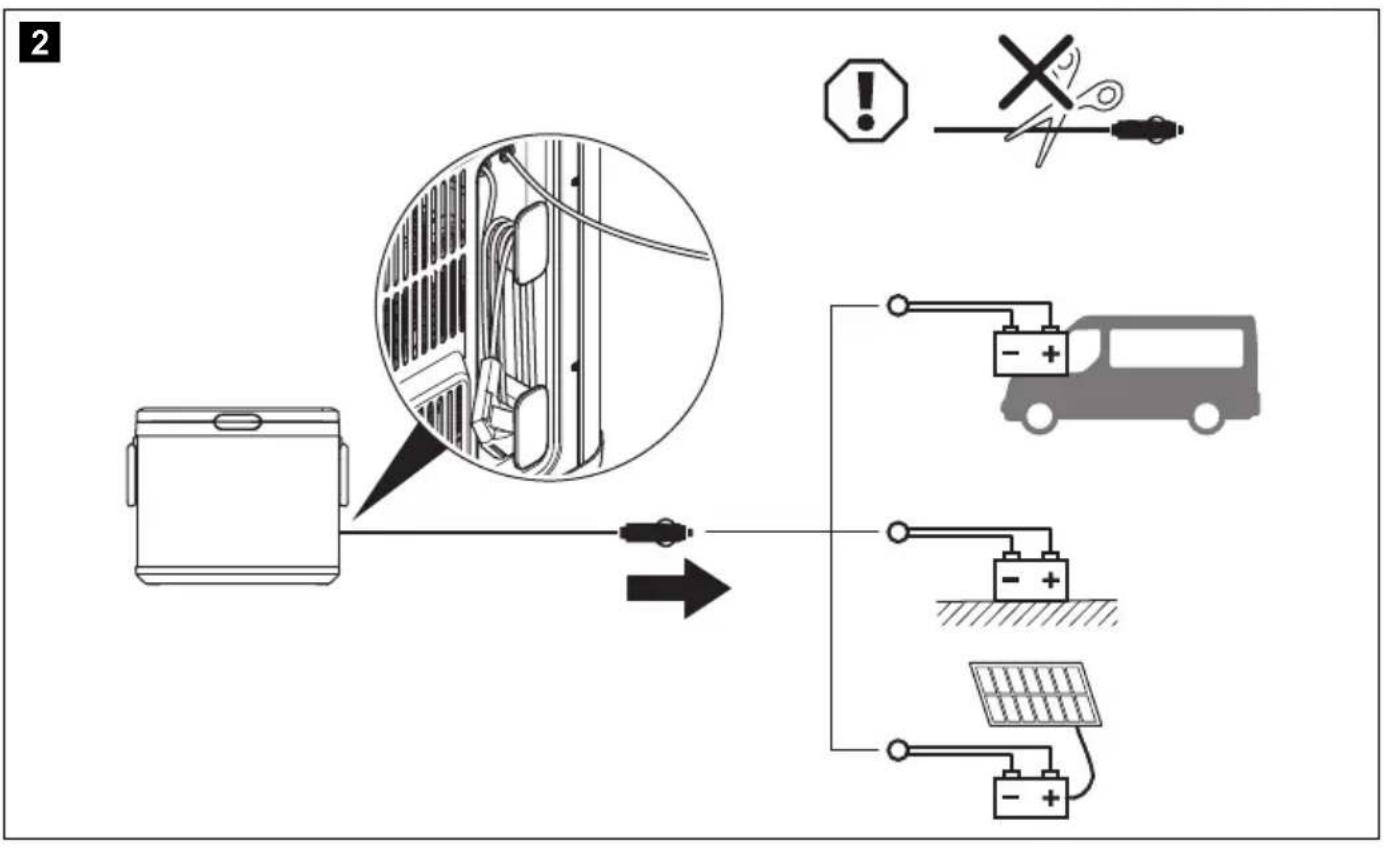

▶Connect the cooler to a battery (fig. 2, page 3).

Connecting to an AC power supply

DANGER! Electrocution hazard

• Never handle plugs and switches with wet hands or if standing on a wet surface.
• If the cooler is operated on AC power supply on board a boat, a residual current circuit breaker must be installed between the AC power supply and the cooler. Seek advice from a trained technician.

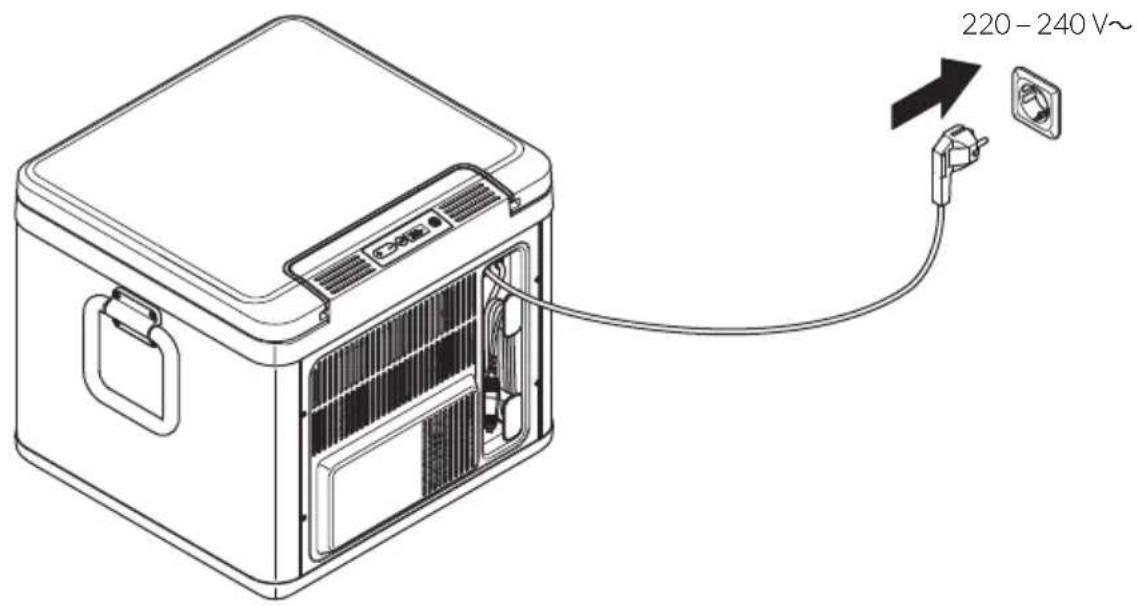

▶Connect the cooler to an AC power supply (fig. 3, page 4).

Using the lid

▶Open the lid by pushing the handle upwards and flipping the lid upwards at the same time.
▶ Ensure that a clicking sound is heard when the lid is closed.

Removing and reassembling the lid

1. Open the lid completely (chapter "Using the lid" on page 11).
2. Pull off the lid by pushing it upwards beyond the lid stop position.
3. Proceed in reverse order when reassembling.

Switching on/off

NOTE

When operating with the battery, the display switches off automatically.

▶Press the ON/OFF button to switch the cooler on or off.
√ The display shows the current cooling temperature in °C when it is switched on.
▶ Unplug the cooler when it is switched off and not in use.
▶ Clean the cooler if it is not in use (chapter "Cleaning and maintenance" on page 12).

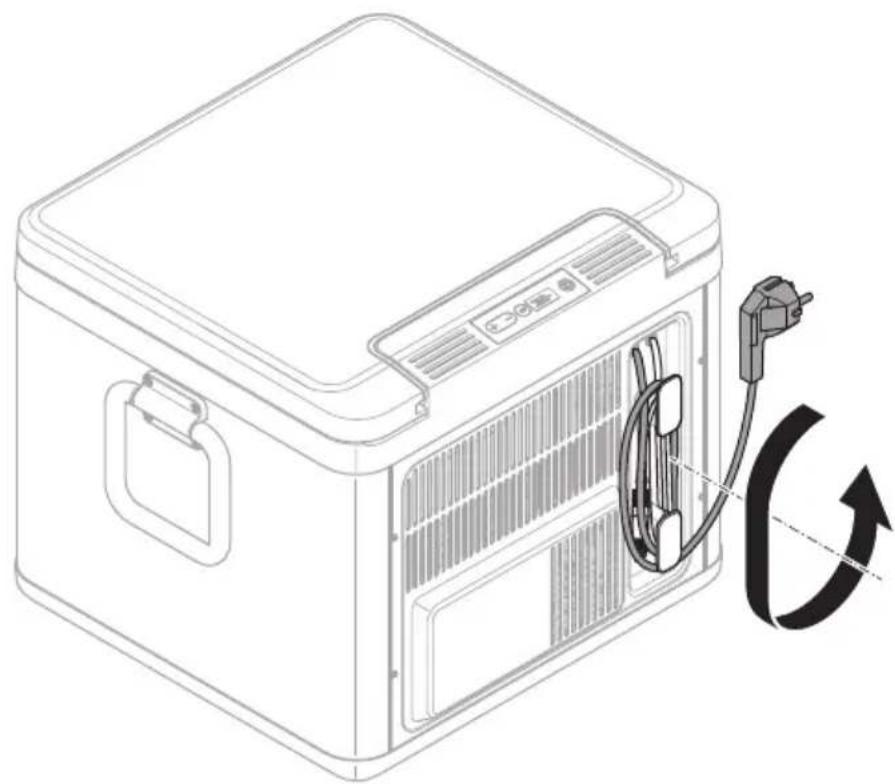

▶For storage wrap the power cable around the bracket on the back of the cooler (fig. 4, page 4).

Setting the temperature

The cooling capacity can be influenced by:

• The ambient temperature
• The number of bottles to be cooled
- The frequency with which the lid is opened

Decreasing the temperature

1. Press the "SET" button.
2. Press “−” on the temperature button to decrease the current cooling temperature by 1^ C.
   √ The cooler acknowledges the chosen temperature's acceptance by flashing the display.
   √ The cooling temperature set.
   √ The temperature appears on the display for a few seconds.

Increasing the temperature

1. Press the "SET" button.
2. Press “+” on the temperature button to increase the current cooling temperature by 1^ C.
   √ The cooler acknowledges the chosen temperature's acceptance by flashing the display.
   √ The cooling temperature set.
   √ The temperature appears on the display for a few seconds.

Using the handles

The cooler can be transported by its handles.

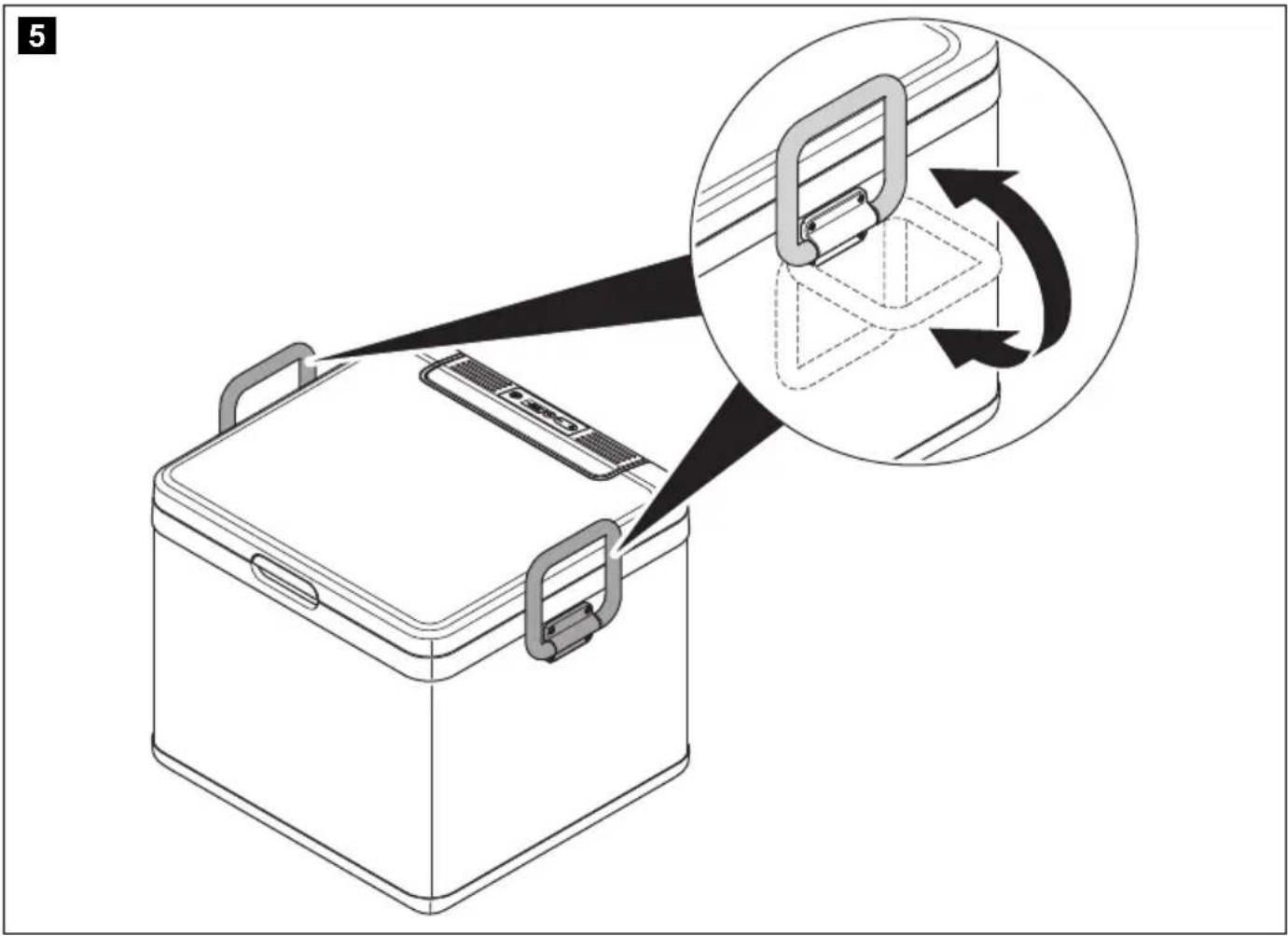

▶ Use the handles as shown in fig. 5, page 5.

Using the table function

NOTICE! Damage hazard

• Do not place sharp or hot objects on the cooler.
• Place only food on a plate, in trays, wrappers or similar on the cooler.

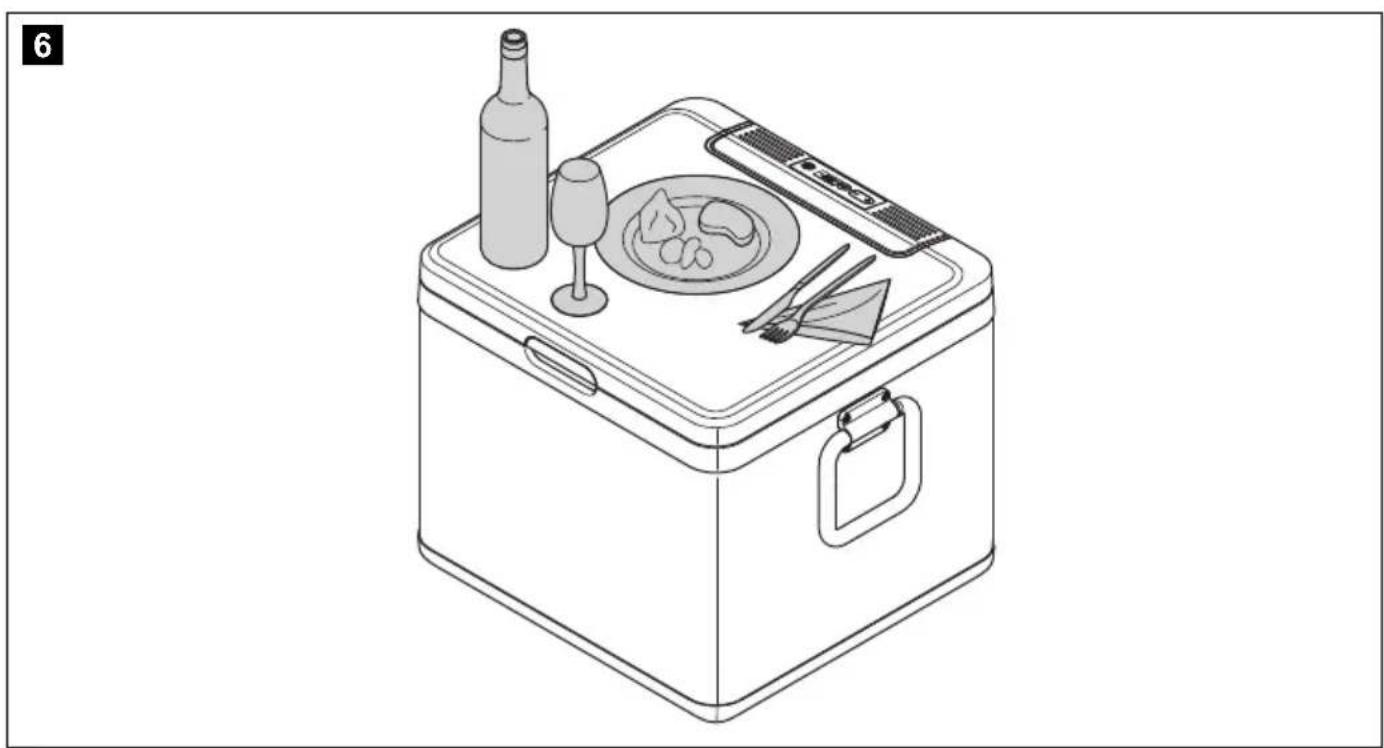

The cooler can be used as table (fig. 6, page 5).

1. Close the lid of the cooler.
2. Place the food, beverages, cutlery, etc. on the lid.

Replacing the DC plug fuse

▶Replace the defective fuse with a new fuse of the same type and rating (250 V 5 A)

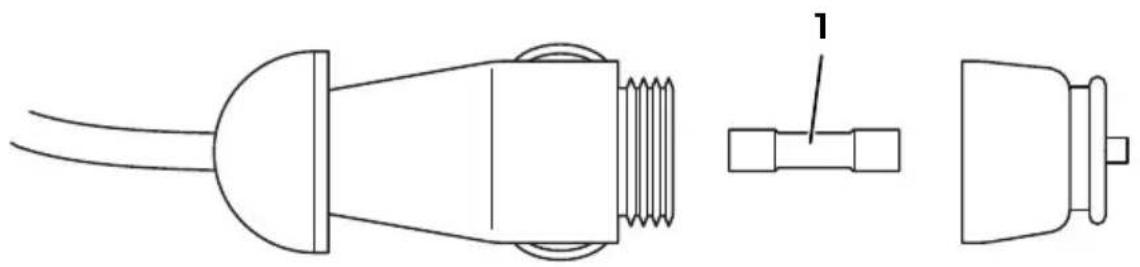

(fig. 7, page 6).

Cleaning and maintenance

NOTICE! Damage hazard

• Never clean the cooling device under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooling device.

▶Occasionally clean the cooling device interior and exterior with a damp cloth.
▶ Ensure that the air inlet and outlet vents on the cooling device are free of any dust and dirt, so that heat can be released and the cooling device is not damaged.

▶If necessary, remove the lid of the cooling device for cleaning (see chapter "Removing and reassembling the lid" on page 11).

Defrosting the cooling device

Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity.

NOTICE! Damage hazard

Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

To defrost the cooling device, proceed as follows:

1. Remove the contents of the cooling device.
2. If necessary, place them in another cooling device to keep them cold.
3. Switch off the cooling device.
4. Leave the lid open.
5. Wipe off defrost water.

Troubleshooting

Fault Possible cause Suggested remedy

The device does not function (DC mode, ignition on).	No voltage was detected in the DC power outlet.	► Ensure that the vehicle's motor is switched on.
	The plug of the device in the DC socket is too warm. The DC outlet is dirty. This results in a poor electrical contact.	► Clean the DC socket. ► Check if the plug is connected correctly.
	The fuse of the DC plug has blown.	► Replace the fuse in the DC plug (see chapter "Replacing the DC plug fuse" on page 12).
	The device DC fuse has blown.	► Contact an authorized service agent.
	The vehicle fuse has blown.	► Replace the vehicle's DC outlet fuse. Refer to the vehicle's operating manual.
	The supply cord is defective.	► Contact an authorized service agent.
The device does not function (AC mode).	No voltage is present in the AC voltage socket.	► Use another socket.
	The device AC fuse has blown.	► Contact an authorized service agent.
	The supply cord is defective.	► Contact an authorized service agent.

Fault Possible cause Suggested remedy

The display does not respond to keystrokes.

The display or the buttons are defective.

▶ Contact an authorized service agent.

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault
Note that self-repair or non-professional repair can have safety consequences and might void the warranty.

Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.

The product can be disposed free of charge.

WARNING! Fire hazard

This appliance refrigerant circuit contains hydrocarbons which is flammable. Improper repairs or maintenance can lead to considerable hazards.

Technical data

The refrigerant circuit contains a small quantity of an environmentally friendly but flammable refrigerant. It does not damage the ozone layer and does not increase the greenhouse effect. Any leaking refrigerant may ignite.

This product contains fluorinated greenhouse gases.

The cooling unit is hermetically sealed.

	CK2 45
Connection voltage• Thermoelectric mode• Compressor mode	12 V---220 - 240 V~, 50 Hz
Power consumptionACDC	50 W48 W
Rated current DC 4 A (thermoelectric mode)
Cooling performance• Compressor mode• Thermoelectric mode	-15 °C to +10 °Cmax. 20 °C under ambient temperature
Climate class N, T
Refrigerant R600a
Refrigerant quantity 18 g
Ambient temperature +16 °C to +43 °C
Dimension handles up(W x H x D)	565 x 499 x 505 mm
Dimension handles down (W x H x D)	565 x 452 x 505 mm
Weight	18.8 kg
Capacity	43 l
Certifications	CE UK CA

Description technique

WAARSCHUWING! Brandgevaar

1 ON/OFF-knapp
2	D	i	s	p	l	a
3	S	E	T	-	k	n

4 Temperaturknapp

Betjening

PASS PÅ! Helsefare

Aparat frigorific mobil

tangzǐnénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénénín

توفير الطاقة

dometic.com/sales-offices
