LunAqua 3 LED - Lighting OASE - Free user manual and instructions

Product Type	LED spotlight for pond and garden
Brand	OASE
Model	LunAqua 3 LED
Application	Above and under water, for ponds and basins
Dimensions (spotlight)	Approx. 150 mm diameter, height 100 mm
Weight (spotlight)	Approx. 0.5 kg
Power supply	Transformer supplied, mains voltage 230 V / 50 Hz, low voltage output
Protection	IP68 (submersible up to 3 m)
Main functions	Adjustable lighting, wall mounting, ground or pole mounting
Tilt	Adjustable via locking screw
Delivery contents	LED spotlight, transformer, support foot, ground stake (depending on set)
Maintenance and cleaning	Clean with clear water and a soft brush
Bulb replacement	Original OASE LED bulb only
Spare parts	Available at www.oase-livingwater.com/piecesdetachees
Safety instructions	Use with a 30 mA residual current circuit breaker, transformer >2 m from water, do not use with a dimmer
Ambient temperature	Not specified - outdoor use
Warranty	Consult the seller or OASE
Country of origin	Not specified - probably Germany

Frequently Asked Questions - LunAqua 3 LED OASE

How to install the LunAqua 3 LED spotlight?

You can mount it on the wall, on the ground with the support foot, or on the provided pole. For pole mounting, remove the spotlight from the foot, slide it onto the pole and drive the pole into the ground. Ensure sufficient stability.

Can I use this light underwater?

Yes, the LunAqua 3 LED is designed for use above and under water. It is waterproof and can be submerged up to 3 meters.

How to connect the device?

Connect the spotlight cable to the transformer socket and hand-tighten the coupling nut. Then plug the transformer into a properly installed mains socket. The transformer must be placed at least 2 meters away from the water.

What to do if the lamp does not light up?

First check the power supply (socket, fuse). If that is fine, the bulb may be defective. Replace it with an original OASE bulb. Caution: always disconnect power before any intervention.

How to replace the bulb?

Unscrew the retaining ring, remove the glass and O-ring. Remove the defective bulb and insert the new one (only original OASE bulb). Reassemble in reverse order, ensuring the O-ring is properly seated. Reconnect and test.

Can I use a light dimmer?

No, the device must not be used with a dimmer. This could damage the sensitive electrical components of the spotlight.

How to clean the spotlight?

Clean the device with clear water using a soft brush if necessary. Ensure no moisture enters the interior. Always disconnect power before cleaning.

What are the important safety instructions?

Use a residual current circuit breaker of max. 30 mA. Place the transformer more than 2 m from the water's edge. Only connect if the electrical specifications match. Do not use if the cable or housing is damaged.

Where to find spare parts?

OASE spare parts are available at www.oase-livingwater.com/piecesdetachees. Use only original parts to ensure proper operation.

How to tilt the spotlight?

Turn the locking screw clockwise to loosen, tilt the device to the desired angle, then tighten the screw counter-clockwise to secure the position.

USER MANUAL LunAqua 3 LED OASE

Black-and-white photo of a water fountain with a water feature and blurred background window (no text or symbols)

LUNAQUA3 LED

EN Operating instructions

FR Notice d'emploi

Black adjustable light fixture with a circular head and mounting base (no visible text or symbols)

A

Technical line drawing of a mechanical device with coiled cable and labeled component (no text or symbols)

Technical line drawing of a mechanical component with labeled part 2 (no text or symbols beyond label)

Diagram of a connector with a cable and three cylindrical connectors, labeled with number 3 (no text or symbols on the diagram itself)

Line drawing of a pointed object with a vertical arrow labeled '4' pointing upward (no text or symbols on the object itself)

LAA0001

B

LAA0008

C

LAA0002

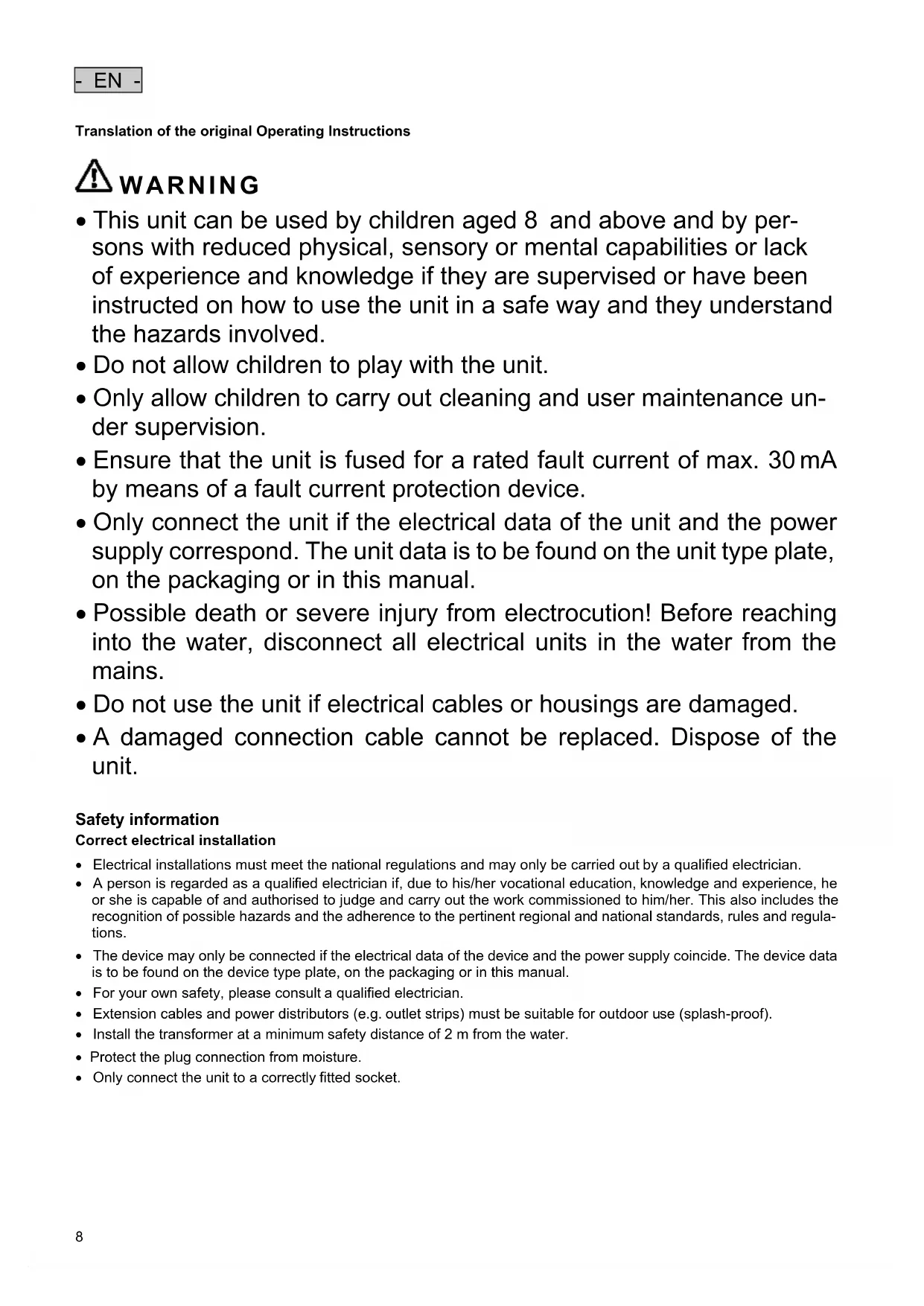

Translation of the original Operating Instructions

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
• Do not allow children to play with the unit.
• Only allow children to carry out cleaning and user maintenance under supervision.
• Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
• Only connect the unit if the electrical data of the unit and the power supply correspond. The unit data is to be found on the unit type plate, on the packaging or in this manual.
• Possible death or severe injury from electrocution! Before reaching into the water, disconnect all electrical units in the water from the mains.
• Do not use the unit if electrical cables or housings are damaged.
• A damaged connection cable cannot be replaced. Dispose of the unit.

Safety information

Correct electrical installation

• Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.
- A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and experience, he or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regulations.
- The device may only be connected if the electrical data of the device and the power supply coincide. The device data is to be found on the device type plate, on the packaging or in this manual.
- For your own safety, please consult a qualified electrician.
- Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
• Install the transformer at a minimum safety distance of 2 m from the water.
- Protect the plug connection from moisture.
- Only connect the unit to a correctly fitted socket.

Safe operation

• Route cables such that they are protected from damage and do not present a tripping hazard.
• Never carry or pull the unit by the electrical cable.
• Never operate the unit if an electrical cable is defective!
• Never carry out technical changes to the unit.
• Only open the unit housing or its attendant components if this is explicitly specified in the operating instructions.
• Only carry out work on the unit that is described in this manual. If problems cannot be overcome, please contact an authorised customer service point or, if in doubt, the manufacturer.
• Only use original spare parts and accessories for the unit.
• Only operate the unit with the supplied transformer.
• The power pack and the plug connectors of the power cables supplied are not water-tight, but only rain and splash-proof. Do not route or fit in the water.

Information about these operating instructions

Welcome to OASE Living Water. You made a good choice with the purchase of this product LunAqua 3 LED.

Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit. Ensure that all work on and with this unit is only carried out in accordance with these instructions.

Adhere to the safety information for the correct and safe use of the unit.

Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new owner.

Warnings used in these instructions

Warnings

The warning information is categorised by signal words, which indicate the extent of the hazard.

WARNING

• Indicates a possibly hazardous situation.
  • Non-observance may lead to death or serious injuries.

NOTE

Information for the purpose of clarification or for preventing possible damage to assets or to the environment.

Cross-references used in these instructions

☐ A Reference to a figure, e.g. Fig. A.

Scope of delivery

☐ A	LunAqua 3 LED Quantity		Description
	Set 1	Set 3

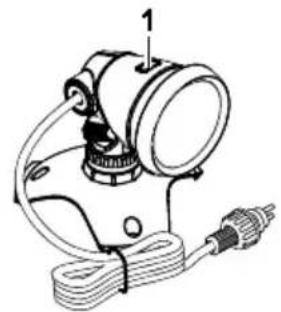

1	1	3	LED spot (including bulb) with base foot
2	1	1	Transformer
3	-	1	3-way distributor
4	1	3	Ground stake

- EN -

Intended use

LunAqua 3 LED, referred to as "unit", may only be used as specified in the following:

• For use in water fountain systems and ponds.
• For use above and under water.
• Operate in accordance with instructions.

Installation and connection

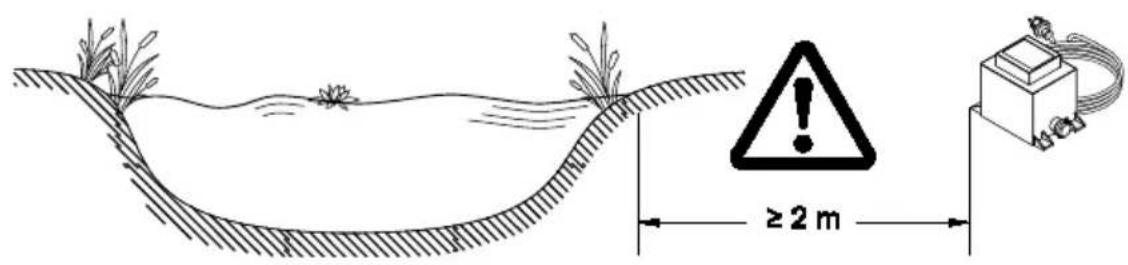

□ B

• Install the transformer at least 2 m from the edge of the pond.
- Position the unit in such a way that it does not present a hazard to anyone.
- Ensure safe and stable seating. Ensure the sufficient load carrying capacity of the wall or ground for installation on the wall or on the base.
- For installation above water: Ensure a safety distance of at least 50 cm from combustible material. Fire hazard: Do not cover the unit!

Wall or ground installation

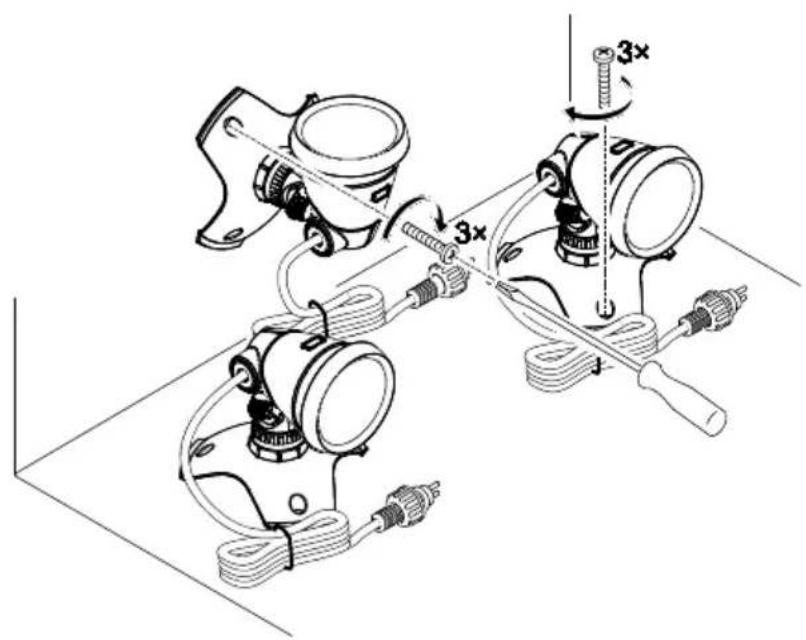

□ C

- The base foot can either be placed on the ground or bolted to a firm base or load bearing wall.

Installation on the ground stake

How to proceed:

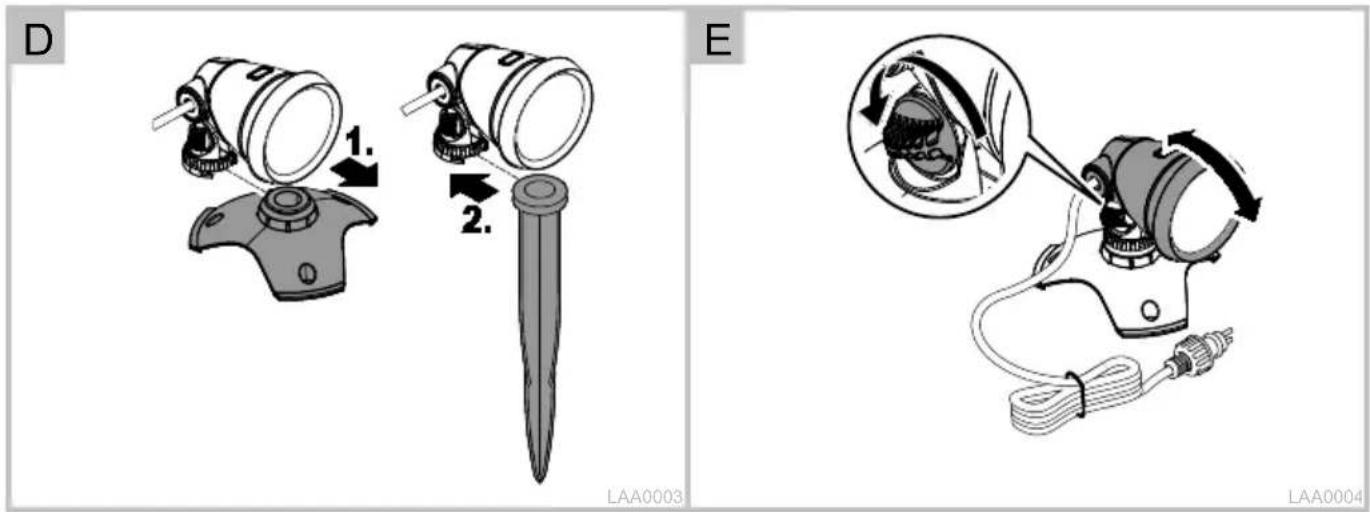

□D

1. Pull the spotlight sideways from the base foot.
2. Push the spotlight sideways onto the ground stake and push the ground stake almost completely into the ground. Check its stability.

Tilting the unit

□ E

- Turn the holding screw counterclockwise and tilt the unit as required. To fasten in place turn the holding screw clockwise.

Connect the unit

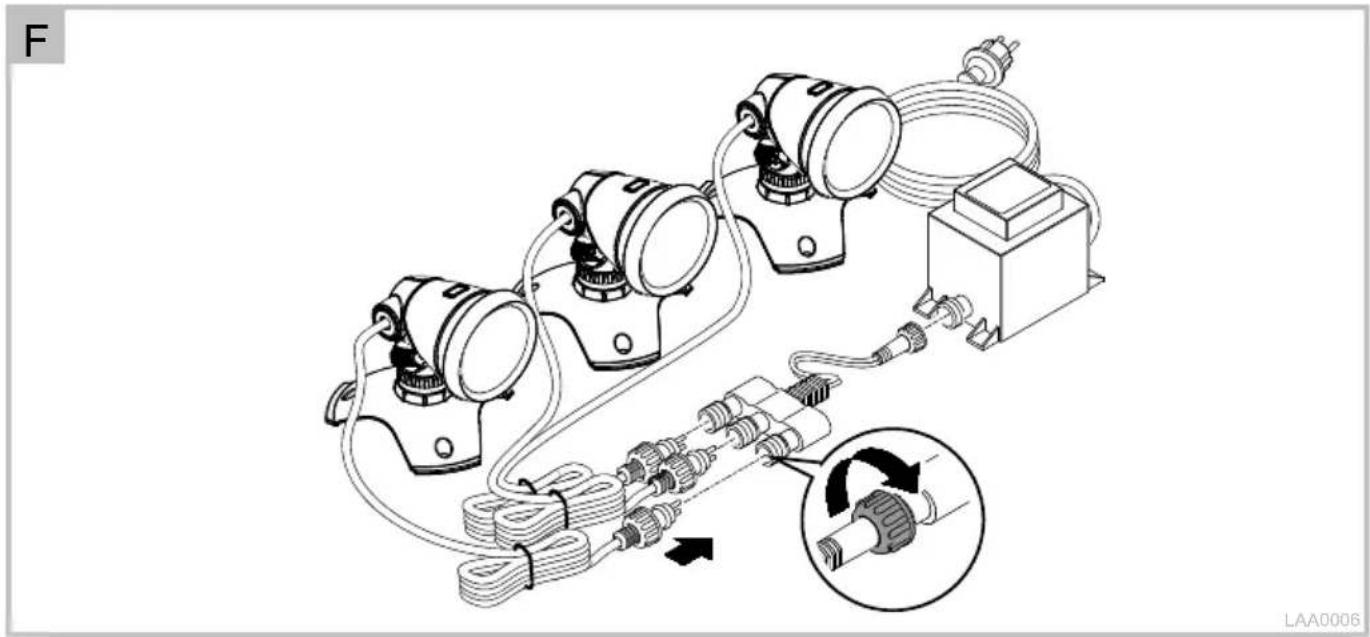

□F

- Connect the connection cable of the spotlight to the socket on the transformer and hand-tighten the union nut.

Commissioning/start-up

The unit will be destroyed if it is operated with a dimmer. It contains sensitive electrical components.

WARNING

Possible death or severe injury from hazardous electrical voltage!

• Prior to reaching into the water, isolate (switch off and disconnect) all units/devices used in the water.
• Isolate the device (disconnect from the power supply) before carrying out any work on it.

Switching on: Insert the power plug of the transformer into the socket.

- Check the function of the spotlights.

Switching off: Disconnect the transformer power plug.

Remedy of faults

Malfunction	Cause	Remedy
Lamp does not light up	Power supply interrupted	Check power supply
	Bulb defective	Replace bulb
Luminosity decreases	Lamp glass soiled	Clean
	The brightness of the bulb reduces as the operating time increases	Replace bulb
Water inside the spotlight housing	Seal defective	Check sealing rings and replace, if necessary

Maintenance and cleaning

WARNING

Possible death or severe injury from hazardous electrical voltage!

• Prior to reaching into the water, isolate (switch off and disconnect) all units/devices used in the water.
• Isolate the device (disconnect from the power supply) before carrying out any work on it.

- Ensure that no moisture can enter the unit.

Cleaning the device

If necessary, clean the unit with clear water using a soft brush.

Replacing the bulb

- Only use original bulbs from OASE. (→ Technical data)

- The unit may be damaged by the use of spare parts from other manufacturers.

How to proceed:

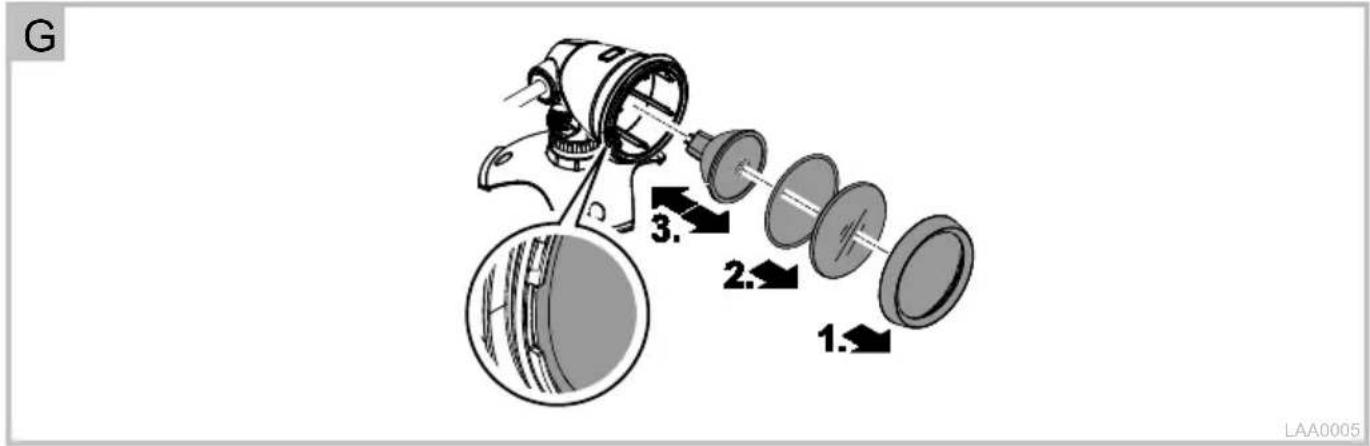

□ G

1. Unscrew the threaded ring.
2. Remove the glass pane and O ring, check for damage and replace if necessary.
3. Remove the defective bulb from the housing.
4. Insert the new bulb.
5. Reassemble the unit in the reverse order.

Ensure that the O ring is correctly positioned.

1. Reconnect to the power supply and check the function.

Spare parts

The use of original parts from OASE ensures continued safe and reliable operation of the unit.

Please visit our website for spare parts drawings and spare parts.

www.oase-livingwater.com/spareparts

Disposal

NOTE

Do not dispose of this unit with domestic waste.

- Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system provided for this purpose.
