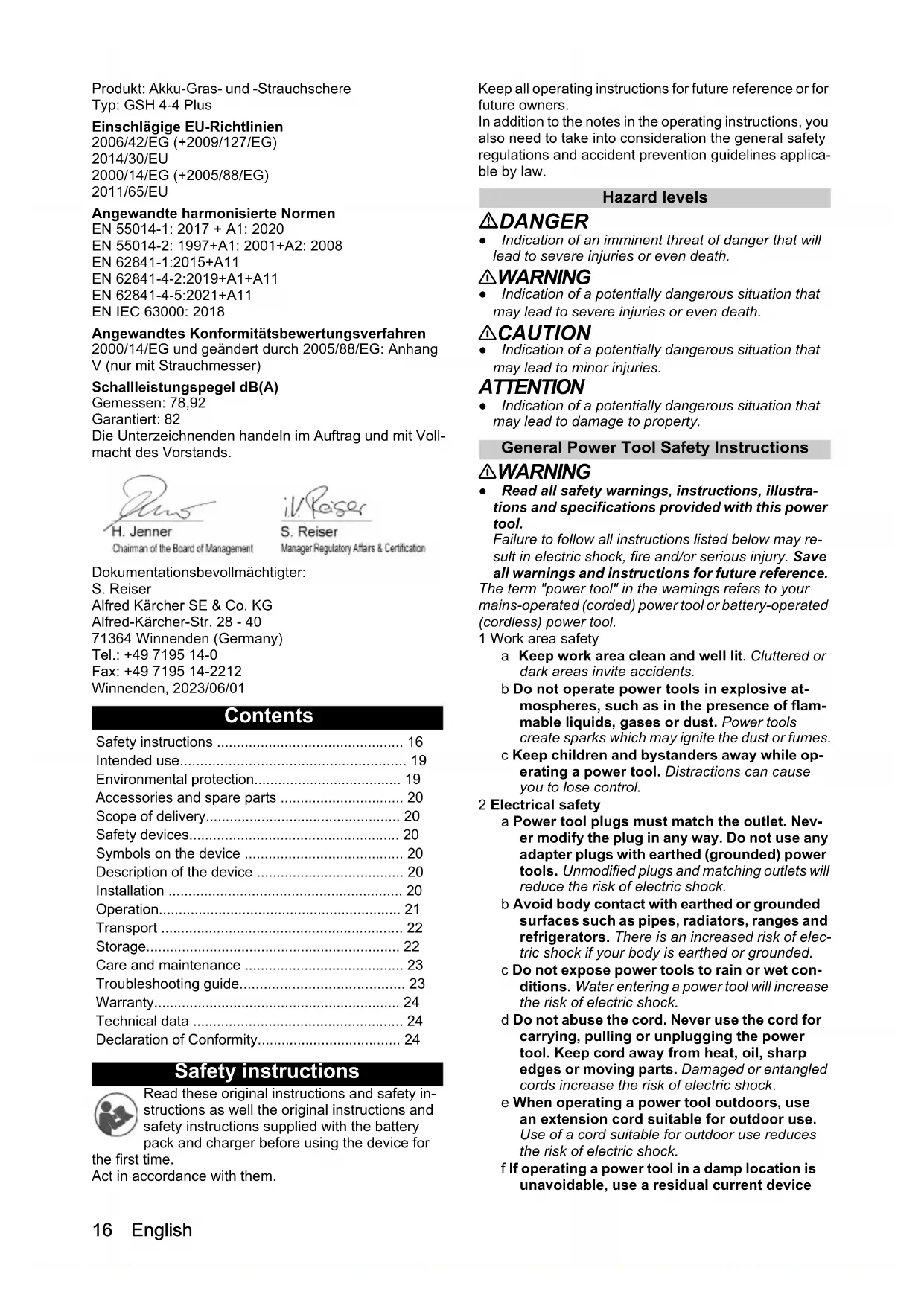

• garan- tiert dB(A) 82 Maße und Gewichte Gewicht mit Grassschere kg 0,58 Gewicht mit Strauchschere kg 0,63 Länge x Breite x Höhe (mit Gras- schere, ohne Akkupack, ohne Messerschutz) mm 306 x 83 x 132 Länge x Breite x Höhe (mit Strauchschere, ohne Akkupack, ohne Messerschutz) mm 392 x 81 x 13216 English Produkt: Akku-Gras- und -Strauchschere Typ: GSH 4-4 Plus Einschlägige EU-Richtlinien 2006/42/EG (+2009/127/EG) 2014/30/EU 2000/14/EG (+2005/88/EG) 2011/65/EU Angewandte harmonisierte Normen EN 55014-1: 2017 + A1: 2020 EN 55014-2: 1997+A1: 2001+A2: 2008 EN 62841-1:2015+A11 EN 62841-4-2:2019+A1+A11 EN 62841-4-5:2021+A11 EN IEC 63000: 2018 Angewandtes Konformitätsbewertungsverfahren 2000/14/EG und geändert durch 2005/88/EG: Anhang V (nur mit Strauchmesser) Schallleistungspegel dB(A) Gemessen: 78,92 Garantiert: 82 Die Unterzeichnenden handeln im Auftrag und mit Voll- macht des Vorstands. Dokumentationsbevollmächtigter: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Tel.: [phone] Fax: [phone] Winnenden, 2023/06/01 Contents Safety instructions Read these original instructions and safety in- structions as well the original instructions and safety instructions supplied with the battery pack and charger before using the device for the first time. Act in accordance with them. Keep all operating instructions for future reference or for future owners. In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applica- ble by law. Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dangerous situation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dangerous situation that may lead to minor injuries. ATTENTION ● Indication of a potentially dangerous situation that may lead to damage to property. General Power Tool Safety Instructions 몇 WARNING ● Read all safety warnings, instructions, illustra- tions and specifications provided with this power tool. Failure to follow all instructions listed below may re- sult in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area safety a Keep work area clean and well lit. Cluttered or dark areas invite accidents. b Do not operate power tools in explosive at- mospheres, such as in the presence of flam- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while op- erating a power tool. Distractions can cause you to lose control. 2 Electrical safety a Power tool plugs must match the outlet. Nev- er modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. b Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet con- ditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If operating a power tool in a damp location is unavoidable, use a residual current device Safety instructions p. 16
• Intended use p. 19
• Environmental protection p. 19
• Accessories and spare parts p. 20
• Scope of delivery p. 20
• Safety devices p. 20
• Symbols on the device p. 20
• Description of the device p. 20
• Installation p. 20
• Operation p. 21
• Transport p. 22
• Storage p. 22
• Care and maintenance p. 23
• Troubleshooting guide p. 23
• Warranty p. 24
• Technical data p. 24
• Declaration of Conformity English 17 (RCD) protected supply. Use of an RCD reduc- es the risk of electric shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or med- ication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate condi- tions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, en- sure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a sec- ond. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such pre- ventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to oper- ate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many acci- dents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the pow- er tool for operations different from those intend- ed could result in a hazardous situation. h Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles an grasping surfaces do not allow for safe handling and control of the tool in unexpect- ed situations. 5 Battery tool use and care a Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire. c When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi- nals together may cause burns or a fire. d Under abusive conditions, liquid may be ejected from the battery; avoid contact. If con- tact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medi- cal help. Liquid ejected from the battery may cause irritation or burns. e Do not use a battery pack or tool that is dam- aged or modified. Damaged or modified batter- ies may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or tem- perature above 130 °C may cause explosion. g Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instruc- tions. Charging improperly or at temperatures outside the specified range may damage the bat- tery and increase the risk of fire. 6 Service a Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. b Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Safe operation of grass and shrub shears DANGER ● Severe injuries when objects are flung by the cutting blade or when the cutting tool be- comes entangled in wires or cords. Inspect the work ar- ea thoroughly for objects such as stones, sticks, metal, wires, bones or toys and remove these before using the device. 몇 WARNING ● The device is not intended for use by persons with restricted physical, sensory or mental abilities or those lacking in experience and / or lacking in knowledge. ● Keep children and other per-18 English sons out of the work area while you are using the de- vice. ● Do not operate the device if the ON/OFF button is damaged or does not switch on/off properly. DAN- GER ● Risk of injury, the blades continue to run for a short time after the device is switched off. WARN- ING ● Risk of serious injuries and equipment damage. Make sure that the cutting tool is properly installed and securely fastened before you start up the device. ● Do not use the device if there is a danger of lightning. ● Never start up a device that is incomplete or is equipped with unauthorized modifications. ● Never use the device with defective protective devices or with no installed safety devices. ● Switch off the device in the case of a malfunction or accident, and remove the bat- tery pack. You may only start up the device again if it has been checked by an authorized customer service centre. 몇 CAUTION ● Familiarise yourself with the con- trols and the correct use of the device. ● Risk of injury when loose fitting clothing, hair or jewellery is caught by moving parts of the device. Keep clothing and jewellery away from moving parts of the device. Tie long hair back. ● Increased risk of accident in bad weather condi- tions. Only use the device when safe working is guaran- teed. ● The noise from the device can impair your ability to hear, so pay attention to possible hazards in your vi- cinity and in the work area. ● Risk of injury. Always wear protective goggles, sturdy shoes and suitable clothing when using the device. ATTENTION ● The device operator is responsible for accidents with other people and their property. Hedge trimmer safety warnings ● Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. ● Keep all power cords and cables away from cut- ting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade. ● Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock. ● Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury. ● When clearing jammed material or servicing the hedge trimmer, make sure all power switches are off and the battery pack is removed or dis- connected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury. ● Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades. ● When transporting or storing the hedge trimmer, always use the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal in- jury from the blades. Grass shears safety warnings ● Do not use the grass shear in bad weather con- ditions, especially when there is a risk of light- ning. This decreases the risk of being struck by lightning. ● Keep all power cords and cables away from cut- ting area. Power cords or cables may be hidden and can be accidentally cut by the blade. ● Hold the grass shear by insulated gripping sur- faces only, because the blade may contact hid- den wiring. Blades contacting a "live" wire may make exposed metal parts of the grass shear "live" and could give the operator an electric shock. ● Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the grass shear may re- sult in serious personal injury. ● When clearing jammed material or servicing the grass shear, make sure the power switch is off and the battery pack is removed or disconnect- ed. Unexpected actuation of the grass shear while clearing jammed material or servicing may result in serious personal injury. ● Carry the grass shear by the handle with the blade stopped and taking care not to operate the power switch. Proper carrying of the grass shear will decrease the risk of inadvertent starting and re- sultant personal injury from the blades. ● When transporting or storing the grass shear, al- ways use the blade cover. Proper handling of the grass shear will decrease the risk of personal injury from the blades. Additional safety instructions 몇 WARNING ● The device is not intended for use by children, persons with restricted physical, senso- ry or mental abilities or persons unfamiliar with these in- structions. The age of the operator may be limited by local restrictions. ● Keep your hands and feet away from the cutting area, especially when switching on the mo- tor. ● Replace any worn or damaged parts before oper- ating the device. ● Avoid switching the device on unintentionally. Make sure that the ON/OFF switch is in the OFF position before inserting the battery pack, lifting or carrying the device. ● Use the device only in daylight or under good artificial lighting. ● Do not run but rather walk when working with the device. Maintain a solid and safe footing and keep your balance, especially when working on gradients. ● Check that the moving parts function correctly and are not blocked, and that no parts are broken or damaged. Have a damaged device re- paired before using it. ● Do not forcefully operate the device. ● Switch the motor off, remove the battery pack and make sure that all moving parts have stopped mov- ing: ● Before making any adjustments. ● Before leaving the device unattended. ● Before checking, cleaning or servicing the device. ● Before removing a blockage. ● Before changing accessories. ● After hitting a foreign object. First check the device for damage and repair any damage before restarting the device.English 19 ● When the device starts to vibrate unusually. First check the device for damage and repair any dam- age before restarting the device. ● Switch off the motor if you stop the cutting process or if you move from one operating location to another. 몇 CAUTION ● Risk of injury when loose fitting clothing, hair or jewellery is caught by moving parts of the device. Keep clothing and jewellery away from mov- ing parts of the device. Tie long hair back. ● Have repair work carried out by the authorised customer service on- ly. ● Wear long, heavy trousers, sturdy shoes and well- fitting gloves when working with the device. Do not work barefoot. Do not wear any jewellery, sandals or short trousers. Safe servicing and care 몇 WARNING ● Switch the motor off, remove the battery pack and make sure that all moving parts have stopped moving: ● Before cleaning or servicing the device. ● Before changing accessories. ● Each time after using the device, remove dirt from the cutting tools using a hard brush and apply a suitable oil for rust protection before fitting the blade guard. The manufacturer recommends using a spray for rust pro- tection and oiling. Ask your Customer Service depart- ment to recommend a suitable spray. You can oil the cutting tools as described, each time before using the device. ● Keep the cutting tools sharp and clean. Sharp cutting tools are easier to control and do not block so easily. ● Make sure that the ventilation openings are free of deposits. ● Risk of injury from sharp cutting tools. Exercise special care when removing and fitting the blade guard, cleaning and oiling the device. 몇 CAUTION ● Risk of injury from sharp cutting tools. Wear non-slip, sturdy protective gloves when handling the cutting tool. ● Risk of injury from exposed blades. Fit the blade guard when not using the device, also during short work breaks. ● Keep the handles dry, clean, and free from oil and lubricants. ● Only use ac- cessories and spare parts which are approved by the manufacturer. Only original accessories and original spare parts ensure that the appliance will run fault-free and safely. ATTENTION ● Clean the product with a soft, dry cloth each time after use. ● Do not use solvents to clean the plastic parts, as they attack the materials used on the device. Remove impurities such as dust, oil and lu- bricants using a clean cloth. Note ● Service and maintenance work may only be performed by suitably qualified and specially trained personnel. We recommend sending the product to an authorised service centre for repair. Safe transport and storage 몇 CAUTION ● In order to prevent accidents or injuries, you must only transport and store the device with the blade guard installed and with the rechargeable battery removed. ● Risk of injury and damage to the de- vice. Secure the device against movement or falling down during transport. ATTENTION ● Remove all foreign bodies from the device before storage or transportation. ● Store the de- vice in a dry, well ventilated location out of the reach of children. Keep the device away from corrosive sub- stances such as garden chemicals. ● Do not store the device outdoors. Residual risks 몇 WARNING ● Certain residual risks remain present, even when the device is operated in the prescribed manner. The fol- lowing dangers can be present when using the de- vice: ● Severe injuries through contact with the cutting tool. Keep the cutting tools away from your body and be- low hip height. Use the blade guard when not cut- ting. ● Vibration can cause injuries. Use the correct tools for the job, use the handles provided and restrict the working time and hazard exposure time. ● Noise can cause hearing injuries. Wear hearing pro- tection and limit the duration of exposure. Risk reduction 몇 CAUTION ● Using the device for longer periods can cause poor circulation in the hands due to vibrations. A general period of use cannot be set, because this depends on several influencing factors: ● Personal tendency to suffer from poor circulation (frequently cold fingers, tingling sensation in the fin- gers) ● Low ambient temperature. Wear warm gloves to protect your hands. ● Holding the device too tightly hindering blood circu- lation. ● Continuous operation is more harmful than opera- tion interrupted by work breaks. You should see a doctor if using the device regularly and for lengthy periods of time, and in the event of re- peated occurrences of symptoms such as tingling in the fingers or cold fingers. Intended use Use the device exclusively with battery packs and chargers from the KÄRCHER Battery Power 4 V sys- tem. The battery-powered grass and shrub shears are in- tended for private use only. The battery-powered grass and shrub shears are de- signed for working outdoors in well-ventilated areas. When using the grass shears, the device is used to eas- ily cut grass. When using the shrub shears, the device is used to eas- ily cut bushes, hedges and shrubs. When using the grass shears with the telescoping han- dle, the device is used to easily cut lawn edges. Any other use is prohibited. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic devices contain valua- ble, recyclable materials and often components such as batteries, rechargeable batteries or oil, Suitable battery packs are marked with the BP 4 V symbol. Only charge the battery pack with the chargers approved for charging.20 English which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environ- ment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.de/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your deal- er. Safety devices 몇 CAUTION Missing or modified safety devices Safety devices are provided for your own protection. Never modify or bypass safety devices. Blade guard The blade guard is an important safety device of the grass and shrub shears. Do not use the blade guard if it is damaged, but rather replace it immediately. Unlocking button of the ON/OFF button The unlocking button of the ON/OFF button blocks the ON/OFF button and thus prevents accidental switching on of the device. Symbols on the device Description of the device See graphics page for illustrations Illustration A 1 Device (GSH means grass and shrub shears) 2 Charge indicator 3 Handle 4 Battery pack holder 5 Unlocking button of the ON/OFF button 6 ON/OFF button 7 Shear holder 8 Shrub shears 9 Release button 10 Blade 11 *Charger 12 *Rechargeable battery pack 13 *Battery pack unlocking button 14 Blade guard (shrub shears) 15 Blade guard (grass shears) 16 Grass shears p. 24

• GSH 4-4 Plus: additionally required and available sep- arately Telescoping handle (optionally available) Illustration B 1 Telescoping handle 2 Handle 3 Unlocking button of the ON/OFF button 4 ON/OFF button 5 Unlocking slider 6 Holding tray 7 Union nut Installation Battery pack charging

1. Charge the battery pack (see operating instructions

and safety instructions for the battery pack and the charger). Mounting the blade guard DANGER Risk of injury due to cuts from sharp blades and ac- cidentally switching on the device! Remove the battery from the device before all work on the device. Make sure that the ON/OFF button is not pressed while inserting the battery pack. Avoid unintentionally switching on the device. Wear safety goggles and protective gloves when work- ing on the device. Always mount the blade guard before working on the device and before transporting it.

1. Slide the blade guard onto the blades of the grass or

shrub shears. Illustration C General warning symbol. Before the initial startup, read the operat- ing instructions for the device, battery pack and charger, as well as all safety in- structions. Do not subject the device to rain or moist conditions. Risk of injury due to cuts! Do not touch the cutting edges or the moving blades. Keep body parts away from the blades. The guaranteed sound level specified on the label is 82 dB.English 21 Mounting the grass or shrub shears DANGER Risk of injury due to cuts from sharp blades and ac- cidentally switching on the device! Remove the battery from the device before all work on the device. Make sure that the ON/OFF button is not pressed while inserting the battery pack. Avoid unintentionally switching on the device. Wear safety goggles and protective gloves when work- ing on the device. Always mount the blade guard before working on the device and before transporting it.

1. Select the grass or shrub shears according to the

2. Mount the blade guard, see chapter Mounting the

3. Mount the grass or shrub shears on the device:

Illustration D a Insert the grass or shrub shears into the shear holder as shown. b Press the grass or shrub shears against the shear holder until you hear them click into place. Inserting the battery pack DANGER Risk of cutting injuries if the device is accidentally switched on! Make sure that the ON/OFF button is not pressed while inserting the battery pack. Avoid unintentionally switching on the device.

1. Release the ON/OFF button.

2. Press the battery pack into the battery pack holder

on the device until it you feel it latch into place. Illustration E Charge indicator After the device has been switched on, the charging state of the battery pack is displayed. Illustration F Assembling the telescoping handle (optional) With the telescoping handle, even longer lawn edges can be cut comfortably while walking. The telescoping handle is optionally available.

1. Release the union nut and pull the telescoping han-

dle apart a little, see chapter Cutting grass with the grass shears on the telescoping handle. This makes it easier to slide the holding tray onto the telescoping handle.

2. Push the holding tray onto the telescoping handle as

shown, until it audibly clicks into place. Illustration G Note The holding tray cannot be removed from the telescop- ing handle after it has been engaged. Operation DANGER Risk of injury due to cuts from sharp blades and ac- cidentally switching on the device! The blades can cause severe cuts. Do not touch the blades. Wear safety goggles and protective gloves for all work with or on the device. Avoid unintentionally switching on the device. If the device switches off automatically due to overload, release the ON/OFF button immediately. Wait until the device or the battery is ready for operation again before switching it on again. 몇 WARNING Risk of injury from airborne parts! The blades can throw loose parts around. Before starting work, check the work area for objects that may be flung around, e.g. wires, stones and glass. Wear safety goggles, protective gloves and hearing pro- tection for all work with the device. ATTENTION Risk of damage by or to the blades! The blades can damage objects. Hard objects can damage the blades. Check the work area for objects such as cords, hoses, lines, cables, metal rods, wire mesh before starting work and keep a sufficient distance. Cutting grass with the grass shears

1. Installing the grass shears, see chapter Mounting

the grass or shrub shears.

2. Remove the blade guard.

3. Switch on the device:

Illustration H a Press and hold the unlocking button of the ON/ OFF button. b Press the ON/OFF button. The device starts up. The unlocking button of the ON/OFF button can now be released. To stop the device, release the ON/OFF button.

4. Guide the blades parallel to the ground.

Illustration I Cutting grass with the grass shears on the telescoping handle

1. Mount the grass shears on the device, see chapter

Mounting the grass or shrub shears. Note For safety reasons, the shrub shears must not be used with the telescoping handle. If the shrub shears are mounted, the device cannot be pushed into the holding tray. Do not make any modifications to the shrub shears!

2. Push the device into the holding tray as shown until

it stops. Illustration J Note To remove the device, pull it out of the holding tray. Illustration K

3. To cut grass on ledges, for example, swivel the de-

vice to the left or right: Illustration L a Pull the unlocking slider in the direction of the ar- row and hold it. b Swivel the device with the holding tray 90° to the left or right. c Release the unlocking slider. The holding tray locks into place.

5. Remove the blade guard.22 English

6. Switch on the device using the ON/OFF button on

the telescoping handle: Illustration N a Press and hold the unlocking button of the ON/ OFF button on the telescoping handle. b Press the ON/OFF button on the telescoping handle. The device starts up. The unlocking button of the ON/OFF button can now be released. To stop the device, release the ON/OFF button. Note If the device is mounted on the telescoping handle, the ON/OFF button on the device has no function. DANGER Risk of injury when lifting the unit with the tele- scopiing handle! The device cannot be guided safely when lifting with the telescoping handle, and may get out of control and cause cuts or bruises. Do not lift the device with the telescoping handle. Only guide the device with the wheels on the ground.

7. Guide the device with the telescoping handle.

Illustration O Illustration P Cutting bushes / hedges / shrubs with the shrub shears

1. Mounting the shrub shears, see chapter Mounting

the grass or shrub shears.

2. Switch on the device:

Illustration H a Press and hold the unlocking button of the ON/ OFF button. b Press the ON/OFF button. The device starts up. The unlocking button of the ON/OFF button can now be released. To stop the device, release the ON/OFF button.

3. Cut bushes / hedges / shrubs with the shrub shears.

When cutting the hedge, keep the blades parallel to the hedge. Illustration Q Changing the grass and shrub shears DANGER Risk of injury due to cuts from sharp blades and ac- cidentally switching on the device! Remove the battery from the device before all work on the device. Make sure that the ON/OFF button is not pressed while inserting the battery pack. Avoid unintentionally switching on the device. Wear safety goggles and protective gloves when work- ing on the device. Always mount the blade guard before working on the device and before transporting it.

1. Release the ON/OFF button.

The device switches off.

2. Remove the battery pack from the device, see chap-

ter Removing the battery pack.

3. Mount the blade guard on the grass and shrub

shears, see chapter Mounting the blade guard.

4. Remove the grass or shrub shears from the device:

Illustration R a Press both release buttons simultaneously. b Remove the grass or shrub shears from the shear holder.

5. Mount the grass or shrub shears on the device:

Illustration D a Insert the grass or shrub shears into the shear holder as shown. b Press the grass or shrub shears against the shear holder until you hear them click into place. Removing the battery pack Note During longer work breaks, remove the battery pack from the device and secure it against unauthorised use.

1. Release the ON/OFF button.

The device switches off.

2. Press the battery pack unlocking button, and pull the

battery pack out of the battery mount. Illustration S Ending operation

1. Release the ON/OFF button.

The device switches off.

2. Remove the battery pack from the device, see chap-

ter Removing the battery pack.

3. Charge the battery pack, see chapter Battery pack

4. Clean the device, see chapter Cleaning the device.

5. Oil the blades, see chapter Oiling the blades.

6. Mount the blade guard, see chapter Mounting the

blade guard. Transport 몇 CAUTION Risk of injury and damage Be aware of the weight of the device during transporta- tion.

1. Release the ON/OFF button.

The device switches off.

2. Remove the battery pack from the device, see chap-

ter Removing the battery pack.

3. Mount the blade guard, see chapter Mounting the

4. Remove the grass or shrub shears from the device,

see chapter Changing the grass and shrub shears.

5. Before transporting the device with a vehicle, stow

or secure the device and the accessories so that they will not slip or be thrown around when acceler- ating, braking, cornering or in the event of an acci- dent. Storage

1. Release the ON/OFF button.

The device switches off.

2. Remove the battery pack from the device, see chap-

ter Removing the battery pack and store it properly, see the operating instructions for the battery pack.

3. Clean the device, see chapter Cleaning the device.

4. Mount the blade guard, see chapter Mounting the

blade guard. 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. ATTENTION Risk of damage due to incorrect storage! Incorrect storage can damage the device.English 23 Store the device in a dry and well-ventilated interior space. Do not expose the device to direct sunlight for a long time. Keep the device away from corrosive substances such as garden chemicals and de-icing salts.

5. Store the device in a dry, well ventilated interior

space. Care and maintenance DANGER Risk of injury due to cuts from sharp blades and ac- cidentally switching on the device! Remove the battery from the device before all work on the device. Make sure that the ON/OFF button is not pressed while inserting the battery pack. Avoid unintentionally switching on the device. Wear safety goggles and protective gloves when work- ing on the device. Always mount the blade guard before working on the device and before transporting it. Cleaning the device ATTENTION Risk of damage due to incorrect cleaning! Only clean the device with a hand-held brush and damp cloth. Do not use solvent-based cleaning agents. Do not immerse the device in water or other liquids. Do not clean the device with a hose or high-pressure water jet.

1. Release the ON/OFF button.

The device switches off.

2. Remove the battery pack from the device, see chap-

ter Removing the battery pack.

3. Remove cuttings with a hand-held brush.

4. Remove resin from the blades, e.g. with the Kärcher

Universal Stain Remover RM 769.

5. Oil the blades of the grass or shrub shears, see

chapter Oiling the blades.

6. Mount the blade guard, see chapter Mounting the

7. Clean the device with a damp cloth if required.

8. Remove dirt and foreign objects from the battery

pack holder with a damp cloth. Note Clean the optionally available telescoping handle in the same way. Oiling the blades Note To maintain blade quality and optimum cutting results, apply a little spray oil or thin machine oil to the blades of the grass and shrub shears after each use.

1. Release the ON/OFF button.

The device switches off.

2. Remove the battery pack from the device, see chap-

ter Removing the battery pack.

3. Clean the device, see chapter Cleaning the device.

4. Place the device on a horizontal, level and oil-resist-

ant surface. Illustration U

5. Apply a thin layer of oil to the top of the blades of the

grass and shrub shears.

6. Mount the blade guard, see chapter Mounting the

7. Clean the base and dispose of oil residues in an en-

vironmentally friendly manner and in accordance with local regulations. Troubleshooting guide Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. As the battery pack ages, even if it is looked after, its ca- pacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect. Error codes and error descriptions Fault Cause Rectification The device is not work- ing. The battery pack is not sitting properly in the device.

1. Push the battery pack into the battery

mount on the device until it you feel it latch into place. The charging state of the battery pack is too low.

1. Charge the battery pack, see chapter Bat-

tery pack charging. The battery pack is overheated. 1. Take the battery pack out of the device and let it cool down, see chapter Removing the battery pack. Note The battery pack can get very warm.

2. Do not the place the device and battery

pack in direct sunlight. The battery pack or charger is defective. 1. Replace the battery pack or charger, see chapter Intended use. The device stops during operation Motor has overheated 1. Stop working and allow the motor to cool down. Charge indicator Error description Error correction An LED flashes slowly and the motor is off. The battery pack is fully discharged. 1 Charge the battery pack or replace it with a charged battery pack, see chapter Battery pack charging.24 English Warranty The warranty conditions issued by our sales company responsible apply in all countries. We shall remedy pos- sible malfunctions on your device within the warranty period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Technical data Subject to technical modifications. Vibration value 몇 WARNING The specified vibration value was measured using a standard test procedure and may be used to compare devices. The specified vibration value may be used in a provi- sional assessment of the load. Depending on the way the device is used, the vibration emission can deviate from the specified overall value during the current use of the device. Determine self-protection measures based on an as- sessment of the load under the actual operating condi- tions. Take all parts of the operation cycle into account, for example, the operating time as well as the times when the device is switched off and is out of operation. Declaration of Conformity EU Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in cir- culation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Battery-operated grass and shrub shears All LEDs flash twice every 2 seconds and the motor is off. The blades are blocked or contami- nated. 1 Release the ON/OFF button and remove the battery pack from the device, see chapter Removing the bat- tery pack. 2 Check whether there are any hard foreign bodies be- tween the blades and remove them if necessary. 3 Clean and oil the blades, see chapter Cleaning the device. 4 Insert the battery pack, see chapter Inserting the bat- tery pack. The temperature protection function of the motor is activated. 1 Allow the device to cool down. Only use and store the device and the battery pack within the intended temperature range, see the oper- ating instructions for the battery pack. All LEDs flash five times every 2 s. The temperature protection function of the battery pack is activated. 1 Release the ON/OFF button and remove the battery pack from the device, see chapter Removing the bat- tery pack. 2 Let the device and the battery pack cool down / warm up. Only use and store the device and the battery pack within the intended temperature range, see the oper- ating instructions for the battery pack. 3 If the fault persists, please contact your dealer or au- thorised Customer Service. Device performance data Nominal voltage V 3.6 (max. 3.7) Idle speed /min 1050 Cutting width of grass shears mm 80 Cutting length of shrub shears mm 110 Blade distance of shrub shears mm 8 Declaration in acc. with EN 62841-1 & EN 62841-4- 5: Grass shears Hand-arm vibration value m/s
