USER MANUAL RS PRO DL 200 SC STEINEL

Exterior view of a modern recessed ceiling light fixture (no text or symbols visible)

Circular white ceiling light fixture with recessed panel, no text or symbols visible

professional

RS PRO DL 150 SC

RS PRO DL 200 SC

DE

Inhalt

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

Simple line drawing of a mechanical device with spring and handle (no text or symbols)

3x

- 1 LED-Leuchte

Safety warning symbol and electrical switch diagram with lightning bolt and switch mechanism

L N N L N L N L N N

Diagram of a hand holding a screwdriver inserted into a circular component, with an arrow indicating direction (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical drawing of concentric circular rings with diameter dimension labeled (no text or symbols beyond the dimension label)

φ154.5 43,7

Adapter ring DL 200 SC

Technical drawing of concentric circular rings with a dimension label (Ø 203,1) at the bottom, no other text or symbols present.

φ213.2 φ17

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp installation showing internal components and airflow direction (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

1. About this document....29
2. General safety precautions....29
3. System description ....30
4. Electrical connection....35
5. Installation....36
6. Function....44
7. Maintenance and care....47
8. Disposal....48
9. Declaration of Conformity 48
10. Manufacturer's warranty....49
11. Technical specifications....51
12. Troubleshooting ....53

1. About this document

Under copyright. Reproduction either in whole or in part only with our consent.

Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards from electricity!

Do not cover the luminaire with thermal insulation materials!

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.
• Keep instructions within easy reach.
• Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death.
• Work on mains voltage must only be performed by qualified, skilled personnel.
• National wiring regulations and electrical operating conditions must be observed (e.g. DE: VDE 0100, AT: ÖVE-ÖNORM E8001-1, CH: SEV 1000).
• Only use genuine replacement parts.
• The external flexible cable or cord of this luminaire cannot be replaced.
• If the cord is damaged, the luminaire shall be destroyed.
• Supply cord 60227 IEC52; 2x0.75mm2.

3. System description

Proper use - DL 150/200 SC

– Sensor-switched LED luminaire with active motion detector.
- Recessed mounting.
- Indoor use only.

DL 150/200 SC operating principle

• The HF/radar motion detector emits high-frequency electromagnetic waves (5.8 GHz) and detects the echo reflected by objects.
• The echo changed by movement of the body is converted electronically and switches the luminaire ON automatically.
• Movement can also be detected through thin walls, doors and panes of glass.
• Even the tiniest of movements can be detected.
• No inadvertent triggering by heat sources or temperature fluctuations.
• The sensor's detection zone can be precisely limited by using the reach setting capability on the web interface and via app.

Note:

The high-frequency output of the HF sensor is approx. 1 mW – that's 1000 times less than the transmission power of a mobile phone or the output of a microwave.

Package contents

3.1

1x

Line drawing of a cylindrical container with a handle and side supports (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

Simple line drawing of a mechanical device with a coiled spring and lever mechanism (no text or symbols)

3x

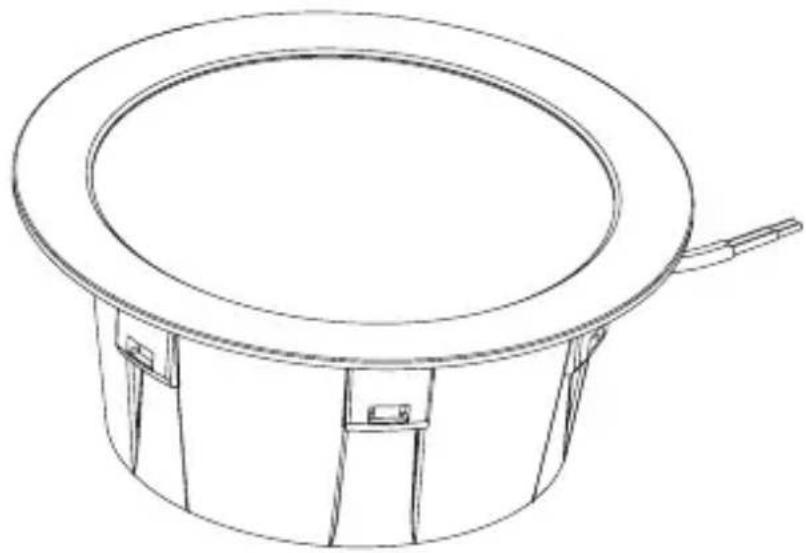

- 1 LED luminaire

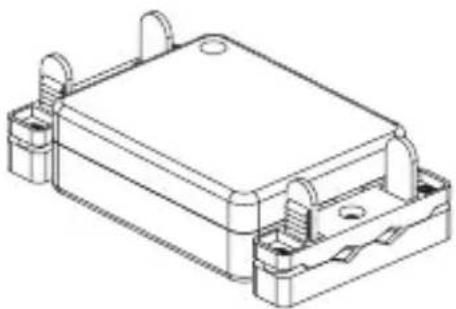

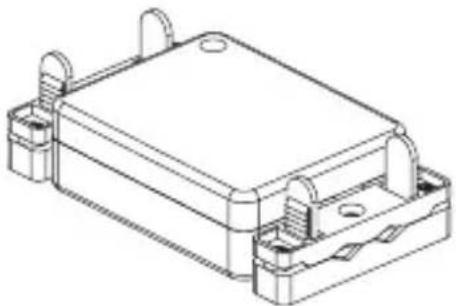

• 1 junction box
  -3 mounting springs
  -3 connection clamps
• 1 safety data sheet (A)
• 1 Quick start guide (B)

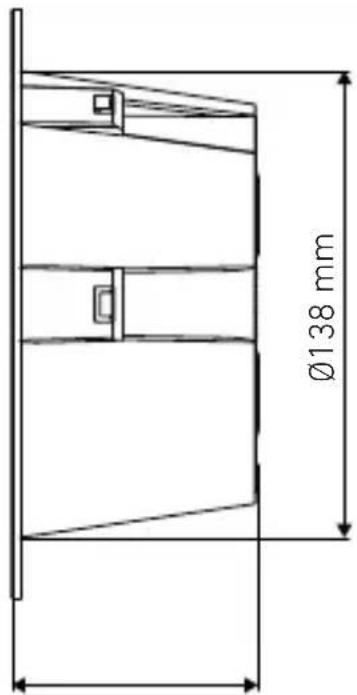

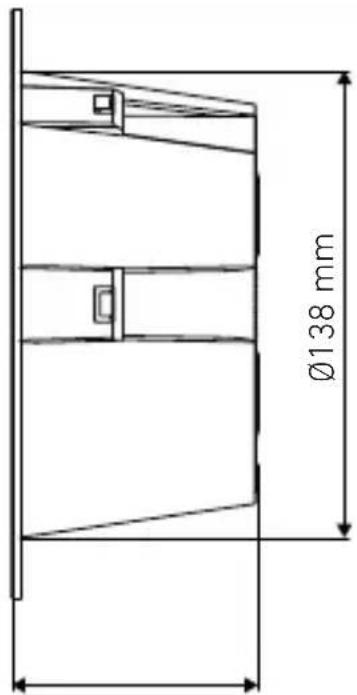

Product dimensions

3.2 RS PRO DL 150 SC

Ø174 mm 73 mm

Ø138 mm

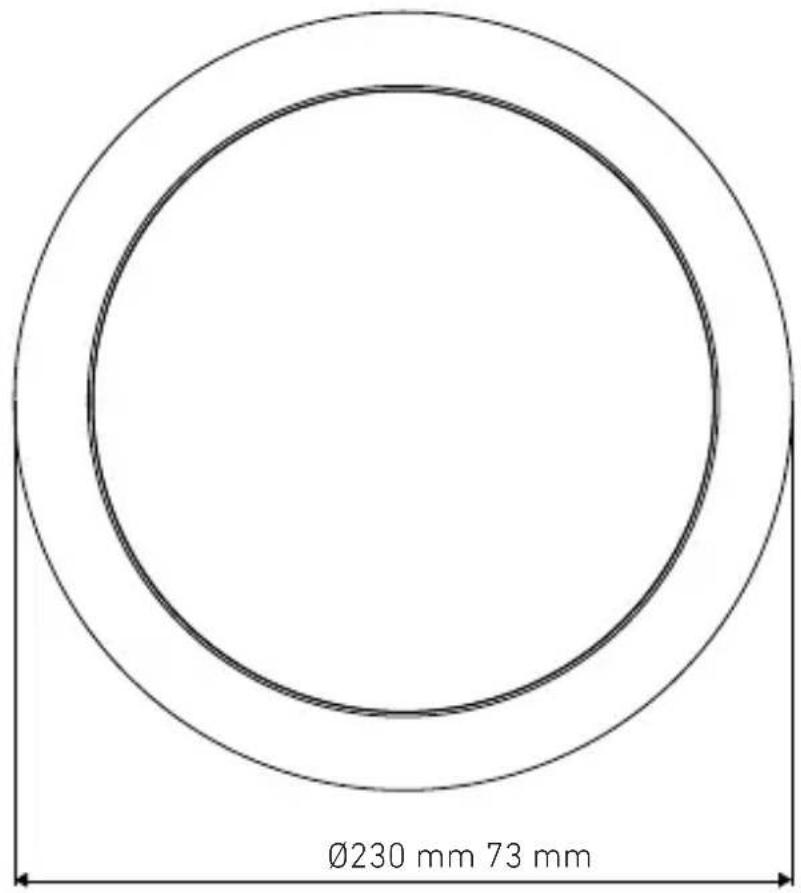

RS PRO DL 200 SC

Ø230 mm 73 mm

Ø189 mm

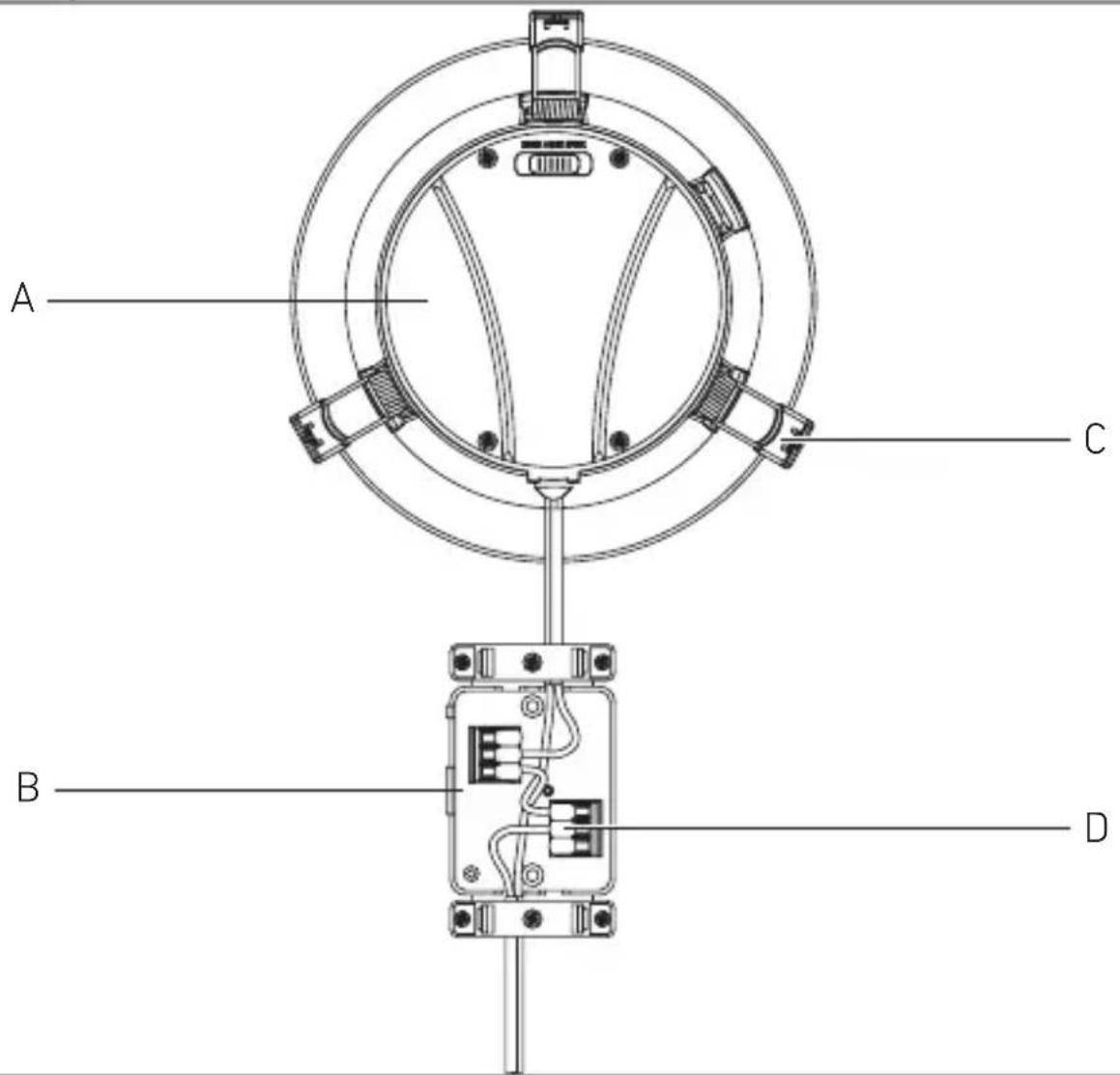

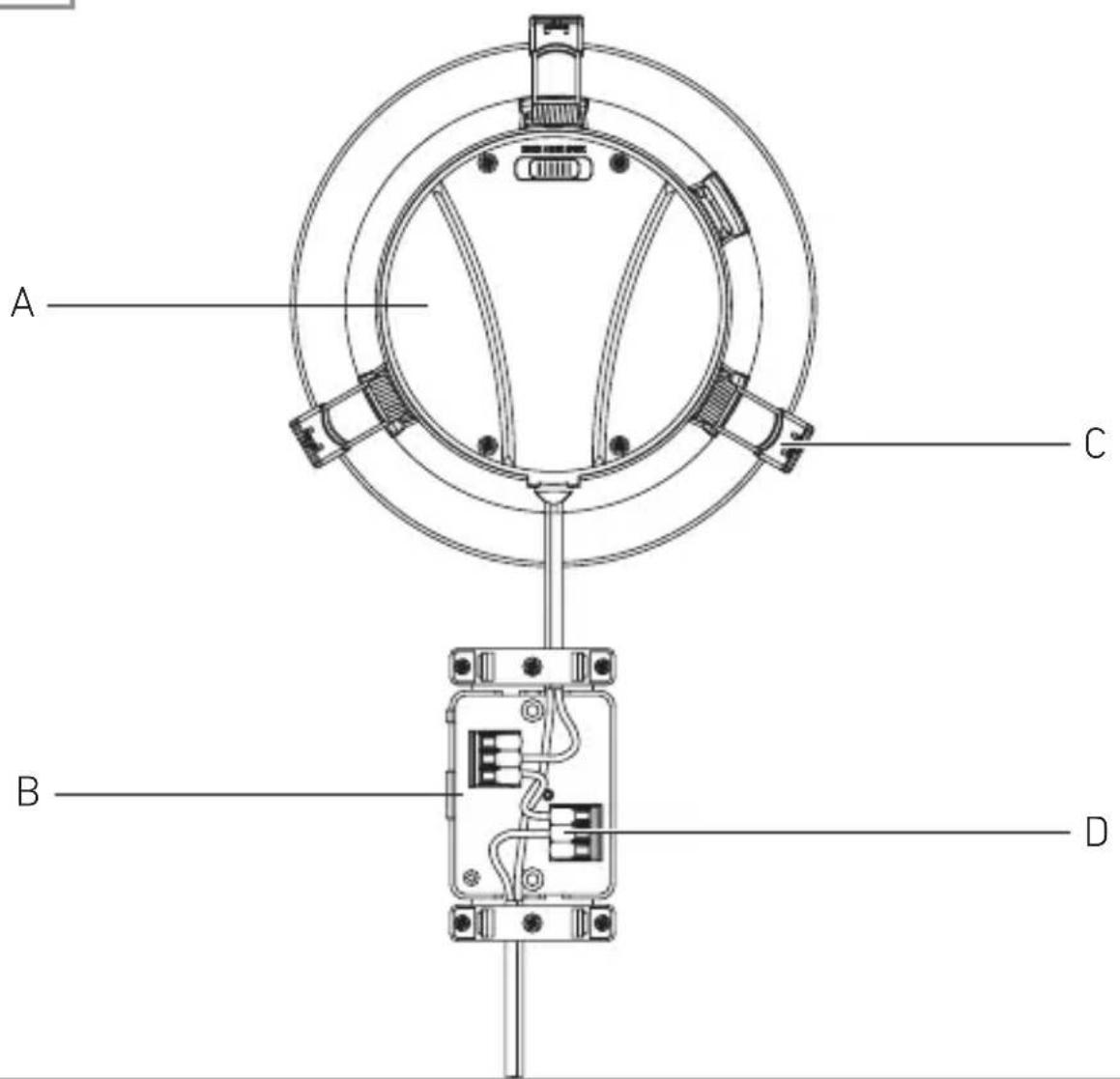

Product components

3.3

A C B D

A... Luminaire

B... Junction box

C... Mounting springs

D... Connection clamps

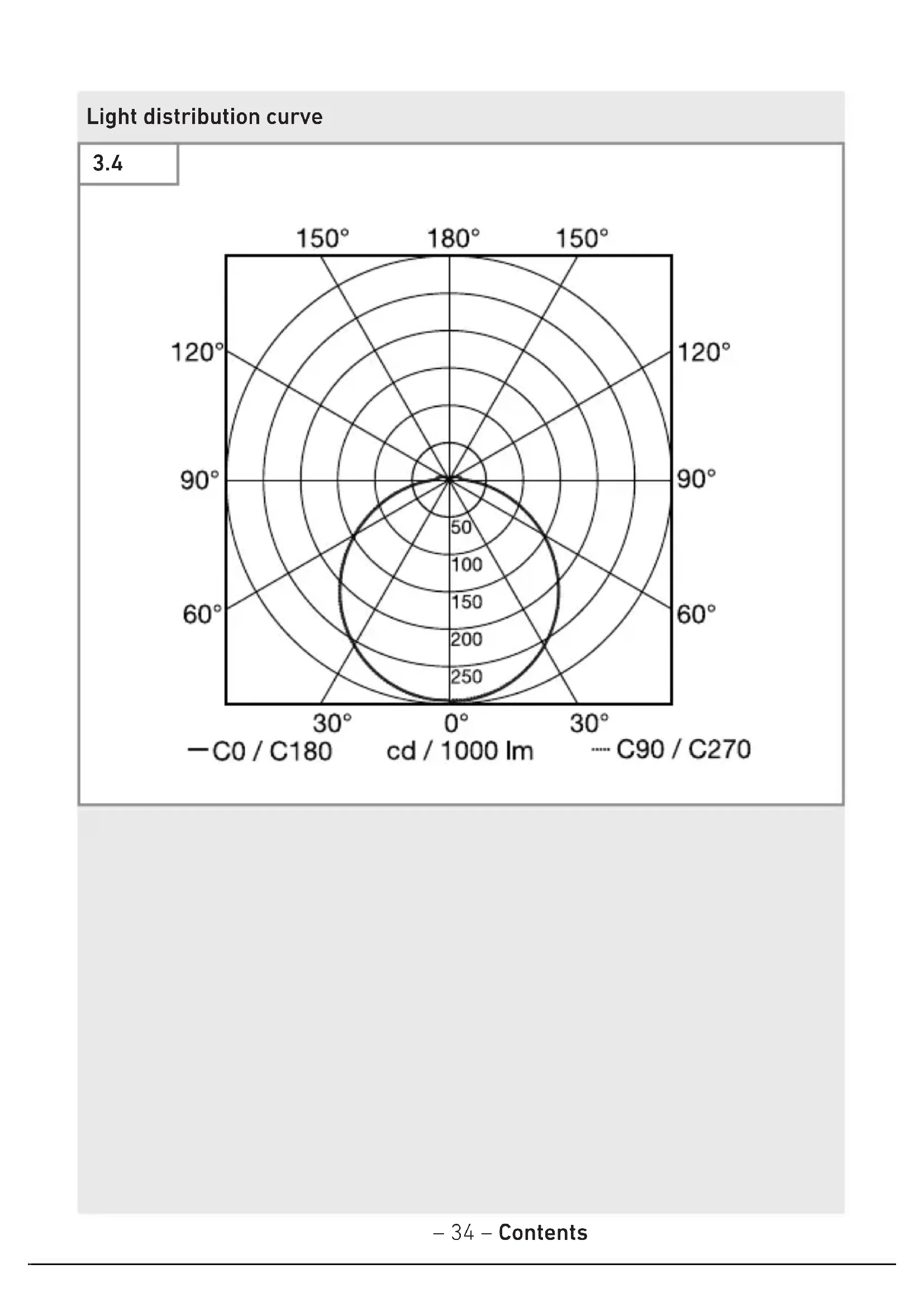

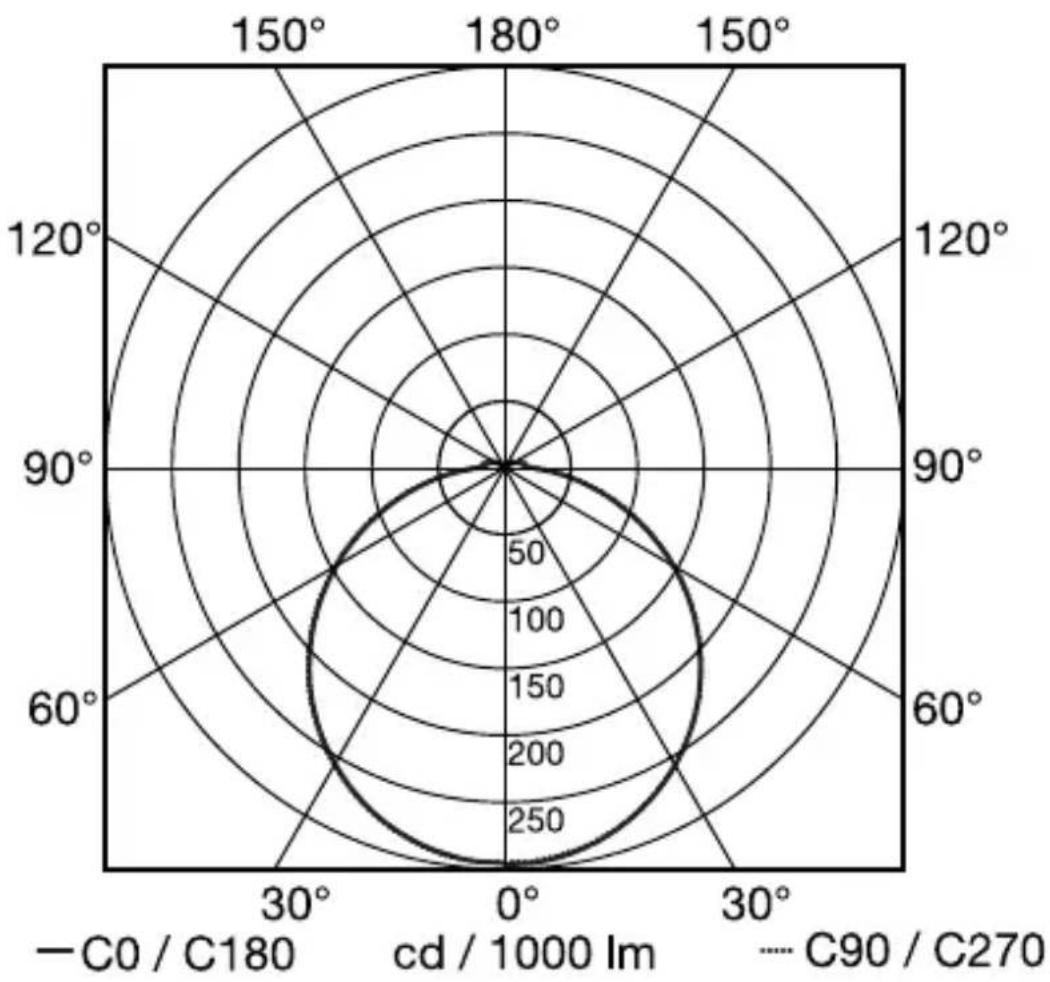

Light distribution curve

3.4

4. Electrical connection

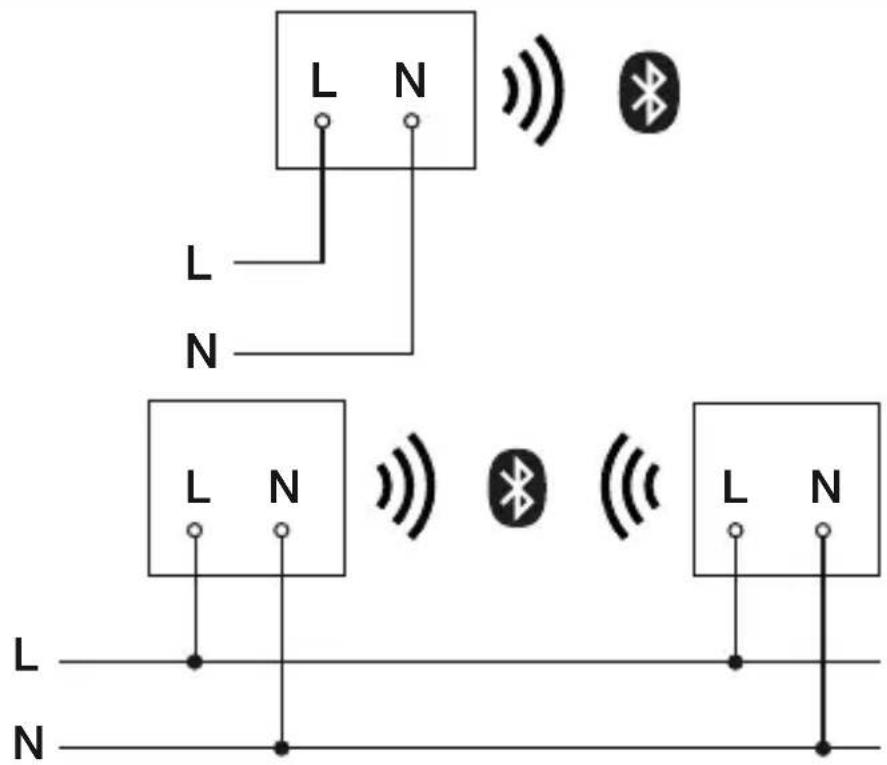

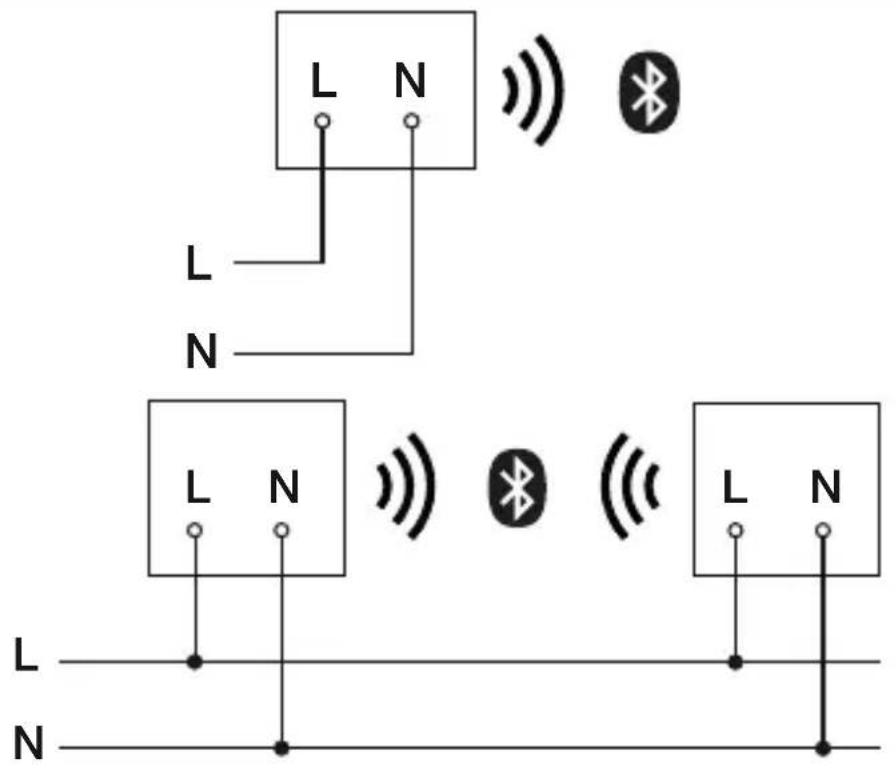

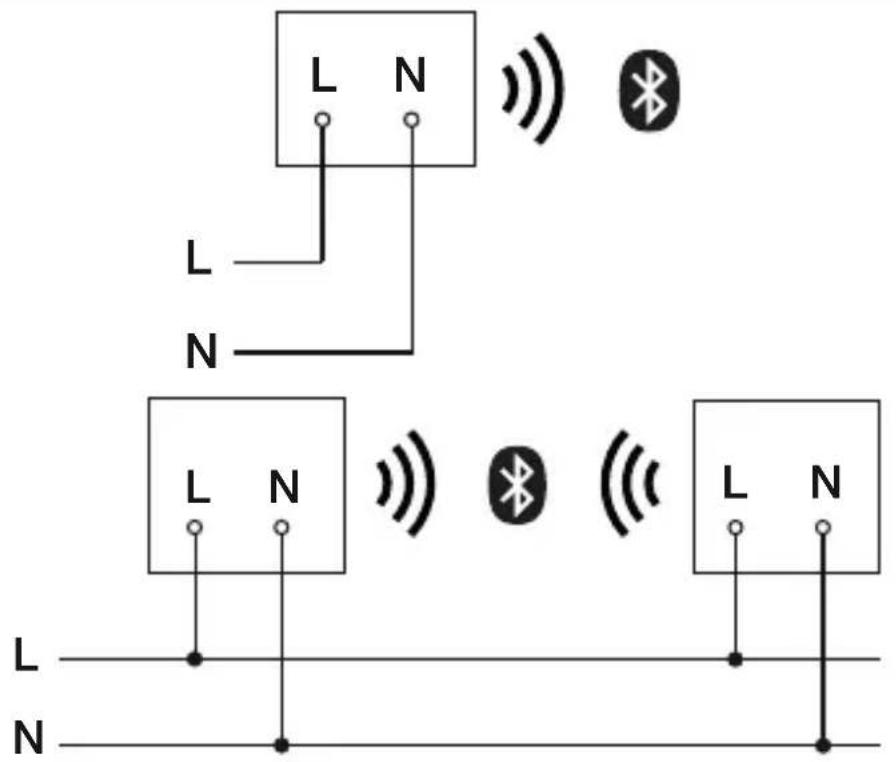

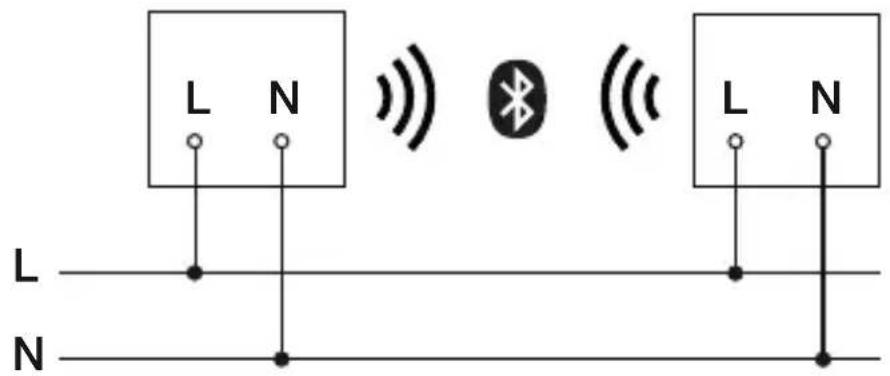

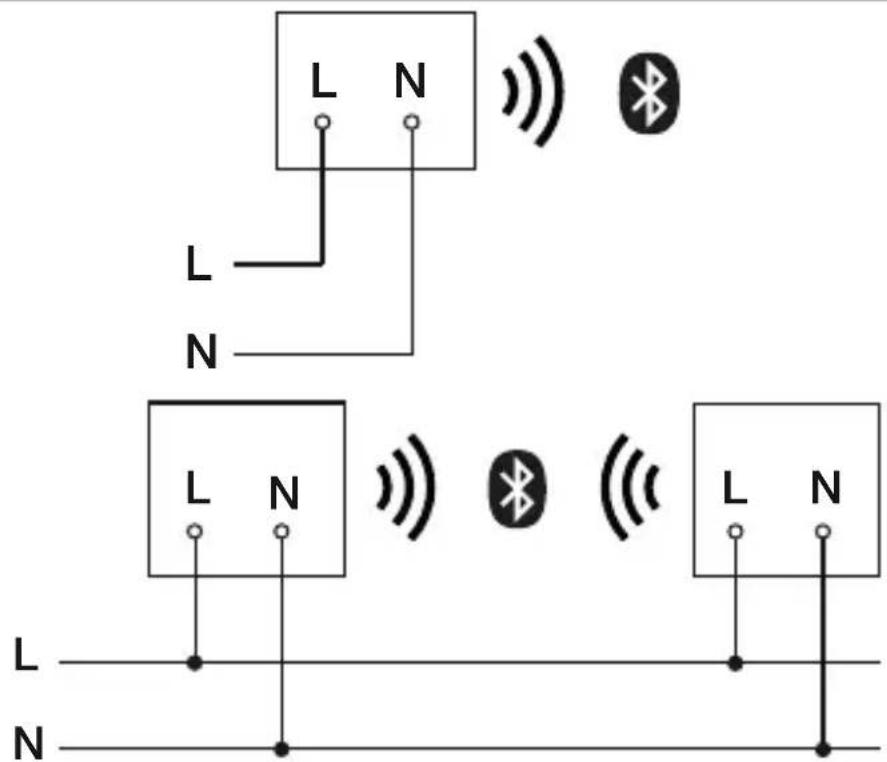

Circuit diagram

4.1

Safety warning symbol and electrical switch diagram with lightning bolt and switch mechanism

L N N L N L N L N N

The mains supply lead is a 2-core cable:

L = phase conductor (usually black, brown or grey) N = neutral conductor (usually blue)

The luminaire can also be connected to the power supply downstream of a mains switch if it is ensured that the mains switch is left ON all the time.

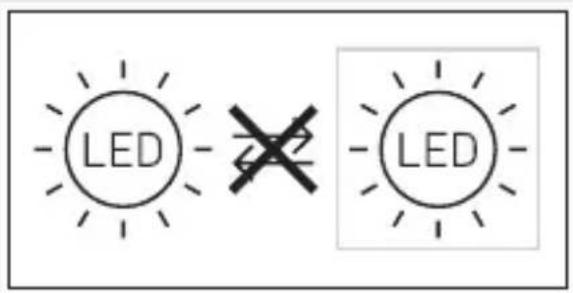

The light source of this luminaire cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete luminaire must be replaced.

LED LED

5. Installation

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure that the power supply is disconnected.
• Make sure power supply remains interrupted.

Risk of damage to property!

Mixing up connection leads may produce a short circuit.

• Identify connection leads.
• Connect the leads correctly.

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.
• Select an appropriate site to install the product.
• Take reach into consideration.
• Take reach and motion detection into consideration.
• Vibration-free.
• No obstacles in detection zone.
• Not in explosive atmospheres.
• Not on normally flammable surfaces.
• Do not look into the light source from a short distance (< 30 cm).
• Spaced at a distance of at least 50 cm from other LED luminaires.
• Do not cover the luminaire with thermal insulation materials.

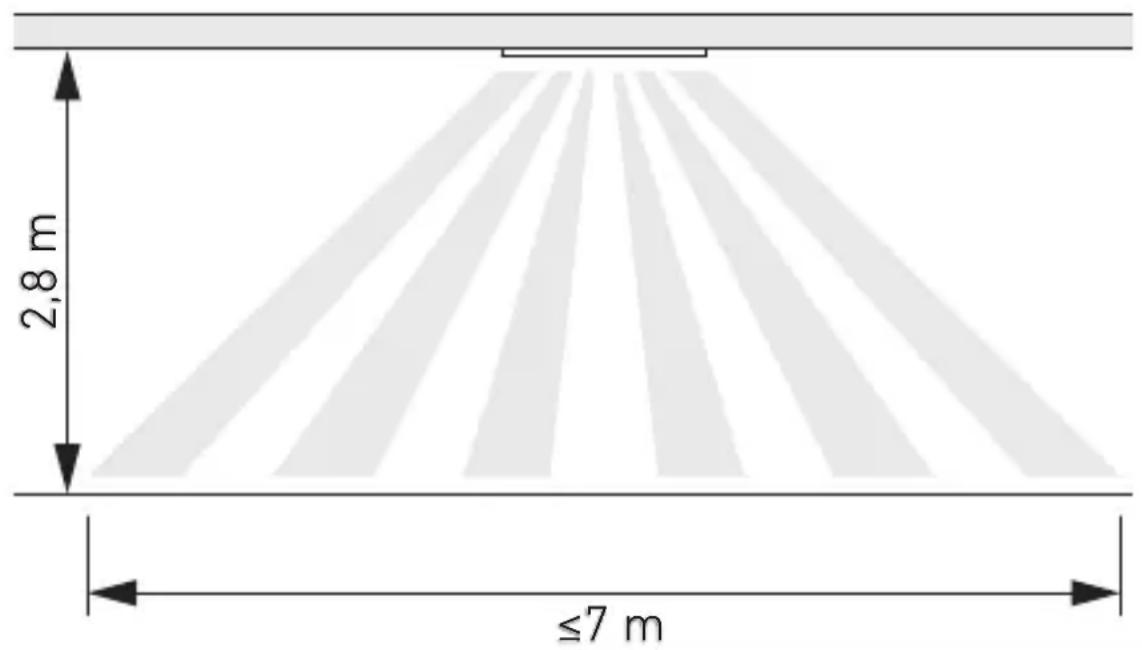

Reach, recessed mounting

5.1

2,8 m ≤7 m

Detecting motion across the direction in which a person walks - recessed mounting

5.2

≤1 m

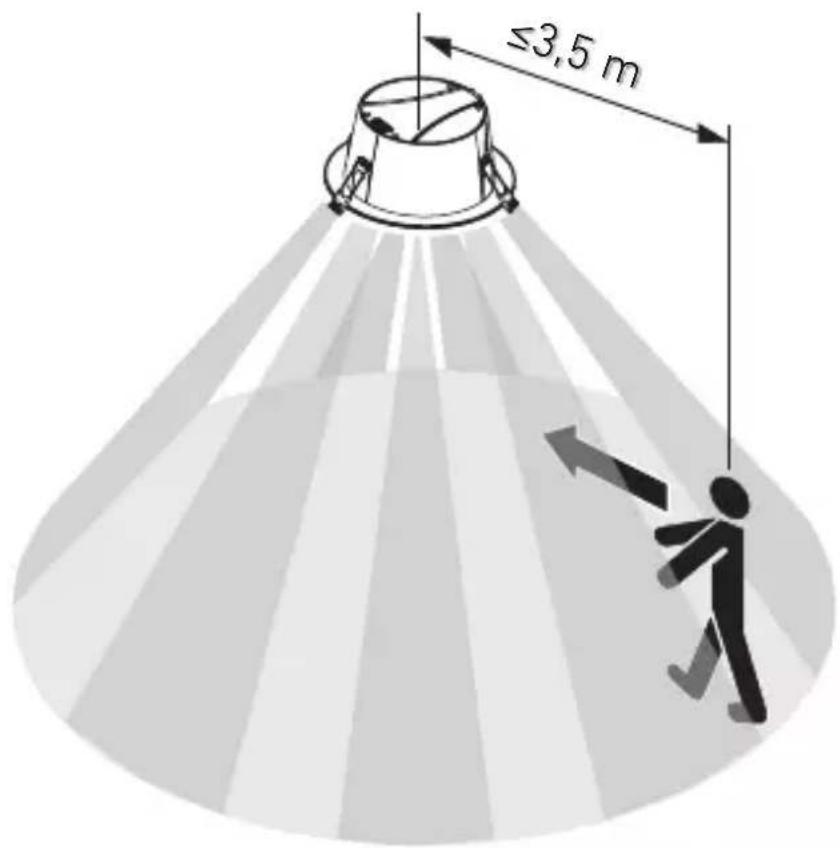

Detecting motion in the direction in which a person walks - recessed mounting

5.3

≤3,5 m

Mounting procedure

5.4

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating direction (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow indicating vertical dimension (no text or symbols)

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

• Check to make sure the power supply is switched OFF.

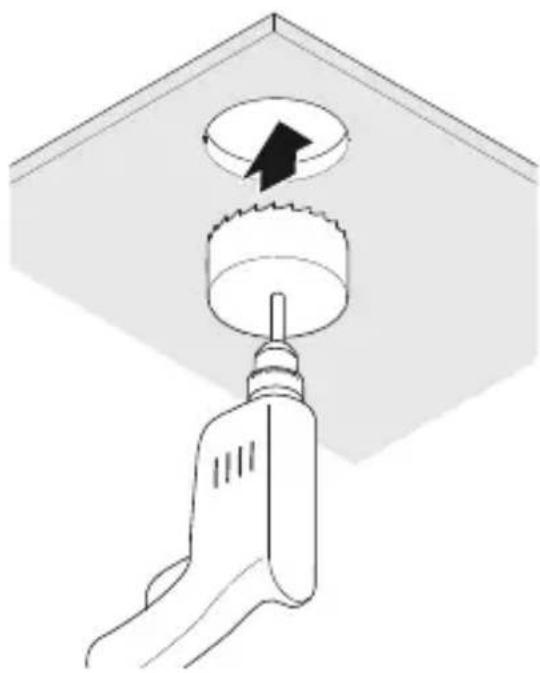

• Drill a hole.

5.5

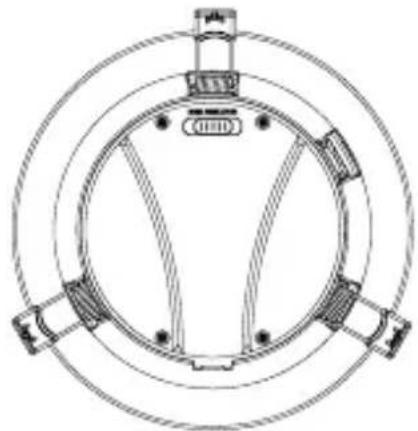

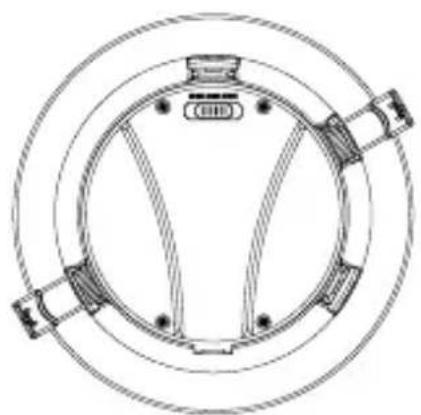

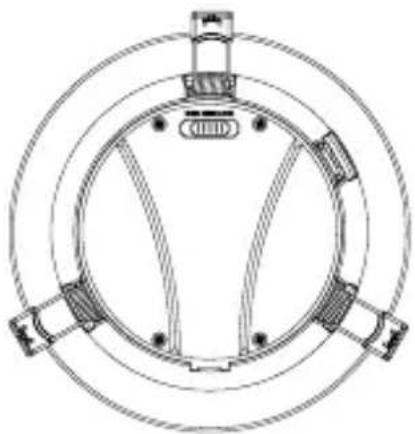

Spring clips usage:

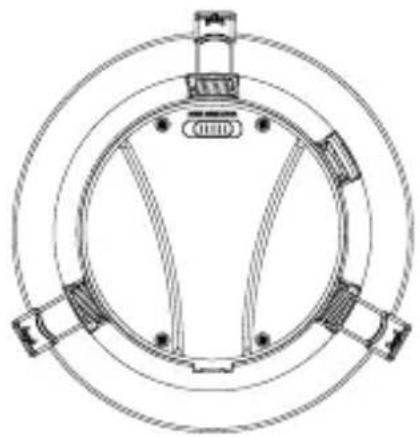

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

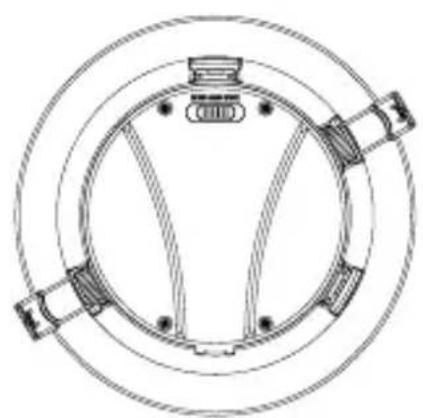

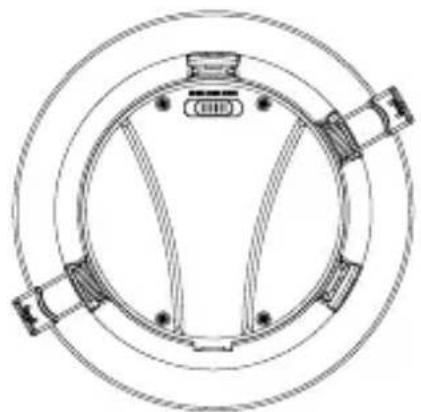

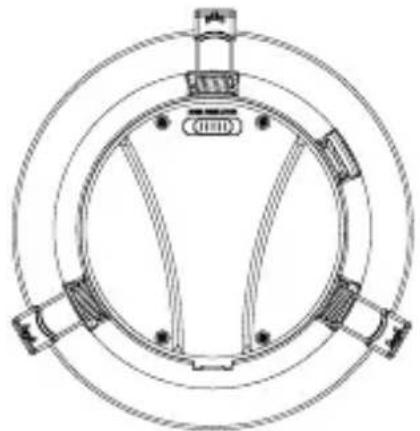

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

- Decide about amount of the mounting springs.

Warning: It is not possible to remove the mounting spring after the first installation.

5.6

click

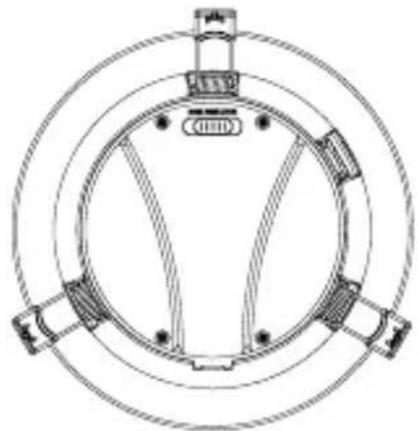

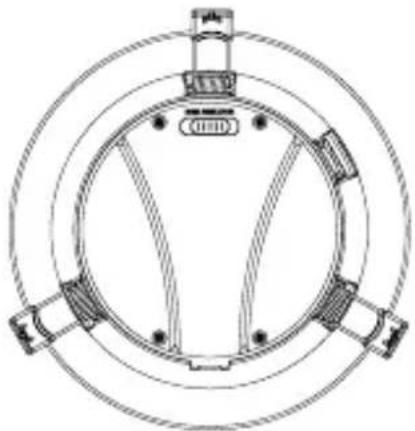

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

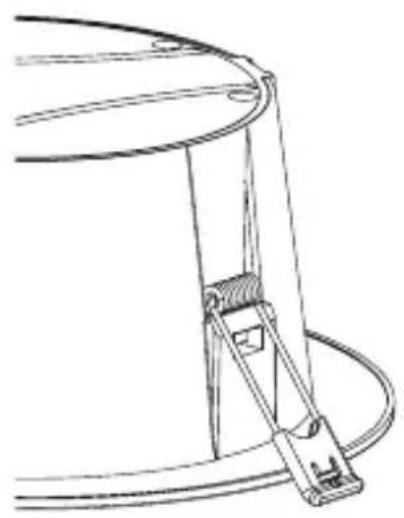

- Press the mounting spring to the correct position.

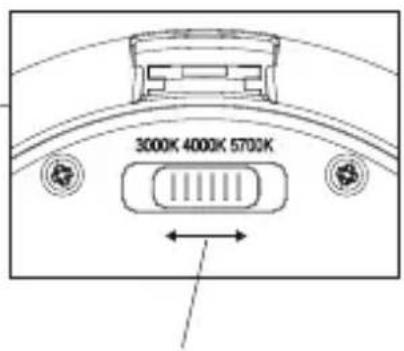

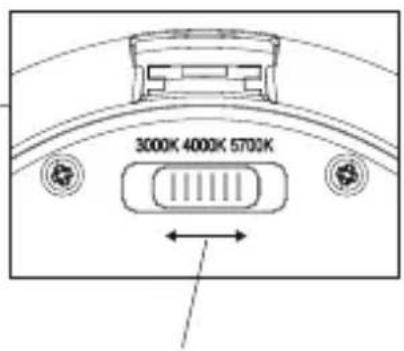

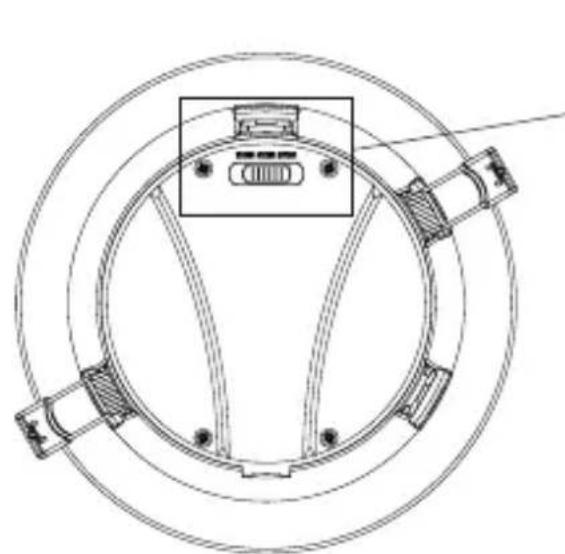

5.7

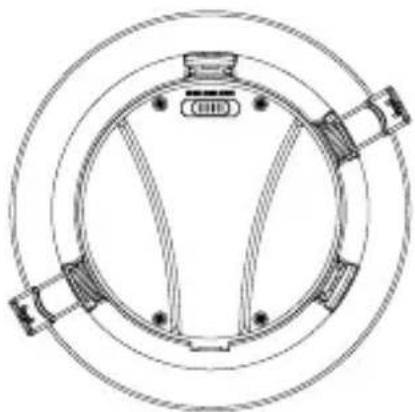

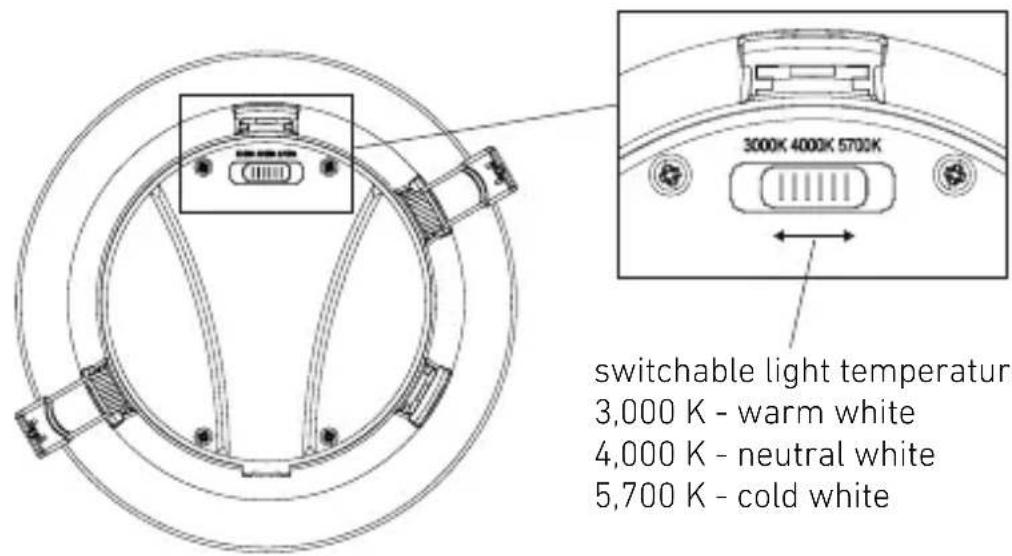

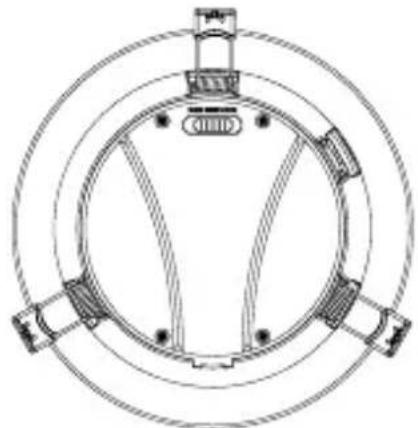

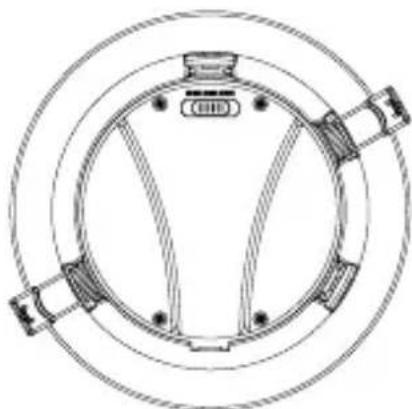

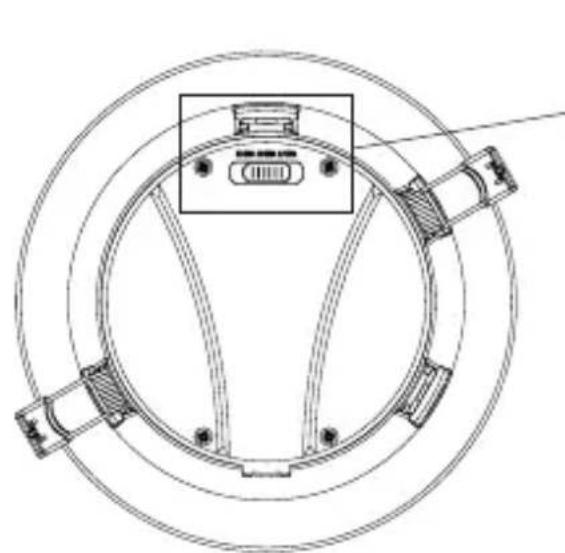

Technical line drawing of a circular mechanical component with internal connectors and mounting holes (no text or symbols)

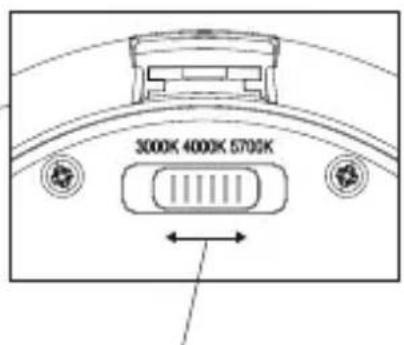

3000K 4000K 5700K

switchable light temperature

3,000 K - warm white

4,000 K - neutral white

5,700 K - cold white

- Move the switch according to the required color temperature.

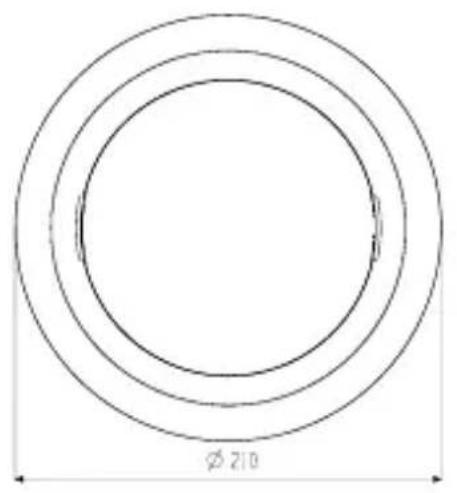

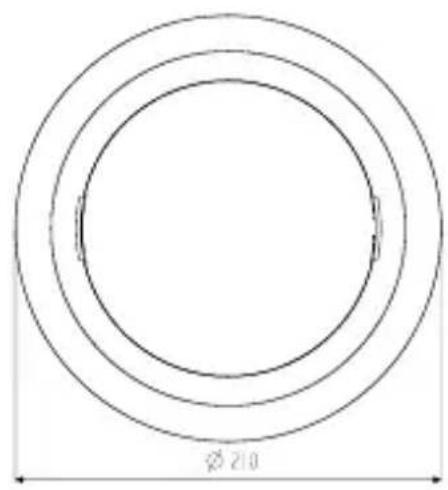

Technical drawing of concentric circular rings with diameter dimension labeled (no text or symbols beyond the dimension label)

φ154.5 43,7

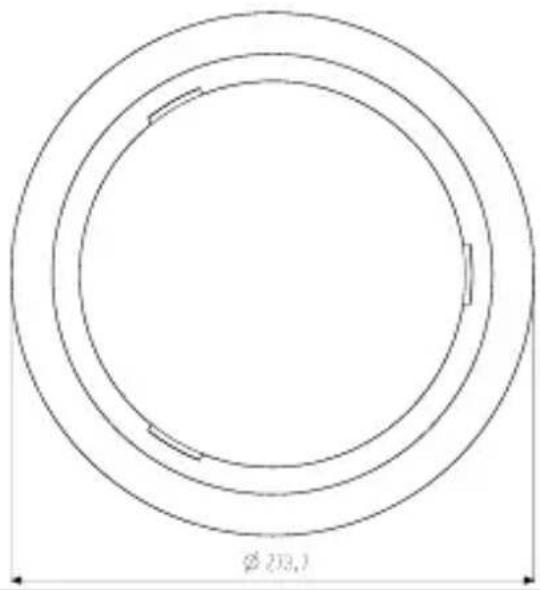

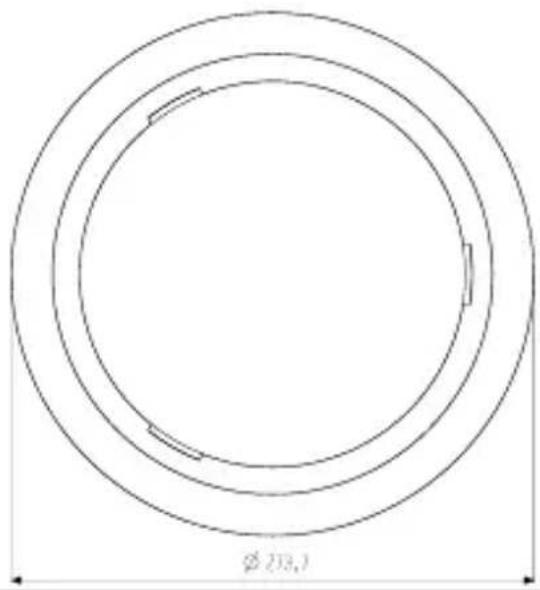

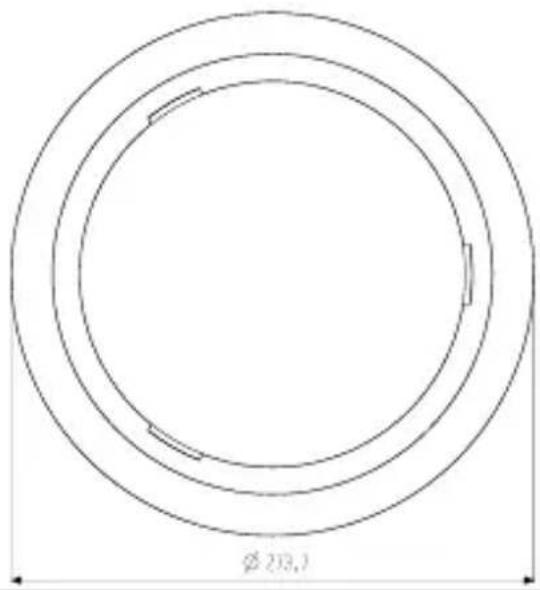

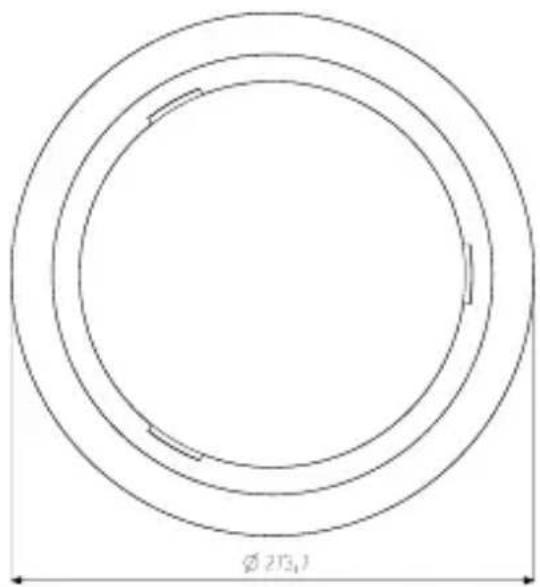

Adapter ring DL 200 SC

Technical drawing of concentric circular rings with a dimension label (Ø 203,1) at the bottom, no other text or symbols present.

φ213.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow indicating vertical dimension (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

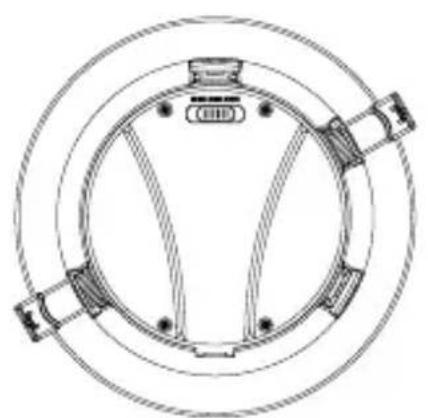

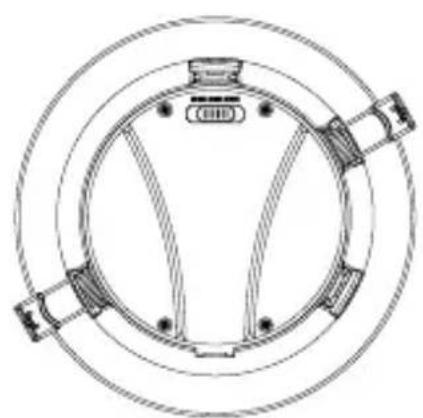

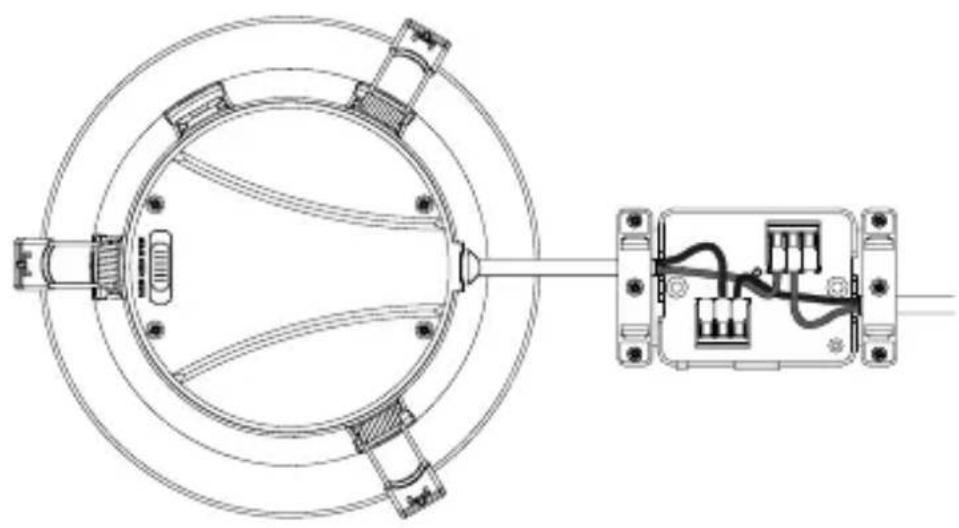

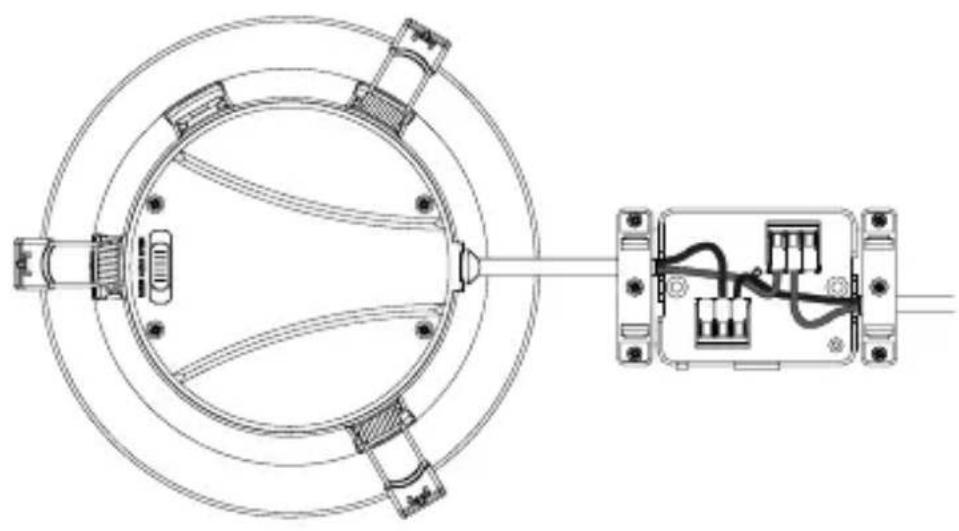

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

- Connect mains power supply lead as shown in the wiring diagram. "4. Electrical connection"

5.10

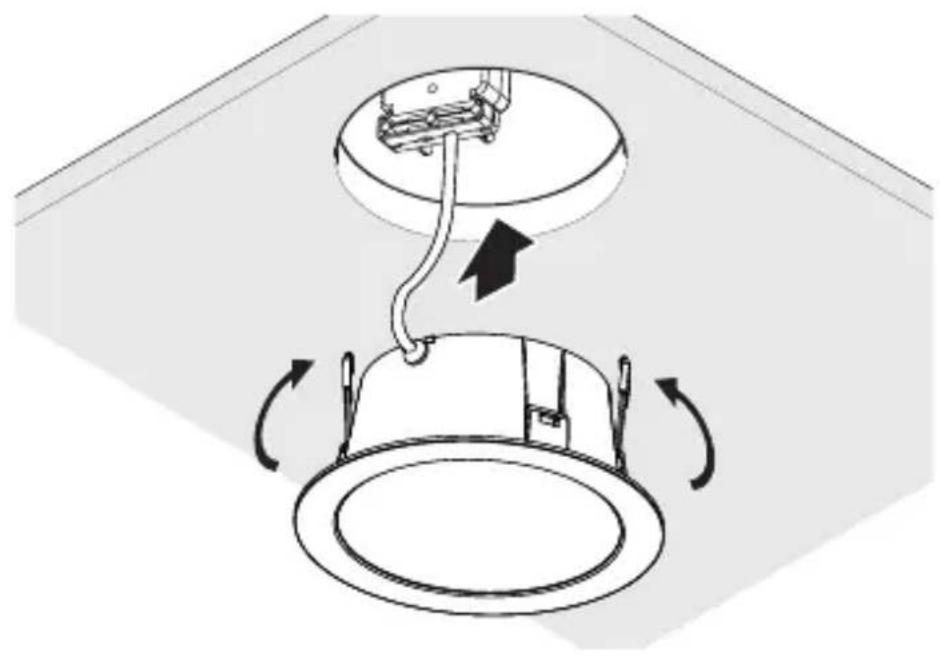

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

- Mount the luminaire into a ceiling.

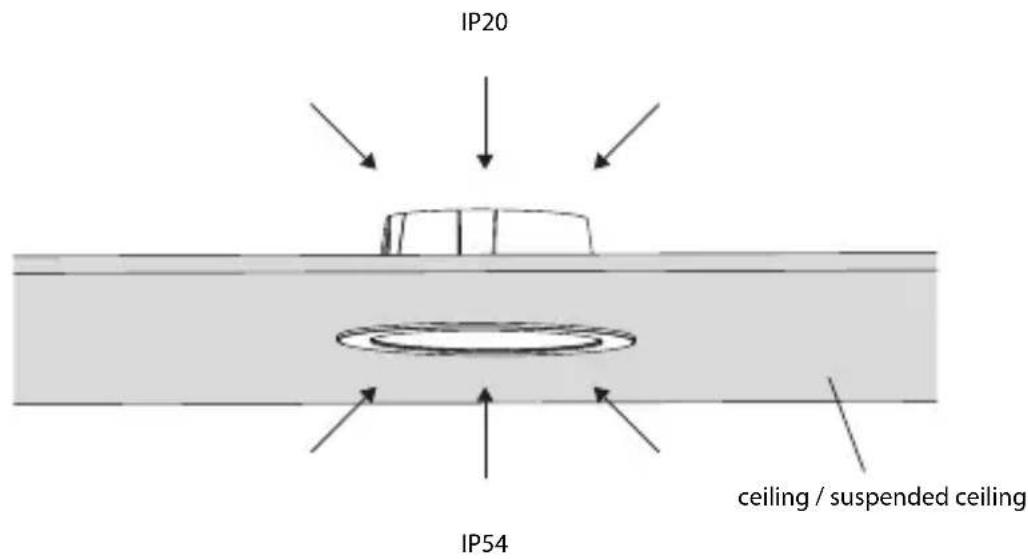

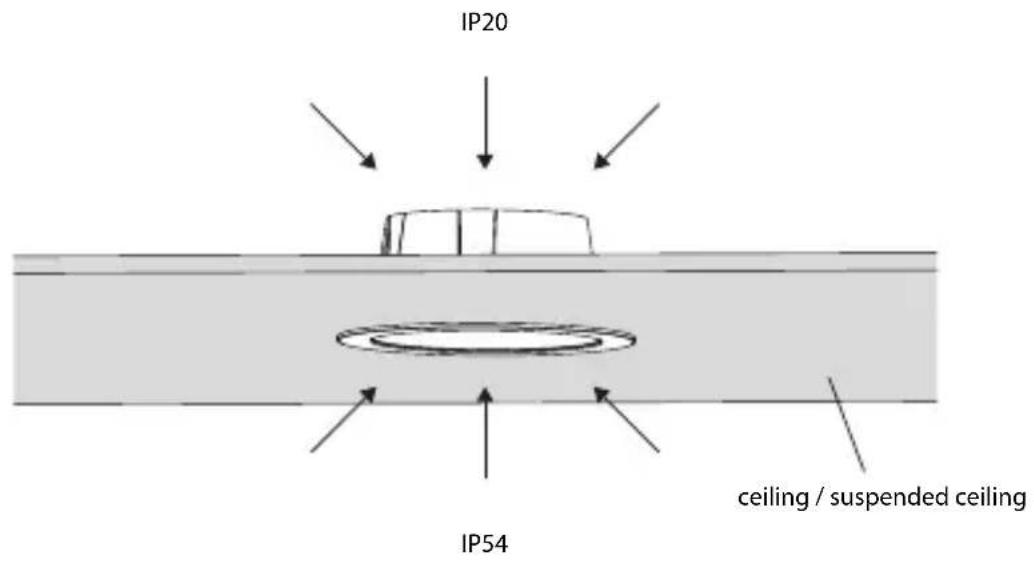

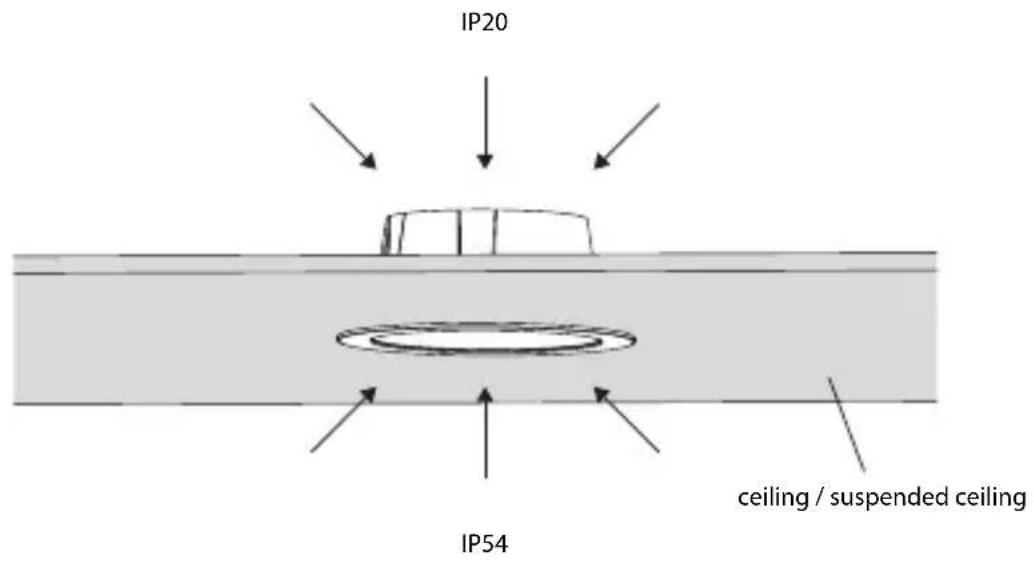

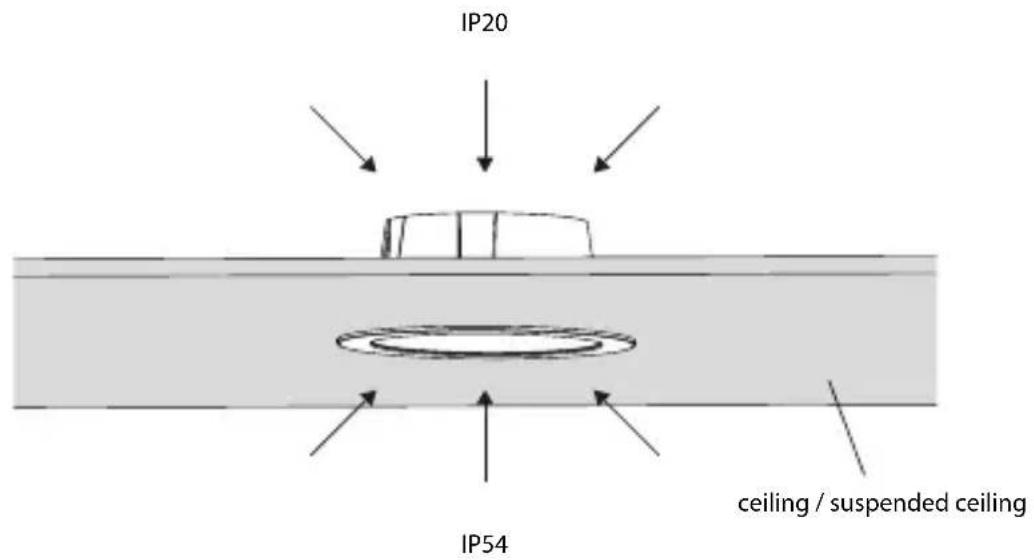

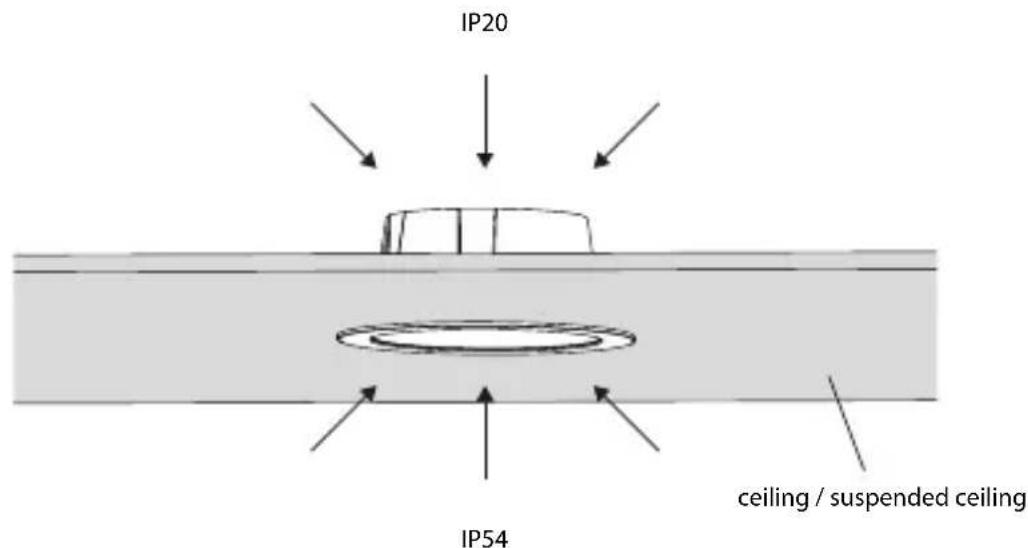

IP rating

5.11

IP20 IP54 ceiling / suspended ceiling

IP20 - in-ceiling side

IP54-room side

Do not cover the luminaire with thermal insulation materials!

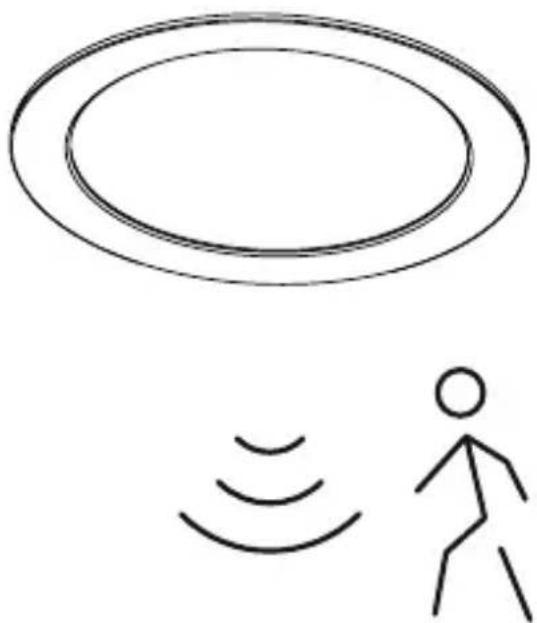

5.12

Safety warning symbol and electrical hazard symbol with lightning bolt and switch icon

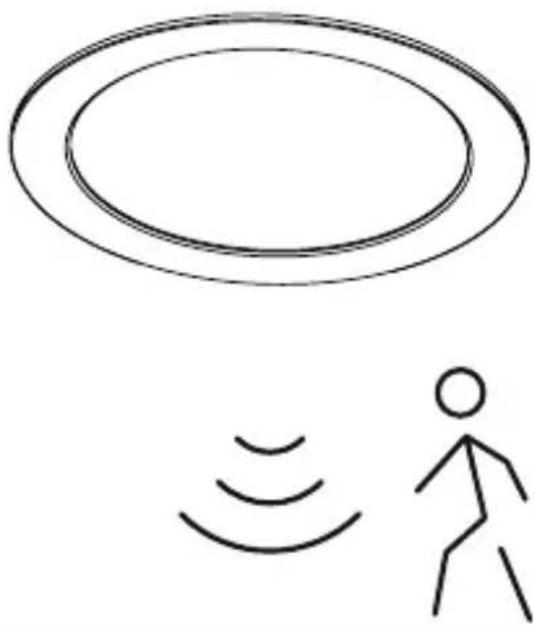

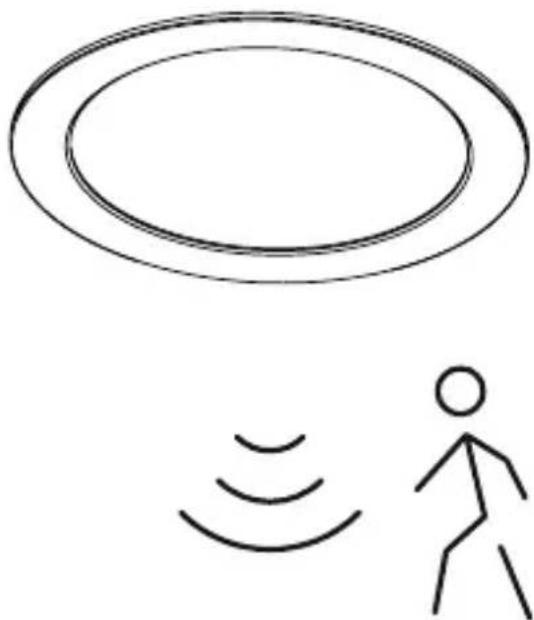

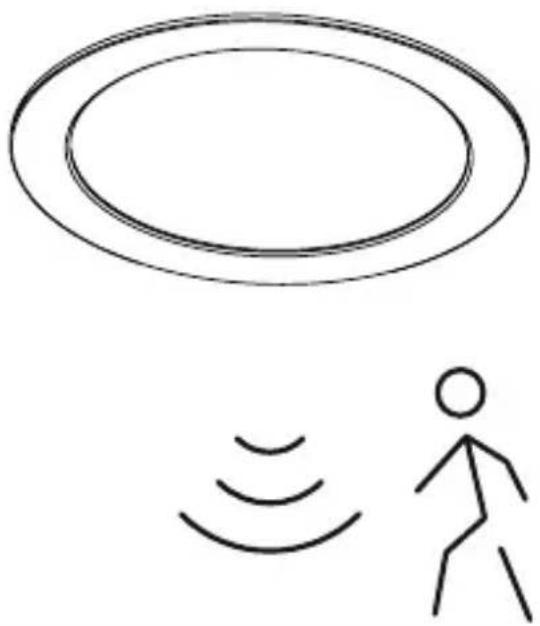

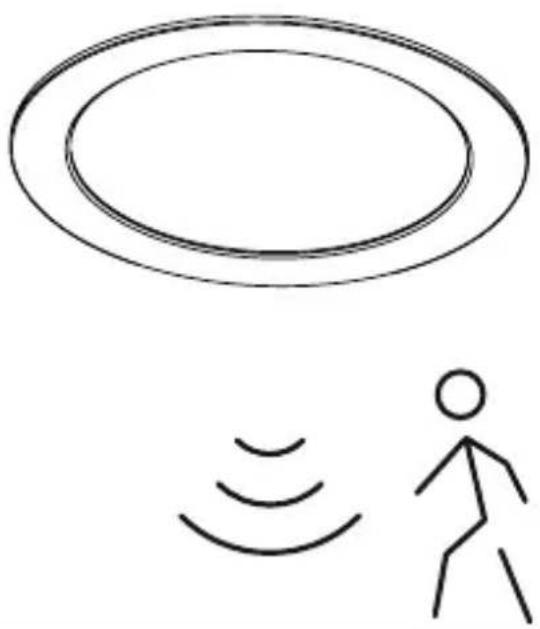

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

- Switch ON power supply.

- Make settings via app.

→ "6. Function"

6. Function

Functions are set via the Steinel Connect app.

Steinel Connect app

To configure the luminaire via smartphone or tablet, you must download the STEINEL Connect app from your app store.

You will need a Bluetooth-capable smartphone or tablet.

Android iOS

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Functions that can be set via the Steinel Connect app:

• Time setting.
• Reach setting.
  – Twilight setting.
  – Basic light level function.
• Main light / basic light level adjustable.
• Extended reach adjustment.
• Group interconnection.
  – Twilight setting by teach-in.

Note:

To rule out malfunctioning, a minimum distance of 3 m must be allowed from the Wi-Fi router and the access points.

Factory settings (state on leaving the factory)

Reach: max.

Main light time setting: 10 sec.

Basic light time setting: 1 min.

Twilight level: 2,000 lux

Basic light dimming level: 50 %

Commissioning / power interruption

The settings and current operating status of the LED luminaire are saved automatically in the event of power failure or disconnection from the power supply. Settings are reactivated as soon as the mains power supply is restored.

Reach setting (sensitivity)

Reach is the term used to describe the diameter of the more or less circular detection zone produced on the ground after mounting the sensor luminaire at a height of 2.8 m.

• Set to maximum = max. reach (3,5 m)
• Set to minimum = min. reach (1 m)

Time setting

The time (stay-ON time) can be set to any period from approx. 5 seconds to a maximum of 60 minutes. Every movement detected re-activates the luminaire.

Note:

After the unit switches OFF, it takes approx. 1 second before it is able to start detecting movement again. The unit can then switch ON again in response to movement.

The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

Twilight setting

The response threshold (twilight) can be infinitely varied from approx. 2 to 2,000 lux.

= daylight mode (depending on ambient light level)
C = night-time operation (approx. 2 lux)

The control dial must be turned to *when adjusting the detection zone and performing the functional test in daylight.

Basic light level

The brightness of the basic light level setting can be varied between 1% and 50%.

The period for which the basic light level stays ON for can be infinitely varied between 10 minutes and 30 minutes, or set to remain ON all night.

Main light level

The brightness of the main light level setting can be varied between 50% and 100%.

Grouping

The unit can be operated as a separate luminaire or several luminaires can be interconnected in groups via wireless communication.

All luminaires belonging to a group operate in line with the group parameters set in the Steinel Connect app.

Reach can be set individually for all lights in the lighting group.

Fade time

Fade time can be used to set the rate of dimming on switching the light ON and OFF (1 s - 3 s).

Neighbouring-light function

The neighbouring-light function can be activated and deactivated via the Steinel Connect app.

This function assigns the neighbouring groups to the active lighting group. The active group responds to activation signals from the neighbouring group assigned to it and switches to main light or basic light as defined in the settings.

7. Maintenance and care

The tool requires no maintenance.

Hazard from electrical power.

Contact between water and live parts can result in electric shock, burns or death.

- Only clean tool in a dry state.

Risk of damage to property!

Using the wrong cleaning product can damage the light.

- Clean tool with a moist cloth without detergent.

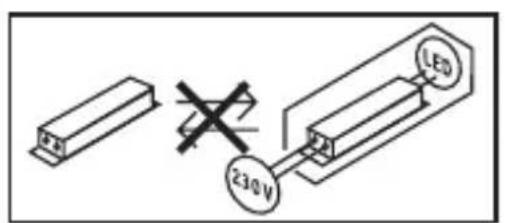

Important note: the control gear cannot be replaced.

230V LED

8. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Declaration of Conformity

STEINEL GmbH hereby declares that the RS PRO DL 150 SC and RS PRO DL 200 SC radio equipment type conforms to Directive 2014/53 EU. The full wording of the EU Declaration of Conformity is available for downloading from the following internet address: www.steinel.de

10. Manufacturer'swarranty

Manufacturer's warranty of STEINEL GmbH, Dieselstrasse 80-84, DE-33442 Herzebrock-Clarholz, Germany.

All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the customer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall cover all STEINEL Professional products sold and used in Germany.

Our warranty cover for consumers

The provisions below apply to consumers. A consumer is any natural person who, on entering into the purchase transaction, neither acts in exercising their commercial nor their self-employed activity.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.

In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased.

We shall bear the shipping costs but not the transport risks involved in return shipment.

Our warranty cover for entrepreneurs

The provisions below apply to entrepreneurs. Entrepreneur is a natural or legal person or partnership with legal personality who or which, on entering into the purchase transaction, acts in exercising their or its commercial or self-employed activity.

We have the option of providing warranty cover by rectifying deficiencies free of charge, replacing a product free of charge (if applicable, in the form of a successor model of the same or higher quality) or by issuing a credit note.

In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased.

Within the scope of warranty cover, we shall not bear your expenses accruing from subsequent fulfillment nor shall we bear your expenses for removing the defective product and installing a replacement product.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover:

• any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL Professional product that are attributable to wear caused by use or other natural wear,
• any improper or non-intended use of the product or any failure to observe the operating instructions,
• any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory, supplementary or replacement parts which are not genuine STEINEL parts,
• any maintenance or care of products that is not carried out in accordance with the operating instructions,
• any attachment or installation that is not in accordance with STEINEL's installation instructions,
• any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom.

For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

11. Technicalspecifications

- Dimensions ( × D ): RS PRO DL 150 SC: 174 x 73 mm

RS PRO DL 200 SC: ∅230 x 73 mm

- Power supply: AC: 220 - 240 V\~, 50/60 Hz

DC: 186 - 250 VDC

- Power consumption ( P_on ):

RS PRO DL 150 SC (3,000/4,000/5,700 K): 10.8 W

RS PRO DL 200 SC (3,000/4,000/5,700 K): 17.3 W

- Power factor: RS PRO DL 150 SC: 0.93

RS PRO DL 200 SC: 0.96

- Declared emergency output factor EOF1: 0.9

- Input current: RS PRO DL 150 SC: 50 mA

- Luminous flux (360°):

RS PRO DL 150 SC (3,000/4,000/5,700 K): 1,109/1,177/1,137 lm

RS PRO DL 200 SC (3,000/4,000/5,700 K): 1,996/2,170/2,088 lm

- Efficiency:

RS PRO DL 150 SC (3,000/4,000/5,700 K): 102.7/109.0/105.3 lm/W

RS PRO DL 200 SC (3,000/4,000/5,700 K): 115.4/125.4/120.7 lm/W

- Colour temperature: 3,000/4,000/5,700 K (adjustable)

- Colour rendering index: R_a=82

- Rated average lifetime: L70B50 at 25°C: >60,000 hrs.

- Colour consistency SDCM: Initial value: 3

– Luminous intensity distribution:

- Angle of coverage: 360^

- Transmitter power approx: 1 mW

- Reach: max. ∅ 7 m

- Time setting: 5 s - 60 min

– Twilight setting: 2 - 2000 lux
- IP rating: IP20
- IP rating room side: IP54
- Protection class: II
- Ambient temperature: -20 to +40°C
- Energy efficiency class: this product contains an
energy efficiency class "E" light source

12. Troubleshooting

Unit without power.

- Fuse not switched ON or faulty.

• Switch ON fuse.
• Change faulty fuse.

- Break in wiring.

- Check wiring with voltage tester.

- Short circuit in mains power supply lead.

- Check connections.

- Any mains switch OFF

- Switch ON mains switch.

Unit does not switch ON.

- Wrong twilight setting selected.

- Reset twilight setting.

- Mains switch OFF.

- Turn on mains switch.

- Fuse not switched ON or faulty.

• Switch ON fuse.
• Change faulty fuse.

– Rapid movements being suppressed to minimise malfunctioning or detection zone too small or incorrectly defined.

- Check and adjust detection zone.

– Light source faulty.

- The light source cannot be changed. Completely replace unit.

Unit does not switch OFF.

- Continued movement within the detection zone.

• Check detection zone.
• If necessary, limit or change detection zone.

Unit switches ON when it should not.

– Recessed light not mounted for detecting movement reliably.

- Securely mount recessed light.

- Movement occurred but not identified by the observer (movement behind wall, small object moving in immediate proximity of lamp etc.).

• Check detection zone.
• If necessary, limit or change detection zone.

FR

Sommaire

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

- 1 applique LED

4.1 L N L N L N L N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating the direction (no text or symbols present)

Simple 3D diagram of a cylinder with a horizontal double-headed arrow below (no text or symbols)

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

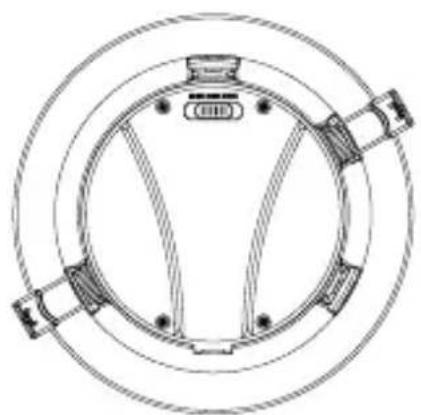

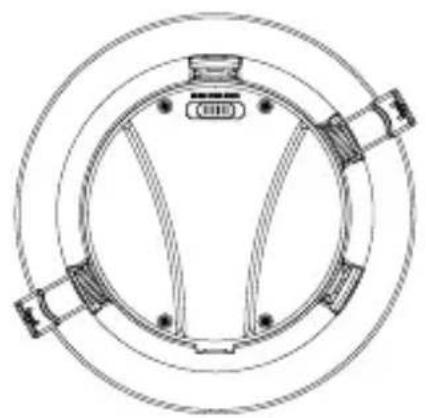

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a spring-like bracket (no text or symbols)

Simple concentric circular diagram with diameter dimension labeled as Ø210 (no text or symbols beyond the label)

φ154.5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (no text or symbols beyond the drawing)

φ213.2 φ17

Simple 3D diagram of a cylinder with a double-headed arrow indicating vertical dimension (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with lightning bolt and switch icon

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and internal compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

- 1 led-lamp

Safety warning symbol and electrical switch diagram with lightning bolt and I/O labels

L N N L N L N L N N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a circular mechanical component with internal connectors and mounting holes (no text or symbols)

3000K 4000K 5700K

switchable light temperature

3,000 K - warm white

4,000 K - neutral white

5,700 K - cold white

Simple line drawing of concentric circles with diameter标注 (no text or symbols beyond the dimension label)

Ø154,5 43,7

Adapter ring DL 200 SC

Ø 203.1

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow indicating vertical dimension (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp installation showing internal components and airflow direction (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a circular container with a handle and internal compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

- 1 lampada LED

Electrical hazard symbol and electrical switch diagram with current direction arrow

L N N L N L N L N N

Illustration of a hand using a tool to lift a cylindrical component, with a black arrow indicating the direction (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a circular mechanical component with internal connectors and mounting holes (no text or symbols)

3000K 4000K 5700K

switchable light temperature

3,000 K - warm white

4,000 K - neutral white

5,700 K - cold white

Technical drawing of concentric circular rings with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

Ø154,5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (Ø 203,1) at the bottom (no text or symbols on the diagram itself)

φ213.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp installation showing internal components and airflow direction (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side supports (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

Simple line drawing of a mechanical device with spring and handle (no text or symbols)

3x

- 1 lámpara LED

Safety warning symbol and electrical switch diagram with lightning bolt and I/O labels

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Simple line drawing of concentric circles with diameter标注 (no text or symbols beyond the dimension label)

Ø154,5 43,7

Adapter ring DL 200 SC

Technical drawing of concentric circular rings with a dimension label (Ø 203,1) at the bottom, no other text or symbols present.

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with lightning bolt and switch icon

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

- 1 armadura LED

L N N L L N N L N L N

Diagram of a hand holding a screwdriver with a circular component inserted into a ceiling (no text or symbols)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and central hub (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a spring-loaded bracket (no text or symbols)

Technical drawing of concentric circles with diameter dimension labeled (no text or symbols beyond the dimension label)

φ154.5 43.7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (no text or symbols beyond the drawing area)

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up of internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

• Montar armadura no teto

Grau de proteção

5.11

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal slots (no text or symbols)

3x

3x

- 1 LED-armatur

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N L N

L N L N

Illustration of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a spring-like bracket (no text or symbols)

Simple line drawing of concentric circles with diameter标注 (no text or symbols beyond the dimension label)

Ø154,5 43,7

Adapter ring DL 200 SC

Ø 203.1

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

• Montera armaturen i taket.

Skyddsklass

5.11

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with lightning bolt and switch icon

Simple line drawing of a human figure with sound waves and an elliptical ring above it, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

Simple line drawing of a mechanical lever or support structure (no text or symbols)

3x

- 1 LED-lampe

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N L N

L N L N N

Diagram of a hand using a tool to lift a ceiling-mounted screw, showing the needle and gear shift (no text or symbols)

Simple 3D diagram of a cylinder with a double-headed arrow indicating vertical dimension (no text or symbols)

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

- Skub monteringsfjederen til den korrekte position.

5.7

switchable light temperature 3,000 K - warm white 4,000 K - neutral white 5,700 K - cold white

Simple line drawing of concentric circles with diameter标注 (no text or symbols beyond the dimension label)

Ø154,5 43,7

Adapter ring DL 200 SC

Ø 203.1

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm

Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a separate inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp installation showing internal components and airflow direction (no text or symbols)

• Monter lampen i loftet.

Kapslingsklasse

5.11

IP20 IP54 ceiling / suspended ceiling

IP20 - side inde i loftet IP54 - side inde i lokalet

Electrical hazard symbol and electrical switch diagram with current direction arrow

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal channels (no text or symbols)

3x

3x

- 1 LED-valaisin

Safety warning symbol and electrical switch diagram with lightning bolt and I/O labels

L N N L N L N L N N

Diagram of a hand holding a tool with a circular component inserted into a ceiling fixture (no text or symbols)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a spring-like bracket (no text or symbols)

Technical drawing of concentric circular rings with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

Ø154,5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (no text or symbols beyond the drawing annotation)

φ212.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

- Valaisimen asentaminen kattoon.

Kotelointiluokka

5.11

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a circular container with a handle and internal compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal slots (no text or symbols)

3x

3x

- 1 LED-lampe

• 1 koblingsboks
• 3 monteringsfjær
  -3 tilkoblingsklemmer
• 1 sikkerhetsdatablad (A)
• 1 hurtigstart-guide (B)

Produktmål

3.2 RS PRO DL 150 SC

Ø174 mm 73 mm

Ø138 mm

RS PRO DL 200 SC

Ø230 mm 73 mm

Ø189 mm

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical drawing of concentric circles with diameter dimension labeled (no text or symbols beyond the dimension label)

φ154.5 43.7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (no text or symbols beyond the drawing area)

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

• Monter lampen i taket.

Kapslingsgrad

5.11

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and an elliptical ring above it (no text or symbols)

- Slå på strømforsyningen.

- Foreta innstillinger via app.

→ "6. Funksjon"

6. Funksjon

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Start-Up/strømavbrudd

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

Safety warning symbol and electrical switch diagram with lightning bolt and current direction indicator

L N N L N L N L N N

Diagram of a hand holding a screwdriver inserted into a ceiling socket (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm

DL 200: ø 190-210 mm

5.5
Spring clips usage:
Ceiling thickness more than 10 mm 2 spring clips
Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a spring-like bracket (no text or symbols)

Technical line drawing of a circular mechanical component with internal connectors and mounting holes (no text or symbols)

3000K 4000K 5700K

switchable light temperature

3,000 K - warm white

4,000 K - neutral white

5,700 K - cold white

Technical drawing of concentric circular rings with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

Ø154,5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (Ø 203,1) at the bottom (no text or symbols within the diagram itself)

φ213.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

- 1 LED lamba

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting flanges (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a spring-like bracket (no text or symbols)

Technical drawing of concentric circles with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

φ154.5 43,7

Adapter ring DL 200 SC

Ø 203.1

φ213.2 41.7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and an elliptical ring above it, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal channels (no text or symbols)

3x

Simple line drawing of a mechanical lever or support structure (no text or symbols)

3x

- 1 LED-lámpa

Safety warning symbol and electrical switch diagram with lightning bolt and I/O labels

L N N L N L N L N N

Diagram of a hand using a screwdriver to lift a ceiling fixture with a circular vent (no text or symbols)

Simple 3D diagram of a cylinder with a double-headed arrow indicating vertical dimension (no text or symbols)

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with a curved component and clamping bracket (no text or symbols)

Technical drawing of concentric circular rings with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

Ø154,5 43,7

Adapter ring DL 200 SC

Technical drawing of concentric circular rings with a dimension label (Ø 203,1) at the bottom, no other text or symbols present.

φ212.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a separate inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp installation showing internal components and airflow direction (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Electrical hazard symbol and electrical switch diagram with current direction arrow

Simple line drawing of a human figure with sound waves and an elliptical ring above it (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal slots (no text or symbols)

3x

3x

- 1 svítidlo LED

Safety warning symbol and electrical hazard symbol with Chinese characters

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm

DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting flanges (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical line drawing of a circular mechanical component with internal connectors and mounting holes (no text or symbols)

3000K 4000K 5700K

switchable light temperature

3,000 K - warm white

4,000 K - neutral white

5,700 K - cold white

Technical drawing of concentric circular rings with diameter dimension labeled (no text or symbols beyond the dimension label)

Ø154,5 43,7

Adapter ring DL 200 SC

Ø 203.1

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

- Namontovat svítidlo na strop.

Krytí

5.11

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with lightning bolt and switch icon

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a circular container with a handle and internal compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

- 1 LED svietidlo

Safety warning symbol and electrical switch diagram with lightning bolt and current direction indicator

L N N L L N N L N L N

Diagram of a hand holding a screwdriver with a circular component inserted into a ceiling fixture (no text or symbols)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

- Zistite, kol'ko montážnych pružín treba použit.

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical drawing of concentric circular rings with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

φ154.5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (Ø 203,1) at the bottom (no text or symbols on the diagram itself)

φ213.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

- Namontujte svietidlo na strop.

Krytie

5.11

IP20 IP54 ceiling / suspended ceiling

IP20 – strana vnútri stropu

IP54 – strana v rámci miestnosti

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and internal compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal slots (no text or symbols)

3x

3x

- 1 lampa LED

Safety warning symbol and electrical switch diagram with lightning bolt and I/O labels

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical line drawing of a circular mechanical component with internal connectors and mounting holes (no text or symbols)

3000K 4000K 5700K

switchable light temperature

3,000 K - warm white

4,000 K - neutral white

5,700 K - cold white

Technical drawing of concentric circles with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

φ154.5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (Ø 203,1) at the bottom (no text or symbols on the diagram itself)

φ213.2 41,7

Simple 3D diagram of a cylinder with a horizontal double-headed arrow below (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and an elliptical ring above it, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

- 1 lampă cu LED

Safety warning symbol and electrical switch diagram with lightning bolt and current direction indicator

L N N L N L N L N N

Diagram of a hand holding a screwdriver inserted into a ceiling socket (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and central hub (no text or symbols)

- Stabiliti câte arcuri de montaj se vor folosi.

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical drawing of concentric circles with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

φ154.5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (Ø 203,1) at the bottom (no text or symbols on the diagram itself)

φ213.2 φ1.7

Simple 3D diagram of a cylinder with a horizontal double-headed arrow below (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp installation showing internal components and airflow direction (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

Simple line drawing of a mechanical lever or support structure (no text or symbols)

3x

- 1 LED-svetilka

• 1 priključna doza
• 3 montažne vzmeti
• 3 priključne spojke
• 1 varnostni list (A)
• 1 navodilo za hiter zagon (B)

Mere izdelka

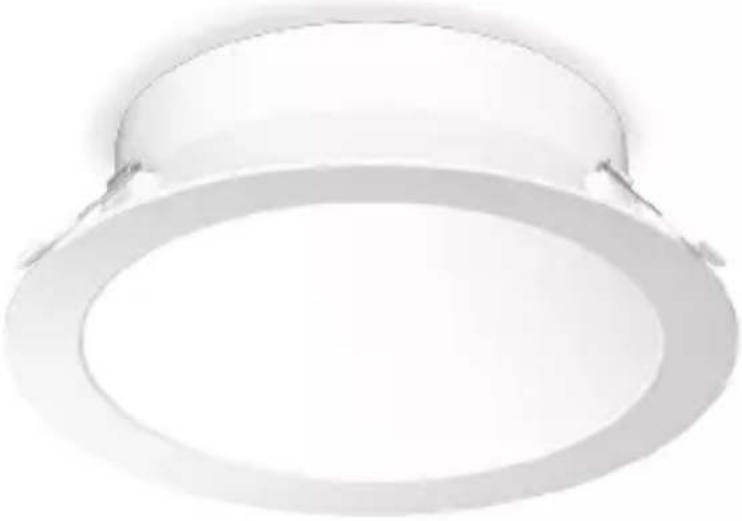

3.2 RS PRO DL 150 SC

Ø174 mm 73 mm

Ø138 mm

RS PRO DL 200 SC

Ø230 mm 73 mm

Ø189 mm

Pregled naprav

3.3

A C B D

A... Svetilka
B... Priključna škatla
C... Montažne vzmeti
D... Priključne spojke

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

• Preverite, ali je dovod napetosti izklopljen.
• Izvrtajte luknjo.

5.5

Spring clips usage:

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

• Montažne vzmeti potisnite v pravilen položaj.

5.7

3000K 4000K 5700K switchable light temperature 3,000 K - warm white 4,000 K - neutral white 5,700 K - cold white

- Prestavite stikalo v položaj z ustrezno barvno temperaturo.

Mere za izbirno dodatno opremo

5.8 Adapter ring DL 150 SC

Technical drawing of concentric circles with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

φ154.5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (Ø 203,1) at the bottom (no text or symbols within the diagram itself)

φ213.2 φ17

Simple 3D diagram of a cylinder with a horizontal double-headed arrow below (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

- Svetilko montirajte na strop.

Vrsta zaščite

5.11

IP20 IP54 ceiling / suspended ceiling

IP20 - stran na stropu

IP54 - stran v prostoru

Svetilke ne prekrivajte z izolacijo!

5.12

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

• Vklopite oskrbo z energijo.

- Izvedite nastavitve v aplikaciji.

→ "6. Delovanje"

6. Delovanje

Funkcije so nastavljive prek aplikacije Steinel Connect.

Aplikacija Steinel Connect

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcije, nastavljive v aplikaciji Steinel Connect:

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

- 1 LED svjetiljka

• 1 priključna utičnica
• 3 montažne opruge
• 3 stezaljke za priključivanje
• 1 sigurnosno tehnički list (A)
• 1 uputa za brzo pokretanje (B)

Dimenzije proizvoda

3.2 RS PRO DL 150 SC

Ø174 mm 73 mm

Ø138 mm

RS PRO DL 200 SC

Ø230 mm 73 mm

Ø189 mm

Pregled uređaja

3.3

A C B D

Safety warning symbol and electrical switch diagram with lightning bolt and power outlet labels

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

• Gurnite montažnu oprugu u ispravan položaj.

5.7

3000K 4000K 5700K switchable light temperature 3,000 K - warm white 4,000 K - neutral white 5,700 K - cold white

Simple line drawing of concentric circles with diameter标注 (no text or symbols beyond the dimension label)

Ø154,5 43,7

Adapter ring DL 200 SC

Ø 203.1

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow indicating vertical dimension (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

IP20 - Strana unutar stropa

IP54 - Strana unutar prostorije

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcije koje se mogu podesiti pomoću aplikacije Steinel Connect su:

• podešavanje vremena
• podešavanje dometa
  – podešavanje svjetlosnog praga
  – funkcija osnovnog svjetla
• podesiva razina glavnog / osnovnog svjetla
  – prošireno podešavanje dometa
• grupno umreženje
• podešavanje svjetlosnog praga pomoću funkcije Teach-In

Napomena:

Da bi se isključila mogućnost pogrešnog funkcioniranja, mora se održavati minimalni razmak od 3 m od WLAN usmjerivača i pristupnih točaka.

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

Simple line drawing of a mechanical lever or support structure (no text or symbols)

3x

- 1 LED-valgusti

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical drawing of concentric circular rings with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

Ø 154,5 43,7

Adapter ring DL 200 SC

Ø 203.1

φ212.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp installation showing internal components and airflow direction (no text or symbols)

• Valgustite paigaldamine lakke.

Kaitseliik

5.11

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a circular container with a handle and internal compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

Line drawing of a mechanical lever or support structure (no text or symbols)

3x

- 1 LED diodas

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N N L L N N L N L N

Tinklo laidą sudaro 2 gysłu kabelis:

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a spring-like bracket (no text or symbols)

Technical drawing of concentric circles with diameter dimension labeled (no text or symbols beyond the dimension label)

φ154.5 43.7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (no text or symbols beyond the drawing area)

φ212.2 41,7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

IP20 – lubų viduje IP54 – patalpos viduje

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a circular container with a handle and internal compartments (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal slots (no text or symbols)

3x

3x

- 1 LED gaismeklis.

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ø 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting flanges (no text or symbols)

- Nosakiet, cik montāžas atsperes tiks izmantotas.

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical line drawing of a circular mechanical component with internal connectors and mounting holes (no text or symbols)

3000K 4000K 5700K

switchable light temperature

3,000 K - warm white

4,000 K - neutral white

5,700 K - cold white

Technical drawing of concentric circles with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

Ø154,5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (Ø 203,1) at the bottom (no text or symbols within the diagram itself)

φ213.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm

Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

IP20 - pusi griestos

IP54 - pusi telpā

Safety warning symbol and electrical hazard symbol with Chinese characters

Simple line drawing of a human figure with sound waves and an elliptical ring above it (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

Line drawing of a mechanical lever mechanism (no text or symbols)

3x

L N N L N L N L N N

Illustration of a hand using a tool to lift a screw into a circular component (no text or symbols)

Simple 3D diagram of a cylinder with a double-headed arrow indicating vertical dimension (no text or symbols)

DL 150: ø 140-155 mm

DL 200: ø 190-210 mm

5.5
Spring clips usage:
Ceiling thickness more than 10 mm 2 spring clips
Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

Technical drawing of concentric circular rings with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

φ154.5 43,7

Adapter ring DL 200 SC

Ø 203.1

φ213.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp installation showing internal components and airflow direction (no text or symbols)

IP20 ceiling / suspended ceiling

IP54

Simple diagram of two concentric ovals with no text or symbols

Simple line drawing of a person walking with sound waves, no text or symbols present

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side supports (no text or symbols)

1x

1x

1x

Technical line drawing of a rectangular electronic component with mounting holes and internal channels (no text or symbols)

3x

Simple line drawing of a mechanical device with spring and handle (no text or symbols)

3x

Safety warning symbol and electrical switch diagram with lightning bolt and I/O labels

L N N L N L N L N N

电源线由 2 芯电缆组成：

L = 火线（通常为黑色、棕色或灰色）

N = 零线（通常为蓝色）

Diagram of a hand using a tool to lift a screwdriver into a ceiling fixture (no text or symbols)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

·检查电源是否已切断。
- 钻孔。

5.5
Spring clips usage:
Ceiling thickness more than 10 mm 2 spring clips
Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

·确定安装弹簧使用数量。

警告：安装弹簧安装后无法拆下。

5.6

click

Technical line drawing of a mechanical assembly with curved components and a bracket (no text or symbols)

- 将安装弹簧推入正确位置。

5.7

Technical line drawing of a circular mechanical component with internal connectors and mounting holes (no text or symbols)

3000K 4000K 5700K

switchable light temperature

3,000 K - warm white

4,000 K - neutral white

5,700 K - cold white

- 将开关移动至具有适当色温的位置。

可选配件的尺寸

5.8 Adapter ring DL 150 SC

Simple concentric circular diagram with diameter标注 (no text or symbols beyond the dimension label)

Ø 154,5 43,7

Adapter ring DL 200 SC

Technical drawing of concentric circular rings with a dimension label (Ø 213,1) at the bottom, no other text or symbols present.

φ212.2 41.7

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a circular mechanical component with internal wiring and a separate electrical outlet (no text or symbols)

- 按照电路图连接电源引线。

→ "4. 电气连接"

5.10

Diagram of ceiling lamp installation showing internal components and airflow direction (no text or symbols)

- 将指示灯装进盖子

保护形式

5.11

IP20 IP54 ceiling / suspended ceiling

IP20 - 盖子内部一侧

IP54 - 房间内部一侧

请勿用绝缘材料将灯遮盖！

5.12

Safety warning symbol and electrical circuit diagram showing lightning bolt and switch mechanism

Simple line drawing of a human figure with sound waves and concentric rings above a ring (no text or symbols)

·接通电源
- 通过 App 进行设置

→ "6.功能"

6. 功能

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Line drawing of a cylindrical container with a handle and side compartments (no text or symbols)

1x

1x

1x

Isometric line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

3x

3x

Safety warning symbol and electrical switch diagram with lightning bolt and I/O labels

L N N L L N N L N L N

Diagram of a hand using a tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols present)

Simple 3D diagram of a cylinder with a double-headed arrow below, no text or symbols present.

DL 150: ∅ 140-155 mm
DL 200: ø 190-210 mm

Ceiling thickness more than 10 mm 2 spring clips

Ceiling thickness up to 10 mm 3 spring clips

Technical line drawing of a circular mechanical component with internal ribs and mounting holes (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and internal ribs (no text or symbols)

Technical line drawing of a mechanical assembly with curved components and a spring-like bracket (no text or symbols)

Technical drawing of concentric circular rings with diameter dimension labeled as Ø210 (no text or symbols beyond the dimension)

φ154.5 43,7

Adapter ring DL 200 SC

Technical drawing of a circular mechanical component with concentric rings and a dimension label (Ø 203,1) at the bottom (no text or symbols on the diagram itself)

φ212.2 41,7

Simple 3D diagram of a cylinder with a rectangular base and dimension arrows (no text or symbols)

Adapter ring DL 150: ø 160-200 mm
Adapter ring DL 200: ø 215-260 mm

5.9

Technical line drawing of a mechanical assembly with circular components and a close-up inset showing internal wiring (no text or symbols)

Diagram of a ceiling lamp with internal components and directional arrows indicating rotation (no text or symbols)

IP20 IP54 ceiling / suspended ceiling

Safety warning symbol and electrical hazard symbol with lightning bolt and switch icon

Simple line drawing of a human figure with sound waves and concentric rings above a circular shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact
