WHP6011BT - Headphones THOMSON - Free user manual and instructions

Brand	Thomson
Model	WHP6011BT
Product Type	Wireless Bluetooth circum-aural headset
Weight	135 g
Bluetooth Technology	Bluetooth 5.0
Bluetooth Range	Up to 10 meters
Supported Bluetooth Profiles	A2DP, AVRCP, HFP, HSP
Frequency Response (Headphone)	20 Hz - 20 kHz
Frequency Response (Microphone)	100 Hz - 10 kHz
Impedance (Headphone)	32 Ω
Impedance (Microphone)	< 2.2 kΩ
Sensitivity	98 dB ± 3 dB
Battery Type	Lithium-Polymer (Li-Po) 3.7 V
Battery Capacity	185 mAh
Music / Talk Time	Up to 8 hours
Standby Time	Up to 185 days
Charging Time	Approximately 3 hours
Power Supply	Micro-USB port (5 V / 190 mA max.)
Wired Audio Input	3.5 mm jack socket
Main Functions	Play/pause, track change, volume adjustment, hands-free calling, call reject, redial
Built-in microphone	Yes, for hands-free calls
Auto-off	After 3 minutes without Bluetooth connection
LED indicator	Blue (connection/search), red (charging/low battery)
Package Contents	Headset, micro-USB cable, AUX 3.5 mm cable, user manual and safety instructions
Care and Cleaning	Clean with a slightly damp lint-free cloth; avoid harsh detergents.
Important Safety Instructions	Do not use at high volume for prolonged periods; do not expose to moisture; keep out of reach of children; do not open or modify.

Frequently Asked Questions - WHP6011BT THOMSON

How do I pair the WHP6011BT headset with my phone?

Turn on the headset by holding the ON/OFF button until the LED flashes blue. Enable Bluetooth on your phone and search for devices. Select WHP6011BT from the list. If a password is requested, enter 0000.

How long does it take to charge the headset?

Full charging takes approximately 3 hours. Connect the provided micro-USB cable to a USB charger. A solid red LED indicates charging; it turns off when the battery is fully charged.

What is the battery life?

Music playback or talk time is approximately 8 hours. In standby, the headset can last up to 185 days.

Can I use the headset with a cable?

Yes, connect the provided AUX 3.5 mm cable to the headset's audio input and to your device. The Bluetooth connection will be automatically interrupted.

How do I answer or reject a call?

Press the multifunction button (MFB) once to answer. Hold it for about 2 seconds to reject the call.

The headset turns off by itself, is that normal?

Yes, the headset has an auto-off feature after 3 minutes without an active Bluetooth connection to save battery.

How do I skip to the next track?

Hold the + button for about 2 seconds to skip to the next track. To go back to the previous track, hold the - button.

What should I do if the headset does not connect?

Make sure Bluetooth is enabled on your device and the headset is in pairing mode (flashing blue LED). Turn the headset off and on again, or remove the device from the Bluetooth list and re-pair.

How do I clean the headset?

Use a slightly damp lint-free cloth to clean the surfaces. Avoid harsh products. Never immerse the headset in water.

Is the headset compatible with all Bluetooth devices?

The headset uses Bluetooth 5.0 and is compatible with most Bluetooth devices (smartphones, tablets, computers). Some functions may vary depending on the Bluetooth profile supported by the device.

USER MANUAL WHP6011BT THOMSON

Line drawing of a pair of black-and-white headphones (no text or symbols)

GB Operating Instructions F Mode d'emploi D Bedienungsanleitung E Instrucciones de uso

I Istruzioni per l'uso P Manual de instruções RUS Руководство по эксплуатации

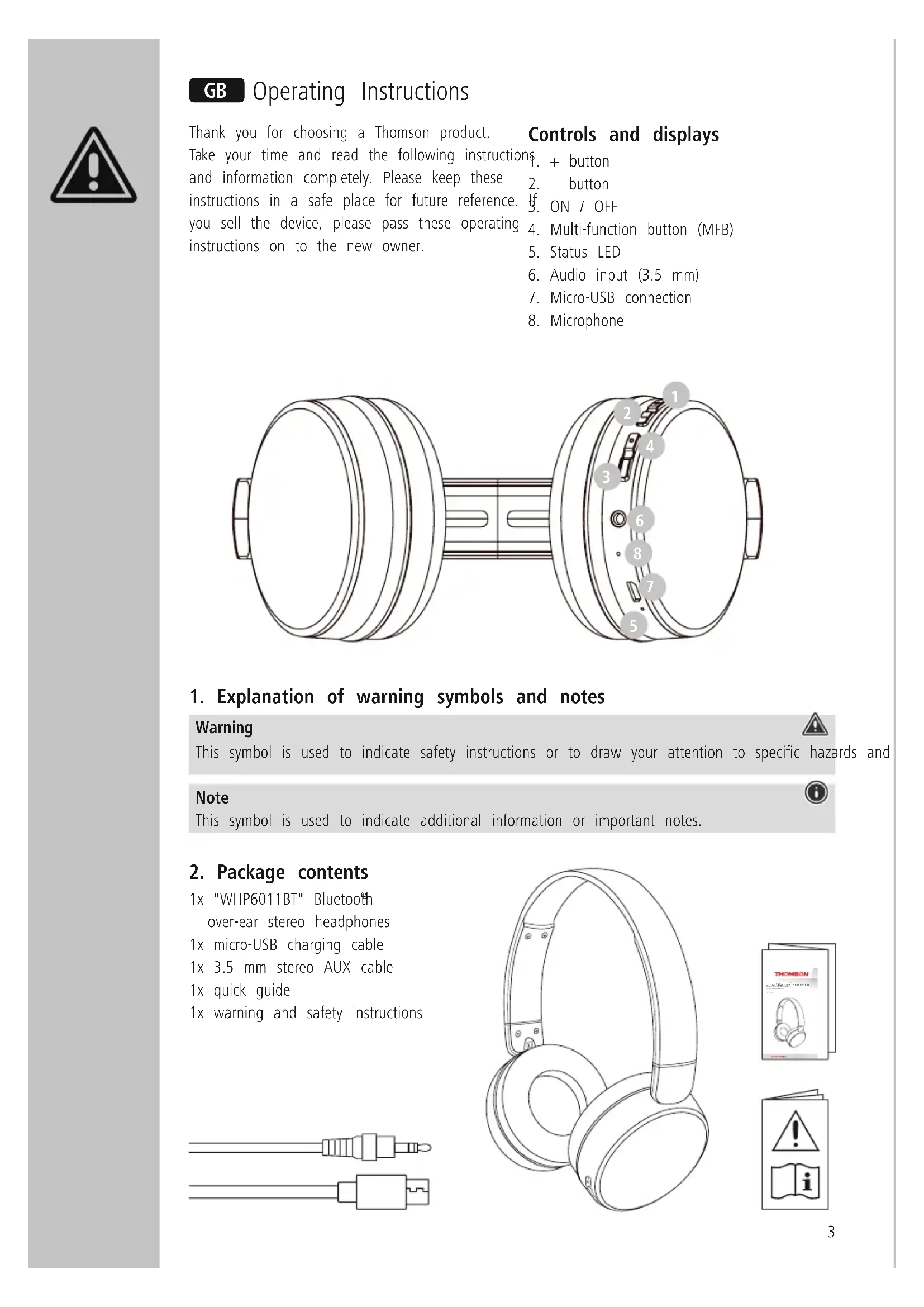

GB Operating Instructions

Thank you for choosing a Thomson product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

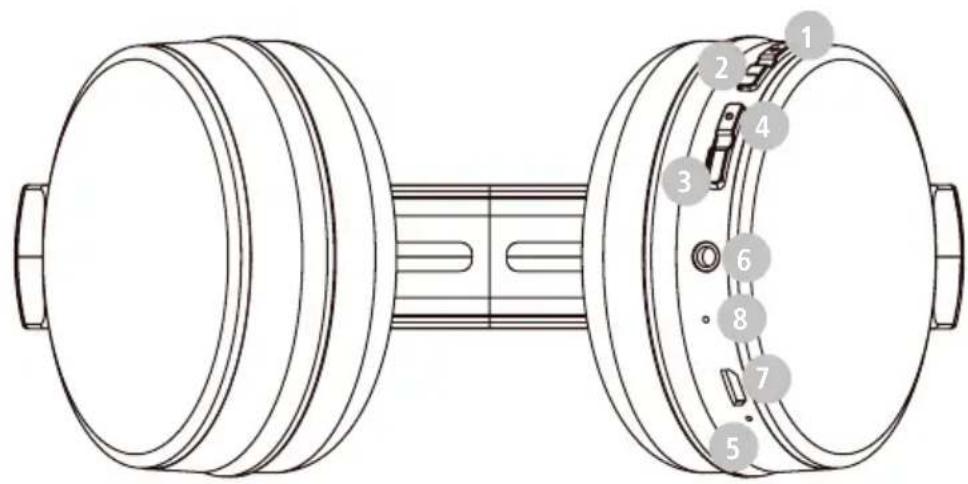

Controls and displays

1. • button
2. • button
3. ON / OFF
4. Multi-function button (MFB)
5. Status LED
6. Audio input (3.5 mm)
7. Micro-USB connection
8. Microphone

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and

Note

This symbol is used to indicate additional information or important notes.

2. Package contents

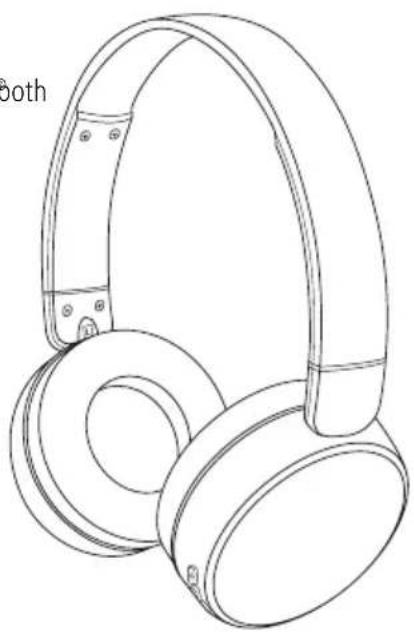

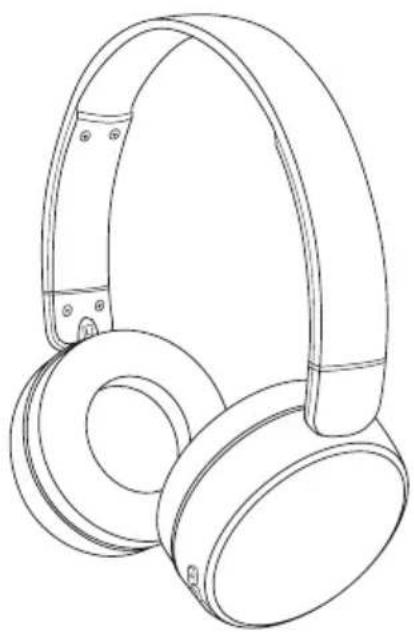

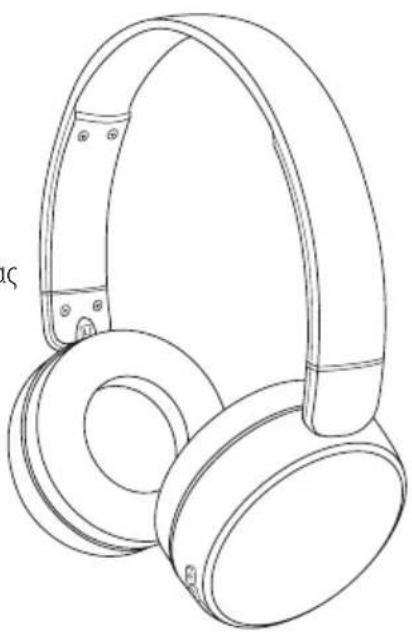

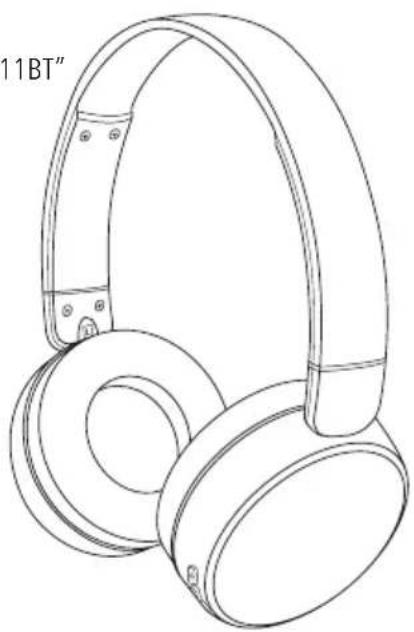

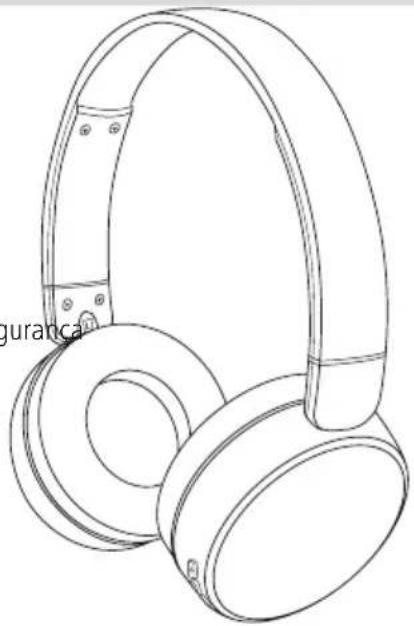

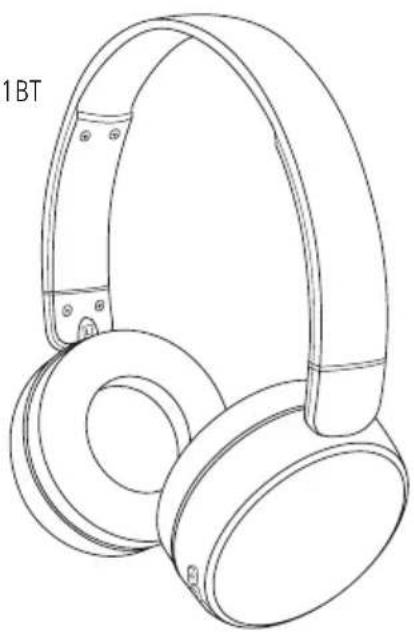

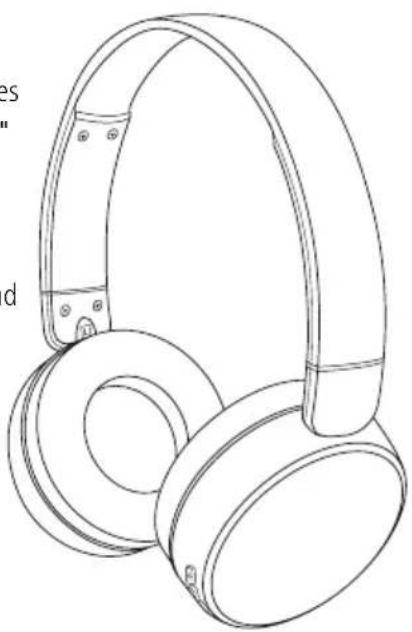

1x "WHP6011BT" Bluetooth

over-ear stereo headphones

1x micro-USB charging cable
1x 3.5 mm stereo AUX cable
1x quick guide
1x warning and safety instructions

Pure electrical circuit lines without any symbols

Line drawing of a pair of outdoor headphones (no text or symbols)

3. Safety instructions

• The product is intended for private, non-commercial use only
- Use the product only for the intended purpose.
• Children should be supervised to ensure that they do not play with the product

- Do not use the product in areas in which electronic products are not permitted

- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts

- Do not open the device or continue to operate it becomes damaged

- Do not bend or crush the cable.

- Do not drop the product and do not expose any major shocks.

- Dispose of packaging material immediately in accordance with the locally applicable regulations.

- Do not modify the product in any way. Doing voids the warranty

- Protect the product from dirt, moisture and overheating and use it in dry environments only

- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight

- Only use the article under moderate climatic conditions.

- As with all electrical products, this device should be kept out of the reach of children

- Do not operate the product outside the power limits specified in the technical data

- Do not use the product in a damp environment and avoid splashing water

- While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.

- The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations

- Do not incinerate the battery or the product.

- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries

- Do not use the product during the charging process!

Warning - rechargeable battery

- Only use suitable charging devices or USB connections to charge the product.

- Do not use defective chargers or USB ports by and do not attempt to repair them.

- Do not overcharge the product or allow the battery to completely discharge.

- Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes).

- it Charge regularly (at least quarterly) during periods of prolonged storage.

Warning - magnets

- This product generates magnetic fields. Persons with a cardiac pacemaker should consult a doctor before using this product, as the pacemaker's proper function could be affected.

- Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted.

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
• Always keep the volume at a sensible level. Loud volumes, even over short periods, can cause hearing loss.
• Using this product limits your perception of

doambient noise. For this reason, uctdo not operate any vehicles or our machines while using this prod

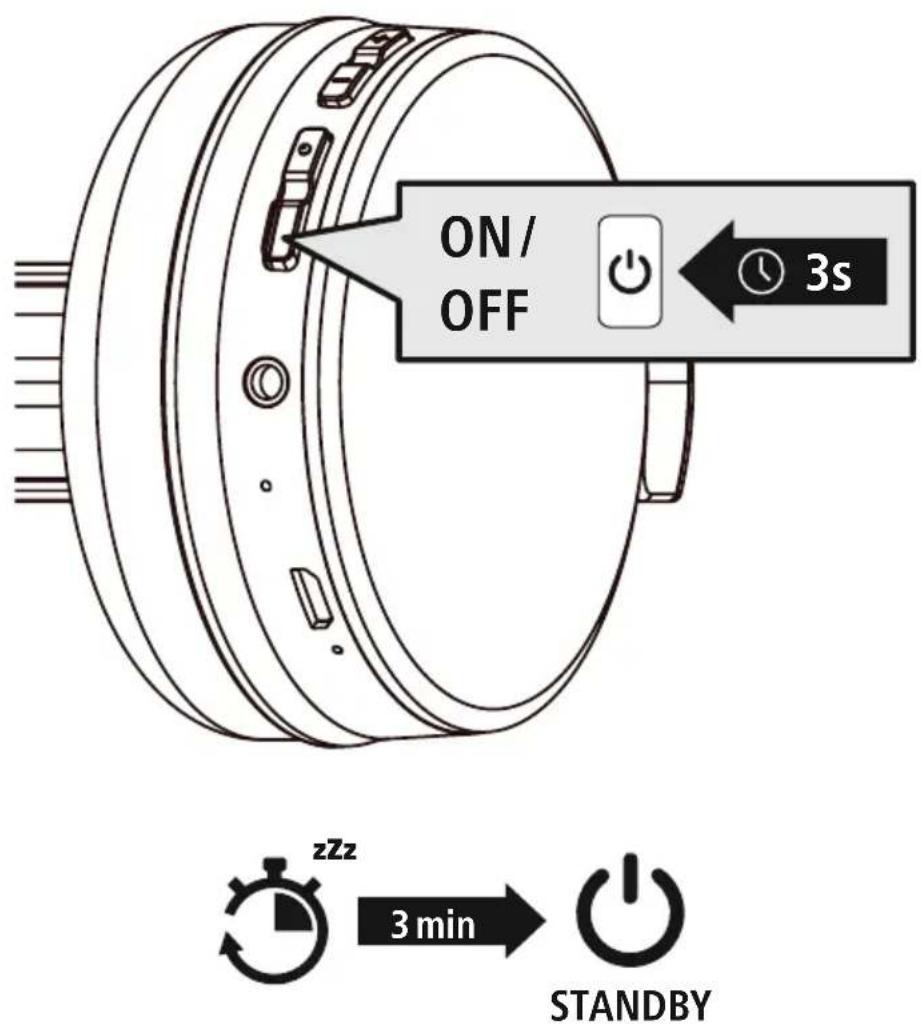

4. Switching on/off

Press the ON/OFF button (3) for around 3 seconds until a signal is heard and the LED (5) flashes blue.

To switch off, press the ON/OFF button (3) for around 5 seconds until a signal is heard at the LED (5) flashes red and then goes out.

ON/ OFF 3s zzz 3 min STANDBY

Note - Automatic switch-off of the headphones

The headphones are equipped with an automatic switch-off mechanism. If there is no connection to your device within 3 minutes, they switch off automatically.

5. Charging

Fully charge the headphones once before using them for the first time.

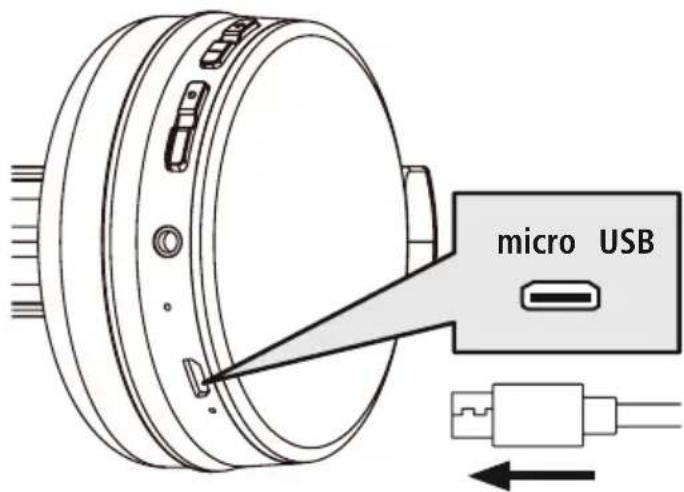

1 Switch off the headphones and connect them

Ensure that the headphones are switched off before charging them.

Connect the USB charging cable included to the charging socket (7). Connect the free plug on micro-USB charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

micro USB

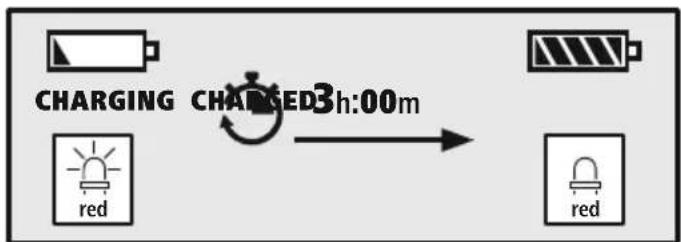

2 Charging process for the headphones

The LED (5) lights up solid red during the charging process.

Once the charging process is complete, the LED (5) goes out.

It can take up to 3 hours for the battery to be fully charged.

3 Battery capacity

When the headphone battery capacity is low, the LED (5) flashes red and a short signal is hea

Note

During the charging process, the Bluetooth connection is automatically disconnected.

6. Bluetooth® pairing

Note - Pairing

• Make sure that your Bluetooth capable device is switched on and that Bluetooth is activated.
• For more information, please refer to the operating instructions of your device.

The headphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Switch the headphones on using the ON/OFF button (3).

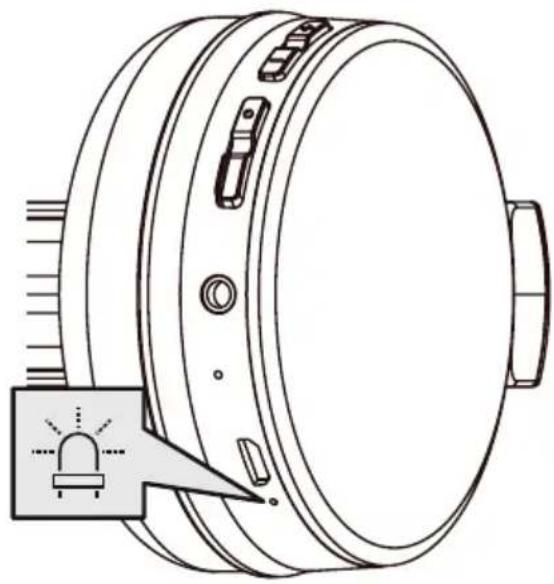

1 Check the status of the status LED (5) and the signal

Technical line drawing of a mechanical component with no visible text or symbols

If the LED (5) is flashing alternately and a signal is heard:

Headphones searching for a Bluetooth connection.

If the LED (5) is flashing and a signal is heard:

10s blue "Your device is connected"

Headphones already paired with a Bluetooth device.

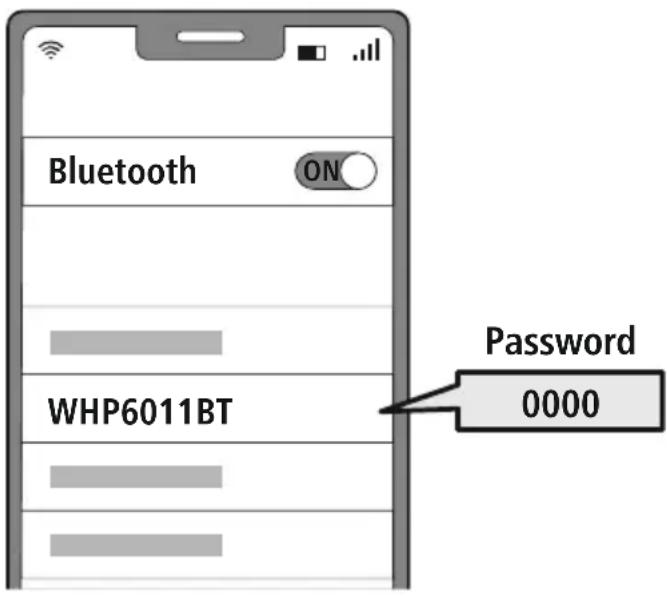

2 Search using your device for the headphones (only required on the first connection)

Open the Bluetoothsettings on your device and wait until the list of found Bluetooth shows WHP6011BT.

Select WHP6011BT and wait until the headphones are shown as connected in your device's Bluetooth® settings.

Bluetooth ON Password 0000 WHP6011BT

Note - Bluetooth@password

Some devices require a password in order to connect to another © deviceeth

- If your device requests a password to connect to the headphones, enter 0000.

3 Disconnecting the Bluetooth connection

Disconnect the headphones via your device's Bluetooth settings.

7. Controls

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• For more information, please refer to the operating instructions of your device.

7.1 Hands-free function

It is possible to use the earphones like a hands-free facility for your mobile phone.

Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Press the multi-function button (4) once to accept an incoming call.

Reject a call

Press and hold the multi-function button (4) for around 2 seconds or use your device to reject an incoming call.

4 End a call

During the call, press the multi-function button (4) to end the call.

Last number redial

Press the multi-function button (4) twice to redial the last number called.

7.3 Audio playback

Note

Please note that this function is only possible when a Bluebondtion is active.

1 Start playback on your device.

2 Play / Pause

Press the multi-function button (4) once to pause or start audio playback.

3 Next track

1x

Press the + button (1) to skip to the next track.

4 Previous track

Diagram showing playback control icons including left arrow, play button with '1x' label, and minus sign

Press the -button (2) to skip to the previous track.

7.4 Volume control

1 Increase volume

+ 2s +

Press the + button (1) for 2 seconds to increase the volume. When the maximum volume is reached, a signal is heard.

2 Reduce volume

- 2s -

Press the - button (2) for 2 seconds to reduce the volume. Once the minimum volume is reached, a signal is heard.

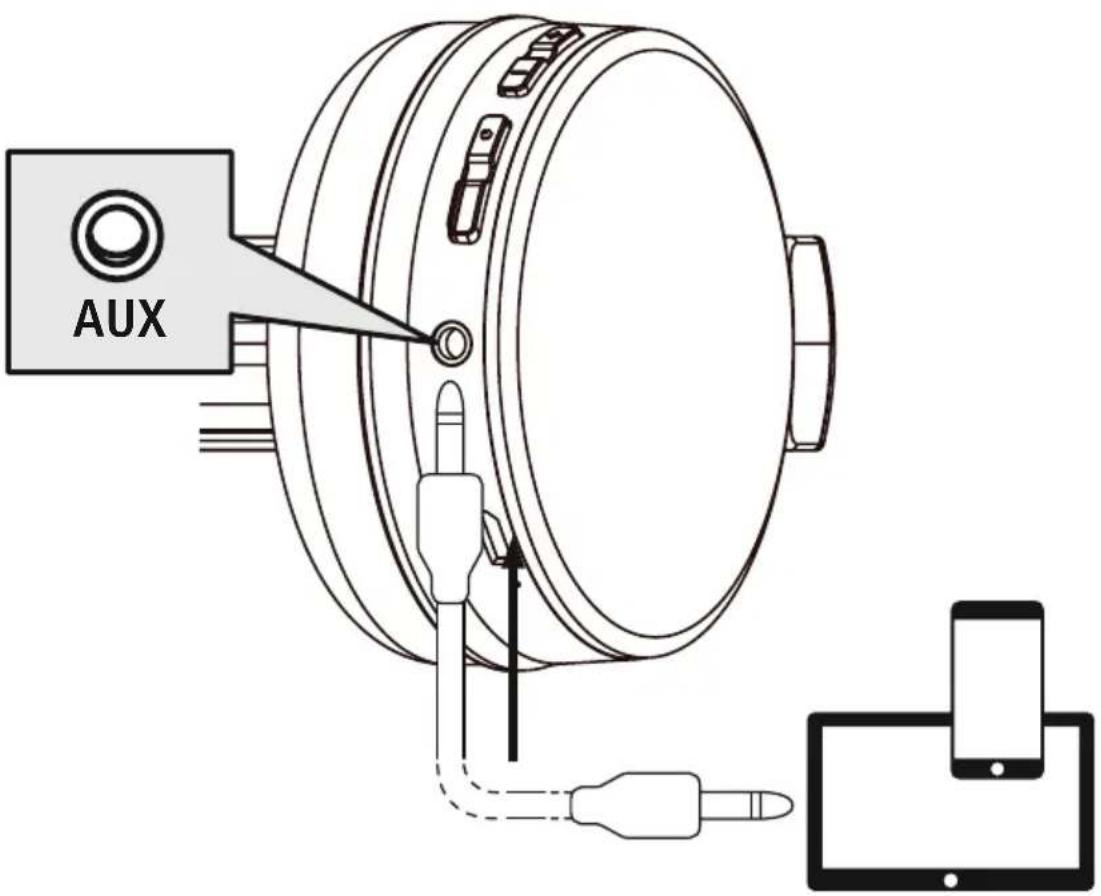

7.5 Audio playback via an audio cable

As an alternative to the connection via Bluetooth can also connect these headphones using the included AUX cable. To do this, plug one end into the device and the other end into the audio input (6). When the audio cable is inserted, the Bluetooth correction is automatically disconnected. The headphones now function like cabled headphones.

AUX

1. Technical data

Bluetooth® headphones
Impedance headphones / microphone	32Ω / < 2.2kΩ
Frequency headphones / microphone	20 Hz - 20 kHz / 100 Hz - 10 kHz
Sensitivity headphones / microphone	98 dB +/- 3 dB
Range max. 10 m
Bluetooth® technology v5.0
Profiles A2DP/AVRCP/HFP/HSP
Transmission frequency 2.4 - 2.48 GHz
Rechargeable battery Li-Po 3.7V
Battery capacity 185 mAh
Power consumption Max. 190 mA
Charging voltage max. 5 V USB
Total weight 135 g
Standby / music / talk time	max. 185 d/ 8h

9. Care and maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agen

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

12. Recycling information

Note on environmental protection:

After the implementation of the European Directives 2012/19/EU and 2006/66/EU in the national legal system, the following applies:

Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the point of sale at the end of their service. Detailed information on this topic is defined in the national laws of the respective country. This preses of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/batteries, you are making an important contribution to protecting our environment.

13. Declaration of Conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00132518] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

www.thomson-av-accessories.eu->00132518 -> Downloads.

Frequency band(s) 2402MHz - 2480 MHz

Maximum radio-frequency power transmitted 2.63 dBm

F Mode d'emploi

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Line drawing of a pair of outdoor headphones (no text or symbols)

Pure electrical circuit lines without any symbols

micro USB

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical component with numbered parts for identification

Pure electrical circuit lines without any symbols

Line drawing of a pair of outdoor headphones (no text or symbols)

micro USB

Technical line drawing of a mechanical component with no visible text or symbols

10s blue "Your device is connected"

www.thomson-av-accessories.eu ->00132518->Downloads.

Technical diagram of a dumbbell with numbered component labels for identification

Pure electrical circuit lines without any symbols

Line drawing of a pair of electronic headphones (no text or symbols present)

micro USB

Technical line drawing of a mechanical component with no visible text or symbols

10s blue "Your device is connected"

www.thomson-av-accessories.eu ->00132518->Downloads.

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of 11BT headphones (no text or symbols on the devices themselves)

micro USB

Technical line drawing of a cylindrical mechanical component with internal components and a warning symbol (no text or labels)

10s blue "Your device is connected"

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of outdoor headphones (no text or symbols)

micro USB

Technical line drawing of a mechanical component with no visible text or symbols

10s blue "Your device is connected"

www.thomson-av-accessories.eu ->00132518->Downloads.

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of outdoor headphones (no text or symbols)

micro USB

CHARGING CHARGED3h:00m red red

Technical line drawing of a mechanical component with a warning symbol and a triangular pointer (no text or labels)

10s blue "Your device is connected"

Diagram showing playback control icons with a 1x speed limit and minus sign

www.thomson-av-accessories.eu->00132518 -> Downloads.

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of outdoor headphones (no text or symbols)

micro USB

Technical line drawing of a mechanical component with no visible text or symbols

10s blue "Your device is connected"

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Line drawing of a pair of electronic headphones with no text or symbols on the ear itself

Pure electrical circuit lines without any symbols

micro USB

CHARGING CHANGED3h:00m red red

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing playback control icons with a 1x speed limit and minus sign

www.thomson-av-accessories.eu->00132518 -> Downloads.

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Line drawing of a pair of electronic headphones with no text or symbols

Pure electrical circuit lines without any symbols

micro USB

Technical line drawing of a cylindrical mechanical component with internal components and a warning symbol (no text or labels)

10s blue "Your device is connected"

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of white headphones with exposed ear brackets and black buttons (no text or symbols)

micro USB

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of outdoor headphones (no text or symbols)

micro USB

Technical line drawing of a mechanical component with no visible text or symbols

www.thomson-av-accessories.eu ->00132518->Downloads.

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Line drawing of a pair of outdoor headphones (no text or symbols)

Pure electrical circuit lines without any symbols

micro USB

2 Nabíjanie slúchadiel

LED dióda (5) svieti počas nabíjania trvale načerveno.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of outdoor headphones (no text or symbols)

micro USB

CHARGING CHARGED3h:00m red red

Technical line drawing of a cylindrical mechanical component with internal components and a warning symbol (no text or labels)

10s blue "Your device is connected"

Diagram showing playback control icons including left arrow, play button with '1x' label, and minus sign

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of electronic headphones (no text or symbols)

micro USB

Technical line drawing of a cylindrical mechanical component with internal components and a warning symbol (no text or labels)

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of outdoor headphones (no text or symbols)

micro USB

CHARGING CHARGED 3h:00m red red

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical component with numbered parts labeled 1 through 8

Pure electrical circuit lines without any symbols

Line drawing of a pair of BT headphones (no text or symbols on the devices themselves)

micro USB

Technical line drawing of a mechanical component with no visible text or symbols

10s blue "Your device is connected"

Căștile sunt deja conectate la un terminal Bluetooth®.
