Product type	Bluetooth circum-aural headset
Brand	Thomson
Model	WHP8650
Bluetooth technology	Bluetooth v5.0
Bluetooth profiles	A2DP v1.3, AVRCP v1.5, HFP v1.6
Maximum range	10 m (open field)
Music playback battery life	36.5 hours
Talk time	12 hours
Standby time	100 hours
Battery type	Li-Po 3.7 V, 290 mAh
Charging time	Approximately 2 hours
Charging port	Micro-USB
Weight	139 g
Headphone impedance	32 Ω
Microphone impedance	< 2.2 kΩ
Headphone sensitivity	93 dB +/- 3 dB
Microphone sensitivity	-42 dB +/- 3 dB
Frequency response (headphone)	20 Hz - 20 kHz
Frequency response (microphone)	100 Hz - 10 kHz
Main functions	Hands-free, voice assistant (Siri/Google), music control, play/pause, track skipping, volume adjustment
Package contents	WHP8650 headset, micro-USB charging cable, carrying pouch, user manual, safety instructions
Care and cleaning	Clean with a slightly damp, lint-free cloth; avoid harsh detergents
Safety instructions	Do not use while driving, avoid excessive volume, keep out of reach of children, do not expose to moisture or heat
Spare parts and repairability	Built-in non-replaceable battery; no spare parts provided; entrust any repair to a qualified technician
General information	Non-commercial domestic use; automatic shut-off after 3 minutes without Bluetooth connection

Frequently Asked Questions - WHP8650 THOMSON

How to turn the Thomson WHP8650 headset on and off?

To turn on, press the MFB (multifunction) button for about 3 seconds until you hear a signal and see the LED flash blue. To turn off, hold the same button for 3 seconds: the LED flashes red and then turns off.

How to charge the headset for the first time?

Before first use, fully charge the headset. Make sure it is turned off, plug the provided micro-USB cable into the charging port (6) and connect the other end to a suitable USB charger. The solid red LED indicates charging; it turns blue when charging is complete (about 2 hours).

How to pair the headset with my smartphone via Bluetooth?

Turn on the headset (blue LED flashing). Enable Bluetooth on your smartphone and search for devices. Select WHP8650 from the list. If a password is requested, enter 0000. An audible signal confirms the connection.

What to do if the headset does not turn on or charge?

Check that the USB cable is properly connected and that the charger works. If the LED does not light up, try another cable or charger. Make sure the headset is turned off during charging. If the problem persists, contact customer service.

How to use the voice assistant (Siri or Google Assistant)?

Press the MFB button twice quickly to activate the voice assistant. Siri is available on iOS 5+ (iPhone 4s and later), Google Assistant on Android 5.0+ with 1.5 GB RAM and Google Play Services.

How to answer or end a call with the headset?

To answer an incoming call, press the MFB button once. To end the call, press it again once. To reject a call, hold the MFB button for about 2 seconds.

How to adjust volume and skip to the next song?

To increase volume, press the + button (1). To decrease volume, press the − button (2). To skip to the next track, hold the + button for about 2 seconds. To go back to the previous track, hold the − button for 2 seconds.

What is the actual battery life of the headset?

The stated battery life is 36.5 hours of music playback, 12 hours of talk time, and 100 hours of standby. Battery life may vary depending on volume and usage conditions.

How to clean and maintain the headset?

Use a slightly damp, lint-free cloth to clean the surfaces. Avoid harsh detergents or solvents. Store the headset in the provided pouch to protect it from dust and shocks.

The headset turns off by itself, is this normal?

Yes, the headset has an automatic shut-off: it turns off after 3 minutes without an active Bluetooth connection to save battery. Simply turn it on again to use it.

USER MANUAL WHP8650 THOMSON

Line drawing of a pair of headphones with attached lock and power button (no text or symbols)

GB Operating Instructions F Mode d'emploi D Bedienungsanleitung E Instrucciones de uso

I Istruzioni per l'uso P Manual de instruções RUS Руководство по эксплуатации

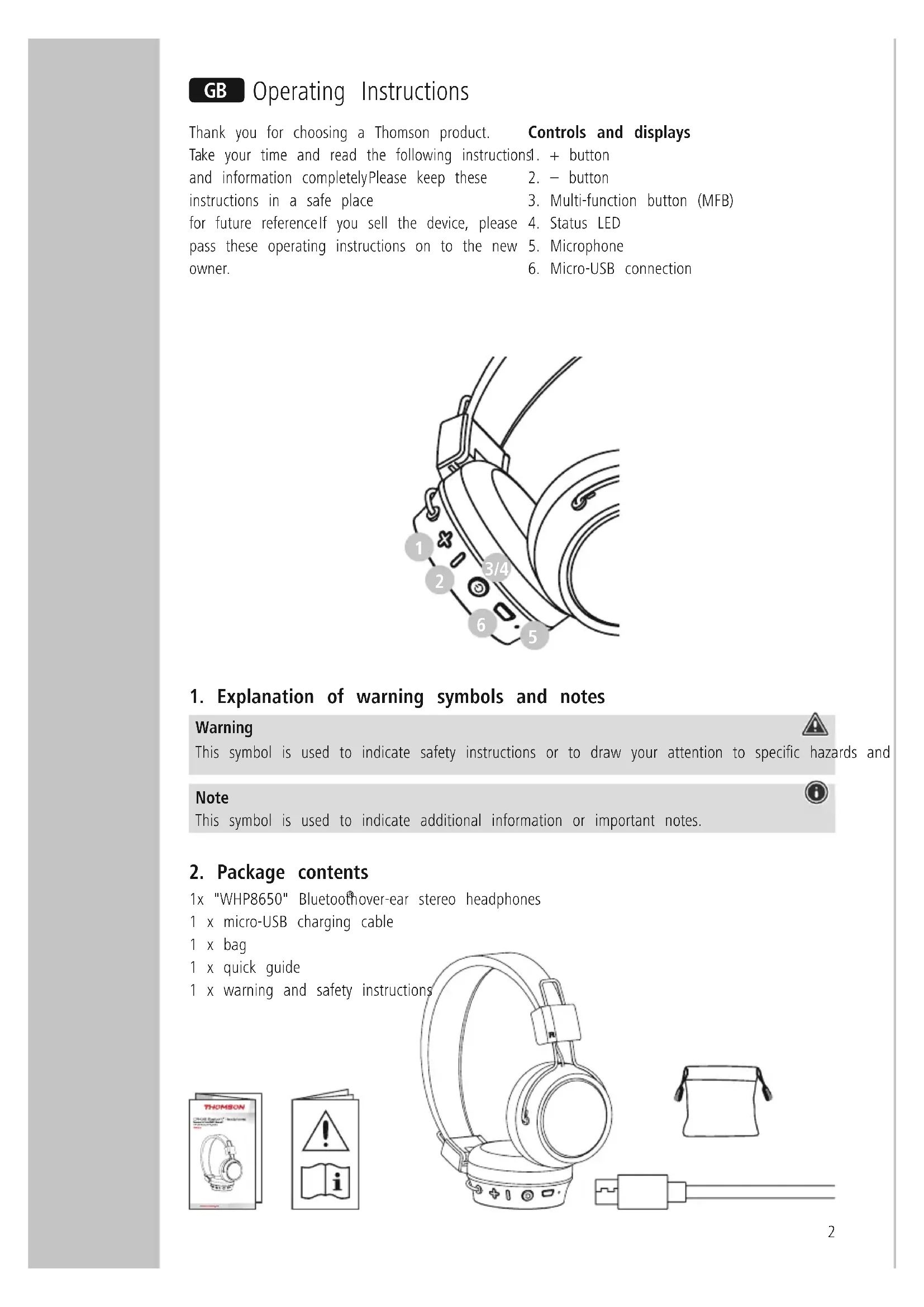

GB Operating Instructions

Thank you for choosing a Thomson product.

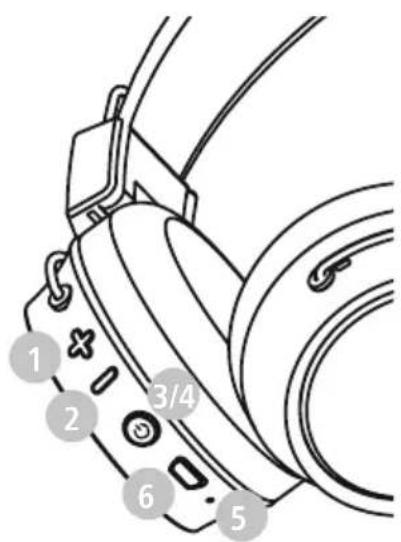

Controls and displays

Take your time and read the following instructions!

s1. + button

and information completelyPlease keep these

1. • button

instructions in a safe place

1. Multi-function button (MFB)

for future referenceIf you sell the device, please

1. Status LED

pass these operating instructions on to the new

1. Microphone

owner.

1. Micro-USB connection

1 2 3/4 6 5

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and

Note

This symbol is used to indicate additional information or important notes.

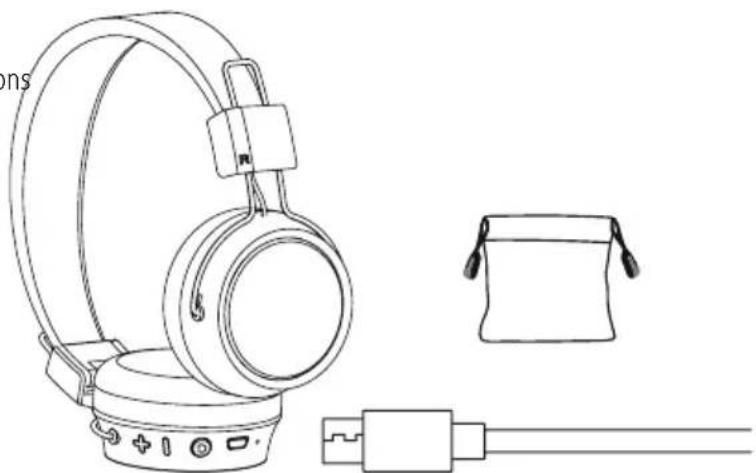

2. Package contents

1x "WHP8650" Bluetoothover-ear stereo headphones

1 x micro-USB charging cable
1 x bag
1 x quick guide
1 x warning and safety instructions

Line drawing of a headboard with lock and USB cable, alongside a matching bag (no text or symbols)

3. Safety instructions

- The product is intended for private, non-commercial use only.

- Use the product only for the intended purpose.

• Children should be supervised to ensure that they do not play with the product.

- Do not use the product in areas in which electronic products are not permitted.

- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.

- Do not open the device or continue to operate if it becomes damaged.

- Do not bend or crush the cable.

- Do not drop the product and do not expose it any major shocks.

- Dispose of packaging material immediately in accordance with the locally applicable regulations.

- Do not modify the product in any way. Doing voids the warranty.

- Protect the product from dirt, moisture and overheating and use it in dry environments only.

- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight.

- Only use the article under moderate climatic conditions.

- As with all electrical products, this device should be kept out of the reach of children.

- Do not operate the product outside the power limits specified in the technical data.

- Do not use the product in a damp environment and avoid splashing water.

- While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.

- The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations.

- Do not incinerate the battery or the product.

- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.

- Do not use the product during the charging process!

Warning - rechargeable battery

• Only use suitable charging devices or USB connections to charge the product.
• Do not use defective chargers or USB ports and do not attempt to repair them.
• Do not overcharge the product or allow the battery to completely discharge.

Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high attitudes).

- Charge regularly (at least quarterly) during periods of prolonged storage.

Warning - magnets

• This product generates magnetic fields. Persons with a cardiac pacemaker should consult a doctor before using this product, so as the pacemaker's proper function could be affected.
• Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted.

Warning - high volume

High sound pressure!

- There is a risk of hearing damage. - To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.

: Always keep the volume at a sensible level. Loud volumes, even over short periods, can cause hearing loss.

Using this product limits your perception

of ambient noise. You should therefore not drive or operate machinery while using them.

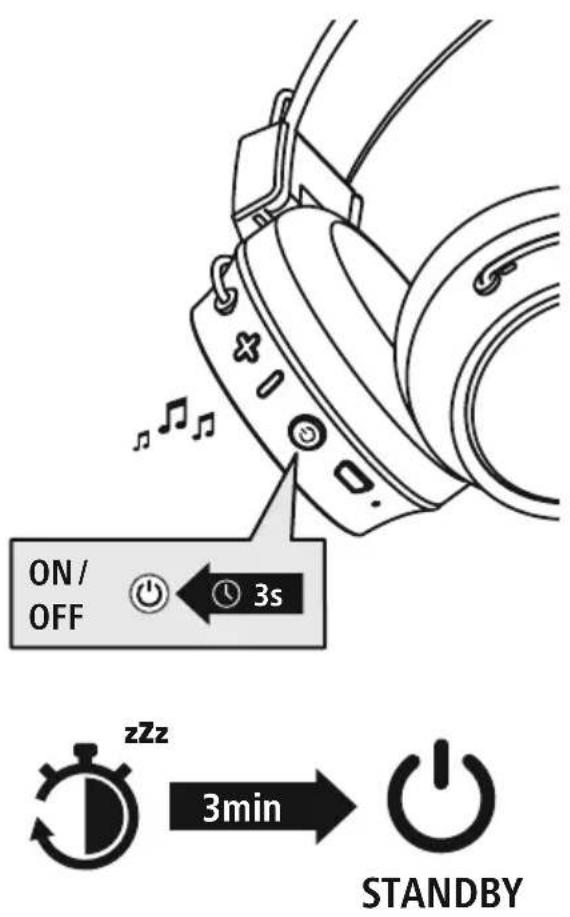

4. Switching on/off

Press the MFB button (3) for around 3 seconds until a signal tone is heard and the LED flashes blue.

To switch off, press the MFB button (3) for around 3 seconds until a signal tone is heard the LED (4) flashes red and then goes out.

ON/ OFF ← 3s zzz 3min → STANDBY

Note - Automatic switch-off of the product

The product is equipped with an automatic switch-off mechanism. If there is no connection to your device within 3 minutes, it switches itself off automatically.

5. Charging

Fully charge the headphones once before using them for the first time.

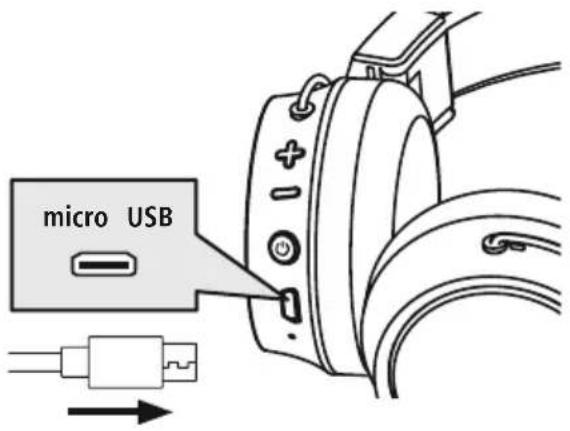

1 Switch off the headphones and connect them

Ensure that the headphones are switched off before charging them.

Connect the USB charging cable included to the charging socket (6). Connect the free plug on micro-USB charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

micro USB

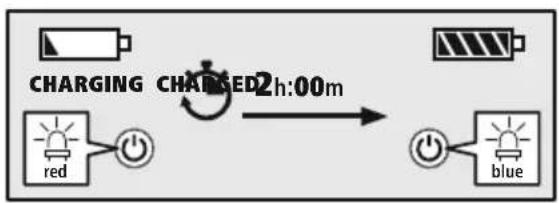

2 Charging process for the headphones

The LED (4) lights up solid red during the charging process. Once the charging process is composed by the LED (4) lights up blue.

It can take up to 2 hours for the battery to be fully charged.

Note

During the charging process, the Bluetooth connection is automatically disconnected.

3 Battery capacity

When the headphone battery capacity is low, the LED (4) flashes red and a short signal tone heard.

6. Bluetooth® pairing

Note - Pairing

• Make sure that your Bluetooth capable device is switched on and that Bluetooth is activated.
• For more information, please refer to the operating instructions of your device.

The headphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Switch the headphones on using the MFB key (3).

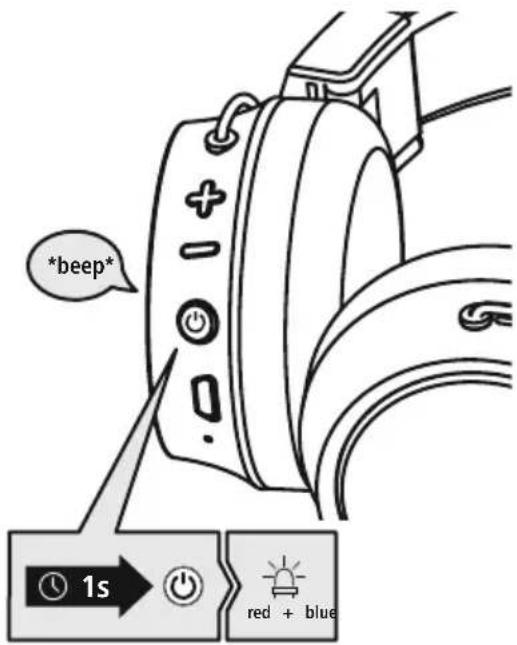

1 Check the status of the status LED (4)

*beep* 1s red + blue

If the status LED (4) is flashing alternately:

5s red + blue

The headphones are searching for a Bluetooth connection.

If the status LEDs (4) are flashing:

10s blue

The headphones are already paired with a Blu@device.

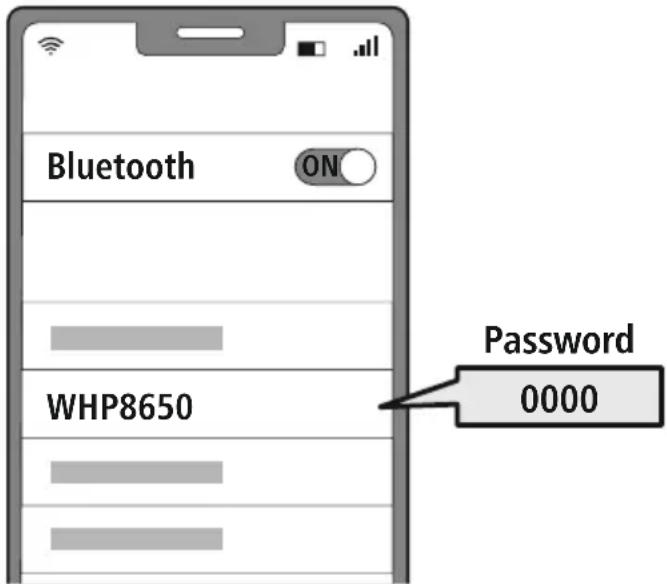

2 Search using your device for the headphones (only required on the first connection)

Open the Bluetoothsettings on your device and wait until the list of found Bluetooth shows WHP8650.

Select WHP8650 and wait until the headphones are shown as connected in your device's Bluetooth® settings. You will hear a brief signal tone.

Bluetooth ON Password 0000 WHP8650

Note - Bluetoothpassword

Some devices require a password in order to connect to another © device • If your device requests a password to connect to the product, enter 0000.

3 Disconnecting the Bluetooth connection

Disconnect the headphones via your device's Bluetooth settings.

7. Controls

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• For more information, please refer to the operating instructions of your device.

7.1 Voice assistant function

Siri/Google

Tap the MFB button (3) twice to initiate communication with Siri or the Google Assistant.

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

• The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.
• The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your mobile phone.

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Press the MFB button (3) to accept an incoming call.

3 Reject a call

Press and hold the MFB button (3) for around 2 seconds of use your device to reject an incoming call.

4 End a call

During the call, press the MFB button (3) once to end the call.

5 Last number redial

You can redial the last number you called via the voice assistant function (7.1).

7.3 Audio playback

Note

Please note that this function is only possible when a Bluebondtion is active.

1 Start playback on your device.
2 Play / Pause

Press the MFB button (3) once to pause or start audio playback.

3 Next track

Press and hold the + button (1) for around 2 seconds to skip to the next track.

4 Previous track

Press and hold the -button (2) for around 2 seconds to skip to the previous track.

7.4 Volume control

1 Increase volume

Press the + button (1) to increase the volume. Once the maximum volume is reached, a signal tone is heard.

2 Reduce volume

Press the -button (2) to reduce the volume. Once the minimum volume is reached, a signal tone is heard.

1. Technical data

Bluetooth® headphones
Impedance headphones / microphone	32Ω / < 2.2kΩ
Frequency headphones / microphone	20 Hz - 20 kHz / 100 Hz - 10 kHz
Sensitivity headphones / microphone	93dB +/- 3 dB / -42 dB +/- 3dB
Range max. 10 m
Bluetooth® technology v5.0
Profiles A2DPv.1.3 / AVRCPv1.5 / HFP v 1.6
Transmission frequency 2.4 - 2.48 GHz
Rechargeable battery Li-P 3.7 V
Battery capacity 290 mAh
Power consumption Max. 250 mA
Charging voltage max. 5V USB
Total weight 139g
Standby / music / talk time max.	100 h / 36.5h / 12 h

9. Care and maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agen

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

12. Recycling information

Note on environmental protection:

After the implementation of the European Directives 2012/19/EU and 2006/66/EU in the national legal system, the following applies:

Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the point of sale at the end of their service. Detailed information on this topic is defined in the national laws of the respective country. This preses of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/batteries, you are making an important contribution to protecting our environment.

13. Declaration of Conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00132505, 0013250] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformit available at the following Internet address:

www.thomson-av-accessories.eu->00132505, 00132507 -> Downloads.

Frequency band(s) 2402MHz - 2480 MHz

Maximum radio-frequency power transmitted 2.63 dBm

F Mode d'emploi

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Remarque - Google Assistant

Diagram showing playback control icons: left arrow with playhead, clock with 2s duration, right circle with minus sign

Line drawing of a pair of headphones with attached cable and pouch (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Nota – Google Assistant

Diagram showing playback control icons: left arrow with pause, clock with 2s duration, right circle with minus sign

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Line drawing of an outdoor headphones with a USB tag and cable connector (no text or symbols)

ON/ OFF ← 3s zZz 3min → STANDBY

micro USB

*beep* 1s red + blue

Line drawing of a pair of headphones with a matching bag attached to the right side (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Diagram showing playback control icons: left arrow with playhead, clock with 2s time, right circle with minus sign

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Wanneer de status-led (4) afwisselend knippert:

5s red + blue

Diagram showing playback control icons: left arrow with playhead, clock with 2s duration, right circle with minus sign

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

micro USB

*beep* 1s red + blue

Diagram showing playback control icons: left arrow with playhead, clock with 2s time, right circle with minus sign

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Diagram showing playback control icons: left arrow with playhead, clock with 2s duration, right circle with minus sign

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Diagram showing playback control icons: left arrow with playhead, clock with 2s time, right arrow with minus sign

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

2 Nabíjanie slúchadiel

*beep* 1s red + blue

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Line drawing of a pair of headphones with a strap and a matching bag attached to a cable (no text or symbols)

micro USB

*beep* 1s red + blue

Information – Google Assistant

Diagram showing playback control icons: left arrow, clock with '2s' label, right circle with minus sign

Line drawing of a headboard with attached microphone and USB cable (no text or symbols)

micro USB

*beep* 1s red + blue

Line drawing of a portable headphones with attached cable and pouch (no text or symbols)

ON/ OFF ← 3s zzz 3min → STANDBY

micro USB

*beep* 1s red + blue

Indicatie – Google Assistant
