Product type	Table saw
Brand	Vonroc
Model	TS502AC
Supply voltage	220-240 V~, 50 Hz
Power	1500 W
No-load speed	5000 rpm
Bevel angle	0° to +45°
Blade diameter	210 mm
Blade body thickness	1.8 mm
Cutting width	2.8 mm
Bore diameter	30 mm
Number of blade teeth	40
Max cutting depth at 0°	70 mm
Max cutting depth at 45°	50 mm
Thickness of the rip fence	2.0 mm
Weight	10.1 kg
Sound pressure level (Lpa)	99.6 +3 dB(A)
Sound power level (Lwa)	112.6 +3 dB(A)
Main functions	Rip cuts and cross cuts in wood, blade height and angle adjustment, parallel and mitre guide
Maintenance and cleaning	Clean regularly with a soft damp cloth, do not use solvents, check ventilation openings
Safety	Blade guard, riving knife, emergency stop button, overload protection, double insulation
Spare parts and repairability	Use only original spare parts; repair by a qualified professional
Warranty	Legal warranty against manufacturing and material defects

Frequently Asked Questions - TS502AC Vonroc

How to change the saw blade?

First unplug the tool. Remove the table insert with a screwdriver, turn the blade fully upwards, loosen the nut with the provided wrench, remove the outer flange and the used blade. Install the new blade respecting the rotation direction (arrow forward downward), reassemble the flange and nut, tighten firmly, then reinstall the insert.

What adjustments are possible for the blade?

The blade height is adjusted with the 2-in-1 handle (pull to raise, push to lower). The bevel angle is adjusted by loosening the locking knob, turning the handle forward to tilt the blade up to 45°, then retightening the knob.

How to use the rip fence?

Attach the rip fence to the right of the blade and lock it with the handle. To adjust the cutting width, loosen the wing nuts, slide the fence extension to the desired position, then retighten. Use the extension according to the wood thickness (high position for thick wood, low for thin wood).

What to do if the overload protection trips?

Unplug the tool, let it cool down completely, check for any damage. Replug it, press the overload switch (red button) to reset, then turn the tool back on. If the problem persists, have it repaired by a professional.

What safety precautions are essential?

Always wear safety glasses, a dust mask, and hearing protection. Do not wear loose clothing, keep hands away from the blade, use a push stick for small pieces, and never stand in line with the blade. Make sure the blade guard and riving knife are in place.

How to maintain the saw?

Clean the body with a slightly damp soft cloth (no solvents). Regularly check the ventilation openings. Sharpen or replace the blade if necessary. Lubricate moving parts according to instructions. Store the tool in a dry place out of reach of children.

What is the maximum cutting depth?

At 0° angle (straight cut), the maximum depth is 70 mm. At 45° angle, it is 50 mm. Make sure the blade protrudes about 2 mm above the workpiece.

How to make a mitre cut?

For a vertical mitre cut, tilt the blade to the desired angle and use the rip fence. For a horizontal mitre cut, use the mitre guide by setting it to the desired angle and locking the workpiece against it. Never use both guides simultaneously.

Can the saw cut materials other than wood?

No, this saw is designed only for wood (hardwood and softwood) without foreign bodies (nails, screws). Never use for cutting metal, stone, or flammable materials. Use appropriate blades conforming to standard EN 847-1.

How to transport the saw safely?

Unplug the power cord, lower the blade completely, remove any unattached accessories, store unused blades in a container, coil the cable and tie it. Always transport the saw with two people by holding it by the table.

USER MANUAL TS502AC Vonroc

EN Original Instructions

06 DA Oversaettelse af den originale brugsanvising 91

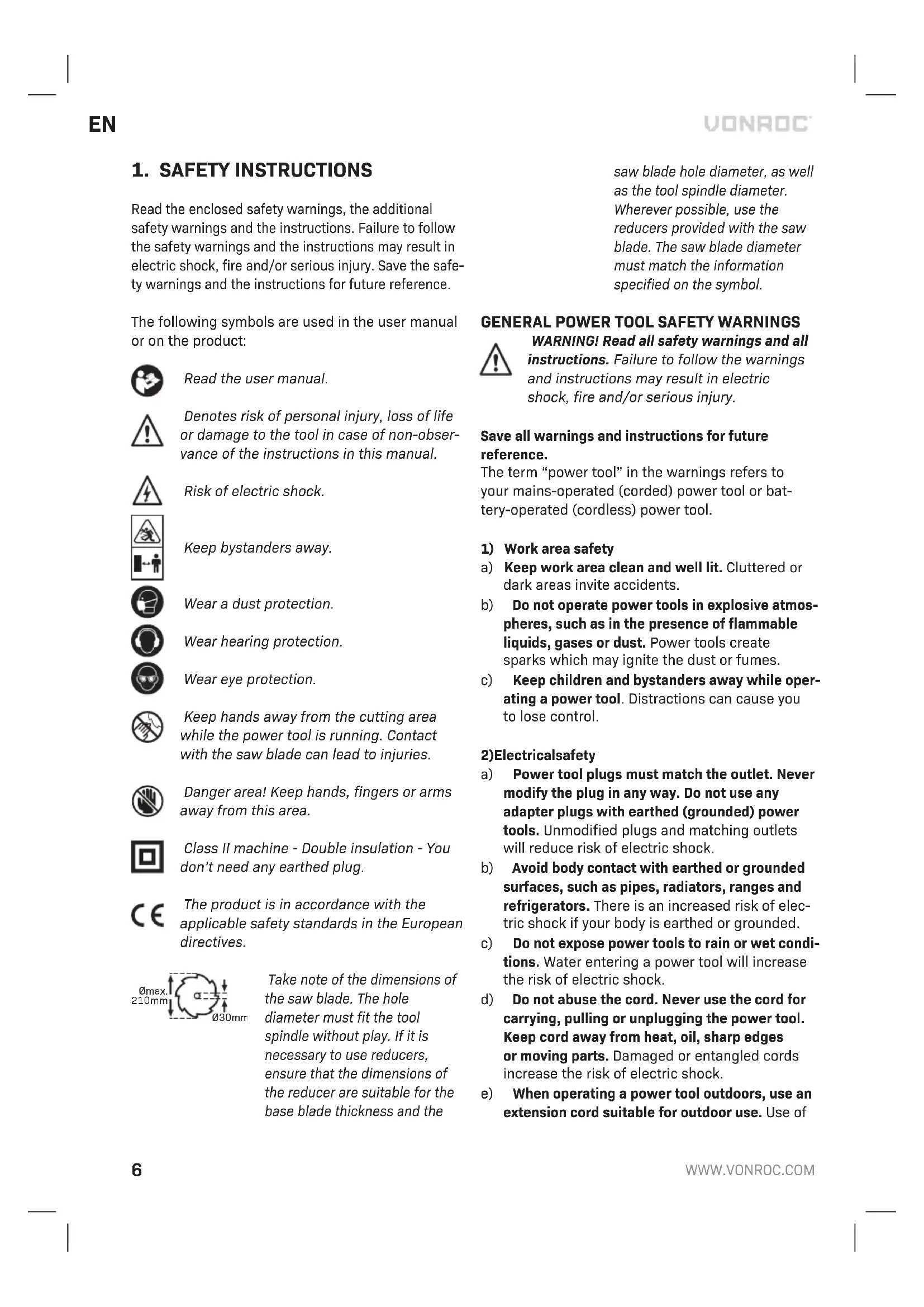

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observation of the instructions in this manual.

Risk of electric shock.

Keep bystanders away.

Wear a dust protection.

Wear hearing protection.

Wear eye protection.

Keep hands away from the cutting area while the power tool is running. Contact with the saw blade can lead to injuries.

Danger area! Keep hands, fingers or arms away from this area.

Class II machine - Double insulation - You don't need any earthed plug.

The product is in accordance with the applicable safety standards in the European directives.

Take note of the dimensions of the saw blade. The hole diameter must fit the tool spindle without play. If it is necessary to use reducers, ensure that the dimensions of the reducer are suitable for the base blade thickness and the

saw blade hole diameter, as well as the tool spindle diameter. Wherever possible, use the reducers provided with the saw blade. The saw blade diameter must match the information specified on the symbol.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2)Electricalsafety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of

a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3)Personalsafety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional startingEnsure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot

be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5)Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY INSTRUCTIONS

Safety instructions for table saws

1) Guarding related warnings
a) Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly must be repaired or replaced.
b) Always use saw blade guard and riving knife for every through-cutting operation. For through-cutting operations where the saw blade cuts completely through the thickness

of the workpiece, the guard and other safety devices help reduce the risk of injury.

c) After completing a non-through cut such as rabbeting, resawing, or dodoing, restore the riving knife to the extended-up position. With the riving knife in the extended-up position, reattach the blade guard. The guard and riving knife help to reduce the risk of injury.
d) Make sure the saw blade is not contacting the guard, riving knife or the workpiece before the switch is turned on. Inadvertent contact of these items with the saw blade could cause a hazardous condition.
e) Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and alignment can make the riving knife ineffective in reducing the likelihood of kickback.
f) For the riving knife to work, it must be engaged in the workpiece. The riving knife is ineffective when cutting workpieces that are too short to be engaged with the riving knife. Under these conditions, a kickback cannot be prevented by the riving knife.
g) Use the appropriate saw blade for the riving knife. For the riving knife to function properly, the saw blade diameter must match the appropriate riving knife and the body of the saw blade must be thinner than the thickness of the riving knife and the cutting width of the saw blade must be wider than the thickness of the riving knife.

2) Cutting procedures warnings

a) DANGER: Never place your fingers or hands in the vicinity or in line with the saw blade. A moment of inattention or a slip could direct your hand towards the saw blade and result in serious personal injury.
b) Feed the workpiece into the saw blade or only against the direction of rotation. Feeding the workpiece in the same direction that the saw blade is rotating above the table may result in the workpiece, and your hand, being pulled into the saw blade.
c) Never use the mitre gauge to feed the workpiece when ripping and do not use the rip fence as a length stop when cross cutting with the mitre gauge. Guiding the workpiece with the rip fence and the mitre gauge at the same time

increases the likelihood of saw blade binding and kickback.

d) When ripping, always keep the workpiece in full contact with the fence and always apply the workpiece feeding force between the fence and the saw blade. Use a push stick when the distance between the fence and the saw blade is less than 150mm , and use a push block when this distance is less than 50mm . "Work helping" devices will keep your hand at a safe distance from the saw blade.
e) Use only the push stick provided by the manufacturer or constructed in accordance with the instructions. This push stick provides sufficient distance of the hand from the saw blade.
f) Never use a damaged or cut push stick. A damaged or cut push stick may break causing your hand to slip into the saw blade.
g) Do not perform any operation "freehand". Always use either the rip fence or the mitre gauge to position and guide the workpiece. "Freehand" means using your hands to support or guide the workpiece, in lieu of a rip fence or mitre gauge. Freehand sawing leads to misalignment, binding and kickback.
h) Never reach around or over a rotating saw blade. Reaching for a workpiece may lead to accidental contact with the moving saw blade.
i) Provide auxiliary workpiece support to the rear and/or sides of the saw table for long and/or wide workpieces to keep them level. A long and/or wide workpiece has a tendency to pivot on the table's edge, causing loss of control, saw blade binding and kickback.
j) Feed the workpiece at an even pace. Do not bend, twist or shift the workpiece from side to side. If jamming occurs, turn the tool off immediately, unplug the tool, then clear the jam. Jamming the saw blade by the workpiece can cause kickback or stall the motor.
k) Do not remove pieces of cut-off material while the saw is running. The material may become trapped between the fence or inside the saw blade guard and the saw blade pulling your fingers into the saw blade. Turn the saw off and wait until the saw blade stops before removing material.
1) Use an auxiliary fence in contact with the table top when ripping workpieces less than 2mm thick. A thin workpiece may wedge under the rip fence and create a kickback.

3) Kickback causes and related warnings

Kickback is a sudden reaction of the workpiece due to a pinched, jammed saw blade or misaligned line of cut in the workpiece with respect to the saw blade or when a part of the workpiece binds between the saw blade and the rip fence or other fixed object.

Most frequently during kickback, the workpiece is lifted from the table by the rear portion of the saw blade and is propelled towards the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Never stand directly in line with the saw blade. Always position your body on the same side of the saw blade as the fence. Kickback may propel the workpiece at high velocity towards anyone standing in front and in line with the saw blade.
b) Never reach over or in back of the saw blade to pull or to support the workpiece. Accidental contact with the saw blade may occur or kickback may drag your fingers into the saw blade.
c) Never hold and press the workpiece that is being cut off against the rotating saw blade. Pressing the workpiece being cut off against the saw blade will create a binding condition and kickback.
d) Align the fence to be parallel with the saw blade. A misaligned fence will pinch the workpiece against the saw blade and create kickback.
e) Use a featherboard to guide the workpiece against the table and fence when making nonthrough cuts such as rabbeting, dodoing or resawing cuts. A featherboard helps to control the workpiece in the event of a kickback.
f) Use extra caution when making a cut into blind areas of assembled workpieces. The protruding saw blade may cut objects that can cause kickback.
g) Support large panels to minimise the risk of saw blade pinching and kickback. Large panels tend to sag under their own weight. Support(s) must be placed under all portions of the panel overhanging the table top.

h) Use extra caution when cutting a workpiece that is twisted, knotted, warped or does not have a straight edge to guide it with a mitre gauge or along the fence. A warped, knotted, or twisted workpiece is unstable and causes misalignment of the kerf with the saw blade, binding and kickback.
i) Never cut more than one workpiece, stacked vertically or horizontally. The saw blade could pick up one or more pieces and cause kickback.
j) When restarting the saw with the saw blade in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged in the material. If the saw blade binds, it may lift up the workpiece and cause kickback when the saw is restarted.
k) Keep saw blades clean, sharp, and with sufficient set. Never use warped saw blades or saw blades with cracked or broken teeth. Sharp and properly set saw blades minimise binding, stalling and kickback.

4) Table saw operating procedure warnings
a) Turn off the table saw and disconnect the power cord when removing the table insert, changing the saw blade or making adjustments to the riving knife, or saw blade guard, and when the machine is left unattended. Precautionary measures will avoid accidents.
b) Never leave the table saw running unattended. Turn it off and don't leave the tool until it comes to a complete stop. An unattended running saw is an uncontrolled hazard.
c) Locate the table saw in a well-lit and level area where you can maintain good footing and balance. It should be installed in an area that provides enough room to easily handle the size of your workpiece. Cramped, dark areas, and uneven slippery floors invite accidents.
d) Frequently clean and remove sawdust from under the saw table and/or the dust collection device. Accumulated sawdust is combustible and may self-ignite.
e) The table saw must be secured. A table saw that is not properly secured may move or tip over.
f) Remove tools, wood scraps, etc. from the table before the table saw is turned on. Distraction or a potential jam can be dangerous.
g) Always use saw blades with correct size and shape (diamond versus round) of arbour holes.

Saw blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control.

h) Never use damaged or incorrect saw blade mounting means such as flanges, saw blade washers, bolts or nuts. These mounting means were specially designed for your saw, for safe operation and optimum performance.
i) Never stand on the table saw, do not use it as a stepping stool. Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.
j) Make sure that the saw blade is installed to rotate in the proper direction. Do not use grinding wheels, wire brushes, or abrasive wheels on a table saw. Improper saw blade installation or use of accessories not recommended may cause serious injury

ATTENTION! When using electric tools to protect against electric shock, injury and fire the following basic safety measures must be observed. Make sure to read all of these instructions before you use this power tool, keep the safety booklet and preserve it well for later reference.

1. Always keep your workplace clean and tidy.

2. An untidy workplace can lead to unwanted accidents.

3. Consider environmental influences.
4. Do not expose the power tool to rain.
5. Do not use the power tool in a damp or wet environment.
   Make sure that your working space has sufficient lighting.

6. Do not use the power tool in areas where there is a fire or explosive hazard.

7. To protect yourself from an electric shock.

8. Avoid body contact with grounded parts (e.g. pipes, radiators, electric stoves, refrigerators etc.).

9. Keep other people away

10. Keep other people away especially children, do not let them touch your power tool or cable and keep the children away from your working area.

11. Store the unused power tools safely.
12. Unused power tools should be locked up or stored in a place that is dry and out of reach of children.
13. Do not overload your power tool.

14. You work better and safer in the specified power range.

15. Use the correct power tool.

16. Do not use low-power machines for heavy work

17. Do not use the power tool for purposes that they are not intended for. For example you cannot cut tree limbs or a log of wood using a hand saw.

18. Wear suitable clothing.

19. Do not wear loose clothing or jewelry; they can be caught in the moving parts.

20. When working outdoors non-skid footwear is recommended.

21. For long hair, wear a hairnet.

22. Use protective equipment.

23. Wear protective goggles

24. When doing work that generates dust, use a breathing mask.

25. Connect the vacuum device

If connection to the vacuum and catcher are available then you know that these are connected and properly used.
11. Do not use the cable for purposes that it is not intended for.
- Do not use the cable to the connector to pull it out of the socket. Protect the cable from heat, oil and sharp edges.

1. Secure the power tool.

2. Use clamps or a vice to hold the power tool. It is safer than holding it with your hand.

3. Avoid an abnormal posture.
   It ensures stability and keeps you balanced at all times.

4. Keep and maintain tools with care.

5. Keep the cutting tools sharp and clean, this ensures that you work better and that it is as safe as possible.

6. Follow the lubricating and tool changing instructions.
7. Check the connection cable of the power tool regularly and let a qualified expert repair any damages.
8. Check the extension cables regularly and replace them if they are damaged.

9. Keep the handles clean, dry and free of grease and oil.

10. Unplug the power tool from the power outlet.

11. When you are not using the power tool, when you conduct maintenance and when you change your tools such as blades, drills and cutters.

12. Do not leave the key inside the tool.
13. Before switching it on, make sure that keys and setup tools have been cleared

14. Avoid unintentionally switching the power tool on.

15. Verify that while connecting the plug into the socket that the power is off.

16. Use the extension cables while outdoors.
17. When using the power tool outdoors make sure to use the appropriate and approved labeled extension cable.

ADDITIONAL SAFETY INSTRUCTIONS

1. When using the saw blades with hard metal teeth (Carbon tipped) it is advisable to use blades with a negative or slightly positive cutting angle. Do not use any saw blades with deeply cut teeth. They can grip the protective cap.
2. Attention: First carefully assemble all the parts before starting work. Follow the procedure as indicated.
3. If you are not familiar with using such a machine, you would be better to be informed first by a professional, an instructor or by a technician.
4. Always clamp or press the workpiece firmly against the saw guide, before you carry out the process. The use of all possible clamping setups is preferable to using your hands.
5. Important: If you are holding the workpiece by hand for the process to be carried out, keep a minimum distance of 100mm from the saw blade.
6. Always press the workpiece against the bench.
7. Keep the saw blade sharp and check regularly whether it rotates freely without abnormal vibrations. Replace the saw blade if necessary.
8. Allow the machine to rotate freely until it reaches the maximum number of revolutions, before you start the process.
9. Maintain the air inlets at the back and the bottom of the bench saw machine and electric motor for a longer machine life. Dust piles must be removed.
10. Always lock the different degree set-ups before you start processing.
11. Only buy suitable saw blades with a number of revolutions of at least 6000 revolutions per minute.
12. Only use the correct saw blade. Too small or too big saw blades are extremely dangerous.
13. Regularly inspect the saw blade for any faults. Replace the saw blade if necessary.
14. Grease the new saw blade and clean the flanges before you assemble the new blade. Then assemble the blade in the correct direction and pull the flanges firmly using the central bolt.

15. Only use original flanges. All other types are not suitable.

16. Never work without the protective cap of the saw blade.

17. The moving part of the protective cap must also remain assembled.
18. Never grease the saw blade while it is rotating.
19. Always keep your hands removed from the track of the saw blades.
20. Never pick up the workpiece by grasping with your hands along or behind the saw blade.
21. Ensure that the workpiece never touches the saw blade before the machine has been switched on.
22. Never process metal or stone sorts with this machine.
23. Use support aids in order to support long workpieces.
24. Never use the machine in a dangerous environment, where inflammable gases or fluids are present.
25. Never leave the machine unattended without first disconnecting it from the mains voltage.
26. If you hear abnormal noises, try to trace them or take the machine to a recognized fitter, or repair company.
27. If a part is broken or damaged, replace it or repair it immediately.
28. Never stand in the track of the saw blade but stand to the left or the right of the saw bench.
29. Your hands must likewise be placed next to the track of the saw blade.
30. Always use the push stick instead of your hands to push the wood through the saw.
31. Always place the wood at the front of the saw bench and then push it further back.
32. For mitring only the adjustable guide must be used and the fence must be removed.
33. Never use the fence as a linear measure for cutting off beams.
34. If the saw blade is locked: first switch off the machine before you attend to the fault.
35. Avoid workpieces hitting back in your direction by taking the following measures:

Always use sharp saw blades.
- Do not saw too small workpieces.
- Never release the workpiece before it has been completely pushed through the saw.
Always adjust the guide parallel to the saw blade.
- Never remove the saw protection.

1. Before you continue sawing, ensure that you are standing firmly and that your hands are in the required position.

2. Never use thinners to clean the machine. Only use a damp cloth for cleaning.

3. Do not use saw blades which are damaged or deformed.
4. Replace table insert when worn.
5. Only use saw blades specified by the manufacturer that are intended for working with wood or similar materials according to EN847-1.
6. Take care that the selection of the saw blade depends on the material to be cut.
7. Connect tabelsaws to a dust-collecting device when sawing.
8. Use and correct adjustment of the riving knife
9. Use and correct adjustment of the upper saw blade guard.
10. Take care when slotting.

Make sure, when changing the saw blade, the blade width is not smaller and the main blade thickness of the saw blade is not greater than the thickness of the riving knife.

Wear personal protective equipment, these could include:

• Hearing protection to reduce the risk of hearing loss.
  Eyeprotection.
• Inhale respiratory protection to reduce the risk of harmful dust.
• Gloves when handling the blades and rough materials (recommendation, saw blades, are whenever practicable, carried in a container).

arning! Do not use HSS blades.

• Insert the push stick in its holder when not in use.
• Use a push stick or a push block to guide the workpiece.

learning! Do not use the saw for rebating or a grooving.

• Only use saw blades, whose maximum speed is at least the speed indicated on the saw and is suitable for the material to be cut.
  During the transport, the upper part of the saw blade has to be covered, by the guard.

Switch off the machine immediately when you discover:

A defective mains plug or mains lead.
A defective switch.

Overheating of the machine.
Smoke or odeur caused by scorched insulation.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
  If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5mm^2 . If you use an extension cable reel, always fully unroll the cable.

Power supply

• The motor is fitted with an overload switch. If the table saw overloads, the overload switch switches the equipment off automatically to protect the table saw from overheating. If the overload switch triggers, switch off the table saw using the ON/OFF switch (8) and wait until the table saw cools down. Then press the ON/OFF switch (8) and restart the table saw.

2. MACHINE INFORMATION

Intended use

This power tool is intended as a stationary machine for making straight lengthways and crossways cuts in hard and soft wood free from foreign bodies such as nails, screws and mortar.

TECHNICAL SPECIFICATIONS

Model No. TS502AC
Voltage 220-240V~
Frequency 50 Hz
Power input 1500W
No load speed 5000/min
Bevel angles 0° <> +45°
Sawblade specifications:
Diameter	Ø 210 mm
Base blade thickness	1.8 mm
Width of cut	2.8 mm
Bore diameter	Ø 30 mm
Number of teeth	40T
Sawing capacity 0°	70 mm
Sawing capacity 45°	50 mm
Thickness of the riving knife 2.0 mm
Weight 10.1 kg
Lpa (sound pressure level) 99.6 +3 dB(A)
Lwa (sound power level) 112.6 +3 dB(A)

The declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one tool with another; The declared noise emission value(s) may also be used in a preliminary assessment of exposure. The noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed;

Operator must identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-6.

1. Table surface
   2A. Parallel guide
   2B. Guide extension
   2C. Wing nuts
2. Ruler for parallel guide
3. Dust extraction
4. Guard
5. Mitre guide
6. Push stick
7. On/off switch
8. 2 in 1 adjustment handle
9. Locking knob
10. Electric plug
11. Ruler sawblade angle
12. Cable storage holder
13. Wrenches (2 pcs)
14. Wing bolts
15. Dust extraction connection
16. Sawblade guard knob
17. Riving knife
18. Saw table inlay
19. Rubber feet (4 pcs)

20. Connection vacuum cleaner

21. Fixing screw

22. Carriage-type bolts with nuts
23. Holder clips
24. Overload protection

3. ASSEMBLY

Installing the rubber feet (Fig. A)

• Assemble the bolt to the rubber foot.
• Slide the bolt with rubber foot through the holes in the corner of the housing.
• Tighten the nut to the bolt of the rubber foot.
• Repeat for each corner of the housing.

Assembly of the riving knife (Fig. A, D)

• Remove the inlay (19) from the table, by using a screwdriver (Fig. G1).
• Loosen the fixing screw (22)(Fig. D1)
• Raise the riving knife until the depth between the saw table and the upper edge of the riving knife equals approx. 110mm (Fig. D2).
• The distance between the riving knife and the toothed rim of the saw blade must be between 3 and 5mm (Fig. D3).
• The tip of the riving knife shall not be lower than 5mm from the tooth peak, as shown in Fig. D3.

Attachment of the guard (Fig. D4)

• Turn sawblade completely upwards (instructions for height adjustment see chapter 4).
  Pull the knob (17) of the guard (5) and place it over the riving knife (18) while pulling the knob.
• Release the knob and make sure the pin slides in the hole.
• Secure the guard by tightening the knob.

Assembly of the dust extraction (Fig. E)

• Assemble dust extraction like shown on Fig. E.
• Attach the vacuum cleaner to the vacuum cleaner connection (21)(Fig. E).

Attachment of the parallel guide (Fig. F)

• Attach the parallel guide (2A) on the right side off the saw blade on the table.
• Lock the guide down by pushing down the handle (Fig. F).

Attachment of the parralel guide holder (Fig. 1)

The parallel guide can be stored using the holder clips (24). Mount the holder clips (24) using carriage - type bolts with nuts (23). The holders can be mounted as shown in Fig. J1 or as shown in Fig. J2.

Attachment of the mitre guide (Fig. A)

• Slide the guide in the slot of the table at the left side of the sawblade Fig. A.
• The position of the metre guide can be adjusted by loosening the wing bolts (15) and tightening them afterwards.

Assemble or change the saw blade (Fig. G)

First remove the plug from the mains before the saw blade is assembled or replaced.

The arrow marked on the saw blade, which indicates the direction of rotation, must point in the same direction as the arrow marked on the machine, the saw blade teeth must point downwards on the front of the saw.

• Remove the inlay (19) from the table, by using a screwdriver (Fig. G1).
• Turn the saw blade completely upwards. (Instructions for height adjustment see chapter 4)
• Loosen the nut with the wrenches (14) (Fig. G2).
• Remove the nut and the outside flange from the sawblade axle (Fig. G3).
• Slide the old saw blade over the saw blade axle and put on a new saw blade.
• Put the outside flange back on add the nut.
• Tighten the nut by using the wrenches.
• Put the inlay back in the table and tighten the screw.

4. OPERATION

Switching on/off (Fig. A)

• Press the switch into position '1' to put your machine into operation.
• To switch off the machine the same switch needs to be pressed to position '0'.
• Always keep the mains cable away from moving parts.

Overload protection (Fig. B)

This electrical power tool is provided with an overload protection (25). In case that the overload protection was initiated, proceed as follows:

• Disconnect the power tool from the power supply.
• Allow the power tool to cool down.
• Check the power tool carefully for possible damages.
• Have damages repaired before re-starting the power tool.

• Connect the power tool to the power supply.

• Push the overload switch (25)(Fig. B).

• Turn on the power tool as described and put it into operation.

Using the 2 in 1 handle, Adjust the angle and height of the saw blade (Fig. A)

Using the height adjustment

• Turn the handle (9) clockwise to raise the sawblade.
• Turn the handle counter clockwise to lower the sawblade.
  Make sure the saw blade is always approximately 2mm higher than the total thickness of the material to be sawn.

Using the angle adjustment (Fig. G4)

• Slightly loosen the knob (10)
• Press the handle (9) towards the machine and turn counter clockwise to adjust the sawblade in its angle.
• Fasten the knob (10).

Using the parallel guide (Fig. A, F, J1, J2)

The parallel guide (2A) is equipped with a guide extension (2B). The guide extension can be used in two different ways, depending on the thickness of the wood. For thicker wood, the guide extension (2B) should be mounted as shown in figure J1. For thinner wood, the guide extension (2B) should be mounted as shown in figure J2.

Unlock the guide down by pushing the handle upwards (Fig. F).
- Slightly loosen the wing nuts (2C).
- Remove the guide extension (2B) from the parallel guide (2A) by sliding it away from the parallel guide.
- Turn the guide extension to the desired position and slide it back onto the parallel guide.
- Tighten the wing nuts (2C).

Working instructions

There are two types of sawing methods:

Lengthwise sawing (Fig. H1)
Sawing the workpiece in the length of the wood is a pain
Cross-cutting or cutting off, use the litre guide (Fig. H2)

Sawing off the workpiece crosswise

For both sawing methods one of the fences must be used. Therefor never saw without a fence!

Attention! Before you start sawing, first check the following:

1. Is the saw blade secured?
2. Are all the locking handles secured?
3. Is the fence parallel to the saw blade?
4. Is the protective cap working properly?
5. Are you wearing safety goggles?
6. Is the saw blade not rubbing against anything?

It is absolutely necessary to take these points into consideration before you start work!

Lengthwise sawing

• Secure the fence to the correct measuring position and remove the cut-off guide from the bench carriage.
• Press the wood lightly towards the bench and let it glide against the cut-off fence.

Remain at least 3 cm. from the front of the saw blade before you switch on the motor. The side of the wood which is against the fence must be completely straight. Keep your hands at least 10 cm away from the saw track to be followed.

• Switch on the motor and wait until the saw blade has reached the maximum number of revolutions before you start sawing.
  While you press the wood against the bench and the fence, you can carefully push the wood through the saw blade without forcing it.
• Never pull the workpiece backwards. If necessary, switch off the motor first without altering the position of the workpiece.

Lengthwise sawing with a (vertical) litre This method is practically the same, except that the saw blade is placed at the angle required.

With this type of method the fence may only be along the righthand side of the sawblade.

Lengthwise sawing of narrow workpieces

Assume that this process is extremely dangerous.

Take all the necessary safety measures and continually push the workpiece through (until behind the saw blade) using a push stick instead of by hand.

Crosswise sawing

• Remove the fence and apply the cross-cut fence in the righthand carriage.
• Adjust the height of the saw blade (see length-wise sawing).
• Press the workpiece against the cross-cut fence and keep at least 2,5 cm distance from the front of the saw blade.
• Switch on the motor and wait until the maximum number of revolutions has been reached.
• Press the workpiece against the fence and the bench. Carefully push the wood through the saw blade. Continue until behind the saw blade. Then switch off the motor and keep this position until the saw blade has stopped completely before you remove the wood.
• Never pull the wood back. If necessary, switch the motor off and keep the position until the saw blade has stopped completely.

Crosswise sawing with a vertical metre

This method is practically the same, except that the saw blade is placed in the angle required.

Only place the cross-cut fence on the righthand side of the saw blade. Never saw too small pieces of wood. Never use your hands to carry out difficult operations.

Crosswise sawing with a horizontal metre

With this method the cross-cut fence must be secured at the angle required. Keep the workpiece pressed firmly against the cross-cut fence and the bench before you start cutting off.

Transporting the table saw

Before transporting the bench saw, the following steps must be carried out:

Pull the mains plug.
- Turn the hand-wheel (9) (Fig. B) in anticlockwise direction, lower the blade as much as possible.
- Remove all accessories that cannot be mounted firmly to the power tool.

If possible, place unused saw blades in an enclosed container for transport:

• Wind the mains cable and bind it.
• For lifting or transport, carry the main table (1) (Fig. A).

The bench saw should always be carried by two persons in order to avoid back injuries.

5. MAINTENANCE

e cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face thereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact your VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
  Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

Endast for EU-lander

Montaz oslony (Rys. D4)

Pokyny pro obsluhu pily

DECLARATION OF CONFORMITY TS502AC - TABLE SAW

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass这点 Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder once volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 Juni 2011 betreffende beperking van het gebruik van bepalde gevaarlijke stoffen in elektrische en elektronische apparatusu er in overeenstemming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estandares de funciona: se encontrartra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos electricos y electrónicos.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar pa eget ansvar att denna produit upp fyller och foljer foljande standarder och bestammelser: uppfyller direktiv 2011/65/EU fran Europeiska parliamentet och EG-radet fran den 8 Juni 2011 om begrangsningen av anvandning av fariga substanser i elektrisk och elektronisk utrustning.

(DA) Vi erklærer under eget ansvar, at dette produit er i overensstemmelse med falgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. Juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(PL) Deklarujemy na wlasna odpowiedzialnosc, ze ten produkt spelnia wymogi zawarte w nastepujacych normach i przyepsach: jest zgodny z Dyrektywa 2011/65/UE Parliamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie agraniczenia stosowania niedtorych niebepezecnych substantcjiw sprzecié elektrycznym i elektronicznym.
(RO) Declaram prin aceasta cu raspunderea deplina că produsul acesta este in conformitate cu urmatoarele standarde sau directive: este in conformitate cu Directiva 2011/65/UE a Parliamentului Europeani si a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizarii anumitor substanțe periculoase la echipamentele electrice si electronice.
(PT) Declaramos por{nossa total responsabilitida-de que este produits esta em conformidade e cumpre as normas e regulamentacoes que se seguem: está em conformidade com a Direciva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita a restricao de utilizesao de determinadas substancias perigosas existentes em equipamento electrico e electronoico.
(HU) Feelösségünd teljes tudatāban kijelentjuk, hogy ez a termek teljes mertékben megfelel az alábbi szabványoknak és elóirásoknak: je v souladu se smérnici 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. Června 2011, ktera se týká omezení použiti určitych nebezpečnych látek v elektrickych a elektronickych zaïzenich.
(CS) Na naši vlastné zodpovědnost prohlášujeme, ze je tento vyrobek v souladu s následujícimi standardy a normami: Je v súlade s normou 2011/65/EU Europskeho parlamentu a Rady z 8. juna 2011 týkajúcej sa obmedzenia použivania určitych nebezpečných látok v elektrickom a elektronickom vybaveni.
(TR) Tek sorumlusuBizolmak üzere bu urunun Avrupa Parlamento sunun 2011/65/EU ve 8 Haziran 2011 tarihlik konseyin elektrikli ve elektronik ekipmanlarda belirlenmis tehlikel malzeme kullanimin n kistlanmasi hakindaki talimatlari ile birlikte asagida belirtilen standart ve yonergelere uygun ve uyumlu oldugunu bylan ederiz:

Conformity assessment method to Directive 2006/42/EC

The notified body involved: TÜV SÜD Product Service GmbH

Certification Body of the Notified Body 0123

EN62841-1, EN 62841-3-1, EN 61000-3-3, EN55014-1, EN55014-2, EN61000-3-2, 2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU

Zwolle, 01-01-2023H.G.FRosberg

CEO

VONROC - Lingenstraat 6 - 8028 PM Zwolle - The Netherlands

VONROC

BUILD YOUR FUTURE

©2023 VONROC

WWW.VONROC.COM

2301-09
