fs38 - Barbecue Petromax - Free user manual and instructions

Product type	Brazier barbecue
Brand	Petromax
Model	fs38
Material	Steel
Dimensions (diameter)	38 cm
Weight	Approximately 5 kg
Fuel	Charcoal or wood
Main functions	Grilling, cooking, campfire
Intended use	Outdoor leisure, non-professional
Maximum temperature	200-250 °C (for seasoning)
Seasoning required	Yes, before first use
Care and cleaning	Hot water, soft brush, immediate drying, regular oiling
Safety instructions	Outdoor use only, away from flammable materials, heat-resistant gloves
Spare parts available	Yes, contact customer service
Repairability	Wear parts replaceable
Customer service	[e-mail]
Manual available	Yes, 80 pages, multiple languages

Frequently Asked Questions - fs38 Petromax

How to season the Petromax fs38 barbecue?

Clean the surface with hot water, dry it, apply a thin layer of heat-resistant oil, then heat at 200-250 °C for 30 to 60 minutes. Let it cool slowly. Repeat if necessary.

Can I use alcohol fuel to light the fire?

No, never use alcohol fuel or gasoline. Use only firelighters compliant with EN 1860-3 or paper.

Can I use the barbecue indoors?

No, use it only outdoors in a well-ventilated area. Indoor use may cause fatal carbon monoxide poisoning.

How to clean the barbecue after use?

Remove food residues with a soft brush or wooden spatula, rinse with hot water, dry immediately, and apply a thin layer of heat-resistant vegetable oil to prevent rust.

Can the barbecue deform with heat?

Intense heat, prolonged use, or rapid temperature changes may cause discoloration or deformation. This is normal and does not affect functionality.

What types of food can I cook?

All types of food except acidic foods. Avoid highly acidic foods to preserve the surface.

How to store the barbecue?

Store it dry, ideally with a cover if stored outdoors. Ensure it is completely cool and clean before storing.

What to do if the barbecue rusts?

Light rust can be removed with a wire brush. Then clean, dry, and oil the surface. Regular oiling prevents corrosion.

Can I modify the barbecue?

No, do not modify the barbecue or brazier. Any modification may cause injury or property damage.

How to fully extinguish the fire?

Let the fire go out naturally or cover it with sand or water. Ensure the ashes are cold before disposing. Never dispose of hot ashes.

USER MANUAL fs38 Petromax

EN Translation of the user manual

for Griddle and Fire Bowl

38 cm | 14.9 in 48 cm | 18.9 in 56 cm | 22 in

23 cm | 9 in 23 cm | 9 in 23 cm | 9 in

3,8 kg | 8.3 lbs

5,5 kg | 12.1 lbs

7,1 kg | 15.6 lbs

DE: Stahl | EN: Steel | FR: Acier | DA: Stål | FI: Teräs | IT: Acciaio | NL: Staal | NO: Stål

PL: Stal | SV: Stål | ES: Acero | CS: Ocel

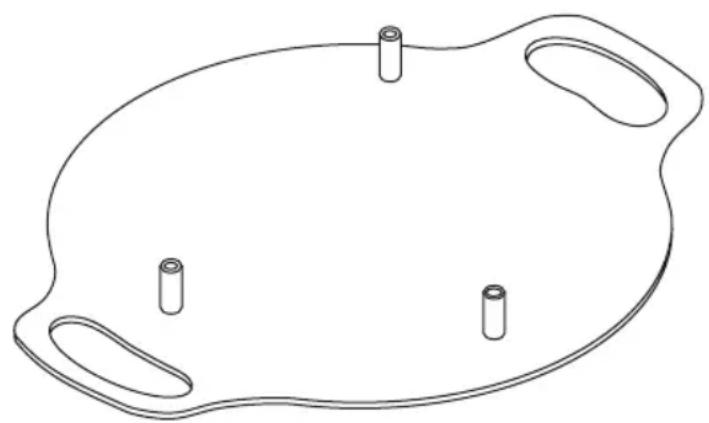

Lieferumfang | Scope of delivery | Contenu de la livraison | Leveringens omfang | Toimituksen laajuus | Ambito di consegna | Omvang van de levering | Leveringsomfang | Zakres dostawy | Leveransens omfattning | Volumen de suministro | Rozsah dodávky

3x 1x

Simple line drawing of a curved object with two side handles and three cylindrical features at the center (no text or symbols)

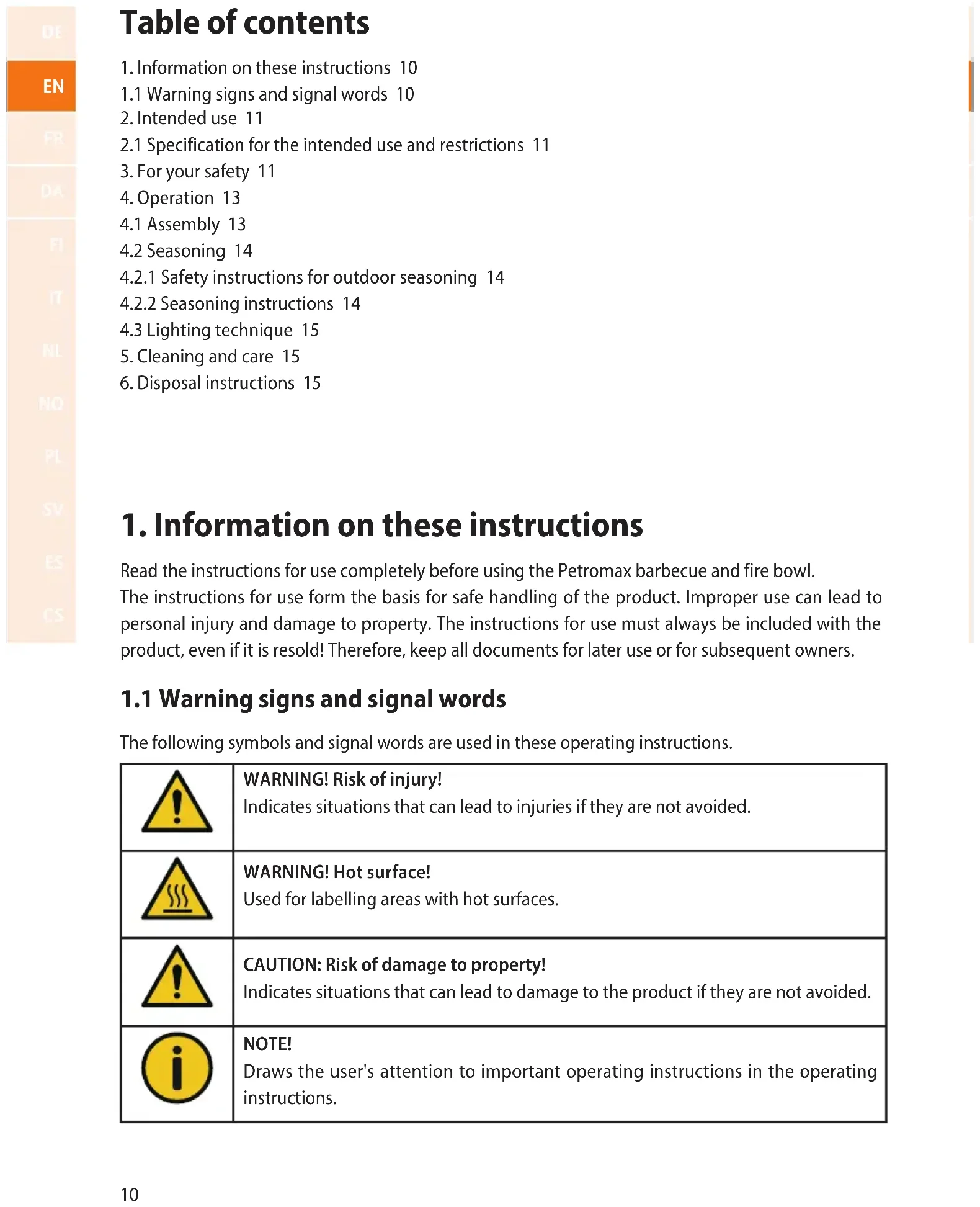

Inhaltsverzeichnis

Line drawing of a simple round table with two handles and four legs (no text or symbols)

4.2. Einbrennen

Line drawing of a campfire with two wooden logs and flames (no text or symbols)

1. Information on these instructions 10
   1.1 Warning signs and signal words 10
2. Intended use 11
   2.1 Specification for the intended use and restrictions 11
3. For your safety 11
4. Operation 13
   4.1 Assembly 13
   4.2 Seasoning 14
   4.2.1 Safety instructions for outdoor seasoning 14
   4.2.2 Seasoning instructions 14
   4.3 Lighting technique 15
5. Cleaning and care 15
6. Disposal instructions 15

1. Information on these instructions

Read the instructions for use completely before using the Petromax barbecue and fire bowl. The instructions for use form the basis for safe handling of the product. Improper use can lead to personal injury and damage to property. The instructions for use must always be included with the product, even if it is resold! Therefore, keep all documents for later use or for subsequent owners.

1.1 Warning signs and signal words

The following symbols and signal words are used in these operating instructions.

	WARNING! Risk of injury!Indicates situations that can lead to injuries if they are not avoided.
	WARNING! Hot surface!Used for labelling areas with hot surfaces.
	CAUTION: Risk of damage to property!Indicates situations that can lead to damage to the product if they are not avoided.
	NOTE!Draws the user's attention to important operating instructions in the operating instructions.

2. Intended use

The Petromax barbecue and fire bowl can be used for cosy campfires or barbecue evenings outdoors. It provides a cosy atmosphere and serves as a heat source. The barbecue and fire bowl is intended for leisure use and not for commercial use. The barbecue and fire bowl can be used for grilling food after it has been burnt in.

Do not use spirit or petrol for lighting or relighting! Only use ignition aids in accordance with EN 1860-3 or paper!

Heat, long periods of use or rapid temperature changes can cause discolouration or deformation of the barbecue and fire bowl. The change in appearance resulting from use is a typical product characteristic and has no influence on use, function or service life.

2.1 Specification for the intended use and restrictions

Types of food that should come into contact with the Petromax grill and fire bowl:

- All types of food (aqueous, alcoholic and fatty foods and dairy products), except acidic food.

Duration and temperature of handling and storage in contact with the food/conditions of use:

• High-temperature applications for heating, cooking and grilling food.

Information on necessary treatments or restrictions on the use of the food contact material or article:

- Clean with hot water before first use and then dry thoroughly. Do not use washing-up liquid. Store in a dry place.

WARNING! The grilling surface must be burnt in before first use!

An unprotected grilling surface can release substances that can be transferred to food. You can avoid this risk and increase the lifespan of your barbecue and fire bowl by burning them in regularly.

To ensure food safety and the service life of your barbecue and fire bowl, follow the instructions in section 4.2.

3. For your safety

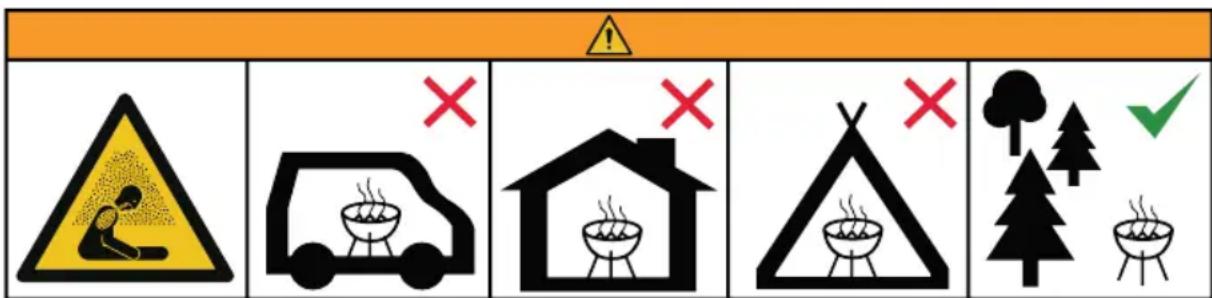

• Do not operate the barbecue and fire bowl in closed and/or habitable rooms, e.g. buildings, tents, caravans, mobile homes, boats. There is a danger to life due to carbon monoxide poisoning!
• Select a well-ventilated outdoor area that is not close to highly flammable materials or structures. Avoid excessively windy areas to prevent the fire from getting out of control.
• Observe local regulations and environmental regulations regarding outdoor burning and avoid burning waste that could be harmful to health.
• To prevent tipping over and injury or fire, make sure that the surface on which you place the barbecue and fire bowl is stable and fireproof.
• The barbecue and fire bowl may only be used if no faults have been found during inspection. As soon as a part is defective, it must be replaced before the next use.
• Always work with caution and only when you are in good health: tiredness, illness, alcohol, medication and drugs can cause damage to property or injury, as you can no longer use the product safely.
  • To avoid injury or damage to property, do not make any modifications to the barbecue and fire bowl!
• The barbecue and fire bowl must not be moved during operation. Do not move it after lighting.
• Always keep an extinguishing agent such as sand, water or a fire extinguisher nearby so that you can intervene in an emergency.
• Keep your distance from the barbecue and fire bowl during the burning process and make sure that no children or pets are in the vicinity.
• Do not cover the barbecue and fire bowl with flammable material during use.
• Accessible parts can be very hot. To protect yourself from burns, wear heat-resistant gloves and, if necessary, an apron when barbecuing to protect yourself from hot splashes.
• Never leave a burning barbecue and fire bowl unattended and make sure that the fire is completely extinguished before you leave it or go to bed.
  • After burning, your barbecue and fire bowl should cool down completely before you touch or clean it.
• Dispose of the ashes properly afterwards. Never dispose of hot ash in household waste!
• Protect from moisture.
• Wear fireproof clothing when using the appliance.

4. Operation

WARNING! Hot surface!The grill and fire bowl becomes very hot during use. To avoid injury:Keep children and animals away when using the Petromax product.Protect your hands with heat-resistant protective gloves.

Before using the Griddle and Fire Bowl, remove all parts from the packaging. Rinse the product with hot water, rinse with cold water and dry thoroughly.

Set up the Griddle and Fire Bowl and then place it outside on a level, stable and fireproof surface. Find a suitable location for your barbecue and fire bowl where it no longer needs to be moved. Make sure that it cannot rock or tip over.

	ATTENTION: Fire hazard!Do not set up near flammable objects. Keep a sufficient distance from buildings, people, animals, plants and objects. There must be no flammable materials in the protected area.
	CAUTION: Risk of damage to property!To avoid material stress, deformation or damage to the surface, heat the grill and fire rings slowly.
	WARNING! Risk of burns!Use barbecue tongs and heat protection gloves to position the fuel or add new fuel.

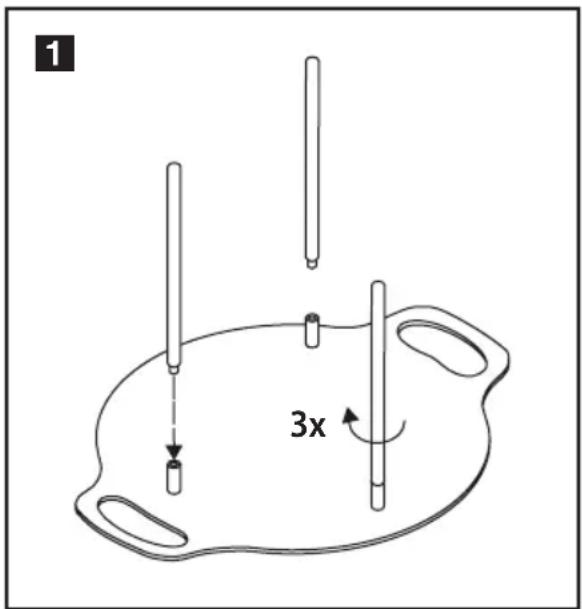

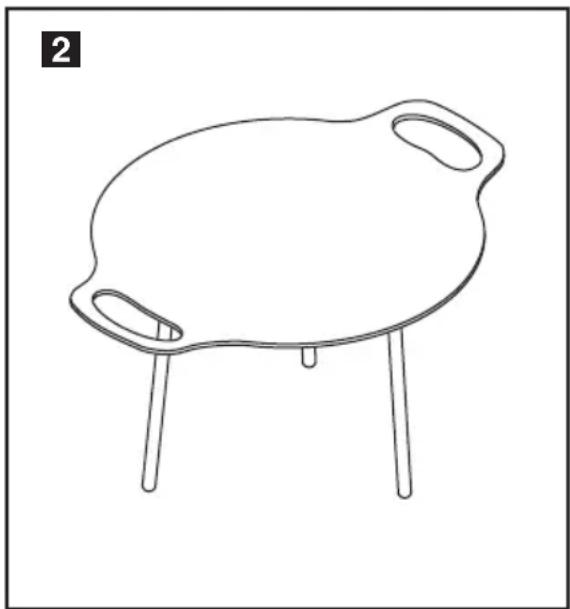

4.1 Assembly

Line drawing of a simple four-legged table with two handles and a curved top (no text or symbols)

4.2 Seasoning

Burning in of the Griddle and Fire Bowl is important not only before the first use, but it should be repeated regularly! Follow the instructions below to ensure optimal use and safety.

4.2.1. Safety instructions for outdoor seasoning

If you want to carry out the burning-in process outdoors, safety is the highest priority:

• Choose a well-ventilated outdoor area that is not near flammable materials or structures. Avoid excessively windy areas to prevent the fire from getting out of control.
• Make sure the surface where you place the Griddle and Fire Bowl stand is stable and fireproof.
• Always keep a fire extinguisher, fire blanket, or other suitable extinguishing agent nearby in case something goes wrong.
• During the burning-in process, keep a distance from the Griddle and Fire Bowl and ensure no children or animals are nearby.
• Wear heat-resistant gloves and, if necessary, an apron to protect yourself from hot splashes.
• Be cautious when handling hot oil and avoid splattering or spilling.

4.2.2 Seasoning instructions

1. Clean the grill surface thoroughly with hot water.
2. Dry thoroughly.
3. Apply a thin layer of heat-resistant oil and heat the Griddle and Fire Bowl to a high temperature (200-250°C).

4. Leave the Griddle and Fire Bowl at the temperature for 30-60 minutes to allow the oil to soak into the surface.

5. Leave the Griddle and Fire Bowl to cool slowly and repeat the process if necessary.

	WARNING! Risk of burns!To avoid the risk of burns, do not touch the hot bowl until it has cooled down completely.
	NOTE!To achieve an even, non-sticky patina, make sure that only a thin layer of oil remains on the product. If in doubt, remove excess oil and seasoning the barbecue and fire bowl again.

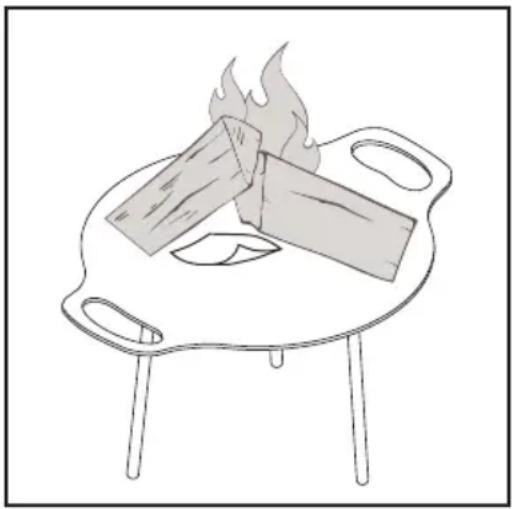

4.3 Lighting technique

The kindling can be paper or special kindling compliant with EN 1860-3, e.g. waxed wood wool.

Fuel on the Griddle and Fire Bowl is usually arranged cross-wise. We also recommend the traditional campfire layout for the bottom-to-top ignition technique. Placement and setting fire to the kindling occurs in the lower part of the fuel. The lower layers of fuel are small pieces of kindling. Above the kindling are larger pieces of firewood.

Line drawing of a campfire with two wooden logs and flames (no text or symbols)

5. Cleaning and care

The following tips will keep your Griddle and Fire Bowl looking good and ready for use for longer:

• Clean after every barbecue: Remove food residues with a soft brush or wooden spatula and rinse the bowl with warm water. Avoid chemical cleaners or abrasive cleaners.
• Don't forget to dry: Dry the bowl thoroughly immediately to prevent rust from forming.
• Oil regularly: After cleaning, rub the surface with a little heat-resistant vegetable oil. This protects the bowl from corrosion and preserves the surface.
• Store correctly: Make sure that the bowl is stored in a dry place, ideally with a cover if it is outside.

6. Disposal instructions

Dispose of the materials separately according to your local disposal regulations. Never dispose of hot ash in household waste!

We will be happy to help you with any questions or problems.

You can reach our customer service team by email at: [e-mail]

Table des matières

Line drawing of a simple four-legged table with two handles and a curved top (no text or symbols)

Simple line drawing of a campfire with two wooden logs and flames (no text or symbols)

Line drawing of a simple four-legged table with handles and a curved top (no text or symbols)

4.2 Indbrænding

Line drawing of a campfire with two wooden logs and fire, no text or symbols present

Line drawing of a simple round table with two handles and four legs (no text or symbols)

4.2 Sisäänpoltto

Line drawing of a campfire with two wooden logs on a fire pit (no text or symbols)

Line drawing of a simple four-legged table with two handles and a curved top (no text or symbols)

4.2 Cottura

Line drawing of a campfire with two wooden logs and flames (no text or symbols)

5. Pulizia e cura

Line drawing of a simple round table with two handles and four legs (no text or symbols)

4.2 Inbranden

Line drawing of a campfire with two wooden logs and fire extinguishers (no text or symbols)

Line drawing of a simple round table with two handles and four legs (no text or symbols)

4.2 Innbrenning

Line drawing of a campfire with two wooden logs and flames (no text or symbols)

Simple line drawing of a simple round table with two handles and three legs (no text or symbols)

4.2. Wypalanie

Line drawing of a campfire with two wooden logs and flames (no text or symbols)

Simple line drawing of a simple round table with two handles and four legs (no text or symbols)

4.2 Inbränning

Line drawing of a campfire with two wooden logs on a fire pit (no text or symbols)

Simple line drawing of a simple four-legged table with handles (no text or symbols)

4.2 El cocinar

Line drawing of a campfire with two wooden logs and flames (no text or symbols)

Simple line drawing of a simple round table with two handles and four legs (no text or symbols)

4.2 Vypalování

Line drawing of a campfire with two wooden logs and flames (no text or symbols)

5. Čištění a péče
