d1 - Barbecue Petromax - Free user manual and instructions

Brand	Petromax
Model	d1
Category	Barbecue (hanging tripod)
Product type	Hanging tripod for outdoor cooking
Main material	Galvanized steel
Dimensions (package)	98 x 12 x 12 cm (L x H x D)
Weight	4.3 kg
Installation height	88 - 144 cm
Leg length	88 - 159 cm
Maximum load capacity	40 kg
Usage	Outdoor only
Power source	None (wood or charcoal fire)
Main functions	Suspended cooking with height adjustment via chain
Package contents	1 tripod, 1 chain, 2 S hooks
Care and cleaning	Clean with a soft, dry cloth; for stubborn dirt, use clear water and mild detergent, then dry thoroughly
Safety	Do not use indoors; wear heat-resistant gloves; do not move while in use; extinguish fire with sand or a fire extinguisher, never water; supervision required
Spare parts	Chain and hooks included; contact [e-mail] for replacement
Repairability	2-year warranty; repair via retailer or customer service
General information	Manual available in French; brand Petromax GmbH

Frequently Asked Questions - d1 Petromax

How to install the Petromax d1 hanging tripod?

Ensure the ground is stable and non-slip. Unfold the legs and adjust their height individually to compensate for uneven terrain. Tighten slightly to hold the legs in position. Hang the chain with the hooks and suspend your pot or kettle.

What is the maximum load capacity?

The maximum load capacity is 40 kg. Do not exceed this limit to avoid any risk of tipping.

Can I use the tripod indoors?

No, the tripod is designed for outdoor use only. Using it indoors poses a fire and asphyxiation risk.

How to clean and maintain the tripod?

After complete cooling, remove soot marks with a soft, dry cloth. For stubborn dirt, use clear water and mild detergent, then dry thoroughly. Store in a dry place to prevent rust.

What accessories are included?

The package contains: 1 hanging tripod, 1 chain, and 2 S hooks.

How to adjust the cooking height?

The height is adjusted by changing the length of the chain using the hooks. You can also individually adjust the height of the tripod legs.

What safety precautions should I take?

Always use heat-resistant gloves. Never leave the fire unattended, keep children and pets away. To extinguish the fire, use sand or a powder extinguisher, never water.

How to store the tripod after use?

Ensure it has completely cooled, clean and dry it. Fold the legs by tightening slightly (do not force). Cover or wrap in a dry cloth and store in a dry place.

What is the warranty period?

The tripod is warranted for 2 years from the date of purchase against manufacturing and material defects. Contact your dealer for repair.

How to contact Petromax customer service?

You can reach customer service by email at [e-mail] for any questions or issues.

USER MANUAL d1 Petromax

Circular emblem with symmetrical black-and-white design resembling a stylized dragon or phoenix motif, enclosed in a black border with a circular center and swirls (no text or symbols)

Petromax

d1

DE

Dreibein

Gebrauchsanleitung

EN

Cooking Tripod

User Manual

FR

Trépied de suspension

Mode d'emploi

ES

Trípode

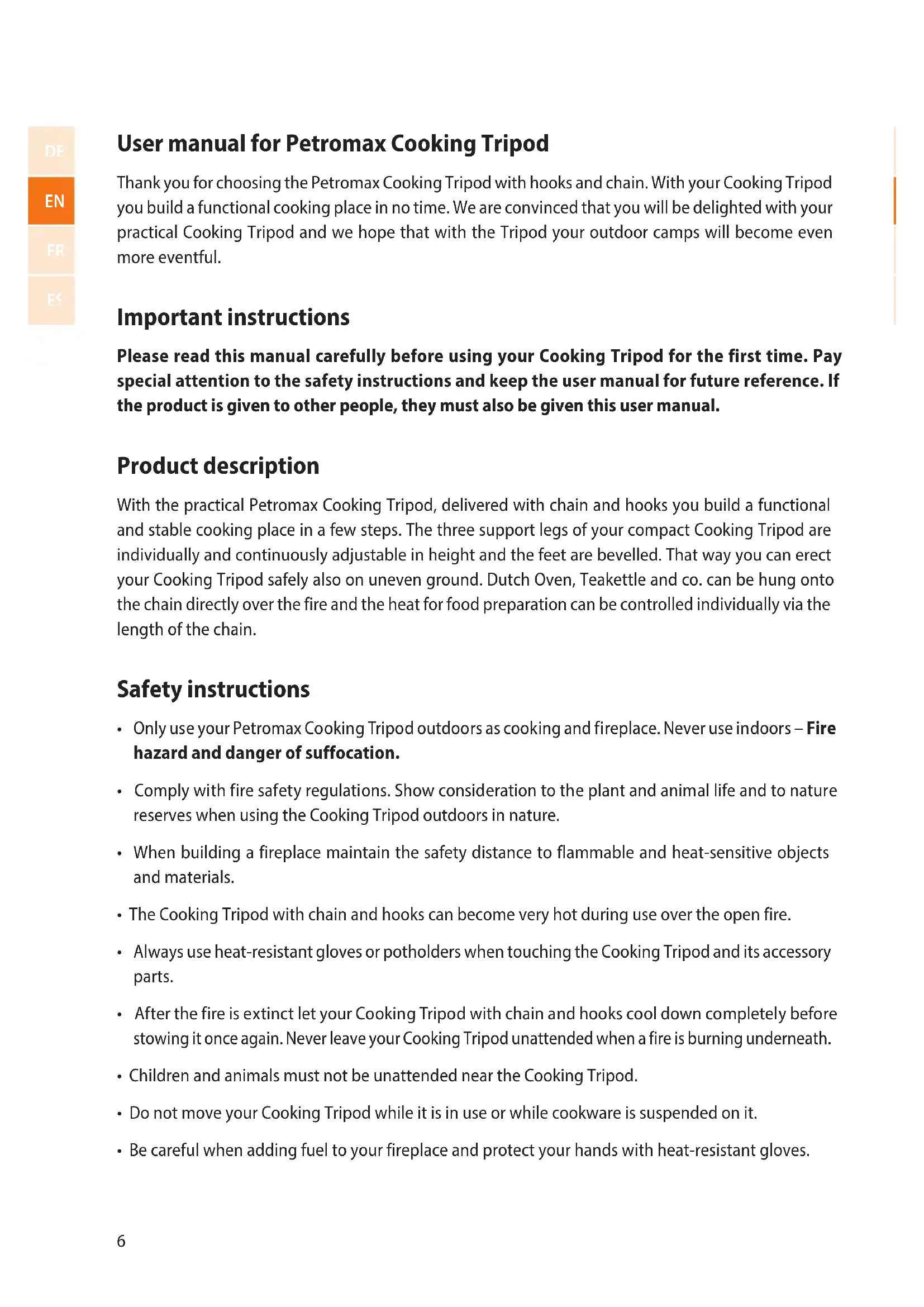

User manual for Petromax Cooking Tripod

Thank you for choosing the Petromax Cooking Tripod with hooks and chain. With your Cooking Tripod you build a functional cooking place in no time. We are convinced that you will be delighted with your practical Cooking Tripod and we hope that with the Tripod your outdoor camps will become even more eventful.

Important instructions

Please read this manual carefully before using your Cooking Tripod for the first time. Pay special attention to the safety instructions and keep the user manual for future reference. If the product is given to other people, they must also be given this user manual.

Product description

With the practical Petromax Cooking Tripod, delivered with chain and hooks you build a functional and stable cooking place in a few steps. The three support legs of your compact Cooking Tripod are individually and continuously adjustable in height and the feet are bevelled. That way you can erect your Cooking Tripod safely also on uneven ground. Dutch Oven, Teakettle and co. can be hung onto the chain directly over the fire and the heat for food preparation can be controlled individually via the length of the chain.

Safety instructions

• Only use your Petromax Cooking Tripod outdoors as cooking and fireplace. Never use indoors – Fire hazard and danger of suffocation.
• Comply with fire safety regulations. Show consideration to the plant and animal life and to nature reserves when using the Cooking Tripod outdoors in nature.
• When building a fireplace maintain the safety distance to flammable and heat-sensitive objects and materials.
• The Cooking Tripod with chain and hooks can become very hot during use over the open fire.
• Always use heat-resistant gloves or potholders when touching the Cooking Tripod and its accessory parts.
• After the fire is extinct let your Cooking Tripod with chain and hooks cool down completely before stowing it once again. Never leave your Cooking Tripod unattended when a fire is burning underneath.
  • Children and animals must not be unattended near the Cooking Tripod.
• Do not move your Cooking Tripod while it is in use or while cookware is suspended on it.

• Be careful when adding fuel to your fireplace and protect your hands with heat-resistant gloves.

• Never use water to extinguish glowing wood or charcoal.

• Have a bucket of sand or a powder fire extinguisher nearby in case of emergency.
• When having a fire underneath your Cooking Tripod make sure to completely extinguish it and clear the fireplace before leaving your camp in nature.

Scope of delivery

1 x Cooking Tripod

1 x chain

2 x hook

Technical Data

Material steel, zinc plated

Dimensions (H x B x T) 98 cm x 12 cm x 12 cm

Weight 4.3 kg

Installation height 88-144 cm

Length support legs 88-159 cm

Load capacity 40 kg

Assembly

Before setting up your Cooking Tripod make sure that the ground underneath is not too slippery or too soft, to avoid any sinking in or skidding of the support legs when the Tripod is loaded. Forest floor or a campsite meadow, but also garden or courtyard are the ideal ground for setting up your mobile cooking place. Unevenness can be easily balanced by means of the continuously adjustable support legs as well as the bevelled feet of your Cooking Tripod.

Disassembly, care and storage

As soon as your Cooking Tripod has cooled down after your fire has been extinct, remove any soot with a soft, dry cloth. For major soiling you can clean your Cooking Tripod with water, a mild detergent and a soft cloth. Dry well afterwards. The same applies to chain and hooks. Afterwards, push together the support legs of your Cooking Tripod and fasten slightly by means of the adjustable screws.

Attention: If fastened too firmly the support legs may deform!

Do not stow your Cooking Tripod with chain and hooks unprotected outdoors. Stow all parts only when they are completely cold, clean and dry. Strictly avoid any kind of humidity. Cover your Cooking Tripod as well as chain and hooks well or wrap them into a dry cloth to protect all parts from humidity and flash rust.

Warranty

Under proper use, a warranty period of two years will apply to your Petromax Cooking Tripod from the date of purchase. This does not cover wear parts. If you cannot use your Petromax Cooking Tripod properly due to a defect in material or manufacturing, you are entitled to a warranty claim. Contact your retailer for that purpose.

Service

If you have questions or if you need additional information, please let us know. You can contact our support team via e-mail at: [e-mail]

Copyright © Petromax GmbH. All rights reserved.

Petromax and the dragon brand are registered trademarks. The content of this user manual must not be replicated in any way, edited, copied or distributed by any means without permission.
