per-9-s - Barbecue Petromax - Free user manual and instructions

Product type	Coffee/tea percolator
Brand	Petromax
Model	per-9-s
Maximum capacity	1.3 L
Minimum capacity	0.7 L
Dimensions (L × W × H)	20.5 × 14.5 × 18.5 cm
Weight	0.8 kg
Material	Enamel and stainless steel
Usage	Indoor and outdoor (camping, hiking, garden)
Heat source	Campfire, stove (all types, including induction and ceramic glass)
Main function	Percolation: heated water rises through the tube and passes through the coffee or tea
Recommended boiling time	12 to 15 minutes after boiling point
Care and cleaning	Clean with clear water and mild dish soap before first use and after each use; dry thoroughly
Safety	Very hot handles: use gloves or a cloth; do not remove the lid during boiling; keep away from children and animals; observe safety distances
Spare parts and repairability	Glass lid knob available as spare part; other parts not specified
Warranty	2 years from date of purchase
Customer service	Contact by email: [e-mail]
General information	Percolation principle: boiling water rises through the tube and drips onto the filter; more intense flavor with repeated cycles

Frequently Asked Questions - per-9-s Petromax

How to get stronger coffee with my Petromax per-9-s percolator?

Let it boil for at least 12 minutes after the boiling point and use about 8 to 9 teaspoons of coarsely ground coffee, up to below the upper end of the water riser tube.

Why doesn't the water boil in my percolator?

Check that the water level reaches the required minimum amount (0.7 L for the per-9-s model). If the level is too low, the water will not boil properly.

What to do if my coffee overflows from the percolator?

Do not exceed the maximum capacity of 1.3 L. Reduce the amount of water and coffee to avoid overflow.

How to know when the water has reached the boiling point?

You will distinctly hear the water boiling. Make sure the lid is tightly closed, as very hot water can spurt from the riser tube.

Can I use my per-9-s percolator on an induction cooktop?

Yes, the enamel per-9-s model is compatible with all types of stoves, including induction and ceramic glass. Only the stainless steel models le14 and le28 have restrictions.

What is the minimum and maximum capacity of the per-9-s?

The minimum capacity is 0.7 liters and the maximum capacity is 1.3 liters. Respect these levels for optimal operation.

How to clean my Petromax percolator?

Wash all parts with clear water and a mild dish soap before first use and after each use. Dry the inside and outside thoroughly with a clean cloth.

Can I make tea with the percolator?

Yes, the percolator is designed for coffee and tea. Put loose tea or tea bags in the filter and follow the same percolation process.

What to do if the lid lifts or falls off when pouring?

Make sure to replace the lid with the spout facing the handle (for enamel models). This allows safe pouring without the risk of the lid falling off.

What are the essential safety precautions?

The percolator and handles become very hot: use gloves or a cloth. Never remove the lid during boiling. Keep children and animals away. Place it on a fire-resistant surface.

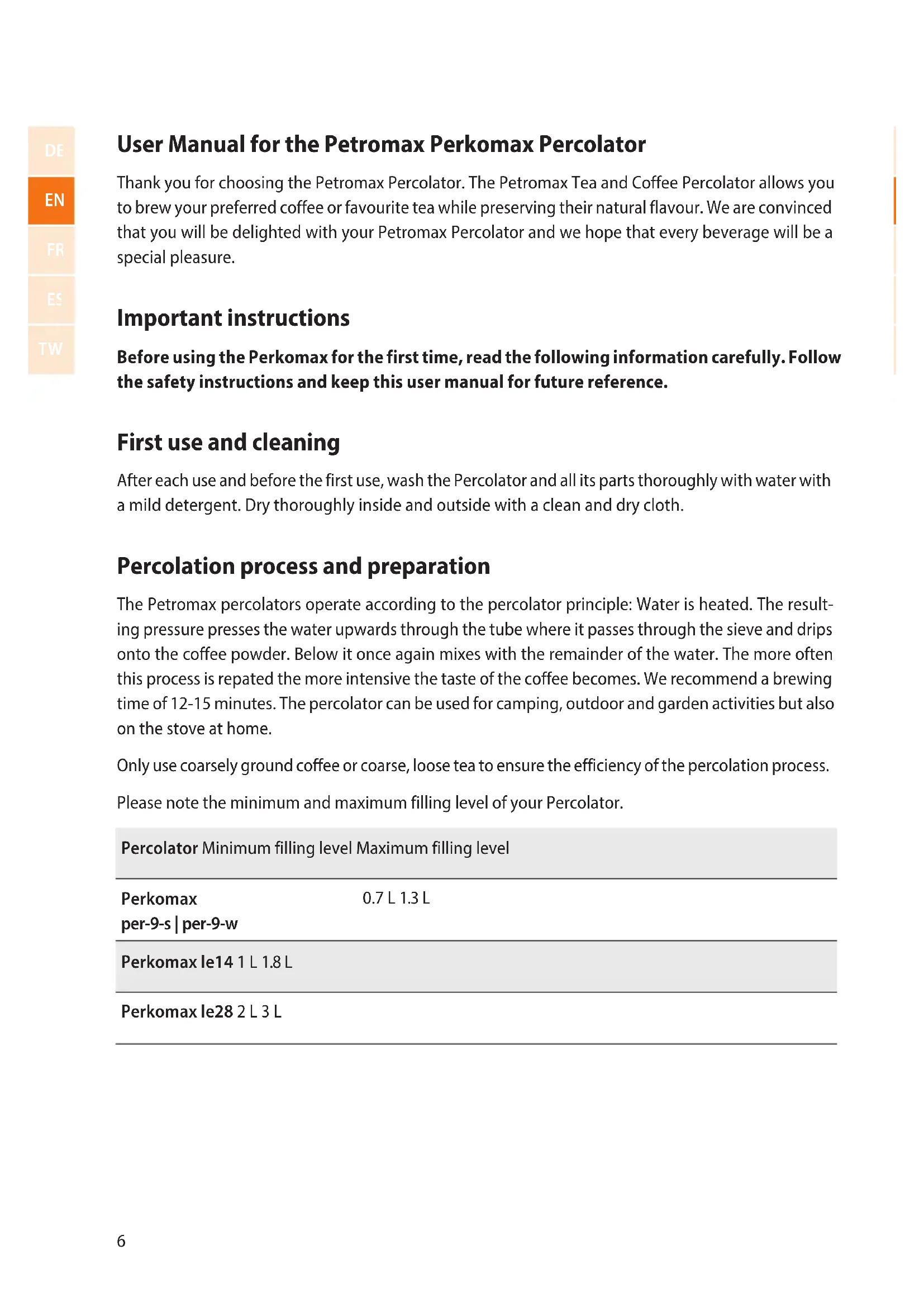

USER MANUAL per-9-s Petromax

per-14-le | per-28-le per-9-s | per-9-w

DE

Thank you for choosing the Petromax Percolator. The Petromax Tea and Coffee Percolator allows you to brew your preferred coffee or favourite tea while preserving their natural flavour. We are convinced that you will be delighted with your Petromax Percolator and we hope that every beverage will be a special pleasure.

Important instructions

Before using the Perkomax for the first time, read the following information carefully. Follow the safety instructions and keep this user manual for future reference.

First use and cleaning

After each use and before the first use, wash the Percolator and all its parts thoroughly with water with a mild detergent. Dry thoroughly inside and outside with a clean and dry cloth.

Percolation process and preparation

The Petromax percolators operate according to the percolator principle: Water is heated. The resulting pressure presses the water upwards through the tube where it passes through the sieve and drips onto the coffee powder. Below it once again mixes with the remainder of the water. The more often this process is repeated the more intensive the taste of the coffee becomes. We recommend a brewing time of 12-15 minutes. The percolator can be used for camping, outdoor and garden activities but also on the stove at home.

Only use coarsely ground coffee or coarse, loose tea to ensure the efficiency of the percolation process.

Please note the minimum and maximum filling level of your Percolator.

Percolator Minimum filling level Maximum filling level

Perkomax

0.7 L 1.3 L

per-9-s | per-9-w

Perkomax le141 L 1.8 L

Perkomaxle282L3L

1. Add the desired amount of drinking water. Please note the minimum and maximum filling level. At too low filling level the water will not boil, at too high filling level it will boil over. Caution! The water must not come into contact with the basket.
2. Fill the basket with the desired amount of coarsely ground coffee or tea. Close the lid. The nose of the lid should be on the same side as the handle (Percolator black & white.)
3. Place the Percolator onto a flat heating surface or place/hang it over the campfire. Boil the water.
4. Optimal boiling period: approx. 12-15 minutes

Safety instructions

• Only fill the Percolator with water.
• Please note that the Percolator and all its parts become very hot during use. Only use it with a cloth or heat-resistant gloves.
• Caution! Children and animals should never be allowed near the Percolator.
• Never remove the lid during the brewing process as boiling water is spurting from the tube.
• Comply with fire safety regulations.
• Maintain a safe distance to flammable and heat-sensitive objects and materials.
• Always wear appropriate clothing.
• Set down hot cookware on heat-resistant surfaces only.

Models

The Percolator is suitable for camping, outdoor and garden activities or for the stove.

Caution! The Stainless Steel le14 | le28 is not suitable for induction stove and ceramic hob.

Stainless Steel Percolator le14 | le28

Petromax offers the Percolator made of stainless steel in two different sizes. Thus, you can choose the one that suits your needs best. The sturdy handle makes it easy to hang. Thanks to a glass knob in the lid you can watch your beverage boil. The glass knob is also available as a spare part.

Enamel Perkomax black | white

The enamel Perkomax is available in black and white. Thanks to the sturdy enamel the percolator is suitable for outdoor use as well as on all types of stoves. The tilt protection (nose of the lid) provides for safe pouring.

Model	le 14	le 28	per-9-s | per-9-w
Volume or max. filling level	1.8 L 3 L 1.3 L
Dimensions unpacked	20.5 x 21 x 15 cm 26 x 23.5 x 18.5 cm 20.5 x 14.5 x 18.5 cm
Weight unpacked	0.9 kg 1.2 kg 0.8 kg
Material	Stainless steel, glass	Stainless steel, glass	Enamel, stainless steel

Problem solving

Problem Solution
The lid is falling while pouring. (Enamel Perkomax)	Please make sure, that the nose of the lid is on the same side as the handle.
The water is not boiling.	Please note the minimum filling level of the respective Percolator (see table.)
My coffee is not strong enough.	1. The boiling time should be at least 12 min.2. Please add an adequate quantity of coffee to the basket (ca. 8-9 tsp), maximum level just below the upper end of the tube in the basket.
My coffee/tea is boiling over.	Please note that the maximum filling level of the respective Percolator (see table.)
How do I know, that my coffee/tea is boiling?	As soon as the water is boiling, you will hear the sound very clearly. You must not remove the lid during the boiling process as very hot water flows out of the tube.

Warranty

Under proper use, a warranty period of two years will apply to your Petromax Perkomax from the date of purchase. This does not cover wear parts. If you cannot use your Petromax Percolator properly due to a defect in material or workmanship, you are entitled to a warranty repair. Contact your retailer for that purpose.

Service

If you have questions or if you need additional information, please let us know. You can contact our customer service via e-mail at: [e-mail]

Copyright © Petromax GmbH. All rights reserved.

Petromax and the dragon brand are registered trademarks. The content of this user manual must not be replicated in any way, edited, copied or distributed by any means without permission.
