Product Type	Pocket Fire Pit / Portable Barbecue
Brand	Petromax
Model	fb1
Main Material	Stainless Steel
Number of Parts	6 parts + carry bag
Fuel	Wood, branches, bark, commercial fire starters (e.g., Petromax Fire Kit)
Main Functions	Grilling, cooking, oven
Usage	Outdoor only
Safety Distance	At least 1.5 m from flammable materials
Care and Cleaning	Clean with a cloth or sponge and eco-friendly cleaner. Do not use flammable liquids.
Safety Precautions	Do not use in enclosed spaces. Do not move when hot. Supervise children and animals. Keep a bucket of sand or water nearby.
Spare Parts and Accessories	Oven hooks, Fire Pit Feet, Fire Kit, Aramid Pro 300 Gloves
Warranty	2 years from purchase date
Customer Service	Email: [e-mail]
Country of Origin	Germany (Petromax GmbH)

Frequently Asked Questions - fb1 Petromax

How to assemble the Petromax Pocket Fire Pit?

Place the base plate on a flat surface. Install one side plate vertically, then the back plate, then the second side plate. Slide the fire tray with the higher edge toward the back plate. Finally, put the grill lid with the folded edge facing forward.

What types of fuel can I use?

Use only branches, bark, and wood found on the ground, or commercial fire starters like the Petromax Fire Kit. Never use gasoline, turpentine, or alcohol.

Can I use the Pocket Fire Pit indoors?

No, the Pocket Fire Pit must be used only outdoors. Using it in an enclosed space poses a fire and suffocation risk.

How to clean the Pocket Fire Pit after use?

Let it cool completely, then remove ashes. Clean with a cloth or sponge and an eco-friendly cleaner. If cleaning outdoors, dispose of dishwater away from water sources.

How to store the Pocket Fire Pit in its bag?

Place the base plate on a stable surface. Put the side plates and back plate into the base plate. Place the fire tray with the lower edge facing forward, then the grill lid with the folded edge facing forward. Store everything in the carry bag.

What if the parts become deformed?

Parts may slightly deform after prolonged use or temperature changes. They will regain shape when cooling. If necessary, apply light hand pressure to the cooled parts to straighten them.

Can I use the Pocket Fire Pit as an oven?

Yes, with the optional Oven Hooks, you can raise the fire tray to create a baking space for bread between the base plate and the fire tray.

What accessories are available for the Pocket Fire Pit?

Petromax offers several accessories: Oven Hooks, Fire Pit Feet, Fire Kit, heat-resistant Aramid Pro 300 Gloves, and a Gas Lighter (ref. hf1).

What is the warranty period?

The warranty is 2 years from the date of purchase, for proper use. Wear parts are not covered.

How to contact Petromax customer service?

You can reach customer service by email at [e-mail] for any questions or issues.

USER MANUAL fb1 Petromax

Circular emblem with symmetrical black-and-white design resembling a stylized dragon or phoenix motif (no text or symbols)

Petromax

fb1|fb2

DE

Steckherd

Gebrauchsanleitung

EN

Pocket Stove

User Manual

FR

Foyer de poche

Mode d'emploi

Zusammenbau

User Manual for the Petromax Pocket Stove fb1 | fb2

Thank you for purchasing the Petromax Pocket Stove. With this environmentally friendly and versatile cooking and fireplace you can have a fire without leaving any traces behind. We are convinced that you will be delighted with the great features the Petromax Pocket Stove has to offer and we hope that it will make your outdoor activities and your outings in the forest, the open countryside and the wilderness even more exciting.

Important instructions

Please read and follow this user manual with safety instructions carefully before using your Petromax Pocket Stove for the first time and keep it safe for future reference. If the Petromax Pocket Stove is used by other people, they must also be given this user manual.

Product description

The six-part Petromax Pocket Stove is made of stainless steel and is easy to assemble in a few steps. The precise cuts in the material prevent the individual parts of the Pocket Stove from becoming distorted even under high temperatures so that after use the Pocket Stove can be packed into its robust transport pouch. The Pocket Stove can be used as an environmentally friendly fireplace and is perfectly suitable for grilling, cooking and baking.

Safety instructions

• Only use the Pocket Stove outdoors. Do not use indoors. Fire hazard and danger of suffocation!
• Comply with fire safety regulations.
• Show consideration to the plant and animal life and to nature reserves when you start a fire outdoors. Keep a minimum distance of 50 m to forests and areas of dense vegetation.
• Keep a minimum distance of 1.5 m to flammable materials such as leaves or dry grass when using the Petromax Pocket Stove.
• Do not use the Petromax Pocket Stove on a table.
• Place the Pocket Stove on an even, steady and fireproof surface before starting the fire.
• Only use twigs, bark and wood already fallen from trees, or products intended for this purpose (e.g. Petromax Fire Kit) to start the fire. Show consideration for the plant and animal life by leaving living trees and plants untouched.
• If you use commercially available fuel, such as the Petromax Fire Kit, please follow the instructions on the packaging of the product you have purchased.

• Never use fluids such as petrol, turpentine or methylated spirit to start or restart the fire. Such substances can explode and are partly toxic and harmful to the environment.

• Never pour flammable fluids into the Pocket Stove.

• Never leave the Pocket Stove unattended while it is in use. Watch closely over children and animals close to the Pocket Stove.
• Do not move the Pocket Stove when it is in use or hot.
• Wear appropriate clothes when using the Pocket Stove. Long, wide sleeves may easily catch fire.
• Make sure to have a bucket of sand or water nearby to extinguish the fire in case of emergency.
• Let the Pocket Stove cool down entirely after use.
• Only remove the ashes when they are cold. Dispose of them properly. Never throw hot ashes in the household waste!

Parts description and scope of delivery

1. 1 × Fire tray
2. 1 × Bottom tray
3. 2 x Side panel
4. 1 x Back panel
5. 1 x Grilling grate
6. 1 x Transport pouch (no illustration)
7. 1 x User manual (no illustration)

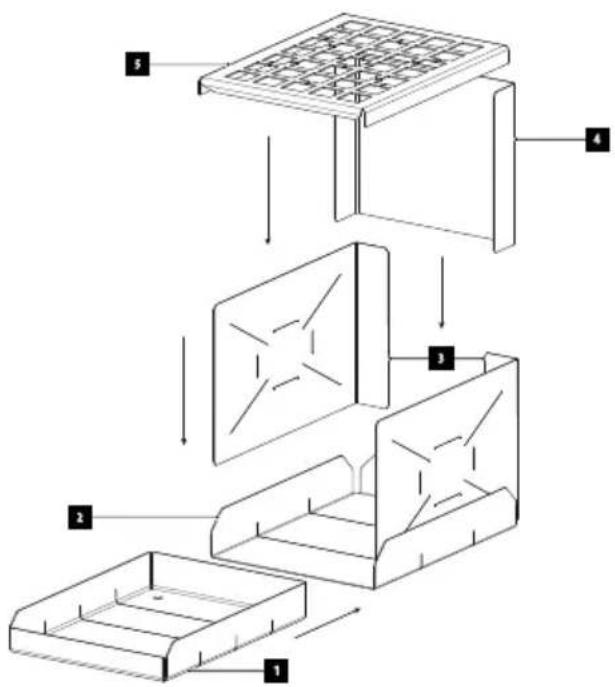

Assembly

Attention: Remove the grey protective film from all parts before assembling the Pocket Stove!

1. Place the bottom tray (2) on a level surface.
2. Place one of the side panels (3) vertically onto the bottom tray (2) and add the back panel (4). Then, add the second side panel (3).
3. Now shove the fire tray (1) into the bottom tray (2) with the higher edge against the back panel.
4. Add the grilling grate (5) with the bent edge in the front. The Petromax Pocket Stove is now ready for use.

It is easier to light a fire without the grilling grate (5). Add the grilling grate only when the fire has reached the desired size and heat. Be careful when adding the grilling grate when the fire is already burning! We recommend fire- and heat-resistant Petromax Aramid Pro 300 gloves.

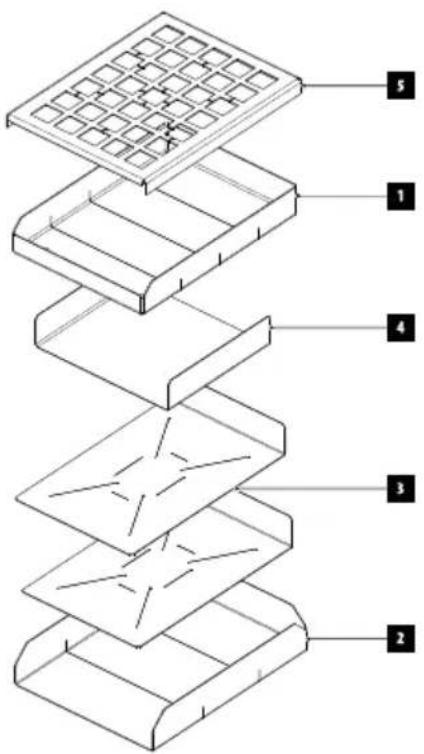

Stowage inside transport pouch

1. Place the bottom tray (2) on a steady surface. Add the two side panels (3) then the back panel (4) inside the bottom tray (2).
2. The fire tray (1) must now be placed on the back panel (4) with the lower edge facing the front.
3. Put the grilling grate (5) on top of the rest with the bent edge facing the front. The folded Pocket Stove can now be stowed in the transport pouch.

You can stow small accessories such as the Petromax Fire Kit space savingly into the packed Petromax Pocket Stove.

Tips and instructions for use

• With the Oven Brackets available as accessories (see page 14), the Petromax Pocket Stove even enables baking: The Oven Brackets raise the fire tray of the Pocket Stove so that rolls and bread can then be baked between the bottom tray and the fire tray.
• To fan the fire, blow steadily on the embers. Do not blow too strongly to avoid flying sparks. As an alternative you can also turn the Pocket Stove to face against wind direction and the fire is then fanned by the wind. Caution! Flying sparks!
• With the Feet for Pocket Stove which are available as accessories, you can optimise the air supply for the fire. As soon as the Pocket Stove is raised, the fire burns even better thanks to the additional air passing through the fine gaps in the bottom tray and the fire tray.
• Make sure the Pocket Stove stands straight and the cookware cannot slip down.

Cleaning and care

• You can extinguish the fire in the Pocket Stove with water or let it burn down. Do not remove the ashes before they have cooled down completely. Dispose of the ashes properly.
• The material of the Pocket Stove will turn brown after use. This does not reduce the functionality and efficiency of the Pocket Stove. If you want to clean your Pocket Stove wash it with a soft cloth or sponge and environmentally friendly cleaner. If you clean the Pocket Stove outdoors, only dispose of the rinse water away from open waters. Show consideration to water protection areas and nature reserves!
• After several hours use or quick changes in temperature, the parts of the Pocket Stove can become slightly distorted. These parts will regain their original form again as soon as they have cooled down completely. If necessary, you can gently press upon the relevant parts with your hand to regain the right form, after they have cooled down.

Warranty

In the case of proper use, a warranty period of two years will apply to your Petromax Pocket Stove from the date of purchase. This does not cover wear parts. If you cannot assemble the Petromax Pocket Stove properly due to a defect in material or manufacturing, you are entitled to a warranty repair. Contact your retailer for that purpose.

Service

If you have questions or if you need additional information, please let us know. You can contact our support team via E-mail at: [e-mail]

Montage

Petromax offers many more products suitable for your Pocket Stove

Four identical gray 3D geometric shapes arranged horizontally on a white background (no text or symbols)

Exterior view of a modern office building (no signage)

DE Füße für den Steckherd fb1 (Art.: f-fb1) und fb2 (Art.: f-fb2)
EN Feet for Pocket Stove fb1 (Ref.: f-fb1) and fb2 (Ref.: f-fb2)
FR Pieds pour Foyer de poche fb1 (Réf. : f-fb1) et fb2 (Réf. : f-fb2)

Four identical metallic L-shaped metal components arranged in a row (no text or symbols visible)

Exterior view of a modern office building (no signage)

DE Ofen-Halterung für den Steckherd fb1 und fb2 (Art.: fb-o)
EN Oven Brackets for Pocket Stove fb1 and fb2 (Ref.: fb-o)
FR Crochets de four pour Foyer de poche fb1 et fb2 (Réf. : fb-o)

Silver watercolor teapot with handle and spout, no visible text or symbols

DE Teekessel (Art.: tk1; tk2; tk3)
EN Teakettle (Ref.: tk1; tk2; tk3)
FR Bouilloire (Réf. : tk1; tk2; tk3)

Orange hand covering suit with black bandage (no text or symbols visible)

DE Aramid Pro 300 Handschuhe (Art.: h300)
EN Aramid Pro 300 Gloves (Ref.: h300)
FR Gants Aramide Pro 300 (Réf. : h300)

Wooden construction materials including a wooden structure, wooden pallet, and a wooden board with cutouts (no visible text or symbols)

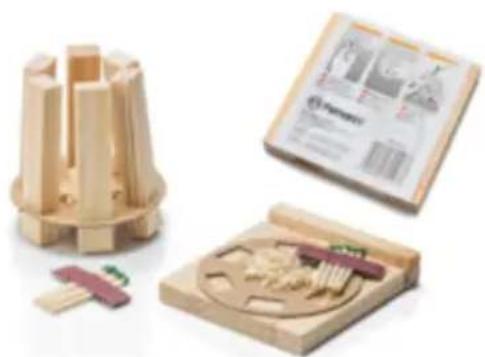

DE Petromax Feuerkit (Art.: kit)
EN Petromax Fire Kit (Ref.: kit)
FR Kit Feu Petromax (Réf. : kit)
