RM 2 RC - Lawn mower STIHL - Free user manual and instructions

Product type	Lawn mower
Brand	Stihl
Model	RM 2 RC
Engine	KOHLER HD675, 4-stroke
Displacement	149 cm³
Power	2.2 kW (3.0 hp) at 2800 rpm
Rated speed	2800 rpm
Cutting width	46 cm
Cutting height	4 positions: 30, 50, 70, 85 mm (separate front/rear adjustment)
Fuel tank capacity	1.4 L
Weight	27 kg
Engine oil type	SAE 30 or 10W-30 oil (quantity: see engine manual)
Functions	Mulching, manual start with safety bar
Safety	Engine stops within 3 s after releasing the bar, protection against projection
Maintenance and cleaning	Clean after each use, engine oil change, blade and spark plug replacement
Spare parts and repairability	Blade (ref. 6357 702 0102), fixing screws, spark plug, air filter
General information	364-page user manual, manufacturer's warranty

Frequently Asked Questions - RM 2 RC STIHL

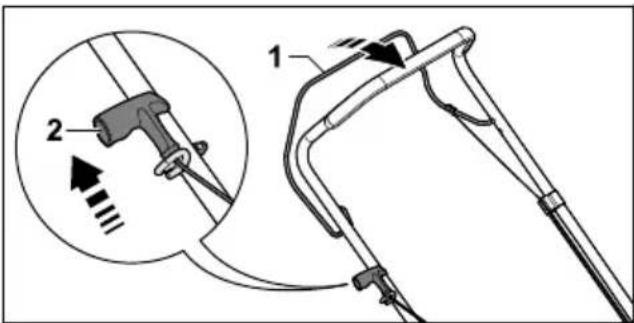

How to start the Stihl RM 2 RC lawn mower?

Place the mower on a flat surface. With your left hand, push and hold the safety bar against the handle. Slowly pull the starter handle until you feel resistance, then pull quickly. The engine should start. If not, check fuel and spark plug.

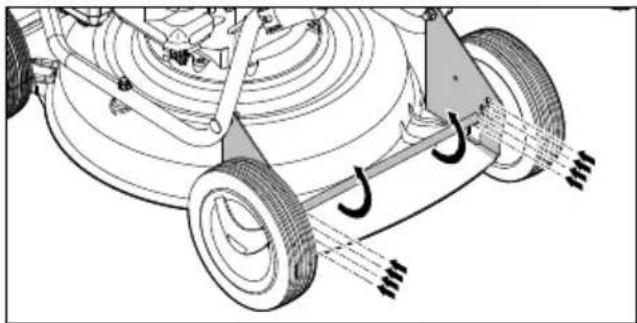

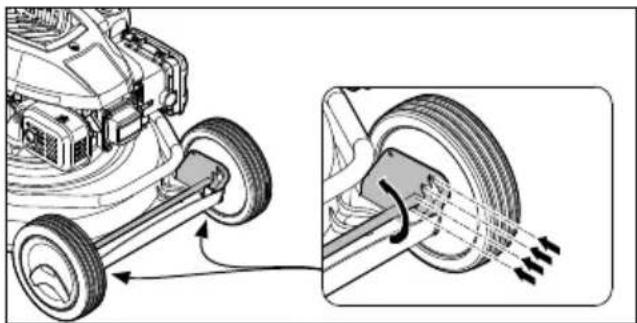

How to adjust the cutting height?

The cutting height is adjusted separately at the front and rear. Push the axle down to loosen it, then place it in the desired position (1: 30 mm, 2: 50 mm, 3: 70 mm, 4: 85 mm). Make sure the adjustment is the same on both sides.

What type of engine oil to use and how to check the level?

Use a quality 4-stroke engine oil (SAE 30 or 10W-30). Check the level with the dipstick located under the oil cap. Top up if necessary without exceeding the maximum level.

How to clean the lawn mower after use?

Stop the engine and let it cool. Remove the spark plug boot. Clean the housing with a damp cloth and soft brush, especially the cooling fins. Clean the blade with a piece of wood or a brush.

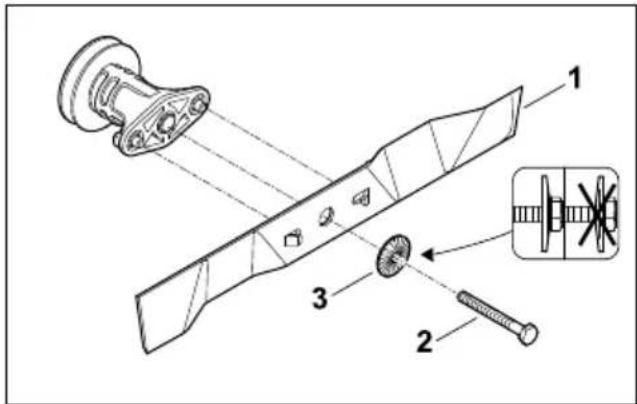

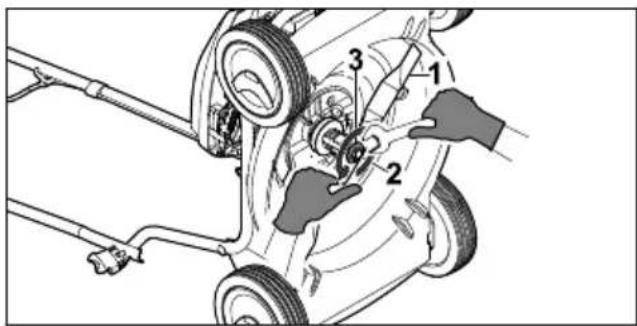

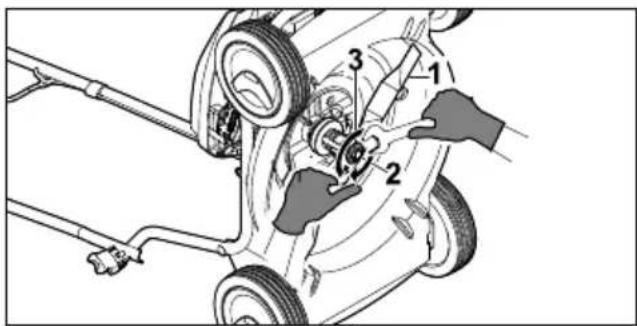

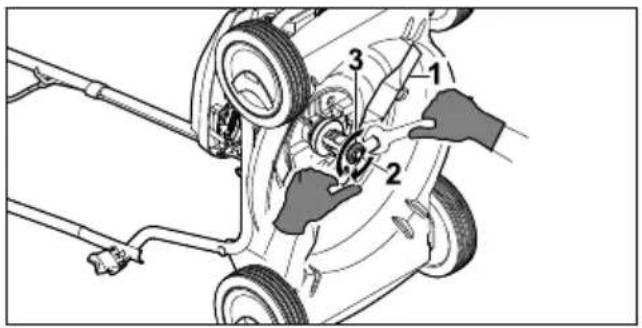

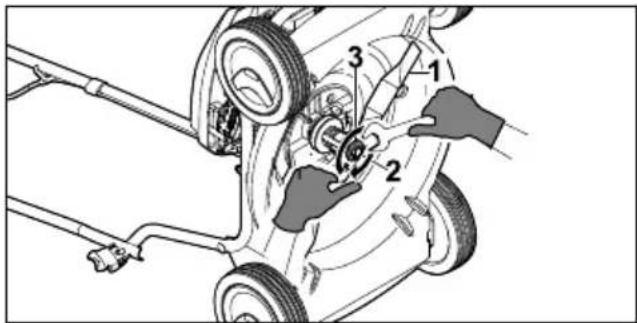

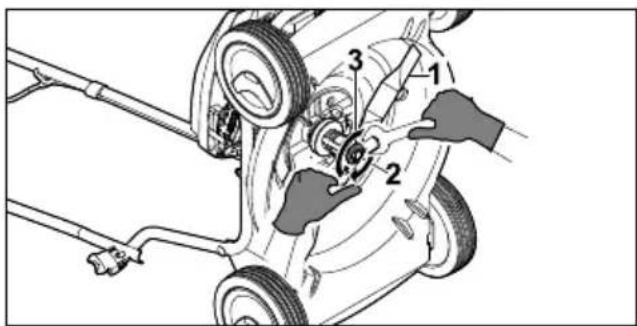

When and how to replace the blade?

Check the blade regularly. If it is dull, damaged, or the thickness is less than 2.0 mm, replace it. To change, place the mower upright, hold the blade, unscrew the screw and washer, then install a new blade using new screw and washer with Loctite 243 thread lock.

What are the important safety instructions?

Always wear closed shoes, long pants, and hearing protection. Keep children and animals away. Do not mow in the rain or on slopes steeper than 25°. Do not touch the rotating blade. Stop the engine before any maintenance.

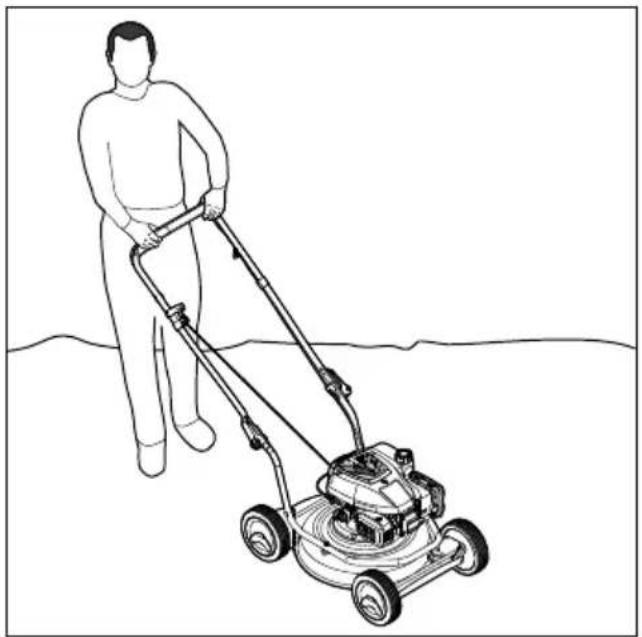

How does the mulching function work?

Mulching chops the cut grass into fine particles that remain on the lawn as natural fertilizer. For best results, mow regularly (2 times/week in spring), with dry grass and a sharp blade. Alternate mowing direction.

How to store the lawn mower for winter?

Drain the fuel tank by running the engine until it stops. Clean the mower, remove the spark plug boot, and store in a dry, frost-free place out of reach of children. Fold the handle for compact storage.

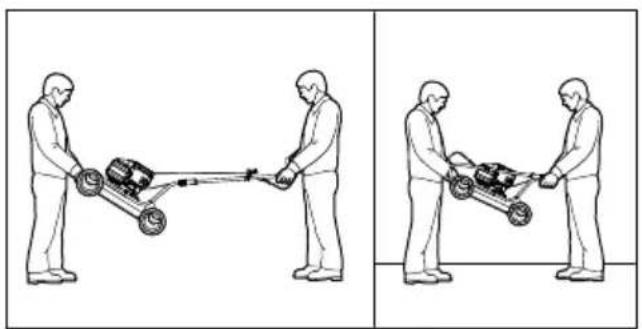

How to transport the lawn mower?

Stop the engine and wait for the blade to stop. Remove the spark plug boot. To push, hold both hands on the handle. To lift, two people (one at front, one at handle). In a vehicle, secure it on its 4 wheels.

What to do if the engine does not start or stalls?

First check that the safety bar is pressed down and that the tank has fresh fuel. If the engine sputters, clean the air filter and spark plug. If the problem persists, consult a Stihl specialist dealer.

USER MANUAL RM 2 RC STIHL

Exterior view of a lawn mower with black and silver body (no text or symbols visible)

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, 5, and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

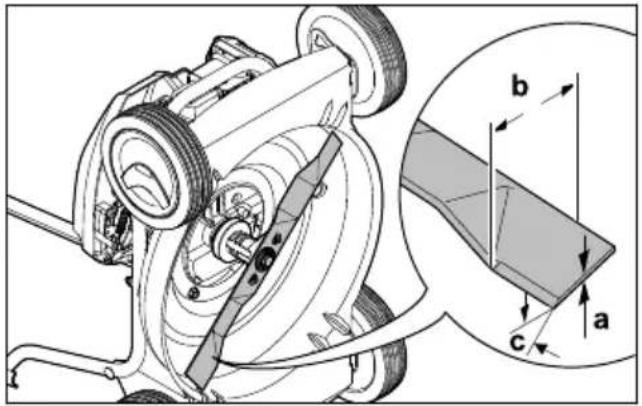

▶ Folgendes messen:

- Stärke a

- Breite b

- Schärfwinkel c

Line drawing of a person holding a flexible hose, no text or symbols present

• 30 mm = Position 1
• 50 mm = Position 2
• 70 mm = Position 3
• 85 mm = Position 4

Technical line drawing of a lawn mower with visible wheel, wheels, and guide rails (no text or symbols)

Technical diagram showing a vehicle's wheel assembly and wheel rim drive mechanism (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings of a person pulling a cart with a handle, showing motion (no text or symbols)

Technical diagram of a lawn mower assembly with labeled parts and close-ups of mechanical components

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a gear mechanism.

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component with dimensions a, b, and c.

2 Guide to Using this Manual....17

3 Overview.... 18

4 Safety Precautions....19

5 Preparing the Lawn Mower for Operation. 24

6 Adding Engine Oil.... 24

0478-111-9949-B 17

7 Refuelling the Lawn Mower....24
8 Adjusting the Lawn Mower for the User.... 24
9 Starting and Stopping the Engine.... 25
10 Checking the Lawn Mower....25
11 Operating the Lawn Mower....26
12 After Finishing Work....27
13 Transporting....27
14 Storing....27
15 Cleaning....27
16 Maintenance.... 28
17 Repairing....29
18 Troubleshooting.... 29
19 Specifications....29
20 Spare Parts and Accessories....30
21 Disposal.... 30
22 EC Declaration of Conformity.... 31

1 Introduction

Dear Customer,

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.

STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support.

STIHL expressly commit themselves to a sustainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

Dr. Nikolas Stihl

IMPORTANT! READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE.

2 Guide to Using this Manual

2.1 Applicable Documents

This instruction manual constitutes original manufacturer's instructions in the sense of EC Directive 2006/42/EC.

Local safety regulations apply.

English 3 Overview

▶ In addition to this instruction manual, read, understand and keep the following documents:
- RM 2.1 R: Instruction manual for the STIHL EVC 200.2 engine
- RM 2.0 RC: Instruction manual for the KOH-LER HD675 engine

2.2 Warning Notices in Text

DANGER

■ This notice refers to risks which result in serious or fatal injury.

- Serious or fatal injuries can be avoided by taking the precautions mentioned.

WARNING

■ This notice refers to risks which can result in serious or fatal injury.

- Serious or fatal injuries can be avoided by taking the precautions mentioned.

NOTICE

■ This notice refers to risks which can result in damage to property.

▶ Damage to property can be avoided by taking the precautions mentioned.

2.3 Symbols in Text

This symbol refers to a chapter in this instruction manual.

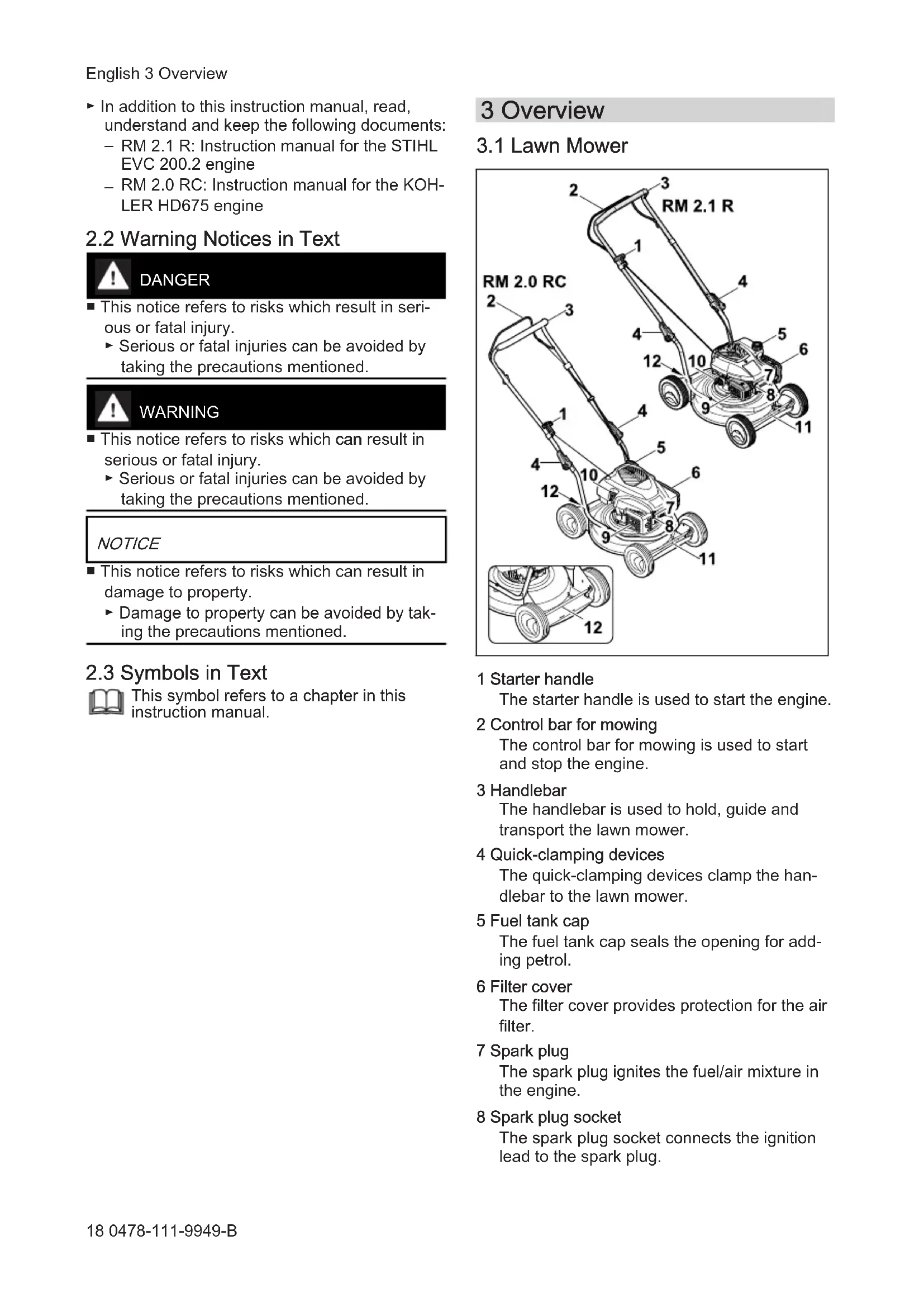

3 Overview

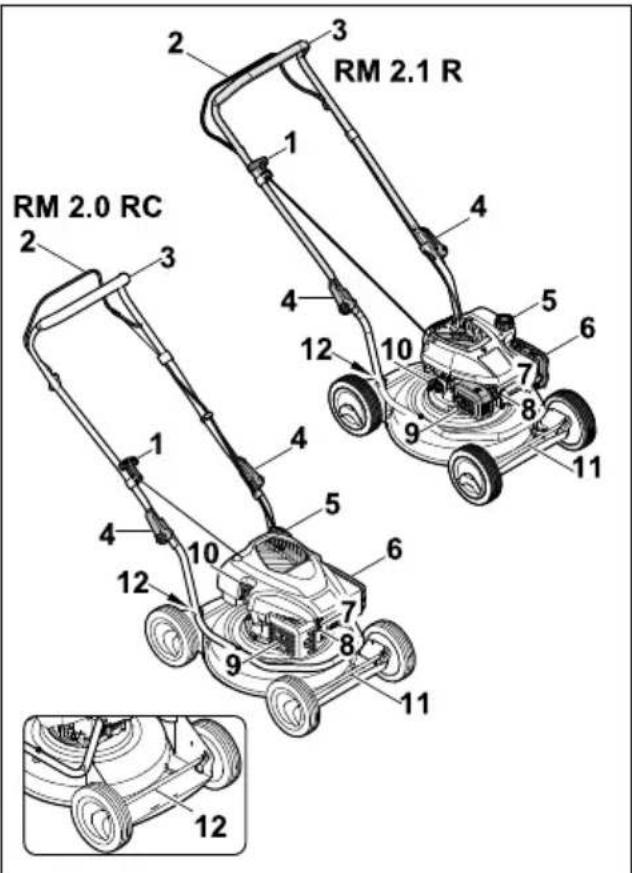

3.1 Lawn Mower

RM 2.0 RC RM 2.1 R 1 2 3 4 5 6 7 8 9 10 11 12 12 1 2 3 4 5 6 7 8 9 10 11 12

1 Starter handle The starter handle is used to start the engine.
2 Control bar for mowing The control bar for mowing is used to start and stop the engine.

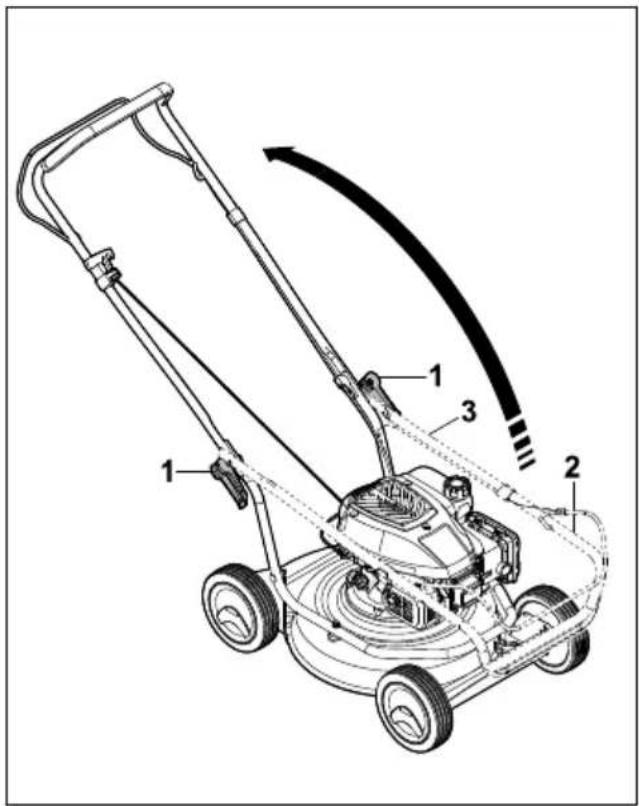

3 Handlebar The handlebar is used to hold, guide and transport the lawn mower.
4 Quick-clamping devices The quick-clamping devices clamp the handlebar to the lawn mower.
5 Fuel tank cap The fuel tank cap seals the opening for adding petrol.
6 Filter cover The filter cover provides protection for the air filter.
7 Spark plug The spark plug ignites the fuel/air mixture in the engine.
8 Spark plug socket The spark plug socket connects the ignition lead to the spark plug.

4 Safety Precautions English

9 Muffler

The muffler reduces the lawn mower's noise level.

10 Engine oil cap

The engine oil cap seals the opening for adding engine oil.

11 Front cutting height adjustment mechanism

The cutting height adjustment mechanism is used to set the cutting height.

12 Rear cutting height adjustment mechanism

The cutting height adjustment mechanism is used to set the cutting height.

3.2 Symbols

The symbols can be on the lawn mower and have the following meaning:

LWA

Guaranteed sound power level in accordance with Directive 2000/14/EC in dB(A) for the purpose of comparing the sound emissions of products.

This symbol identifies the fuel tank cap.

This symbol identifies the engine oil cap.

4 Safety Precautions

4.1 Warning Symbols

The warning symbols on the lawn mower have the following meaning:

Follow the safety instructions and their measures.

Read, understand and keep the instruction manual.

Observe the safety instructions on objects expelled at high speed by the lawn mower and their measures.

Do not touch a turning blade.

Detach the spark plug socket during transport, storage, maintenance or repair.

Maintain a safety distance.

4.2 Intended Use

The STIHL RM 2.1 R or RM 2.0 RC lawn mower is used to mow grass.

WARNING

■ Failure to use the lawn mower as intended may result in serious or fatal injury to people and damage to property.

▶ Use the lawn mower as described in this instruction manual and in the engine instruction manual.

4.3 Requirements for the User

WARNING

■ Uninstructed users cannot recognise or evaluate the dangers posed by the lawn mower. This may result in serious or fatal injury to the user or other people.

- Read, understand and keep the instruction manual.

▶ If passing on the lawn mower to another person: provide them with the lawn mower and engine instruction manuals also.
▶ Make sure that the user meets the following conditions:

• The user is rested.
• The user is physically, sensorily and mentally capable of operating the lawn mower and working with it. If the user is physically, sensorily or mentally impaired, the machine must only be used under supervision or following instruction by a responsible person.
• The user can recognise and evaluate the dangers posed by the lawn mower.
• The user is aware that they are responsible for accidents and damage.
• The user is of legal age or the user is being trained under supervision in a profession in accordance with national regulations.
• The user has received instruction from a STIHL specialist dealer or a competent person before using the lawn mower for the first time.
• The user is not impaired by alcohol, medicines or drugs.

▶ If anything is unclear: consult a STIHL specialist dealer.

4.4 Clothing and Equipment

WARNING

■ Objects may be thrown up at high velocity while working. This may result in injury to the user.

- Wear long trousers made from resistant material.

■ Noise is produced when working. Noise may damage the hearing.

▶ Wear hearing protection.

■ Dust may be stirred up while working. Breathing in dust may be harmful to health and cause allergic reactions.

▶ If dust is stirred up: wear a dust mask.

■ Unsuitable clothing may get caught in wood, briars and in the lawn mower. This may result in serious injury to the user.

▶ Wear close-fitting clothing.

▶ Remove scarves and jewellery.

■ The user may come into contact with the blade during cleaning, maintenance or transport. This may result in injury to the user.

- Wear work gloves made from resistant material.

- Wear sturdy, closed-toed footwear with high-grip soles.

■ Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user.

■ Material particles may be expelled when sharpening the blade. This may result in injury to the user.

- Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commercially with the corresponding marking.

- Wear work gloves made from resistant material.

4.5 Work Area and Surroundings

WARNING

■ Bystanding people, children and animals cannot recognise or evaluate the dangers posed by the lawn mower and objects thrown up by the machine. This may result in serious injury to bystanding people, children and animals and damage to property.

- Keep bystanding people, children and animals out of the work area.

- Maintain a distance from objects.

- Do not leave the lawn mower unattended.

▶ Make sure that children cannot play with the lawn mower.

■ Hot exhaust gases are emitted from the muffler when the engine is running. Hot exhaust gases may ignite easily inflammable materials and cause fires.

- Keep the exhaust gas flow away from easily inflammable materials.

4.6 Safe Condition

4.6.1 Lawn Mower

The lawn mower is in safe condition when the following conditions are met:

– The lawn mower is undamaged.
– There is no petrol leaking from the lawn mower.
– The fuel tank cap is closed.
– There is no engine oil leaking from the lawn mower.
– The engine oil cap is closed.
- The lawn mower is clean.
- The controls are working and have not been modified.
– The blade is correctly attached.
– Genuine STIHL accessories for this lawn mower are attached.
– The accessories are correctly attached.
– Spring-loaded mechanisms are undamaged and working.
- The engine stops when the control bar for mowing is released.

WARNING

■ If not in safe condition, components may no longer operate correctly, safety devices may be disabled and fuel may leak. This may result in serous or fatal injury to people.

▶ Do not use a damaged lawn mower.
▶ If there is petrol leaking from the lawn mower: do not use the lawn mower and consult a STIHL specialist dealer.
▶ Close the fuel tank cap.
▶ If there is engine oil leaking from the lawn mower: do not use the lawn mower and consult a STIHL specialist dealer.
▶ Close the engine oil cap.
▶ If the lawn mower is dirty: clean the lawn mower.
- Do not tamper with the lawn mower and its safety systems.
- Tampering with the lawn mower which increases the power output or the engine speed is forbidden.
▶ If the controls are not working: do not use the lawn mower.

4 Safety Precautions English

▶ Spring-loaded mechanisms may release stored energy.
- Attach genuine STIHL accessories for this lawn mower.
- Attach the blade as described in this instruction manual.
▶ Attach accessories as described in this instruction manual or in the instruction manual for the accessories.
- Do not insert objects into the apertures in the lawn mower.
- Replace worn or damaged warning signs.
▶ If anything is unclear: consult a STIHL specialist dealer.

4.6.2 Blade

The blade is in safe condition when the following conditions are met:

– The blade and attachments are undamaged.
– The blade is not deformed.
- The blade is correctly attached.
– The blade is correctly sharpened.
- The blade is burr-free.
– The blade is correctly balanced.
- The minimum thickness and minimum width of the blade are not fallen below, 19.2.
- The sharpening angle is observed, 9.2.

WARNING

■ In unsafe condition, blade parts may come loose and be expelled. This may result in serious injury to people.

▶ Use an undamaged blade and attachments.
▶ Attach the blade correctly.
▶ Sharpen the blade correctly.
▶ If the minimum thickness or minimum width is fallen below: replace the blade.
▶ Have the blade balanced by a STIHL specialist dealer.
▶ If anything is unclear: consult a STIHL specialist dealer.

4.7 Fuel and Refuelling

WARNING

■ The fuel used for this lawn mower is petrol. Petrol is extremely inflammable. If petrol comes into contact with an open flame or hot objects, it may cause fires or explosions. This may result in serious or fatal injury to people and damage to property.

▶ Protect petrol from heat and fire.
▶ Do not spill petrol.
▶ If petrol is spilled: wipe up the petrol with a cloth and wait until all parts of the lawn

mower are dry before attempting to start the engine.

▶ Do not smoke.
▶ Do not refuel in the vicinity of flames.
▶ Before refilling the tank, stop the engine and allow it to cool.
▶ If the tank needs to be emptied: do this out of doors.
▶ Start the engine at least 3 m away from the refuelling site.
▶ Never store the lawn mower with petrol in the tank inside a building.

■ Breathing in petrol fumes may result in poisoning.

▶ Do not breathe in petrol fumes.
▶ Refuel in a well-ventilated place.

■ The lawn mower warms up while working. The petrol expands and overpressure may occur in the fuel tank. Petrol may gush out when the fuel tank cap is opened. The gushing petrol may ignite. This may result in serious injury to the user.

- Allow the lawn mower to cool down before opening the fuel tank cap.

■ Clothing that comes into contact with petrol is highly inflammable. This may result in serious or fatal injury to people and damage to property.

▶ If clothing comes into contact with petrol: change clothing.

■ Petrol poses a risk to the environment.

▶ Do not spill fuel.
- Dispose of petrol in accordance with regulations and in an environmentally acceptable way.

■ If petrol comes into contact with the skin or eyes, this may cause irritation.

• Avoid contact with petrol.
  ▶ In the event of contact with the skin: wash the affected areas with plenty of soap and water.
  ▶ In the event of contact with the eyes: rinse the eyes with plenty of water for at least 15 minutes and seek medical attention.

■ The lawn mower's ignition system generates sparks. Sparks may escape and cause fires and explosions in highly inflammable or explosive environments. This may result in serious or fatal injury to people and damage to property.

▶ Use the spark plugs described in the engine instruction manual.
▶ Screw in the spark plug and tighten.
▶ Press on the spark plug socket firmly.

English 4 Safety Precautions

■ The lawn mower may be damaged if it is refu-elled with petrol that is not suitable for the engine.
▶ Use fresh, good-quality unleaded petrol.
- Observe the specifications in the engine instruction manual.

4.8 Working

WARNING

■ The user may lose control of the lawn mower if they do not start the engine correctly. This may result in serious injury to the user.

▶ Start the engine as described in this instruction manual.

■ In certain situations, the user may no longer be able to concentrate on their work. This may result in the user stumbling, falling and becoming seriously injured.

▶ Work calmly and carefully.
▶ Only mow when visibility is good. Do not use the lawn mower if the light and visibility conditions are poor.

▶ Operate the lawn mower alone.

▶ Watch out for obstacles.

▶ Do not tilt the lawn mower.

▶ Work standing on the ground and maintain balance.

▶ If signs of fatigue occur: take a break.

▶ If mowing on a slope: mow across the slope.

▶ Do not work on slopes with an inclination greater than 25^ (46.6%).

▶ Use the lawn mower with particular care when working near slopes, terraces, ditches, rubbish piles and embankments.

- Plan your working times so that more severe physical strains over a longer period are avoided.

■ Exhaust gases are produced when the engine is running. Breathing in exhaust gases may result in poisoning.

▶ Do not breathe in exhaust gases.
▶ Use the lawn mower in a well-ventilated place.
▶ If nausea, headaches, vision problems, hearing problems or dizziness occur: stop working and consult a doctor.

■ If the user is wearing hearing protection and the engine is running, their perception and assessment of noise may be limited.

▶ Work calmly and carefully.

■ The lawn mower is equipped with a motorstop device.

▶ Releasing the control bar for mowing causes the engine and blade to stop within 3 seconds.

■ The turning blade may cut the user. This may result in serious injury to the user.

▶ Detach the spark plug socket.

▶ Do not touch a turning blade.

▶ If the blade is blocked by an object: stop the engine. Only then remove the object.

■ If the lawn mower changes or starts to behave differently when working, it may not be in safe condition. This may result in serious injury to people and damage to property.

- Stop working and consult a STIHL specialist dealer.

■ The lawn mower may cause vibrations when working.

▶ Wear work gloves.

▶ Take breaks.

▶ If signs of a circulatory disturbance occur: consult a doctor.

■ Inspect the mowing area and look out for obstacles. If the blade hits a foreign object when working, the foreign object or parts of it may be thrown up at high velocity. This may result in injury to people and damage to property.

▶ Remove foreign objects such as stones, sticks, wires, toys or other foreign objects from the working area. Mark hidden objects that cannot be removed.

■ When the control bar for mowing is released, the blade continues to turn for a short time. This may result in serious injury to people.

▶ Wait until the blade is no longer turning.

■ Sparks may be produced if the turning blade hits a hard object. Sparks may cause fires in highly flammable environments. This may result in serious or fatal injury to people and damage to property.

- Do not work in a highly flammable environment.

■ If the lawn mower is stopped on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to property.

▶ Only release the lawn mower if it is on a level surface and cannot roll away by itself.

4 Safety Precautions English

■ If objects are attached to the handlebar, the additional weight may cause the lawn mower to tip over. This may result in injury to people and damage to property.

▶ Do not attach objects to the handlebar.

DANGER

■ If working near live wires, the blade may come into contact with the live wires and damage them. This may result in serious or fatal injury to the user.

▶ Do not work near live wires.

■ The user may be struck by lighting if working during a thunderstorm. This may result in serious or fatal injury to the user.

▶ Do not work during thunderstorms.

■ Working in the rain may cause the user to slip. This may result in serious or fatal injury to the user.

▶ Do not work when it is raining.

4.9 Transporting

WARNING

■ The lawn mower may tip over or move during transport. This may result in injury to people and damage to property.

▶ Stop the engine.

- Wait until the blade is no longer turning.

▶ Detach the spark plug socket.

- Secure the lawn mower on a suitable load floor with lashing straps, belts or a net so it cannot tip over and move.

■ The muffler and engine may be hot after the engine has been running. This may result in the user burning themselves when transporting the machine.
▶ Push the lawn mower.
■ The lawn mower is heavy. Attempting to carry the lawn mower without assistance may result in injury to the user.
▶ Wear work gloves.
- The lawn mower must be carried by two people.

4.10 Storing

WARNING

■ Children cannot recognise or evaluate the dangers posed by the lawn mower. There is a risk of serious injury to children.

▶ Stop the engine.
- Keep the lawn mower out of reach of children.
- Keep the lawn mower clean and dry.

■ If the lawn mower is kept on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to property.

- The lawn mower should only be kept on level surfaces.

4.11 Cleaning, Maintenance and Repair

WARNING

■ Having the engine running during cleaning, maintenance or repair may result in serious injury to people and damage to property.

▶ Stop the engine.

▶ Wait until the blade is no longer turning.

▶ Detach the spark plug socket.

■ The muffler and engine may be hot after the engine has been running. This may result in people burning themselves.

- Wait until the muffler and engine have cooled down.

■ Abrasive cleaning agents, using a water jet for cleaning or sharp objects may result in damage to the lawn mower or blade. If the lawn mower or blade is not cleaned correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serious injury to people.

- Clean the lawn mower and blade as described in this instruction manual, 15.2.

■ If the lawn mower or blade is not maintained or repaired correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people.

• Replace worn or damaged parts.
  ▶ If the lawn mower needs to be maintained or repaired: consult a STIHL specialist dealer.

English 5 Preparing the Lawn Mower for Operation

• Maintain the blade as described in this instruction manual.
  ■ The user may cut themselves on sharp cutting edges during blade cleaning, maintenance or repair. This may result in injury to the user.
• Wear work gloves made from resistant material.
  ■ The blade may become hot during sharpening. This may result in the user burning themselves.
  ▶ Wait until the blade has cooled down.
  ▶ Wear work gloves made from resistant material.

5 Preparing the Lawn Mower for Operation

5.1 Preparing the Lawn Mower for Operation

The following steps must be performed before commencing work:

▶ Make sure that the following components are in safe condition:

- Lawn mower, 4.6.1.

- Blade, 4.6.2.

▶ Clean the lawn mower, 15.2.
▶ Check the blade, 0.2.
▶ Add engine oil, 6.1.
▶ Fold up the handlebar, 8.1.
▶ Refuel the lawn mower, 17.1.
▶ Set the cutting height, 1.2.
▶ Check the controls, 10.1.
▶ If the steps cannot be performed: do not use the lawn mower and consult a STIHL specialist dealer.

6 Adding Engine Oil

6.1 Adding Engine Oil

The engine oil lubricates and cools the engine.

The engine oil specification and capacity can be found in the engine instruction manual.

NOTICE

■ The lawn mower does not contain any engine oil on delivery. Starting the engine with no or too little engine oil may damage the lawn mower.
▶ Always check the engine oil level before starting and if necessary top up.
- Add the engine oil as described in the engine instruction manual.

7 Refuelling the Lawn Mower

7.1 Refuelling the Lawn Mower

NOTICE

■ The lawn mower may be damaged if the correct fuel is not used.

▶ See the engine instruction manual.

▶ Stop the engine.
- Place the lawn mower on a level surface.
- Clean the area around the fuel tank cap with a damp cloth.

RM 2.1 R 1 1 RM 2.0 RC 1

▶ Turn fuel tank cap (1) anti-clockwise until it can be removed.
▶ Remove fuel tank cap (1).
- Add fuel, stopping at least 15 mm short of the fuel tank brim.
- Place fuel tank cap (1) on the fuel tank.
▶ Turn fuel tank cap (1) clockwise and tighten firmly by hand.

The fuel tank is sealed.

8 Adjusting the Lawn Mower for the User

8.1 Folding Up the Handlebar

▶ Stop the engine.
▶ Detach the spark plug socket.
- Place the lawn mower on a level surface.

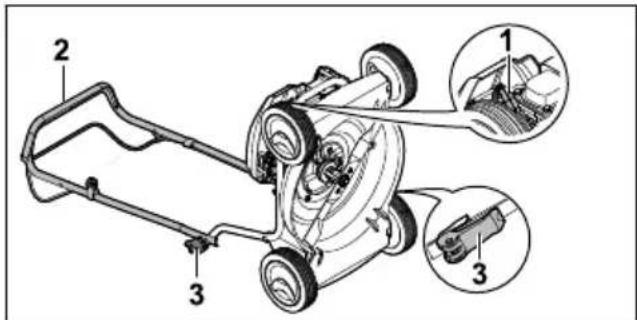

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

▶ Open quick-clamping devices (1) if they are closed.

- Fold up handlebar (2), ensuring that cable (3) is not trapped.

- Close quick-clamping devices (1). Handlebar (2) is firmly attached to the lawn mower.

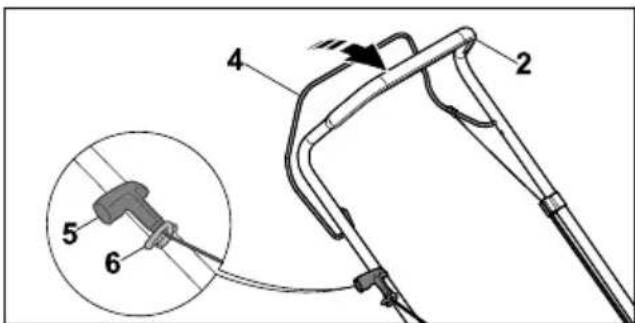

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5 and 6.

• Press control bar for mowing (4) to handle-bar (2) and hold.
• Slowly pull starter handle (5) in the direction of starter rope guide (6).
• Hook starter handle (5) into starter rope guide (6).
  ▶ Release control bar for mowing (4).
  ▶ Re-attach the spark plug socket.

8.2 Folding the Handlebar

The handlebar can be folded for space-saving transport or storage.

▶ Stop the engine.
▶ Detach the spark plug socket.
- Place the lawn mower on a level surface.

• Press the control bar for mowing to the handlebar and hold.
• Detach the starter handle from the starter rope guide and slowly guide back towards the engine.
  ▶ Release the control bar for mowing.
• Hold the handlebar and loosen the star grip nuts.
  ▶ Fold down the handlebar forwards.

9 Starting and Stopping the Engine

9.1 Starting the Engine

- Place the lawn mower on a level surface.

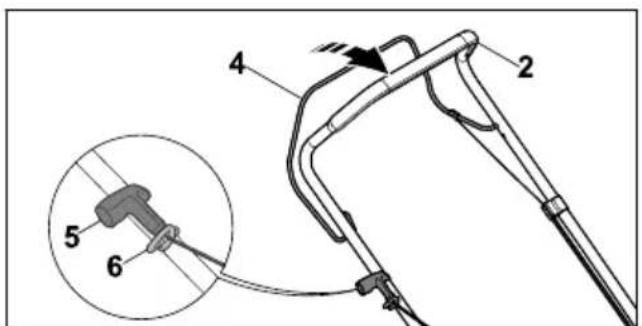

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

▶ Press control bar for mowing (1) to the handlebar with the left hand and hold.
- Slowly pull out starter handle (2) to the point of noticeable resistance with the right hand.
- Keep quickly pulling out and returning starter handle (2) until the engine is running.
▶ If the engine does not start: see the engine instruction manual.

9.2 Stopping the Engine

▶ Place the lawn mower on a level surface.
▶ Release the control bar for mowing. The engine stops.
▶ Leave the user position.

10 Checking the Lawn Mower

10.1 Checking the Controls

Control bar for mowing

▶ Stop the engine.
▶ Pull the control bar for mowing fully in the direction of the handlebar and release again.
▶ If the control bar for mowing is stiff or does not spring back into the initial position: do not use the lawn mower and consult a STIHL specialist dealer.

The control bar for mowing is defective.

10.2 Checking the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.

English 11 Operating the Lawn Mower

▶ Upend the lawn mower, 5.1.

Technical diagram of a mechanical device with labeled components and an inset showing cross-sectional views labeled a, b, and c.

▶ Measure the following:

- Thickness a

-Widthb

- Sharpening angle c

▶ If the minimum thickness or minimum width is fallen below: replace the blade, 9.2.
▶ If the sharpening angle is not correct: sharpen the blade, 19.2.
▶ If anything is unclear: consult a STIHL specialist dealer.

11 Operating the Lawn Mower

11.1 Holding and Guiding the Lawn Mower

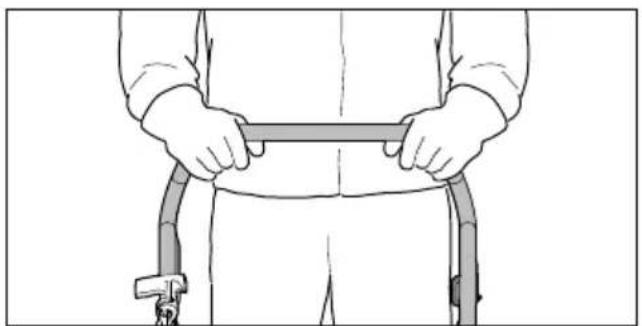

Line drawing of a person holding a flexible hose, no text or symbols present

- Hold the handlebar with both hands so the thumbs enclose the handlebar.

11.2 Setting the Cutting Height

Four cutting heights can be set:

• 30 mm = position 1
• 50 mm = position 2
• 70 mm = position 3
• 85 mm = position 4

The cutting height is set separately at the front and rear. The cutting height setting must be identical at the front and rear.

Setting the rear cutting height

▶ Stop the engine.
The blade must not be turning.
- Place the lawn mower on a level surface.

Technical line drawing of a lawn mower with visible wheel, wheels, and guide rails (no text or symbols)

▶ Press the rear axle downwards.
The rear axle is released and can be adjusted.
▶ Move the rear axle into the desired position on the left and right.

Setting the front cutting height

▶ Stop the engine.
The blade must not be turning.
- Place the lawn mower on a level surface.

Mechanical assembly diagram showing a vehicle wheel and gear mechanism with motion arrows (no text or labels)

▶ Press the front axle downwards.
The front axle is released and can be adjusted.
▶ Move the front axle into the desired position on the left and right.

11.3 Mulching

During mulching, the cut grass is chopped up several times through a special air flow guidance system in the mower blade area and then blown back into the turf. The clippings remain on the lawn surface where they partially decompose and serve as a natural fertiliser. To ensure a perfect, thick lawn, mulch regularly, removing one third of the grass height.

Requirements for good mulching results:

– Frequency: at least twice a week in the spring (main period of growth) and once a week in the summer and autumn.
- Mow the lawn when dry if possible.
- Use well-sharpened cutting blades.
- Select a low rate of feed.
- Vary the mowing direction and ensure that the mowing strips overlap.
– Always mow very tall grass in stages.

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

- Push the lawn mower forwards slowly and in a controlled manner.

12 After Finishing Work

12.1 After Finishing Work

▶ Stop the engine.
▶ If the lawn mower is wet: allow the lawn mower to dry.
▶ Clean the lawn mower.

13 Transporting

13.1 Transporting the Lawn Mower

▶ Stop the engine.
The blade must not be turning.
▶ Detach the spark plug socket.

Pushing the lawn mower

- Push the lawn mower forwards slowly and in a controlled manner.

Carrying the lawn mower

▶ Wear work gloves made from resistant material.

Two identical line drawings showing a person pulling a cart with a pulley, no text or symbols present.

▶ If the lawn mower is being carried with the handlebar unfolded:
▶ One person holds the lawn mower by the front of the housing using both hands and

another person holds the handlebar using both hands.

▶ The lawn mower must be lifted and carried by two people.

▶ If the lawn mower is being carried with the handlebar folded:

▶ Fold the handlebar, 8.2.

▶ One person holds the lawn mower by the front of the housing using both hands and another person holds the handlebar using both hands.

▶ The lawn mower must be lifted and carried by two people.

Transporting the lawn mower in a vehicle

- Secure the lawn mower upright so it does not tip over and cannot move.

14 Storing

14.1 Storing the Lawn Mower

▶ Stop the engine and allow it to cool down.
▶ Detach the spark plug socket.
- Store the lawn mower in accordance with the following conditions:

• The lawn mower is out of reach of children.
• The lawn mower is clean and dry.
• The lawn mower cannot tip over.
• The lawn mower cannot roll away.

15 Cleaning

15.1 Upending the Lawn Mower

▶ Run the fuel tank empty. The engine stops.
- Place the lawn mower on a level surface.
▶ Set the cutting height to position 1, ☐1.2.

Technical diagram of a lawn mower assembly with labeled parts and close-ups of mechanical components

▶ Detach spark plug socket (1).
- Hold handlebar (2) and open quick-clamping devices (3).
▶ Set down handlebar (2) to the rear.
▶ Upend the lawn mower.

15.2 Cleaning the Lawn Mower

▶ Stop the engine.
▶ Allow the lawn mower to cool down.
▶ Detach the spark plug socket.

English 16 Maintenance

▶ Clean the lawn mower with a damp cloth.
- Clean the ventilation slots with a paintbrush.
▶ Upend the lawn mower.
▶ Clean the area around the blade and the blade with a stick, a soft brush or a damp cloth.

16 Maintenance

16.1 Maintenance Intervals

Maintenance intervals are dependent on the ambient conditions and the working conditions. STIHL recommends the following maintenance intervals:

Engine

- Maintain the engine as described in the engine instruction manual.

Lawn mower

▶ Have the lawn mower inspected annually by a STIHL specialist dealer.

16.2 Removing and Attaching the Blade

16.2.1 Removing the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

▶ Hold blade (1).
▶ Unscrew bolt (2) and remove together with washer (3).
▶ Remove blade (1).
▶ Discard bolt (2) and washer (3). Use a new bolt and washer to attach blade (1).

16.2.2 Attaching the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

• Place new washer (3) on new bolt (2).
• Apply Loctite 243 thread locker to the thread of bolt (2).
  ▶ Position blade (1) so the raised areas on the contact area engage in the notches in blade (1).
  ▶ Screw in bolt (2) together with washer (3).

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

▶ Hold blade (1).
▶ Tighten bolt (2) to 65 Nm.

16.3 Sharpening and Balancing the Blade

Sharpening and balancing the blade correctly requires a lot of practice.

STIHL recommends having the blade sharpened and balanced by a STIHL specialist dealer.

WARNING

■ The cutting edges of the blade are sharp. This may result in the user cutting themselves.
- Wear work gloves made from resistant material.

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.
▶ Remove the blade.
▶ Sharpen the blade. Observe the sharpening angle and cool the blade, 19.2.
Bluing of the blade during sharpening is not permitted.
▶ Attach the blade.

17 Repairing

▶ If anything is unclear: consult a STIHL specialist dealer.

17 Repairing

17.1 Repairing the Lawn Mower

The user should not repair the lawn mower or blade themselves.

▶ If the lawn mower or blade is damaged: do not use the lawn mower or blade and consult a STIHL specialist dealer.
▶ If warning signs are illegible or damaged: have the warning signs replaced by a STIHL specialist dealer.

18 Troubleshooting

18.1 Remedying Lawn Mower Faults

Fault Cause Remedy
Engine cannot be started.	Control bar for mowing is not pressed.	► Start engine as described in this instruction manual.
Fuel tank is empty. ► Refuel lawn mower.
		Fuel line is blocked. ► Consult a STIHL specialist dealer.
		Inferior, dirty or old fuel in the tank.
		Air filter is dirty. ► Consult a STIHL specialist dealer.
		Spark plug socket is detached from spark plug or ignition lead is not properly fastened to socket.
		Spark plug is dirty, damaged or electrode gap is incorrect.
		Resistance at the blade is too great.
Engine difficult to start or engine power deteriorating.	Lawn mower housing is blocked.	Clean lawn mower.
	Cutting height is set too low or rate of feed is too high.	Adapt cutting height or mow more slowly.
	Water in fuel tank and carburettor or carburettor is blocked.	Empty fuel tank, clean fuel line and carburettor.
	Fuel tank is contaminated. Consult a STIHL specialist dealer.
	Air filter is dirty. Consult a STIHL specialist dealer.
	Spark plug is dirty. Clean or replace spark plug.
	Engine oil level is too low. Add or change engine oil as described in the engine instruction manual.
	Cooling ribs are dirty. Clean lawn mower.
Lawn mower vibrates excessively.	Blade is damaged. Replace blade.
	Blade is not correctly attached. Attach blade.
Grass is not being cut cleanly.	Blade is blunt or worn. Sharpen or replace blade.

19 Specifications

19.1 STIHL RM 2.1 R, RM 2.0 RC Lawn Mower

Engine type:

• RM 2.1 R: STIHL EVC 200
• RM 2.0 RC: KOHLER HD675

Displacement:

• RM 2.1 R: 139~cm^3
• RM 2.0 RC: 149~cm^3

English 20 Spare Parts and Accessories

Power:

- RM 2.1 R: 2.1 kW (2.8 HP) at 2800 rpm

- RM 2.0 RC: 2.2 kW (3.0 HP) at 2800 rpm

Speed:

- RM 2.1 R: 2800 rpm

- RM 2.0 RC: 2800 rpm

Maximum fuel tank capacity:

- RM 2.1 R: 0.9 I

- RM 2.0 RC: 1.4 I

Weight:

- RM 2.1 R: 24 kg

- RM 2.0 RC: 27 kg

Cutting width:

- RM 2.1 R: 46 cm

- RM 2.0 RC: 46 cm

19.2 Blade

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

• Minimum thickness a: 2.0 mm
• Minimum width b: 45 mm
• Sharpening angle c: 30^

19.3 Sound Values and Vibration Values

RM 2.1 R

The K value for the sound pressure level is 2 dB(A). The K value for the sound power level is 1.4 dB(A). The K value for the vibration values is 3.16 m/s ^2 .

• Sound pressure level L_pA measured in accordance with 2006/42/EC: 79 dB(A)
• Sound power level L_wA measured in accordance with 2000/14/EC: 91 dB(A)
• Vibration value a_hv measured in accordance with EN 12096, handlebar: 7.90 m/s^2

RM 2.0 RC

The K value for the sound pressure level is 2 dB(A). The K value for the sound power level is 2.1 dB(A). The K value for the vibration values is 2.20 m/s ^4 .
- Sound pressure level L_pA measured in accordance with 2006/42/EC: 79 dB(A)

• Sound power level L_wA measured in accordance with 2000/14/EC: 91.3 dB(A)
• Vibration value a_hv measured in accordance with EN 12096, handlebar: 4.40 m/s^2

For information on compliance with Employers' Vibration Directive 2002/44/EC, see www.stihl.com/vib.

19.4 REACH

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

20 Spare Parts and Accessories

20.1 Spare parts and accessories

STIHL These symbols indicate original STIHL spare parts and original STIHL accessories.

STIHL recommends the use of original STIHL spare parts and accessories.

Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitability of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts.

Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.

20.2 Essential Spare Parts

STIHL assumes no liability for injury to people or damage to property resulting from the use of unauthorised attachments or spare parts.

• Blade: 6357 702 0102
• Blade fastening screw: 9008 319 9028
• Washer: 0000 702 6600

21 Disposal

21.1 Disposing of the Lawn Mower

Information on disposal is available from a STIHL specialist dealer.

▶ Dispose of the lawn mower, blade, petrol, engine oil, accessories and packaging in accordance with regulations and in an environmentally friendly manner.

22 EC Declaration of Conformity

22.1 STIHL RM 2.1 R, RM 2.0 RC Lawn Mower

STIHL Tirol GmbH

Hans Peter Stihl-Strasse 5

6336 Langkampfen

Austria

declares under our sole responsibility that

- design: lawn mower

- manufacturer's brand: STIHL

- type: RM 2.1 R, RM 2.0 RC serial number:

-6357

complies with the relevant provisions of Directives 2000/14/EC, 2006/42/EC, 2014/30/EU and 2011/65/EU and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN ISO 5395-1, EN ISO 5395-2, EN ISO 14982.

Name and address of the notified body involved:

TÜV Rheinland LGA Products GmbH

Tillystrasse 2

D-90431 Nuremberg

The measured and guaranteed sound power levels were determined in accordance with Directive 2000/14/EC, Appendix VIII.

Measured sound power level:

- RM 2.1 R: 91 dB(A)

- RM 2.0 RC: 91.3 dB(A)

Guaranteed sound power level:

- RM 2.1 R: 92 dB(A)

- RM 2.0 RC: 93 dB(A)

The technical documents are stored in the Product Approval department at STIHL Tirol GmbH.

The year of manufacture and machine number are indicated on the lawn mower.

Langkampfen, 02.01.2020

STIHL Tirol GmbH

p.p. M. Thick

Matthias Fleischer, Head of Research and Development Division

Sven Zimmermann, Head of Quality Division

22.2 Importer for Great Britain

ANDREAS STIHL Ltd.

Stihl House

Stanhope Road

CAMBERLEY

SURREY GU15 3YT

Great Britain

Table des matières

1 Préface....31

2.1 Documents applicables

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5 and 6.

Technical diagram showing a mechanical component with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a lawn mower with visible tire, pulleys, and blade (no text or labels)

Technical diagram showing a car's wheel assembly and wheel rim assembly (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings of a person pulling a cart with a pulley, shown from different angles (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and close-up insets showing internal components.

Technical diagram of a lawn mower with numbered components for identification

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

▶ Maintenir la lame (1).
▶ Serrer la vis (2) à un couple de 65 Nm.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5 and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing a close-up inset view.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical component with wheels and springs (no text or symbols)

Technical diagram of a car wheel assembly with motion arrows and a close-up view of the wheel rim (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two-panel line drawing showing a person pulling a lawn mower with a pulley, no text or symbols present.

Technical diagram of a lawn mower with labeled parts and close-up insets showing mechanical components

Technical diagram of a lawn saw assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a lawn saw assembly with numbered components and hands indicating different parts

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component with dimensions a, b, and c.

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

▶ Ako su brzi pritezači (1) zatvoreni, otvorite ih.
▶ Rasklopite upravljač (2) i pritom pazite da se uže (3) ne ukliješti.
Zatvorite brze pritezače (1). Upravljač (2) je čvrsto spojen s kosilicom.

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5 and 6.

• Pritisnite dršku za pokretanje košnje (4) prema upravljaču (2) i držite je pritisnutom.
  ▶ Ručicu za pokretanje (5) povucite lagano u smjeru vodilice užeta (6).
  ▶ Ručicu za pokretanje (5) objesite u vodilicu užeta (6).
  ▶ Otpustite dršku za pokretanje košnje (4).
  ▶ Ponovno priključite utikač svjećice.

8.2 Sklapanje upravljača

Upravljač se može sklopiti radi uštede prostora prilikom transporta i skladištenja.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional views.

Line drawing of a person holding a flexible hose, no text or symbols present

- Čvrsto držite upravljač objema rukama tako da ga palčevi obuhvaćaju.

Technical line drawing of a lawn mower with visible wheel, wheels, and guide rails (no text or symbols)

Technical diagram of a lawn mower system with wheel alignment and tire feed mechanism (no text or labels)

• Pritisnite prednju osovinu prema dolje. Prednja osovina je otpuštena i može se namjestiti.
  ▶ Postavite lijevu i desnu stranu prednje osovine u željeni položaj.

11.3 Malčiranje

Line drawing of a person using a lawn mower to clean water (no text or symbols)

- Polako i kontrolirano gurajte kosilicu prema naprijed.

12 Nakon rada

12.1 Nakon rada

▶ Isključite motor.
- Ako je kosilica mokra: pričekajte da se kosilica osuši.
▶ Očistite kosilicu.

13 Transport

13.1 Transport kosilice

Two-panel line drawing showing a person pulling a cart with a pulley, demonstrating motion (no text or symbols)

Technical diagram of a lawn mower assembly with labeled parts and close-ups of mechanical components

▶ Izvucite utikač svjećice (1).
- Čvrsto držite upravljač (2) i otvorite brze pritezače (3).
▶ Upravljač (2) rasklopite prema natrag.
▶ Uspravite kosilicu prema natrag.

15.2 Čišćenje kosilice

Technical diagram of a lawn saw assembly with numbered components and hands indicating parts for maintenance or repair.

▶ Čvrsto držite nož (1).
- Odvrnite vijak (2) i skinite ga zajedno s podloškom (3).
▶ Skinite nož (1).
▶ Vijak (2) i podlošku (3) odložite u otpad. Za montažu noža (1) upotrijebite novi vijak i podlošku.

16.2.2 Montaža noža

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

▶ Novu podlošku (3) postavite na novi vijak (2).
▶ Nanesite učvršćivač vijaka Loctite 243 na navoj vijka (2).
▶ Postavite nož (1) tako da izbočenja na kontaktnoj površini zahvaćaju u otvore na nožu (1).
▶ Uvijte vijak (2) zajedno s podloškom (3).

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

▶ Čvrsto držite nož (1).
▶ Vijak (2) zategnite momentom pritezanja od 65 Nm.

16.3 Oštrenje i uravnotežavanje noža

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

• Minimalna debljina a: 2,0 mm
• Minimalna širina b: 45 mm
• Kut oštrenja c: 30°

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with labeled parts and an inset showing a cable assembly detail.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical assembly with wheels and springs (no text or symbols)

Mechanical assembly diagram showing a motor stator and wheel drive system with motion arrows (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings of a person pulling a cart with a pulley, showing motion (no text or symbols)

Technical diagram of a lawn mower assembly with labeled parts and close-ups of mechanical components

Technical diagram of a lawn saw assembly with numbered components for identification

Technical diagram of a mechanical assembly with labeled parts and an inset showing a disassembled component.

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional views.

- Min. tjocklek a: 2,0 mm

- Min. bredd b: 45 mm

- Slipvinkel c: 30^

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, 5, and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components a, b, and c, showing internal components and motion indicators.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a lawn mower with visible tire tracks and wheel assembly (no text or labels)

Mechanical assembly diagram showing a motor with wheels and a close-up of the wheel rim (no text or symbols)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings of a person pulling a cart with a pulley, shown from different angles (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and close-up insets showing internal components.

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-sectional view.

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

Technical diagram of a mechanical device with labeled components and an inset showing cross-sectional view of a wedge or wedge-shaped component.

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5 and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a component with arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a wedge or wedge-shaped component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a lawn mower with visible wheel, wheels, and guide rails (no text or labels)

Mechanical assembly diagram showing a motor stator and wheel assembly with motion arrows (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings of a person pulling a cart with a pulley, showing motion (no text or symbols)

Technical diagram of a lawn mower with labeled parts and close-up insets showing gear meshing and component details.

Technical diagram of a lawn saw assembly with numbered components and hands indicating parts for maintenance or repair.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled components a, b, and c, showing motion paths and a magnified inset.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, 5, and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components a, b, and c, showing a close-up inset of a component.

▶ Mål nedenstående:

Line drawing of a person holding a flexible hose, with a clip attached (no text or symbols)

• 30 ~mm = Position 1
• 50 mm = Position 2
• 70 mm = Position 3
• 85 mm = Position 4

Technical line drawing of a mechanical assembly with wheels and a curved component (no text or symbols)

Mechanical assembly diagram showing a motor and wheel assembly with motion arrows, alongside a close-up of the wheel rim (no text or symbols)

▶ Tryk forakslen ned.
Forakslen er løsnet og kan indstilles.
- Anbring forakslen i den ønskede position i venstre og højre side.

11.3 Granulering

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings of a person pulling a cart with a pulley, shown from different angles (no text or symbols)

14 Opbevaring dansk

Technical diagram of a mechanical assembly with numbered components and close-ups of parts labeled 1, 2, and 3.

Technical diagram of a lawn saw assembly with numbered components and hands indicating different parts

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing internal components.

Technical diagram of a lawn saw assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional views labeled a, b, c.

• Minimumstykkelse a: 2,0 mm
• Minimumsbredde b: 45 mm
• Slibevinkel c: 30°

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5, 6, and 4.

Technical diagram showing a mechanical device with labeled parts and an inset magnified view of the component.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component with dimensions a, b, and c.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical assembly with wheels and levers (no text or symbols)

Mechanical assembly diagram showing a vehicle wheel and gear mechanism with motion arrows (no text or labels)

- Trykk ned forakselen. Forakselen er løst og kan justeres.

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

- Skyv gressklipperen sakte og kontrollert for-over.

12 Etter arbeidet

Two identical line drawings showing a person pulling a cart with a pulley, no text or symbols present.

Technical diagram of a lawn mower with labeled parts and close-ups of mechanical components

Technical diagram of a lawn saw assembly with numbered components and hands indicating different parts

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

▶ Legg den nye skiven (3) på den nye skruen (2).

norsk 17 Reparere

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

Technical diagram of a mechanical device with labeled components and an inset showing cross-sectional view of a wedge or wedge-shaped component.

• Minste tykkelse a: 2,0 mm
• Minste bredde b: 45 mm
• Slipevinkel c: 30°

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, 5, and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a component with arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical component with visible gears and shafts (no text or symbols)

Technical diagram showing a car chassis with wheels and a close-up of the wheel assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two identical line drawings showing a person pulling a cart with a pulley, no text or symbols present.

Technical diagram of a lawn mower assembly with labeled parts and close-ups of mechanical components

Technical diagram of a lawn saw assembly with numbered components and hands indicating different parts

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a lawn mower with labeled parts and mechanical components

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional views labeled a, b, c.

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5 and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a lawn mower with visible wheel, wheels, and guide rails (no text or symbols)

Mechanical assembly diagram showing a motor stator and wheel drive system with motion arrows (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two-panel line drawing showing a person pulling a lawn mower with a tool, no text or symbols present.

Technical diagram of a lawn mower with labeled parts and close-ups of mechanical components

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component with dimensions a, b, and c.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5, 6, and 4.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component with dimensions a, b, and c.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a lawn mower with visible tire, pulley, and wheel components (no text or labels)

Technical diagram of a car wheel assembly with motion arrows and a close-up view of the wheel (no text or symbols)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings showing a person pulling a cart with a pulley, no text or symbols present.

Technical diagram of a lawn mower assembly with labeled parts and close-ups of mechanical components

Technical diagram of a lawn saw assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-sectional view.

Technical diagram of a lawn saw assembly with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with numbered components and an inset showing a cable or connector detail.

• Spínaciu konzolu pohonu kosačky (4) stlačte smerom k vodiacemu držadlu (2) a podržte ju stlačenú.
• Pomaly vyt'ahujte rukovät' štartéra (5) smerom k držiaku lanka (6).
  ▶ Rukovät' štartéra (5) zaveste na držiak lanka (6).
  ▶ Pustite spínaciu konzolu pohonu kosačky (4).

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

• Spínaciu konzolu pohonu motora (1) stlačte ľavou rukou smerom k vodiacemu držadlu a podržte ju stlačenú.
• Pravou rukou pomaly vyt'ahujte rukovät' štar-téra (2), kým nepocítite zretelný odpor.
  Rýchlo vyt'ahujte rukovát' štartéra (2) a potiah-nite ju spät', kým sa motor nespustí.
• Ak motor neštartuje: Dodržiavajte návod na obsluhu motora.

9.2 Vypnutie motora

• Položte kosačku na trávu na rovnú plochu.
  ▶ Pustite spínaciu konzolu pohonu kosačky. Motor sa vypne.
  ▶ Opustit' pozíciu používatela.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing components like gears and levers.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical assembly with wheels and a spring, no text or symbols present

Mechanical assembly diagram showing a vehicle wheel and tire alignment with motion arrows (no text or symbols)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

- Kosačku na trávu posúvajte dopredu pomaly a kontrolovane.

Two identical line drawings showing a person pulling a cart with a handle, no text or symbols present.

Technical diagram of a lawn mower with labeled parts and close-ups of mechanical components

▶ Odpojte koncovku zapaľovacej sviečky (1).
▶ Podržte vodiace držadlo (2) a otvorte rýchloupínaciu páku (3).
▶ Vodiace držadlo (2) uložte dozadu.
▶ Kosačku na trávu postavte dozadu.

15.2 Čistenie kosačky na trávu

▶ Zastavenie motora.
▶ Nechajte kosačku na trávu vychladnút'.
▶ Stiahnite koncovku zapalovacej sviečky.
Kosačku na trávu vyčistite vlhkou utierkou.
▶ Vetracie otvory vyčistite pomocou štetca.
▶ Nainštalujte kosačku na trávu.
- Oblast' okolo rezného noža a rezný nôž vyčistite kúskom dreva, mäkkou kefkou alebo vlhkou utierkou.

16 Údržba

Technical diagram of a lawn saw assembly with numbered components for identification

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a vehicle's steering wheel assembly with numbered components

▶ Podržte rezný nôž (1).
▶ Skrutku (2) dotiahnite momentom 65 Nm.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

– De grasmaaier is schoon.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5, 6, and 4.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional views labeled a, b, and c.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a lawn mower with visible wheel, wheels, and guide rails (no text or labels)

Mechanical assembly diagram showing a motor stator and wheel assembly with motion arrows (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two sequential illustrations of a person pushing a cart with a motor, showing motion and assembly (no text or symbols)

Technical diagram of a lawn mower with labeled parts and close-ups showing hand positioning and component details

Technical diagram of a lawn saw assembly with numbered components and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-sectional view.

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

Technical diagram of a lawn mower mechanism with labeled components and an inset showing cross-sectional view

• Minimumdikte a: 2,0 mm
  – Minimumbreedte b: 45 mm
• Slijphoek c: 30°

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5 and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a wedge or wedge-shaped component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical lawn mower with visible tire, pulleys, and guide rails (no text or symbols)

Mechanical assembly diagram showing a vehicle wheel and gear mechanism with motion arrows (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two-panel line drawing showing a person pulling a cart with a pulley, illustrating the motion of a mechanical system (no text or symbols present)

Technical diagram of a lawn mower assembly with labeled parts and close-up insets showing internal components.

Technical diagram of a lawn mower with numbered components for identification

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled components a, b, and c, showing a gear mechanism and cross-sectional view.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, 5, and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a component with motion arrows.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical device with wheels and a curved component (no text or symbols)

Mechanical assembly diagram showing a motor with wheels and a close-up of the wheel rim (no text or symbols)

Line drawing of a person using a lawn mower to clean water (no text or symbols)

Two sequential illustrations of a person pushing a lawn mower with a pulley, showing motion and hand movement (no text or symbols)

Technical diagram of a lawn mower with labeled parts and close-ups of mechanical components

Technical diagram of a lawn saw assembly with numbered components and hands indicating parts for maintenance or repair.

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing internal components.

Technical diagram of a lawn saw mechanism with numbered components and labeled parts

▶ Stingri turiet nazi (1).
▶ Pievelciet skrūvi (2) ar 65 Nm griezes momentu.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional views labeled a, b, and c.

- Minimālais biezums a: 2,0 mm

- Minimālais platums b: 45 mm

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5, 6, and 4.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional views.

▶ Виміряйте такі величини:

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical device with wheels and a curved component (no text or symbols)

Mechanical assembly diagram showing a vehicle wheel and gear mechanism with motion arrows (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings showing a person pulling a cart with a pulley, no text or symbols present.

Technical diagram of a lawn mower assembly with labeled parts and close-up insets showing internal components.

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a lawn mower with numbered components and mechanical assembly view

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component with dimensions a, b, and c.

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with numbered components and an inset showing a component labeled 5 and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components (a, b, c) and an inset showing a 3D block structure.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical component with wheels and motion indicators (no text or symbols)

Mechanical assembly diagram showing a motor with wheels and a close-up of the wheel rim (no text or symbols)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings showing a person pulling a cart with a pulley, no text or symbols present.

Technical diagram of a mechanical assembly with numbered components and close-up insets showing hand positioning and component identification.

Technical diagram of a lawn saw assembly with numbered components and mechanical parts

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a lawn saw assembly with numbered components and hands operating the mechanism

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional views.

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, 5, and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical assembly with wheels and springs (no text or symbols)

Mechanical assembly diagram showing a motor with wheels and a close-up of the wheel rim (no text or symbols)

Line drawing of a person using a lawn mower to clean or maintain the ground (no text or symbols)

- Lükake muruniidukit aeglaselt ja kontrolli kao-tamata edasi.

12 Pärast tööd

12.1 Pärast tööd

Two identical line drawings of a person pulling a cart with a pulley, showing motion (no text or symbols)

Technical diagram of a lawn mower assembly with labeled parts and close-ups of mechanical components

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

▶ Asetage uus seib (3) uuele poldile (2).
▶ Määrige poldi (2) keermele keermeliimi Loc-tite 243.
▶ Paigaldage tera (1) selliselt, et körgemad kohad tugipinnal haarduksid terade süvendi-tesse (1).
▶ Keerake polt (2) koos seibiga (3) sisse.

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

▶ Hoidke terast (1) kinni.
▶ Keerake polt (2) 65 Nm jõumomendiga kinni.

16.3 Tera teritamine ja tasakaalustamine

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

• Minimaalne paksus a: 2,0 mm
  – Minimaalne laius b: 45 mm
• Teritusnurk c: 30°

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, 5, and 6.

Technical diagram showing a mechanical device with labeled parts and an inset view of a lever mechanism.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

▶ Išmatuokite:
- storj a,
- plotj b,
- galandimo kampa c.

Person wearing protective suit and holding a flexible hose (no text or symbols visible)

Technical line drawing of a mechanical assembly with wheels and springs (no text or symbols)

Mechanical assembly diagram showing a vehicle wheel and gear mechanism with motion arrows (no text or labels)

Line drawing of a person using a lawn mower on a surface (no text or symbols)

Two identical line drawings of a person pushing a cart with wheels, shown from different angles (no text or symbols)

Technical diagram of a lawn mower with labeled parts and close-up insets showing gear meshing and mounting details.

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing a cross-section view.

Technical diagram of a lawn mower with numbered components and hands operating the mechanism

▶ Laikykite peilj (1).
- Priveržkite varžta (2) 65 Nm priveržimo momentu.

16.3 Peilio galandimas ir balansavi- mas

Technical diagram of a mechanical device with labeled components and an inset showing cross-sectional view of a wedge or wedge-shaped component.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, 5, and 6.

Technical diagram showing a mechanical device with labeled parts and an inset detail showing a component with force arrows.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical assembly with wheels and a curved component (no text or symbols)

Mechanical assembly diagram showing a motor and wheel with motion arrows, alongside a close-up of the wheel's internal components (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two identical line drawings showing a person pulling a cart with a pulley, no text or symbols present.

Technical diagram of a lawn mower with labeled parts and close-ups of mechanical components

Technical diagram of a lawn mower with numbered components for identification

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing a gear mechanism.

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Technical diagram of a mechanical assembly with labeled parts and an inset showing cross-sectional view of a component.

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

Technical diagram of a mechanical device with labeled parts and an inset showing a component detail

Technical diagram showing a mechanical component with labeled parts and an inset magnified view of a tool or tool.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing motion paths and components.

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical assembly with wheels and springs (no text or symbols)

Mechanical assembly diagram showing a motor with wheels and a close-up of a wheel bearing, no text or symbols present.

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two identical line drawings of a person pulling a cart with wheels, shown from different angles (no text or symbols)

Technical diagram of a lawn mower assembly with labeled parts and close-ups of mechanical components

Technical diagram of a lawn mower with numbered components for maintenance or repair

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

Technical diagram of a lawn saw assembly with numbered components and motion arrows indicating movement

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

Technical diagram of a lawn mower with numbered parts and motion arrows indicating rotational motion

• Otvorite brze zatezače (1), ukoliko su zatvoreni.
  ▶ Rasklopite upravljač (2) pazeći da se sajla (3) ne priklješti.
  Zatvorite brze zatezače (1). Upravljač (2) je čvrsto povezan sa kosačicom.

Technical diagram of a mechanical device with labeled parts and an inset showing a component with numbered parts 2, 4, and 5.

• Pritisnite pogonsku dršku za košenje (4) ka upravljaču (2) i držite je tako.
• Polako povucite ručku startera (5) u smeru vođice za sajlu (6).
  Zakačite ručku startera (5) za vođicu za sajlu (6).
  ▶ Pustite pogonsku dršku za košenje (4).
  ▶ Ponovo priključite utikač za svećice.

8.2 Sklapanje upravljača

Radi uštede prostora prilikom transporta i skladištenja, upravljač može da se sklopi.

▶ Isključite motor.
- Izvucite utikač za svećice.
▶ Postavite kosačicu na ravnu površinu.
- Dršku za pokretanje košenja pritisnite prema upravljaču i držite je tako.
▶ Skinite sajlu za pokretanje sa vodice za sajlu i polako je vratite nazad u smeru motora.
▶ Pustite dršku za pokretanje košenja.
- Čvrsto držite upravljač i otpustite navrtke sa ručkom u obliku zvezde.
▶ Sklopite upravljač prema napred.

9 Startovanje i gašenje motora

9.1 Pokretanje motora

Technical diagram showing a mechanical device with labeled parts and an inset magnified view of the component being threaded.

• Dršku za pokretanje košenja (1) pritisnite levom rukom prema upravljaču i držite je tako.
  ▶ Desnom rukom polako izvucite sajlu za pokretanje (2) do osetnog otpora.
  ▶ Brzo izvlačite i vraćajte sajlu za pokretanje (2) dok se ne pokrene motor.
• Ako se motor na pokreće: Obratite pažnju na uputstvo za upotrebu motora.

Technical diagram of a mechanical assembly with labeled parts and an inset showing cross-sectional views labeled a, b, and c.

- Izmerite sledeće:

• debljinu a
• širinu b

• ugao oštrenja c

• Ako su minimalna debljina ili minimalna širina noža potkoračene: zamenite nož, 19.2.

• Ako nož nema propisan ugao oštrenja: naoštrite nož 19.2.
• Ako ste u nedoumici: obratite se ovlašćenom STIHL distributeru.

11 Rad sa kosačicom

11.1 Držanje kosačice i upravljanje njome

Line drawing of a person holding a flexible hose, no text or symbols present

Technical line drawing of a mechanical assembly with wheels and a handle (no text or symbols)

▶ Pritisnite zadnju osovinu nadole.
Zadnja osovina je labava i može da se podesi.
Zadnju osovinu podesite ulevo i udesno u željeni položaj.

Podešavanje visine košenja napred

▶ Isključite motor.
Nož ne sme da se okreće.
▶ Postavite kosačicu na ravnu površinu.

Technical diagram of a vehicle's wheel assembly and steering wheel, showing components like wheels and a close-up of the wheel (no text or labels)

▶ Pritisnite prednju osovinu nadole.
Prednja osovina je labava i može da se podesi.
▶ Prednju osovinu podesite ulevo i udesno u željeni položaj.

11.3 Usitnjavanje

Prilikom usitnjavanja, pokošena trava se dovođenjem vazdušne struje u oblast noža više puta seče i tako usitnjena vraća na busen trave. Fino isečena trava ostaje na travnatoj površini, gde polako truli i služi kao prirodno dubrivo. Lep i gust travnjak dobija se čestim usitnjavanjem, pri čemu travu treba skratiti za trećinu njene visine.

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two identical line drawings showing a person pulling a cart with a pulley, no text or symbols present.

• Ukoliko nosite kosačicu sa rasklopljenim upravljačem:
• Jedna osoba treba da uhvati kosačicu sa prednje strane čvrsto je držeći za kućište obema rukama, dok druga treba da je uhvati za upravljač čvrsto ga držeći obema rukama.
• Podignite i nosite kosačicu uz nečiju pomoć.
• Ako nosite kosačicu sa sklopljenim upravljačem:
• Sklopite upravljač, 18.2.
• Jedna osoba treba da uhvati kosačicu sa prednje strane čvrsto je držeći za kućište obema rukama, dok druga treba da je uhvati za upravljač čvrsto ga držeći obema rukama.
  ▶ Podignite i nosite kosačicu uz nečiju pomoć.

Transport kosačice vozilom

- Osigurajte kosačicu u uspravnom položaju tako da ne može da se prevrne i pomera.

14 Čuvanje

Technical diagram of a lawn mower with labeled parts and close-ups of mechanical components

• Izvucite utikač za svećice (1).
• Čvrsto držite upravljač (2) i otvorite brze zatezače (3).
  ▶ Spustite upravljač (2) povlačeći ga unazad.
  ▶ Kosačicu položite na leđa.

Technical diagram of a vehicle's steering wheel assembly with numbered components and labeled parts

▶ Čvrsto držite nož (1).

• Odvrnite zavrtanj (2) i skinite ga zajedno sa podloškom (3).
  ▶ Skinite nož (1).
  ▶ Odložite zavrtanj (2) i podlošku (3). Za ugradnju noža (1) koristite novi zavrtanj i podlošku.

16.2.2 Montaža noža

Technical diagram of a mechanical assembly with labeled parts and an inset showing a cross-section view.

▶ Postavite novu podlošku (3) na novi zavrtanj (2).
▶ Na navoje zavrtnja (2) nanesite sredstvo za osiguranje zavrtanja Loctite 243.
▶ Postavite nož (1) tako da izbočine na površini naleganja upadnu u žlebove na nožu (1).
Zavrnite zavrtanj (2) zajedno sa podloškom (3).

Technical diagram of a lawn saw assembly with numbered components and hands indicating different parts

▶ Čvrsto držite nož (1).
▶ Pritegnite zavrtanj (2) za 65 Nm.

Technical diagram of a mechanical assembly with labeled components and an inset showing cross-sectional view of a component.

• Minimalna debljina a: 2,0 mm
  – Minimalna širina b: 45 mm
• Ugao oštrenja c: 30°

Abstract black-and-white striped pattern with no text or symbols

0478-111-9949-B
