DS 150/200 - Sander Herkules - Free user manual and instructions

Product type	Wet grinder and dry sharpener
Brand	Herkules
Model	DS 150/200
Category	Sander / Sharpener
Main use	Sharpening and grinding of blades, scissors, cutting tools
Motor power	250 W (S2 30 min)
Operating mode	Short-time operation S2 (30 min followed by cooling)
Dry grinding wheel speed	2950 rpm
Wet grinding wheel speed	131 rpm
Dry grinding wheel dimensions	∅150 x 20 x ∅12.7 mm
Wet grinding wheel dimensions	∅200 x 40 x ∅20 mm
Weight	9.4 kg
Power supply	230 V ~ 50 Hz
Protection type	IP23
Sound pressure level (LpA)	81.5 dB(A) (uncertainty K=3 dB)
Sound power level (LWA)	94.5 dB(A) (uncertainty K=3 dB)
Vibration (ah)	≤ 2.5 m/s² (uncertainty K=1.5 m/s²)
Delivery contents	Unit, dry grinding wheel, wet grinding wheel, water tank, spark deflector, work rest, screws, washers, instruction manual, safety instructions
Safety	Adjustable spark deflector, protective cover, protective glass, on/off switch
Maintenance	Regular cleaning with damp cloth, no aggressive products, check spark deflector gap (≤2 mm)
Spare parts	Grinding wheels, spark deflector, work rest; replace wheels by manufacturer or qualified professional
Warranty	5 years on material and construction defects, 6 months on wear parts, 24h on consumables

Frequently Asked Questions - DS 150/200 Herkules

How to change the grinding wheel on the Herkules DS 150/200?

The replacement of grinding wheels must be carried out by the manufacturer, its after-sales service, or a qualified person to avoid any risk. Do not attempt to replace the wheel yourself.

How to use the wet grinding function?

Check that the water tank contains enough water (the wet grinding wheel should be immersed by 1/3). Turn on the device, stand in front of the wet grinding wheel, hold the workpiece with both hands and gently lower it onto the wheel. You can also rest the workpiece on the ridges of the tank.

What is the power and operating mode?

The motor has a power of 250 W in S2 30 min operation, meaning it should not run for more than 30 minutes continuously at full load. After that, let it cool down.

How to adjust the spark deflector?

Use the adjustment screw to set the spark deflector so that the gap to the dry grinding wheel is less than 2 mm. Readjust periodically to compensate for wheel wear.

What types of blades can be sharpened with this device?

The grinder is designed for sharpening blades, scissors, flat end claws, and cutting tools. Use the dry grinding wheel for roughing and the wet grinding wheel for finishing.

How to clean and maintain the device?

Always unplug before cleaning. Use a damp cloth with a little soap. Do not use aggressive products. Clean the air slots and housing regularly. Avoid water ingress inside.

What are the important safety instructions?

Always wear hearing protection, a dust mask, and safety goggles. Do not work on materials containing asbestos. Ensure the device is stable and screwed onto a workbench.

How to order spare parts?

To order, specify the device type, article number, identification number, and spare part number. Prices and information are available at www.isc-gmbh.info.

What is the warranty period?

The warranty is 5 years for material and construction defects. Wear parts (grinding wheels) are guaranteed for 6 months. Consumables and missing parts must be reported within 24 hours or 5 working days.

How to store the device?

Store the device and its accessories in a dark, dry, frost-free place out of reach of children. The optimal temperature is between 5 and 30 °C. Keep it in its original packaging if possible.

USER MANUAL DS 150/200 Herkules

GBR Original operating instructions Wet and dry grinder/sander

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

1 2 8 9 4 3 5 7 1

©

2 14 13 12 7 6

-2-

3 11 10 3 2

4 4 10 3

5 3 11

6 14 15 12 7 13 6

-3-

DEU

The image contains a graphical symbol (a target with a crosshair) and no textual content. Therefore, the correct OCR output is an empty string.

-12-

GBR

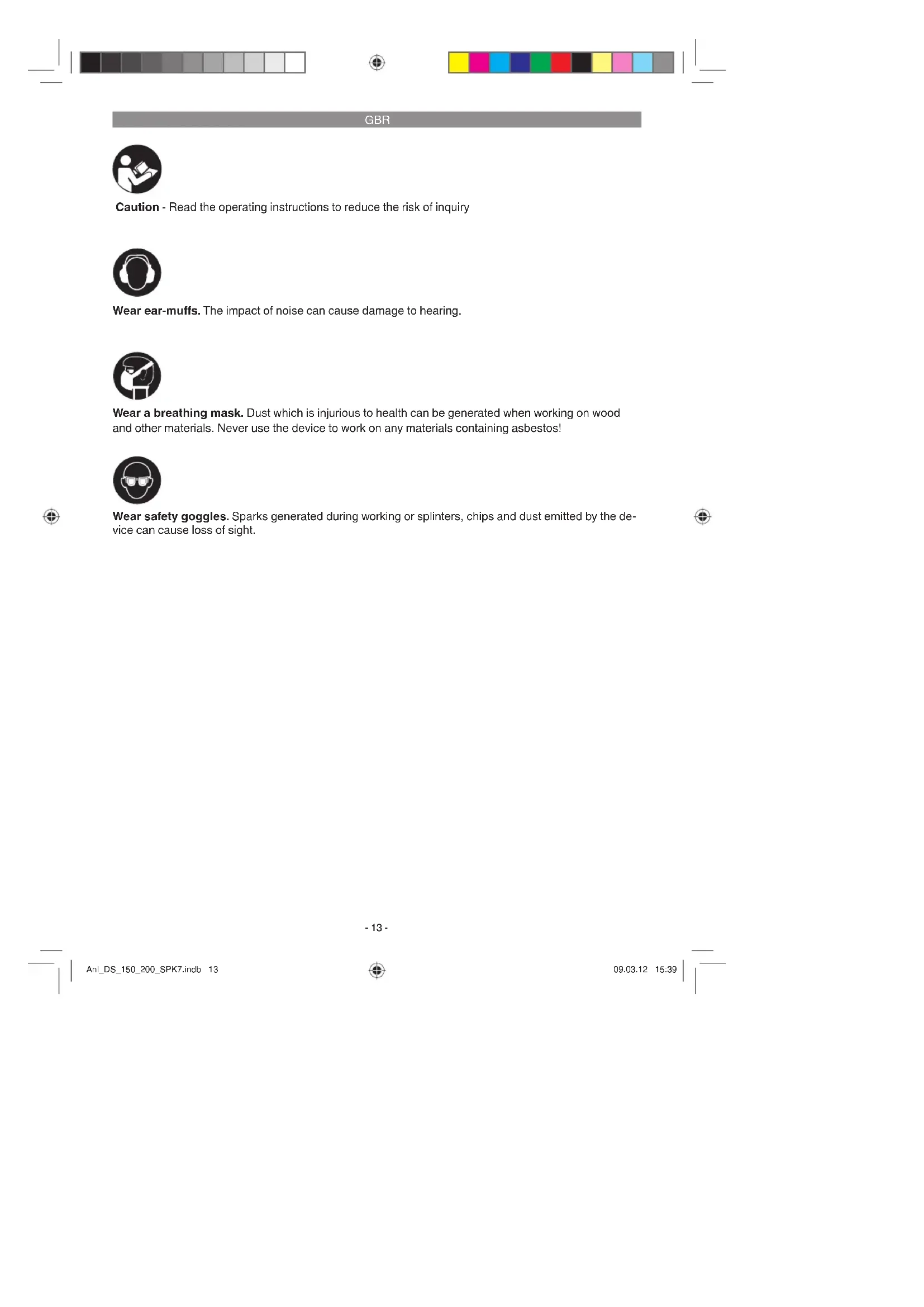

Caution - Read the operating instructions to reduce the risk of inquiry

Wear ear-muffs. The impact of noise can cause damage to hearing.

Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

-13-

Anl_DS_150_200_SPK7.indb 13

09.03.12 15:39

GBR

⚠️ Important!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Caution!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1. On/Off switch
2. Safety glass
3. Spark defl ector
4. Guard hood
5. Dry grinding wheel
6. Fastening screw for the workpiece support
7. Workpiece support
8. Wet grinding wheel
9. Water container
10. Fastening screws for the spark defl ector
11. Spark defl ector adjusting screw
12. Washer
13. Toothed washer
14. Workpiece support locking knob
15. Workpiece support holder

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Important!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions
• Safetyinstructions

3. Proper use

The wet and dry grinder is equipped with a dry grinding wheel and a wet grinding wheel. Please note that rough grinding is always performed with the dry grinding wheel. Carry out fi ne grinding jobs with the wet grinding wheel, applying only slight pressure. The wet and dry grinder was developed for the machining and sharpening of knives, scissors, chisels and tools with a blade.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

GBR

4. Technical data

Motor rating: 250 W S2 30 min

Motor speed: 2950 min ^-1

Protection type: IP23

AC motor: 230 V \~ 50 Hz

Dimensions of dry grinding

wheel: 150 × 20 × 12.7 mm

Dimensions of wet grinding

wheel: 200 × 40 × 20 mm

Max. rotating speed of dry

grinding wheel: 2950 min ^-1

Max. rotating speed of wet

grinding wheel: 131 min ^1

Max. circumferential speed of dry

grinding wheel: 23.16 m/s

Max. circumferential speed of wet

grinding wheel: 1.37 m/s

Weight: 9.4 kg

Load factor:

A load factor of S2 30 min (intermittent periodic duty) means that you may operate the motor

continuously at its nominal power level (250 W)

for no longer than the time stipulated on the specifications label (30 minutes ON period). If you fail to observe this time limit the motor will overheat.

During the OFF period the motor will cool again to its starting temperature.

Sound and vibration

Sound and vibration values were measured in accordance with EN 61029-1 and EN 61029-2-4.

L_pA sound pressure level 81,5 dB(A)

K_pA uncertainty ....3 dB

L_WA sound power level 94,5 dB(A)

K_WA uncertainty ....3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values were determined in accordance with EN 61029-1 and EN 61029-2-4.

Vibration emission value a_b ≤ 2.5 m/s^2

K uncertainty = 1.5 m/s ^4

Warning!

The vibration value changes according to the area of application of the electric equipment and may exceed the specified value in exceptional circumstances.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
  • Switch the appliance off when it is not in use.
  • Wear protective gloves.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Always pull the power plug before making adjustments to the equipment.

• The machine must be set up so that it stands firmly, i.e. it must be securely screwed to a work bench or similar.
• All covers and safety devices have to be properly fitted before the equipment is switched on.
• It must be possible for the grinding wheel to run freely.

5.1 Assembling the spark defl ector (Fig. 1/3/4/5)

Fit the spark defl ector (3) to the safety hood (4) using the screws (10), as shown in Fig. 4.

Adjust the spark defl ector (3) using the adjusting screw (11) so that the distance between the dry grinding wheel (5) and the spark defl ector (3) is as small as possible and certainly does not exceed 2 mm.

Adjust the spark defl ector (3) periodically to compensate for wear on the wheel.

GBR

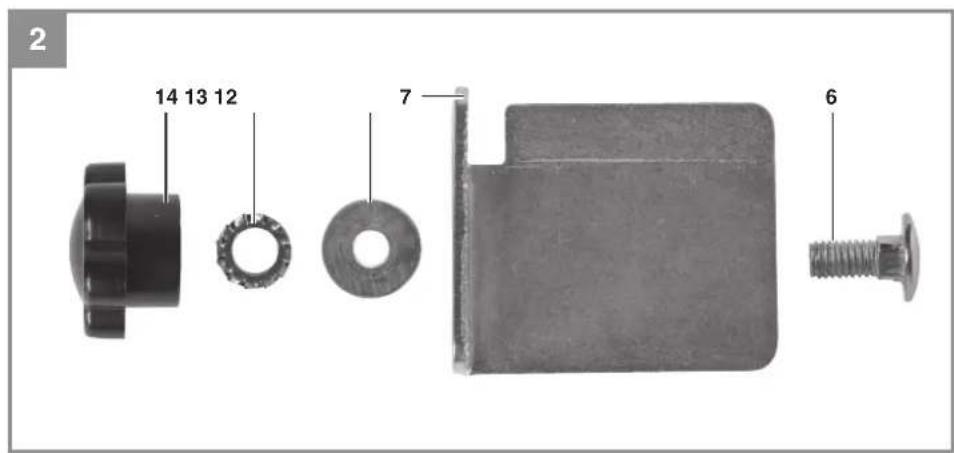

5.2 Assembling the workpiece support (Fig. 2/6)

Fit the workpiece support (7) to the workpiece support holder (15) using the workpiece support fastening screw (6), washer (12), lock washer (13) and workpiece support locking knob (14), as shown in Fig. 6.

6. Operation

6.1 On/Off switch (1)

To switch on the equipment set the On/Off switch (1) to position 1.

Move the On/Off switch (1) to position 0 to switch off the equipment.

After switching on, wait for the equipment to reach its maximum speed of rotation. Only then should you begin with the grinding.

6.2 Dry grinding

- Place the workpiece onto the workpiece support (7) and slowly guide the workpiece towards the grinding wheel (5) at the desired angle to the point where workpiece and grinding wheel make contact.

- Move the workpiece slightly back and forth to produce an optimal grinding result. This way the grinding wheel (5) will be evenly worn. Allow the workpiece to cool down occasionally.

6.3 Wet grinding

Before beginning with the wet grinding, check that there is enough water in the water container (9) (a third of the wet grinding wheel must be standing in water!). Switch on the grinder with the On/Off switch (1) and stand in front of the wet grinding wheel. Grip the workpiece with both hands and lower it carefully onto the wet grinding wheel. You can also rest the workpiece on the teeth on the water container and lower it onto the grinding wheel.

6.4 Changing the grinding wheel

If the grinding wheel for this equipment becomes damaged or worn, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel in order to avoid danger.

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

For our latest prices and information please go to www.isc-gmbh.info

GBR

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

-17-

Anl_DS_150_200_SPK7.indb 17

09.03.12 15:39

GBR

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

-18-

Anl_DS_150_200_SPK7.indb 18

09.03.12 15:40

GBR

Warranty provisions

iSC GmbH or the DIY store where you made you purchase guarantees the repair of defects or replacement of the equipment in accordance with the overview below. Statutory guarantee claims are unaffected.

Category Example Warranty
Defect with regard to material or construction		24 months
Wear parts* 6 months
Consumables* Grinding/sanding	disks Warranty only in case of an im-	mediate defect (24 hours after purchase / date on the bill)
Missing parts 5 work days

* Not necessarily included in the scope of delivery!

For consumables, wear parts and missing parts iSC GmbH guarantees the correction of defects or a new delivery only if the defect is reported within 24 hours (consumables), 5 work days (missing parts) or 6 months (wear parts) after purchase and the purchase date is verified with the bill.

In case of defects concerning the material or construction, we kindly request you to submit the equipment together with the fully completed warranty card supplied with the equipment. It is important that you enter an exact description of the defect.

To do so, answer the following questions:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?

Describe this malfunction.

-19-

GBR

Warranty certifi cate

Dear Customer,

In the unlikely event that your device develops a fault, we are truly sorry for this, and suggest that you please contact our service department at the address shown on this guarantee card, or contact the nearest authorised DIY store. Please note the following terms, under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.
3. The guarantee is valid for a period of 5 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
4. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Also refer to the restrictions of this warranty concerning wear parts/consumables and missing parts as set forth in the warranty conditions in these operating instructions.

-20-

FRA

6.1 Interruptor ON/OFF (1)

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

DNK

10. Opbevaring

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

SWE

10. Förvaring

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

FIN

10. Säilytys

Negotovost K_dA .....3 dB

Nivo zvočne moči L _WA 94,5 dB (A)

Negotovost K _WA 3 dB

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

SVN

10. Skladiščenje

Two horizontal bar designs with grayscale shades and a central crosshair symbol (no text or labels)

HRV

10. Skladištenje

GB explains the following conformity according to EU directives and norms for the following product

Notified Body: LWA = dB (A); guaranteed LWA = dB (A)

P = KW; L/∅ = cm

Notified Body:

2006/28/EC

Emission No.:

Standard references: EN 61029-1; EN 61029-2-4; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR005568

Documents registrar: Daniel Protschka

Wiesenweg 22, D-94405 Landau/Isar

Color palette bar with grayscale shades and a small crosshair symbol (no text or labels)

-166-

Anl_DS_150_200_SPK7.indb 166

09.03.12 15:59

Color palette bar with grayscale shades and a small crosshair symbol (no text or labels)

-167-

Anl_DS_150_200_SPK7.indb 167

09.03.12 15:59

Two horizontal bar segments with grayscale shades and a central crosshair symbol (no text or labels)

EH 03/2012 (01)

Anl_DS_150_200_SPK7.indb 168

09.03.12 15:59
