USER MANUAL SC50Vario SCHEPPACH

Explanation of the symbols on the device Attention! Read the usage instructions before commissioning. Keep third parties (persons and animals) away from the danger zone. Important. Hot parts. Keep your distance. Sharp work tools - Do not cut your ngers or toes - Disconnect spark plug connector prior to maintenance Important. The exhaust gases are very toxic. Do not operate the motor in rooms that are not ventilated. Do not scarify/aerate in the rain! Wear hearing and eye protection. Attention: hot surface - risk of burns ATTENTION! Operating substances are ammable and explosive - risk of burns Fill with oil and fuel prior to commissioning Check the oil levelwww.scheppach.com

Choke on/off Fuel valve open/closed Working position - transport position (transport lever)www.scheppach.com

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules for operating devices of the same design must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

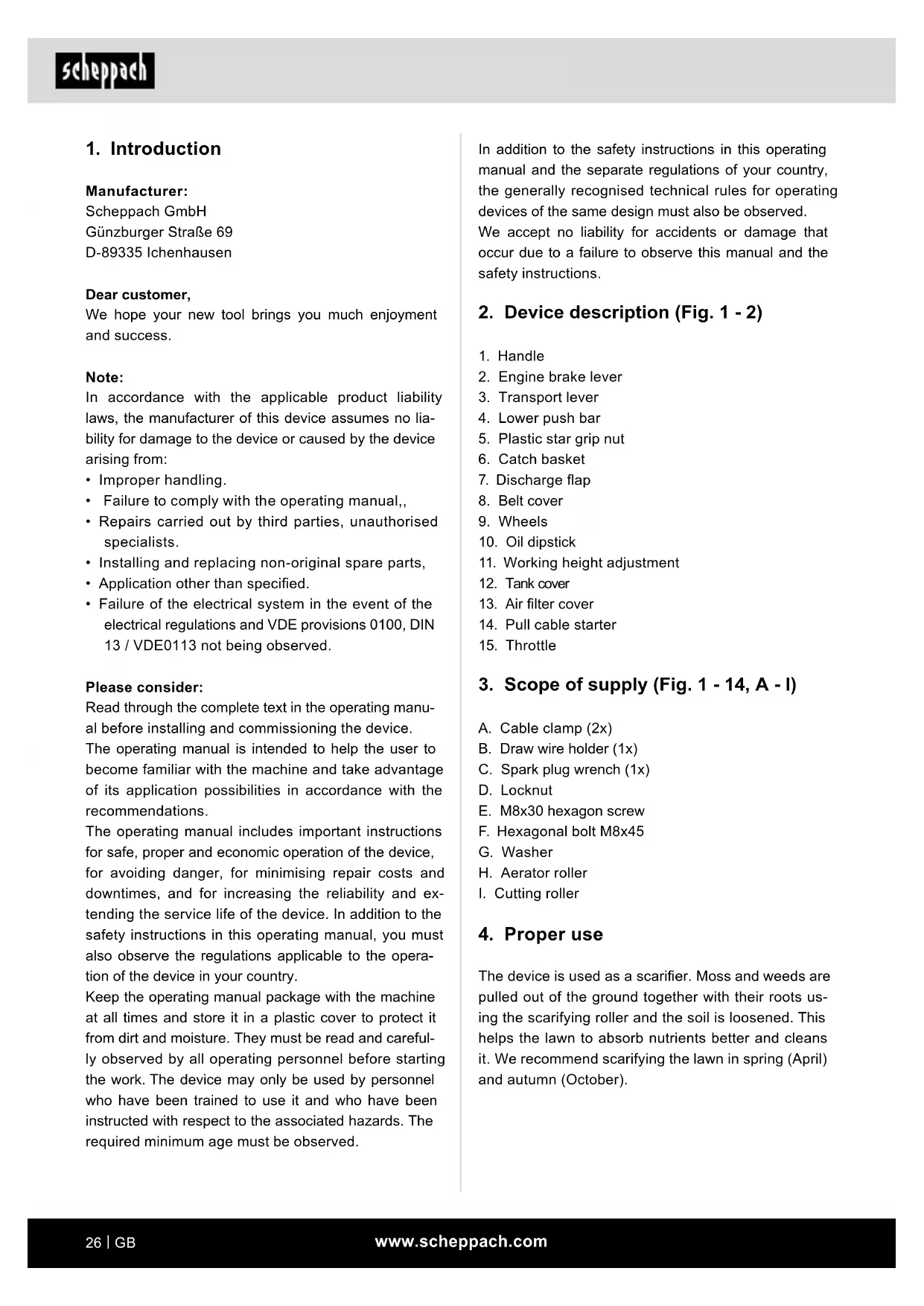

3. Scope of supply (Fig. 1 - 14, A - I)

The device is used as a scarier. Moss and weeds are pulled out of the ground together with their roots us- ing the scarifying roller and the soil is loosened. This helps the lawn to absorb nutrients better and cleans it. We recommend scarifying the lawn in spring (April) and autumn (October).

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear customer, We hope your new tool brings you much enjoyment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this device assumes no lia- bility for damage to the device or caused by the device arising from:

• Failure to comply with the operating manual,,

• Repairs carried out by third parties, unauthorised specialists.

• Installing and replacing non-original spare parts,

• Application other than specied.

• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed. Please consider: Read through the complete text in the operating manu- al before installing and commissioning the device. The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and ex- tending the service life of the device. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the opera- tion of the device in your country. Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and careful- ly observed by all operating personnel before starting the work. The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.www.scheppach.com

All instructions and safety notes in the user manual accompanying the machine separately must be read and understood. Do not attempt to operate the ma- chine until you have a thorough understanding of how to operate and maintain the motor and how to avoid accidental injury and/or damage to property. Safety at the workplace Never start or run the motor indoors. The exhaust gas- es are hazardous and contain carbon monoxide, an odourless and poisonous gas. Only operate this unit in a well-ventilated outdoor area. Never operate the machine if there is inadequate vis- ibility or light. Never operate the machine on steep in- clines. Always work in a horizontal line to the ground, never from top to bottom. Personal safety

1. Never operate the machine when under the inu-

ence of drugs, alcohol or other medicines which may affect your ability to use the machine properly.

2. Wear appropriate clothing. Wear long trousers,

boots and gloves. Do not wear loose clothing, shorts or any type of jewellery. Tie long hair up at shoulder length. Always keep hair, clothing and gloves away from moving parts. Loose clothing, jewellery or long hair may become entangled in moving parts.

3. Wear protective equipment. Always wear eye pro-

4. Protective equipment, such as dust protection

masks, safety helmets or hearing protection, which are used in relevant conditions, reduce per- sonal injury.

5. Check the machine prior to starting it. Do not re-

move separating protective devices and keep them in good condition. Ensure that all nuts, bolts, etc. are tight.

6. Never operate the machine if it requires repair or if

its mechanics are damaged.

7. Replace damaged, missing or non-functional parts

prior to using the machine. Check leak-tightness. Maintain safe working conditions for the machine.

8. Under no circumstances should protective devices

be tampered with. Regularly check their function- ality. The scarier is suitable for private use around the home and hobby garden. Scariers for private home and hobby gardens are deemed to be ones that do not normally exceed 10 hours of use per year and are predominantly used for the upkeep of grass or lawns, but are not used in pub- lic grounds, parks, sports facilities or in agriculture or forestry. The observance of the manufacturer’s usage instruc- tions included is a prerequisite for the proper use of the scarier. The user instructions also contain the op- erating, maintenance and servicing conditions. m Warning! Due to physical hazards to the user, the scarier must not be used as a shredder for shred- ding tree and hedge cuttings. Furthermore, the scari- er must not be used as a motor hoe and for levelling ground elevations, such as molehills. For safety reasons, the scarier must not be used as a drive unit for other work tools and tool sets of any kind except those explicitly approved by the manufacturer. The machine may only be used in the intended man- ner. Any use beyond this is improper. The user/opera- tor, not the manufacturer, is responsible for damages or injuries of any type resulting from this. Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

5. General safety information

General safety regulations Familiarise yourself with your machine. The user manual and the markings on the machine must be both read and understood. Learn how and for which purposes the machine is used. Address the potential hazards of the machine. Learn how to control and operate the machine correct- ly. Learn how to rapidly bring the machine and controls to a stop or shut them down.www.scheppach.com

3. To avoid sparking or arcing, keep earthed conduc-

tive objects, such as tools, away from unprotected live electrical parts and connections. They may ignite fumes or vapours.

4. Always switch off the motor and allow it to cool

down before relling the tank. Do not remove the cap from the tank or ll up with fuel while the motor is running or warm. Never operate the machine if the fuel system is leaking.

5. Slightly open the cap of the tank to release pres-

6. Do not overll the tank (to approx. 1.5 cm below

the ller neck for space in the event of fuel expand- ing due to heat generated by the motor).

7. Replace the caps of the tank and the container se-

curely and wipe up any spilled fuel. Never operate the unit if the tank cover is not attached.

8. Avoid sources of ignition in case of spilled fuel. Do

not try to start the motor if fuel has been spilled. In- stead, remove the machine from the affected area and avoid sources of ignition until the vapours from the fuel have dissipated.

9. Store fuel in specially made containers that have

been approved for this purpose.

10. Store fuel in a cool, well-ventilated location away

from sparks, open ames or other sources of ig- nition.

11. Never store fuel or the machine containing a tank

lled with fuel in a building where exhaust fumes could come into contact with ignition sparks, open ames or any other ignition source, such as water heaters, ovens, dryers or similar. Allow the motor to cool down before placing it in a housing.

12. If petrol overows, no attempts should be made to

start the engine. Instead, the machine must be re- moved from the area contaminated with petrol. Do not try to start the engine until the petrol vapours have evaporated.

13. For safety reasons, the petrol tank cap and other

tank caps must be replaced if damaged. Notes on use and care of the machine

1. Do not lift or carry the machine when the motor is

running. Stop work tools if crossing surfaces oth- er than grass and when transporting the machine from and to the surface to be worked on.

2. Do not operate the machine using force. Use the

right machine for your application. Using the right machine will do the job in a better and safer way.

9. The machine must not be used if it cannot be

switched on or off using the motor switch. Ma- chines running on petrol that cannot be controlled using the motor switch are hazardous and must be replaced.

10. Regularly check that spanners or screw keys have

been removed from the machine before starting. Personal injury can result from a spanner or screw key left on a rotating part.

11. Keep alert and use common sense when operat-

12. Do not bend too far when working. Do not oper-

ate the machine barefoot or with sandals or similar light footwear. Wear safety shoes that protect your feet and improve your grip on slippery surfaces.

13. Always maintain a rm stance and balance. This

allows the machine to be more easily controlled in unexpected situations.

14. Avoid unintentional start-up. Ensure that the motor

is switched off prior to transporting the machine or carrying out maintenance or servicing work on the unit. Transporting the machine or carrying out maintenance or servicing work on the machine while the motor is running can lead to accidents.

15. Check the area in which the machine is to be used

and remove any stones, sticks, wires, bones and other foreign objects that could be caught and ejected.

16. If devices with rear discharge and rear rollers ex-

posed are operated without a safety catch, then full eye protection must be worn.

17. Do not run the combustion engine in closed rooms

in which hazardous carbon monoxide can collect. Safe handling of operating materials m WARNING: Petrol is highly ammable!

1. Fuel is highly ammable and its vapours can ex-

plode if ignited. Take appropriate measures when using fuel so as to reduce the risk of serious per- sonal injury.

2. Remain in a clean, well-ventilated outdoor area

when lling or draining the tank and use an ap- proved fuel collection container. Smoking prohibit- ed. Avoid ignition sparks, open ames or any other source of ignition in the vicinity of the area when lling fuel or operating the unit. Never ll the tank when inside the building.www.scheppach.com

16. Prior to use. always perform a visual inspection to

check whether the work tools and bolts are worn out or damaged. To prevent an imbalance, worn out or damaged work tools and bolts may only be replaced in sets. Only work with the machine in daylight or with good articial lighting.

17. If possible, avoid using the device on wet grass or

take special care to prevent slipping.

18. Only guide the machine at walking pace.

19. Always work across a slope, never upwards or

20. Take particular care when changing direction on

21. Do not work on excessively steep slopes.

22. Take particular care when reversing the machine

or pulling it towards you.

23. Never use the machine with damaged or missing

safety guards, e.g. without deectors and/or catch- er.

24. Disconnect all work tools and drives before start-

25. Start or press the starter switch with caution in

accordance with the manufacturer’s instructions. Ensure that your feet are far enough away from the work tool(s).

26. When starting the engine, do not tilt the machine

unless it has to be lifted during the process. In this case, only tilt as far as absolutely required and only lift the side away from the operator.

27. Do not start the engine if you are standing in front

of the ejector chute.

28. Close the throttle valve when running down the en-

gine; if the engine is equipped with a petrol shut-off valve, close this after aerating the soil or scarifying

29. Switch the motor off by removing the spark plug

connector and the ignition key on machines with a battery starter: - if you leave the machine - before refuelling

30. Switch the motor off by removing the spark plug

connector and the ignition key on machines with a battery starter: - before releasing blockages or rectifying obstruc- tions in the ejector chute, - before checking or cleaning the machine, or per- forming work on it, - if it came into contact with a foreign object. In- spect the machine for damage and perform the required repairs before starting again and work- ing with the machine,

3. Do not change the motor speed regulator settings

and do not run the motor at too high a speed. The speed regulator controls the maximum operating speed deemed safe for the motor.

4. Do not run the motor fast if the ground is not being

5. Never out hands and feet on or under rotating

parts. Always keep clear of the discharge opening.

6. Avoid contact with hot fuel, oil, exhaust fumes and

hot surfaces. Do not touch the motor or the silenc- er. These parts become extremely hot during op- eration. They also remain hot for a short time after the unit has been switched off. Allow the motor to cool down before carrying out maintenance or ad- justment work.

7. If the machine starts to make unusual noises or

vibrate abnormally, immediately switch off the motor, disconnect the ignition cable and nd the cause. Unusual noises or vibrations are generally a warning sign.

8. Only use connections and accessories that have

been approved by the manufacturer. Failure to comply with this requirement may result in person- al injury.

9. Service the machine. Check whether any parts

in motion are misaligned or blocked. Check parts for breakage or check to see if there is any oth- er condition that might affect the operation of the machine. Have the machine repaired before use if it is damaged. Many accidents occur due to inade- quately serviced equipment.

10. Clear the motor and silencer of grass, leaves, ex-

cessive grease or built-up carbon to reduce the risk of re.

11. Keep cutting tools sharp and clean. Cutting tools

with sharp cutting edges that have been properly maintained are less likely to jam and are easier to control.

12. Never pour or splash water or any other liquid on

the unit. Keep handlebars dry, clean and free of deposits. Clean after each use.

13. Adhere to laws and regulations concerning the

proper disposal of fuel, oil or the like to protect the environment.

14. Keep the machine out of the reach of children

when not in use and do not allow persons unfamil- iar with the machine or these instructions to oper- ate the machine. The machine is dangerous in the hands of untrained users.

(left/right) = 7.03 m/s² Measurement uncertainty K

= = 1.5 m/s² Keep the noise level and vibration to a minimum!

• Only use devices which are free of defects.

• Maintain and clean the device at regular intervals.

• Adapt your working methods to the device.

• Do not overload the device.

• Have the device checked if necessary.

• Switch the device off if it is not in use.

m ATTENTION! The device and the packaging material are not children’s toys! Do not let children play with plas- tic bags, lms or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the de- vice.

• Remove the packaging material, as well as the pack- aging and transport safety devices (if present).

• Check whether the scope of delivery is complete.

• Check the device and accessory parts for transport damage.

• If possible, keep the packaging until the expiry of the warranty period.

8. Before commissioning

Assembly m Attention! Always make sure the device is fully assembled before commissioning! Guide bar assembly (Fig. 3 - 9)

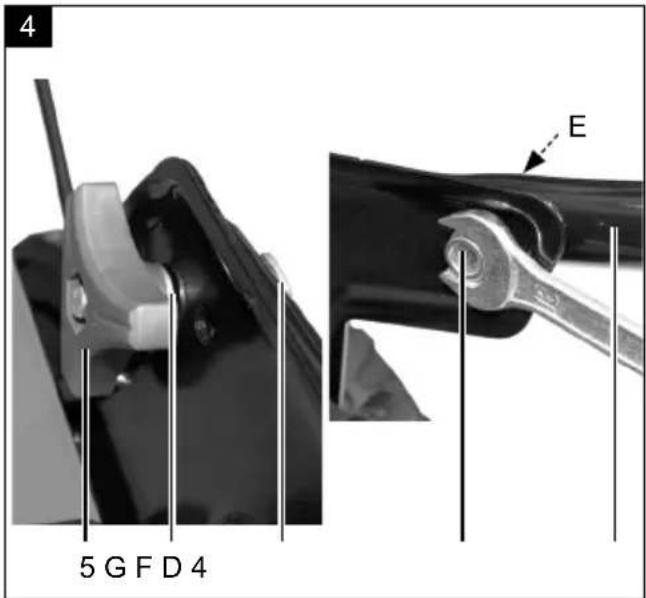

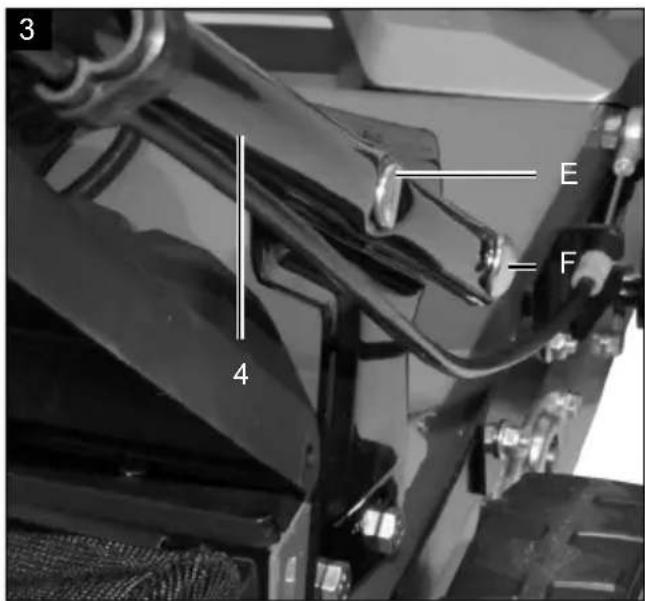

• Fit the lower push bar (4) as shown in Figures 3 + 4. Afx the bar with four hexagonal screws (E, F), two washers (G), two plastic star grip nuts (5) and two locknuts (D).

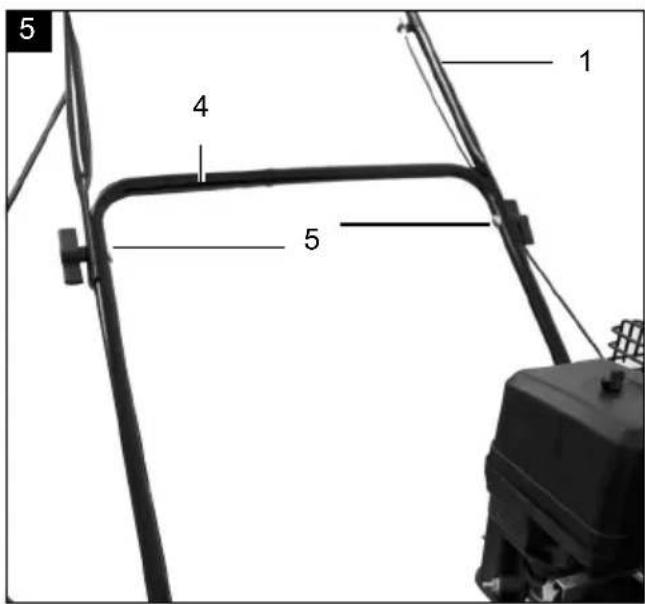

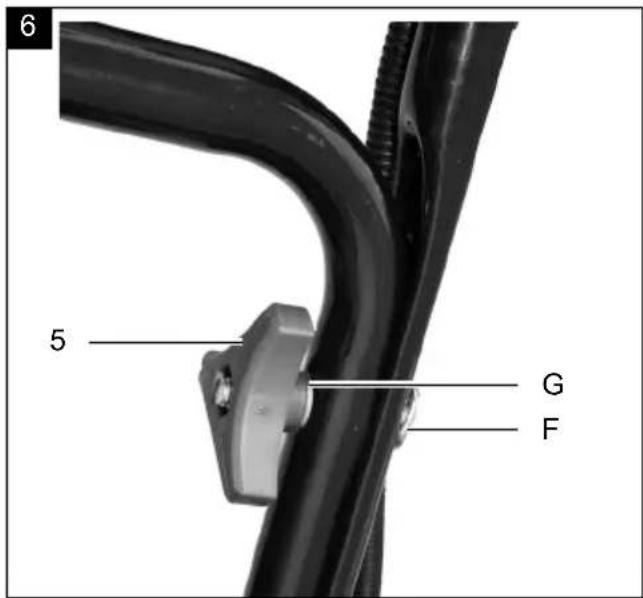

• Connect the upper push bar (handle) (1) to the lower push bar (4). To do so, use two plastic star grip nuts (5) with the corresponding hexagonal screws (F) and washers (G) (Fig. 5 + 6)

• Fit the draw wire holder (B) on the right side of the steering bar as shown in Fig. 7.

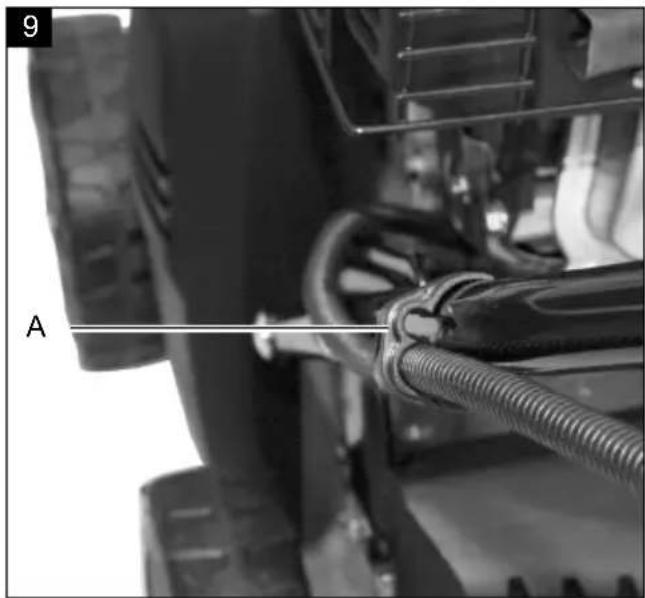

• Fasten the cables to the push bar with the two cable clamps (A). (Fig. 8 + 9) - if the machine starts to vibrate unusually strongly (inspect immediately) Corrective maintenance instructions Switch off the motor prior to cleaning, repairing, in- specting or adjusting the machine and ensure that all parts in motion have been stopped. Disconnect the ignition cable and position the cable away from the spark plug in order to prevent accidental starting. Have the machine repaired by qualied personnel using only original spare parts. This ensures that the safety of the machine is upheld.

Type of engine Single-cylinder / 4-stroke Displacement 212 cm³ Max. motor perfor- mance

Fuel Unleaded petrol Tank contents 3.6 l Engine oil 10W 30 / SAE 30 Spark plug F7TC Oil/tank capacity 0.6 l Depth setting +5 / -15 Working width of 400 mm Number of blades 18 Blade Ø 165 Collection bag capacity 45L Weight 38 kg Technical changes reserved! Information about noise level measured in accordance with applicable standards: Sound pressure L

= 85.9 dB(A) Sound pressure L

= = 3.43 dB(A) Wear hearing protection. Excessive noise can result in a loss of hearing.www.scheppach.com

Attention: When releasing the motor brake lever, it must return to the starting position causing the motor to stop. If this is not the case, the device must not be used.

1. Move the main switch into the “ON” position (Fig.

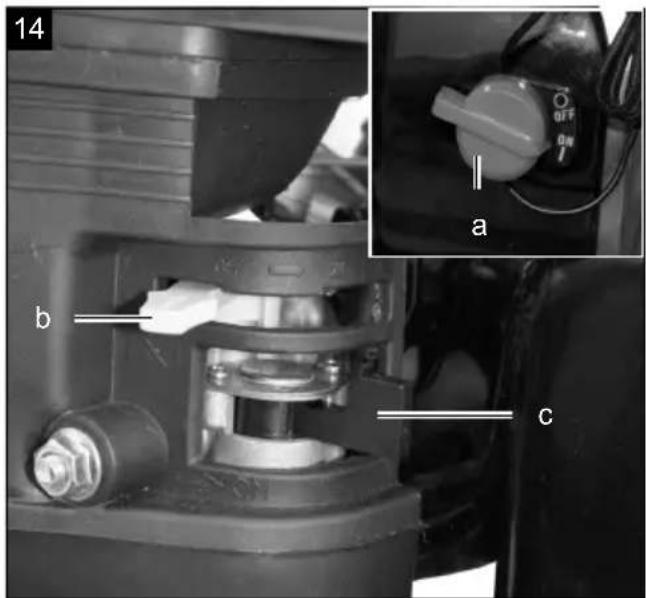

14/ item a) and then open the petrol valve (item c). To do this, set the valve to “ON”.

2. Set the choke lever (Fig. 14/ Item b) to the “Choke”

position. Note: The choke is not normally required when restarting a warm motor.

3. Actuate the motor brake lever (Fig. 13) and rm-

ly pull the start pull cord (Item 14) until the motor starts.

4. Allow the motor to warm up for a short time and

then set the choke lever (Fig 14 Item b) to the “RUN” position.

5. Move the transport lever (3) into the working po-

sition Attention: Always slowly pull out the start pull cord until you feel the rst resistance before pulling it out quickly to start. Do not allow the start pull cord to ing back after starting has been completed Attention: Do not start the motor if the transport lever (3) is in the working position! Attention: The scarifying roller rotates when the motor is started. Attention! Never open the discharge ap when the motor is still running. The rotating roller may lead to injuries. Always carefully secure the discharge ap. It is folded back into the “closed” position by the tension spring! The safety distance between the housing and the user given by the guide rails must always be maintained. Special care must be taken when working and chang- ing direction on embankments and slopes. Make sure you have a secure footing, wear shoes with non-slip, well gripping soles and long trousers. Always work across slopes. For safety reasons, slopes with an inclination of more than 15 degrees must not be scaried with the device. Exercise particular caution when moving backwards and pulling the device, risk of tripping! Speed adjustment (g. 1) The speed can be adjusted using the throttle lever (15). We recommend working at high speed. Installing the catch basket (Fig. 10 - 11)

• Lift the discharge ap (Fig. 11/Item. 7) with one hand and hook the catch basket (Fig. 11/ Item

6) into the handle at the top with the other hand.

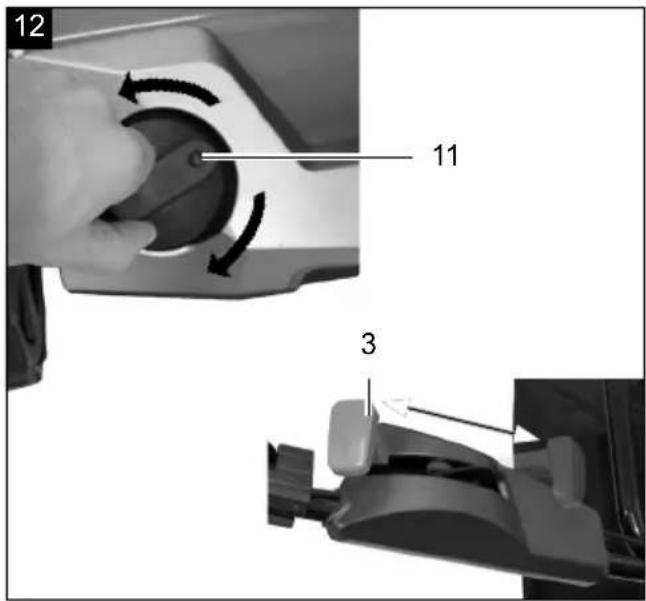

Attention! The motor must be switched off and the roller must not rotate when attaching the catch bas- ket! Setting the scarifying depth (Fig. 12) The scarifying depth is set using the depth adjustment (11). To do this, gently pull the depth adjustment (11) to the left or the right to set the required position. The height can be adjusted innitely from 0 mm to -15 mm. If the transport lever (3) is in the transport position, the blades do not touch the ground. m ATTENTION: Move the transport lever (3) (Fig. 12) into the transport position in order to make the roller non-contacting. Only move the scarier in the trans- port position when not scarifying/aerating. Adjusting the aerator roller depth In order to guarantee faultless operation and avoid damage to the aerator roller, only use the aerator roller with the depth setting “O”. Change the roller (Fig. 19 - 23) ATTENTION! Be sure to wear gloves! Remove the hexagonal screws and the retainer plate. Lift the roller at this end. Pull the roller in the direction of the arrow, out of the drive square. Slide the new roller in the direction of the arrow back into the drive square and then press it into the brack- et. Use the hexagonal screws to fasten the roller back onto the housing.

m Attention! The engine does not come with oil in it. Therefore, ensure that you add oil before starting it up. The oil level in the motor must be checked before any work is undertaken. Starting the device In order to avoid unintentional starting of the motor, it is equipped with a motor brake (Fig. 1/ Item 1), which must always be actuated during operation, since other- wise the motor will stop.www.scheppach.com

Attention! The roller continues to rotate for a few sec- onds after the motor is switched off. Never try to stop the roller. If the moving roller hits an object, switch off the device and wait until the roller comes to a complete stop. Then check the condition of the roller. If dam- aged, it must be replaced.

10. Maintenance and cleaning

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.

• We recommend that you clean the device directly after every use.

• Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

• In order to reduce the risk of re, keep the engine, exhaust, battery box and the area surrounding the fuel tank free of grass, straw, moss, leaves or es- caping grease. Maintenance

• A worn or damaged cutting roller should be replaced by an authorised specialist

• Ensure that all fastening elements (bolts, nuts, etc.) are always tightened so that it is safe to work with the scarier.

• Store your scarier in a dry space.

• All screwed parts as well as the wheels and axles should be cleaned and then oiled to ensure a long service life.

• Regular maintenance of the scarier will not only en- sure its durability and performance, but will also help to scarify your lawn carefully and easily.

• Perform a general check of the scarier at the end of the season and remove all accumulated debris. Al- ways check the condition of the scarier prior to the start of the season. Contact our customer service centre for repairs.

• Check the catcher regularly for wear or damaged parts.

• Check the machine regularly and replace worn out or damaged parts for safety reasons.

• If the fuel tank has to be drained, you must do this outdoors. Store the drained fuel in a special contain- er for fuel or dispose of it with due care. Scarifying When scarifying, the grass surface and the grass seam are scratched using the scarifying blade. This removes moss, mulch and weeds, and cuts the ne roots on the top. Therefore, air, light, water ant nutri- ents reach the grass root better, resulting in the grass growing better and thicker. Furthermore, cutting the ne roots encourages grass growth. This promotes grass durability. Scarifying should be performed a maximum of twice per year. Ideally in April/May and/or September/October. Fertilise and water the grass surface after scarifying in order to obtain an even better result. Aerating When aerating, the aerator roller removes surface mulch and moss, and “dethatches” the grass. There- fore, air, light, water ant nutrients reach the grass root better, resulting in the grass growing better and thick- er. Aerating is gentler on the grass than scarifying but not as effective. The grass may be aerated several times per year (around every 4 weeks). Advice on how to work properly An overlapping working method is recommended when working. Guide the device in as straight a path as pos- sible to obtain a clean result. These paths should al- ways overlap by a few centimetres so that there are no streaks left. First scarify lengthways and then width- ways in order to obtain a chessboard pattern. As soon as grass cuttings are left lying behind on the ground during working, the catch basket must be emptied. Attention! Before removing the catch basket, switch off the motor and wait for the roller to come to a standstill! Re-sow sections without grass or with little grass after scarifying. In order to unhook the catch basket, lift the discharge ap using one hand and remove the catch bag with the other hand! It depends on the grass growth of the lawn and the hardness of the soil as to how often the lawn should be worked. Keep the underside of the device clean and remove any earth and grass deposits. Deposits impede the start- up process and impair the quality. On slopes, the path should be made perpendicular to the slope. Switch off the motor before carrying out any checks on the roller.www.scheppach.com

m WARNING: Never store the machine with petrol in the tank inside a building in which fuel vapours may come into contact with na- ked ames or sparks!

3. Change the oil at the end of every season. To do

so, remove the used engine oil from a warm en- gine and rell with fresh oil.

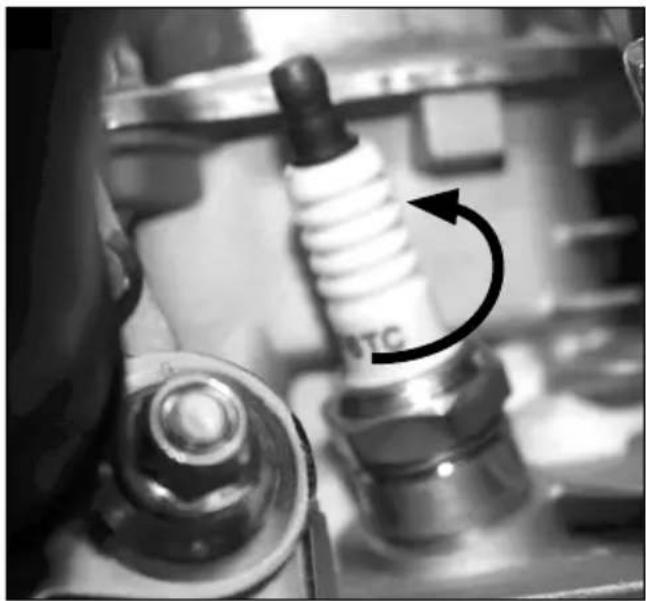

4. Remove the spark plug from the cylinder head. Fill

the cylinder with approx. 20 ml of oil from an oil can. Slowly pull back the starter handle, which will bathe the cylinder wall with oil. Attach the spark plug again.

5. Clean the cooling ns of the cylinder and the hous-

6. Be sure to clean the entire machine to protect the

7. Store the device in a well-ventilated place or area.

Preparing the device for transport

1. Empty the fuel tank with a petrol suction pump.

2. Keep the motor running until the remaining petrol

3. Drain the motor oil of the warm motor.

4. Remove the spark plug connector from the spark

5. Clean the cooling ns of the cylinder and the hous-

6. Dismantle the push bars if necessary. Ensure that

the cable pulls are not kinked.

12. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw ma- terial and can thus be used again or can be reintegrated into the raw material cycle. The device and its accessories are made of different materials, such as metals and plas- tics. Take defective components to special waste dis- posal sites. Check with your specialist dealer or munic- ipal administration! Maintenance of the air lter Fouled air lters diminish the engine output due to re- duced air supply to the carburettor. Regular inspection is therefore essential. The air lter should be checked every 50 operating hours and cleaned as required. The air lter must be checked more often in case of very dusty air.

• Dismount the air lter as shown in Fig. 15 + 16.

• Clean the air lter with compressed air or simply by knocking out any soiling.

• The re-assembly takes place in reverse order Attention: Never clean the air lter with petrol or am- mable solvents. Spark plug maintenance/change Check the spark plug for dirt and grime after 10 op- erating hours and if necessary, clean it with a copper wire brush. Then service the spark plug every 50 op- erating hours.

• Pull off the spark plug connector (Fig. 17) with a twisting motion.

• Use a spark plug wrench to remove the spark plug (Fig. 18).

• The re-assembly takes place in reverse order. Service information With this product, it is necessary to note that the follow- ing parts are subject to natural or usage-related wear, or that the following parts are required as consuma- bles. Wearing parts*: Carbon brushes, fan roller

• may not be included in the scope of supply! Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

Preparation for storing the device Warning: Do not remove the petrol in enclosed spaces, near re or when smoking. Petrol fumes can cause explo- sions and re.

1. Empty the fuel tank with a petrol suction pump.

2. Start the engine and let it run until any remaining

petrol has been used up.www.scheppach.com

Fault Possible cause Remedy Motor does not start Engine brake lever not pressed Press engine brake lever Spark plug is defective Replace spark plug Fuel tank empty Rell with fuel Fuel valve closed Fuel valve open Motor power diminishes Ground too hard Correct scarifying depth Scarier housing clogged Clean housing Blade heavily worn Replace blade Improper scarifying Blade is worn Replace blade Incorrect scarifying depth Correct scarifying depth Motor runs, cutting roller does not rotate Toothed belt torn Have checked by customer service workshopwww.scheppach.com
