USER MANUAL SC45P SCHEPPACH

Red and black lawn mower with 'scheppach' branding, no visible text or symbols on the device itself.

SC45P

DE	BenzinvertikutiererOriginalbetriebsanleitung	7 - 13
GB	Petrol ScarifierTranslation from the original instruction manual	14 - 20
FR	Scarificateur ThermiqueTraduction des instructions d'origine	21 - 28

2 4 H I C A 5 D G 6 F E

3 E 4 F

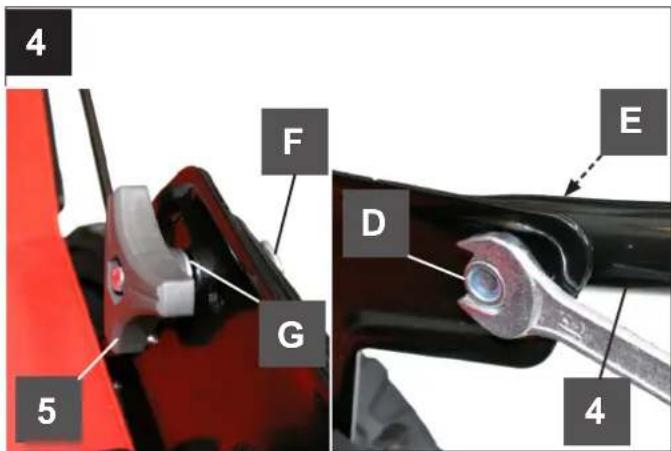

4 F E D G 5 4

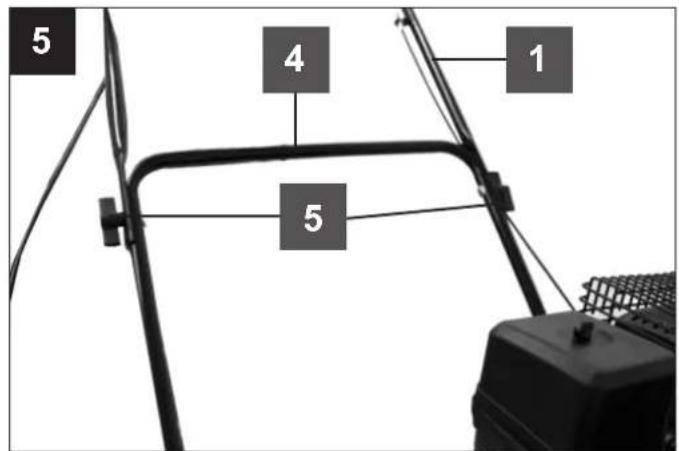

5 4 1 5

6 5 F G

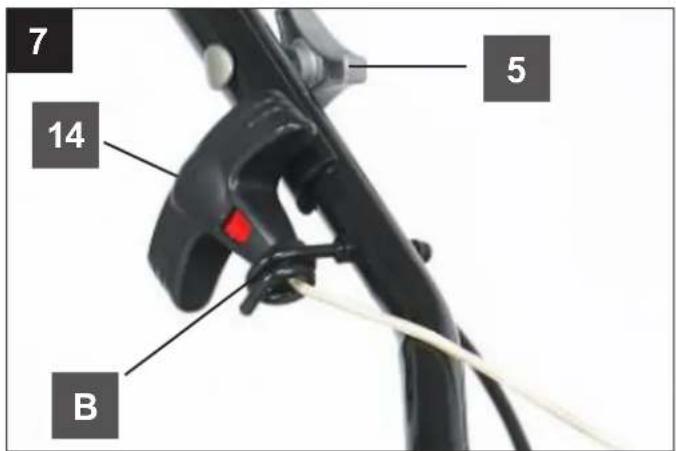

7 14 B 5

Close-up of a vehicle's wheel assembly and tire assembly, showing mechanical components and a labeled section A (no text or symbols beyond labels)

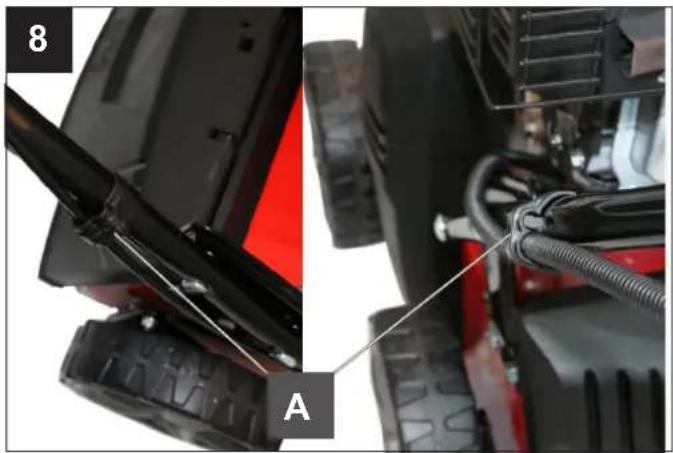

9 A

Black metal object with a triangular frame and a small protrusion, no visible text or symbols.

6 7

1211 11 3

13 2

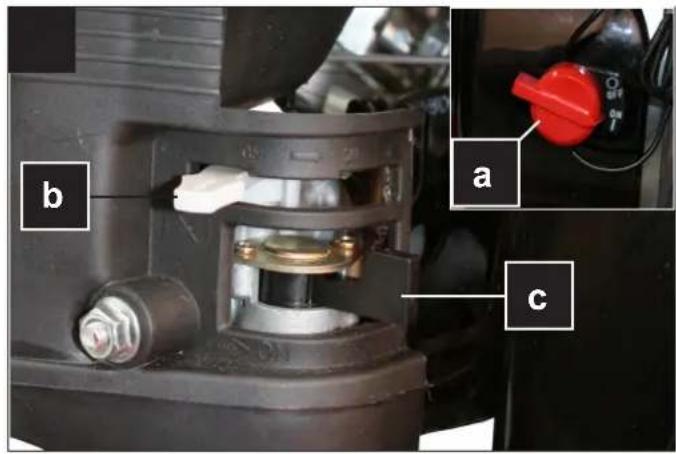

b a c

Close-up of a hand holding a black plastic device with white directional arrows, placed on a red surface (no text or symbols visible)

Close-up of a hand holding a circular mechanical component with a curved arrow, next to a red vehicle (no visible text or symbols)

Close-up of metallic mechanical components with a black arrow pointing to a pipe fitting (no visible text or symbols)

Close-up of a motorcycle brake caliper with a spark plug and crankshaft, showing no text or symbols on the component itself.

Close-up of a red tractor blade assembly with a hand using a wrench to adjust the component (no text or symbols visible)

Close-up of a red and black toy vehicle's wheel assembly with a metallic bracket and mounting base (no visible text or symbols)

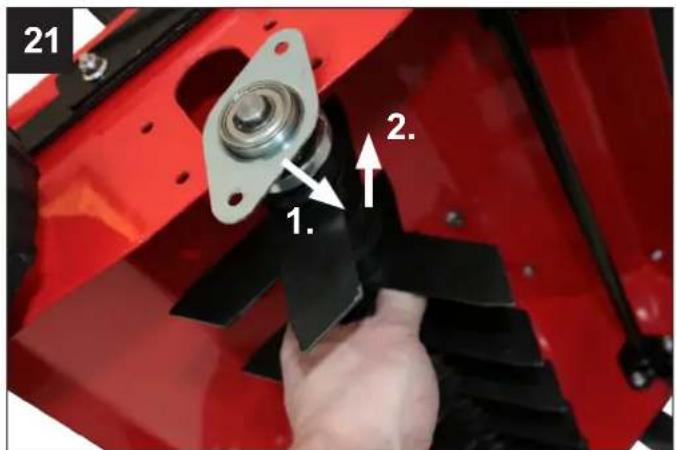

21 1. 2. 1.

Close-up of a mechanical assembly with metallic components and a white arrow indicating a specific component (no visible text or symbols)

Close-up of a red robotic lawn saw with black and metallic components (no visible text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

VEREHRTER KUNDE,

Explanation of the symbols on the device

	Attention! Read the usage instructions before commissioning.
	Keep third parties (persons and animals) away from the danger zone.
	Important. Hot parts. Keep your distance.
	Sharp tools – do not cut your fingers or toes – remove the spark plug before starting any maintenance work
	Important. Exhaust gas is poisonous, do not operate in an unventilated area.
	Protect the tool from getting wet!
	Wear hearing and eye protection.
	Danger - Hot surface!
	Attention! Operating materials are flammable and explosive
	Fill with oil and fuel before starting
	Check oil level
	Choke on/off
	Fuel tap opened/closed
	Working position - transport position (Transport lever)

Table of contents: Page:

1. Introduction 8
2. Device description 8
3. Scope of delivery 8
4. Intended use 8
5. Safety information 9
6. Technical data 13
7. Before starting the equipment 13
8. Operation 13
9. Maintenance and cleaning 14
10. Storage 15
11. Disposal and recycling 15
12. Troubleshooting 16
13. Declaration of conformity 51
14. Guarantee certificate 52

1. Introduction

MANUFACTURER:

Günzburger Straße 69

D-89335 Ichenhausen

DEAR CUSTOMER,

we hope your new tool brings you much enjoyment and success.

NOTE:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,

WE RECOMMEND:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations..

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety requirements in these operating instructions and your country's applicable regulations, you should observe the generally recognized technical rules concerning the operation of identical constructed machines.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Device Description (Fig 1-2)

1. Handle

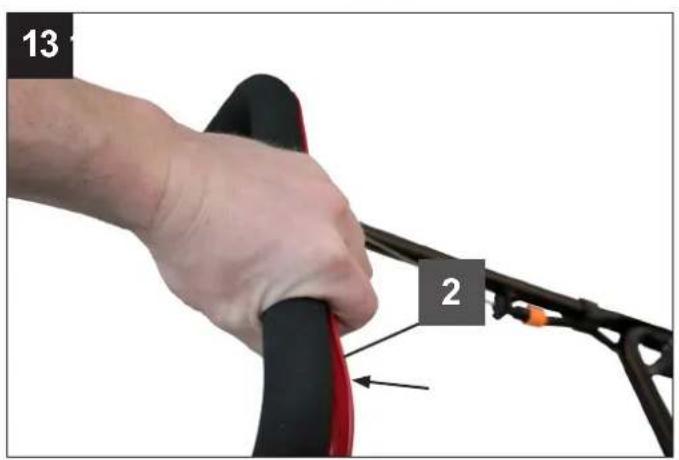

2. Engine brake lever
3. Transport lever
4. Lower push bar

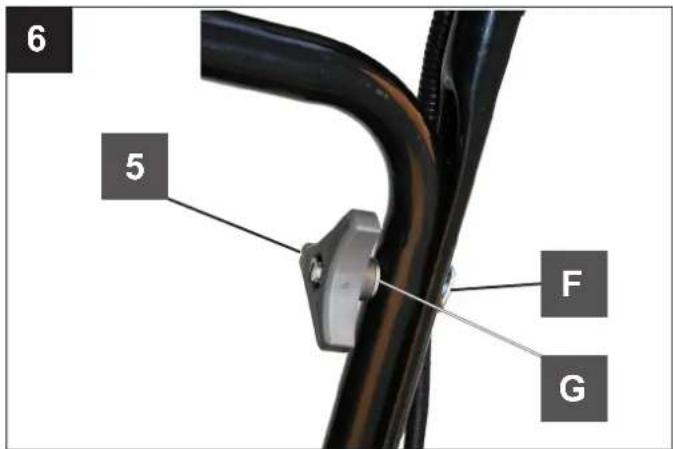

5. Plastic star grip nut

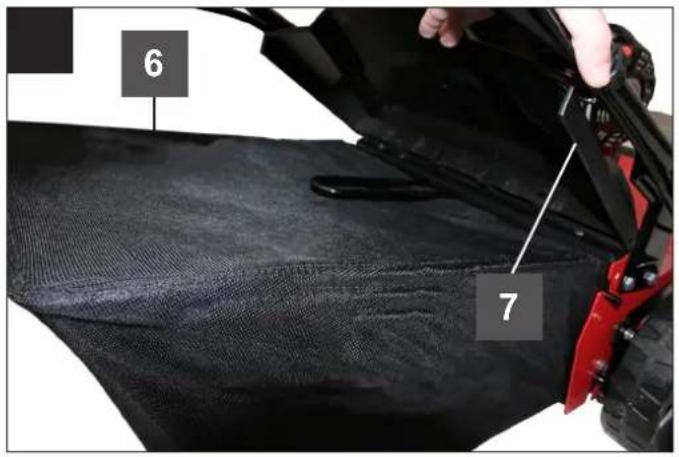

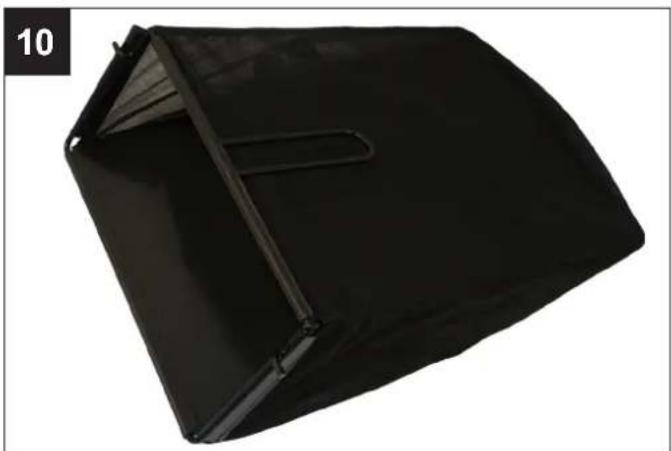

6. Grass basket
7. Discharge flap
8. Belt cover
9. Wheels
10. Oil dipstick

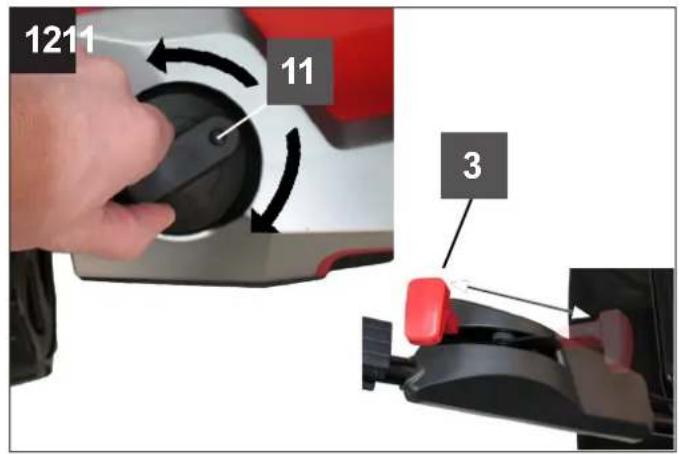

11. working height adjustment
12. Fuel tank with cover
13. Air filter cover
14. Starter cable

3. Scope of delivery

(Pos. 1-14, A-H)

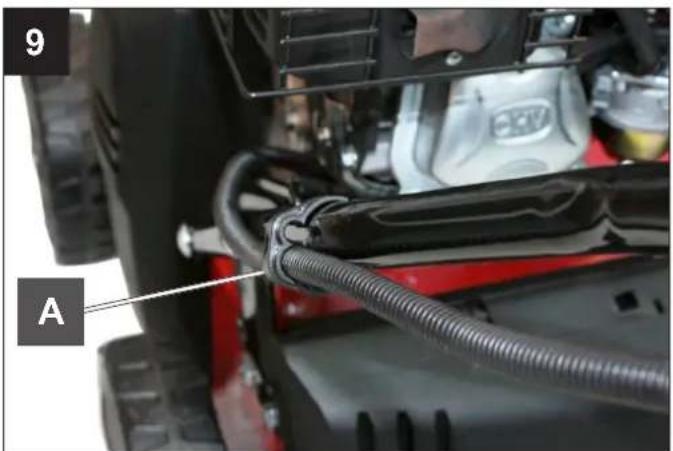

A cable clips (2x)
B starter cable holder (1x)
C Spark plug wrench (1x)
D Locknut

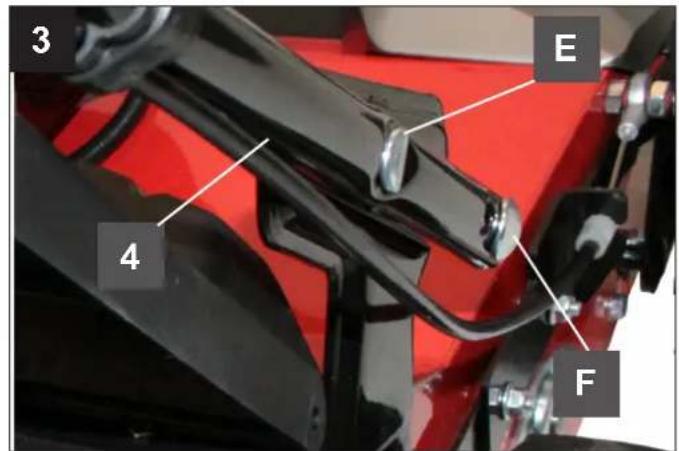

E M8x30 hexagon screw
F M8x45 hexagon screw
G Washer
H Aerator roller
I Knife roller

Unpacking

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

4. Intended use

The equipment can be used as a scarifier.

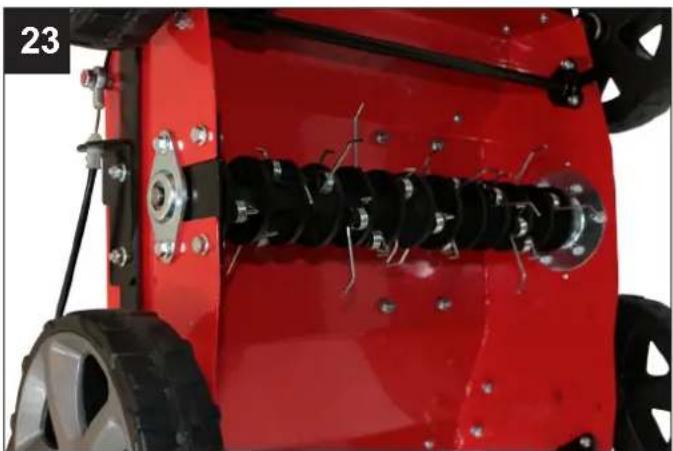

The scarifying roller is designed for ripping moss and weeds - complete with their roots - out of the soil and for loosening the soil. As a result your lawn can absorb nutrients better and is cleaned. We recommend you to scarify your lawn in the spring (April) and autumn (October).

The equipment is intended for private use i.e. for use in home and gardening environments.

Scarifiers for private use are machines whose annual operating time generally does not exceed 10 hours, during which the machine is primarily used to maintain small-scale, residential lawns and home/hobby gardens.

Public facilities, sporting halls, and agricultural/forestry applications are excluded.

The operating instructions as supplied by the manufacturer must be kept and referred to in order to ensure that the equipment is properly used and maintained. The instructions contain valuable information on operating, maintenance and servicing conditions.

⚠ Warning! Due to the high risk of bodily injury to the user, the equipment may not be used to grind up branch or hedge clippings. Moreover, the equipment may not be used as a power cultivator to level out high areas such as mole hills.

For safety reasons, the scarifier may not be used as a drive unit for other equipment or toolkits of any kind, unless specifically advised to do so by the manufacturer.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety information

General safety rules

Understand your machine.

Read and understand the operator's manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards peculiar to it. Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

Make sure to read and understand all the instructions and safety precautions as outlined in the Engine Manufacturer's Manual, packed separately with your unit. Do not attempt to operate the machine until you fully understand how to properly operate and maintain the Engine and how to avoid accidental injuries and/or property damage.

Safety at work area

Never start or run the engine inside a closed area. The exhaust fumes are dangerous, containing carbon monoxide, an odorless and deadly gas.

Operate this unit only in a well ventilated outdoor area. Never operate the machine without good visibility or light. Never operate the machine on a steep slope. Always work transversally, not up and down.

Personal safety

1 Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.

2 Dress properly. Wear heavy long pants, boots and gloves. Do not wear loose clothing, short pants, and jewelry of any kind. Secure long hair so it is above shoulder level. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

3 Use safety equipment. Always wear eye protection.

4 Safety equipment such as a dust mask, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

5 Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc. are securely tightened.

6 Never operate the machine when it is in need of repair or is in poor mechanical condition.

7 Replace damaged, missing or failed parts before using it. Check for fuel leaks. Keep the machine in safe working condition.

8 Never tamper with safety device. Check their proper operation regularly.

9 Do not use the machine if the engine's switch does not turn it on or off. Any gasoline powered machine that can not be controlled with the engine switch is dangerous and must be replaced.

10 Form a habit of checking to see that keys and adjusting wrenches are removed from machine area before starting it. A wrench or a key that is left attached to a rotating part of the machine may result in personal injury.

11 Stay alert, watch what you are doing and use common sense when operating the machine.

12 Do not overreach. Do not operate the machine while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

13 Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.

14 Avoid accidental starting. Be sure the engine is off before transporting the machine or performing any maintenance or service on the unit. Transporting or performing maintenance or service on a machine with engine on invites accidents.

1. Check the area in which the machine is to be used and remove any stones, sticks, wires, bones and other foreign objects that could be caught and ejected.
2. If devices are operated with a discharge to the rear and open rear rollers without a catcher, complete eye protection must be worn.
3. Do not run the combustion engine in closed rooms in which hazardous carbon dioxide can collect.

Fuel Safety

⚠ WARNING: Petrol is highly flammable

1 Fuel is highly flammable, and its vapors can explode if ignited. Take precautions when using to reduce the chance of serious personal injury.
2 When refilling or draining the fuel tank, use an approved fuel storage container while in a clean, well-ventilated outdoor. Do not smoke, or allow sparks, open flames or other sources of ignition near the area while adding fuel or operating the unit. Never fill fuel tank indoors.
3 Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing. These events could ignite fumes or vapors.
4 Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot. Do not operate the machine with known leaks in the fuel system.
5 Loose the fuel tank cap slowly to relieve any pressure in the tank.
6 Never over fill fuel tank. Fill tank to no more than 12.5mm (1/2" below the bottom of the filler neck to provide space for expansion as the heat of the engine can cause fuel to expand).
7 Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the unit without the fuel cap securely in place.
8 Avoid creating a source of ignition for spilled fuel. If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapors have dissipated.
9 Store fuel in containers specifically designed and approved for this purpose.
10 Store fuel in a cool, well-ventilated area, safely away from sparks, open flames or other sources of ignition.
11 Never store fuel or machine with fuel in the tank inside a building where fumes may reach a spark, open flame, or other sources of ignition, such as a water heater, furnace, clothes dryer and the like. Allow the engine to cool before storing in any enclosure.
12. If petrol overflows, no attempts should be made to start the engine. Instead, the machine must be removed from the area contaminated with petrol.

Do not try to start the engine until the petrol vapours have evaporated.

1. For safety reasons, the petrol tank cap and other tank caps must be replaced if damaged.

Instructions for use and maintenance of the machine

1 Never pick up or carry a machine while the engine is running. Stop work tools if crossing surfaces other than grass and when transporting the machine from and to the surface to be worked on.
2 Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
3 Do not change the engine governor settings GB or over-speed the engine. The governor controls the maximum safe operating speed of the engine.
4 Do not run the engine at a high speed when you are not tilling.
5 Never out hands and feet on or under rotating parts. Always keep clear of the discharge opening.
6 Avoid contact with hot fuel, oil, exhaust fumes and hot surfaces. Do not touch the engine or muffler. These parts get extremely hot from operation. They remain hot for a short time after you turn off the unit. Allow the engine to cool before doing maintenance or making adjustments.
7 If the machine should start to make an unusual noise or vibration, immediately shut off the engine, disconnect the spark plug wire, and check for the cause. Unusual noise or vibration is generally warning of trouble.
8 Use only attachments and accessories approved by the manufacturer. Failure to do so can result in personal injury.
9 Maintain the machine. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained equipment.
10 Keep the engine and muffler free of grass, leaves, excessive grease or carbon build up to reduce the chance of a fire hazard.
11 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
12 Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use.
13 Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
14 Store idle machine out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate it. Machine is dangerous in the hands of untrained users.
15. Replace damaged silencers.

1. Prior to use, always perform a visual inspection to check whether the work tools and bolts are worn out or damaged. To prevent an imbalance, worn out or damaged work tools and bolts may only be replaced in sets. Only work with the machine in daylight or with good artificial lighting.

2. If possible, avoid using the device on wet grass or take special care to prevent slipping.

3. Only guide the machine at walking pace.

4. Always work across a slope, never upwards or downwards.

5. Take particular care when changing direction on a slope.

6. Do not work on excessively steep slopes.

7. Take particular care when reversing the machine or pulling it towards you.

8. Never use the machine with damaged or missing safety guards, e.g. without deflectors and/or catcher.

9. Disconnect all work tools and drives before starting the engine.

10. Start or press the starter switch with caution in accordance with the manufacturer's instructions. Ensure that your feet are far enough away from the work tool(s).

11. When starting the engine, do not tilt the machine unless it has to be lifted during the process. In this case, only tilt as far as absolutely required and only lift the side away from the operator.

12. Do not start the engine if you are standing in front of the ejector chute.

13. Close the throttle valve when running down the engine; if the engine is equipped with a petrol shut-off valve, close this after aerating the soil or scarifying

14. Switch the engine off by removing the spark plug connector and the ignition key on machines with a battery starter:

- if you leave the machine

- before refuelling

1. Switch the engine off by removing the spark plug connector and the ignition key on machines with a battery starter:

2. before releasing blockages or rectifying obstructions in the discharge duct,

3. before checking or cleaning the machine, or performing work on it,
4. if it came into contact with a foreign object. Inspect the machine for damage and perform the required repairs before starting again and working with the machine,
5. if the machine starts to vibrate unusually strongly (inspect immediately)

Instructions for maintenance

Before cleaning, repair, inspecting, or adjusting, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting.

Have your machine serviced by qualified repair personnel using only identical replacement parts. This will ensure that the safety of the machine maintained.

6. Technical data

Engine type 1-cylinder; 4 - stroke
Displaycement 212 cm3
Max. engine output 4,0 kw
Working speed 3400 rpm
Fuel unleaded fuel
Tank capacity 3,6 l
Engine oil 10W 30 / SAE 30
Tank capacity /oil 0.6 L

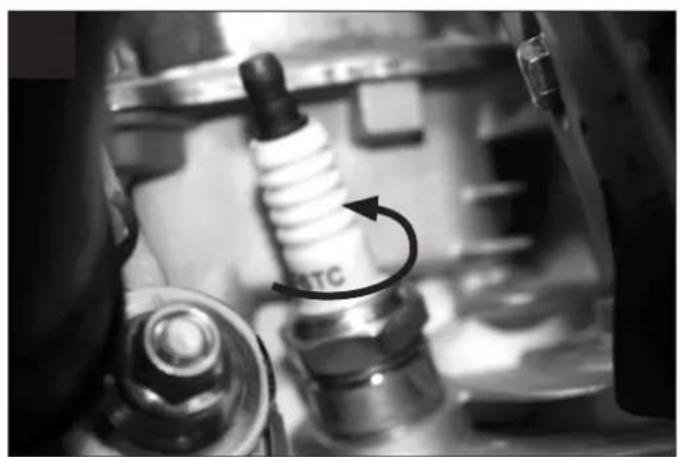

spark plug F7TC
Depth setting +5 / -15
Working width 400 mm
Number of blades 18
Blade diameter 165 mm
Collection bag capacity	45L
Weight	38 kg

Subject to technical changes!

Information concerning noise emission measured according to relevant standards:

Sound pressure LpA = 85,9 dB(A)

Sound power LWA = 101,2 dB(A)

Uncertainty KPA = 3,43 dB(A)

Wear ear-muffs. The impact of noise can cause damage to hearing.

Vibrations:

Vibration Ahv (left/right) = 7,03 m/s ^2

Uncertainty KPA = 1.5 m/s ^4

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

The scarifier is delivered unassembled. The grass basket and the complete push bar must be assembled and mounted before using the scarifier. Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily assemble the machine.

7. Before starting the equipment

⚠️ Important!

You must fully assemble the appliance before using it for the first time!

Mounting of the guide rail (Fig. 3 - 9)

• Fit the lower push bar (4) as shown in Figures 3+4. Affix the bar with four hexagonal screws (E,F), two washers (G), two plastic star grip nuts (5) and two locknuts (D).
• Connect the upper push bar (handle) (1) to the lower push bar (4). To do so, use two plastic star grip nuts (5) with the corresponding hexagonal screws (F) and washers (G) (Fig. 5+6)
• Attach the cable pull retainer (B) to the right side of the handlebar as shown in Figure 7.
• Fix the cables with the two cable clamps (A) on the push handle. (Figure 8 + 9)

Mounting the grass catcher (Fig. 10 - 11)

- Lift the ejection flap (Fig. 11 / Item 7) with one hand and hook in the catching basket (Fig. 11 / Item 6) with the other hand on the handle from above. Attention! To hang the grass catcher, the engine must be switched off and the roller must not turn!

Adjusting the scarifying depth (Fig.12)

The scarifying depth is set using the depth adjustment (11). To do this, gently pull the depth adjustment (11) to the left or the right to set the required position. The height can be adjusted infinitely from 0mm to -15mm.

If the transport lever (3) is in the transport position, the blades do not touch the ground.

⚠️ ATTENTION: Move the transport lever (3) (Fig. 12) into the transport position in order to make the roller non-contacting. Only move the scarifier in the transport position when not scarifying/aerating.

Adjusting the aerator roller depth

In order to guarantee faultless operation and avoid damage to the aerator roller, only use the aerator roller with the depth setting "O".

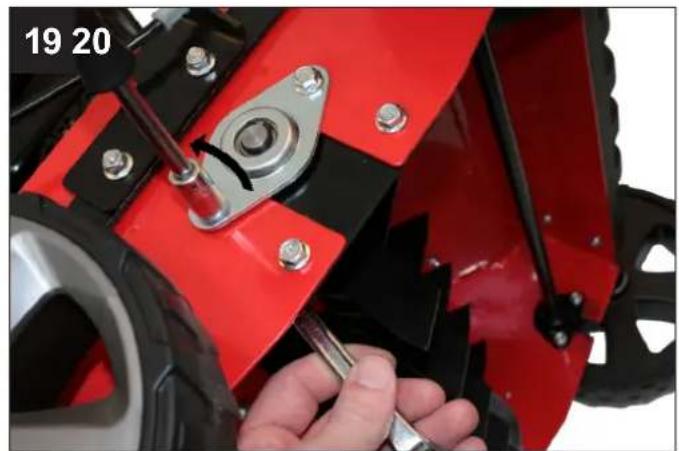

Change the roller (Fig. 19-23)

ATTENTION! Be sure to wear gloves!

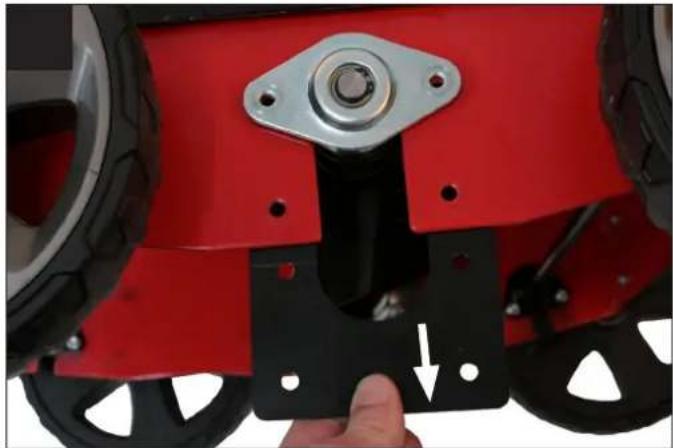

Remove the hexagonal screws and the retainer plate. Lift the roller at this end. Pull the roller in the direction of the arrow, out of the drive square.

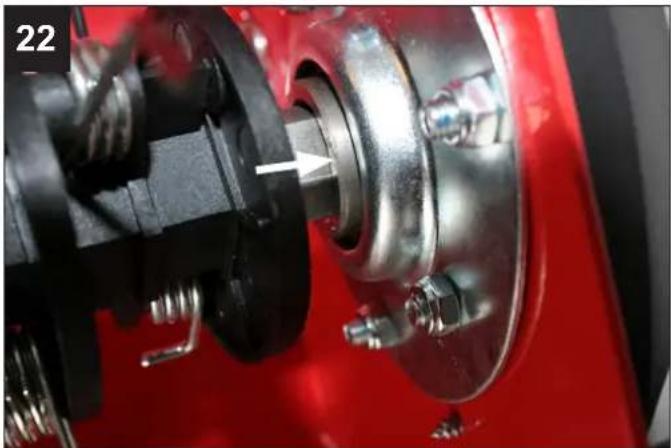

Slide the new roller in the direction of the arrow back into the drive square and then press it into the bracket. Use the hexagonal screws to fasten the roller back onto the housing.

8. Operation

Important!

The engine does not come with oil in it. Therefore, be sure to add oil before starting the engine. The oil level in the engine must be checked each time before carrying out any work.

Starting the equipment

In order to avoid any unintentional start-ups of the engine, it comes equipped with an engine brake (Fig. 1/Item 1) which must be pressed at all times whilst the device is in use, otherwise the engine will stop. Important: When the engine brake lever is released it must return to its initial position and the engine must stop. If this is not the case, do not use the equipment again.

1. Move the main switch into the "ON" position (Fig. 14/ item a) and then open the petrol valve (item c). Set the cock to "ON" for this purpose.
2. Set the choke lever (Fig. 14/Item A) to the "Choke" position. Note: Normally the choke is not required to restart a warm engine.
3. Press the engine brake lever (Fig. 13) and pull the starter cable (Item 14) forcefully until the engine starts.
4. Allow the engine to warm up briefly and then set the choke lever (Fig. 13 / Item A) to the "RUN" Position.
5. The speed of the cutter unit can be controlled using the throttle lever (Fig. 14 / Item b).
6. Move the transport lever (3) into the working position

Important: Always pull the starter cable slowly until you feel the initial resistance before you then pull it quickly to start the engine. Do not allow the starter cable to whip back of its own accord.

Attention: Do not start the engine if the transport lever (3) is in the working position!

Important: The scarifier roller begins to rotate as soon as the engine is started.

Important! Never open the ejector flap when the motor is running. A rotating cutting unit can cause injuries. Always fasten the ejector flap carefully. The flap flips back to the "Closed" position by the tension springs! Always ensure that a safe distance (provided by the long handles) is maintained between the user and the housing. Be especially careful when scarifying and changing direction on slopes and inclines.

Maintain a solid footing and wear sturdy, nonslip footwear and long trousers. Always scarify along the incline (not up and down).

For safety reasons, the scarifier may not be used to scarify inclines whose gradient exceeds 15 degrees. Use special caution when backing up and pulling the scarifier (tripping hazard)!

Scarifying

When scarifying, the grass surface and the grass seam are scratched using the scarifying blade. This removes moss, mulch and weeds, and cuts the fine roots on the top. Therefore, air, light, water ant nutrients reach the grass root better, resulting in the grass growing better and thicker. Furthermore, cutting the fine roots encourages grass growth. This promotes grass durability.

Scarifying should be performed a maximum of twice per year.

Ideally in April/May and/or September/October. Fertilise and water the grass surface after scarifying in order to obtain an even better result.

Aerating

When aerating, the aerator roller removes surface mulch and moss, and "dethatches" the grass. Therefore, air, light, water ant nutrients reach the grass root better, resulting in the grass growing better and thicker. Aerating is gentler on the grass than scarifying but not as effective. The grass may be aerated several times per year (around every 4 weeks).

Tips for proper working

It is recommended that you overlap scarifying paths a little. Try to scarify in straight lines for a nice, clean look. In so doing, the aeration swaths should always overlap each other by a few centimetres in order to avoid bare strips. First scarify lengthways and then widthways in order to obtain a chessboard pattern. As soon as grass clippings start to trail the scarifier, it is time to empty the grass basket.

Important! Before taking off the grass basket, switch off the motor and wait until the roller has come to a stop.

Re-sow sections without grass or with little grass after scarifying.

To remove the grass basket, lift up the ejector flap with one hand, while unhooking the basket with the other. How frequently you should scarify your lawn is determined primarily by the speed at which the grass grows and the hardness of the soil. Keep the underside of the equipment clean and remove soil and grass build-up. Deposits make it more difficult to start the aerator and decrease the quality of the scarifying. Always scarify along inclines (not up and down). Switch off the motor before doing any checks on the roller.

Important!

The roller rotates for a few seconds after the motor is switched off. Never attempt to stop the roller. In the event that the rotating roller strikes an object, immediately switch off the equipment and wait for the roller to come to a complete stop. Then inspect the condition of the roller. Replace any parts that are damaged.

9. Maintenance and cleaning

Danger!

Always pull out the mains power plug before starting any cleaning work.

Cleaning

- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

- We recommend that you clean the device immediately each time you have finished using it.

- Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment.

- In order to reduce the risk of fire, keep the engine, exhaust, battery box and the area surrounding the fuel tank free of grass, straw, moss, leaves or escaping grease.

Maintenance

- A worn out or damaged cutting unit should be replaced by an authorised expert.

• Take care that all fastening elements (screws, nuts, etc.) are firmly tightened, so that you can work safely with the scarifier.

- Store the scarifier in a dry place.

- For longer life, all screw-fastened parts, such as wheels and axles should be cleaned and subsequently oiled.

- Regular servicing of the scarifier not only secures longer endurance and performance, but also contributes to an accurate and simple scarification of your lawn.

- At the end of the season, carry out a general check of the scarifier, and remove all residue collected. Before the start of every season, it is absolutely necessary to check the state of the scarifier. Contact our Customer Service if repair work is necessary.

- Check the catcher regularly for wear or damaged parts.

- Check the machine regularly and replace worn out or damaged parts for safety reasons.

- If the fuel tank has to be drained, you must do this outdoors. Store the drained fuel in a special container for fuel or dispose of it with due care.

Servicing the air filter

Soiled air filters reduce the engine output by supply too little air to the carburetor.

Regular checks are therefore essential. The air filter should be checked after every 50 hours of use and cleaned if necessary. If the air contains a lot of dust, the air filter should be checked more frequently.

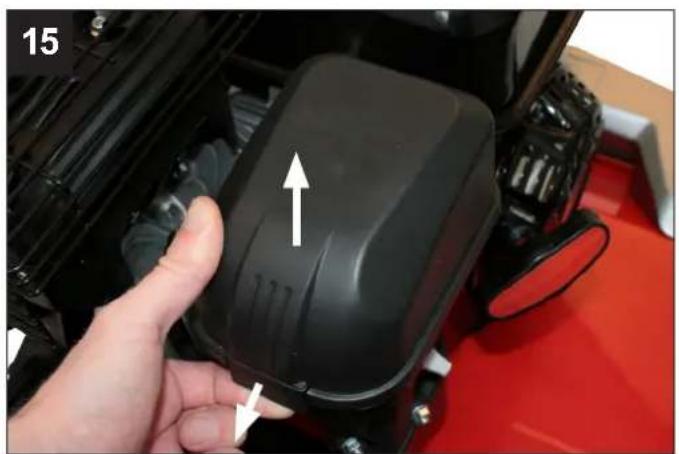

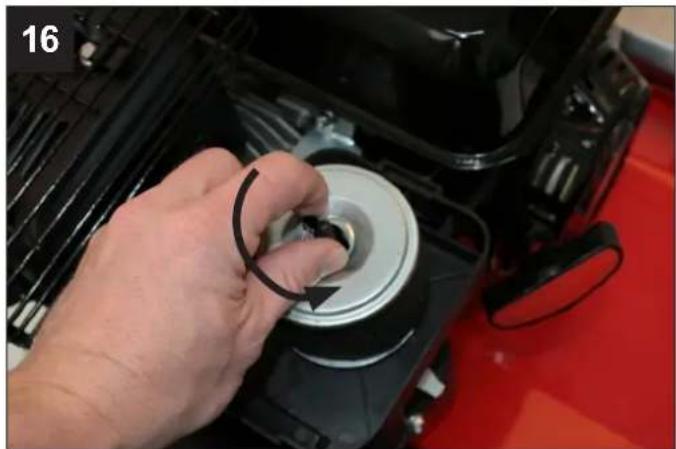

• Remove the air filter as shown in Fig. 15+16.
• Clean the air filter only with compressed air or by tapping it.
• Assemble in reverse order

Important: Never clean the air filter with petrol or inflammable solvents.

Servicing/Replacing the spark plug

Check the spark plug for dirt and grime after 10 hours of operation and if necessary clean it with a copper wire brush. Thereafter service the spark plug after every 50 hours of operation.

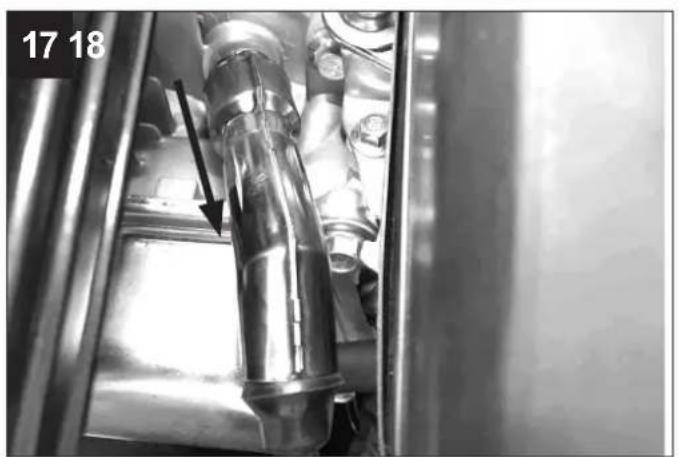

• Pull off the spark plug boot (Fig. 17) with a twist.
• Remove the spark plug using a spark plug wrench (Fig. 18).
• Assemble in reverse order

10. Storage

Preparing the equipment for storage

Caution: Do not empty the petrol tank in enclosed areas, near fire or wen smoking. Petrol fumes can cause explosions and fire.

1. Empty the petrol tank with a petrol suction pump.
2. Start the engine and let it run until any remaining petrol has been used up. ⚠ WARNING: Never store the machine with petrol in the tank inside a building in which fuel vapours may come into contact with naked flames or sparks
3. Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and refill with fresh oil.
4. Remove the spark plug from the cylinder head. Fill the cylinder with approx. 20 ml of oil from an oil can. Slowly pull back the starter handle, which will bathe the cylinder wall with oil. Screw the spark plug back in.
5. Clean the cooling fins of the cylinder and the housing.
6. Be sure to clean the entire machine to protect the paint.
7. Store the machine in a well-ventilated place.

Preparing the device for transport

1. Drain the petrol tank using a petrol extraction pump.
2. Always let the engine run until it has used up the remainder of petrol in the tank.

3. Empty the engine oil from the warm engine.

4. Remove the spark plug boot from the spark plug.

5. Clean the cooling fins of the cylinder and the housing.
6. Remove the push bars if necessary. Ensure that the cables are not kinked.

11. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Batteries and rechargeable batteries do not belong in the household waste!

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

- Remove the batteries from the laser before disposing of the machine and the batteries.

12. Troubleshooting guide

Fault Possible causes Rectification
Motor does not start	a) Engine brake lever not pressedb) Spark plug defectivec) Fuel tank emptyd) Petrol cock closed	a) Press the engine brake leverb) Replace spark plugc) Top up fueld) Open petrol cock
Engine performance drops	a) Soil is too firmb)Housingcloggedc) Roller badly worn	a) Change working depthb)Cleanhousingc)Replace roller
Imprecise scarifying result	a)rollerwornb) Wrong working depth	a)Replace rollerb) Correct working depth
Motor is running, roller is not rotating	a) Toothed belt is torn a) By customer service workshop

Günzburger Straße 69

D-89335 Ichenhausen

CHERS CLIENTS,

CE - Declaration of Conformity

2000/14/EC_2005/88/EC
	Annex V
	Annex VI Noise: measured LWA = xx dB(A); guaranteed LWA = xx dB(A) P = xx KW; L/Ø = cm Notified Body: Notified Body No.:
2010/26/EC
Emission. No: e13*2016/1628*2016/1628SRA2/P*0303*00

X 2006/42/EC

Annex IV

Notified Body:

Notified Body No.:

Certificate No.:

Standard references:

Standard references: EN ISO 14992:2009; EN 13684:2004+A3;

This declaration of conformity is issued under the sole responsibility of the manufacturer.
