Product type	Sous vide cooker (immersion circulator)
Brand	AENO
Model	SV1 (ASV0001)
Supply voltage	220–240 V, 50/60 Hz
Power	1200 W
Temperature range	20–95 °C (68–203 °F), adjustable in 0.5 °C / 0.1 °F steps
Timer	Up to 100 hours, adjustable in 1 minute steps
Display	Digital display
Controls	Touch
Sensors	Water level, temperature, overheat protection
Protection rating	IPX7
Automatic programs	4 preset modes (e.g., meat, fish, vegetables)
Heating element material	Stainless steel (steel glass)
Maintenance	Descaling every 3 to 5 days of regular use with citric acid
Safety	Overheat protection, water level sensor, automatic shut-off on error
Included accessories	Quick guide, warranty card
Required accessories not included	Vacuum sealer and food-grade vacuum bags
Warranty	2 years
Manufacturer	ASBISc Enterprises PLC, Cyprus, made in China

Frequently Asked Questions - SV1 AENO

How to start the appliance?

Attach the appliance to the cooking container using the clip, fill with water between the MIN and MAX marks, plug it in, then press the power button for 3 seconds. Set the temperature and time, then press the power button again to start.

What to do if the screen displays error code E03?

This code indicates a lack of water or scale buildup. Fill the container with water up to the MAX mark or descale the appliance with citric acid (10 g per liter of water, heat to 95°C for 10 minutes).

How to switch from Celsius to Fahrenheit?

Press the adjustment button for 2 seconds to toggle between °C and °F.

What types of bags should I use for sous vide cooking?

Use only special food-grade bags for vacuum sealing and sous vide cooking. Do not use ordinary bags.

How to descale the appliance?

Fill a container with water up to the MAX mark, add 10 g of citric acid per liter of water, set the temperature to 95°C and the timer to 10 minutes, then start the cycle. After cooling, rinse and dry.

Can I use the appliance without water?

No, the appliance will not turn on. If you try to start it without water, the screen will display E03 and an audible signal will sound.

How to use the automatic programs?

Press the automatic program selection button for 3 seconds, then press repeatedly to choose the program (1 to 4) corresponding to your food. Press the power button to start.

What to do if the appliance makes a grinding noise?

This may be due to incorrect assembly of the steel glass. Turn off the appliance, unplug it, turn the glass to the left to remove it, then screw it back correctly to the right until it clicks.

What is the power of the appliance?

The power is 1200 W, with a supply of 220–240 V.

How to clean the appliance after use?

Unplug the appliance and wait for it to cool completely. Wipe it with a soft, damp cloth. Never immerse the electronic parts in water.

USER MANUAL SV1 AENO

Technical diagram of a device with labeled parts, showing front and side views of a device casing.

A

B

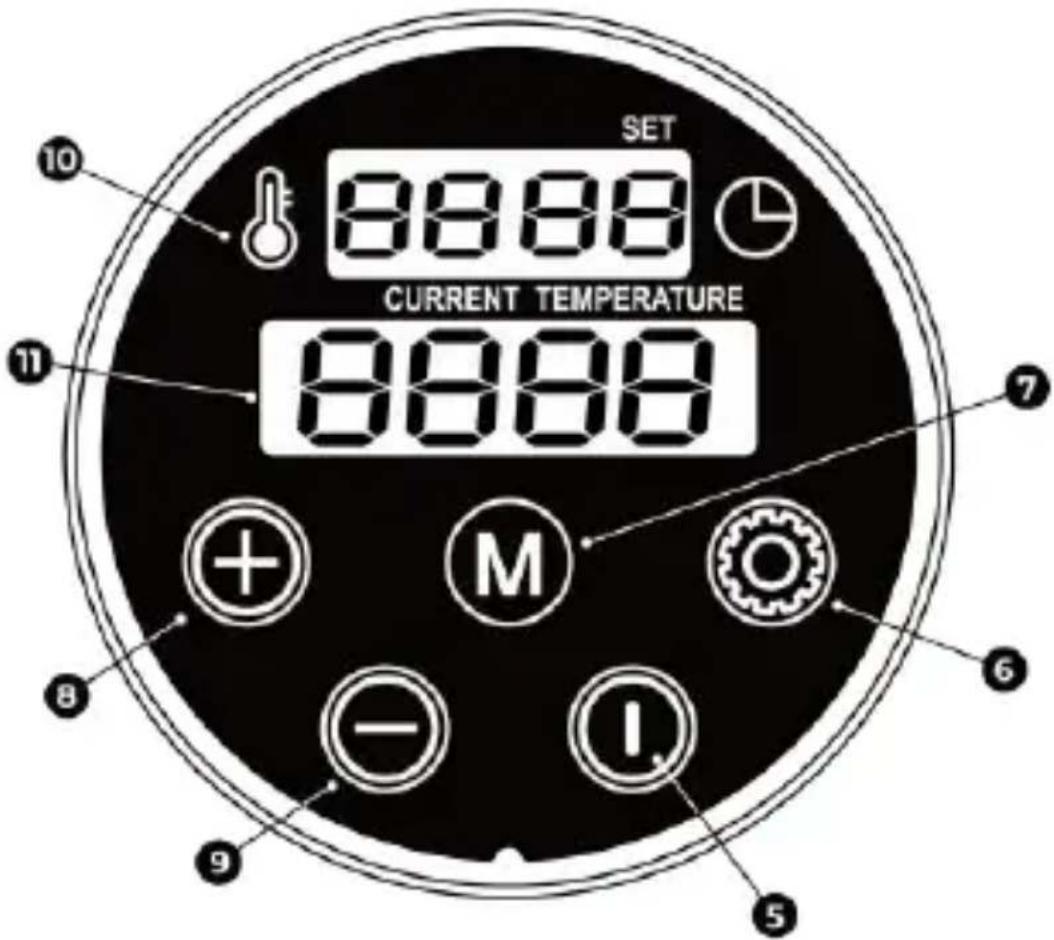

SET 8888 CURRENT TEMPERATURE 8888 10 11 7 M 6 8 - I 9 5

AENO AENO AENO

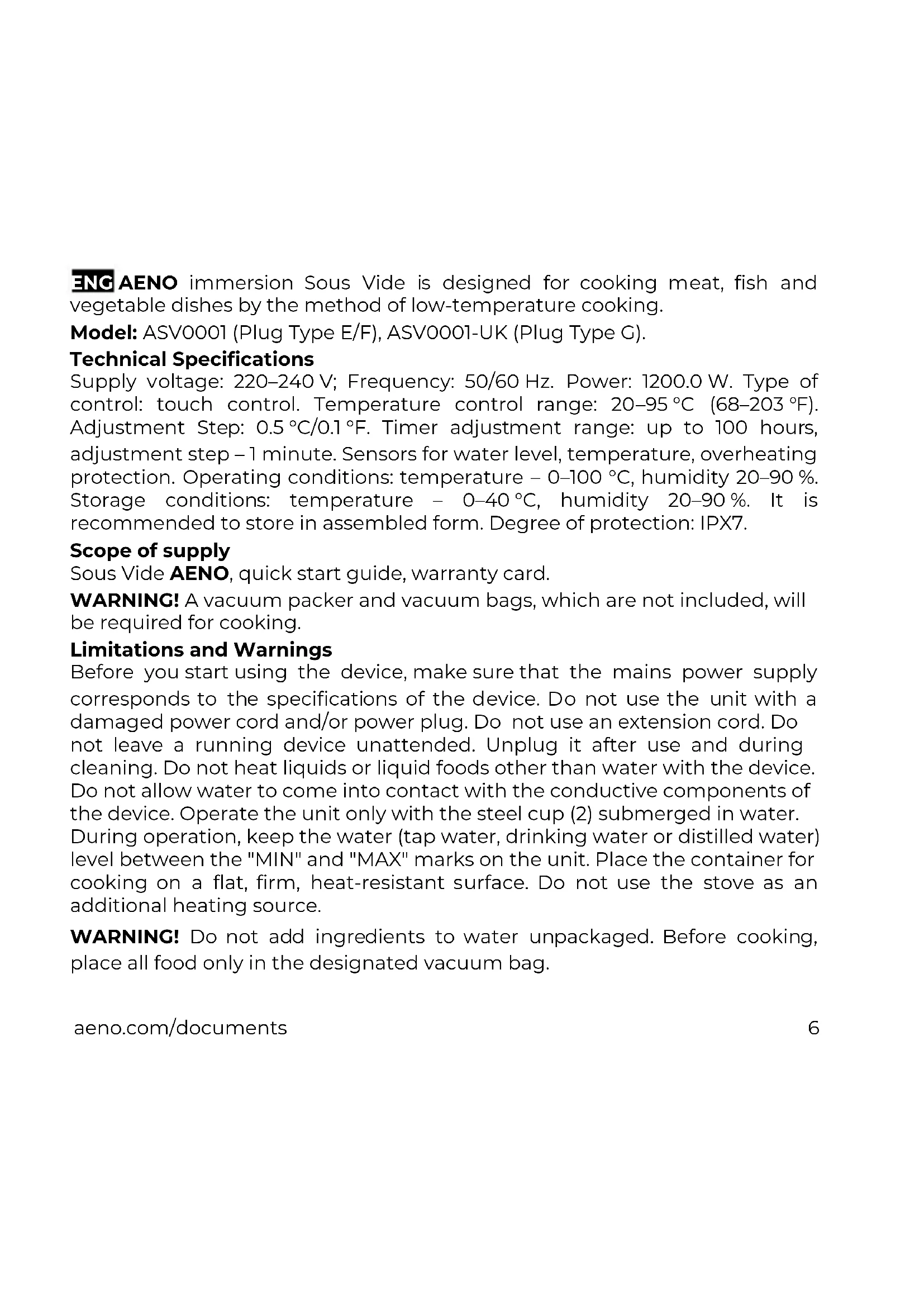

ENG AENO immersion Sous Vide is designed for cooking meat, fish and vegetable dishes by the method of low-temperature cooking.

Model: ASV0001 (Plug Type E/F), ASV0001-UK (Plug Type G).

Technical Specifications

Supply voltage: 220–240 V; Frequency: 50/60 Hz. Power: 1200.0 W. Type of control: touch control. Temperature control range: 20–95 °C (68–203 °F). Adjustment Step: 0.5 °C/0.1 °F. Timer adjustment range: up to 100 hours, adjustment step – 1 minute. Sensors for water level, temperature, overheating protection. Operating conditions: temperature – 0–100 °C, humidity 20–90 %. Storage conditions: temperature – 0–40 °C, humidity 20–90 %. It is recommended to store in assembled form. Degree of protection: IPX7.

Scope of supply

Sous Vide AENO, quick start guide, warranty card.

WARNING! A vacuum packer and vacuum bags, which are not included, will be required for cooking.

Limitations and Warnings

Before you start using the device, make sure that the mains power supply corresponds to the specifications of the device. Do not use the unit with a damaged power cord and/or power plug. Do not use an extension cord. Do not leave a running device unattended. Unplug it after use and during cleaning. Do not heat liquids or liquid foods other than water with the device. Do not allow water to come into contact with the conductive components of the device. Operate the unit only with the steel cup (2) submerged in water. During operation, keep the water (tap water, drinking water or distilled water) level between the "MIN" and "MAX" marks on the unit. Place the container for cooking on a flat, firm, heat-resistant surface. Do not use the stove as an additional heating source.

WARNING! Do not add ingredients to water unpackaged. Before cooking, place all food only in the designated vacuum bag.

Use kitchen tongs to remove the product. Wait for the device to cool before removing it from the cooking tank. The steel cup (2) and the heating element (12) must be descaled every 3–5 days of regular use or as limescale accumulates (figure C).

Preparing the device for operation

Unpack the device and clean it with a soft cloth dampened with water. Dip the steel cup (2) into a container of warm water to rinse off any residual dirt without allowing the electronic components to come into contact with moisture. Prepare the product by placing it in a vacuum bag and evacuating the air with a vacuum packer.

WARNING! Use only special food bags for vacuum packing and sous vide cooking.

NOTE: A bag of light foods, such as vegetables, may remain on the surface of the water. In this case, place a stainless steel or silver cutlery, such as a spoon, in the bag of food.

Operating the device

Use the clamp (3) to fix the Sous Vide to the wall of the cooking vessel (figure A). Fill the cooking tank with water no lower than the "MIN" mark and no higher than the "MAX" mark on the device. Dip the bag with the product into the water.

Plug the power plug into an outlet. The power button (5) will light up. Press and hold the power button (5) for at least 3 seconds. All buttons and the display will light up. The programmed default and current water temperature will be shown on the display (10), (11).

If necessary, press the setting button (6) to change the set temperature. Adjust the temperature with the "+" (8) and "-" (9) buttons.

Press the setting button again to adjust the cooking time.

Use the "+" (8) and "-" (9) buttons to set the desired number of hours, then press the setting button (6) again and use the "+" (8) and "-" (9) buttons to set the number of minutes. Press the power button (5) again.

NOTE: to change °C to °F, press and hold the setting button (6) for 2 seconds.

The device will start working. When the programmed temperature is reached, the countdown timer will start. The time and temperature readings on the display (10) will be displayed alternately.

NOTE: the cooking time depends on the thickness of the food, for deep-frozen foods it is doubled.

After the set time has elapsed, the device will beep. Turn off the device, unplug it from the mains. Wait until the device has cooled completely and wipe it with a soft cloth.

Detailed recommendations on time settings and product care are contained in the full version of the manual, available at aeno.com/documents.

WARNING! If you try to start the unit without water, the display will show error E03 and the buzzer will sound. The device will not turn on.

Using automatic cooking modes

Automatic programs are available for cooking with different products. Each program is an optimal combination of temperature and cooking time depending on the selected dish. Select the automatic program as follows:

• Press the automatic cooking program selection button (7) for 3 seconds. The preset time and temperature values will appear at the top of the display, and the program number will appear at the bottom of the display.
• Press the automatic cooking program selection button (7) repeatedly to set the desired mode: 1 (60 °C/100 minutes), 2 (65 °C/90 minutes), 3 (55 °C/30 minutes) or 4 (85 °C/40 minutes).
• Press the power button (5) to start the selected program.

Descaling

1. Take a deep vessel with a level of heat resistance at least +100 °C.
2. Use the clamp (3) to secure the device to the vessel wall (figure A).
3. Fill the vessel with water up to the "MAX" mark on the device.
4. Add citric acid at the rate of 10 grams per 1 liter of water and stir.
5. Turn on the device, pre-select the temperature +95 °C and set the timer for 10 minutes.

6. After the set time has elapsed, turn off the device and allow it to cool down. aeno.com/documents 8

7. Rinse the device under running water and wipe it with a dry cloth.

Troubleshooting

• Indicators on the control panel do not light up after the device is turned on. Possible cause: no power. Solution: check if the device is correctly connected to the mains.
• Rattling during operation of the device. Possible cause: the steel cup (2) is loose on the plastic part (1). Solution: Turn off and unplug the device. Turn the steel cup (2) to the left and remove it from the plastic part (1). Insert the steel cup (2) into the grooves on the plastic part and turn to the right until it clicks into place.
• Error code E03 appears on the display. Possible cause: low or no water in the cooking tank; scale. Solution: add water to the cooking tank; descale the device.

WARNING! If none of the possible solutions solves your problem, contact your supplier or service center. Do not disassemble or attempt to repair the unit yourse

Simple line drawing of a trash bin with crossed lines indicating no text or symbols (no text or labels)

These symbols indicate that you must follow the Waste Electrical and Electronic Equipment (WEEE) and Waste Battery and Battery Regulations when disposing of the device, its batteries and accumulators, and its electrical and electronic accessories. According to the rules, this equipment must be disposed of separately at the end of its service life. Do not dispose of the device, its batteries and accumulators, or its electrical and electronic accessories together with unsorted municipal waste, as this will harm the environment. To dispose of this equipment, it must be returned to the point of sale or turned in to a local recycling facility. You

should contact your local household waste disposal service for details.

ASBISc reserves the right to modify the device and to make edits and changes to this document without prior notice to users.

The warranty period and service life is 2 years from the date of purchase of the product.

Information about the manufacturer: ASBISc Enterprises PLC, Iapetou, 1, Agios Athanasios, 4101, Limassol, Cyprus. Made in China.

For current information and details on the device description and specification, as well as connection process, certificates, warranty and quality issues, see relevant Installation and Operation Manuals available for downloading at aeno.com/documents. All trademarks and names herein are the property of their respective owners.
