Product type	Vacuum packaging appliances
Brand	AENO
Model	VS1 (AVS0001, AVS0001-UK)
Supply voltage	220–240 V AC, 50 Hz
Power	85.0 W
Performance (flow rate)	4.5 l/min
Maximum vacuum level	–65 kPa
Vacuuming time per package	Approx. 30 s
Sealing time per package	Up to 10 s
Seal width	2.5 mm
Maximum package width	Up to 30 cm
Maximum heating temperature	Up to +180 °C
Control	Electronic
Dimensions (L × W × H)	380 × 68 × 54 mm
Delivery set	Vacuum sealer, vacuum bags (20×30 cm – 10 pcs), vacuum hose adapter, quick start guide, warranty card
Care and cleaning	Wipe with a soft cloth dampened with hot water or mild soapy solution, then rinse and dry. Do not use abrasive detergents or solvents.
Safety	Do not immerse in water, unplug when not in use, allow to cool before cleaning, do not leave unattended.
Repairability	Refer to a qualified technician. Do not disassemble yourself.
Warranty	2 years

Frequently Asked Questions - VS1 AENO

How to seal a vacuum bag with the AENO VS1?

Place the open edge of the bag into the vacuum chamber, close the lid until it clicks, then press the Seal button twice. The blue indicator lights up. Once finished, the appliance turns off. Open the exhaust valve and unlock the lid.

How to perform simultaneous vacuum sealing and sealing?

Follow the same procedure as for sealing, but press the Vac Seal button twice instead of Seal. The appliance removes air and then seals automatically.

How to use the adapter to vacuum containers or bags with a valve?

Connect the container's exhaust valve to the Air Suction opening of the sealer using the adapter hose. Close the sealer lid, plug in, then press Vac Seal twice. Once suction is complete, disconnect the adapter and close the container valve.

How to interrupt the vacuum or sealing process?

Press the Seal or Vac Seal button again to interrupt the operation at any time. Wait at least 60 seconds before restarting a seal to avoid overheating.

What to do if plastic pieces remain on the sealing strip after sealing?

This is due to overheating. Let the appliance cool down for 90 seconds, then clean the strip before next use.

Why does air reappear in the bag after closing?

The bag was probably punctured by foods with sharp edges. Replace the bag, remove sharp foods or wrap them in a protective cloth.

What to do if the bag seal is not strong enough?

The sealing time was insufficient. Repeat the operation by pressing Seal or Vac Seal again while following all steps.

How to clean the AENO VS1 vacuum sealer?

Unplug the appliance and let it cool. Wipe the surface with a soft cloth dampened with hot water or mild soapy solution, then rinse with a damp cloth and dry. Never use abrasive detergents or solvents.

What types of bags or containers can I use?

Use only special bags and containers for vacuum sealers. Not suitable for moist or liquid foods. The provided adapter is intended for special vacuum containers.

Can the appliance be used for moist or liquid foods?

No, the appliance is designed only for dry foods. Moist or liquid foods may damage the appliance. Use special bags for moist foods if necessary.

USER MANUAL VS1 AENO

Vacuum Sealer VS1, VS1-UK

(Model: AVS0001, AVS0001-UK)

AENO Fanless Vials Air Eotion

13.12.2022 | v.1.2.0

ENG....7
ARA.... 12
BUL.... 15
CES.... 20
DEU 25
EST.... 30
FRA.... 35
HRV 40
HUN 45
HYE 50
ITA 55
KAT 60
KAZ....66
LAV....71
LIT 76
POL 81
RON 86
RUS....91
SLK 96
SPA....101
SRP 106
UKR....177
UZB.... 116
ZHO 121

a)

a) 2 7 3 4 5 Samsung Airbox AENC 12 11 12 1 9 10 8 13 20 um×20 um 8

4 aeno.com/documents

b)

Technical diagram of a device with labeled parts and directional arrows, showing internal structure and assembly.

aeno.com/documents 5

c)

AENO Cooling Valve Air Suction Air Suction 13 8 3 Air Suction

6 aeno.com/documents

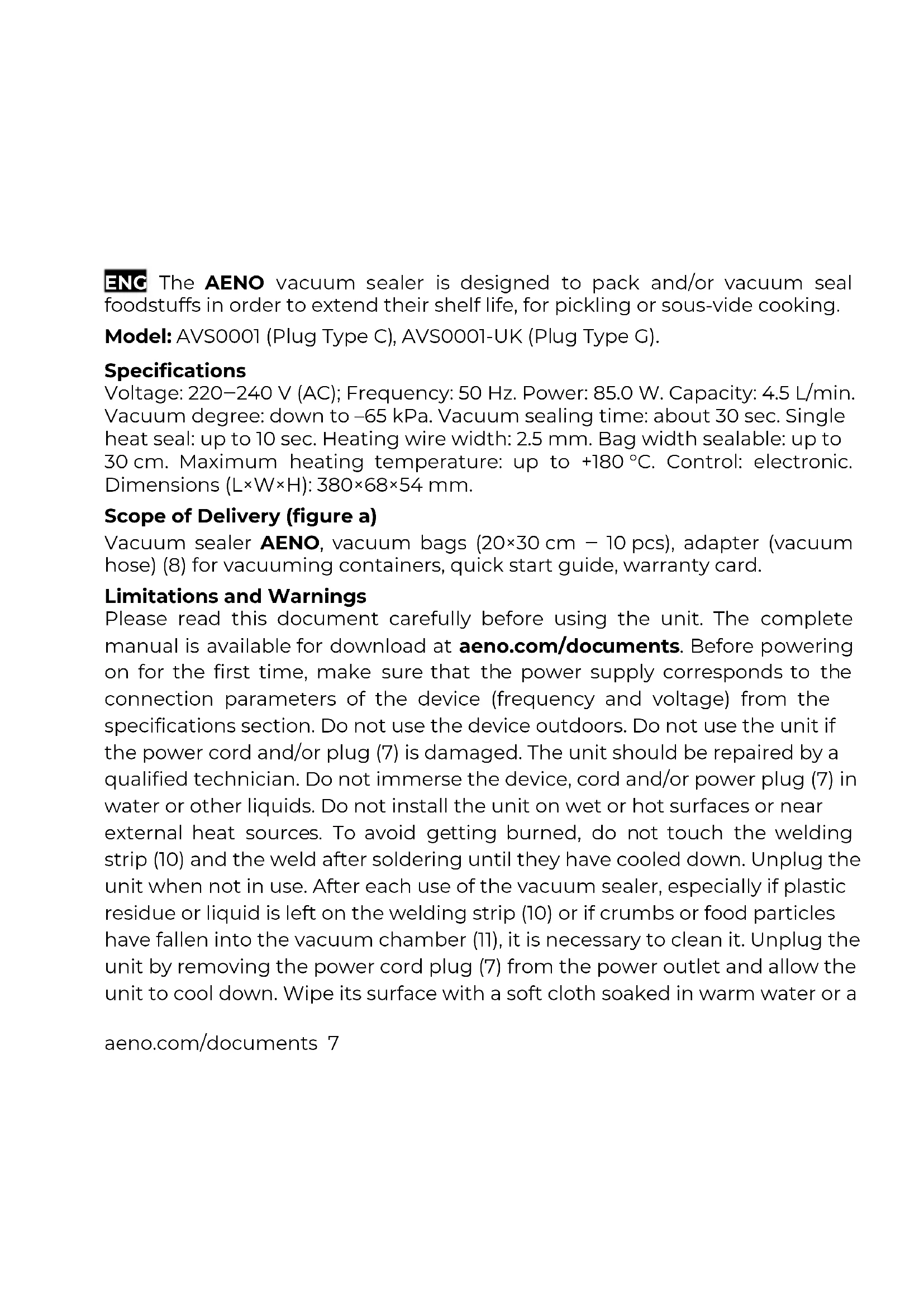

ENC The AENO vacuum sealer is designed to pack and/or vacuum seal foodstuffs in order to extend their shelf life, for pickling or sous-vide cooking.

Model: AVS0001 (Plug Type C), AVS0001-UK (Plug Type G).

Specifications

Voltage: 220–240 V (AC); Frequency: 50 Hz. Power: 85.0 W. Capacity: 4.5 L/min. Vacuum degree: down to -65 kPa. Vacuum sealing time: about 30 sec. Single heat seal: up to 10 sec. Heating wire width: 2.5 mm. Bag width sealable: up to 30 cm. Maximum heating temperature: up to +180 °C. Control: electronic. Dimensions (L×W×H): 380×68×54 mm.

Scope of Delivery (figure a)

Vacuum sealer AENO, vacuum bags (20×30 cm – 10 pcs), adapter (vacuum hose) (8) for vacuuming containers, quick start guide, warranty card.

Limitations and Warnings

Please read this document carefully before using the unit. The complete manual is available for download at aeno.com/documents. Before powering on for the first time, make sure that the power supply corresponds to the connection parameters of the device (frequency and voltage) from the specifications section. Do not use the device outdoors. Do not use the unit if the power cord and/or plug (7) is damaged. The unit should be repaired by a qualified technician. Do not immerse the device, cord and/or power plug (7) in water or other liquids. Do not install the unit on wet or hot surfaces or near external heat sources. To avoid getting burned, do not touch the welding strip (10) and the weld after soldering until they have cooled down. Unplug the unit when not in use. After each use of the vacuum sealer, especially if plastic residue or liquid is left on the welding strip (10) or if crumbs or food particles have fallen into the vacuum chamber (11), it is necessary to clean it. Unplug the unit by removing the power cord plug (7) from the power outlet and allow the unit to cool down. Wipe its surface with a soft cloth soaked in warm water or a

aeno.com/documents 7

weak soap solution. Then wipe with a soft cloth soaked in clean water and wipe dry. Do not use harsh detergents, abrasive pastes, polishes or detergents containing acids or solvents. Use a vacuum sealer to vacuum and/or seal dry products only. The device is not designed to handle moist products or liquid food. Use only special bags and containers for vacuum sealers. The adapter (vacuum hose) (8) supplied with the vacuum sealer is only used to evacuate air from special vacuum containers. Before placing bagged or containerized food in the microwave, make a hole in the bag or open the outlet valve (13) in the container to allow steam to escape. Use only manufacturer-recommended accessories, consumables and/or replacement parts. Detailed information can be found in the full manual, available for download at aeno.com/documents. Do not leave the appliance switched on unattended. After use the device should be allowed to cool down. The device can only be used by people with disabilities under direct supervision and monitoring. When the unit is not in use in order to prevent deformation of the seal (9) and deterioration of the unit performance it is recommended to place a paper liner inside the vacuum sealer and loosely close the lid without locking its latches (12). Do not allow children to use and/or play with the device.

Device control

Before using the vacuum sealer for the first time make sure that all packaging materials have been removed.

Sealing bags

1. Pack the food in a vacuum bag. Carefully place the open edge of the vacuum bag into the vacuum chamber (11) (see Fig. b).
2. Connect the device to a power source by inserting the plug of the power cord into a power outlet.
3. Close the lid of the vacuum sealer and press it lightly against the housing on

8 aeno.com/documents

the both sides. After a distinctive click both cover latches (12) will lock automatically.

1. Press the "Seal" button (5) on the device twice. The blue light (6) on the control panel will light up which means that the sealing process has started.
2. When sealing is complete the device will turn off automatically and the indicator light on the control panel will turn off.
3. Turn the "Releasing Valve" (2) to release air. Press the two cover release buttons (1) located on each side of the housing simultaneously. The lid will open automatically.
4. Remove the bag.

Vacuuming and sealing bags

The process is the same as described above under "Sealing packages" only instead of pressing the "Seal" button (5) you must press the "Vac Seal" button (4) twice.

At the end turn the "Releasing Valve" (2) to release air.

Vacuum packing in containers and bags with a valve

Note. Vacuuming containers and valve bags are not included.

1. Place the food in the special vacuum container (bag with valve) and close the lid of the container (ZIP-LOCK of the bag).
2. Connect the outlet valve (13) of the container (bag) and the "Air Suction" port (3) on the vacuum sealer with the adapter (vacuum hose) (8) (see Fig. c).
3. Make sure the container (bag) is tightly closed.
4. Close the lid of the vacuum sealer and press it lightly against the housing on the both sides. After a distinctive click both cover latches (12) will lock automatically.
5. Connect the device to a power source by inserting the plug of the power cord into a power outlet.

aeno.com/documents 9

1. Press the "Vac Seal" button (4) on the unit twice. The indicator (6) on the control panel will light blue, which means that the air pumping process has started.
2. When the vacuuming is finished, the device will turn off automatically, the indicator on the control panel will go out.
3. Turn the "Releasing Valve" (2) to release air.
4. Disconnect the adapter and close the container (bag) outlet valve.

Interrupting the vacuuming and/or sealing process

When working with some products, it is recommended to control the intensity of air pumping in order not to spoil the appearance of the products. To interrupt the vacuuming and/or sealing process at any time press "Seal" (5) or "Vac Seal" (4).

Note. Wait at least 60 seconds between starting the sealing process to allow the heating element to cool down.

Troubleshooting

• There were pieces of the package left on the welding strip after sealing. Possible cause: overheating of the welding strip. Solution: Allow the device to cool for 90 seconds.
• After sealing, air appears in the bag. Possible cause: puncture of the bag by the sharp edges of protruding products. Solution: Replace the bag, remove products with sharp edges, or cover the edges of the products with a cloth or suitable cloth.
• The sealing seam is tenuous. Possible reason: insufficient sealing time. Solution: Repeat the sealing process again, following all the points in the instructions.

10 aeno.com/documents

ATTENTION! If your problem persists, please contact your local supplier or the service center for support. Please do not disassemble the device or try to repair it on your own.

Recycling information

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

These symbols indicate that you must follow the Waste Electrical and Electronic Equipment (WEEE) and Waste Battery and Battery Regulations when disposing of the device, its batteries and accumulators, and its electrical and electronic accessories. According to the rules, this equipment must be disposed of separately at the end of its service life. Do not dispose of the device, its batteries and accumulators, or its

electrical and electronic accessories together with unsorted municipal waste, as this will harm the environment. To dispose of this equipment, it must be returned to the point of sale or turned in to a local recycling facility. You should contact your local household waste disposal service for details.

ASBISc reserves the right to modify the device and to make edits and changes to this document without prior notice to users.

The warranty period and service life is 2 years from the date of purchase of the product. Information about the manufacturer: ASBISc Enterprises PLC, Iapetou, 1, Agios Athanasios, 4101, Limassol, Cyprus. Made in China.

For current information and details on the device description and specification, as well as connection process, certificates, warranty and quality issues, see relevant Installation and Operation Manuals available for downloading at aeno.com/documents. All trademarks and names herein are the property of their respective owners.

aeno.com/documents 11
