Product type	Hair dryer
Brand	Beurer
Model	HC 100 Excellence
Power	1,500 – 1,700 W
Power supply	220–240 V~, 50–60 Hz
Weight	Approx. 599 g
Protection class	II (double insulation)
Temperature levels	3 (warm, hot, very hot)
Fan speeds	3 (low, medium, high)
Cool shot function	Yes, dedicated button
Included accessories	Professional nozzle, diffuser, storage pouch
Removable filter	Yes, with cleaning indicator after 900 minutes
Hanging loop	Yes
Power cord	Non-tangle, length not specified
Usage	Indoor only, do not use near water
Cleaning	Clean the filter regularly with a damp cloth
Maintenance	Check for hair or lint buildup on filter
Safety	Double insulation, overheat protection (automatic shut-off)
Sound level	≤ 70 dB(A) (average sound pressure 60 dB(A))
Vibration	≤ 2.5 m/s² (hand-arm total value)
Warranty	Refer to the supplied warranty card
Compliance	EU EMC, low voltage, WEEE directives

Frequently Asked Questions - HC 100 Excellence BEURER

How to turn the hair dryer on and off?

Push the ON/OFF switch up (position I) to turn on, down (position 0) to turn off.

How to adjust temperature and fan speed?

Use the heat button (2) to choose among 3 temperature levels. Use the fan button (4) for 3 fan speeds. LED indicators show the active level.

How to use the cool shot function?

Hold down the cool shot button (6) while using. The heat indicator turns off to confirm cool air mode.

Can I use the hair dryer in the bathroom?

Yes, but with caution. Do not use near a bathtub or shower. Unplug after use. It is recommended to install a 30 mA residual current device in the bathroom.

How to clean the filter and when?

The fan indicator blinks after 900 minutes of use. Unplug the device, remove the filter horizontally, clean the inner and outer filter with a damp cloth, dry, and reassemble.

What to do if the hair dryer overheats?

The hair dryer has built-in protection. If it overheats, it will shut off automatically. Let it cool down, clean the filter, and ensure air inlets are unobstructed before reusing.

Can I use styling sprays while using?

No, hair sprays contain flammable substances. Avoid using them during drying to prevent fire risk.

How to store the hair dryer after use?

Turn off the device, unplug it, let it cool on a heat-resistant surface, then store it in the provided storage pouch. Do not wrap the cord around the device.

What accessories are included?

The hair dryer comes with a professional nozzle, a diffuser, and a storage pouch. The nozzle and diffuser attach to the air outlet.

How to replace the power cord if damaged?

The cord can only be replaced by the manufacturer, its service center, or a qualified person to avoid hazards. Do not use the device if the cord is damaged.

USER MANUAL HC 100 Excellence BEURER

Beurer hair dryer with black bristles and a white headband (no visible text or symbols on body)

DE Haartrockner

Original instructions for use......16

FR Sèche-cheveux

Illustration of a folded document or book with a geometric arrow pointing to its page (no text or symbols present)

EN Unfold page 3 before reading the instructions for use.

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer with accessories including a handheld tool, connector, and bag (no visible text or symbols)

2. ZEICHENERKLÄRUNG

Prohibition sign with pictogram of a bathtub and shower, indicating no prohibition or disinfection

Marco Buehler, General Manager

Simple line drawing of an open book with no text or symbols visible

Read these instructions for use carefully. Observe the warnings and safety notes. Keep these instructions for use for future reference. Make the instructions for use accessible to other users. If the device is passed on, provide the instructions for use to the next user as well.

CONTENTS

1. Included in delivery .....17
2. Signs and symbols....17
3. Warnings and safety notes......19
4. Device description....22
5. Usage....23
6. Cleaning and maintenance......24
7. Disposal....24
8. Technical specifications .....25
9. EU declaration of conformity....25
10. Warranty ......26

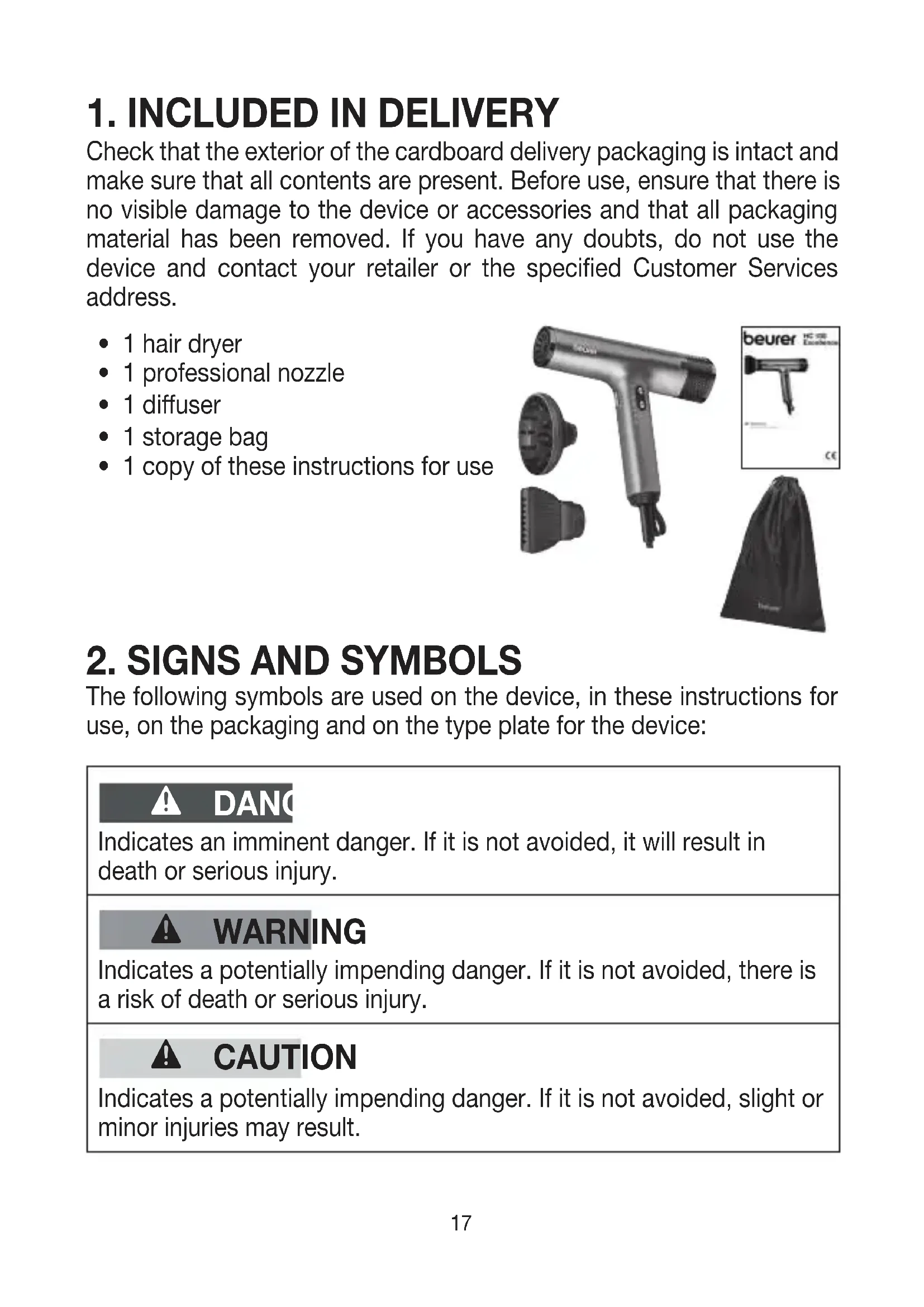

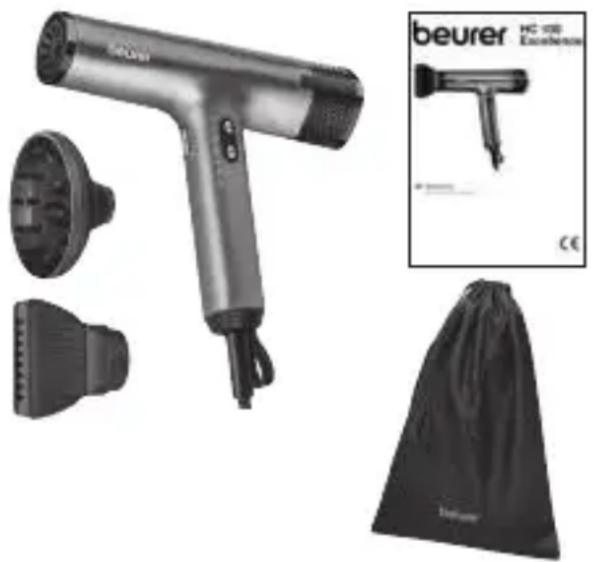

1. INCLUDED IN DELIVERY

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

• 1 hair dryer
  • 1 professional nozzle
• 1 diffuser
• 1 storage bag
  • 1 copy of these instructions for use

Product photo of a beurer with accessories including a T-shaped hairdryer, a circular filter, and a bag (no visible text or symbols)

2. SIGNS AND SYMBOLS

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

DANO

Indicates an imminent danger. If it is not avoided, it will result in death or serious injury.

WARNING

Indicates a potentially impending danger. If it is not avoided, there is a risk of death or serious injury.

CAUTION

Indicates a potentially impending danger. If it is not avoided, slight or minor injuries may result.

NOTICE

Indicates a potentially harmful situation. If it is not avoided, the system or something in its vicinity may be damaged.

	DangerThis device must not be used near water or in water (e.g. in a wash basin, or in the shower or bath)– risk of electric shock!		Marking to identify the packaging material.A = material abbreviation,B = material number:1-7 = plastics,20-22 = paper and cardboard
	Read the instructions		Product informationNote on important information
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE		CE labellingThis product satisfies the requirements of the applicable European and national directives.
	Do not dispose of batteries containing harmful substances with household waste		Conformity assessed marking for the United Kingdom
	Manufacturer Importer
	The products demonstrably meet the requirements of the Technical Regulations of the EAEU		Separate the product and packaging elements and dispose of them in accordance with local regulations.
	Do not wind the cable around the device		Protection class II device The device is double-insulated and, therefore, is in protection class 2

3. WARNINGS AND SAFETY NOTES

WARNING

• The device must only be used for the purpose for which it was designed and in the manner specified in these instructions for use.
• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills, or a lack of experience and/or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and have understood the risks involved.

• Children must not play with the device.

- Danger of suffocation! Keep packaging materials away from children.

• Cleaning and user maintenance must not be performed by children unless supervised.
• This device is intended for use in commercial and private environments.
• When the device is in operation, only hold it by the handle (13).
• If the device is not used in the manner specified by the manufacturer, safety cannot be guaranteed.
• Do not cover the dryer with towels or other objects while it is in operation or still hot.
• The air supply must not be obstructed during use. Regularly check that it is clean and free of hair.

! DANO

Prohibition sign with pictogram of a bathtub and shower, indicating no prohibition or disinfection

- Do not use this device near bathtubs, shower trays or other containers which have water in them.

- Risk of electric shock! Never submerge the device in water or other liquids! If the device falls into water, do not reach into the water! First switch off the fuse at the fuse box and then pull the mains plug out of the socket.

- Never touch the device with wet or damp hands or feet.

• If using the hair dryer in the bathroom, unplug it after use – this is because proximity to water constitutes a danger even when the hair dryer is switched off.
• As an additional safety measure, the installation in the bathroom circuit of a residual current device (FI/RCD) with a rated tripping current not exceeding 30 mA is recommended. Ask your installer for advice.

WARNING

• Before use, always check whether the voltage of your mains network matches the voltage required for the hair dryer.
• If the mains connection cable of this device is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person to avoid any risk. Do not use the device if it is damaged or not functioning correctly.
• Do not pull, twist or bend the mains cable 9! Do not wrap the mains cable 9 around the hair dryer!
• Do not use extension cables.

• Always prevent the cable from coming into contact with hot surfaces.

• Risk of fire! Ensure that the air outlet opening 12 and the removable filter 7 are not covered.

• Risk of burns and fire! The diffuser 10, the professional nozzle 11 and the hair dryer may become very hot depending on the switch setting and period of use.
• Keep the hot device away from easily damaged surfaces and the skin.
• Do not touch the diffuser 10 and the professional nozzle 11 during use, as they will heat up.
• The device must not be connected to the mains when performing maintenance work and exchanging the nozzle and diffuser.
• Never use the cable to pull the plug out of the socket.

4. DEVICE DESCRIPTION

The associated drawings are shown on page 3.

1 ON/OFF switch
2 Warm air button
3 Warm air indicator
4 Blower button
5 Blower indicator
6 Cold air button
7 Filter

8 Hanging loop
9 Mains cable
10 Diffuser
11 Professional nozzle
12 Air outlet opening
13 Hair dryer holding position

5. USAGE

1. Wash hair as usual and then dry with a towel. Hairsprays contain flammable substances, so do not use hairspray while using the device.
2. Stand on a dry, non-conductive surface and make sure your hands are dry.
3. To switch on the hair dryer, slide the ON/OFF switch 1 up to setting I. The hair dryer displays the warm air and blower settings that were last used.
4. Use the warm air button 2 to set the desired temperature setting. The warm air indicator 3 shows the current setting in colour.

One red LED = warm air

Two red LEDs = very warm air

Three red LEDs = hot air

Alternatively, press and hold the cold air button 6 to use the cold air setting. The warm air indicator 3 goes out.

1. Use the blower button 4 to set the desired setting. The blower indicator 5 shows the current setting in colour.

One white LED = low blower setting

Two white LEDs = medium blower setting

Three white LEDs = high blower setting

1. Dry and/or style your hair as you wish.

2. Switch off the hair dryer after each use or upon interruption. To switch off the hair dryer, slide the ON/OFF switch 1 down to setting 0. The warm air indicator 3 and the blower indicator 5 go out.

3. Do not leave the hair dryer unattended while in use.

4. Remove the mains plug from the socket.

5. Allow the hair dryer to cool completely on a fireproof surface.

6. Then store the device in the sales packaging.

6. CLEANING AND MAINTENANCE

As soon as the hair dryer has reached 900 minutes of use, the three LEDs of the blower indicator 5 flash simultaneously. This indicates that you need to clean the hair dryer. The LEDs of the blower indicator 5 flash six times and then return to normal operation.

1. Disconnect the mains plug and leave the device to cool.
2. Never store a hot device that is still plugged in.
3. Pull the filter 7 off horizontally (see figure A on inside cover).
4. Remove the inner filter from the outer filter using the metal handle (see figure B). The accumulated dust and lint can be removed by hand. The outer filter can be cleaned with a slightly damp cloth. Dry the clean outer filter completely with a cloth.
5. Clean the inner filter with a soft, slightly damp cloth. Then allow the inner filter to dry completely.
6. Put the inner filter back in the outer filter.
7. Place the filter 7 back on the device horizontally until it clicks into place.

7. DISPOSAL

For environmental reasons, do not dispose of the device in household waste at the end of its service life. Dispose of the device at a suitable

local collection or recycling point in your country. Observe the local regulations for material disposal. Dispose of the device in accordance with EC Directive Waste Electrical and Electronic Equipment (WEEE). If you have any questions, please contact the local authorities responsible for waste disposal. You can obtain the location of collection points for old devices from the local or municipal authorities, local waste disposal companies or your retailer, for example.

8. TECHNICAL SPECIFICATIONS

Weight: Approx. 599 g
Voltage supply: 220-240 V~, 50-60 Hz
Power consumption: 1500-1700 W
Protection class: II
Ambient conditions: Only approved for indoor use
Permissible temperature range:	-10 to +40°C

Subject to technical changes.

The average sound pressure level is 60 dB(A). The sound pressure level does not exceed 70 dB(A).

Information according to the Machinery Directive 2006/42/EC

Vibration total value to which the hand-arm system is subjected ≤ 2.5m/s2

Measured maximum vibration total value including uncertainty of measurement.

9. EU DECLARATION OF CONFORMITY

Beurer hair dryer

Type: HC 100

The aforementioned product complies with the provisions of the following EU legislation and harmonised standards.

2014/30/EU - EMC Directive

EN 55014-1, EN 55014-2, EN 61000-3-3 and EN 61000-3-2

2011/65/EU – RoHS Directive

For commercial use:

2006/42/EC – Machinery Directive

EN 60335-1, EN 60335-2-23 and EN 62233

For private use:

2014/35/EU – Low Voltage Directive

EN 60335-1, EN 60335-2-23 and EN 62233

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Ulm, 05.09.2023

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany

10. WARRANTY

Further information on the warranty and warranty conditions can be found in the warranty leaflet supplied.

FRANÇAIS

Simple line drawing of an open book with no text or symbols visible

Product display featuring a beaker, accessories, and a bag of Beurer (no visible text or symbols on main objects)

2. SYMBOLES UTILISÉS

Prohibition sign with circular and diagonal lines crossed, indicating no prohibition or water usage

2011/65/UE – Directive RoHS

2006/42/CE – Directive Machines

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Allemagne

10. GARANTIE

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer with accessories and a bag (no visible text or symbols)

Prohibition sign with pictogram of a bathtub and bucket, no text present

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Alemania

10. GARANTÍA

Simple line drawing of an open book with no text or symbols visible

Product display featuring a beaker, accessories, and a bag with 'beurer' branding (no readable text or symbols on main objects)

Prohibition sign with pictogram of a bathtub and shower, indicating no prohibition or disinfection

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germania

10. GARANZIA

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer with accessories including a T-shaped hairdryer, connector, and bag (no visible text or symbols)

Prohibition sign with pictogram of a bathtub and bucket, no text present

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Almanya

10. GARANTI

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer hair dryer with accessories and a bag (no visible text or symbols)

Prohibition sign showing a shower pool with a diagonal line crossing it, indicating no water release or pollution.

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Германия

10. ГАРАНТИЯ

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer hair dryer with accessories and a bag (no visible text or symbols)

2. OBJAŚNIENIE SYMBOLI

Prohibition sign with pictogram of shower pool and diagonal line, indicating no shower pool or shower pool allowed

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Niemcy

10. GWARANCJA

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer hair dryer with accessories and a bag (no visible text or symbols)

2. VERKLARING VAN DE SYMBOLEN

3. WAARSCHUWINGENEN VEILIGHEIDSRICHTLIJNEN

WAARSCHUWING

Prohibition sign with no text, featuring a shower icon and diagonal line

4. BESCHRIJVING VAN HET APPARAAT

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer hair dryer with accessories and a bag (no visible text or symbols)

2. SYMBOLFORKLARING

Prohibition sign with pictogram of a bathtub and shower, indicating no prohibition or disinfection

Simple line drawing of an open book with no text or symbols visible

Product display featuring a beaker, accessories, and a bag of Beurer (no visible text or symbols on main objects)

2. TECKENFÖRKLARING

Prohibition sign with pictogram of a bathtub and diagonal line, indicating no prohibition or water usage.

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Tyskland

10. GARANTI

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer hair dryer with accessories and a bag (no visible text or symbols)

2. SYMBOLFORKLARING

Prohibition sign with pictogram of a bathtub and bucket, indicating no prohibition or water release

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Tyskland

10. GARANTI

Simple line drawing of an open book with no text or symbols visible

Product photo of a beurer hair dryer with accessories and a bag (no visible text or symbols)

2. MERKKIEN SELITYKSET

Prohibition sign with pictogram of a bathtub and bucket, no text present

Marco Buehler, General Manager

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Saksa

10. TAKUU

UK Importer: BEURER UK Ltd., Suite 16, Stonecross Place

Yew Tree Way

WA32SH Golborne

United Kingdom
